VOLVO V60 CROSS COUNTRY 2017 Owner´s Manual

SPECIFICATIONS
}}
379
DimensionsThis section lists your vehicle's most important dimensions.

||
SPECIFICATIONS
380

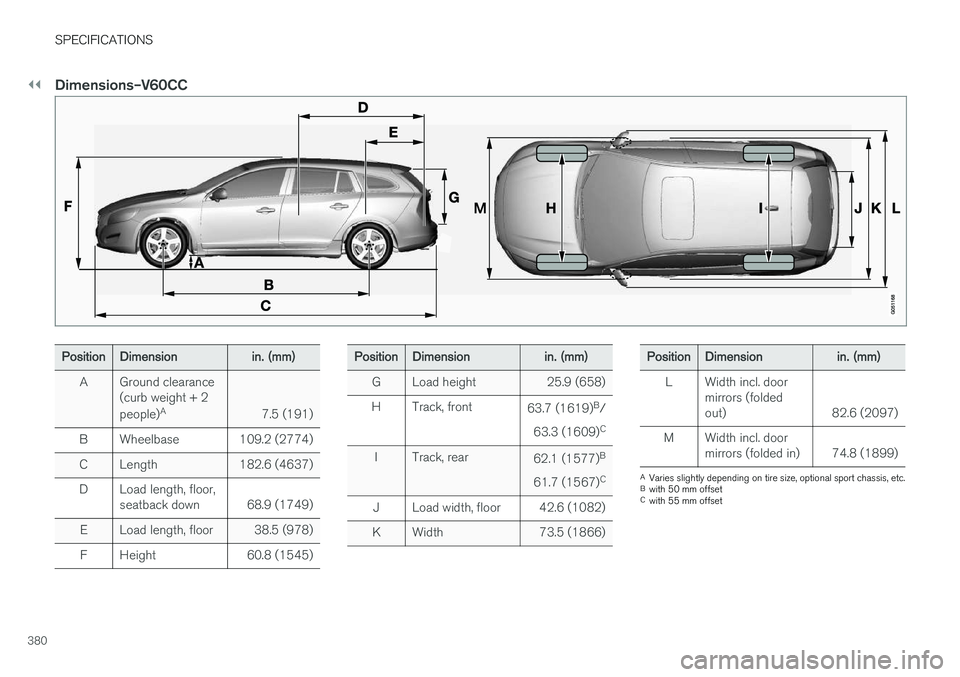

Dimensions–V60CC
PositionDimensionin. (mm)
AGround clearance (curb weight + 2 people)A
7.5 (191)
BWheelbase109.2 (2774)
CLength182.6 (4637)
DLoad length, floor, seatback down68.9 (1749)
ELoad length, floor38.5 (978)
FHeight60.8 (1545)
PositionDimensionin. (mm)
GLoad height25.9 (658)
HTrack, front63.7 (1619)
B
/
63.3 (1609) C
ITrack, rear62.1 (1577)B
61.7 (1567) C
JLoad width, floor42.6 (1082)
KWidth73.5 (1866)
PositionDimensionin. (mm)
LWidth incl. door mirrors (foldedout)
82.6 (2097)
MWidth incl. door mirrors (folded in)74.8 (1899)
A
Varies slightly depending on tire size, optional sport chassis, etc.
B with 50 mm offset
C with 55 mm offset

SPECIFICATIONS
381

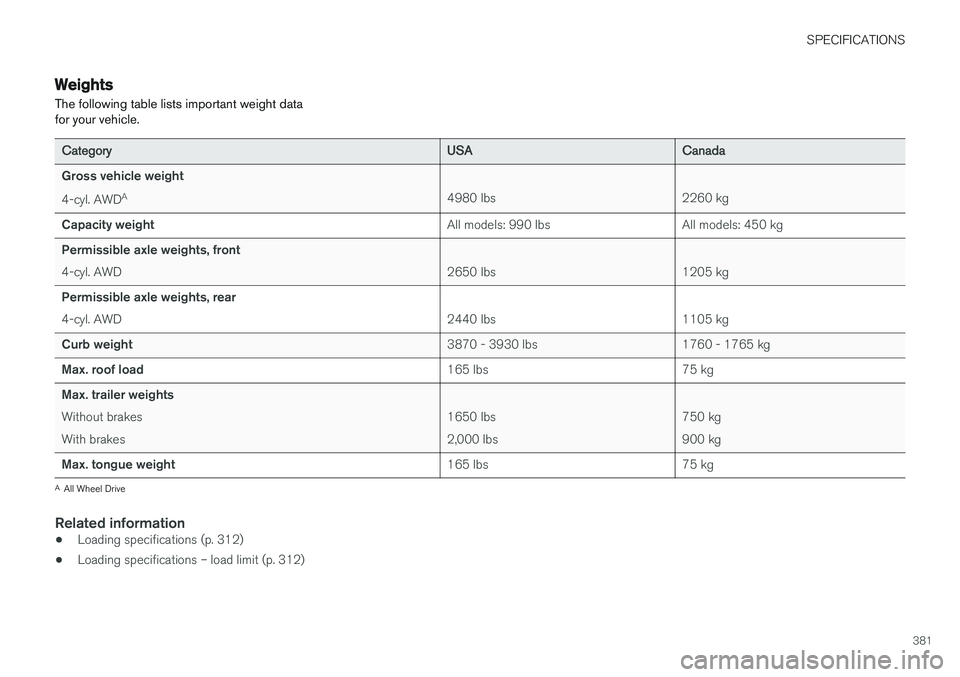

Weights The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 4-cyl. AWDA
4980 lbs2260 kg
Capacity weightAll models: 990 lbsAll models: 450 kg
Permissible axle weights, front 4-cyl. AWD
2650 lbs1205 kg
Permissible axle weights, rear 4-cyl. AWD
2440 lbs1105 kg
Curb weight3870 - 3930 lbs1760 - 1765 kg
Max. roof load165 lbs75 kg
Max. trailer weights Without brakes With brakes
1650 lbs 2,000 lbs750 kg 900 kg
Max. tongue weight165 lbs75 kg
A
All Wheel Drive
Related information
• Loading specifications (p. 312)
• Loading specifications – load limit (p. 312)

SPECIFICATIONS
382

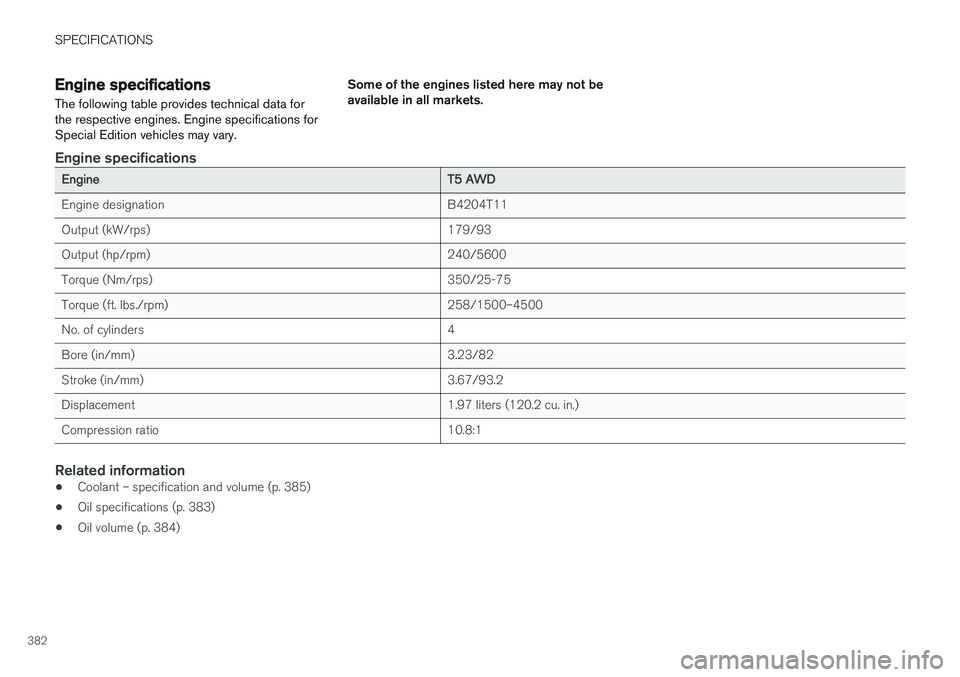

Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary. Some of the engines listed here may not beavailable in all markets.
Engine specifications
EngineT5 AWD
Engine designationB4204T11
Output (kW/rps)179/93
Output (hp/rpm)240/5600
Torque (Nm/rps)350/25-75
Torque (ft. lbs./rpm)258/1500–4500
No. of cylinders4
Bore (in/mm)3.23/82
Stroke (in/mm)3.67/93.2
Displacement1.97 liters (120.2 cu. in.)
Compression ratio10.8:1
Related information
•
Coolant – specification and volume (p. 385)
• Oil specifications (p. 383)
• Oil volume (p. 384)

SPECIFICATIONS
383

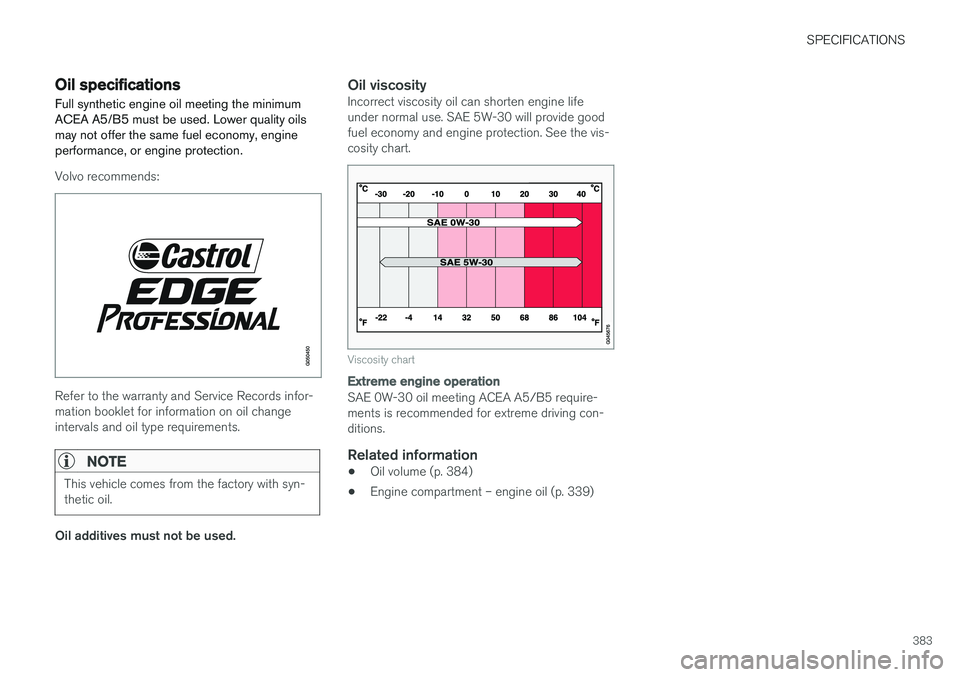

Oil specifications
Full synthetic engine oil meeting the minimum
ACEA A5/B5 must be used. Lower quality oils may not offer the same fuel economy, engineperformance, or engine protection.
Volvo recommends:
Refer to the warranty and Service Records infor- mation booklet for information on oil changeintervals and oil type requirements.
NOTE
This vehicle comes from the factory with syn- thetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will provide goodfuel economy and engine protection. See the vis-cosity chart.
Viscosity chart
Extreme engine operation
SAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme driving con-ditions.
Related information
• Oil volume (p. 384)
• Engine compartment – engine oil (p. 339)

SPECIFICATIONS
384
Oil volume
The following table provides technical data for the respective engines. Some of these engines may not be available in all markets. Engine spec-ifications for Special Edition vehicles may vary.
Engine modelApprox. volume (incl. filter)
6-cylinder7.18 US qts (6.8 liters)
5-cylinder5.8 US qts (5.5 liters)
4-cylinder6.2 US qts (5.9 liters)
Related information
•
Engine compartment – engine oil (p. 339)
• Oil specifications (p. 383)

SPECIFICATIONS
385

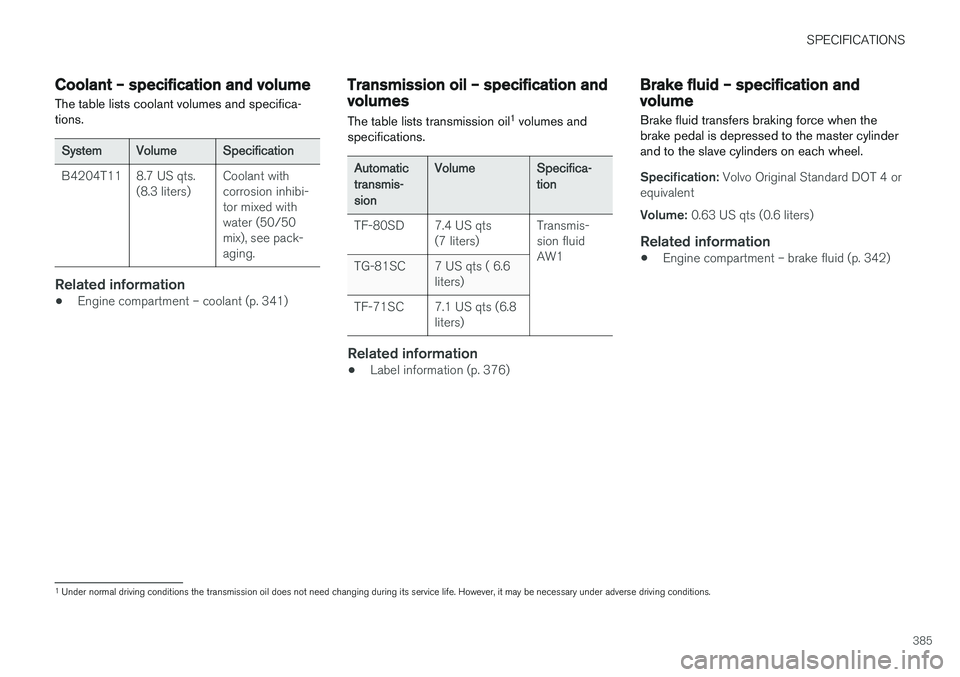

Coolant – specification and volume The table lists coolant volumes and specifica- tions.
SystemVolumeSpecification
B4204T118.7 US qts. (8.3 liters)Coolant with corrosion inhibi-tor mixed withwater (50/50mix), see pack-aging.
Related information
•Engine compartment – coolant (p. 341)
Transmission oil – specification and volumes The table lists transmission oil 1
volumes and
specifications.
Automatic transmis-sionVolumeSpecifica- tion
TF-80SD7.4 US qts (7 liters)Transmis- sion fluidAW1
TG-81SC7 US qts ( 6.6 liters)
TF-71SC7.1 US qts (6.8 liters)
Related information
• Label information (p. 376)
Brake fluid – specification and volume
Brake fluid transfers braking force when the brake pedal is depressed to the master cylinderand to the slave cylinders on each wheel.
Specification: Volvo Original Standard DOT 4 or
equivalent Volume: 0.63 US qts (0.6 liters)
Related information
•Engine compartment – brake fluid (p. 342)
1
Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.

SPECIFICATIONS
386

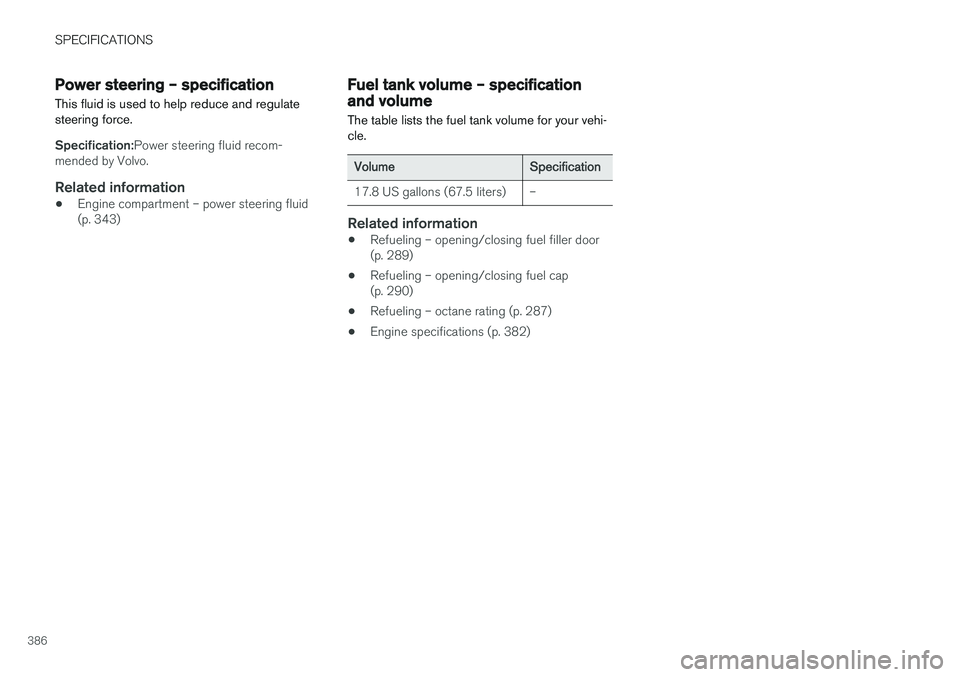

Power steering – specification
This fluid is used to help reduce and regulate steering force.
Specification: Power steering fluid recom-
mended by Volvo.
Related information
• Engine compartment – power steering fluid (p. 343)
Fuel tank volume – specification and volume The table lists the fuel tank volume for your vehi- cle.
VolumeSpecification
17.8 US gallons (67.5 liters)–
Related information
•Refueling – opening/closing fuel filler door (p. 289)
• Refueling – opening/closing fuel cap(p. 290)
• Refueling – octane rating (p. 287)
• Engine specifications (p. 382)

SPECIFICATIONS
387

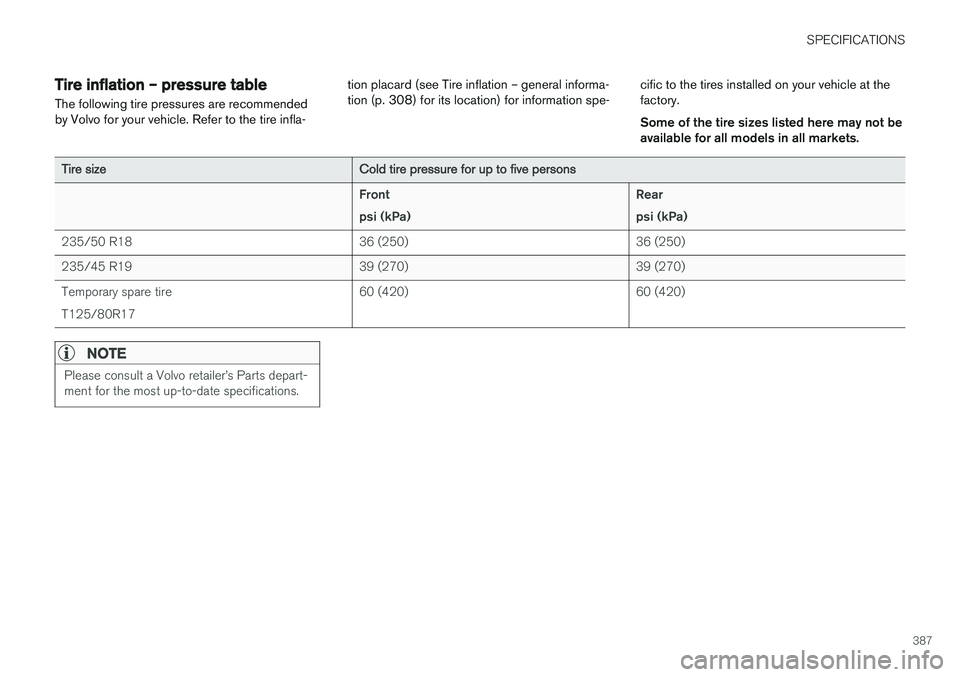

Tire inflation – pressure table
The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla- tion placard (see Tire inflation – general informa-tion (p. 308) for its location) for information spe-
cific to the tires installed on your vehicle at thefactory. Some of the tire sizes listed here may not be available for all models in all markets.
Tire sizeCold tire pressure for up to five persons
Front psi (kPa)Rear psi (kPa)
235/50 R1836 (250)36 (250)
235/45 R1939 (270)39 (270)
Temporary spare tire T125/80R1760 (420)60 (420)
NOTE
Please consult a Volvo retailer

SPECIFICATIONS
388

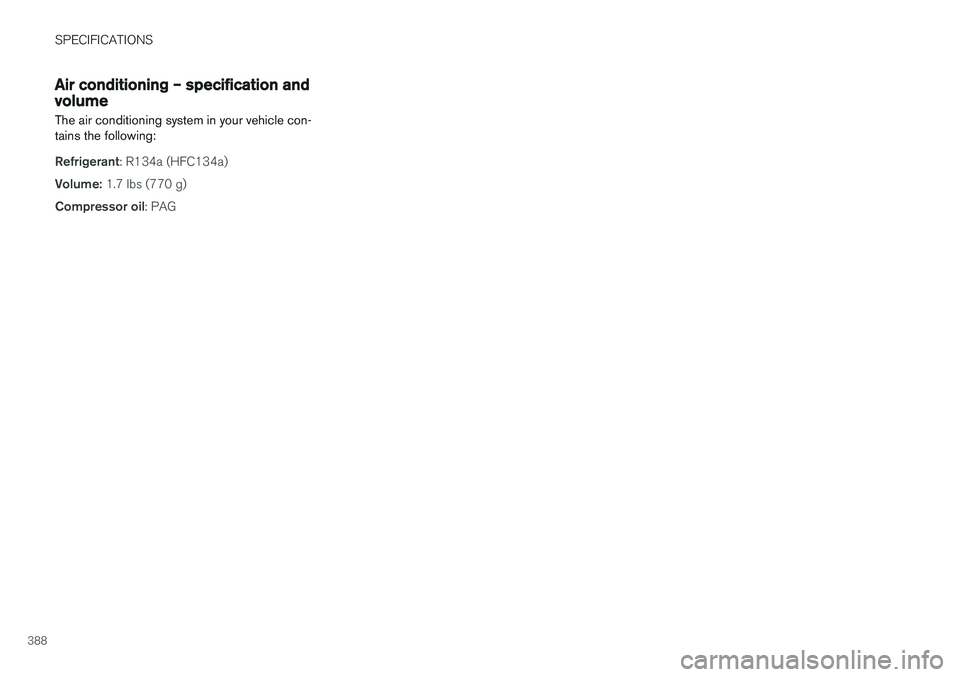

Air conditioning – specification and volume
The air conditioning system in your vehicle con- tains the following:
Refrigerant : R134a (HFC134a)
Volume: 1.7 lbs (770 g)
Compressor oil : PAG
