VOLVO V60 CROSS COUNTRY 2018 Owner´s Manual

SPECIFICATIONS
}}
379
DimensionsThis section lists your vehicle's most important dimensions.

||
SPECIFICATIONS
380

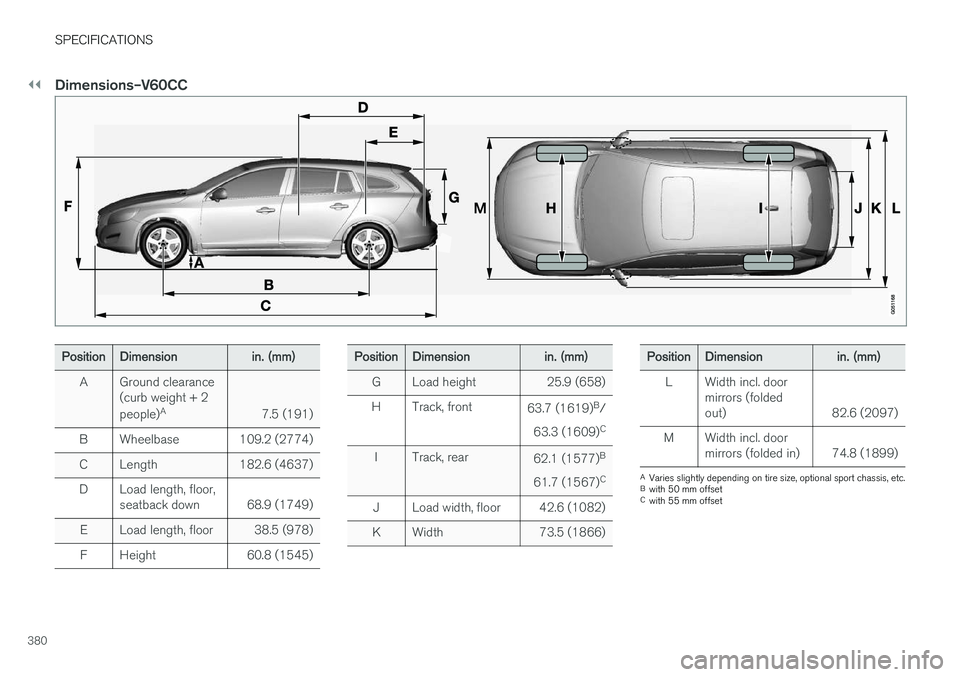

Dimensions–V60CC
PositionDimension in. (mm)
A Ground clearance (curb weight + 2 people) A
7.5 (191)
B Wheelbase 109.2 (2774)
C Length 182.6 (4637)
D Load length, floor, seatback down 68.9 (1749)
E Load length, floor 38.5 (978)
F Height 60.8 (1545)Position Dimension in. (mm)
G Load height 25.9 (658)
H Track, front 63.7 (1619)B
/
63.3 (1609) C
I Track, rear 62.1 (1577)B
61.7 (1567) C
J Load width, floor 42.6 (1082)
K Width 73.5 (1866)Position Dimension in. (mm)
L Width incl. door mirrors (folded
out) 82.6 (2097)
M Width incl. door mirrors (folded in) 74.8 (1899)
AVaries slightly depending on tire size, optional sport chassis, etc.
B with 50 mm offset
C with 55 mm offset

SPECIFICATIONS
381

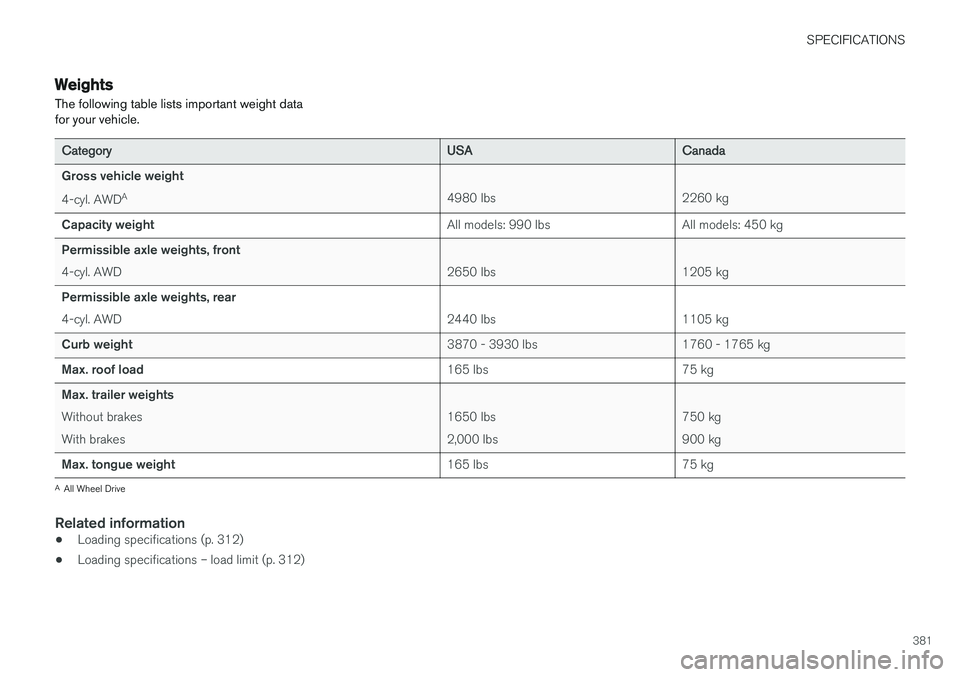

Weights The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 4-cyl. AWD A
4980 lbs 2260 kg
Capacity weight All models: 990 lbs All models: 450 kg
Permissible axle weights, front
4-cyl. AWD 2650 lbs 1205 kg
Permissible axle weights, rear 4-cyl. AWD 2440 lbs 1105 kg
Curb weight 3870 - 3930 lbs 1760 - 1765 kg
Max. roof load 165 lbs 75 kg
Max. trailer weightsWithout brakes With brakes 1650 lbs2,000 lbs750 kg900 kg
Max. tongue weight 165 lbs 75 kg
A
All Wheel Drive
Related information
• Loading specifications (p. 312)
• Loading specifications – load limit (p. 312)

SPECIFICATIONS
382

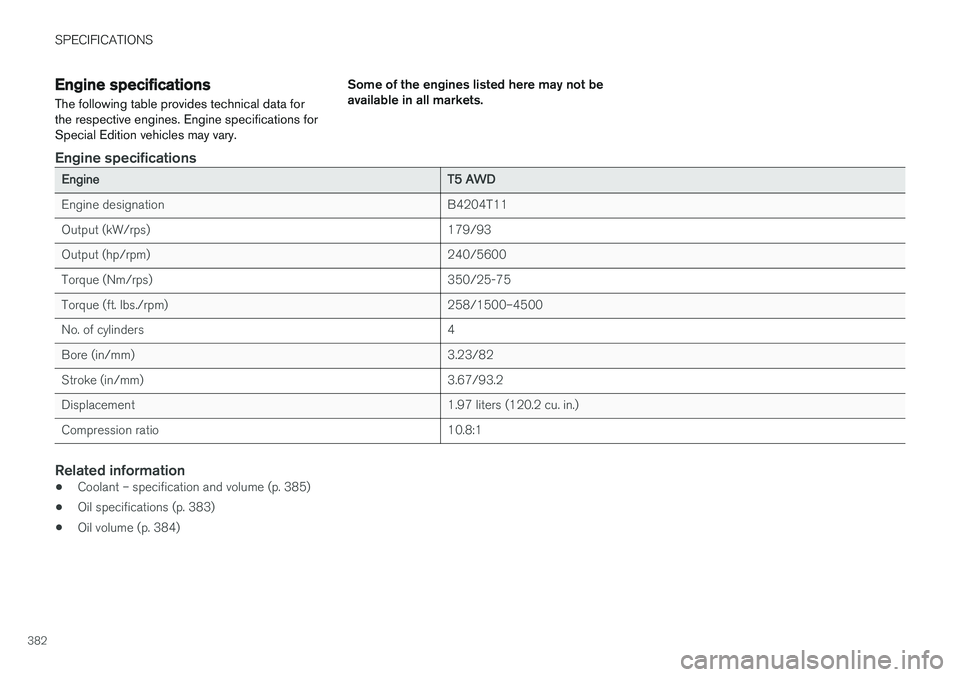

Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary. Some of the engines listed here may not beavailable in all markets.
Engine specifications
Engine
T5 AWD
Engine designation B4204T11
Output (kW/rps) 179/93
Output (hp/rpm) 240/5600
Torque (Nm/rps) 350/25-75
Torque (ft. lbs./rpm) 258/1500–4500
No. of cylinders 4
Bore (in/mm) 3.23/82
Stroke (in/mm) 3.67/93.2
Displacement 1.97 liters (120.2 cu. in.)
Compression ratio 10.8:1
Related information
•Coolant – specification and volume (p. 385)
• Oil specifications (p. 383)
• Oil volume (p. 384)

SPECIFICATIONS
383

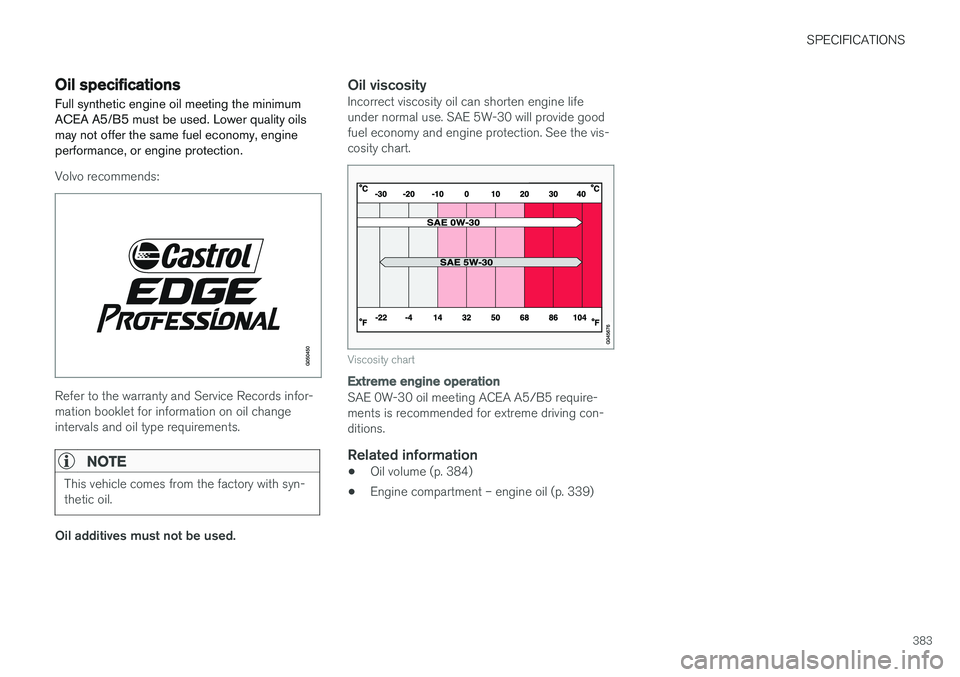

Oil specifications
Full synthetic engine oil meeting the minimum
ACEA A5/B5 must be used. Lower quality oils may not offer the same fuel economy, engineperformance, or engine protection.
Volvo recommends:
Refer to the warranty and Service Records infor- mation booklet for information on oil changeintervals and oil type requirements.
NOTE
This vehicle comes from the factory with syn- thetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will provide goodfuel economy and engine protection. See the vis-cosity chart.
Viscosity chart
Extreme engine operation
SAE 0W-30 oil meeting ACEA A5/B5 require- ments is recommended for extreme driving con-ditions.
Related information
• Oil volume (p. 384)
• Engine compartment – engine oil (p. 339)

SPECIFICATIONS
384

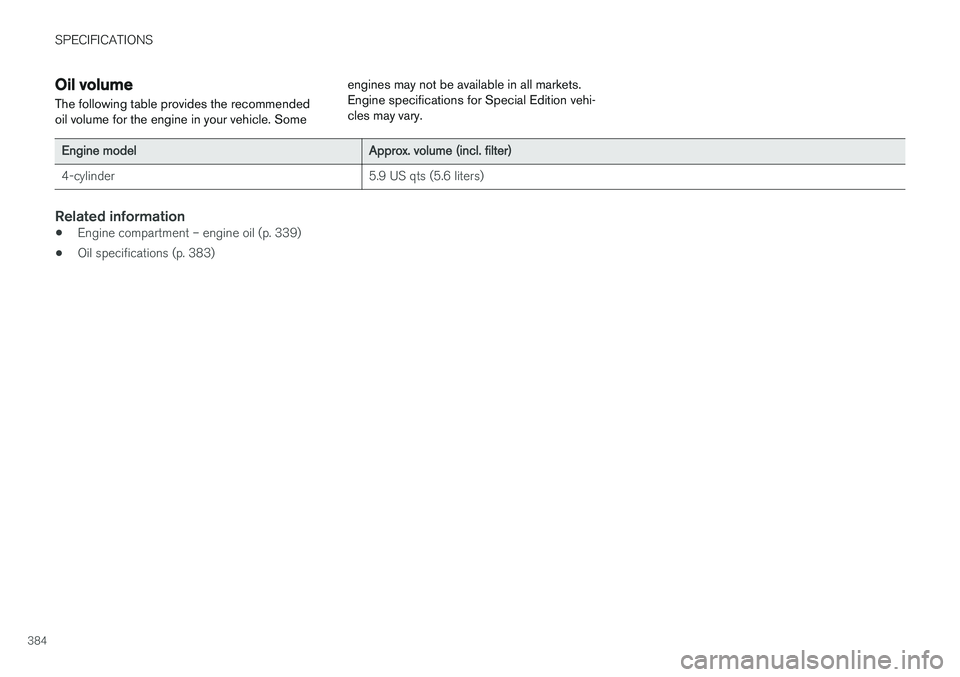

Oil volume
The following table provides the recommended oil volume for the engine in your vehicle. Some engines may not be available in all markets.Engine specifications for Special Edition vehi-cles may vary.
Engine model
Approx. volume (incl. filter)
4-cylinder 5.9 US qts (5.6 liters)
Related information
•Engine compartment – engine oil (p. 339)
• Oil specifications (p. 383)

SPECIFICATIONS
385

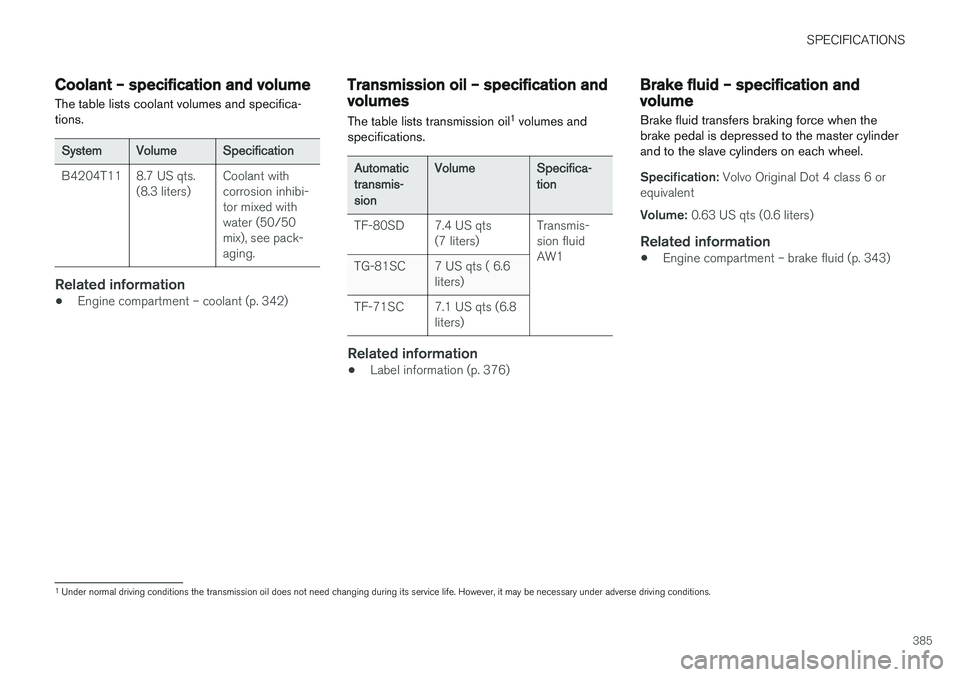

Coolant – specification and volume The table lists coolant volumes and specifica- tions.
SystemVolume Specification
B4204T11 8.7 US qts. (8.3 liters) Coolant with corrosion inhibi-tor mixed withwater (50/50mix), see pack-aging.
Related information
•
Engine compartment – coolant (p. 342)
Transmission oil – specification and volumes The table lists transmission oil 1
volumes and
specifications.
Automatic transmis-sion Volume
Specifica-tion
TF-80SD 7.4 US qts (7 liters) Transmis- sion fluidAW1
TG-81SC 7 US qts ( 6.6
liters)
TF-71SC 7.1 US qts (6.8 liters)
Related information
•Label information (p. 376)
Brake fluid – specification and volume
Brake fluid transfers braking force when the brake pedal is depressed to the master cylinderand to the slave cylinders on each wheel.
Specification: Volvo Original Dot 4 class 6 or
equivalent Volume: 0.63 US qts (0.6 liters)
Related information
•Engine compartment – brake fluid (p. 343)
1
Under normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.

SPECIFICATIONS
386

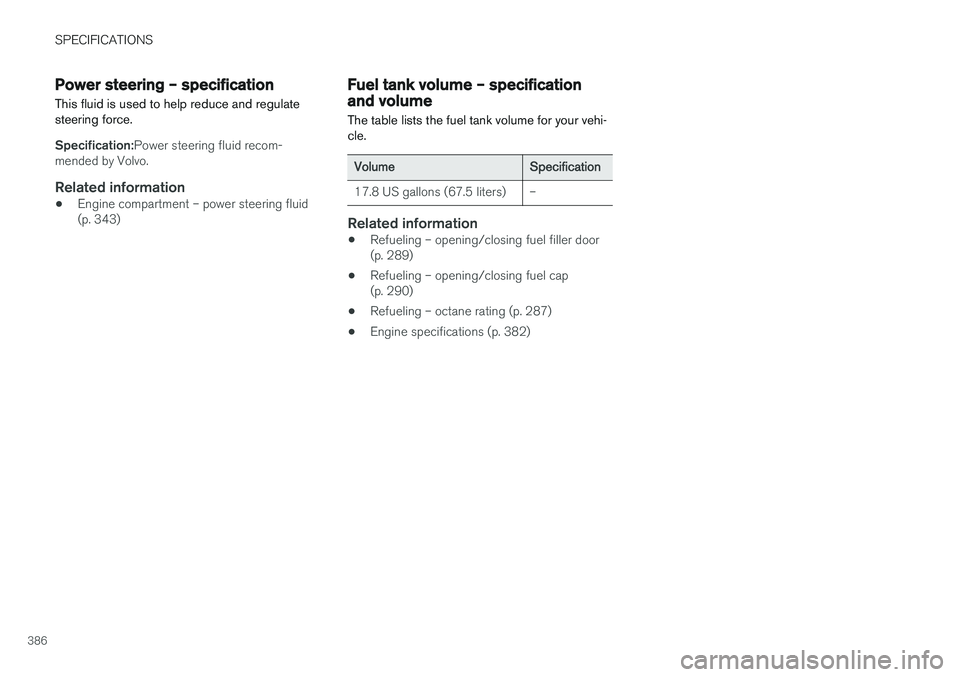

Power steering – specification
This fluid is used to help reduce and regulate steering force.
Specification: Power steering fluid recom-
mended by Volvo.
Related information
• Engine compartment – power steering fluid (p. 343)
Fuel tank volume – specification and volume The table lists the fuel tank volume for your vehi- cle.
Volume
Specification
17.8 US gallons (67.5 liters) –
Related information
• Refueling – opening/closing fuel filler door (p. 289)
• Refueling – opening/closing fuel cap(p. 290)
• Refueling – octane rating (p. 287)
• Engine specifications (p. 382)

SPECIFICATIONS
387

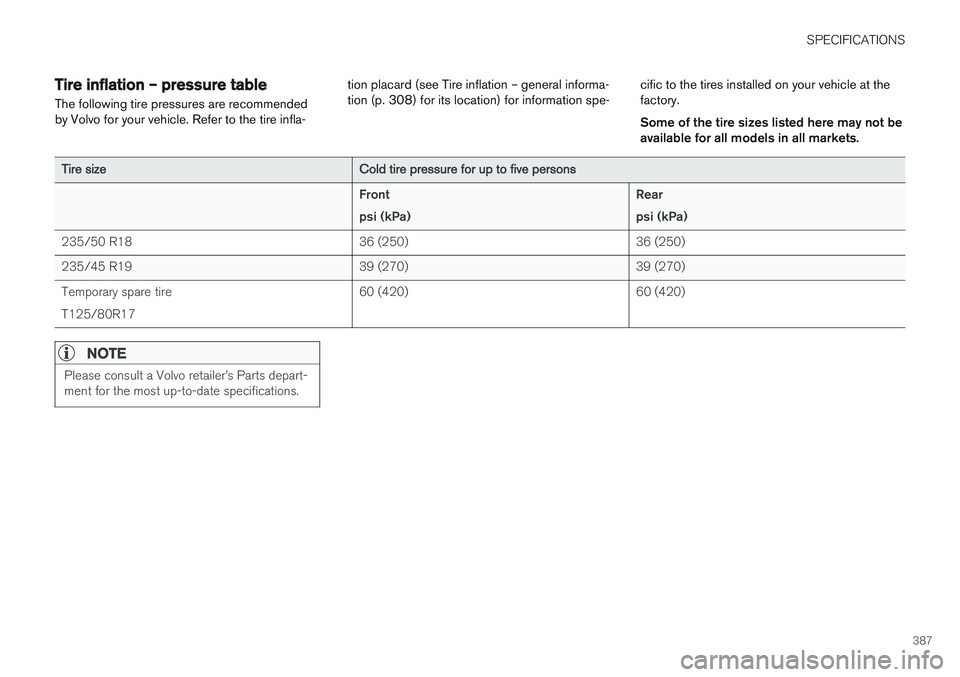

Tire inflation – pressure table
The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla- tion placard (see Tire inflation – general informa-tion (p. 308) for its location) for information spe-
cific to the tires installed on your vehicle at thefactory. Some of the tire sizes listed here may not be available for all models in all markets.
Tire size
Cold tire pressure for up to five persons Front psi (kPa)Rearpsi (kPa)
235/50 R18 36 (250)36 (250)
235/45 R19 39 (270)39 (270)
Temporary spare tireT125/80R17 60 (420)
60 (420)
NOTE
Please consult a Volvo retailer

SPECIFICATIONS
388

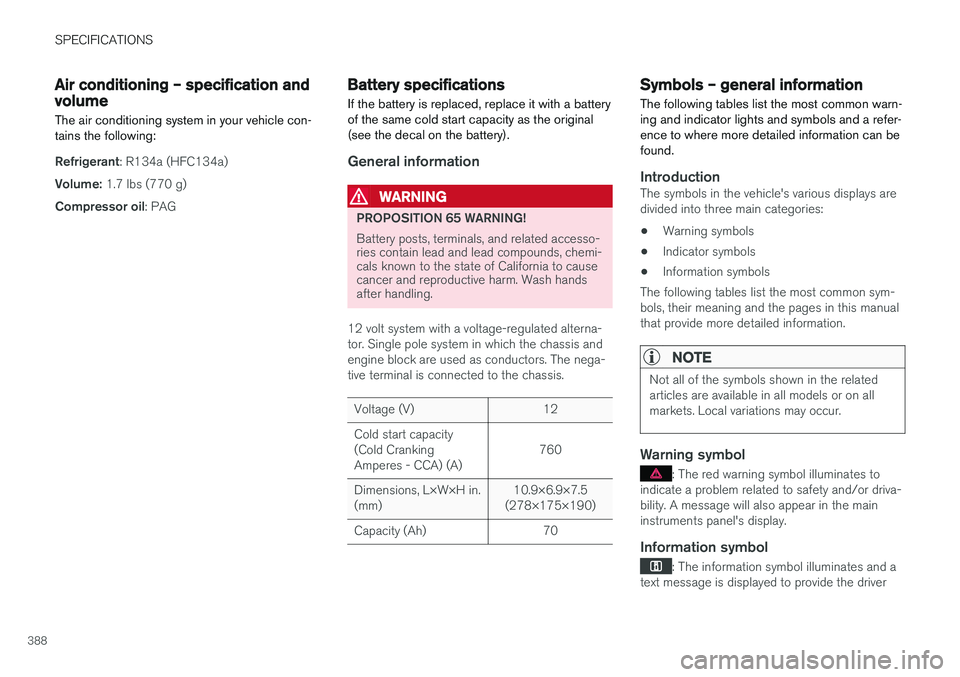

Air conditioning – specification and volume
The air conditioning system in your vehicle con- tains the following:
Refrigerant : R134a (HFC134a)
Volume: 1.7 lbs (770 g)
Compressor oil : PAG
Battery specifications If the battery is replaced, replace it with a battery of the same cold start capacity as the original(see the decal on the battery).
General information
WARNING
PROPOSITION 65 WARNING! Battery posts, terminals, and related accesso- ries contain lead and lead compounds, chemi-cals known to the state of California to causecancer and reproductive harm. Wash handsafter handling.
12 volt system with a voltage-regulated alterna- tor. Single pole system in which the chassis andengine block are used as conductors. The nega-tive terminal is connected to the chassis.
Voltage (V) 12 Cold start capacity (Cold CrankingAmperes - CCA) (A) 760
Dimensions, L×W×H in.(mm) 10.9×6.9×7.5
(278×175×190)
Capacity (Ah) 70
Symbols – general information The following tables list the most common warn- ing and indicator lights and symbols and a refer-ence to where more detailed information can befound.
IntroductionThe symbols in the vehicle's various displays are divided into three main categories: • Warning symbols
• Indicator symbols
• Information symbols
The following tables list the most common sym- bols, their meaning and the pages in this manualthat provide more detailed information.
NOTE
Not all of the symbols shown in the related articles are available in all models or on allmarkets. Local variations may occur.
Warning symbol
: The red warning symbol illuminates to
indicate a problem related to safety and/or driva- bility. A message will also appear in the maininstruments panel's display.
Information symbol
: The information symbol illuminates and a
text message is displayed to provide the driver
