fuses VOLVO V60 TWIN ENGINE 2020 User Guide

||
MAINTENANCE AND SERVICE
* Option/accessory.
612
Function Ampere Type
Fuses in the trunk/cargo compartment 10 Micro
Control module for Internet-connected vehicle; Control module for Volvo On Call 5 Micro
–20
– Micro
Infotainment control module (amplifier)
40
MCaseA
–
–
MCaseA
Multi-band antenna module
5 Micro
Front seat massage function* 5 Micro
–
– Micro
Rear window wiper15 Micro
Fuel pump control module15 Micro
Relay coils in distribution box in engine compartment; Relay coil for transmission oil pump; Medium-voltage converter; Integrated start generator 5 Micro
Opening trunk/tailgate with foot movement
* 5 Micro
Driver's seat heating
15 Micro
Front passenger's seat heating15 Micro
Coolant pump7.5 Micro
– – Micro

MAINTENANCE AND SERVICE
* Option/accessory.613
Function Ampere Type
Power driver's seat* 20 Micro
Active chassis control module
* 20 Micro
–
– Micro
Sensus control module10 Micro
– –
MCaseA
–
– Micro
Power front passenger seat* 20 Micro
–
– Micro
TV* (certain markets only) 5 Micro
Primary fuse for fuses 52, 53, 57 and 58
15 Micro
A
This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.
Related information
Fuses and fuseboxes (p. 599)
Replacing fuses (p. 599)

MAINTENANCE AND SERVICE
* Option/accessory.
614

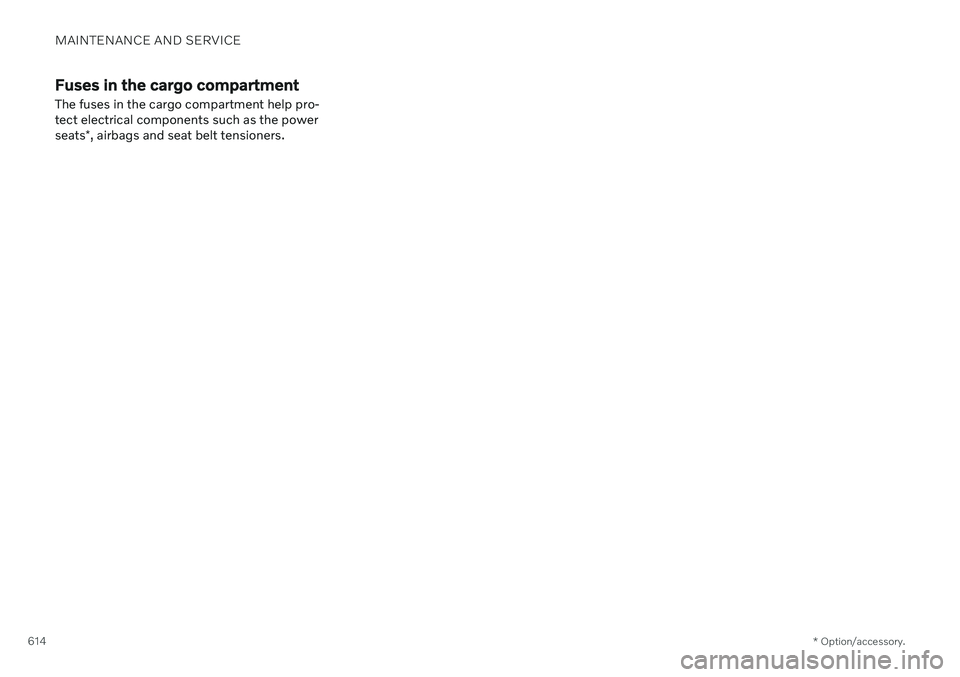

Fuses in the cargo compartment
The fuses in the cargo compartment help pro- tect electrical components such as the power seats *, airbags and seat belt tensioners.

MAINTENANCE AND SERVICE
}}
615
The fuse box is located on the right-hand side.
Fuse pliers are provided on the inside of the fuse box cover to assist in removing andinserting fuses.There are also spaces for several extra fuses inthe
distribution box in the engine compart-
ment .

||
MAINTENANCE AND SERVICE
* Option/accessory.
618
Function Ampere Type
– – Micro
Modules for seat belt tensioners 5 Micro
Emissions system actuator (gasoline, certain engine variants)5 Micro
–– Micro
–– Micro
Heated rear seat (right side)* 15 Micro
–
–
MCaseA
A
This type of fuse should be replaced by a workshop. An authorized Volvo workshop is recommended.
Related information
Fuses and fuseboxes (p. 599)
Replacing fuses (p. 599)
