2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_06.htm[4/4/2013 10:24:41 PM]
12 Fuel pump, fuel injection system20A
13 Control module - automatic transmission10A
14 A/C relay, emissions systems 10A
* Some of the equipment/systems listed may be available on certain models only.
pg. 106 Fuses (supplementary fuse box)
Location * Amperage
1 -
2 Central locking, driving mode selectors (aut. trans.) 10A
3 ABS 10A
4 Immobilizer (Canada only) 10A
5 Climate systems, Onboard diagnostics OBDII 15A
6 -
7 Audio system 15A
8 Immobilizer (Canada only), trip computer, headlight switch 15A
9 Electrically heated rear seat (certain models) 20A
10 Ignition switch 15A
11 Brake lights 10A
12 -
13 Hazard warning flashers, headlight flashers, remote
operated central locking system 15A
14 Heated rear window and door mirrors 30A
15 Courtesy lights, door open warning lights, trunk/cargo
space light, seat belt reminder, glove compartment light 10A
16 Power antenna, electrical connector for trailer, accessories 30A
17 Front fog lights 20A
18 Key reminder 10A
19 Left high beam 15A
20 Right high beam, high beam indicator light 15A
21 Left low beam 15A
22 Right low beam 15A
23 Left front/rear parking lights, left tail light, license plate lights 10A
24 Right front/rear parking lights, right tail light 10A
25 Rear fog light, rear fog light indicator lamp 10A
26 Headlight switch 15A
27 Backup lights, turn signals 15A
28 Heated seats - front/rear (certain models) 25A
29 Heated rear window, shiftlock, seat belt reminder, cruise
control, heated door mirrors, bulb failure warning sensor 10A
30 -
31 Passenger compartment blower-climate systems 25A
32 Audio system 10A
33 Tailgate wiper/washer 15A
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_06.htm[4/4/2013 10:24:41 PM]

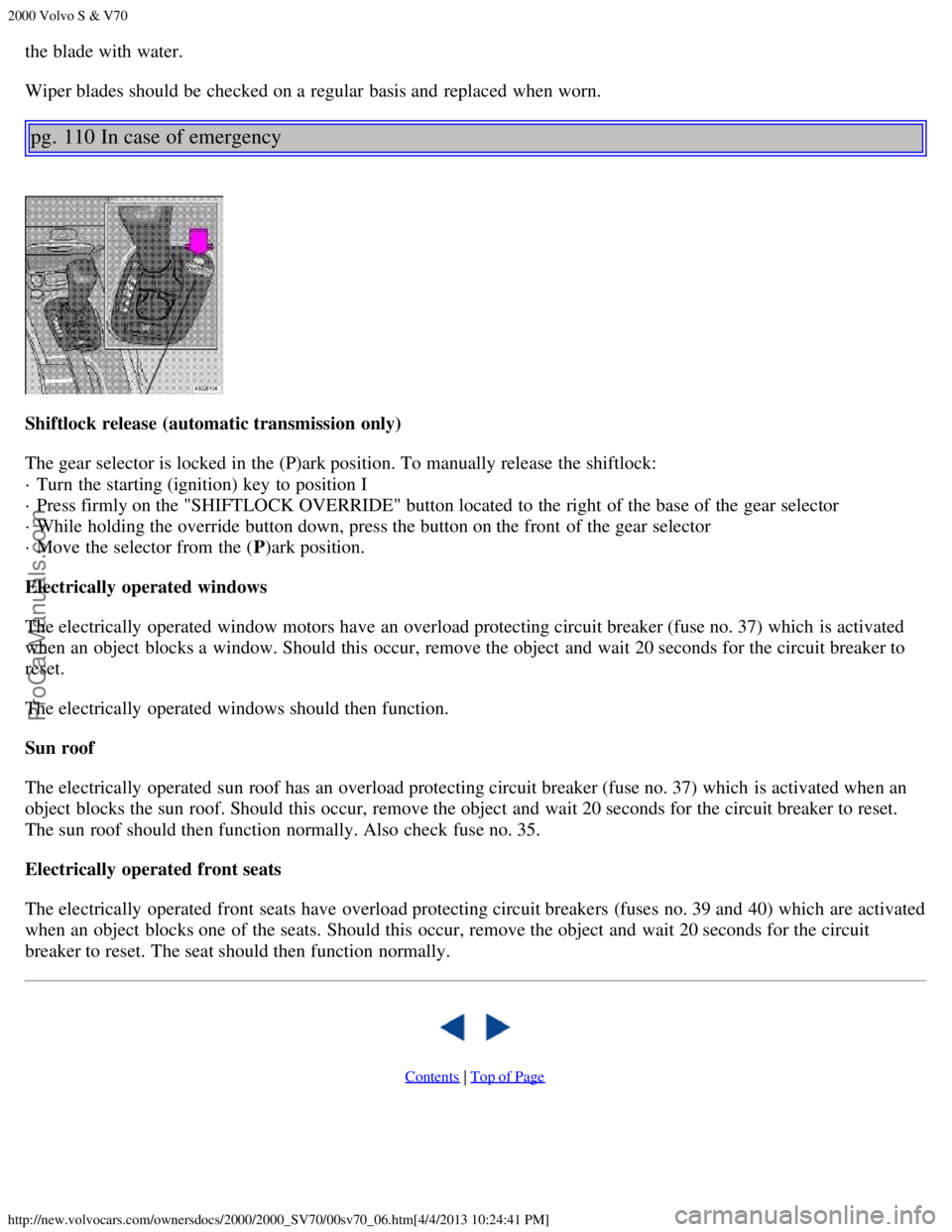

the blade with water.
Wiper blades should be checked on a regular basis and replaced when worn.
pg. 110 In case of emergency
Shiftlock release (automatic transmission only)
The gear selector is locked in the (P)ark position. To manually release the shiftlock:
· Turn the starting (ignition) key to position I
· Press firmly on the "SHIFTLOCK OVERRIDE" button located to the right of the base of the gear selector
· While holding the override button down, press the button on the front of the gear selector
· Move the selector from the (P)ark position.
Electrically operated windows
The electrically operated window motors have an overload protecting circuit breaker (fuse no. 37) which is activated
when an object blocks a window. Should this occur, remove the object and wait 20 seconds for the circuit breaker to
reset.
The electrically operated windows should then function.
Sun roof
The electrically operated sun roof has an overload protecting circuit breaker (fuse no. 37) which is activated when an
object blocks the sun roof. Should this occur, remove the object and wait 20 seconds for the circuit breaker to reset.
The sun roof should then function normally. Also check fuse no. 35.
Electrically operated front seats
The electrically operated front seats have overload protecting circuit breakers (fuses no. 39 and 40) which are activated
when an object blocks one of the seats. Should this occur, remove the object and wait 20 seconds for the circuit
breaker to reset. The seat should then function normally.

Contents | Top of Page
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_10a.htm[4/4/2013 10:25:18 PM]
Refer to the radio code card supplied with your vehicle or ask your Volvo retailer for the correct code.
When the car is parked with the ignition key removed, the anti-theft LED will flash.
Anti-theft LED
To enter the code
After installation or when the set has been disconnected from power, the set displays "COdE" when it is switched on.
Enter the 4-digit code using the preset buttons.
If the correct code is entered, "on" is displayed and the set is ready to use.
If you enter an incorrect code you must enter the correct code again from the beginning.
Incorrect code
If an incorrect code has been entered "rPt" is displayed. Enter the correct code.
After three unsuccessful coding attempts the set will lock and remain locked for two hours. "OFF" is displayed.
During this waiting period:
· the battery must be connected
· the ignition key must be turned to position I
· the unit must be turned on
Make sure the headlights are turned off to help prevent battery drain (please refer to page 26
for information on turning
the headlights off).
Enter the code again once this time has elapsed.
pg. 144 Radio SC -813
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_12.htm[4/4/2013 10:25:31 PM]
Generator warning light23
H
Hand brake34
Handling79
Hazard warning flashers27
Headlight adjustment98
Headlight wiper blades - replacing109
Headlights24
Heated front seats34
Heated side-view mirrors27
Heating38,39,41
Heating and air conditioning37
High beams21
HomeLink®198,199,200
Hood55
I
Ignition switch25
Immobilizer (start inhibitor)44
Instrument illumination26
Instruments18,
Integrated booster cushion 10
J
Jack (sedan)57
Jack (wagon)58
Jump starting82
K
Keyless entry system46
Keylock71
Keys44
Kick -down73,75
Kickdown74,76
L
Label information118
Lock button - tailgate49
Locking button - central45
Locks45
Long load storage (sedans)65
Lubrication125
Luggage net - wagon63
Lumbar support51
M
Maintenance schedule120
Maintenance service119
Malfunction indicator lamp21,22
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_12.htm[4/4/2013 10:25:31 PM]

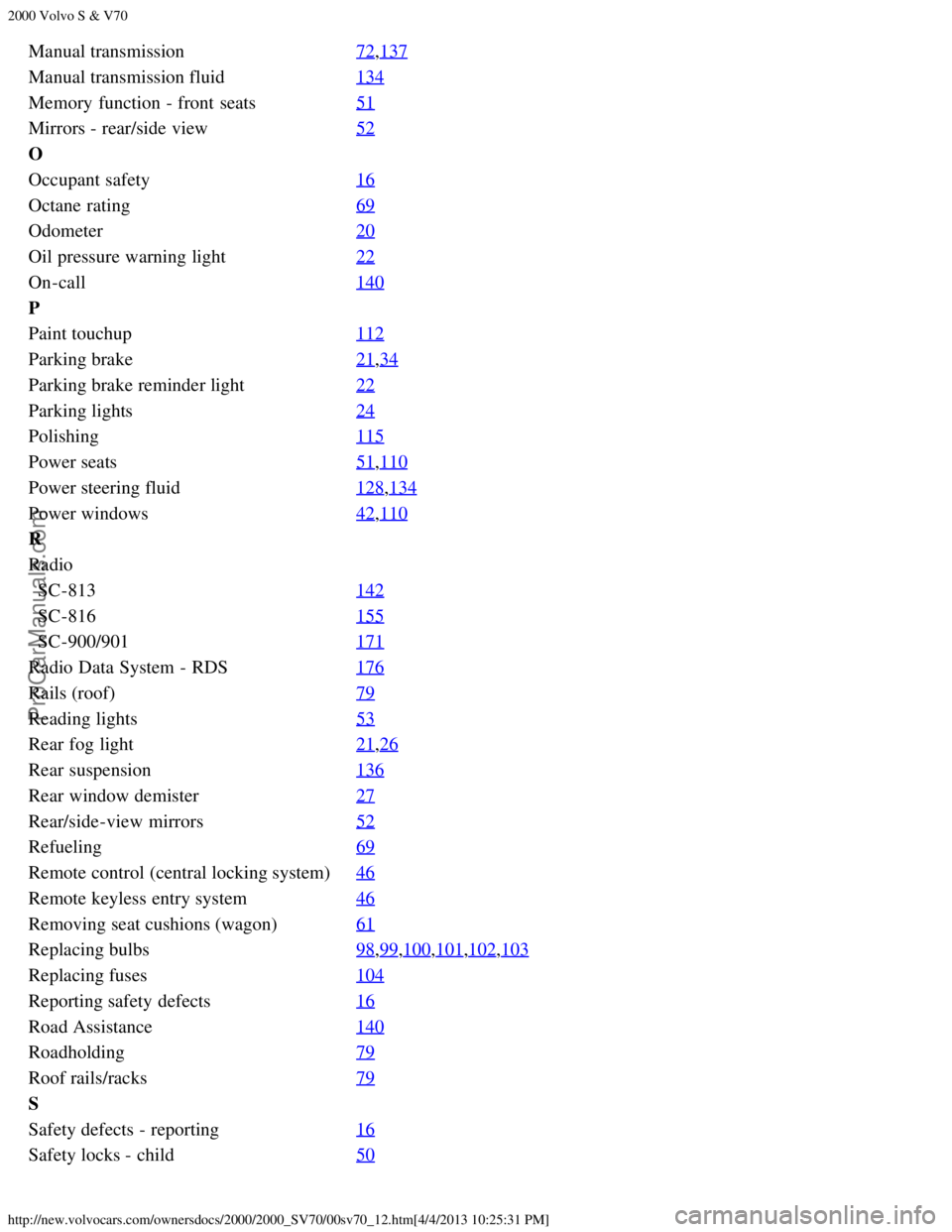

Manual transmission72,137
Manual transmission fluid134
Memory function - front seats51
Mirrors - rear/side view52
O
Occupant safety16
Octane rating69
Odometer20
Oil pressure warning light22
On-call140
P
Paint touchup112
Parking brake21,34
Parking brake reminder light22
Parking lights24
Polishing115
Power seats51,110
Power steering fluid128,134
Power windows42,110
R
Radio
SC-813142
SC-816155
SC-900/901171
Radio Data System - RDS176
Rails (roof)79
Reading lights53
Rear fog light21,26
Rear suspension136
Rear window demister27
Rear/side-view mirrors52
Refueling69
Remote control (central locking system)46
Remote keyless entry system46
Removing seat cushions (wagon)61
Replacing bulbs98,99,100,101,102,103
Replacing fuses104
Reporting safety defects16
Road Assistance140
Roadholding79
Roof rails/racks79
S
Safety defects - reporting16
Safety locks - child50
