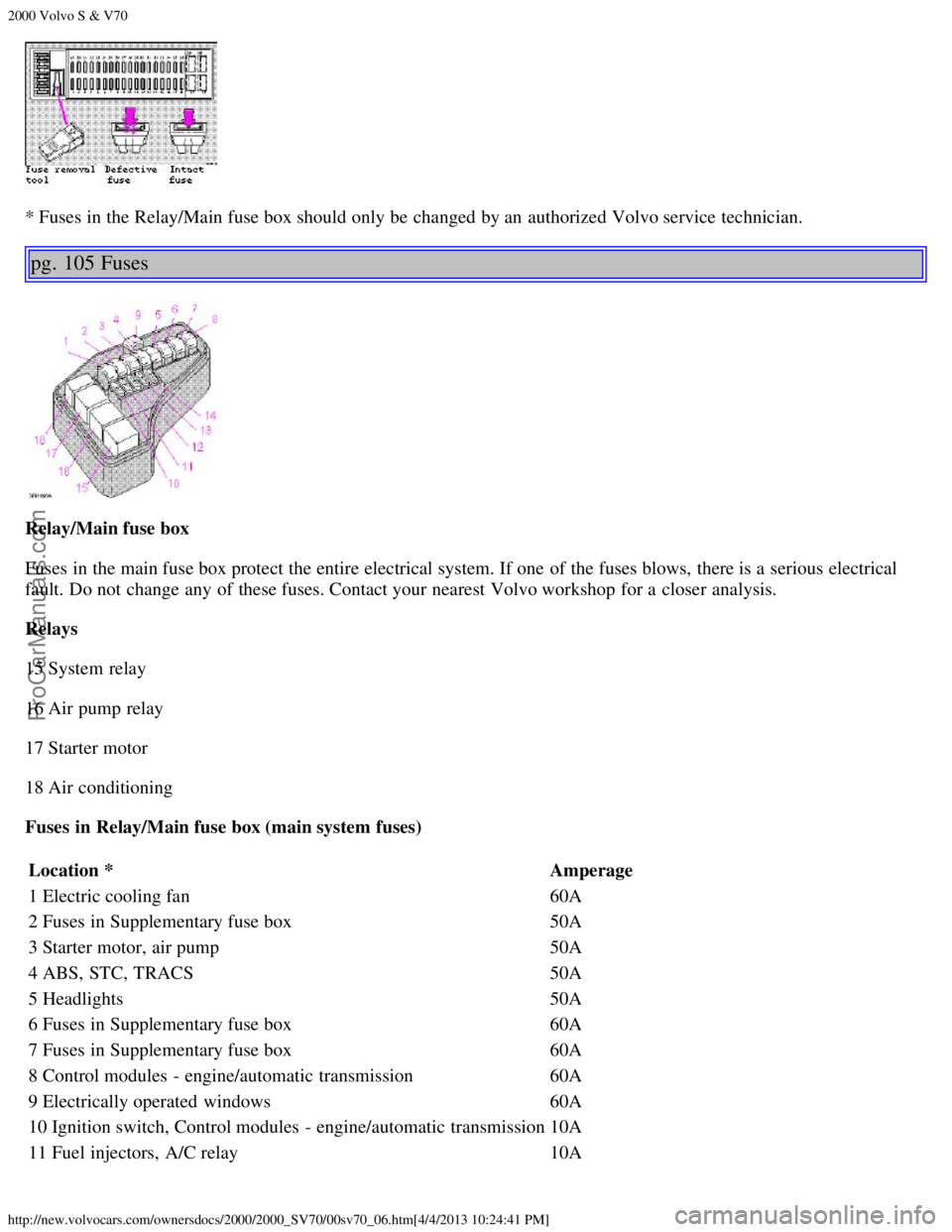

* Fuses in the Relay/Main fuse box should only be changed by an authorized Volvo service technician.
pg. 105 Fuses
Relay/Main fuse box
Fuses in the main fuse box protect the entire electrical system. If one of the fuses blows, there is a serious electrical
fault. Do not change any of these fuses. Contact your nearest Volvo workshop for a closer analysis.
Relays
15 System relay
16 Air pump relay
17 Starter motor
18 Air conditioning
Fuses in Relay/Main fuse box (main system fuses)
Location * Amperage
1 Electric cooling fan 60A
2 Fuses in Supplementary fuse box 50A
3 Starter motor, air pump 50A
4 ABS, STC, TRACS 50A
5 Headlights 50A
6 Fuses in Supplementary fuse box 60A
7 Fuses in Supplementary fuse box 60A
8 Control modules - engine/automatic transmission 60A
9 Electrically operated windows 60A
10 Ignition switch, Control modules - engine/automatic transmission 10A
11 Fuel injectors, A/C relay 10A
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_06.htm[4/4/2013 10:24:41 PM]
12 Fuel pump, fuel injection system20A
13 Control module - automatic transmission10A
14 A/C relay, emissions systems 10A
* Some of the equipment/systems listed may be available on certain models only.
pg. 106 Fuses (supplementary fuse box)
Location * Amperage
1 -
2 Central locking, driving mode selectors (aut. trans.) 10A
3 ABS 10A
4 Immobilizer (Canada only) 10A
5 Climate systems, Onboard diagnostics OBDII 15A
6 -
7 Audio system 15A
8 Immobilizer (Canada only), trip computer, headlight switch 15A
9 Electrically heated rear seat (certain models) 20A
10 Ignition switch 15A
11 Brake lights 10A
12 -
13 Hazard warning flashers, headlight flashers, remote
operated central locking system 15A
14 Heated rear window and door mirrors 30A
15 Courtesy lights, door open warning lights, trunk/cargo
space light, seat belt reminder, glove compartment light 10A
16 Power antenna, electrical connector for trailer, accessories 30A
17 Front fog lights 20A
18 Key reminder 10A
19 Left high beam 15A
20 Right high beam, high beam indicator light 15A
21 Left low beam 15A
22 Right low beam 15A
23 Left front/rear parking lights, left tail light, license plate lights 10A
24 Right front/rear parking lights, right tail light 10A
25 Rear fog light, rear fog light indicator lamp 10A
26 Headlight switch 15A
27 Backup lights, turn signals 15A
28 Heated seats - front/rear (certain models) 25A
29 Heated rear window, shiftlock, seat belt reminder, cruise
control, heated door mirrors, bulb failure warning sensor 10A
30 -
31 Passenger compartment blower-climate systems 25A
32 Audio system 10A
33 Tailgate wiper/washer 15A
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_06.htm[4/4/2013 10:24:41 PM]

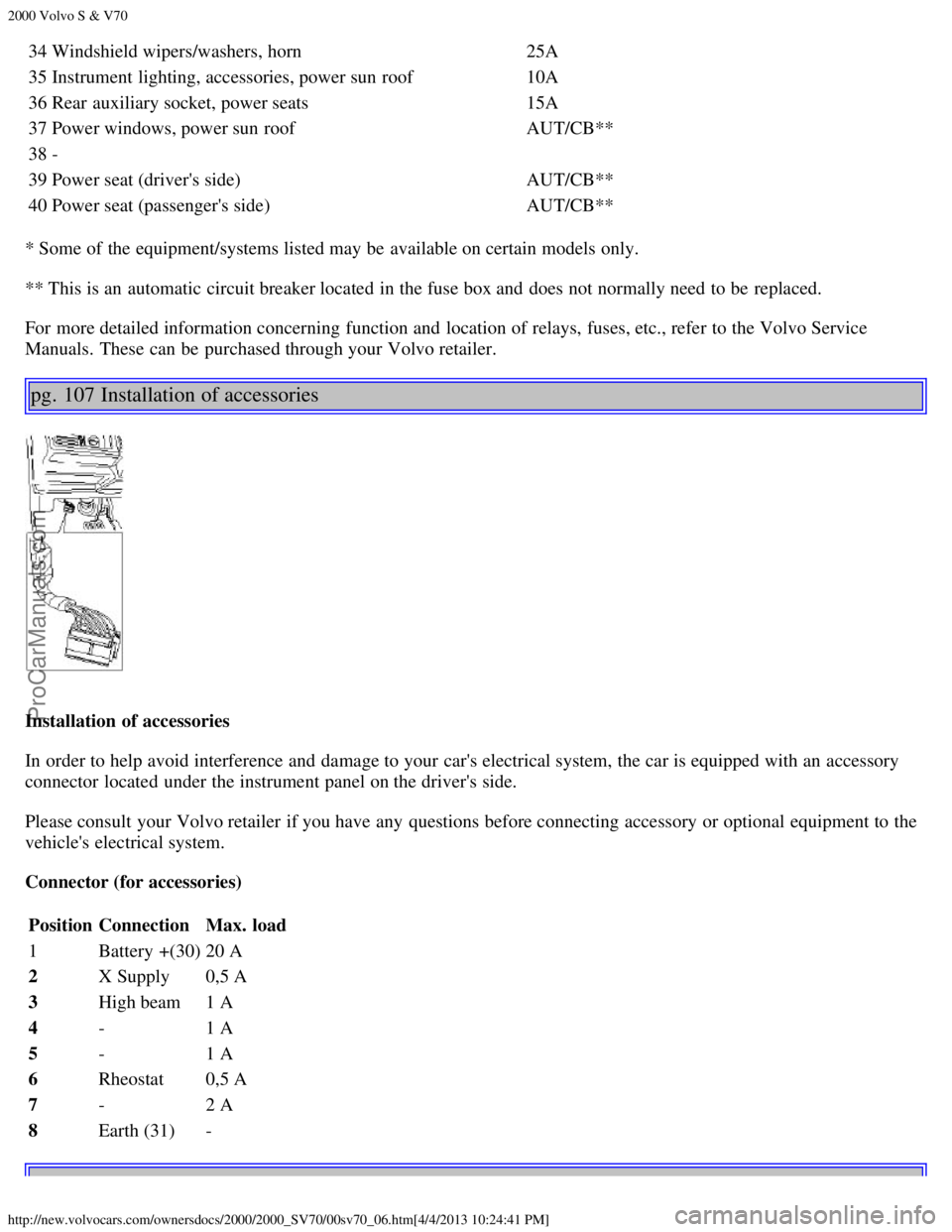

34 Windshield wipers/washers, horn25A
35 Instrument lighting, accessories, power sun roof10A
36 Rear auxiliary socket, power seats 15A
37 Power windows, power sun roof AUT/CB**
38 -
39 Power seat (driver's side) AUT/CB**
40 Power seat (passenger's side) AUT/CB**
* Some of the equipment/systems listed may be available on certain models only.
** This is an automatic circuit breaker located in the fuse box and does not normally need to be replaced.
For more detailed information concerning function and location of relays, fuses, etc., refer to the Volvo Service
Manuals. These can be purchased through your Volvo retailer.
pg. 107 Installation of accessories
Installation of accessories
In order to help avoid interference and damage to your car's electrical system, the car is equipped with an accessory
connector located under the instrument panel on the driver's side.
Please consult your Volvo retailer if you have any questions before connecting accessory or optional equipment to the
vehicle's electrical system.
Connector (for accessories) Position Connection Max. load
1 Battery +(30) 20 A
2 X Supply 0,5 A
3 High beam 1 A
4 - 1 A
5 - 1 A
6 Rheostat 0,5 A
7 - 2 A
8 Earth (31) -
