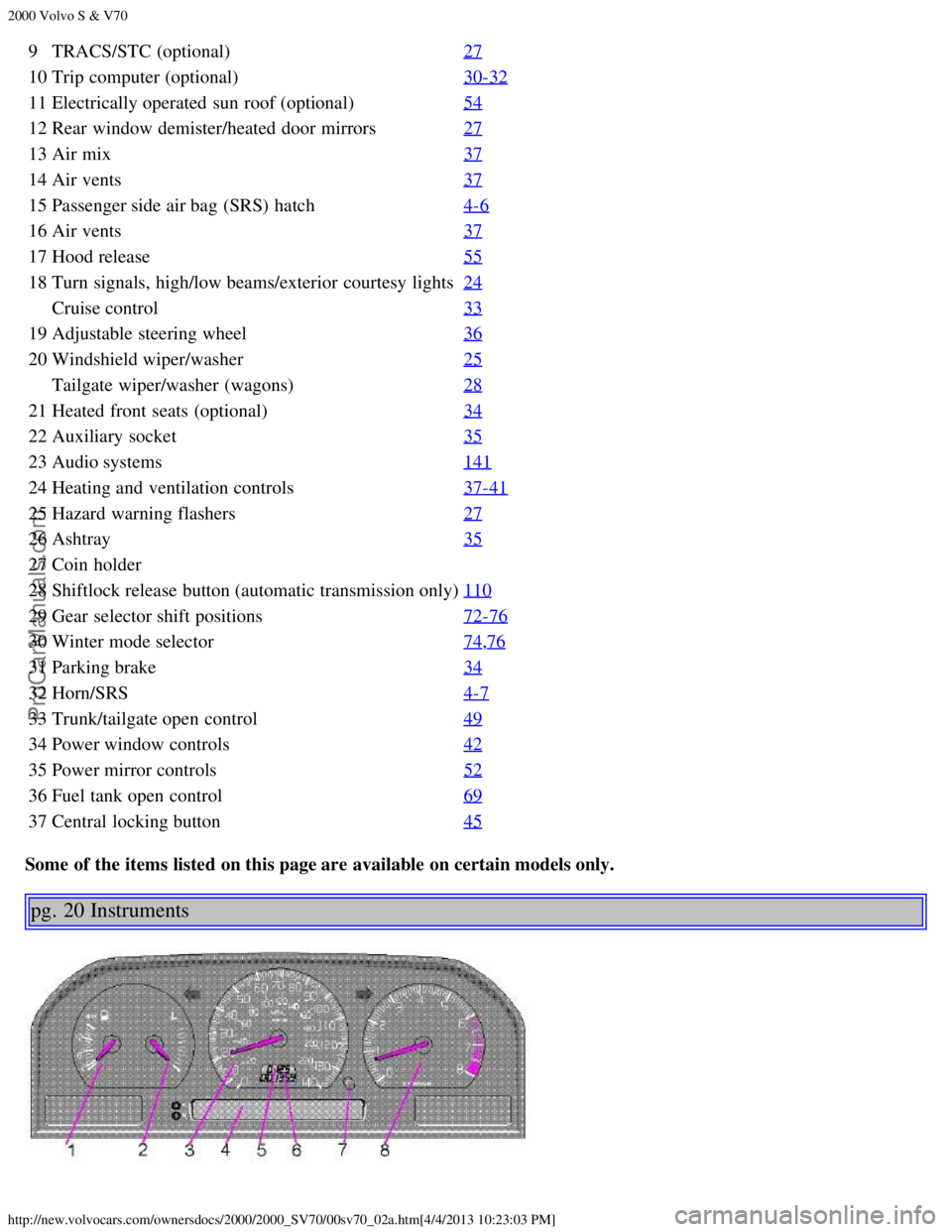

9TRACS/STC (optional) 27
10Trip computer (optional) 30-32
11Electrically operated sun roof (optional) 54
12Rear window demister/heated door mirrors 27
13Air mix 37
14Air vents 37
15Passenger side air bag (SRS) hatch 4-6
16Air vents 37
17Hood release 55
18Turn signals, high/low beams/exterior courtesy lights 24
Cruise control33
19Adjustable steering wheel 36
20Windshield wiper/washer 25
Tailgate wiper/washer (wagons)28
21Heated front seats (optional) 34
22Auxiliary socket 35
23Audio systems 141
24Heating and ventilation controls 37-41
25Hazard warning flashers 27
26Ashtray 35
27Coin holder
28 Shiftlock release button (automatic transmission only) 110
29Gear selector shift positions 72-76
30Winter mode selector 74,76
31Parking brake 34
32Horn/SRS 4-7
33Trunk/tailgate open control 49
34Power window controls 42
35Power mirror controls 52
36Fuel tank open control 69
37Central locking button 45
Some of the items listed on this page are available on certain models only.
pg. 20 Instruments
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_02a.htm[4/4/2013 10:23:03 PM]
4 Low washer fluid level
If the lamp glows continuously when the engine is running, there is only about 1/2 - 1 US qt. remaining in the washer
fluid reservoir.
5 Low fuel level
When the lamp glows, only about 1.8 US gals. (8 liters) of fuel remain. If the ignition is switched on while refuelling,
the gauge may read inaccurately for up to 45 minutes.
6 Rear fog light
7 High beams
8 Trunk/tailgate open
9 Bulb failure warning sensor
10 (Not in use)
11 Electronic Throttle System (ETS)
12 SRS
13 Generator not charging
14 Low engine oil pressure
15 Brake warning light
16 Parking brake applied
17 ABS -system
18 Transmission mode: Indicates "W" if winter/wet driving mode is active, or indicates currently selected low gear.
19 Low coolant level
20 Traction Control (TRACS)/ Stability and Traction Control (STC) Systems (option)
21 Malfunction indicator lamp
(See page 22
for more information)
22 Service reminder indicator
pg. 22 Warning lights
The warning lights described on pages 20 and 21 should never stay on when driving
When the ignition key is turned on and before the engine starts, all of the warning lights should go on to test the
function of the bulbs. Should a light not go off after the engine has started, the system indicated should be inspected.
However, the parking brake reminder light will not go off until the parking brake has been fully released.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_02a.htm[4/4/2013 10:23:03 PM]
retailer.
Generator warning light
If the light comes on while the engine is running, have the charging system checked.
Service reminder indicator
This light will come on at 7,500 mile (12,000 km) intervals, after 750 hours of driving or after 12 months, whichever
occurs first. It is a reminder to the driver that the service interval has been exceeded. The light will stay on for 2
minutes after start until reset by the servicing retailer.
Bulb failure warning light
The light will come on if any of the following bulbs are defective:
· one of the low beam headlights
· one of the tail lights
· one of the brake lights when the brake pedal is depressed.
Check the fuse and bulb. See sections "Replacing bulbs" and "fuses.
Should the warning light come on after a defective outside bulb has been replaced, the corresponding bulb on the other
side of the car should also be replaced.
Anti-lock Brake system (ABS)
If the warning lamp lights up there is a malfunction of the ABS system (the standard braking system will however
function). The vehicle should be driven to a Volvo retailer for inspection.
See page 83
for additional information.
Canadian models are equipped with this warning light:
pg. 24 Headlights, Parking lights, Exterior courtesy lights, Turn signals
Headlights and parking lights
All lights off *
Parking lights on *
Headlights and parking lights are on if starting (ignition ) switch is in positions I or II.
If the headlight switch is in the position
all lights will go out when the starting switch is switched off.
With the headlight switch in position
the parking lights will stay on (headlights off) with the daytime running light
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_02a.htm[4/4/2013 10:23:03 PM]
screw (A) in position .
The high beams can only be switched on if the headlight switch is in position .
Switch from high to low beams and vice versa by moving the turn signal switch lever on the left side of steering
column towards the steering wheel.
* See page 26
for information on Daytime running lights.
Exterior courtesy lights
When you leave your car at night, you can make use of the exterior courtesy lighting function:
· Remove the key from the ignition switch.
· Pull the direction indicator lever towards the steering wheel (as when using the headlight flasher function).
The low beam headlights will now remain on for 30 seconds to light your way.
Turn signals
1 Lane change position. In maneuvers such as lane changing, the driver can flash the turn signals by moving the turn
signal lever to the first stop and holding it there. The lever will return to the neutral position when released.
2 Signal lever engaged for normal turns.
3 High beam/low beam switch (headlights on).
Move the lever towards the steering wheel and release it.
Headlight flasher (headlights off).
Move the lever towards the steering wheel. The headlight high beam will be on until the lever is released.
NOTE: A defective turn signal bulb will cause the turn signal indicator and remaining signal lights to flash more
rapidly than normal.
pg. 25 Windshield wipers/washers, Ignition switch/steering wheel lock
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_02a.htm[4/4/2013 10:23:03 PM]

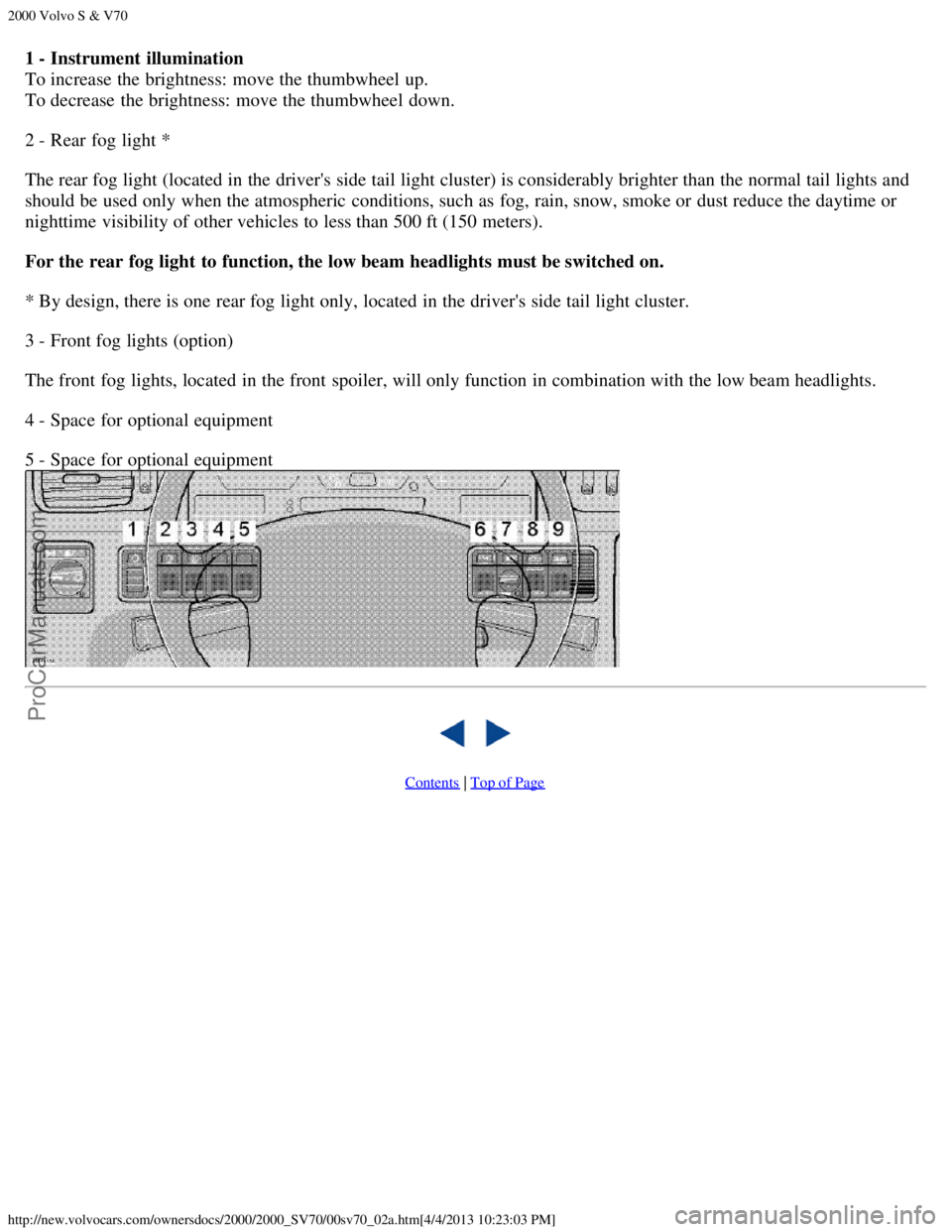

1 - Instrument illumination
To increase the brightness: move the thumbwheel up.
To decrease the brightness: move the thumbwheel down.
2 - Rear fog light *
The rear fog light (located in the driver's side tail light cluster) is considerably brighter than the normal tail lights and
should be used only when the atmospheric conditions, such as fog, rain, snow, smoke or dust reduce the daytime or
nighttime visibility of other vehicles to less than 500 ft (150 meters).
For the rear fog light to function, the low beam headlights must be switched on.
* By design, there is one rear fog light only, located in the driver's side tail light cluster.
3 - Front fog lights (option)
The front fog lights, located in the front spoiler, will only function in combination with the low beam headlights.
4 - Space for optional equipment
5 - Space for optional equipment

Contents | Top of Page
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_04a.htm[4/4/2013 10:24:22 PM]
· If your car is equipped with the optional Trip Computer, utilizing the fuel consumption modes can help you "learn"
how to drive more economically.
Other factors which decrease gas mileage are:
· Worn or dirty spark plugs
· Incorrect spark plug gap
· Dirty air cleaner
· Dirty engine oil and clogged oil filter
· Dragging brakes
· Incorrect front end alignment
Some of the above mentioned items and others are checked at the standard Maintenance Service intervals.
NOTE : (D)rive or 5th gear (manual transmissions) should be used as often as possible to help improve fuel economy.
Before a long distance trip
It is always worthwhile to have your car checked at a Volvo retailer before driving long distances. Your retailer will
also be able to supply you with bulbs, fuses, spark plugs and wiper blades for your use in the event that problems
occur.
If you prefer to check the car yourself, please note the following:
· Check that engine runs smoothly and that fuel consumption is normal.
· Check engine oil, coolant levels, and for possible fuel leakage.
· Check transmission oil level.
· Check condition of drive belts.
· Check state of charge of battery.
· Examine tires carefully (the spare tire as well), and replace those that are worn. Check tire pressures.
· The brakes, front wheel alignment, and steering gear should be checked by your Volvo retailer only.
· Check all lights, including high beams.
· Reflective warning triangles are legal requirement in some countries.
· Have a word with your Volvo retailer if you intend to drive in countries where it may be difficult to obtain correct
fuel.
· Consider your destination. If you will be driving through an area where snow or ice are likely to occur, consider
snow tires.
pg. 71 Starting the engine
Starting and stopping
1. Fasten the seat belt.
WARNING!
Before starting, check that the seat, steering wheel and mirrors are adjusted properly. Make sure the brake pedal can
be depressed completely. Move the seat closer if necessary. Refer to section "front seats".
2. Apply the parking brake, if not already set. The gear selector (automatic transmission) is locked in the (P)ark
position (SHIFT LOCK).
Manual transmission: the clutch must be fully depressed.
3. Without touching the accelerator pedal, turn the ignition key to the starting position. Allow the starter to operate
for up to 5 seconds (turbo: 10 seconds). Release the key as soon as the engine starts. If the engine fails to start, repeat
step 3.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_06.htm[4/4/2013 10:24:41 PM]
4. Remove the bulb from the holder by pulling it straight out.
Lamp housing Bulb holder,br> Bulb- 3357NA, 26/7W/30/2.2cp
5. Press a new bulb into the holder and reinstall the unit in the reverse order.
Bulb holder
Side direction indicator
1. Slide the lens forward and pull out the rear edge.
2. Pull out the entire lens/bulb unit.
3. With the lens toward you, turn the bulb holder 1/4 turn (the wires should not be disconnected from the holder) and
pull out the bulb holder from the lens unit.
4. Pull the old bulb straight out and press a new one into place.
5. Replace the entire unit in the reverse order.
pg. 98 Replacing bulbs
Bulbs (high and low beams) - H7
A - Low beam B - High beam
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_06.htm[4/4/2013 10:24:41 PM]
Low beam headlight bulb (A) replacement
1. Turn the plastic cover counterclocKWise and remove it.
2. Press the wire catches on the retaining clamp (1 in inset illustration above) together and push out (2) to release the
bulb and connector from the headlight housing.
3. Pull the bulb out of the connector.
4. Insert a new bulb into the connector.
5. Reinsert the bulb and connector into the headlight housing. The guide lug must be up to ensure proper positioning.
6. Press the retaining clamp back into position.
7. Reinstall the plastic cover.
Headlight adjustment
The height of the headlight beams can be adjusted according to vehicle load. The headlights should be reaimed if
heavy loads are carried in the trunk/cargo area or rear seat, or when towing a trailer.
To adjust the headlights:
· Park the car on a level surface and open the hood.
· The headlights are equipped with a level which can be seen by looking through the clear "window" on the top of the
headlight lens.
· Turn the height adjustment knob until the bubble in the level aligns with the "0" marks or within the dark marking
lines.
Lateral headlight adjustment should only be carried out by an authorized Volvo retailer. The lateral adjustment
scale should be preset at "0".
High beam headlight bulb (B) replacement
1. Pull the catch on the lower edge of the cover upward and remove the plastic cover.
2. Press the wire catches on the retaining clamp (1 in inset illustration above) together and push out (2) to release the
bulb and connector from the headlight housing.
3. Pull the bulb out of the connector.
4. Insert a new bulb into the connector.
5. Reinsert the bulb and connector into the headlight housing. The guide lug must be up to ensure proper positioning.
6. Press the retaining clamp back into position.
7. Reinstall the plastic cover. Catch B should snap into position.
pg. 99 Replacing bulbs
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_06.htm[4/4/2013 10:24:41 PM]
12 Fuel pump, fuel injection system20A
13 Control module - automatic transmission10A
14 A/C relay, emissions systems 10A
* Some of the equipment/systems listed may be available on certain models only.
pg. 106 Fuses (supplementary fuse box)
Location * Amperage
1 -
2 Central locking, driving mode selectors (aut. trans.) 10A
3 ABS 10A
4 Immobilizer (Canada only) 10A
5 Climate systems, Onboard diagnostics OBDII 15A
6 -
7 Audio system 15A
8 Immobilizer (Canada only), trip computer, headlight switch 15A
9 Electrically heated rear seat (certain models) 20A
10 Ignition switch 15A
11 Brake lights 10A
12 -
13 Hazard warning flashers, headlight flashers, remote
operated central locking system 15A
14 Heated rear window and door mirrors 30A
15 Courtesy lights, door open warning lights, trunk/cargo
space light, seat belt reminder, glove compartment light 10A
16 Power antenna, electrical connector for trailer, accessories 30A
17 Front fog lights 20A
18 Key reminder 10A
19 Left high beam 15A
20 Right high beam, high beam indicator light 15A
21 Left low beam 15A
22 Right low beam 15A
23 Left front/rear parking lights, left tail light, license plate lights 10A
24 Right front/rear parking lights, right tail light 10A
25 Rear fog light, rear fog light indicator lamp 10A
26 Headlight switch 15A
27 Backup lights, turn signals 15A
28 Heated seats - front/rear (certain models) 25A
29 Heated rear window, shiftlock, seat belt reminder, cruise
control, heated door mirrors, bulb failure warning sensor 10A
30 -
31 Passenger compartment blower-climate systems 25A
32 Audio system 10A
33 Tailgate wiper/washer 15A
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_09.htm[4/4/2013 10:25:03 PM]
Improperly inflated tires will reduce tire life, adversely affect vehicle handling and can possibly lead to failure
resulting in loss of vehicle control without prior warning.
pg. 138 Specifications
Electrical system
12 Volt, negative ground.
Voltagecontrolled generator. Singlewire system with chassis and engine used as conductors.
Battery
Voltage: 12 Volt, capacity: 520 A/100 min (certain markets 420 A/75 min
The battery contains corrosive and poisonous acids. It is of the utmost importance that old batteries are disposed of
correctly. Your Volvo retailer can assist you in this matter.
Generator
Rated output: 1400 W, max. current: 100 A
Bulbs
Bulb US no.Power SocketNo/bulbs
Headlights
High beam H755W -2
Low beam H755W -2
Front parking lights/turn signals 3357NA26/7W/30/2.2cp W 2.5 x 15 q2
Turn signals, rear -21W BAU 15 s2
Side direction indicators -5W W 2.1x9.5 d2
Tail lights (sedan) 675W/4cp BA 15 s4
Tail lights (wagon) -21/4W BAZ 15 d4
Brake lights 115621W/32cp BA 15 s2
Backup lights 115621W/32cp BA 15 s2
Rear fog light (sedan) 115621W/32cp BA 15 s1
Rear fog light (wagon) -21/4W BAZ 15 d1
Front fog lights H155 W -2
License plate light -5 W W 2.1x9.5 d2
Door open warning light -3 W W 2.1x9.5 d4
Door step courtesy lights -5W W 2.1x9.5 d2
Trunk light -10 W SV 8.51
Glove compartment light -2 W BA 9 s1
Vanity mirror lights -1.2 W -2
Instrument lighting -3 W W 2.1x9.5 d3
Illumination, control panel -1.2 W W 2x4.6 d
gear selector (automatic trans.) -1.2 W W 2x4.6 d1
ProCarManuals.com
