VOLVO V70 2004 Owners Manual

Spark plug gap: 0.028-0.032" (0.7-0.8 mm)
Tightening torque: 18.4 ft. lbs. (25 Nm) WARNING!
The ignition system operates at very high voltages. Special safety precautions must be followed to prevent injury.
Always turn the ignition off when:
Replacing ignition components e.g. plugs, coil, etc.
Do not touch any part of the ignition system while the engine is running. This may result in a shock and bodily
injury.
Front suspension
Spring strut suspension with integrated shock absorbers and control arms linked to the support frame. Power-assisted
rack and pinion steering. Safety type steering column. The alignment specifications apply to an unladen car but include
fuel, coolant and spare wheel.
Rear suspension
Individual rear wheel suspension with longitudinal support arms, double link arms and track rods.
All specifications are subject to change without prior notice.
pg. 150 Electrical system
Electrical system
12 Volt, negative ground.
Voltage-controlled generator. Single-wire system with chassis and engine used as conductors. Grounded on chassis.
Battery
Voltage: 12 Volt, capacity: 600 A/115 min reserve capacity.
The battery contains corrosive and poisonous acids. It is of the utmost importance that old batteries are disposed of
correctly. Your Volvo retailer can assist you in this matter.
Generator
Rated output: max. current: 140 A
Starter motor:
Output: 1.7 kW
Bulbs
Bulb US no. Power Socket
Headlights
- High beam HB3 60W -
- Low beam H7 55W -
Bi -Xenon headlights*
ProCarManuals.com

(option)35W D2R
Front parking lights5W W2.1x9.5d
Front direction indicators (yellow) 21 W BAU 15d Front fog lights H1 55 W -
- V70R H3 55 W -
Rear direction indicators (yellow) 21W BAU 15 s Tail lights 67 5W BA 15 s
Brake lights 1156 21W BA 15 s
Backup lights 1156 21W BA 15 s
Rear fog light/rear parking lights 21/4W BA 15 s
License plate light - 5 W W 2.1x9.5d
Door step courtesy lights
Front - 5W SV 8.5
Cargo area lights - 5 W SV 8.5
Glove compartment light - 2 W BA 9s Vanity mirror light(s) - 12V 1.2W -Instrument lighting - 3 W W 2.1x9.5d
* Bi -Xenon headlight bulbs (option) contain trace amounts of mercury. These bulbs should always be disposed of by
an authorized Volvo retailer.
WARNING!
Bi -Xenon headlights (option) - due to the high voltage used by these headlights, these bulbs should only be replaced
by an authorized Volvo service technician.
All specifications are subject to change without prior notice.
pg. 151 On Call Roadside Assistance
Volvo On Call Roadside Assistance
Your new Volvo comes with a four-year On Call Roadside Assistance program. Additional information, features, and
benefits are described in a separate information package in your glove compartment.
If you have misplaced your package, dial:
In the U.S.A.
1-800-63-VOLVO (1-800-638-6586)
In Canada:
1-800-263-0475
ProCarManuals.com

Technician certification
In addition to Volvo factory training, Volvo supports certification by the National Institute for Automotive Excellence
(A.S.E.). Certified technicians have demonstrated a high degree of competence in specific areas. Besides passing
exams, each technician must also have worked in the field for two or more years before a certificate is issued. These
professional technicians are best able to analyze vehicle problems and perform the necessary service procedures to
keep your Volvo at peak operating condition.

Contents | Top of Page
ProCarManuals.com

2 0 0 4
VOLVO V70
Chapter 10 - Audio systems
pg. 153 Audio systems
HU-613 overview154
HU-803 overview155
Audio system functions156
Specifications167
General information168
NOTE: The text on the face of the radio, describing the button functions, may vary slightly depending on which audio
system you have in your car.

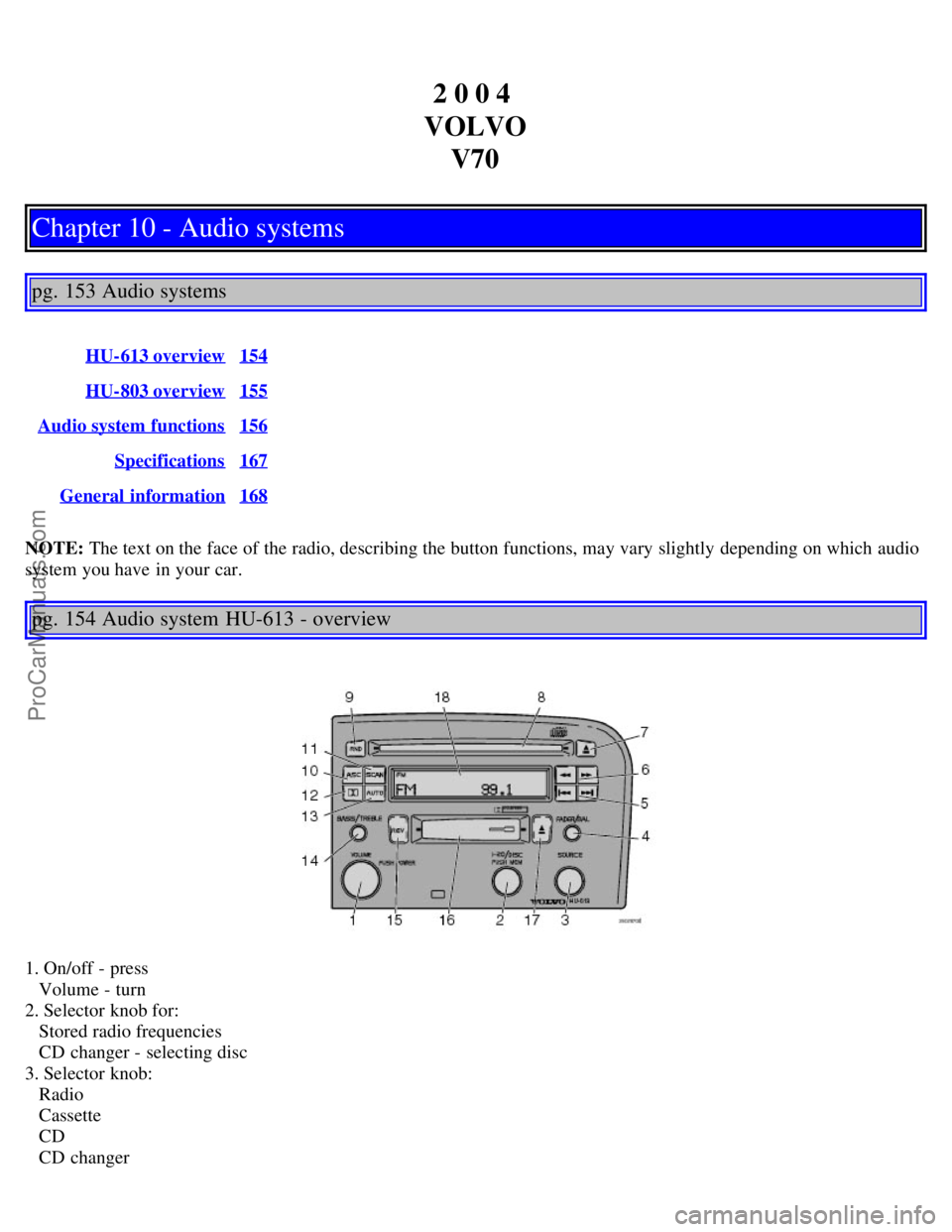

pg. 154 Audio system HU-613 - overview
