01 Safety
Booster cushions

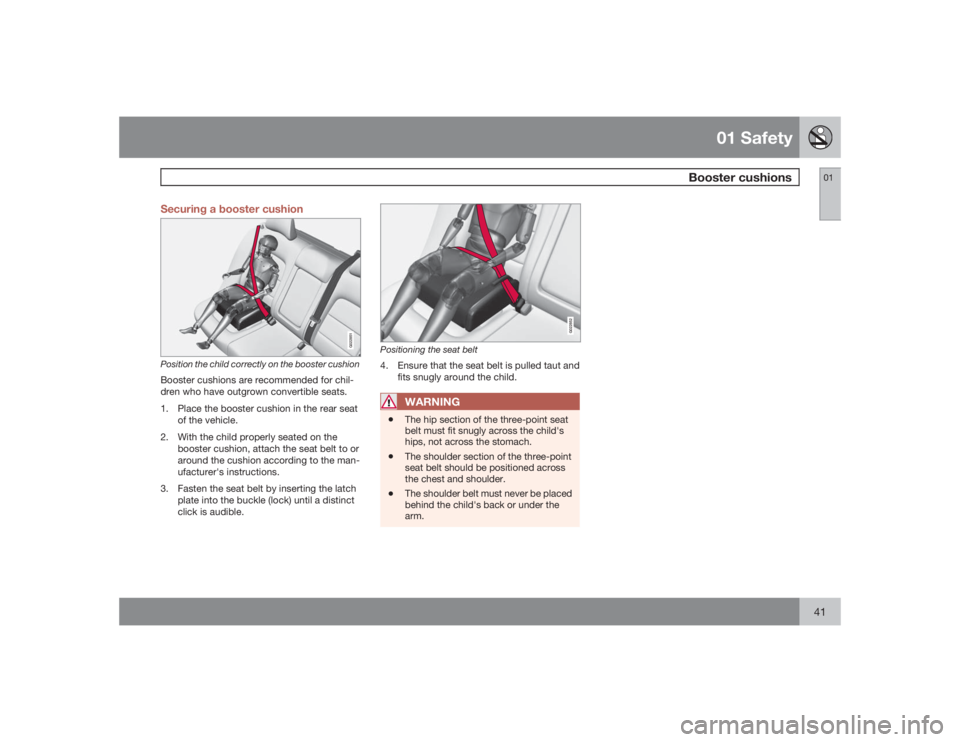

0141 Securing a booster cushion
G022851
Position the child correctly on the booster cushionBooster cushions are recommended for chil-
dren who have outgrown convertible seats.
1. Place the booster cushion in the rear seat
of the vehicle.
2. With the child properly seated on the
booster cushion, attach the seat belt to or
around the cushion according to the man-
ufacturer's instructions.
3. Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.
G022852
Positioning the seat belt4. Ensure that the seat belt is pulled taut and
fits snugly around the child.
WARNING
•
The hip section of the three-point seat
belt must fit snugly across the child's
hips, not across the stomach.
•
The shoulder section of the three-point
seat belt should be positioned across
the chest and shoulder.
•
The shoulder belt must never be placed
behind the child's back or under the
arm.

01 SafetyISOFIX lower anchors
0142
Using the ISOFIX lower child seat
anchors
G021064
ISOFIX lower child restraint anchorsLower anchors for ISOFIX-equipped child
seats are located in the rear, outboard seats,
hidden below the backrest cushions. Symbols
on the seat back upholstery mark the anchor
positions as shown. To access the anchors,
kneel on the seat cushion and locate the
anchors by feel. Always follow your child seat
manufacturer's installation instructions, and
use both ISOFIX lower anchors and top tethers
whenever possible.To access the anchors1. Put the child restraint in position.2. Kneel on the child restraint to press down
the seat cushion and locate the anchors by
feel.
3. Fasten the attachment on the child
restraint's lower straps to the ISOFIX lower
anchors.
4. Firmly tension the lower child seat straps
according to the manufacturer's instruc-
tions.
NOTE
•
The rear seat's center position is not
equipped with ISOFIX lower anchors.
When installing a child restraint in this
position, attach the restraint's top tether
strap (if it is so equipped) to the top
tether anchorage point and secure the
restraint with the vehicle's center seat
belt.
•
Always follow your child seat manufac-
turer's installation instructions, and use
both ISOFIX lower anchors and top
tethers whenever possible.
G018631
Fasten the attachment correctly to the ISOFIX
lower anchors
WARNING
•
Be sure to fasten the attachment cor-
rectly to the anchor (see the illustration).
If the attachment is not correctly fas-
tened, the child restraint may not be
properly secured in the event of a colli-
sion.
•
The ISOFIX lower child restraint
anchors are only intended for use with
child seats positioned in the outboard
seating positions. These anchors are
not certified for use with any child
restraint that is positioned in the center
seating position. When securing a child
restraint in the center seating position,
use only the vehicle's center seat belt.

01 Safety
Top tether anchors

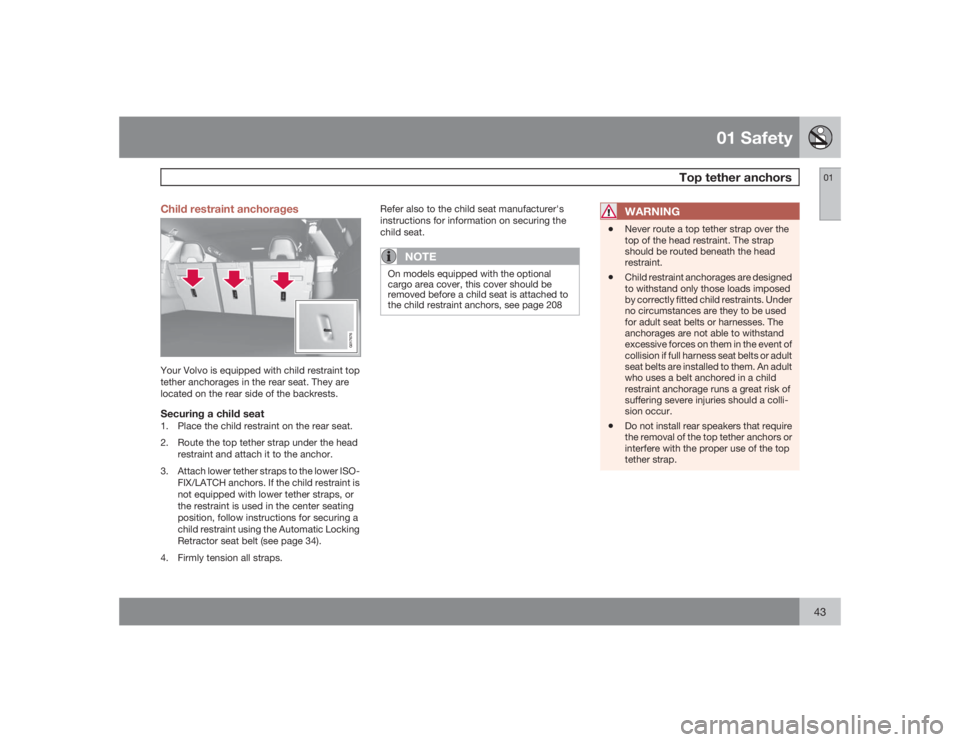

0143 Child restraint anchorages
G017676
Your Volvo is equipped with child restraint top
tether anchorages in the rear seat. They are
located on the rear side of the backrests.Securing a child seat1. Place the child restraint on the rear seat.
2. Route the top tether strap under the head
restraint and attach it to the anchor.
3. Attach lower tether straps to the lower ISO-
FIX/LATCH anchors. If the child restraint is
not equipped with lower tether straps, or
the restraint is used in the center seating
position, follow instructions for securing a
child restraint using the Automatic Locking
Retractor seat belt (see page 34).
4. Firmly tension all straps.Refer also to the child seat manufacturer's
instructions for information on securing the
child seat.
NOTE
On models equipped with the optional
cargo area cover, this cover should be
removed before a child seat is attached to
the child restraint anchors, see page 208
WARNING
•
Never route a top tether strap over the
top of the head restraint. The strap
should be routed beneath the head
restraint.
•
Child restraint anchorages are designed
to withstand only those loads imposed
by correctly fitted child restraints. Under
no circumstances are they to be used
for adult seat belts or harnesses. The
anchorages are not able to withstand
excessive forces on them in the event of
collision if full harness seat belts or adult
seat belts are installed to them. An adult
who uses a belt anchored in a child
restraint anchorage runs a great risk of
suffering severe injuries should a colli-
sion occur.
•
Do not install rear speakers that require
the removal of the top tether anchors or
interfere with the proper use of the top
tether strap.

01 SafetyChild restraint registration and recalls
0144
Registering a child restraintChild restraints could be recalled for safety
reasons. You must register your child restraint
to be reached in a recall. To stay informed
about child safety seat recalls, be sure to fill out
and return the registration card that comes
with new child restraints.
Child restraint recall information is readily avail-
able in both the U.S. and Canada. For recall
information in the U.S., call the U.S. Govern-
ment's Auto Safety Hotline at 1-800-424-9393.
In Canada, visit Transport Canada's Child
Safety website at http://www.tc.gc.ca/
roadsafety/childsafety/menu.htm.

01 Safety
Integrated booster cushion

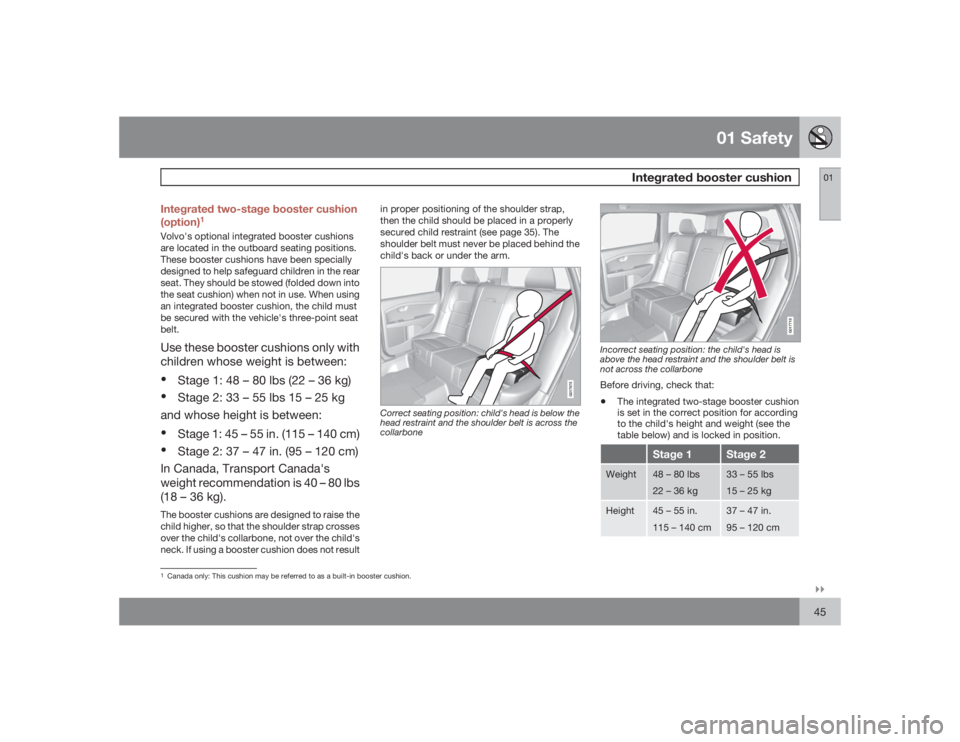

01``45 Integrated two-stage booster cushion
(option)
1
Volvo's optional integrated booster cushions
are located in the outboard seating positions.
These booster cushions have been specially
designed to help safeguard children in the rear
seat. They should be stowed (folded down into
the seat cushion) when not in use. When using
an integrated booster cushion, the child must
be secured with the vehicle's three-point seat
belt.Use these booster cushions only with
children whose weight is between:
•
Stage 1: 48 – 80 lbs (22 – 36 kg)
•
Stage 2: 33 – 55 lbs 15 – 25 kg
and whose height is between:
•
Stage 1: 45 – 55 in. (115 – 140 cm)
•
Stage 2: 37 – 47 in. (95 – 120 cm)
In Canada, Transport Canada's
weight recommendation is 40 – 80 lbs
(18 – 36 kg).The booster cushions are designed to raise the
child higher, so that the shoulder strap crosses
over the child's collarbone, not over the child's
neck. If using a booster cushion does not resultin proper positioning of the shoulder strap,
then the child should be placed in a properly
secured child restraint (see page 35). The
shoulder belt must never be placed behind the
child's back or under the arm.
G017875
Correct seating position: child's head is below the
head restraint and the shoulder belt is across the
collarbone
G017719
Incorrect seating position: the child's head is
above the head restraint and the shoulder belt is
not across the collarboneBefore driving, check that:•
The integrated two-stage booster cushion
is set in the correct position for according
to the child's height and weight (see the
table below) and is locked in position.
Stage 1
Stage 2
Weight
48 – 80 lbs
22 – 36 kg
33 – 55 lbs
15 – 25 kg
Height
45 – 55 in.
115 – 140 cm
37 – 47 in.
95 – 120 cm
1Canada only: This cushion may be referred to as a built-in booster cushion.

01 SafetyIntegrated booster cushion
0146
•
That the seat belt is properly positioned
and is taut.
•
The shoulder section of the seat belt is
across the child's collarbone, not over the
neck.
•
The lap section of the seat belt is across
the child's hips and not the abdomen.

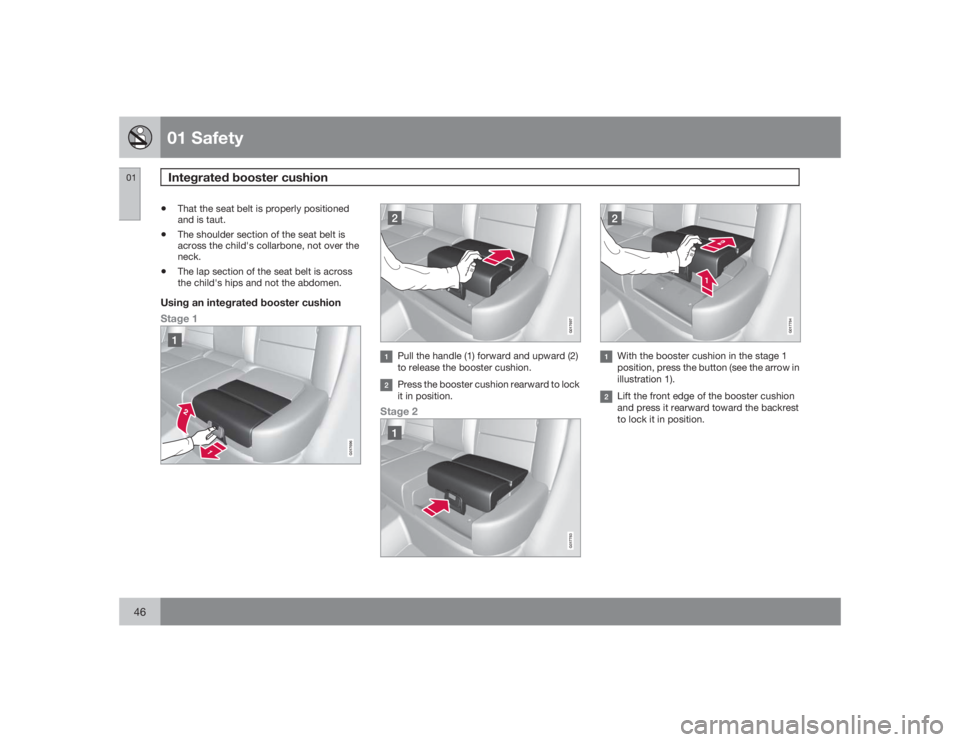

Using an integrated booster cushion
Stage 1
G017696
G017697
Pull the handle (1) forward and upward (2)
to release the booster cushion.Press the booster cushion rearward to lock
it in position.
Stage 2
G017783
G017784
With the booster cushion in the stage 1
position, press the button (see the arrow in
illustration 1).Lift the front edge of the booster cushion
and press it rearward toward the backrest
to lock it in position.

01 Safety
Integrated booster cushion
0147

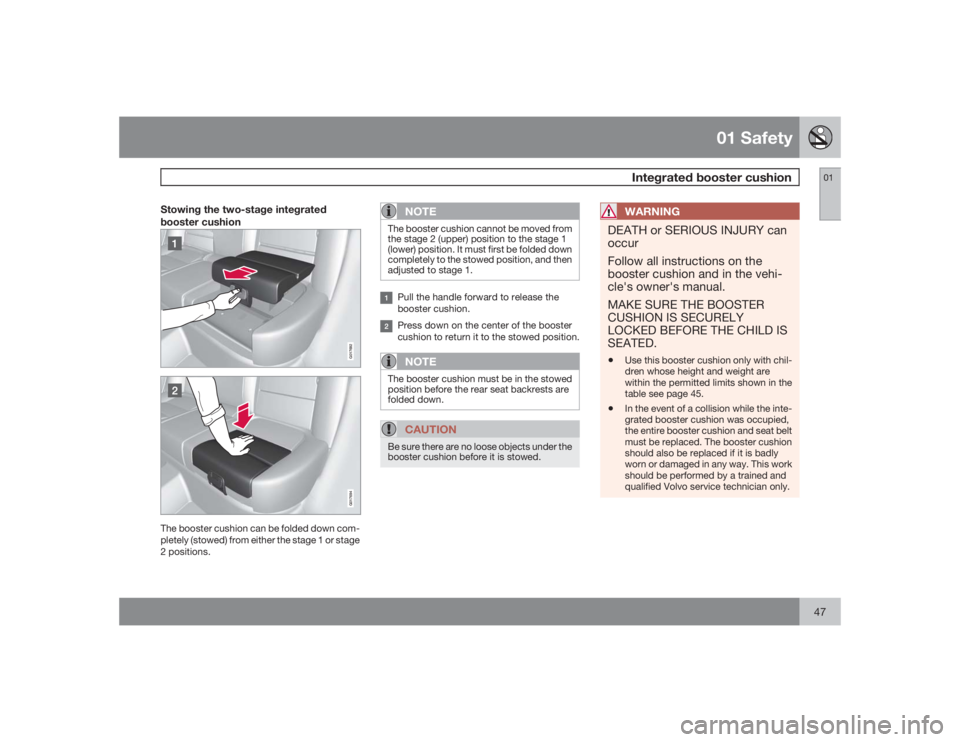

Stowing the two-stage integrated
booster cushion
G017692G017694
The booster cushion can be folded down com-
pletely (stowed) from either the stage 1 or stage
2 positions.
NOTE
The booster cushion cannot be moved from
the stage 2 (upper) position to the stage 1
(lower) position. It must first be folded down
completely to the stowed position, and then
adjusted to stage 1.Pull the handle forward to release the
booster cushion.Press down on the center of the booster
cushion to return it to the stowed position.NOTE
The booster cushion must be in the stowed
position before the rear seat backrests are
folded down.
CAUTION
Be sure there are no loose objects under the
booster cushion before it is stowed.
WARNING
DEATH or SERIOUS INJURY can
occur
Follow all instructions on the
booster cushion and in the vehi-
cle's owner's manual.
MAKE SURE THE BOOSTER
CUSHION IS SECURELY
LOCKED BEFORE THE CHILD IS
SEATED.
•
Use this booster cushion only with chil-
dren whose height and weight are
within the permitted limits shown in the
table see page 45.
•
In the event of a collision while the inte-
grated booster cushion was occupied,
the entire booster cushion and seat belt
must be replaced. The booster cushion
should also be replaced if it is badly
worn or damaged in any way. This work
should be performed by a trained and
qualified Volvo service technician only.

01 SafetyChild safety locks
0148
Child safety locks
G021077
Manual child safety locks – rear doorsThe controls are located on the rear door
jambs. Use the remote control's key blade or a
screwdriver to adjust these controls.
The rear doors can only be opened from
the outside when the slot is in the horizon-
tal position.The rear doors can be opened from the
inside when the slot is in the vertical posi-
tion.
G019300
Power child safety locks (option on
certain markets)The power child lock function can be activated
by pressing the button shown in the inset illus-
tration above. The ignition must be in mode I
orII (see page 77).
When the function is activated, a message will
appear in the information display and the indi-
cator light in the button will light up.
With the function activated:•
The rear door windows can only be opened
with the control in the driver's door.
•
The rear doors cannot be opened from the
inside.
NOTE
There are no manual child safety locks on
vehicles equipped with the optional power
child safety locks.
WARNING
Remember, in the event of an accident, the
rear seat passengers cannot open the doors
from the inside with the controls in position
A (manual child safety locks) or if the power
child safety lock function is activated.
