Page 17 of 290
01 Safety
Seat belts01
17
WARNING
•Never repair the belt yourself; have this
work done by a trained and qualified
Volvo service technician only.
•Any device used to induce slack into the
shoulder belt portion of the three-point
belt system will have a detrimental
effect on the amount of protection avail-
able to you in the event of a collision.
•The seat back should not be tilted too
far back. The shoulder belt must be taut
in order to function properly.
•Do not use child safety seats or child
booster cushions/backrests in the front
passenger's seat. We also recommend
that children who have outgrown these
devices sit in the rear seat with the seat
belt properly fastened.
Seat belt reminder
G017726
Seat belt reminder light in ceiling console
The seat belt reminder consists of an audible
signal, an indicator light near the rearview mir-
ror and a symbol in the instrument panel that
alert all occupants of the vehicle to fasten their
seat belts. The audible signal and warning light
will be on for a total of 6 seconds from the time
the ignition is switched on, regardless of
whether or not the seat belts are fastened.
If the front seat belts are unbuckled while the
vehicle is in motion, the audible signal and
warning light will be active for a total of 6 sec-
onds.
Rear seatsThe seat belt reminder in the rear seat has two
additional functions:
•It provides information about which seat
belts are fastened in the rear seat. A mes-
sage will appear in the information display
when a belt is being used. This message
will disappear after approximately 6 sec-
onds or can be erased by pressing the
READ button on the left steering wheel
lever.
•It also provides a reminder if one of the
occupants of the rear seat has unbuckled
his/her seat belt while the vehicle is in
motion. A visual and audible signal will be
given. These signals will stop when the
seat belt has been re-buckled or can be
stopped by pressing the READ button.
The message in the information display can
always be accessed, even if it has been erased,
by pressing the READ button to display stored
messages.
Page 19 of 290
01 Safety
Supplemental Restraint System (SRS)01
19 General information
G022831
Warning symbols in the instrument panel
As an enhancement to the three-point seat
belts, your Volvo is equipped with a Supple-
mental Restraint System (SRS). Volvo's SRS
consists of seat belt pretensioners, front air-
bags, side impact airbags, a front passenger
occupant weight sensor, and inflatable cur-
tains. All of these systems are monitored by the
SRS control module. An SRS warning light in
the instrument panel (see the illustration) illu-
minates when the ignition is in modes I, II, or
III, and will normally go out after approximately
6 seconds if no faults are detected in the sys-
tem.
Where applicable, a text message will also be
displayed when the SRS warning light illumi-
nates. If this warning symbol is not functioningproperly, the general warning symbol illumi-
nates and a text message will be displayed.
See also page 72 and page 74 for more
information about indicator and warning sym-
bols.
WARNING
•If the SRS warning light stays on after
the engine has started or if it illuminates
while you are driving, have the vehicle
inspected by a trained and qualified
Volvo service technician as soon as
possible.
•Never try to repair any component or
part of the SRS yourself. Any interfer-
ence in the system could cause mal-
function and serious injury. All work on
these systems should be performed by
a trained and qualified Volvo service
technician.
WARNING
If your vehicle has been subjected to flood
conditions (e.g., soaked carpeting/standing
water on the floor of the vehicle) or if your
vehicle has become flood-damaged in any
way, do not attempt to start the vehicle or
insert the remote key into the ignition slot
before disconnecting the battery (see
below). This may cause airbag deployment
which could result in personal injury. Have
the vehicle towed to a trained and qualified
Volvo service technician for repairs.
Automatic transmission:
Before attempting to tow the vehicle:
1. Switch off the ignition for at least
10 minutes and disconnect the battery.
2. Follow the instructions for manually
overriding the shiftlock system on page
108.
Please be aware that overriding the shiftlock
system does not release the steering wheel
lock.
Page 24 of 290
01 Safety
Occupant Weight Sensor 01
24
General information
2
2
G017724
Occupant Weight Sensor (OWS) indicator light
Disabling the passenger's side front
airbag
Volvo recommends that ALL occupants (adults
and children) shorter than 4 feet 7 inches
(140 cm) be seated in the back seat of any
vehicle with a front passenger side airbag, and
be properly restrained for their size and weight.
For child safety recommendations, see
page 35.
The Occupant Weight Sensor (OWS) is
designed to meet the regulatory requirements
of Federal Motor Vehicle Safety Standard
(FMVSS) 208 and is designed to disable (will
not inflate) the passenger's side front airbag
under certain conditions.The OWS works with sensors that are part of
the front passenger's seat and seat belt. The
sensors are designed to detect the presence of
a properly seated occupant and determine if
the passenger's side front airbag should be
enabled (may inflate) or disabled (will not
inflate).
The OWS will disable (will not inflate) the pas-
senger's side front airbag when:
•the front passenger's seat is unoccupied,
or has small/medium objects in the front
seat,
•the system determines that an infant is
present in a rear-facing infant seat that is
installed according to the manufacturer's
instructions,
•the system determines that a small child is
present in a forward-facing child restraint
that is installed according to the manufac-
turer's instructions,
•the system determines that a small child is
present in a booster seat,
•a front passenger takes his/her weight off
of the seat for a period of time,
•a child or a small person occupies the front
passenger's seat.
The OWS uses a PASSENGER AIRBAG OFF
indicator lamp which will illuminate and stay on
to remind you that the passenger's side frontairbag is disabled. The PASSENGER AIRBAG
OFF indicator lamp is located in the overhead
console, near the base of the rearview mirror.
NOTE
When the ignition is switched on, the OWS
indicator light will go on for up to 10 seconds
while the system performs a self-diagnostic
test.
However, if a fault is detected in the system:
•The OWS indicator light will stay on
•The SRS warning light (see page 19) will
come on and stay on
•The message PASS. AIRBAG OFF
SERVICE URGENT will be displayed in
the information display.
WARNING
If a fault in the system is detected and indi-
cated as described, be aware that the pas-
senger's side front airbag will not deploy in
the event of a collision. In this case, the SRS
system and Occupant Weight Sensor
should be inspected by a trained and quali-
fied Volvo service technician as soon as
possible.

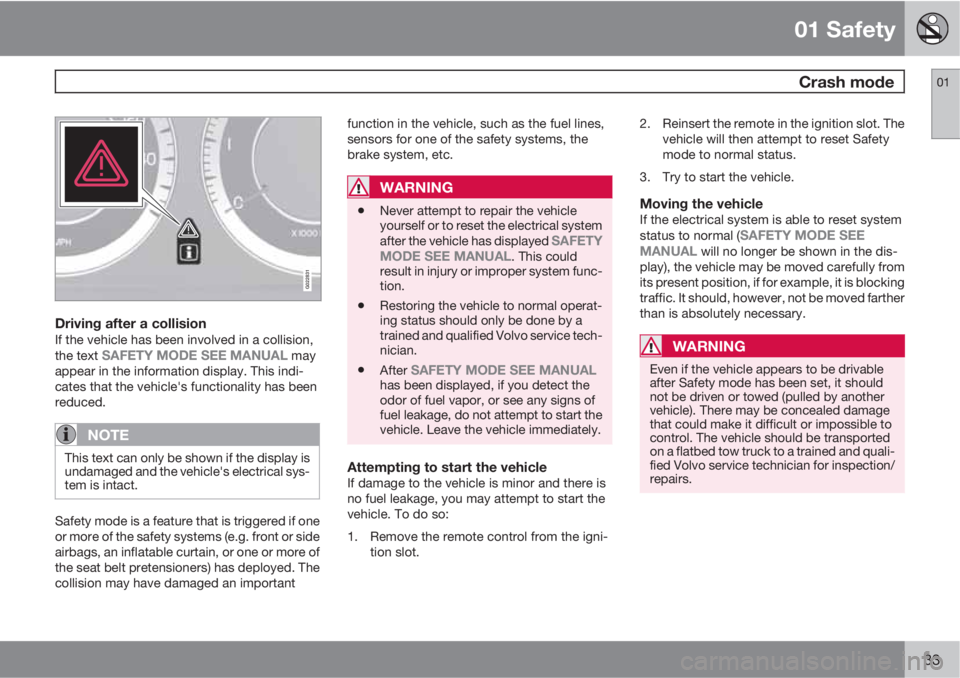

Page 33 of 290
01 Safety
Crash mode01
33
G022831
Driving after a collisionIf the vehicle has been involved in a collision,
the text SAFETY MODE SEE MANUAL may
appear in the information display. This indi-
cates that the vehicle's functionality has been
reduced.
NOTE
This text can only be shown if the display is
undamaged and the vehicle's electrical sys-
tem is intact.
Safety mode is a feature that is triggered if one
or more of the safety systems (e.g. front or side
airbags, an inflatable curtain, or one or more of
the seat belt pretensioners) has deployed. The
collision may have damaged an importantfunction in the vehicle, such as the fuel lines,
sensors for one of the safety systems, the
brake system, etc.
WARNING
•Never attempt to repair the vehicle
yourself or to reset the electrical system
after the vehicle has displayed
SAFETY
MODE SEE MANUAL. This could
result in injury or improper system func-
tion.
•Restoring the vehicle to normal operat-
ing status should only be done by a
trained and qualified Volvo service tech-
nician.
•After SAFETY MODE SEE MANUALhas been displayed, if you detect the
odor of fuel vapor, or see any signs of
fuel leakage, do not attempt to start the
vehicle. Leave the vehicle immediately.
Attempting to start the vehicleIf damage to the vehicle is minor and there is
no fuel leakage, you may attempt to start the
vehicle. To do so:
1. Remove the remote control from the igni-
tion slot.2. Reinsert the remote in the ignition slot. The
vehicle will then attempt to reset Safety
mode to normal status.
3. Try to start the vehicle.
Moving the vehicleIf the electrical system is able to reset system
status to normal (SAFETY MODE SEE
MANUAL will no longer be shown in the dis-
play), the vehicle may be moved carefully from
its present position, if for example, it is blocking
traffic. It should, however, not be moved farther
than is absolutely necessary.
WARNING
Even if the vehicle appears to be drivable
after Safety mode has been set, it should
not be driven or towed (pulled by another
vehicle). There may be concealed damage
that could make it difficult or impossible to
control. The vehicle should be transported
on a flatbed tow truck to a trained and quali-
fied Volvo service technician for inspection/
repairs.

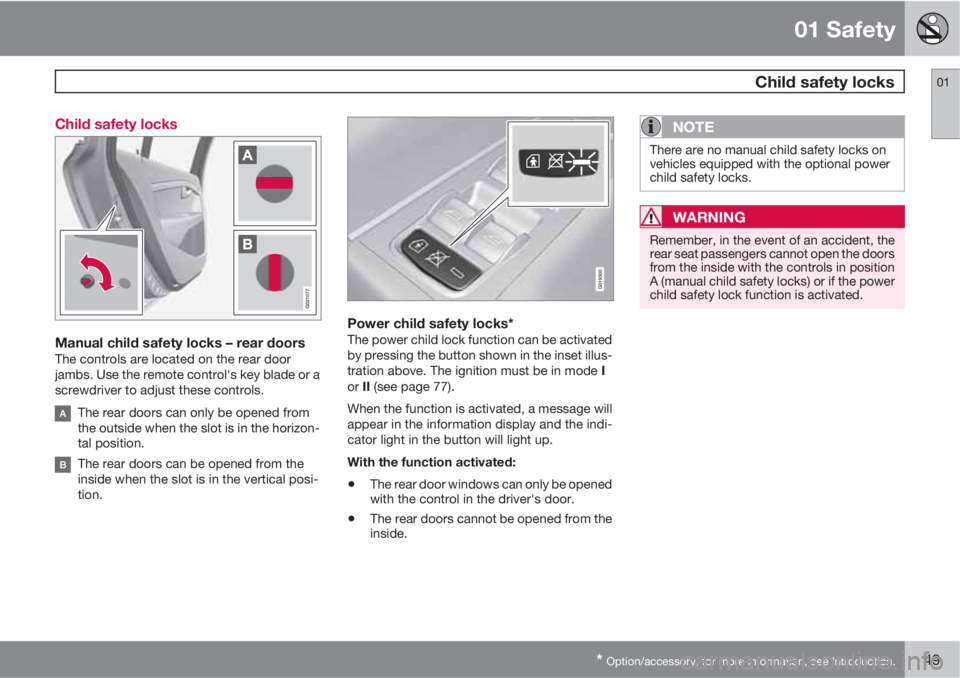

Page 49 of 290
01 Safety
Child safety locks01
* Option/accessory, for more information, see Introduction.49 Child safety locks
G021077
Manual child safety locks – rear doorsThe controls are located on the rear door
jambs. Use the remote control's key blade or a
screwdriver to adjust these controls.
The rear doors can only be opened from
the outside when the slot is in the horizon-
tal position.
The rear doors can be opened from the
inside when the slot is in the vertical posi-
tion.
G019300
Power child safety locks*The power child lock function can be activated
by pressing the button shown in the inset illus-
tration above. The ignition must be in mode I
or II (see page 77).
When the function is activated, a message will
appear in the information display and the indi-
cator light in the button will light up.
With the function activated:
•The rear door windows can only be opened
with the control in the driver's door.
•The rear doors cannot be opened from the
inside.
NOTE
There are no manual child safety locks on
vehicles equipped with the optional power
child safety locks.
WARNING
Remember, in the event of an accident, the
rear seat passengers cannot open the doors
from the inside with the controls in position
A (manual child safety locks) or if the power
child safety lock function is activated.
Page 53 of 290
02 Locks and alarm
Remote key and key blade
02
53
This feature can be activated or deactivated in
the vehicle's menu under Car settings
Car
key memory
Seat & mirror positions. See
page 120 for a description of the menu sys-
tem.
See also page 60 for information regarding
vehicles with the optional keyless drive.
Confirmation when locking/unlocking
the vehicle
When the vehicle is locked with a remote key,
the turn signals will flash once to confirm that
this has been completed correctly.
When the vehicle is locked, confirmation will
only be given if all of the locks are locked after
the doors have been closed.
NOTE
If you do not receive confirmation when
locking the vehicle, check whether a door or
the tailgate is ajar, or if this feature has been
turned off in the menu.
This function can be activated or deactivated
under Car settings
Light settingsLock
confirmation, light, or Car settings
Light
settings
Unlock confirmation, light. See
page 120 for a description of the menu sys-
tem.
Immobilizer (start inhibitor)Each of the keys supplied with your vehicle
contains a coded transponder. The code in the
key is transmitted to an antenna in the ignition
slot where it is compared to the code stored in
the start inhibitor module. The vehicle will start
only with a properly coded key. If you misplace
a key, take the other keys to a trained and
qualified Volvo service technician for reprog-
ramming as an antitheft measure. The follow-
ing messages (which may appear in the instru-
ment panel display) are related to the immobil-
izer:MessageMeaning
Key error Reinsert
keyRemote key not rec-
ognized during start.
Try to start the vehi-
cle again.
Car key Not foundPCC with keyless
drive only. Remote
key not recognized
during start. Try to
start the vehicle
again.
Immobilizer See
manualRemote key fault
during start. Contact
an authorized Volvo
workshop.
CAUTION
Never use force when inserting the remote
key in the ignition slot. The vehicle cannot
be started if the transponder is damaged.
USA–FCC ID: LTQWFS 125VO
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
dition: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Page 54 of 290
02 Locks and alarm
Remote key and key blade
02
54* Option/accessory, for more information, see Introduction.
Canada–IC: 3659A-WFS125VO
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any inter-
ference, including interference that may cause
undesired operation of the device.
See page 103 for information on starting the
vehicle.
Replacing the battery in the remote keyThe batteries should be replaced if:
•The information symbol illuminates andReplace car key battery is shown in the
display and/or
•if the locks do not react after several
attempts to unlock or lock the vehicle.
NOTE
The remote key's range is normally approx-
imately 60 ft (20 m) from the vehicle.
See page 57 for information on replacing the
battery.
Common functions – Remote key/
Personal Car Communicator (PCC)
G021078
Remote key
G021079
Personal Car Communicator (PCC)*
Lock
Unlock
Approach lighting
Tailgate unlock/open
Panic alarm
Information
Buttons on the remoteLock – Press the Lock button on the remote
once to lock all doors and the tailgate. The turn
signals will flash once to confirm locking.
Unlock – Press the Unlock button on the
remote once to unlock the driver's door.
After a short pause, press the Unlock button a
second time within 10 seconds to unlock the
other doors and the tailgate.
This function can be changed so that all doors
unlock at the same time under Car settings
lock settingsDoors, unlock. See page
120 for a description of the menu system.
Approach lighting – As you approach the
vehicle, press the button on the remote key to
light the interior lighting, parking lights, license
plate lighting and the lights in the door mir-
rors*.
These lights will switch off automatically after
30, 60 or 90 seconds, see page 120 for more
information.
Page 57 of 290
02 Locks and alarm
Remote key and key blade
02
57
function, see page 60 for detailed informa-
tion.
Detachable key blade
The key blade can be removed from the remote
key. When removed, the key blade can be used
as follows:
•To lock/unlock the driver's door
•To lock/unlock the glove compartment
(see page 63)
•To enable/disable the private locking func-
tion (see page 59)
Unlocking the doors with the detached
key blade
Insert the key blade as far as possible in the
driver's door lock. Turn the key blade clock-
wise approximately one-quarter turn to unlock
the driver's door only.
NOTE
After unlocking the driver's door with the
key blade, opening the door will trigger the
alarm.
To disable the alarm:Insert the remote key in the ignition slot.
Locking the doors with the detached key
blade
1. Lock the rear doors and the front passeng-
er's door by pressing the lock button on
each door.
2. Turn the key blade one-quarter turn coun-
ter-clockwise to lock the driver's door.
Removing the key blade
G021082
Slide the spring loaded catch to the side.
Pull the key blade straight out of the remote
key.
Reinserting the key blade in the remote
key
1. Hold the remote key with the slot for the
key blade up.
2. Carefully slide the key blade into its groove.3. Gently press the key blade in the groove
until it clicks into place.
Replacing batteries in the remote key/
PCC
The battery/batteries in the remote key/PCC
should be replaced if:
•The information symbol lights up and a text
is shown in the information display.
and/or
•the vehicle's locks repeatedly do not react
when a button on the remote key/PCC is
pressed within approximately 60 ft (20 m)
from the vehicle.
Page 59 of 290
02 Locks and alarm
Private locking
02
59 Tailgate compartment
G017869
Normal locking/unlocking points
G017870
Locking/unlocking points with private locking acti-
vated.
By utilizing the remote key with the key blade
removed, the private locking feature enables
you to block access to the glove compartmentand disconnect the tailgate from the central
locking system for e.g., valet parking or when
the vehicle is brought to the retailer for service.
With the private locking function activated:
•The vehicle's doors can be locked or
unlocked with the remote
•The engine can be started
•The glove compartment cannot be
unlocked
•The tailgate cannot be unlocked or opened
with the remote
•The rear floor hatch cannot be opened
Activating the private locking function
G020508
Insert the key blade in the glove compart-
ment lock.
Turn the key blade180 degrees clockwise.
Remove the key blade from the lock. A
message will appear in the instrument
panel display.
Deactivating the private locking functionTurn the key blade 180 degrees counterclock-
wise in the glove compartment lock to deacti-
vate private locking.
See page 63 for information on locking the
glove compartment normally, without activat-
ing the private locking function.
Page 61 of 290
02 Locks and alarm
Keyless drive
02
61
NOTE
If several people carrying PCCs approach
the vehicle at the same time, the driver's
seat and door mirrors will assume the posi-
tions they were in for the person who opens
the driver's door.
See also page 80 for information on adjusting
and storing the seat's position in the seat mem-
ory.
Keyless drive information messagesIf all of the PCCs are removed from the vehicle
while the engine is running or if the ignition is
in mode II and all of the doors are closed, a
message will appear in the instrument panel
display and an audible signal will sound.
When at least one PCC has been returned to
the car, the message will be erased in the dis-
play and the audible signal will stop when:
•A door has been opened and closed
•The PCC has been inserted in the ignition
slot
•The READ button (see page 122 for the
location of this button) has been pressed.
CAUTION
•Keyless drive remote keys should never
be left in the vehicle. In the event of a
break-in, a remote found in the vehicle
could make it possible to start the
engine.
•Electromagnetic fields or metal
obstructions can interfere with the key-
less drive system. Avoid placing the
remote key near cellular phones, metal-
lic objects or e.g., in a metal briefcase.
USA – FCC ID:KR55WK48952, KR55WK48964
NOTE
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept interference received, including inter-
ference that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the manufacturer could void the
user's authority to operate the equipment.
Siemens VDO
5WK48891
Tested To Comply With FCC StandardsFor Automobile Use
Canada – IC:267T-5WK48952,
267T-5WK48964, 267T-5WK48891
NOTE
This device complies with RSS -210 of Industry
Canada. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept interference received, including inter-
ference that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the manufacturer could void the
user's authority to operate the equipment.
Location of the keyless drive antennas
G021179
