VOLVO V90 1998 Owners Manual

1998 Volvo S90
A- Cassette eject

If the button is pressed the tape
will stop and the cassette will be
ejected. The radio will be
automatically engaged. The
radio, CD or CD changer will
engage automatically
(depending on which mode was
activated before the tape was
played). B- To re-enter Radio mode

Push one of the waveband
selector buttons
When the unit re-enters Radio
mode, the cassette will not be
ejected.

C- To re-enter Tape mode

If the Tape function has been
disconnected and the cassette
has not been ejected, the Tape
mode can be re-entered by
pressing the "TAPE" button. D- To re-enter CD mode

If the CD function has been
disconnected and the CD has not
been ejected, the CD mode can
be re-entered by pressing the
"CD" button.

E- To re-enter CD changer
mode

If the CD changer function has
been disconnected, the CD
changer mode can be re-entered
by pressing the "CHGR" button.




Contents | Top of Page
file:///K|/ownersdocs/1998/1998_SV90/98S90_151.htm (3 of 3)12/30/2006 \
1:52:54 PM

1998 Volvo S90
Chapter 10 - (cont.)CD - Single
pg. 154
A- CD slot

With the audio system on, insert
a disc into the slot with the label
side up. When the CD is
inserted, the radio is disengaged
and the CD will start to play
automatically.
The CD can be inserted or
ejected even when the unit is
switched off.

When the CD has been inserted
into the player, the "DISC IN"
light will always be ON even if
the radio, tape deck or CD
changer are in use. B- CD mode selector

Press "CD" to actuate the CD
mode. The track last listened to
will continue to play. If the CD-
player is empty, "NO CD" will
be displayed.
C- CD eject

If the button is pressed the CD
will stop and the disc will be
ejected. The radio will be
automatically engaged. The
radio, tape or CD changer will
engage automatically (depending
on which mode was activated
before the CD was played).

NOTE: If the CD eject button is
pressed and the disc is not
removed within 12 seconds, the
disc will be drawn into the CD
player again.
CD - Single pg. 155
file:///K|/ownersdocs/1998/1998_SV90/98S90_154.htm (1 of 7)12/30/2006 \
1:52:55 PM

1998 Volvo S90
A- Music search

Press the "
"or "
"button to search within a track.
While the button is depressed
the playing time for this track
will be displayed. B- Changing the selected
track number

Press "
"for forward
selection or "
"for
backward selection. The chosen
track number will be displayed. C- Playing-time display

When the "CD" button is pressed
the playing time for the current
track is displayed for 5 seconds.

D- Scan

Press this button to listen to the
first ten seconds of each track.
Press it again to stop scanning.
CD - Single pg. 156
file:///K|/ownersdocs/1998/1998_SV90/98S90_154.htm (2 of 7)12/30/2006 \
1:52:55 PM

1998 Volvo S90
A- Random choice

Press "RND" to actuate the
random mode.
From a disc, tracks will be
played at random. "RND" will
be displayed when this function
is engaged.
the random function may cause
a disc to be played more than
once before playing through all
discs. B- Pause

If you press the "volume" knob
the disc is stopped, the unit is
silent and "PAUSE" is
displayed. To restart the disc
press the knob again.

C- To re-enter Radio mode

Push one of the waveband
selector buttons

D- To re-enter Tape mode

If a cassette is already inserted,
the tape deck will re-engage if
the "TAPE" button is pressed. E- To re-enter CD mode

If the CD function has been
disconnected and the CD has not
been ejected, the CD mode can
be re-entered by pressing the
"CD" button.

F- To re-enter CD changer
mode

If the CD changer function has
been disconnected, the CD
changer mode can be re-entered
by pressing the "CHGR" button.
CD - Changer (option) pg. 157
file:///K|/ownersdocs/1998/1998_SV90/98S90_154.htm (3 of 7)12/30/2006 \
1:52:55 PM

1998 Volvo S90
A- CD changer mode selector

Press "CHGR" to actuate the CD changer mode. The disc/
track last listened to will continue to play. If the CD-
changer cartridge* is empty, "0-00" will be displayed. If
there is no cartridge in the changer "- - - -" will be
displayed. If a selected disc does not exist, the disc number
and "-00" will be displayed and the next disc will be
automatically selected. B- Disc number
selector

Depress one of the
preset buttons (1-
6) to select the
disc number
desired. The
selected disc
number and track
number will be
displayed. C- Music search

Press the "
"or
"
"button to
search within a
track. While the
button is depressed
the playing time for
this track will be
displayed.
*The functions pertaining to the CD-changer are only
applicable if the unit has been connected to the Volvo
CD-changer, which is sold separately as an accessory, or
on certain models, standard on the car.
If no CD-changer is connected to the unit "EEEE" will
be displayed if you happen to choose CHGR mode.
CD - Changer (option) pg. 158
file:///K|/ownersdocs/1998/1998_SV90/98S90_154.htm (4 of 7)12/30/2006 \
1:52:55 PM

1998 Volvo S90
A- Changing the selected
track number

Press "
"for forward
selection or "
"for
backward selection. The chosen
disc number and track number
will be displayed. B- Playing-time display

When the "CHGR" button is
pressed the playing time for
current track is displayed for 5
seconds.
C- Scan

Press this button to listen to the
first ten seconds of each track.
Press it again to stop scanning.
CD - Changer (option) pg. 159
file:///K|/ownersdocs/1998/1998_SV90/98S90_154.htm (5 of 7)12/30/2006 \
1:52:55 PM

1998 Volvo S90
A- Random choice

Press "RND" to actuate the
random mode. From a disc
chosen at random, 4 tracks will
be played (also chosen at
random). A new disc will then
be played in the same way.
"RND" will be displayed when
this function is engaged.

B- Pause

If you press the "volume" knob
the disc is stopped, the unit is
silent and "PAUSE" is
displayed. To restart the disc
press the knob again. C- To re-enter Radio mode

Push one of the waveband
selector buttons

D- To re-enter Tape mode

If a cassette is already inserted,
the tape deck will re-engage if
the "TAPE" button is pressed.
E- To re-enter CD mode

If the CD function has been
disconnected and the CD has not
been ejected, the CD mode can
be re-entered by pressing the
"CD" button.

F- To re-enter CD changer
mode

If the CD changer function has
been disconnected, the CD
changer mode can be re-entered
by pressing the "CHGR" button.
Technical specifications(option) pg. 160
SC-816

Power output: 4x 25 W (10% dist.)
Output impedance: 4Ohms
System voltage: 12 Volts, negative ground


Radio

System: PLL (Phase Lock Loop) system with tuned RF (Radio Frequency)\
front and end automatic
wide band gain control.
Electronic suppression circuitry (noise killer).
The Radio is equipped with FM diversity.

Frequency range:
FM 87.9 - 107.9 MHz
AM 530 - 1710 kHz
Sensitivity
FM 1.1µV
AM 20µV
Stereo separation: 35 dB

file:///K|/ownersdocs/1998/1998_SV90/98S90_154.htm (6 of 7)12/30/2006 \
1:52:55 PM

1998 Volvo S90
Cassette deck

4-track, 2 channel stereo
Full logic electronic tape transport
Tape speed: 4.76 cm/sec.
Channel separation 53 dB
Frequency range 30-15000hz
S/N (120 µV) 56 dB without Dolby B NR
S/N (120 µV) 66 dB with Dolby B NR
Wow and Flutter less than 0.06 %
Pinch off "Dolby" and the double D symbol
are the trademarks of Dolby Laboratories Licensing
Corporation. Dolby noise reduction manufactured under license from Dolby\
Laboratories Licensing
Corporation.




Contents | Top of Page
file:///K|/ownersdocs/1998/1998_SV90/98S90_154.htm (7 of 7)12/30/2006 \
1:52:55 PM

1998 Volvo S90
Chapter 10 - (cont.)
Audio systems, general information
pg. 161
Cassettes
l Store cassettes in their cases.
l Do not touch the tape surface
with your fingers.
l Tapes should not be exposed to
direct sunlight or extreme
temperatures.
l Keep tapes away from oil,
grease and other contaminants.
l For optimal tape deck
performance Volvo does not
recommend the use of C-120
tapes.
l Take up slack using a pen or a
pencil before inserting a cassette
in the cassette slot.

Cassette cleaning

We recommend the use of the
Volvo Cleaning Cassette available
as a genuine Volvo accessory.
Regular use improves sound
quality, cleans vital parts and
prevents tape tangle. Compact disc care

l Before using a new disk for the
first time, remove any burrs in the
center/outer edge by running the
stem of a pen or similar object
around the hole/edge of the disc.
l Use high quality discs only.
l Keep the discs clean. Wipe
them with a soft, clean, lint-free
cloth, working from the center
outwards. If necessary, dampen
the cloth with a neutral soap
solution. Dry thoroughly before
using.
l Never use cleaning spray or
antistatic liquid. Use only cleaners
specifically made for CD's.
l Use discs of the correct size
only (3.5" discs should never be
used).
l Do not put tape or labels on the
disc itself.
l Volvo does not recommend the
use of plastic outer rings on the
disc.
l Condensation may occur on
discs/optical components of the
changer in cold winter weather.
The disc can be dried with a clean,
lint-free cloth. Optical
components in the CD changer
may, however, take up to one hour
to dry off.
l Never attempt to play a disc
which is damaged in any way.
l When not in use, the discs
should be stored in their covers.
Avoid storing discs in excessive
heat, direct sunlight or dusty

file:///K|/ownersdocs/1998/1998_SV90/98S90_161.htm (1 of 7)12/30/2006 \
1:52:56 PM

1998 Volvo S90
locations.

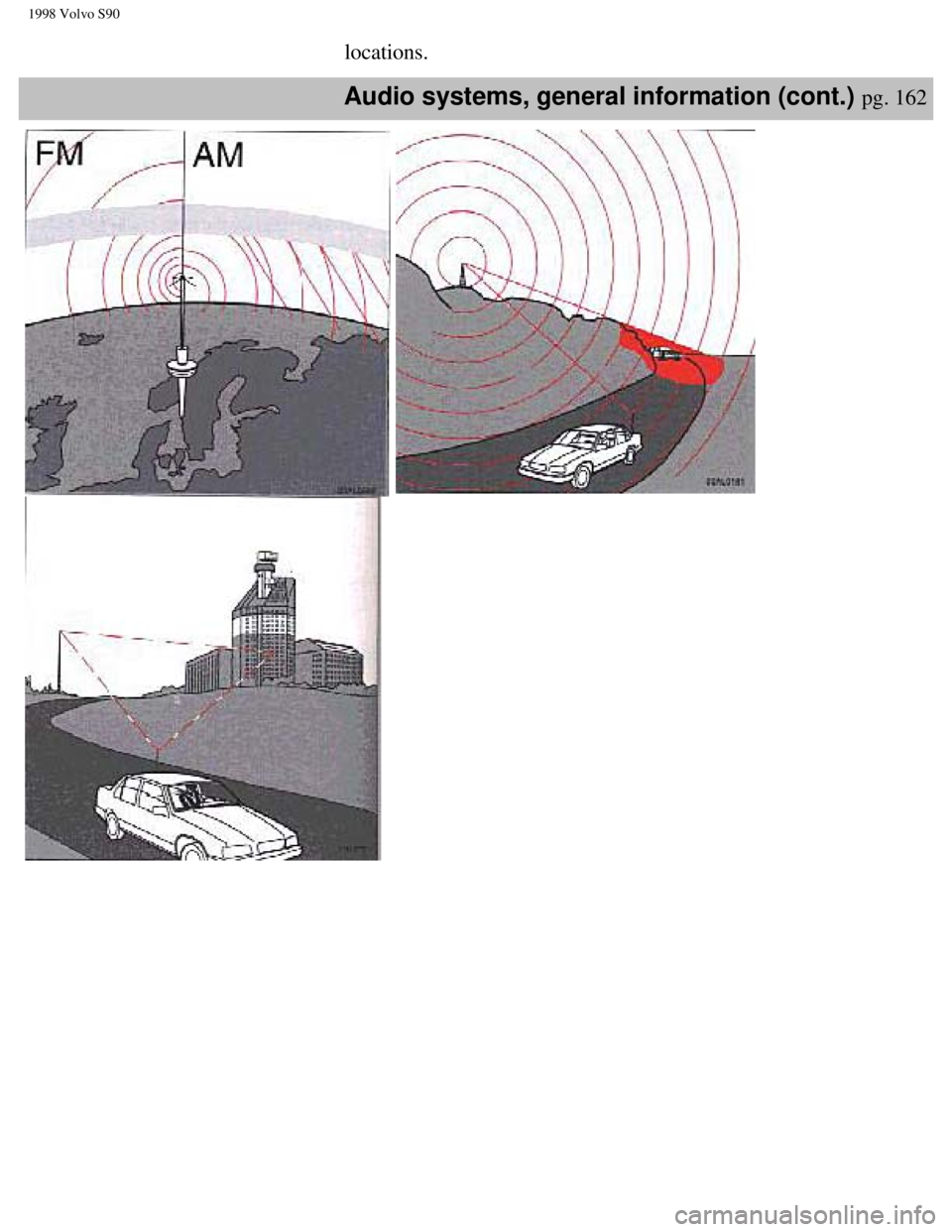

Audio systems, general information (cont.) pg. 162
