02 Locks and alarm
Remote key and key blade
02

61
Removing the key blade
G021082
Slide the spring loaded catch to the side.
Pull the key blade straight out of the remote
key.
Reinserting the key blade in the remote
key
1. Hold the remote key with the slot for the
key blade up.
2. Carefully slide the key blade into its groove.
3. Gently press the key blade in the groove
until it clicks into place.
Unlocking the doors with the detached
key blade
Insert the key blade as far as possible in the
driver's door lock. Turn the key blade clock-wise approximately one-quarter turn to unlock
the driver's door only.
NOTE
After unlocking the driver's door with the
key blade, opening the door will trigger the
alarm.
To disable the alarm:Insert the remote key in the ignition slot. This
also applies to vehicles equipped with the
optional keyless drive.
Replacing batteries in the remote key/
PCC
The battery/batteries in the remote key/PCC
should be replaced if:
•The information symbol lights up and a text
appears in the information display.
and/or
•the vehicle's locks repeatedly do not react
when a button on the remote key/PCC is
pressed within approximately 60 ft (20 m)
from the vehicle.
Battery type CR 2430, 3 V (one battery in the
remote key, two batteries in the PCC)

02 Locks and alarm
Remote key and key blade
02
62
Opening the remote key/PCC
Slide the spring loaded catch to the
side.
Pull the key blade straight out of the
remote key.
Insert a small screwdriver in the hole
behind the spring loaded catch and care-
fully pry up the cover.
NOTE
Turn the remote key with the buttons
upward so that the batteries do not fall out
when the cover is removed.
Replacing the batteries
CAUTION
When handling batteries, avoid touching
their contact surfaces as this could result in
poor battery function in the remote key.
Note the position of the battery's (+) or (–)
sides.
Remote key (one battery)1. Use a screwdriver to pry out the old bat-
tery.
2.
Insert a new one with the (+) side down-
ward.
PCC (two batteries)1. Use a screwdriver to pry out the old bat-
teries.
2.
Insert the first new battery with the (+) side
upward.
3. Insert the plastic spacer over the battery.
Insert the second new battery on top of the
plastic spacer, with the + side downward.
Re-assembling the remote key1. Press the remote key's cover into place.
2. Hold the remote key with the slot for the
key blade up.
3. Carefully slide the key blade into its groove.
4. Gently press the key blade in the groove
until it clicks into place.
Old batteries should be properly recycled.

02 Locks and alarm
Keyless drive
02

* Option/accessory, for more information, see Introduction.63 Keyless drive* (models with Personal
Car Communicator only)
Keyless locking and unlocking
Range of the keyless drive remote key–5 ft
(1.5 meters)
This system makes it possible to unlock and
lock the vehicle without having to press any
buttons on the Personal Car Communicators
(PCC). It is only necessary to have a keyless
drive remote key in your possession to operate
the central locking system.
NOTE
•The gear selector must in the P position
before the vehicle can be locked and
the alarm can be armed.
•The buttons on the keyless drive remote
key can also be used to lock and unlock
the vehicle, see page 58 for more infor-
mation.
Both of the PCCs provided with the vehicle
have the keyless function, and additional ones
can be ordered. The system can accommo-
date up to six PCCs.
The red rings in the illustration indicate the area
around the vehicle that is within range of the
keyless drive antennas.
Unlocking the vehicle
•A keyless drive remote key must be on the
same side of the vehicle as the door to be
opened, and be within 5 feet (1.5 meters)
of the door's lock or the tailgate (see the
shaded areas in the illustration).
•Pull a door handle to unlock and open the
door or pull the tailgate opening control.
The number of doors that are unlocked at the
same time can be set in the vehicle's menu
system. Press MY CAR and go to Car settings
Lock settingsKeyless entry. See page
128 for a description of the menu system.
NOTE
If the PCC does not function normally (weak
battery, etc.), the vehicle can be unlocked
with the detachable key blade, see
page 61.
Locking or unlocking the vehicle with the
key blade
Keyless drive keyhole cover
The driver's door on vehicles equipped with
keyless drive can be locked or unlocked with
the remote key's detachable key blade if nec-
essary, see page 60 for information on remov-
ing the key blade from the remote key. To
access the keyhole in the driver's door:

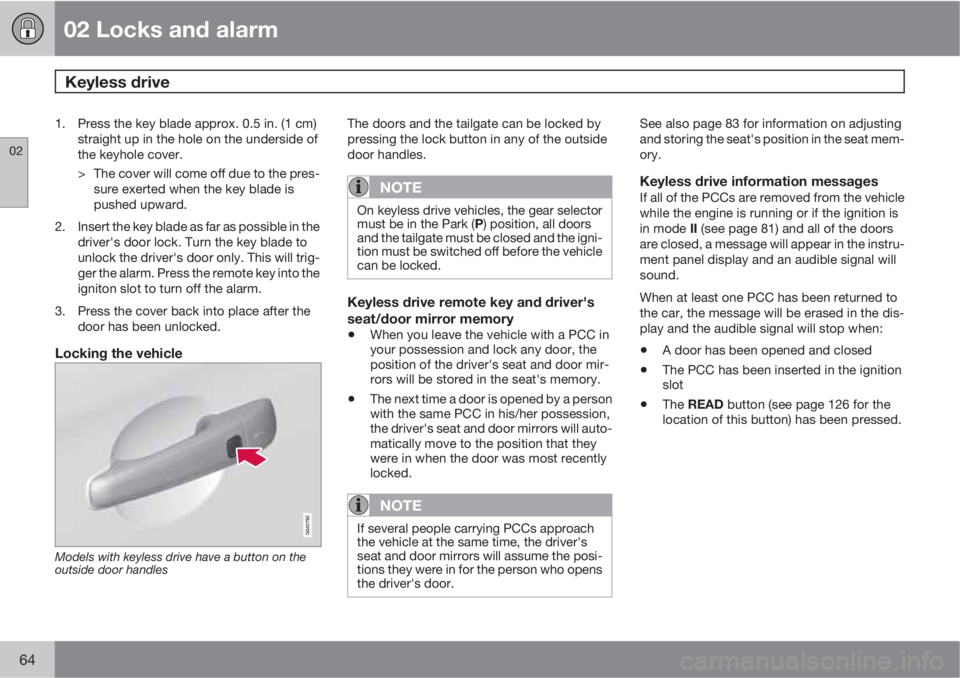

02 Locks and alarm
Keyless drive
02
64
1. Press the key blade approx. 0.5 in. (1 cm)
straight up in the hole on the underside of
the keyhole cover.
> The cover will come off due to the pres-
sure exerted when the key blade is
pushed upward.
2. Insert the key blade as far as possible in the
driver's door lock. Turn the key blade to
unlock the driver's door only. This will trig-
ger the alarm. Press the remote key into the
igniton slot to turn off the alarm.
3. Press the cover back into place after the
door has been unlocked.
Locking the vehicle
Models with keyless drive have a button on the
outside door handles
The doors and the tailgate can be locked by
pressing the lock button in any of the outside
door handles.
NOTE
On keyless drive vehicles, the gear selector
must be in the Park (P) position, all doors
and the tailgate must be closed and the igni-
tion must be switched off before the vehicle
can be locked.
Keyless drive remote key and driver's
seat/door mirror memory
•When you leave the vehicle with a PCC in
your possession and lock any door, the
position of the driver's seat and door mir-
rors will be stored in the seat's memory.
•The next time a door is opened by a person
with the same PCC in his/her possession,
the driver's seat and door mirrors will auto-
matically move to the position that they
were in when the door was most recently
locked.
NOTE
If several people carrying PCCs approach
the vehicle at the same time, the driver's
seat and door mirrors will assume the posi-
tions they were in for the person who opens
the driver's door.
See also page 83 for information on adjusting
and storing the seat's position in the seat mem-
ory.
Keyless drive information messagesIf all of the PCCs are removed from the vehicle
while the engine is running or if the ignition is
in mode II (see page 81) and all of the doors
are closed, a message will appear in the instru-
ment panel display and an audible signal will
sound.
When at least one PCC has been returned to
the car, the message will be erased in the dis-
play and the audible signal will stop when:
•A door has been opened and closed
•The PCC has been inserted in the ignition
slot
•The READ button (see page 126 for the
location of this button) has been pressed.

02 Locks and alarm
Keyless drive
02
65
CAUTION
•Keyless drive remote keys should never
be left in the vehicle. In the event of a
break-in, a remote found in the vehicle
could make it possible to start the
engine.
•Electromagnetic fields or metal
obstructions can interfere with the key-
less drive system. Avoid placing the
remote key near cellular phones, metal-
lic objects or e.g., in a metal briefcase.
USA – FCC ID:KR55WK48952, KR55WK48964
NOTE
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept interference received, including inter-
ference that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the manufacturer could void the
user's authority to operate the equipment.
Siemens VDO
5WK48891
Tested To Comply With FCC StandardsFor Automobile Use
Canada – IC:267T-5WK48952,
267T-5WK48964, 267T-5WK48891
NOTE
This device complies with RSS -210 of Industry
Canada. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept interference received, including inter-
ference that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the manufacturer could void the
user's authority to operate the equipment.
Location of the keyless drive antennas
G021179
The keyless drive system has a number of
antennas located at various points in the vehi-
cle.
On the tailgate, near the wiper motor
Left rear door handle
Ceiling, above the center of the rear seat
Under the floor of the cargo area, near the
rear seat
Right rear door handle
Under the rear section of the center con-
sole
Under the front section of the center con-
sole.
WARNING
People with implanted pacemakers should
not allow the pacemaker to come closer
than 9 inches (22 cm) to any of the keyless
drive system's antennas. This is to help pre-
vent interference between the pacemaker
and the keyless drive system.

02 Locks and alarm
Locks
02
66
Locking and unlocking the vehicle
From outside the vehicleThe remote key locks all of the doors and the
tailgate.
If the locks repeatedly do not react when the
unlock button is pressed, it may be necessary
to replace the batteries in the remote, see
page 58. In this case the vehicle can be
unlocked with the detachable key blade. See
page 61.
The first press on the unlock button unlocks the
driver's door and a second press unlocks the
other doors and the tailgate (see also page
58).
NOTE
The vehicle cannot be locked if a door is
open.
From inside the vehicle (central locking
button)
Central locking button
The lock buttons on the door panel can be used
to lock or unlock all doors and the tailgate at
the same time. Press
to lock and to
unlock.
UnlockingThe vehicle can be unlocked from inside the
vehicle in two ways:
•By pressing the unlock button .
•The door can be unlocked by pulling the
door handle once and opened by pulling
the handle again.
Locking
•Press the lock button after the front
doors have been closed.
•Each door can be locked individually with
the lock button on the respective doors.
The door must be closed first.
Automatic relockingIf the doors are unlocked, the locks will auto-
matically reengage (re-lock) and the alarm will
rearm after 2 minutes unless a door or the tail-
gate has been opened.
Automatic lockingWhen the vehicle starts to move, the doors and
trunk can be locked automatically. This feature
can be turned on or off by pressing MY CAR
and going to Car settings
Lock settings
Automatic door locking. See page 128 for
a description of the menu system.

02 Locks and alarm
Locks
02

67
Glove compartment
The glove compartment can only be locked
and unlocked using the detachable key blade
in the remote key. See page 60 for information
on removing the key blade from the remote
key.
Insert the key blade in the glove compart-
ment lock.
Turn the key blade 90 degrees clockwise.
Remove the key blade from the lock.
Locking/unlocking the tailgate
Tailgate unlock button on the remote key
Unlocking the tailgate with the remote
key

Press the tailgate unlock button on the
remote key to unlock (but not open1) the
tailgate. See also page 58.
> The alarm indicator light on the dash-
board will go out to indicate that the
alarm is not monitoring the entire vehi-
cle. The accessory movement and incli-
nation sensors will be automatically dis-
connected.
NOTE
•If the doors are locked while the tailgate
is open, the tailgate will remain
unlocked until the vehicle is relocked by
pressing the Lock button on the remote
key.
•On keyless drive vehicles, the gear
selector must be in the Park (P) position,
all doors and the tailgate must be
closed and the ignition must be
switched off before the vehicle can be
locked.
Unlocking the tailgate from the
passenger compartment
1This button also opens, but does not close, the tailgate on models equipped with the optional power tailgate (see page 255).

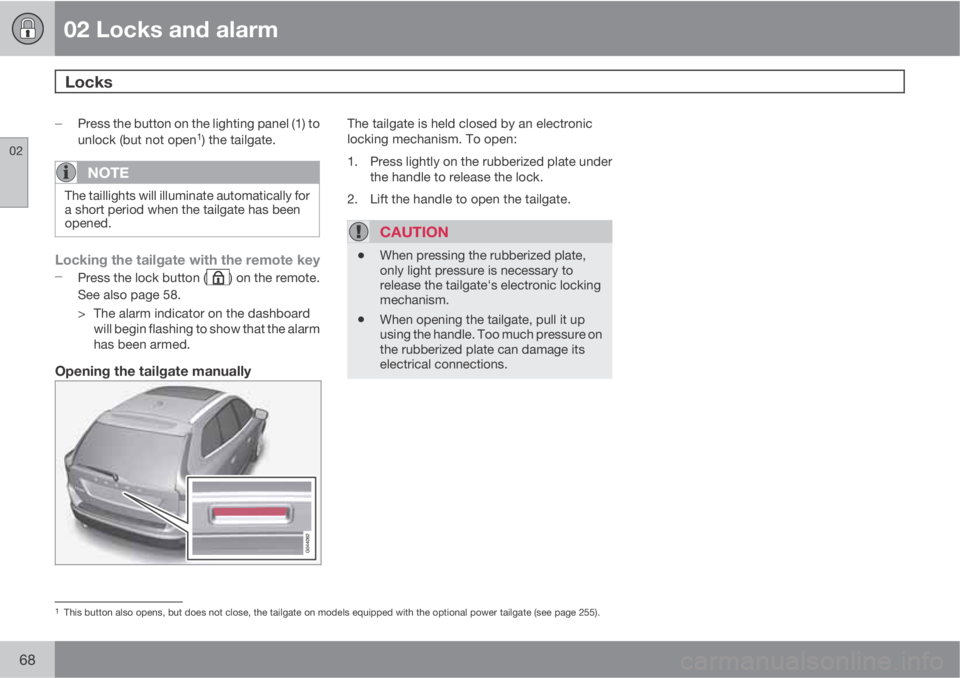

02 Locks and alarm
Locks
02
68

Press the button on the lighting panel (1) to
unlock (but not open1) the tailgate.
NOTE
The taillights will illuminate automatically for
a short period when the tailgate has been
opened.
Locking the tailgate with the remote key
Press the lock button () on the remote.
See also page 58.
> The alarm indicator on the dashboard
will begin flashing to show that the alarm
has been armed.
Opening the tailgate manually
The tailgate is held closed by an electronic
locking mechanism. To open:
1. Press lightly on the rubberized plate under
the handle to release the lock.
2. Lift the handle to open the tailgate.
CAUTION
•When pressing the rubberized plate,
only light pressure is necessary to
release the tailgate's electronic locking
mechanism.
•When opening the tailgate, pull it up
using the handle. Too much pressure on
the rubberized plate can damage its
electrical connections.
1This button also opens, but does not close, the tailgate on models equipped with the optional power tailgate (see page 255).

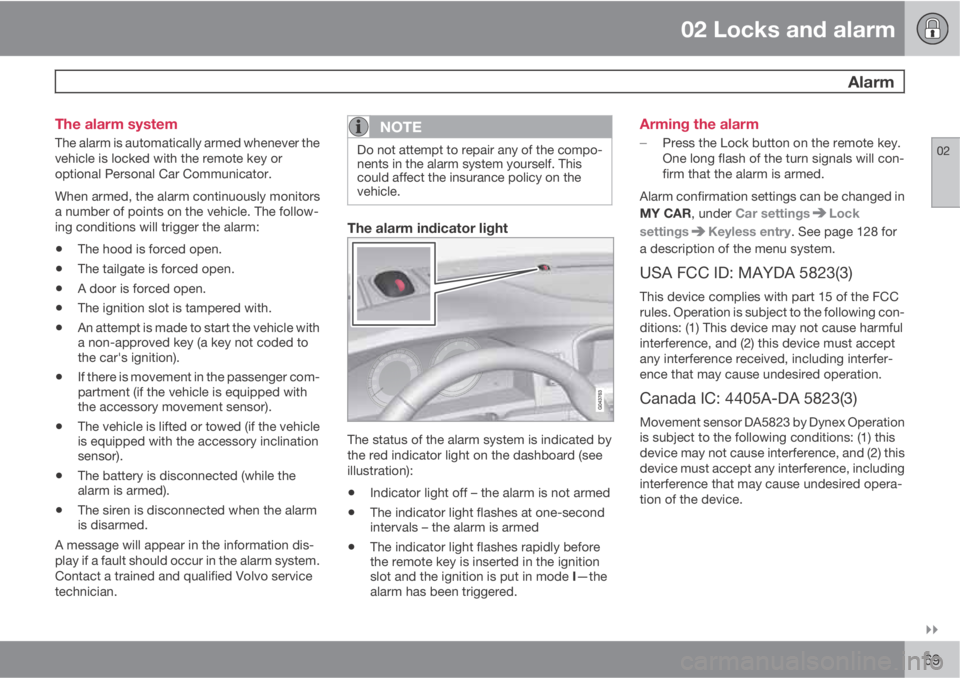

02 Locks and alarm
Alarm
02

69 The alarm system
The alarm is automatically armed whenever the
vehicle is locked with the remote key or
optional Personal Car Communicator.
When armed, the alarm continuously monitors
a number of points on the vehicle. The follow-
ing conditions will trigger the alarm:
•The hood is forced open.
•The tailgate is forced open.
•A door is forced open.
•The ignition slot is tampered with.
•An attempt is made to start the vehicle with
a non-approved key (a key not coded to
the car's ignition).
•If there is movement in the passenger com-
partment (if the vehicle is equipped with
the accessory movement sensor).
•The vehicle is lifted or towed (if the vehicle
is equipped with the accessory inclination
sensor).
•The battery is disconnected (while the
alarm is armed).
•The siren is disconnected when the alarm
is disarmed.
A message will appear in the information dis-
play if a fault should occur in the alarm system.
Contact a trained and qualified Volvo service
technician.
NOTE
Do not attempt to repair any of the compo-
nents in the alarm system yourself. This
could affect the insurance policy on the
vehicle.
The alarm indicator light
The status of the alarm system is indicated by
the red indicator light on the dashboard (see
illustration):
•Indicator light off – the alarm is not armed
•The indicator light flashes at one-second
intervals – the alarm is armed
•The indicator light flashes rapidly before
the remote key is inserted in the ignition
slot and the ignition is put in mode I—the
alarm has been triggered.
Arming the alarm

Press the Lock button on the remote key.
One long flash of the turn signals will con-
firm that the alarm is armed.
Alarm confirmation settings can be changed in
MY CAR, under Car settings
Lock
settings
Keyless entry. See page 128 for
a description of the menu system.
USA FCC ID: MAYDA 5823(3)
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada IC: 4405A-DA 5823(3)
Movement sensor DA5823 by Dynex Operation
is subject to the following conditions: (1) this
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired opera-
tion of the device.

02 Locks and alarm
Alarm
02
70
Disarming the alarm

Press the Unlock button on the remote key.
> Two short flashes from the car's direc-
tion indicators confirm that the alarm
has been deactivated and that all doors
are unlocked.
Turning off (stopping) the alarm
If the alarm is sounding, it can be stopped by
pressing the Unlock button on the remote key
or by inserting the remote key in the ignition
slot. Two short flashes from the car's direction
indicators confirm that the alarm has been
turned off.
Other alarm-related functions
Automatic re-armingIf the doors are unlocked, the locks will auto-
matically reengage (re-lock) and the alarm will
re-arm after 2 minutes unless a door or the tail-
gate has been opened.
Audible/visual alarm signal
•An audible alarm signal is given by a bat-
tery powered siren. The alarm cycle lasts
for 30 seconds.
•The visual alarm signal is given by flashing
all turn signals for approximately 5 minutes
or until the alarm is turned off.
Remote key not functioningIf the remote key is not functioning properly,
the alarm can be turned off and the vehicle can
be started as follows:
1. Open the driver's door with the key blade.
> This will trigger the alarm.
2. Insert the remote key into the ignition slot
(also on vehicles with the optional keyless
drive). This will turn off the alarm.
Reduced alarm function
Turning off the accessory alarm sensorsIn certain situations it may be desirable to turn
off the accessory inclination and movement
alarm sensors if, for example, you drive your
vehicle onto a ferry where the rocking of the
boat could trigger the alarm or if a pet is left in
the vehicle with the doors locked.
The vehicle's menu system is used for turning
off these sensors (see page 128 for a descrip-
tion of the menu system).
1.
Go into the menu under
Car settings.
2.
Select
Reduced Guard (Press OK/
MENU to choose).
3. Two alternatives are now available:
•Activate once. If this alternative is
selected, Reduced guard See
manual will appear in the instrument
panel display and the accessory incli-
nation and movement alarm sensors will
be deactivated when the vehicle is
locked.
•Ask when exiting. If this alternative is
selected, a message will appear in the
center console display each time the
engine is turned off. Press OK/MENU to
accept and the accessory inclination
and movement alarm sensors will be
deactivated when the vehicle is locked.
Press EXIT to cancel.
4.
Press OK/MENU and lock the vehicle.
The next time the engine is started, the alarm
system will be reset and
Full guard will appear
in the instrument panel display. The accessory
inclination and movement alarm sensors will be
reactivated.
In either of the alternatives, if you prefer not to
deactivate the accessory inclination and move-
ment alarm sensors, do not make a choice in
the menu or press EXIT and lock the vehicle.
