Label information09
351 List of labels
Model
plate. Vehicle Identification Number (VIN).
Codes for color and upholstery, etc. The
model plate is located on the rear side of
the B-pillar (the pillar between the front and
rear passenger doors) and the rear pas-
senger's door must be open in order to see
it.
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Min-
istry of Transport (CMVSS) standards
(Canada). Your Volvo is designed to meet
all applicable safety standards, as evi-
denced by the certification label on the
driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of
the driver's door opening). For further infor-
mation regarding these regulations, please
consult your Volvo retailer.
Tire inflation
pressures. This label indicates the correct
inflation pressures for the tires that were on
the vehicle when it left the factory. Cana-
dian models have the upper decal; U.S.
models have the lower one.
Vehicle Identification Number
(VIN). The VIN plate is located on the top
left surface of the dashboard. The Vehicle
Identification Number (VIN) should always
be quoted in all correspondence concern-
ing your vehicle with the retailer and when
ordering parts.
Vehicle Emission Control Information.
Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by
the certification label on the underside of
the hood. For further information regarding
these regulations, please consult your
Volvo retailer.

09 Specifications
Specifications 09
352

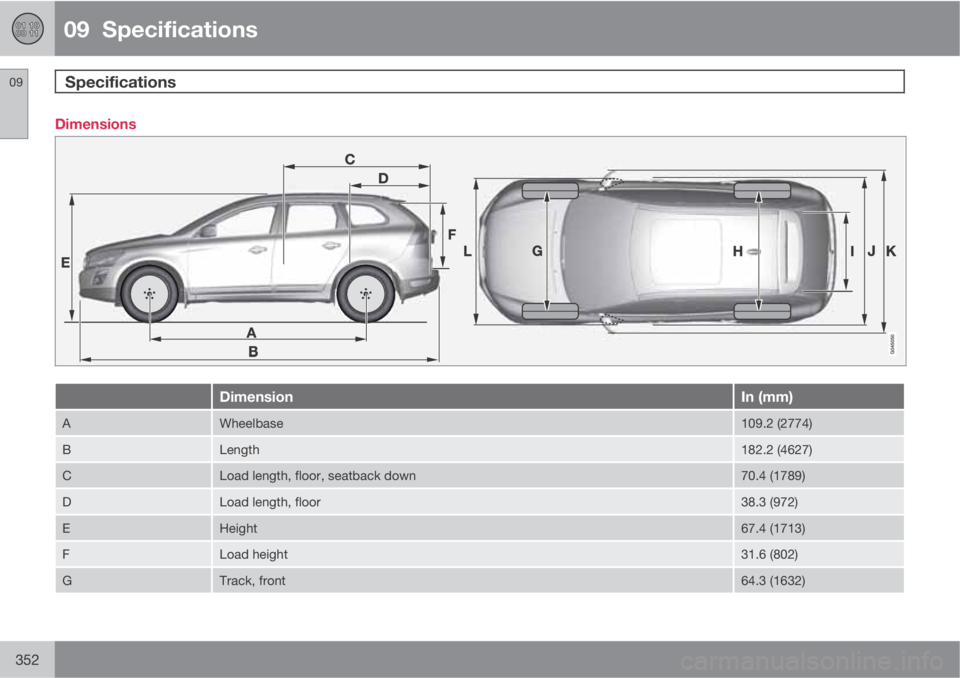

Dimensions
DimensionIn (mm)
AWheelbase109.2 (2774)
BLength182.2 (4627)
CLoad length, floor, seatback down70.4 (1789)
DLoad length, floor38.3 (972)
EHeight67.4 (1713)
FLoad height31.6 (802)
GTrack, front64.3 (1632)

09 Specifications
Specifications09

353

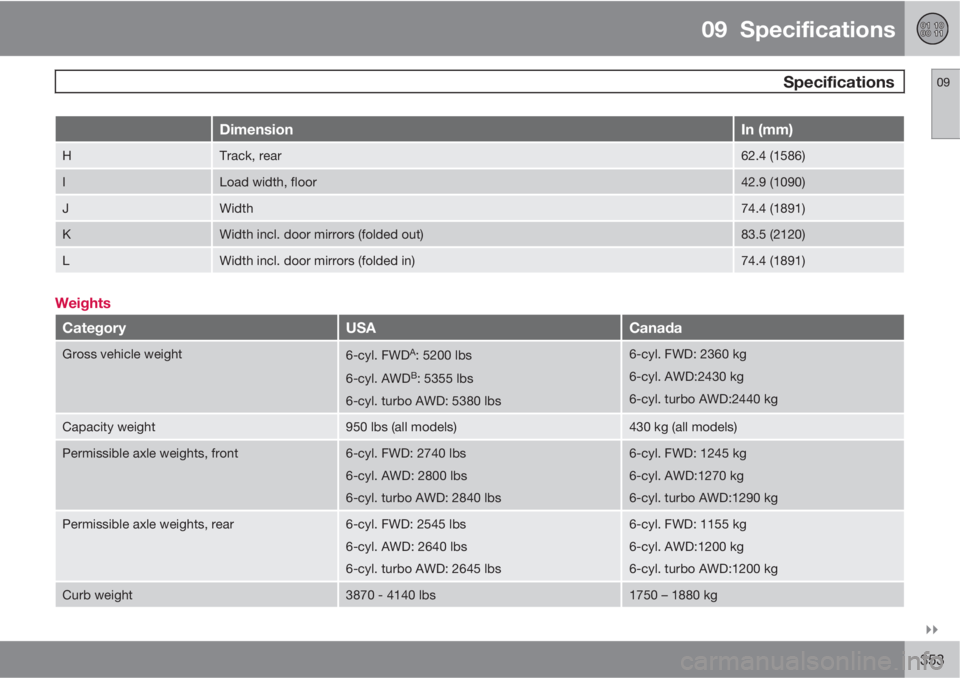

DimensionIn (mm)
HTrack, rear62.4 (1586)
ILoad width, floor42.9 (1090)
JWidth74.4 (1891)
KWidth incl. door mirrors (folded out)83.5 (2120)
LWidth incl. door mirrors (folded in)74.4 (1891)
Weights
CategoryUSACanada
Gross vehicle weight6-cyl. FWDA: 5200 lbs
6-cyl. AWD
B: 5355 lbs
6-cyl. turbo AWD: 5380 lbs
6-cyl. FWD: 2360 kg
6-cyl. AWD:2430 kg
6-cyl. turbo AWD:2440 kg
Capacity weight950 lbs (all models)430 kg (all models)
Permissible axle weights, front6-cyl. FWD: 2740 lbs
6-cyl. AWD: 2800 lbs
6-cyl. turbo AWD: 2840 lbs6-cyl. FWD: 1245 kg
6-cyl. AWD:1270 kg
6-cyl. turbo AWD:1290 kg
Permissible axle weights, rear6-cyl. FWD: 2545 lbs
6-cyl. AWD: 2640 lbs
6-cyl. turbo AWD: 2645 lbs6-cyl. FWD: 1155 kg
6-cyl. AWD:1200 kg
6-cyl. turbo AWD:1200 kg
Curb weight3870 - 4140 lbs1750 – 1880 kg

09 Specifications
Specifications 09
354

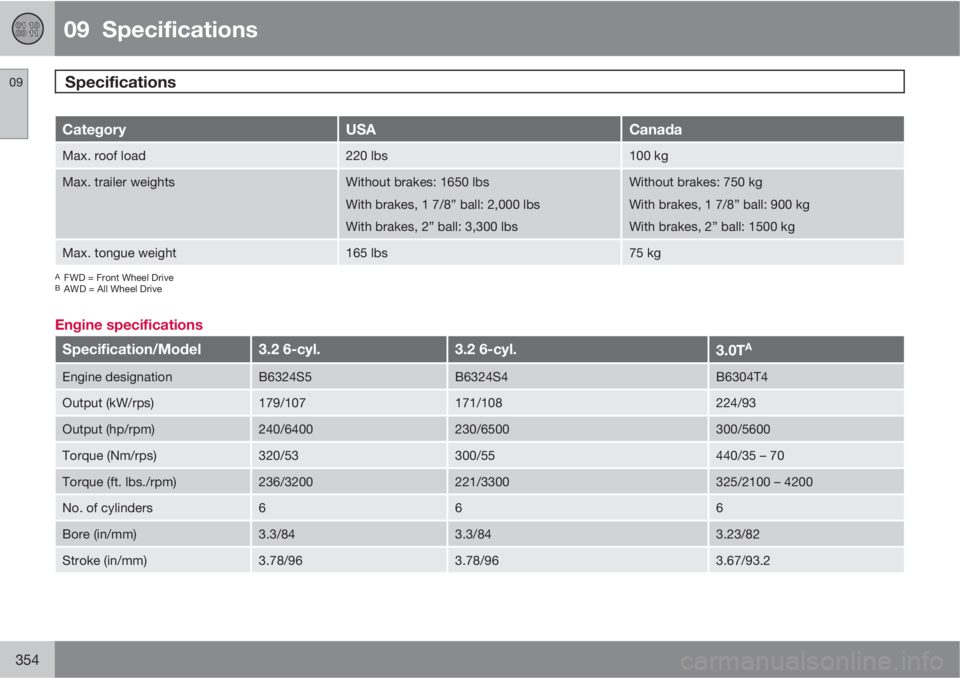

CategoryUSACanada
Max. roof load220 lbs100 kg
Max. trailer weightsWithout brakes: 1650 lbs
With brakes, 1 7/8” ball: 2,000 lbs
With brakes, 2” ball: 3,300 lbsWithout brakes: 750 kg
With brakes, 1 7/8” ball: 900 kg
With brakes, 2” ball: 1500 kg
Max. tongue weight165 lbs75 kg
AFWD = Front Wheel DriveBAWD = All Wheel Drive
Engine specifications
Specification/Model3.2 6-cyl.3.2 6-cyl.3.0TA
Engine designationB6324S5B6324S4B6304T4
Output (kW/rps)179/107171/108224/93
Output (hp/rpm)240/6400230/6500300/5600
Torque (Nm/rps)320/53300/55440/35 – 70
Torque (ft. lbs./rpm)236/3200221/3300325/2100 – 4200
No. of cylinders666
Bore (in/mm)3.3/843.3/843.23/82
Stroke (in/mm)3.78/963.78/963.67/93.2

09 Specifications
Specifications09

355

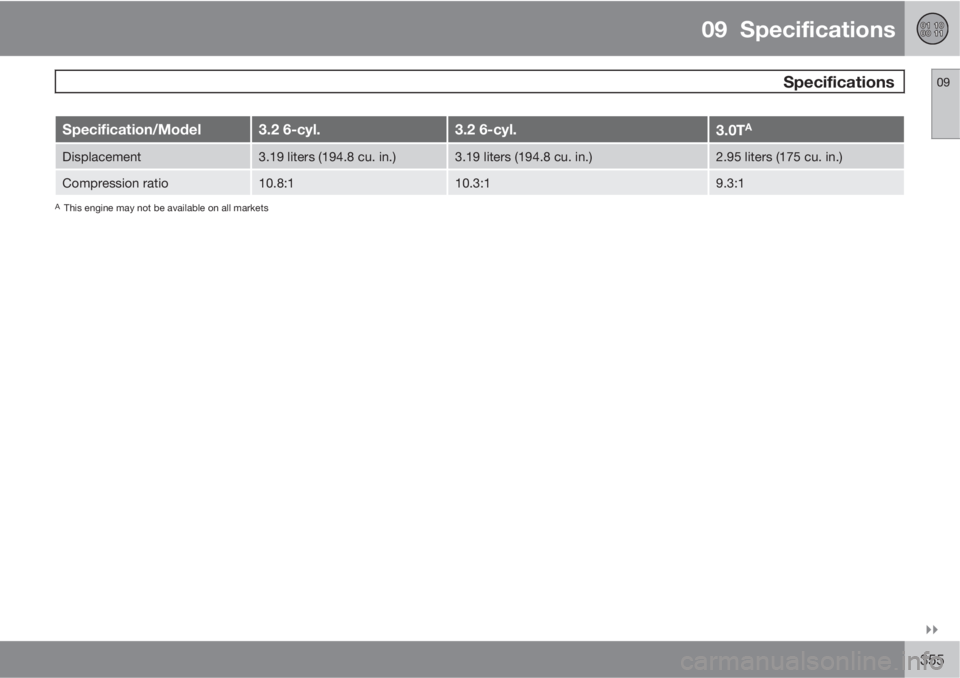

Specification/Model3.2 6-cyl.3.2 6-cyl.3.0TA
Displacement3.19 liters (194.8 cu. in.)3.19 liters (194.8 cu. in.)2.95 liters (175 cu. in.)
Compression ratio10.8:110.3:19.3:1
AThis engine may not be available on all markets

09 Specifications
Specifications 09
356

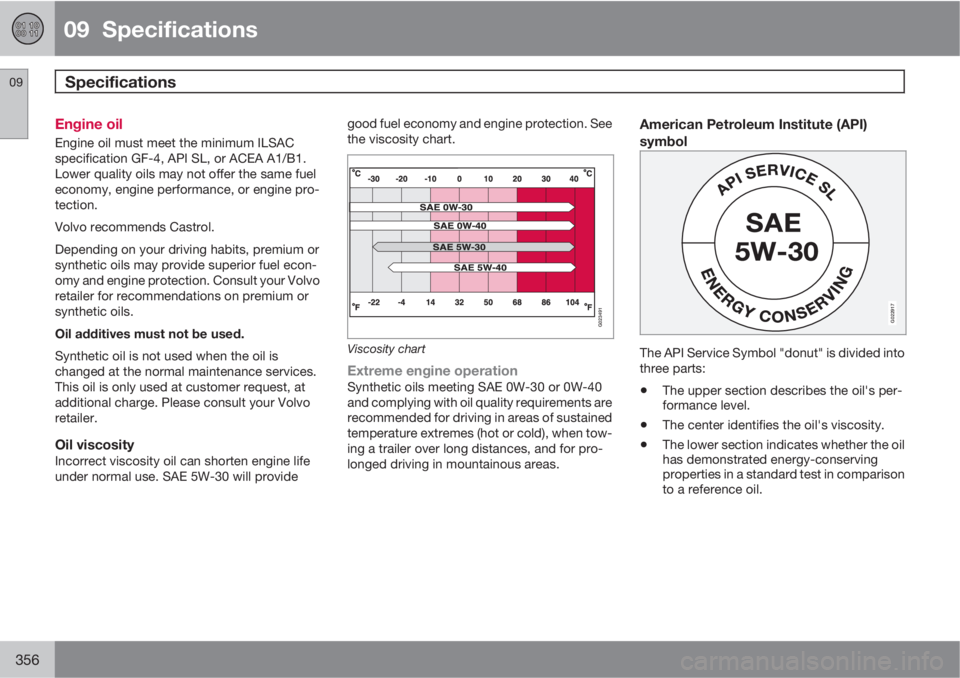

Engine oil
Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.
Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.
Volvo recommends Castrol.
Depending on your driving habits, premium or
synthetic oils may provide superior fuel econ-
omy and engine protection. Consult your Volvo
retailer for recommendations on premium or
synthetic oils.
Oil additives must not be used.
Synthetic oil is not used when the oil is
changed at the normal maintenance services.
This oil is only used at customer request, at
additional charge. Please consult your Volvo
retailer.
Oil viscosityIncorrect viscosity oil can shorten engine life
under normal use. SAE 5W-30 will providegood fuel economy and engine protection. See
the viscosity chart.
G023491
Viscosity chart
Extreme engine operationSynthetic oils meeting SAE 0W-30 or 0W-40
and complying with oil quality requirements are
recommended for driving in areas of sustained
temperature extremes (hot or cold), when tow-
ing a trailer over long distances, and for pro-
longed driving in mountainous areas.
American Petroleum Institute (API)
symbol
G022917
The API Service Symbol "donut" is divided into
three parts:
•The upper section describes the oil's per-
formance level.
•The center identifies the oil's viscosity.
•The lower section indicates whether the oil
has demonstrated energy-conserving
properties in a standard test in comparison
to a reference oil.

09 Specifications
Specifications09

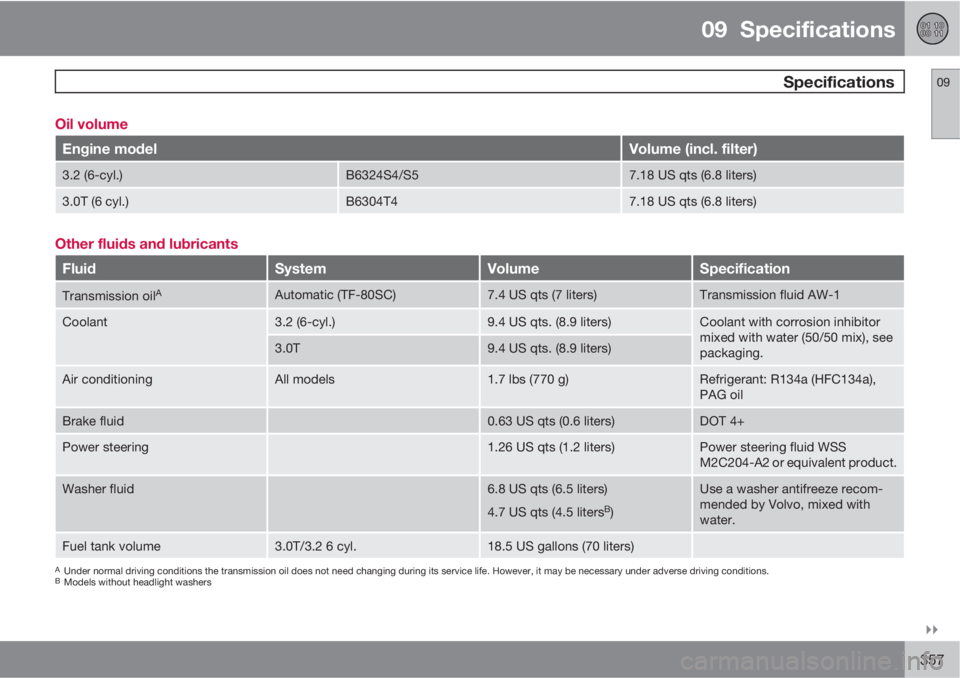

357 Oil volume
Engine modelVolume (incl. filter)
3.2 (6-cyl.)B6324S4/S57.18 US qts (6.8 liters)
3.0T (6 cyl.)B6304T47.18 US qts (6.8 liters)
Other fluids and lubricants
FluidSystemVolumeSpecification
Transmission oilAAutomatic (TF-80SC)7.4 US qts (7 liters)Transmission fluid AW-1
Coolant3.2 (6-cyl.)9.4 US qts. (8.9 liters)Coolant with corrosion inhibitor
mixed with water (50/50 mix), see
packaging.
3.0T9.4 US qts. (8.9 liters)
Air conditioningAll models1.7 lbs (770 g)Refrigerant: R134a (HFC134a),
PAG oil
Brake fluid0.63 US qts (0.6 liters)DOT 4+
Power steering1.26 US qts (1.2 liters)Power steering fluid WSS
M2C204-A2 or equivalent product.
Washer fluid6.8 US qts (6.5 liters)
4.7 US qts (4.5 liters
B)
Use a washer antifreeze recom-
mended by Volvo, mixed with
water.
Fuel tank volume3.0T/3.2 6 cyl.18.5 US gallons (70 liters)
AUnder normal driving conditions the transmission oil does not need changing during its service life. However, it may be necessary under adverse driving conditions.BModels without headlight washers

09 Specifications
Specifications 09
358

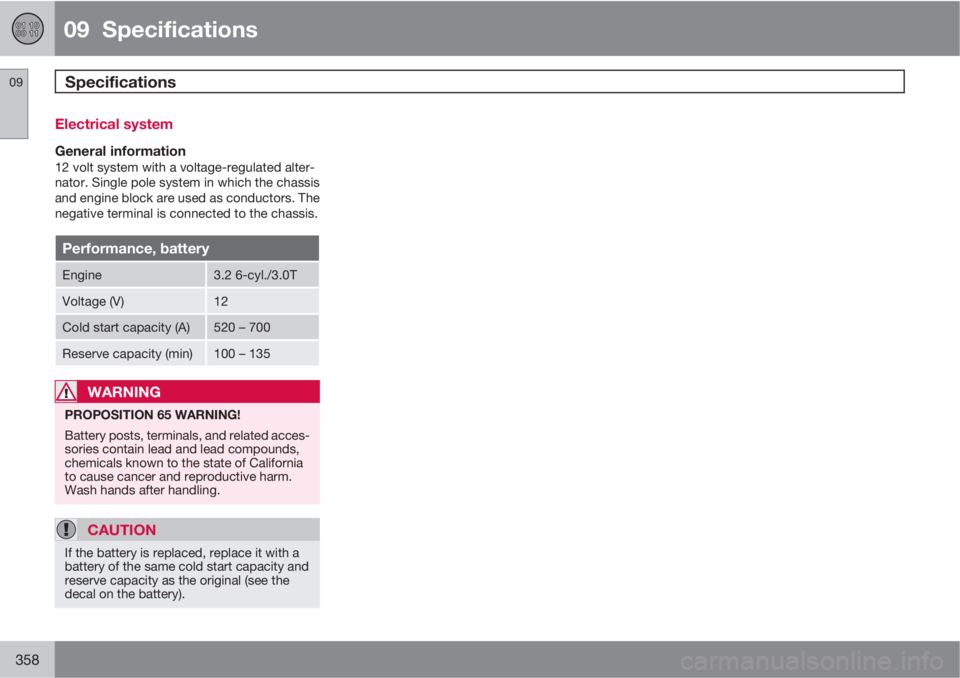

Electrical system
General information12 volt system with a voltage-regulated alter-
nator. Single pole system in which the chassis
and engine block are used as conductors. The
negative terminal is connected to the chassis.
Performance, battery
Engine3.2 6-cyl./3.0T
Voltage (V)12
Cold start capacity (A)520 – 700
Reserve capacity (min)100 – 135
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
CAUTION
If the battery is replaced, replace it with a
battery of the same cold start capacity and
reserve capacity as the original (see the
decal on the battery).

09 Specifications
Overview of information and warning symbols09

* Option/accessory, for more information, see Introduction.359 Introduction

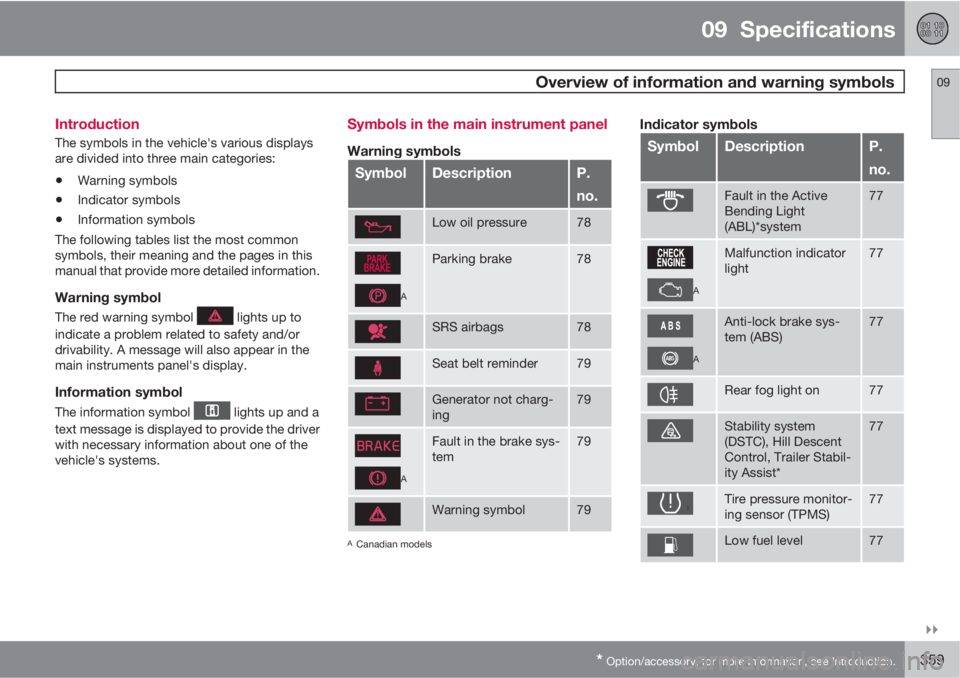

The symbols in the vehicle's various displays
are divided into three main categories:
•Warning symbols
•Indicator symbols
•Information symbols
The following tables list the most common
symbols, their meaning and the pages in this
manual that provide more detailed information.
Warning symbol
The red warning symbol lights up to
indicate a problem related to safety and/or
drivability. A message will also appear in the
main instruments panel's display.
Information symbol
The information symbol lights up and a
text message is displayed to provide the driver
with necessary information about one of the
vehicle's systems.
Symbols in the main instrument panel
Warning symbols
SymbolDescriptionP.
no.
Low oil pressure78
A
Parking brake78
SRS airbags78
Seat belt reminder79
Generator not charg-
ing79
A
Fault in the brake sys-
tem79
Warning symbol79
ACanadian models
Indicator symbols
SymbolDescriptionP.
no.
Fault in the Active
Bending Light
(ABL)*system77
A
Malfunction indicator
light77
A
Anti-lock brake sys-
tem (ABS)77
Rear fog light on77
Stability system
(DSTC), Hill Descent
Control, Trailer Stabil-
ity Assist*77
Tire pressure monitor-
ing sensor (TPMS)77
Low fuel level77

09 Specifications
Overview of information and warning symbols 09
360* Option/accessory, for more information, see Introduction.
SymbolDescriptionP.
no.
Information symbol,
see text in information
display77
High beam indicator76
Left turn signal indica-
tor76
Right turn signal indi-
cator76
ACanadian models
Other information symbols

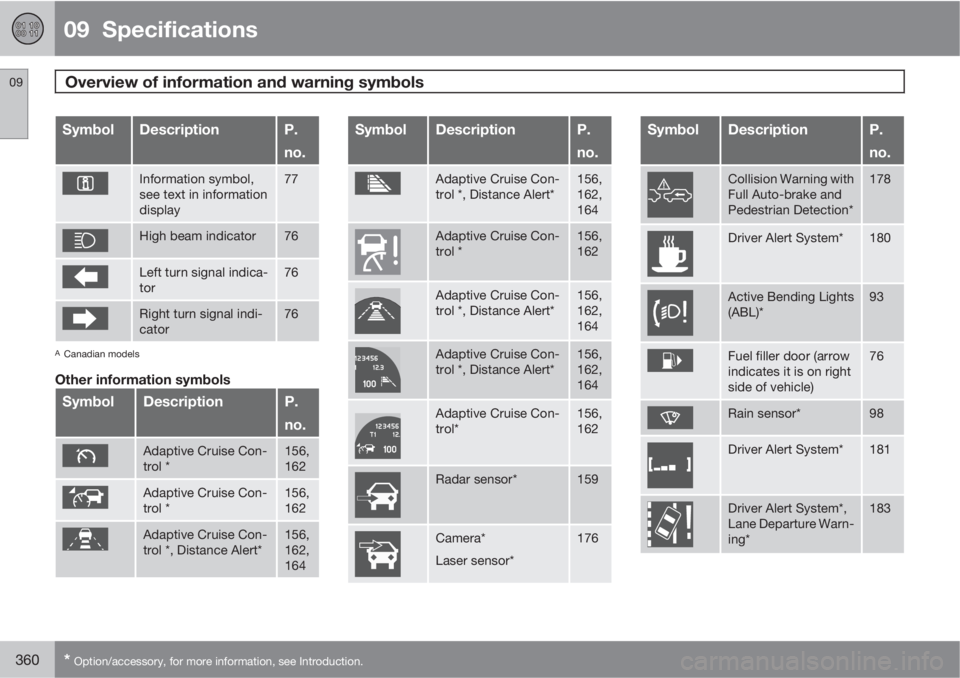

SymbolDescriptionP.
no.
Adaptive Cruise Con-
trol *156,
162
Adaptive Cruise Con-
trol *156,
162
Adaptive Cruise Con-
trol *, Distance Alert*156,
162,
164
SymbolDescriptionP.
no.
Adaptive Cruise Con-
trol *, Distance Alert*156,
162,
164
Adaptive Cruise Con-
trol *156,
162
Adaptive Cruise Con-
trol *, Distance Alert*156,
162,
164
Adaptive Cruise Con-
trol *, Distance Alert*156,
162,
164
Adaptive Cruise Con-
trol*156,
162
Radar sensor*159
Camera*
Laser sensor*176
SymbolDescriptionP.
no.
Collision Warning with
Full Auto-brake and
Pedestrian Detection*178
Driver Alert System*180
Active Bending Lights
(ABL)*93
Fuel filler door (arrow
indicates it is on right
side of vehicle)76
Rain sensor*98
Driver Alert System*181
Driver Alert System*,
Lane Departure Warn-
ing*183
