VOLVO XC60 2013 Owner´s Manual

09 Maintenance and specifications
Battery09

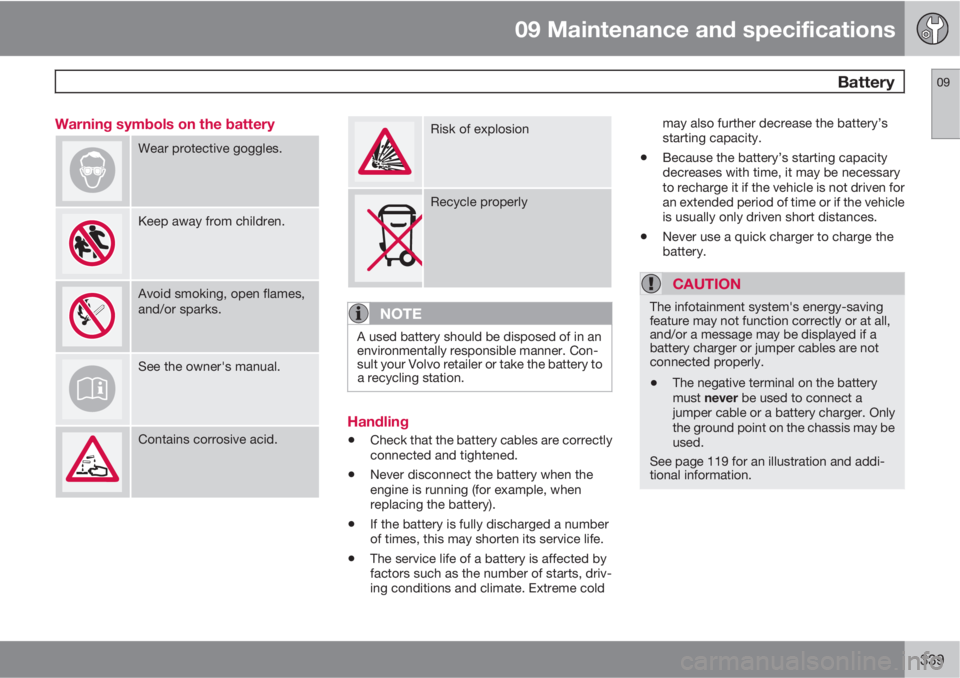

339 Warning symbols on the battery
Wear protective goggles.
Keep away from children.
Avoid smoking, open flames,
and/or sparks.
See the owner's manual.
Contains corrosive acid.
Risk of explosion
Recycle properly
NOTE
A used battery should be disposed of in an
environmentally responsible manner. Con-
sult your Volvo retailer or take the battery to
a recycling station.
Handling
•Check that the battery cables are correctly
connected and tightened.
•Never disconnect the battery when the
engine is running (for example, when
replacing the battery).
•If the battery is fully discharged a number
of times, this may shorten its service life.
•The service life of a battery is affected by
factors such as the number of starts, driv-
ing conditions and climate. Extreme coldmay also further decrease the battery’s
starting capacity.
•Because the battery’s starting capacity
decreases with time, it may be necessary
to recharge it if the vehicle is not driven for
an extended period of time or if the vehicle
is usually only driven short distances.
•Never use a quick charger to charge the
battery.
CAUTION
The infotainment system's energy-saving
feature may not function correctly or at all,
and/or a message may be displayed if a
battery charger or jumper cables are not
connected properly.
•The negative terminal on the battery
must never be used to connect a
jumper cable or a battery charger. Only
the ground point on the chassis may be
used.
See page 119 for an illustration and addi-
tional information.

09 Maintenance and specifications
Battery 09
340
WARNING
•Never expose the battery to open flame
or electric spark.
•Do not smoke near the battery.
•Battery fluid contains sulfuric acid. Do
not allow battery fluid to contact eyes,
skin, fabrics or painted surfaces. If con-
tact occurs, flush the affected area
immediately with water. Obtain medical
help immediately if eyes are affected.
NOTE
The life of the battery is shortened if it
becomes discharged repeatedly.
Maintenance
•Use a screw driver to open the caps or
cover and a flashlight to inspect the level.
•If necessary, add distilled water. The level
should never be above the indicator.
•The fluid level should be checked if the
battery has been recharged.
•After inspection, be sure the cap over each
battery cell or the cover is securely in
place.
•Check that the battery cables are correctly
connected and properly tightened.
•Never disconnect the battery when the
engine is running, or when the key is in the
ignition. This could damage the vehicle's
electrical system.
•The battery should be disconnected from
the vehicle when a battery charger is used
directly on the battery.
•To help keep the battery in good condition,
the vehicle should be driven for at least 15
minutes a week or connected to a charger
with an automatic charging function.
•If the battery is fully discharged a number
of times, this may shorten its service life.
Keeping the battery fully charged helps
prolong its service life.
•The service life of a battery is affected by
factors such as driving conditions and cli-
mate. Extreme cold may also further
decrease the battery’s starting capacity.
•Because the battery’s starting capacity
decreases with time, it may be necessary
to recharge it if the vehicle is not driven for
an extended period of time or if the vehicle
is usually only driven short distances.
CAUTION
•Always use distilled or deionized water
(battery water).
•Never fill above the level mark in the cell.

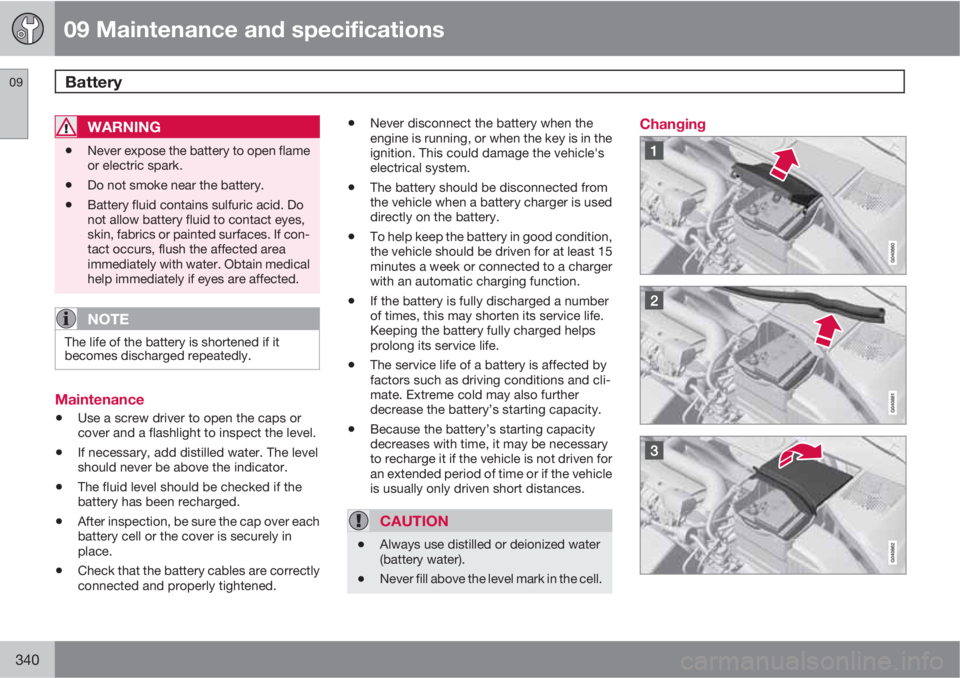

Changing

09 Maintenance and specifications
Battery09
341
WARNING
Connect and disconnect the positive and
negative cables in the correct sequence.
RemovalSwitch off the ignition, remove the remote key
from the ignition slot and wait at least 5 minutes
before disconnecting the battery so that allinformation in the vehicle's electrical system
can be stored in the control modules.
Open the clips on the front cover and
remove the cover.
Release the rubber molding so that the rear
cover is free.
Remove the rear cover by pulling it away.
Detach the black negative cable.
Detach the red positive cable
Detach the ventilation hose from the
battery
Loosen the screw holding the battery
clamp.
Move the battery to the side and lift it up.
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
Installation1. Lower the battery into the battery box.
2. Move the battery inward and to the side
until it reaches the rear edge of the box.
3. Tighten the clamp that secures the battery.
4. Connect the ventilation hose.
> Be sure that it is correctly connected to
the battery and the vent in the vehicle's
body.
5. Connect the red positive cable.
6. Connect the black negative cable.
7. Press in the rear cover. (See Removal).
8. Reinstall the molding. (See Removal).
9. Reinstall the front cover and secure it with
the clips. (See Removal).

09 Maintenance and specifications
Fuses 09
342
Replacing fuses
There are relay/fuse boxes located in the
engine compartment, the passenger compart-
ment, and the cargo area.
If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.
To do so:
1. Pull the fuse straight out. If a fuse is difficult
to remove, a special fuse removal tool is
located on the inside of the engine com-
partment fuse box cover.
2. From the side, examine the curved metal
wire in the fuse to see if it is intact.
If the wire is broken, insert a new fuse of the
same color and amperage (written on the fuse).
If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.

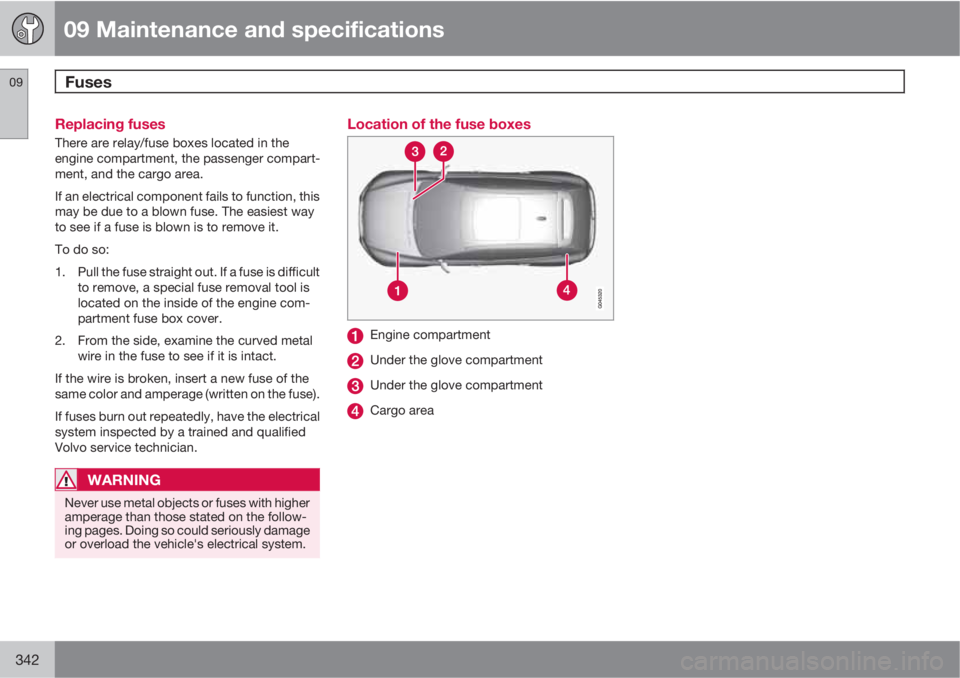

Location of the fuse boxes
Engine compartment
Under the glove compartment
Under the glove compartment
Cargo area

09 Maintenance and specifications
Fuses09

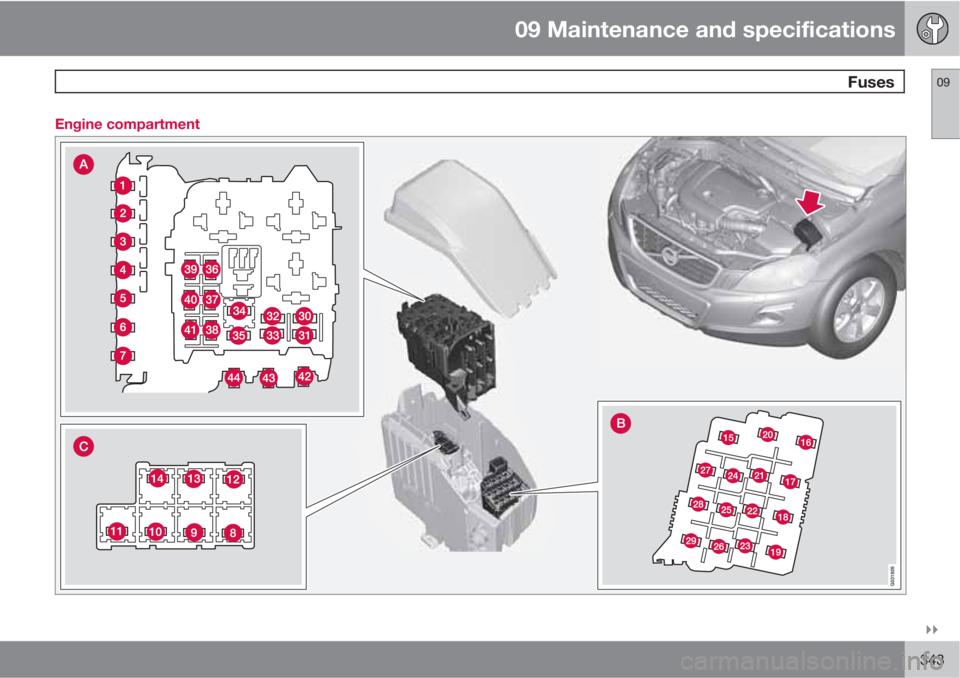

343 Engine compartment

09 Maintenance and specifications
Fuses 09
344* Option/accessory, for more information, see Introduction.

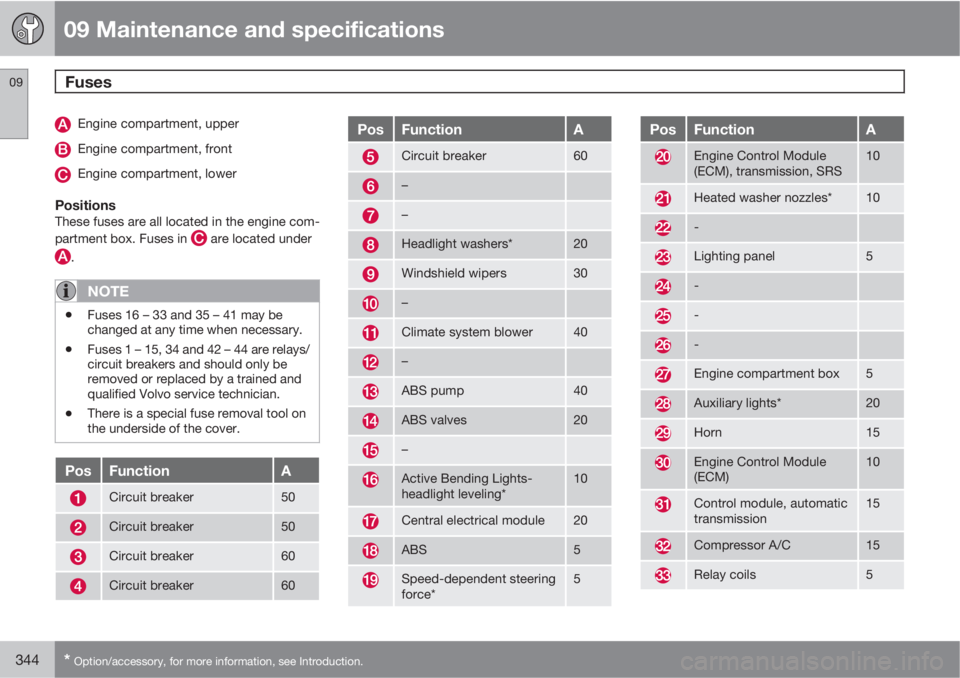

Engine compartment, upper
Engine compartment, front
Engine compartment, lower
PositionsThese fuses are all located in the engine com-
partment box. Fuses in
are located under
.
NOTE
•Fuses 16 – 33 and 35 – 41 may be
changed at any time when necessary.
•Fuses 1 – 15, 34 and 42 – 44 are relays/
circuit breakers and should only be
removed or replaced by a trained and
qualified Volvo service technician.
•There is a special fuse removal tool on
the underside of the cover.
PosFunctionA
Circuit breaker50
Circuit breaker50
Circuit breaker60
Circuit breaker60
PosFunctionA
Circuit breaker60
–
–
Headlight washers*20
Windshield wipers30
–
Climate system blower40
–
ABS pump40
ABS valves20
–
Active Bending Lights-
headlight leveling*10
Central electrical module20
ABS5
Speed-dependent steering
force*5
PosFunctionA
Engine Control Module
(ECM), transmission, SRS10
Heated washer nozzles*10
-
Lighting panel5
-
-
-
Engine compartment box5
Auxiliary lights*20
Horn15
Engine Control Module
(ECM)10
Control module, automatic
transmission15
Compressor A/C15
Relay coils5

09 Maintenance and specifications
Fuses09

345

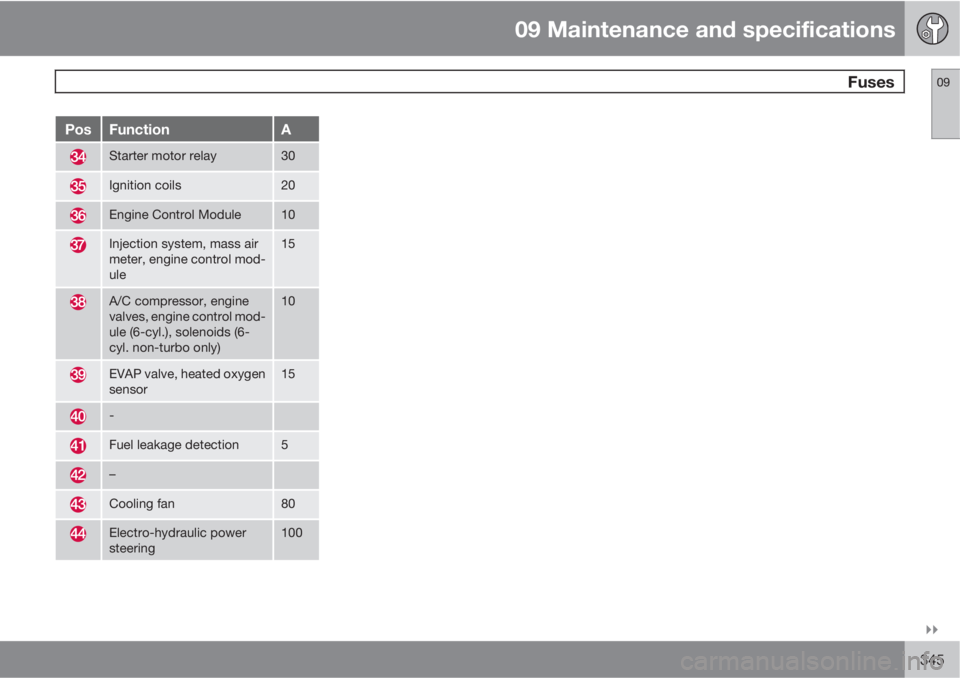

PosFunctionA
Starter motor relay30
Ignition coils20
Engine Control Module10
Injection system, mass air
meter, engine control mod-
ule15
A/C compressor, engine
valves, engine control mod-
ule (6-cyl.), solenoids (6-
cyl. non-turbo only)10
EVAP valve, heated oxygen
sensor15
-
Fuel leakage detection5
–
Cooling fan80
Electro-hydraulic power
steering100

09 Maintenance and specifications
Fuses 09
346* Option/accessory, for more information, see Introduction.

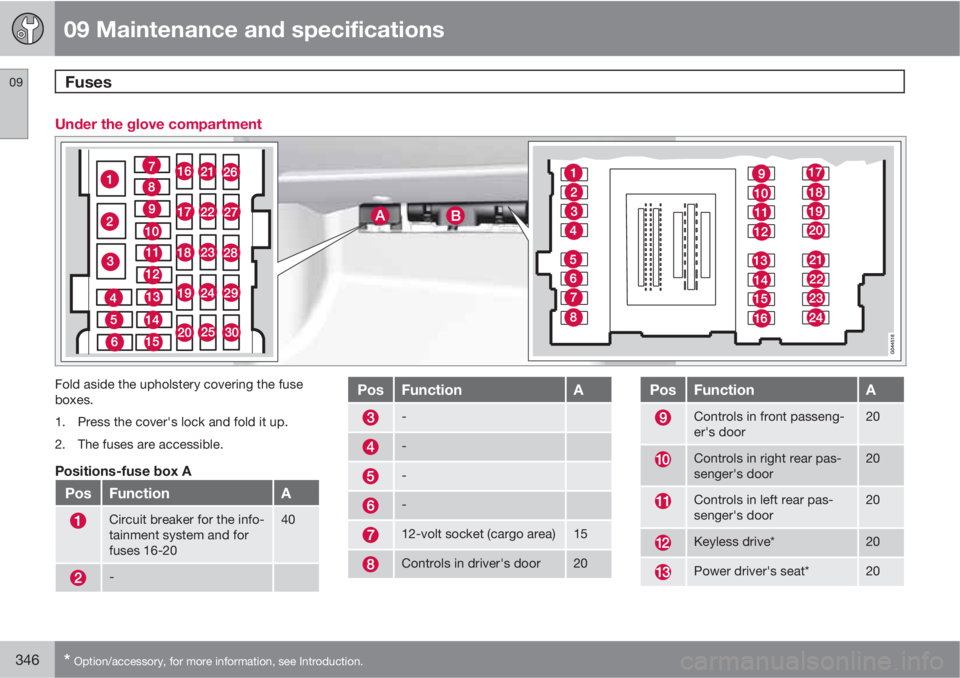

Under the glove compartment
Fold aside the upholstery covering the fuse
boxes.
1. Press the cover's lock and fold it up.
2. The fuses are accessible.
Positions-fuse box A
PosFunctionA
Circuit breaker for the info-
tainment system and for
fuses 16-2040
-
PosFunctionA
-
-
-
-
12-volt socket (cargo area)15
Controls in driver's door20
PosFunctionA
Controls in front passeng-
er's door20
Controls in right rear pas-
senger's door20
Controls in left rear pas-
senger's door20
Keyless drive*20
Power driver's seat*20

09 Maintenance and specifications
Fuses09

* Option/accessory, for more information, see Introduction.347

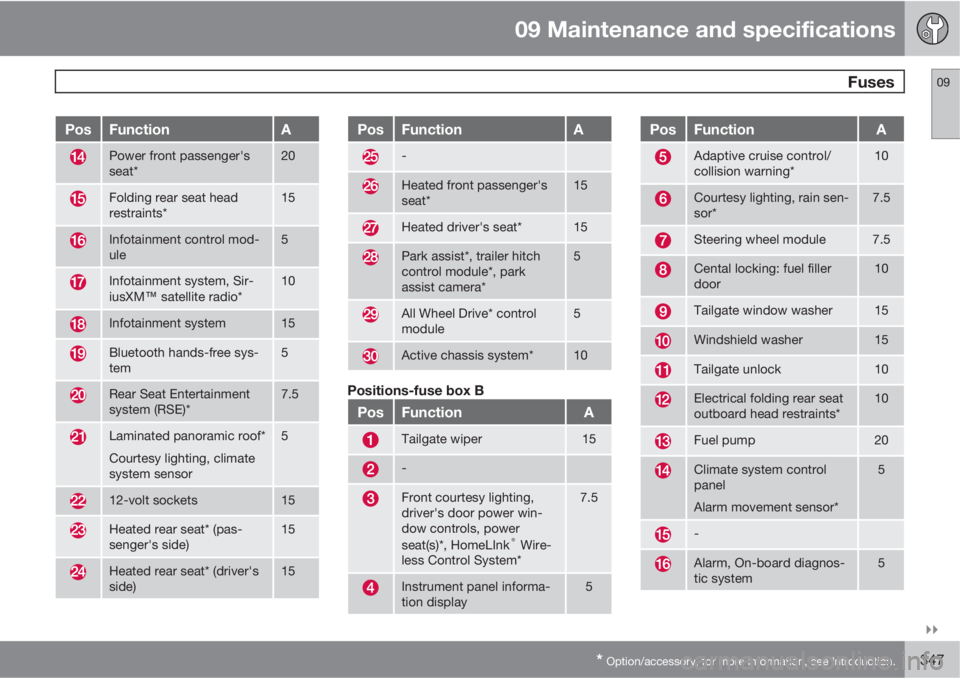

PosFunctionA
Power front passenger's
seat*20
Folding rear seat head
restraints*15
Infotainment control mod-
ule5
Infotainment system, Sir-
iusXM
E satellite radio*10
Infotainment system15
Bluetooth hands-free sys-
tem5
Rear Seat Entertainment
system (RSE)*7.5
Laminated panoramic roof*
Courtesy lighting, climate
system sensor5
12-volt sockets15
Heated rear seat* (pas-
senger's side)15
Heated rear seat* (driver's
side)15
PosFunctionA
-
Heated front passenger's
seat*15
Heated driver's seat*15
Park assist*, trailer hitch
control module*, park
assist camera*5
All Wheel Drive* control
module5
Active chassis system*10
Positions-fuse box B
PosFunctionA
Tailgate wiper15
-
Front courtesy lighting,
driver's door power win-
dow controls, power
seat(s)*, HomeLInk
® Wire-
less Control System*
7.5
Instrument panel informa-
tion display5
PosFunctionA
Adaptive cruise control/
collision warning*10
Courtesy lighting, rain sen-
sor*7.5
Steering wheel module7.5
Cental locking: fuel filler
door10
Tailgate window washer15
Windshield washer15
Tailgate unlock10
Electrical folding rear seat
outboard head restraints*10
Fuel pump20
Climate system control
panel
Alarm movement sensor*5
-
Alarm, On-board diagnos-
tic system5

09 Maintenance and specifications
Fuses 09
348* Option/accessory, for more information, see Introduction.

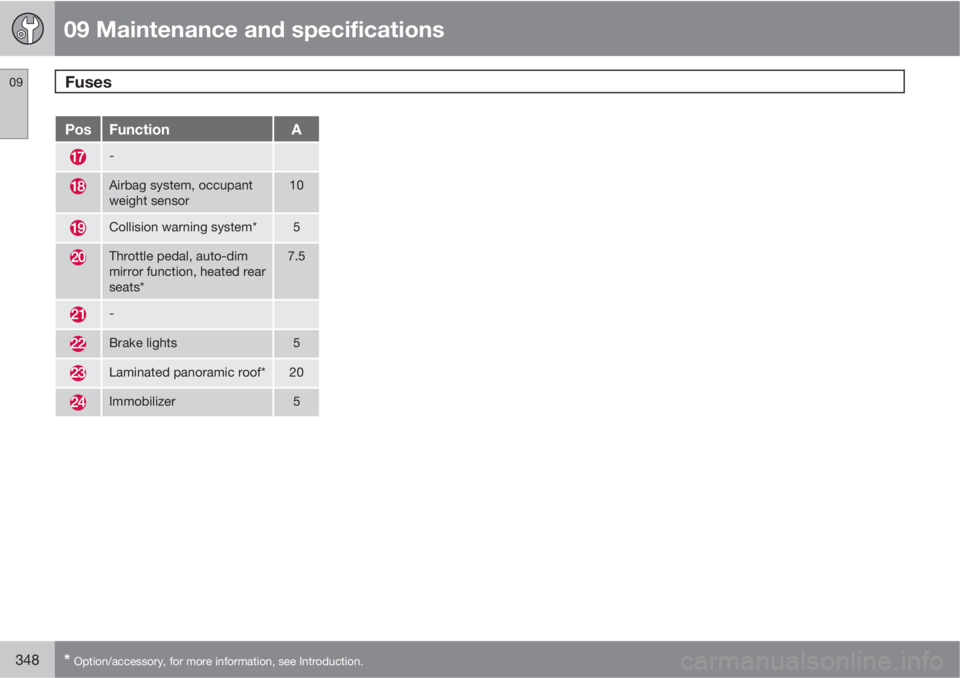

PosFunctionA
-
Airbag system, occupant
weight sensor10
Collision warning system*5
Throttle pedal, auto-dim
mirror function, heated rear
seats*7.5
-
Brake lights5
Laminated panoramic roof*20
Immobilizer5
