SAFETY
72

Related information
Child restraints (p. 65)
Convertible seats (p. 69)
Infant seats (p. 67)
Top tether anchors (p. 72)
Lower child seat attachment points (p. 73)
ISOFIX/LATCH lower anchors (p. 74)

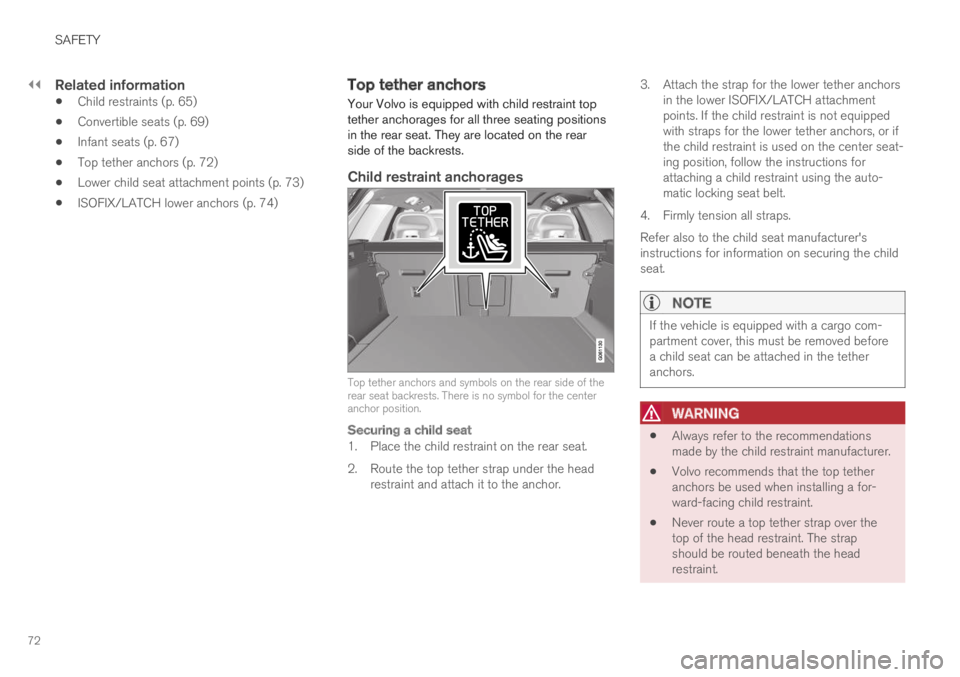

Top tether anchors
Your Volvo is equipped with child restraint toptether anchorages for all three seating positionsin the rear seat. They are located on the rearside of the backrests.

Child restraint anchorages
Top tether anchors and symbols on the rear side of therear seat backrests. There is no symbol for the centeranchor position.

Securing a child seat
1. Place the child restraint on the rear seat.
2. Route the top tether strap under the headrestraint and attach it to the anchor.
3. Attach the strap for the lower tether anchorsin the lower ISOFIX/LATCH attachmentpoints. If the child restraint is not equippedwith straps for the lower tether anchors, or ifthe child restraint is used on the center seat-ing position, follow the instructions forattaching a child restraint using the auto-matic locking seat belt.
4. Firmly tension all straps.
Refer also to the child seat manufacturer'sinstructions for information on securing the childseat.
NOTE
If the vehicle is equipped with a cargo com-partment cover, this must be removed beforea child seat can be attached in the tetheranchors.

WARNING
Always refer to the recommendationsmade by the child restraint manufacturer.
Volvo recommends that the top tetheranchors be used when installing a for-ward-facing child restraint.
Never route a top tether strap over thetop of the head restraint. The strapshould be routed beneath the headrestraint.

DISPLAYS AND VOICE CONTROL
122

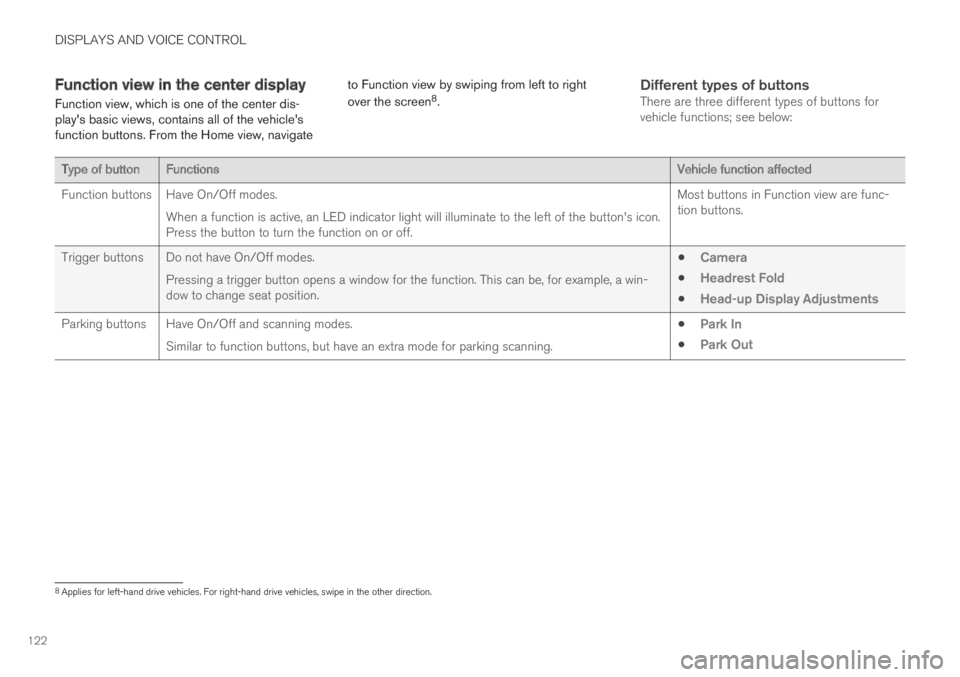

Function view in the center display
Function view, which is one of the center dis-play's basic views, contains all of the vehicle'sfunction buttons. From the Home view, navigate
to Function view by swiping from left to right
over the screen8.

Different types of buttons
There are three different types of buttons forvehicle functions; see below:
Type of buttonFunctionsVehicle function affected
Function buttonsHave On/Off modes.
When a function is active, an LED indicator light will illuminate to the left of the button's icon.Press the button to turn the function on or off.
Most buttons in Function view are func-tion buttons.
Trigger buttons Do not have On/Off modes.
Pressing a trigger button opens a window for the function. This can be, for example, a win-dow to change seat position.
Camera
Headrest Fold
Head-up Display Adjustments
Parking buttons Have On/Off and scanning modes.
Similar to function buttons, but have an extra mode for parking scanning.
Park In
Park Out
8Applies for left-hand drive vehicles. For right-hand drive vehicles, swipe in the other direction.

SEATS AND STEERING WHEEL
195

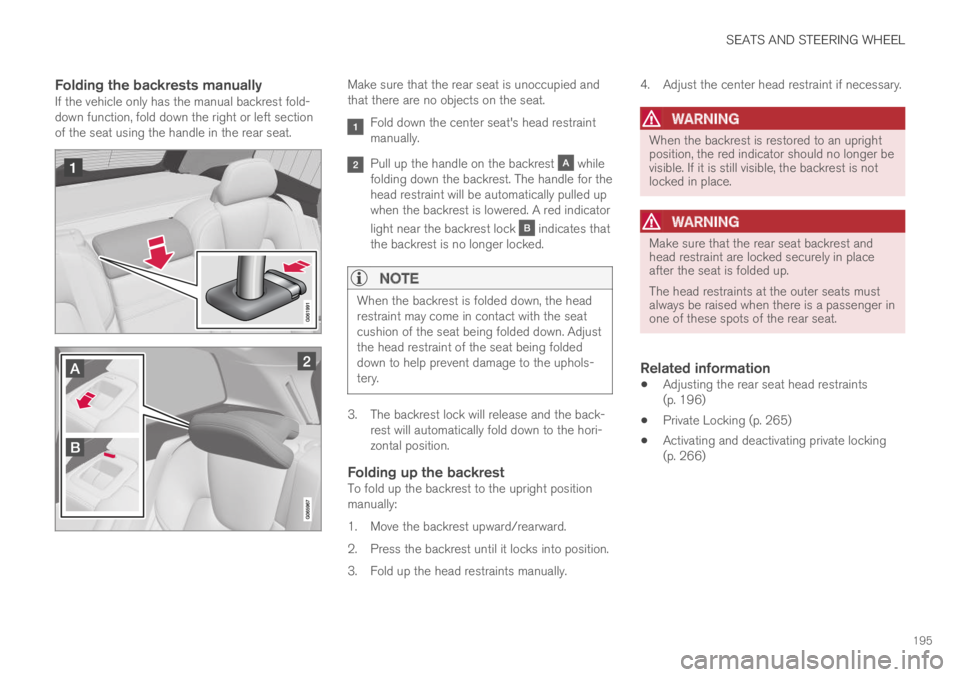

Folding the backrests manually
If the vehicle only has the manual backrest fold-down function, fold down the right or left sectionof the seat using the handle in the rear seat.
Make sure that the rear seat is unoccupied andthat there are no objects on the seat.
Fold down the center seat's head restraintmanually.
Pull up the handle on the backrest whilefolding down the backrest. The handle for thehead restraint will be automatically pulled upwhen the backrest is lowered. A red indicator
light near the backrest lock indicates thatthe backrest is no longer locked.

NOTE
When the backrest is folded down, the headrestraint may come in contact with the seatcushion of the seat being folded down. Adjustthe head restraint of the seat being foldeddown to help prevent damage to the uphols-tery.
3. The backrest lock will release and the back-rest will automatically fold down to the hori-zontal position.

Folding up the backrest
To fold up the backrest to the upright positionmanually:
1. Move the backrest upward/rearward.
2. Press the backrest until it locks into position.
3. Fold up the head restraints manually.
4. Adjust the center head restraint if necessary.
WARNING
When the backrest is restored to an uprightposition, the red indicator should no longer bevisible. If it is still visible, the backrest is notlocked in place.

WARNING
Make sure that the rear seat backrest andhead restraint are locked securely in placeafter the seat is folded up.
The head restraints at the outer seats mustalways be raised when there is a passenger inone of these spots of the rear seat.

Related information
Adjusting the rear seat head restraints(p. 196)
Private Locking (p. 265)
Activating and deactivating private locking(p. 266)

SEATS AND STEERING WHEEL
* Option/accessory.196

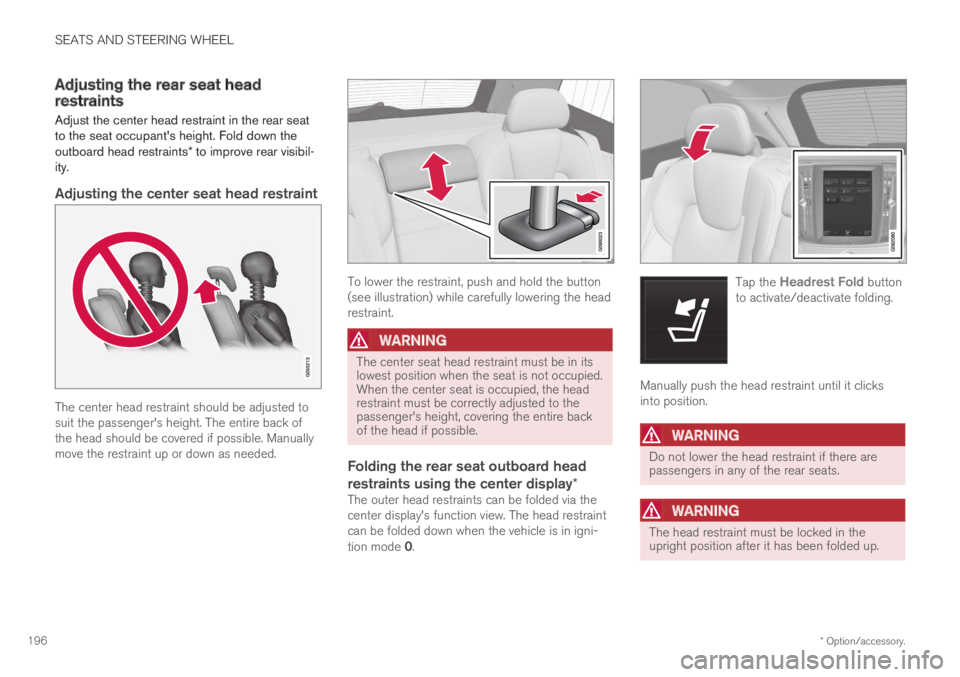

Adjusting the rear seat headrestraints
Adjust the center head restraint in the rear seatto the seat occupant's height. Fold down theoutboard head restraints* to improve rear visibil-ity.

Adjusting the center seat head restraint
The center head restraint should be adjusted tosuit the passenger's height. The entire back ofthe head should be covered if possible. Manuallymove the restraint up or down as needed.
To lower the restraint, push and hold the button(see illustration) while carefully lowering the headrestraint.

WARNING
The center seat head restraint must be in itslowest position when the seat is not occupied.When the center seat is occupied, the headrestraint must be correctly adjusted to thepassenger's height, covering the entire backof the head if possible.

Folding the rear seat outboard head
restraints using the center display *
The outer head restraints can be folded via thecenter display's function view. The head restraintcan be folded down when the vehicle is in igni-tion mode 0.
Tap the Headrest Fold buttonto activate/deactivate folding.
Manually push the head restraint until it clicksinto position.
WARNING
Do not lower the head restraint if there arepassengers in any of the rear seats.

WARNING
The head restraint must be locked in theupright position after it has been folded up.
