tire type VOLVO XC60 TWIN ENGINE 2020 User Guide

WHEELS AND TIRES
560
Snow chainsUsing snow chains and/or snow tires can help improve traction in winter driving condi-tions.
Volvo does not recommend use of snow chains on wheel dimensions larger than18 inches. For Polestar Engineered, Volvodoes not recommend use of snow chains onwheel dimensions other than 8.5x21 ET 38.5255/40.
WARNING
Use Volvo genuine snow chains or equiva- lent snow chains that are suitable for thevehicle model and the tire and wheel sizes.Only one-sided snow chains are permit-
ted. If uncertain about snow chains, Volvo rec- ommends contacting an authorized Volvoworkshop. Use of the wrong snow chainscould cause serious damage to the vehicleand result in an accident.
CAUTION
Snow chains can be used on the vehicle, with the following restrictions:
Always follow the manufacturer'sinstallation instructions carefully. Installchains as tightly as possible andretighten periodically.
Only put snow chains on the frontwheels (also applies to all-wheel drivevehicles).
If accessory, aftermarket or "custom"tires and wheels with different dimen-sions than the original tires and wheelsare used, snow chains in some casesmay NOT be used. Sufficient distancebetween the chains and brakes, sus-pension and body components mustbe maintained.
Check local regulations regarding theuse of snow chains before installing.
Never exceed the snow chain manu-facturer's specified maximum speedlimit. Under no circumstances shouldyou exceed 50 km/h (30 mph).
Avoid bumps, holes or sharp turnswhen driving with snow chains.
Avoid driving on surfaces withoutsnow as this wears out both the snowchains and the tires.
The handling of the vehicle can be adversely affected when driving withchains. Avoid fast or sharp turns aswell as locked wheel braking.
Some types of strap-on chains affectbrake components and therefore mustNOT be used.
Consult a Volvo retailer for more information about snow chains.
Related information
Winter driving (p. 442)

SPECIFICATIONS
665

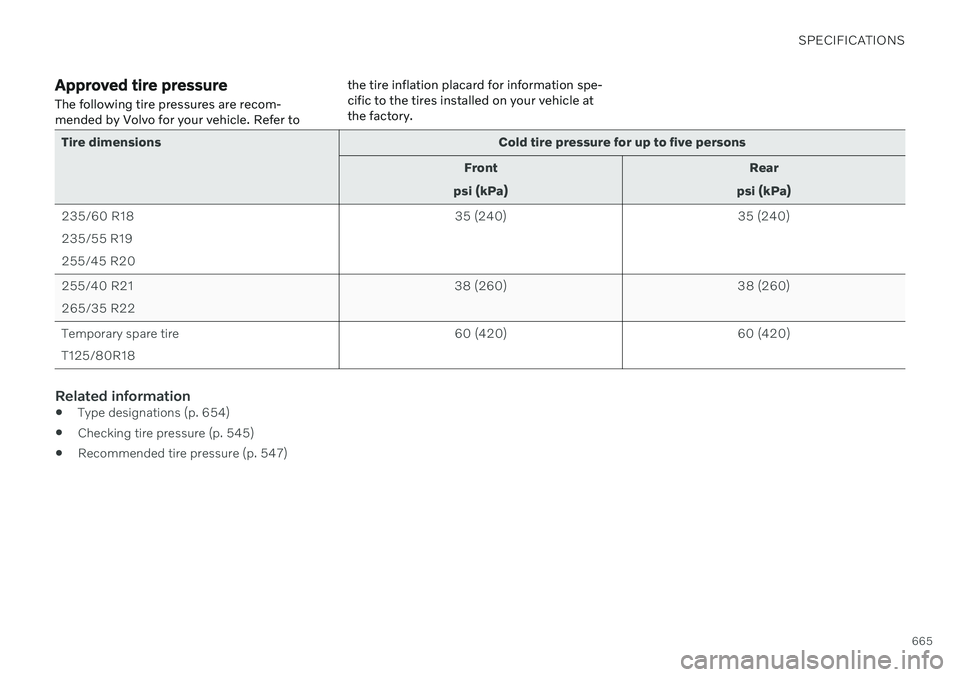

Approved tire pressure The following tire pressures are recom- mended by Volvo for your vehicle. Refer tothe tire inflation placard for information spe-cific to the tires installed on your vehicle atthe factory.
Tire dimensions
Cold tire pressure for up to five persons
Front
psi (kPa) Rear
psi (kPa)
235/60 R18 235/55 R19255/45 R20 35 (240)
35 (240)
255/40 R21265/35 R22 38 (260)
38 (260)
Temporary spare tireT125/80R18 60 (420)
60 (420)
Related information
Type designations (p. 654)
Checking tire pressure (p. 545)
Recommended tire pressure (p. 547)

INDEX
678
S
Safety 44pregnancy 45
Safety belt, see Seat belt 49
Safety defects, reporting 46
Safety mode 63 starting/moving 64
Sealing compound 561
Seat, see Seats 188
Seat belt reminder 53
Seat belts 49 Automatic locking retractor/Emer-
gency locking retractor 67
buckling/unbuckling 50
pregnancy 45
seat belt reminder 53
seat belt tensioner 52
securing child restraint systems 69, 71, 74
Seat belt tensioner 52 resetting 53
Seats heating 216, 217
manual front seat 188
power front seats 189
store position 190, 191
ventilation 217
whiplash protection 48
Security code 266 Sensors air quality 209
Camera unit 312
climate 204
Radar unit 309
Sensus connection and entertainment 32
Sensus Navigation Road Sign Information 343
Service position 649
Service program 590
Set time interval for Distance Alert 303settings Categories 138
contextual 136
resetting 137
Shiftlock 420
Side airbag 62
Side Impact Protection System 62
SIM card 519
SIPS (Side Impact Protection System) 62 Sirius Satellite radio Travel link 486SiriusXM ® Satellite radio
traffic information 482, 483, 484
Ski hatch 580
Slippery conditions 442, 443
Slippery road conditions 443
Snow chains 560
Software updates 35
Sound experience 471
Sound settings 470, 513 phone 514
playing media 492, 493
text message 513
Spare tire 557 handling 558
Speed camera information 343 Speed Limiter change speed 302
Speed symbols, tires 542
Spin control 273
Stability and traction control system 273 sport mode 274, 275
Symbols and messages 276
Stains 633, 635, 636, 637 Start and lock system type designations 252

INDEX
680Tire tread 541
Tools 552Top tether anchors (child restraint sys-
tems) 75
Top view 135
Total airing function 238
Towbar 455
removable, attaching, installing,
mounting 455
removable, removing, detaching 455
retractable 453
Towing 461
Towing capacity and towball load 660
Towing eyelet 461TPMS - Tire Pressure Monitoring Sys-
tem 547
Traction control 273
Traffic information 478 Trailer driving with a trailer 457
Lamps 460
swaying 459
Trailer Stability Assist 274 trailer 459
Trailer stabilizer 274, 459
Trailer towing trailer hitch 455
Transmission 416 automatic 417, 418
Transmission fluid grade 663
Travel Link 486 Fuel 489
Notifications 488
Sports 490
weather 487
Tread depth 541 winter tires 559
Tread wear indicator 541
Trip computer 91 display in instrument panel 93
Trip odometer 91
Trip odometer resetting 94
Trip statistics 94 settings 95
Troubleshooting Adaptive Cruise Control 287
Camera unit 313
City Safety 328
Radar unit 313
TSA - Trailer Stability Assist 459
Tunnel detection 159Turn off engine 404
Turn signals 162Twin Engine general 384
Type approval HomeLink ® 466
radar system 310
U
Uniform Tire Quality Grading 544
Units 135 Unlocking settings 241
with key blade 250
USB socket for connecting media 498
V
Vehicle care 638, 639, 641, 642, 643, 644
leather upholstery 636
Vehicle Event Data 35 Vehicle functions in the center display 125
