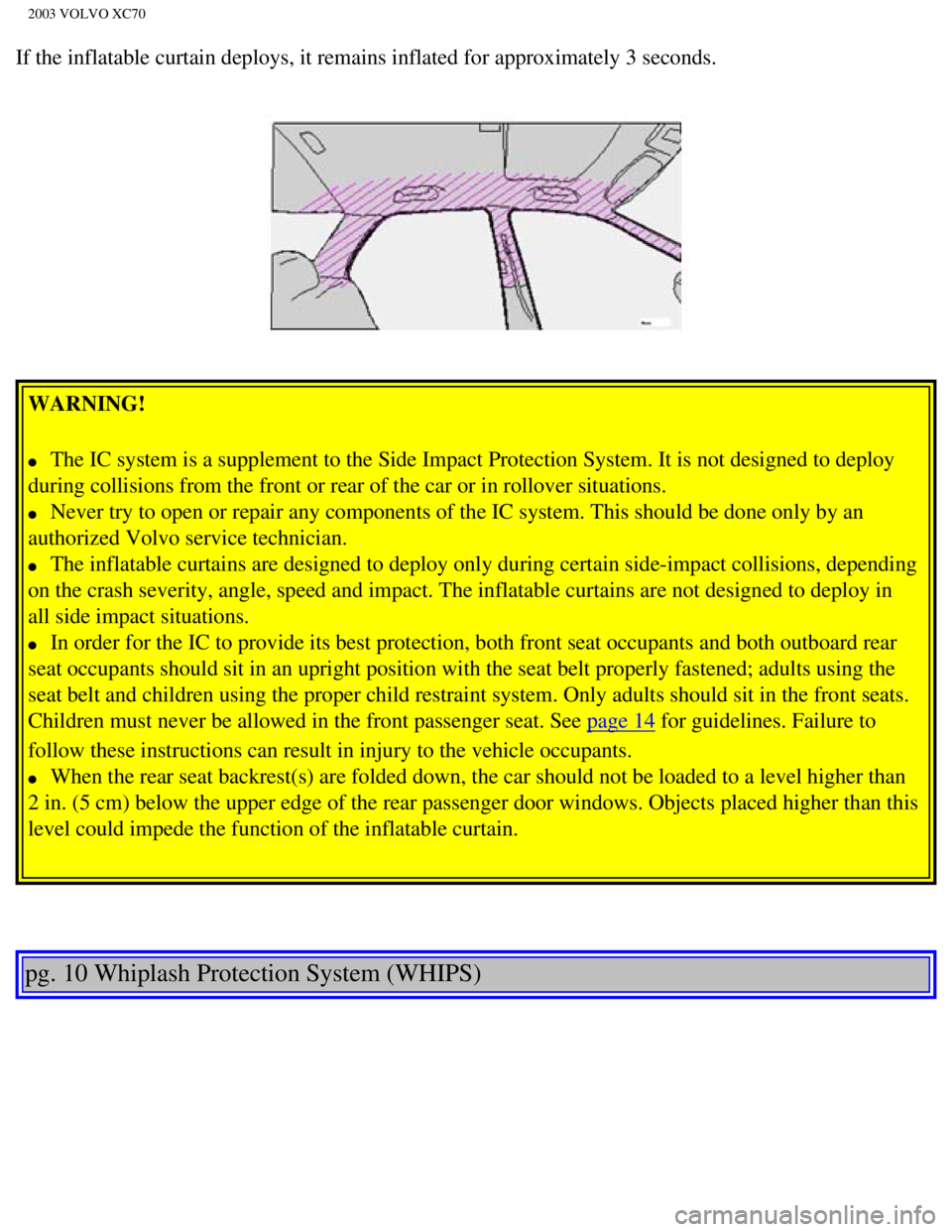

If the inflatable curtain deploys, it remains inflated for approximately\
3 seconds.

WARNING!
l The IC system is a supplement to the Side Impact Protection System. It i\
s not designed to deploy
during collisions from the front or rear of the car or in rollover situa\
tions.
l Never try to open or repair any components of the IC system. This should\
be done only by an
authorized Volvo service technician.
l The inflatable curtains are designed to deploy only during certain side-\
impact collisions, depending
on the crash severity, angle, speed and impact. The inflatable curtains \
are not designed to deploy in
all side impact situations.
l In order for the IC to provide its best protection, both front seat occu\
pants and both outboard rear
seat occupants should sit in an upright position with the seat belt prop\
erly fastened; adults using the
seat belt and children using the proper child restraint system. Only adu\
lts should sit in the front seats.
Children must never be allowed in the front passenger seat. See
page 14 for guidelines. Failure to
follow these instructions can result in injury to the vehicle occupants.\

l When the rear seat backrest(s) are folded down, the car should not be \
loaded to a level higher than
2 in. (5 cm) below the upper edge of the rear passenger door windows. \
Objects placed higher than this
level could impede the function of the inflatable curtain.



pg. 10 Whiplash Protection System (WHIPS)


file:///K|/ownersdocs/2003/2003_XC70/03xc70_01a.htm (15 of 17)12/30/20\
06 4:17:51 PM

2003 VOLVO XC70
Whiplash Protection System (WHIPS) - front seats only
The WHIPS system consists of specially designed hinges and brackets on t\
he front seat backrests and
head restraints designed to help absorb some of the energy generated in \
a collision from the rear ("rear-
ended").
In the event of a collision of this type, the hinges and brackets of the\
front seat backrests are designed to
change position slightly to allow the backrest/head restraint to help su\
pport the occupant's head before
moving slightly rearward. This movement helps absorb some of the forces \
that could result in the
whiplash effect.


Do not wedge boxes, suitcases, etc. behind front seats
WARNING!
l Any contact between the front seat backrests and the folded rear seat co\
uld impede the function of
the WHIPS system. If the rear seat is folded down, the occupied front se\
ats must be adjusted forward
so that they do not touch the folded rear seat.
l Boxes, suitcases, etc. wedged behind the front seats (see illustration \
above) could impede the
function of the WHIPS system.
l The WHIPS system is designed to supplement the other safety systems in y\
our car. For this system
to function properly, the three-point seat belt must be worn. Please be \
aware that no system can
prevent all possible injuries that may occur in an accident.
l If your car has been involved in a collision, the front seat backrests m\
ust be inspected by an
authorized Volvo retailer even if the seats appear to be undamaged. Cert\
ain components in the
WHIPS system may need to be replaced. Do not attempt to service any comp\
onent in the WHIPS
file:///K|/ownersdocs/2003/2003_XC70/03xc70_01a.htm (16 of 17)12/30/20\
06 4:17:51 PM

2003 VOLVO XC70

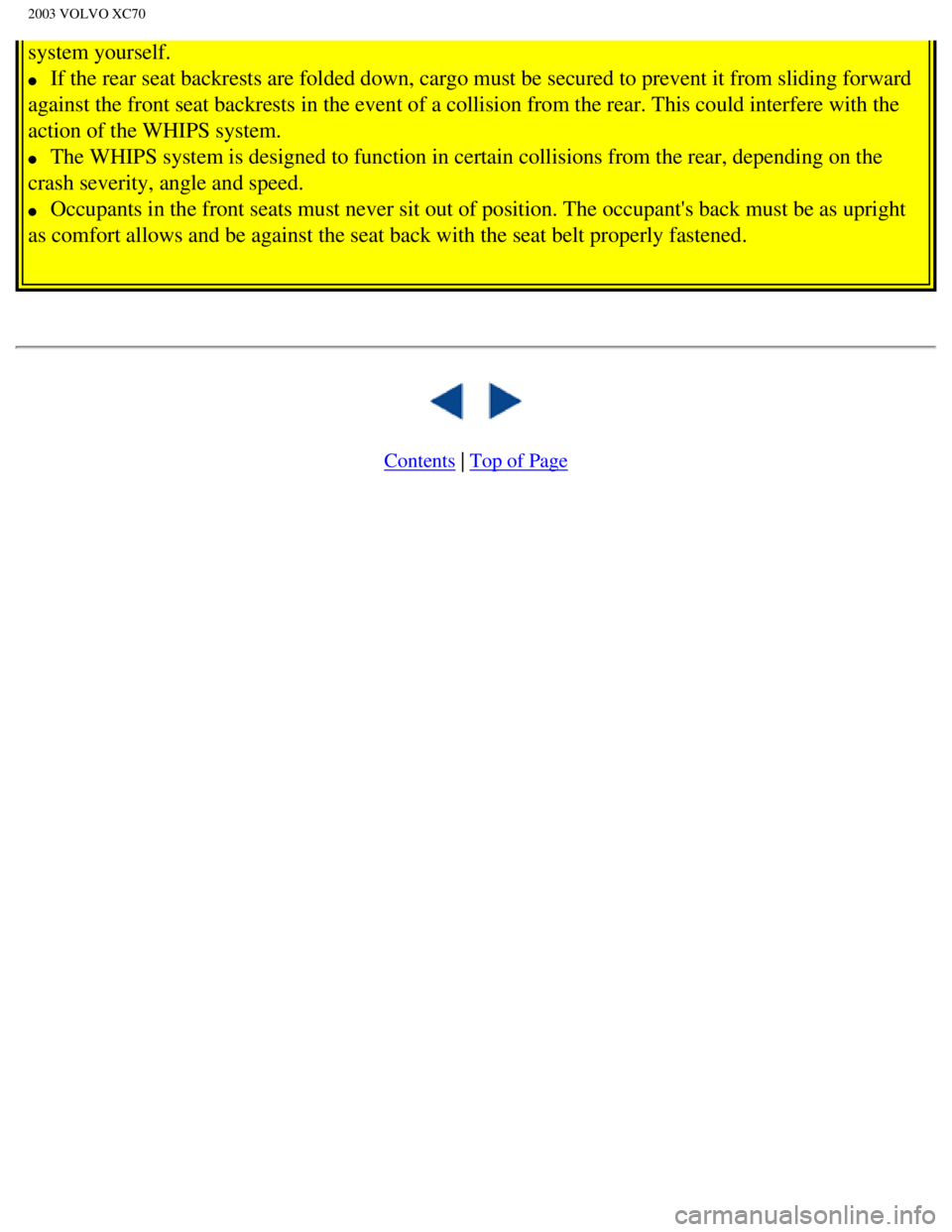

system yourself.
l If the rear seat backrests are folded down, cargo must be secured to pre\
vent it from sliding forward
against the front seat backrests in the event of a collision from the re\
ar. This could interfere with the
action of the WHIPS system.
l The WHIPS system is designed to function in certain collisions from the \
rear, depending on the
crash severity, angle and speed.
l Occupants in the front seats must never sit out of position. The occupan\
t's back must be as upright
as comfort allows and be against the seat back with the seat belt proper\
ly fastened.





Contents | Top of Page
file:///K|/ownersdocs/2003/2003_XC70/03xc70_01a.htm (17 of 17)12/30/20\
06 4:17:51 PM

2003 VOLVO XC70

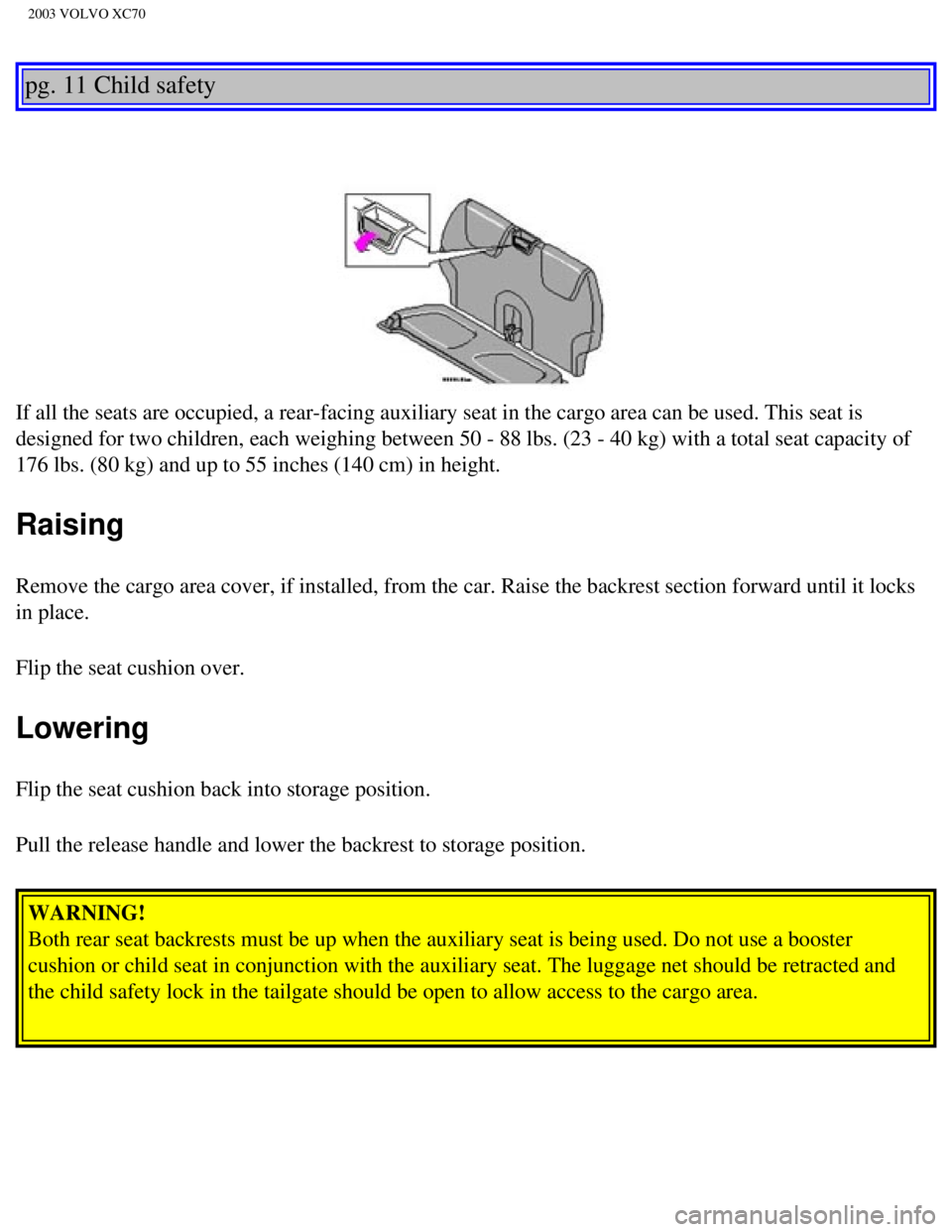

pg. 11 Child safety


If all the seats are occupied, a rear-facing auxiliary seat in the cargo\
area can be used. This seat is
designed for two children, each weighing between 50 - 88 lbs. (23 - 40 \
kg) with a total seat capacity of
176 lbs. (80 kg) and up to 55 inches (140 cm) in height.
Raising
Remove the cargo area cover, if installed, from the car. Raise the backr\
est section forward until it locks
in place.
Flip the seat cushion over.
Lowering
Flip the seat cushion back into storage position.
Pull the release handle and lower the backrest to storage position.
WARNING!
Both rear seat backrests must be up when the auxiliary seat is being use\
d. Do not use a booster
cushion or child seat in conjunction with the auxiliary seat. The luggag\
e net should be retracted and
the child safety lock in the tailgate should be open to allow access to \
the cargo area.

file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (1 of 14)12/30/200\
6 4:17:52 PM

2003 VOLVO XC70
WARNING!
The exhaust pipe will still be hot when the engine is turned off. Take c\
are that children do not burn
themselves when they get into or out of the car.
pg. 12 Child safety
Integrated booster cushions, outboard positions (optional)
Volvo's own integrated booster cushions have been specially designed to \
help safeguard a child seated in
the rear seat. When using an integrated booster cushion, the child must \
be secured with the vehicle's
three-point seat belt. This child seat is designed for use only by child\
ren who weigh between 33 and 80
lbs (15 and 36 kg) and whose height is between 38 and 54 in. (97 and \
137 cm).


Integrated booster cushion - outboard positions
file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (2 of 14)12/30/200\
6 4:17:52 PM

2003 VOLVO XC70

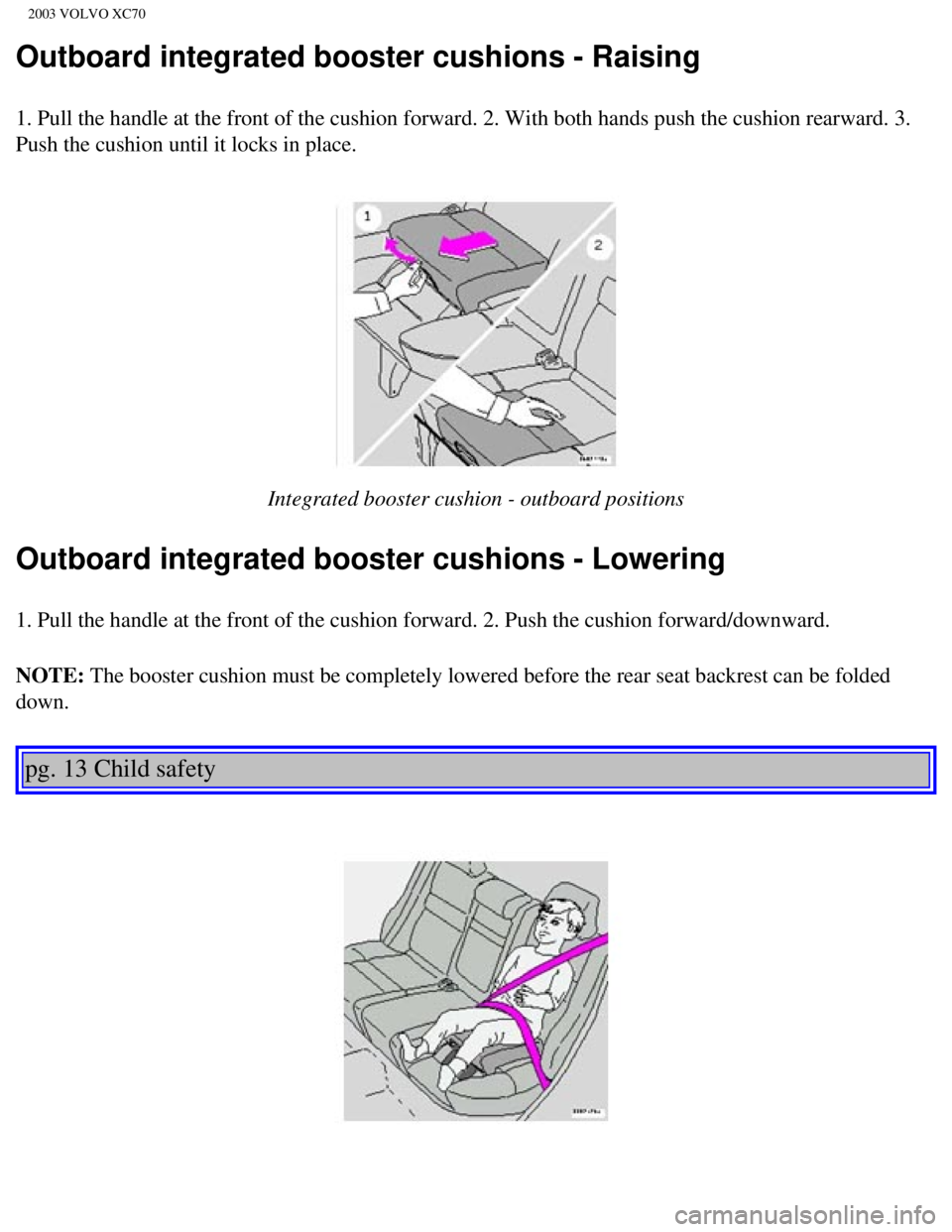

Outboard integrated booster cushions - Raising
1. Pull the handle at the front of the cushion forward. 2. With both han\
ds push the cushion rearward. 3.
Push the cushion until it locks in place.

Integrated booster cushion - outboard positions
Outboard integrated booster cushions - Lowering
1. Pull the handle at the front of the cushion forward. 2. Push the cush\
ion forward/downward.
NOTE: The booster cushion must be completely lowered before the rear seat back\
rest can be folded
down.

pg. 13 Child safety


file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (3 of 14)12/30/200\
6 4:17:52 PM

2003 VOLVO XC70
The child should be properly seated on the booster cushion. The hip sect\
ion of the three-point seat belt
must fit snugly across the child's hips, not across the stomach. The sho\
ulder section of the three-point
seat belt should be positioned across the chest and shoulder (see illus\
tration). The shoulder belt must
never be placed behind the child's back or under the arm. WARNING!

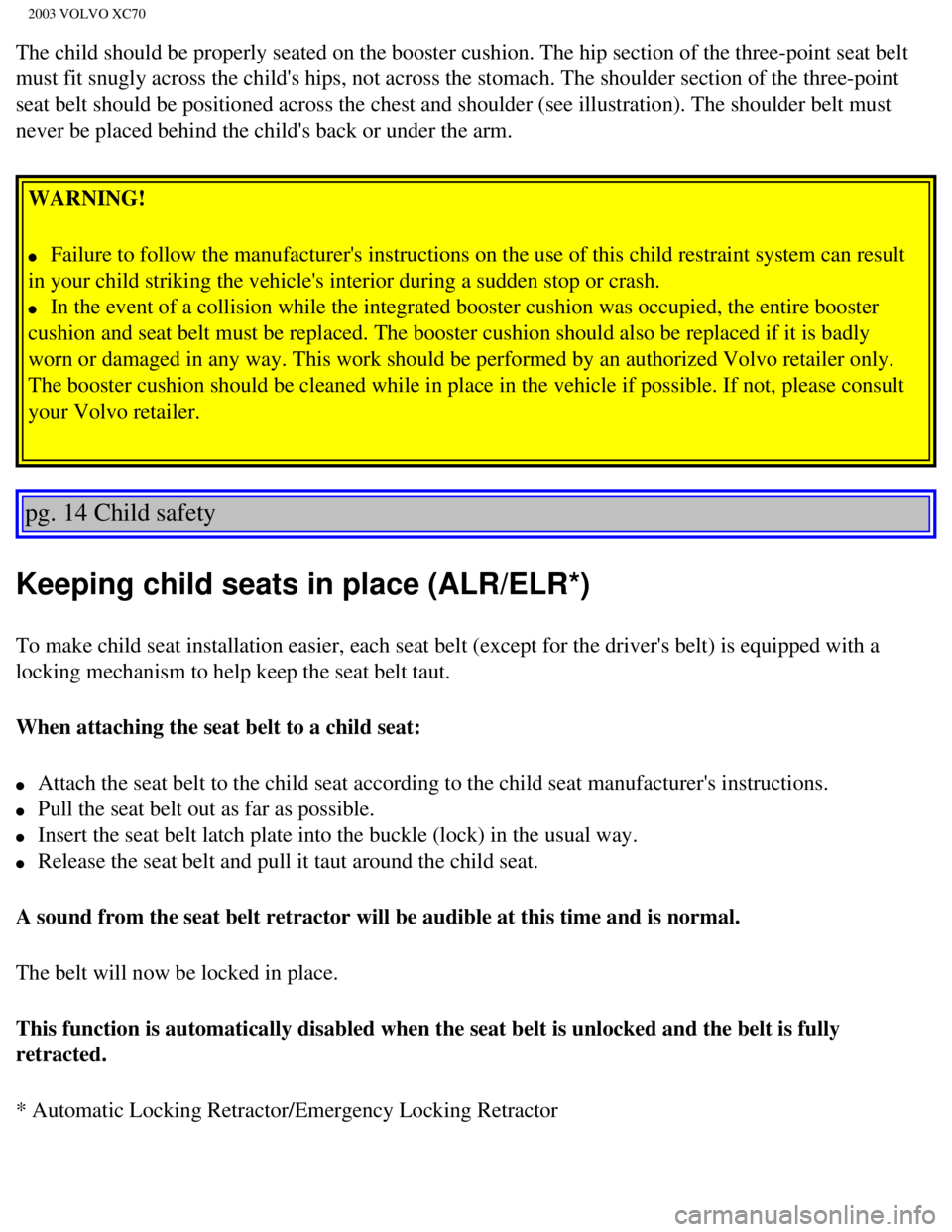

l Failure to follow the manufacturer's instructions on the use of this chi\
ld restraint system can result
in your child striking the vehicle's interior during a sudden stop or cr\
ash.
l In the event of a collision while the integrated booster cushion was occ\
upied, the entire booster
cushion and seat belt must be replaced. The booster cushion should also \
be replaced if it is badly
worn or damaged in any way. This work should be performed by an authoriz\
ed Volvo retailer only.
The booster cushion should be cleaned while in place in the vehicle if p\
ossible. If not, please consult
your Volvo retailer.

pg. 14 Child safety
Keeping child seats in place (ALR/ELR*)
To make child seat installation easier, each seat belt (except for the \
driver's belt) is equipped with a
locking mechanism to help keep the seat belt taut.
When attaching the seat belt to a child seat:
l Attach the seat belt to the child seat according to the child seat manuf\
acturer's instructions.
l Pull the seat belt out as far as possible.
l Insert the seat belt latch plate into the buckle (lock) in the usual w\
ay.
l Release the seat belt and pull it taut around the child seat.
A sound from the seat belt retractor will be audible at this time and is\
normal.
The belt will now be locked in place.
This function is automatically disabled when the seat belt is unlocked a\
nd the belt is fully
retracted.
* Automatic Locking Retractor/Emergency Locking Retractor
file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (4 of 14)12/30/200\
6 4:17:52 PM

2003 VOLVO XC70
Important!
Why Volvo believes no child should sit in the front seat of a car. It's quite simple really. A front air
bag is a very powerful device designed, by law, to help protect an adult\
. Because of the size of the air
bag and its speed of inflation, a child should never be placed in the fr\
ont seat, even if he or she is
properly belted or strapped into a child safety seat. Volvo has been an \
innovator in safety for over fifty
years, and we'll continue to do our part. But we need your help. Please \
remember to put your children in
the back seat, and buckle them up.
Volvo has some very specific recommendations:
l Always wear your seat belt.
l Air bags are a SUPPLEMENTAL safety device which, when used with a three-\
point seat belt can
help reduce serious injuries during certain types of accidents. Volvo re\
commends that you do not
disconnect the air bag system in your vehicle.
l Volvo strongly recommends that ALL children sit in the rear seat of any \
vehicle and that they be
properly restrained.
l A child should NEVER sit in the front passenger seat of any vehicle equi\
pped with a passenger-side
front airbag.
l Volvo recommends that ALL occupants (adults and children) shorter than\
four feet seven inches (140
cm) be seated in the back seat of any vehicle with a front passenger si\
de airbag.
Drive safely!

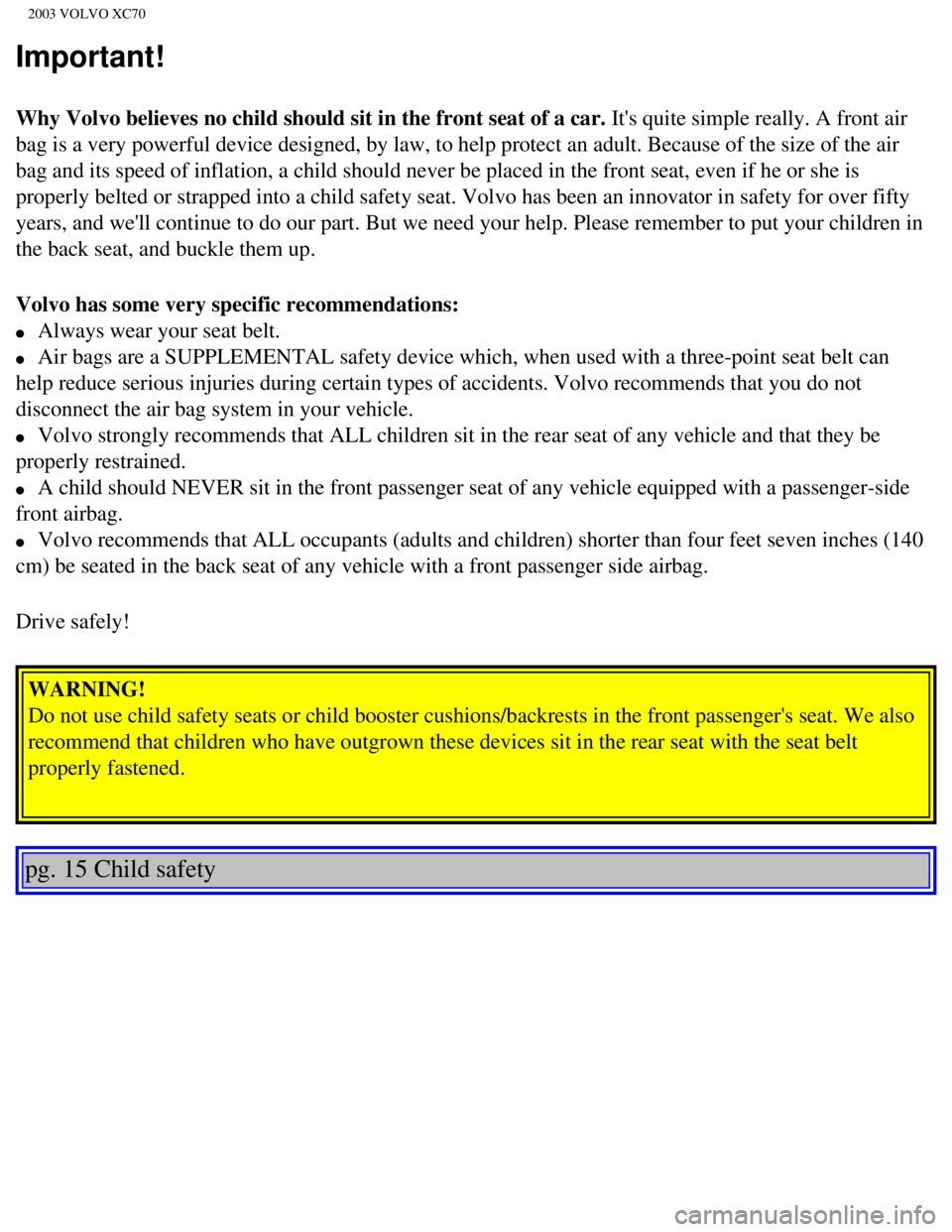

WARNING!
Do not use child safety seats or child booster cushions/backrests in the\
front passenger's seat. We also
recommend that children who have outgrown these devices sit in the rear \
seat with the seat belt
properly fastened.

pg. 15 Child safety


file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (5 of 14)12/30/200\
6 4:17:52 PM

2003 VOLVO XC70

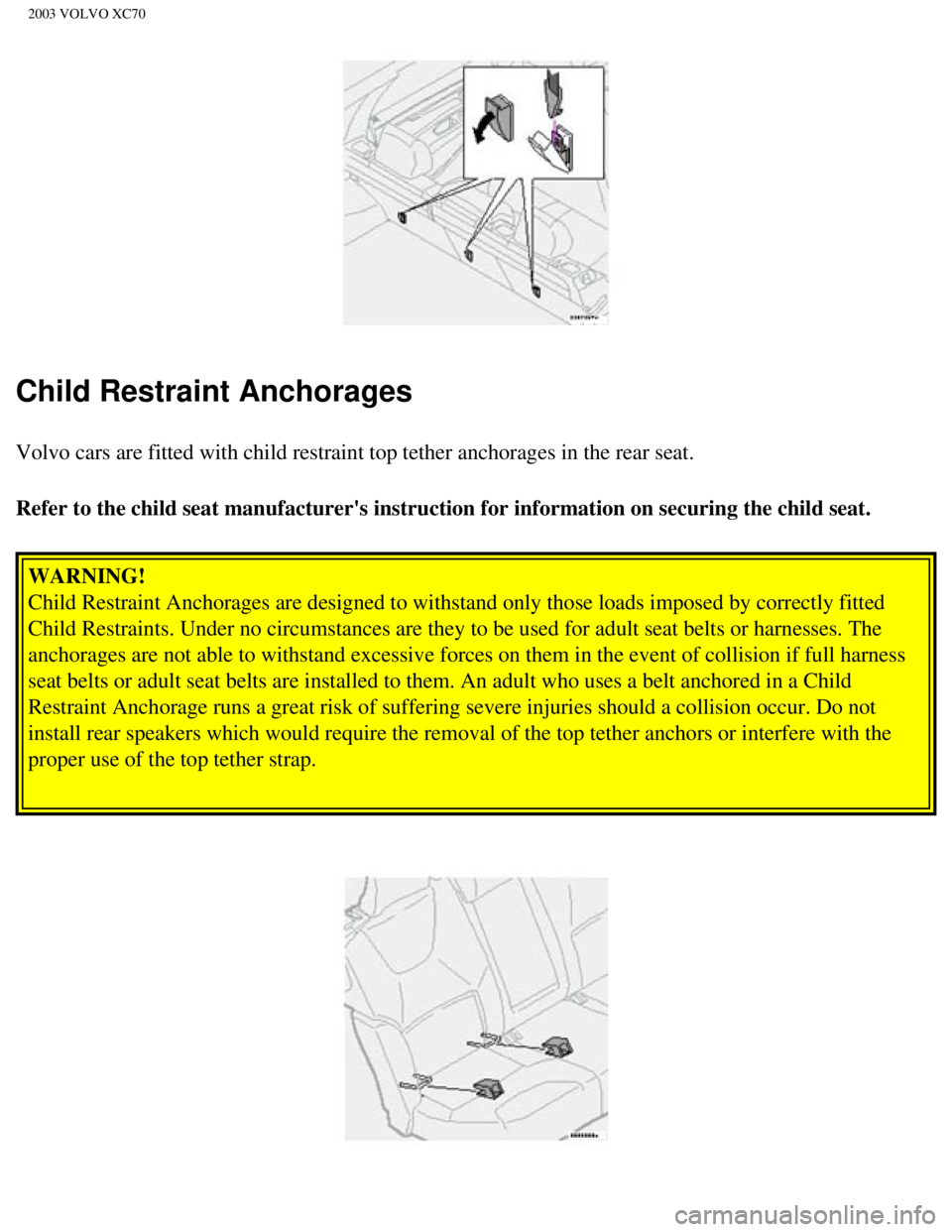

Child Restraint Anchorages
Volvo cars are fitted with child restraint top tether anchorages in the \
rear seat.
Refer to the child seat manufacturer's instruction for information on se\
curing the child seat. WARNING!
Child Restraint Anchorages are designed to withstand only those loads im\
posed by correctly fitted
Child Restraints. Under no circumstances are they to be used for adult s\
eat belts or harnesses. The
anchorages are not able to withstand excessive forces on them in the eve\
nt of collision if full harness
seat belts or adult seat belts are installed to them. An adult who uses \
a belt anchored in a Child
Restraint Anchorage runs a great risk of suffering severe injuries shoul\
d a collision occur. Do not
install rear speakers which would require the removal of the top tether \
anchors or interfere with the
proper use of the top tether strap.


file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (6 of 14)12/30/200\
6 4:17:52 PM

2003 VOLVO XC70
Isofix fasteners and Seat guides
The Isofix fasteners are installed in the outboard rear seat positions. \
One set of ISOFIX guides is also
provided. Consult your Volvo retailer for more information on child safe\
ty accessories.
pg. 16 Child safety
Child safety
Volvo recommends the proper use of restraint systems for all occupants i\
ncluding children. Remember
that, regardless of age and size, a child should always be properly rest\
rained in a car.
Your car is also equipped with ISOFIX attachments, which make it more co\
nvenient to install child seats
(see
page 15).
Restraint systems for children are designed to be secured in the vehicle\
by lap belts or the lap portion of
a lap-shoulder belt. Such child restraint systems can help protect child\
ren in cars in the event of an
accident only if they are used properly. However, children could be enda\
ngered in a crash if the child
restraints are not properly secured in the vehicle. Failure to follow th\
e installation instructions for your
child restraint can result in your child striking the vehicle's interior\
in a sudden stop.
Holding a child in your arms is NOT a suitable substitute for a child re\
straint system. In an accident, a
child held in a person's arms can be crushed between the vehicle's inter\
ior and an unrestrained person.
The child could also be injured by striking the interior, or by being ej\
ected from the vehicle during a
sudden maneuver or impact. The same can also happen if the infant or chi\
ld rides unrestrained on the
seat. Other occupants should also be properly restrained to help reduce \
the chance of injuring or
increasing the injury of a child.
All states and provinces have legislation governing how and where childr\
en should be carried in a car.
Find out the regulations existing in your state or province. Recent acci\
dent statistics have shown that
children are safer in rear seating positions than front seating position\
s when properly restrained. A child
restraint system can help protect a child in a vehicle. Here's what to l\
ook for when selecting a child
restraint system:
l It should have a label certifying that it meets applicable Federal Motor\
Vehicle Safety Standards
(FMVSS 213) - or in Canada, CMVSS 213.
l Make sure the child restraint system is approved for the child's height,\
weight and development - the
label required by the standard or regulation, or instructions for infant\
restraints, typically provide this
information.
l In using any child restraint system, we urge you to look carefully over \
the instructions that are
file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (7 of 14)12/30/200\
6 4:17:52 PM
