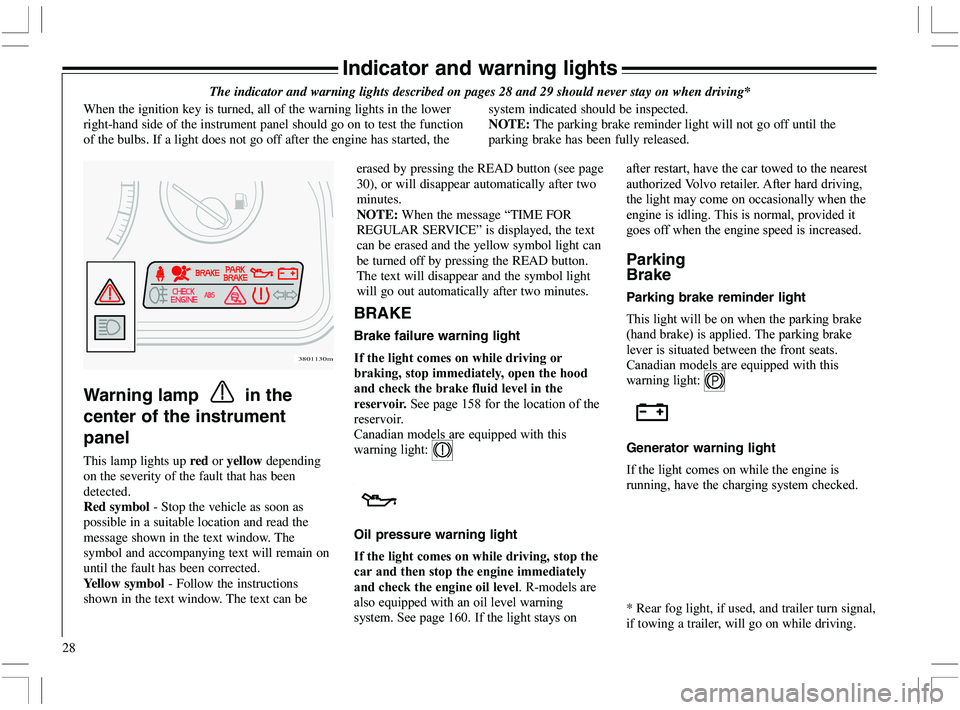

28
Indicator and warning lights
The indicator and warning lights described on pages 28 and 29 should never stay on when driving*
When the ignition key is turned, all of the warning lights in the lower
right-hand side of the instrument panel should go on to test the function
of the bulbs. If a light does not go off after the engine has started, thesystem indicated should be inspected.
NOTE: The parking brake reminder light will not go off until the
parking brake has been fully released.
Warning lamp in the
center of the instrument
panel
This lamp lights up red or yellow depending
on the severity of the fault that has been
detected.
Red symbol - Stop the vehicle as soon as
possible in a suitable location and read the
message shown in the text window. The
symbol and accompanying text will remain on
until the fault has been corrected.
Yellow symbol - Follow the instructions
shown in the text window. The text can be





A6

(






  

   


Parking
Brake
Parking brake reminder light



,

1








5





#
Generator warning light





BRAKE
Brake failure warning light
!


"

&


$
 '
(

 '
(


$ $!
&

&
#)
%F&

 

5





#
Oil pressure warning light
!


"

&
 '
(

(



$

&
"





)
%02

 * Rear fog light, if used, and trailer turn signal,
if towing a trailer, will go on while driving.
3801130m
erased by pressing the READ button (see page
30), or will disappear automatically after two
minutes.
NOTE: When the message “TIME FOR
REGULAR SERVICE” is displayed, the text
can be erased and the yellow symbol light can
be turned off by pressing the READ button.
The text will disappear and the symbol light
will go out automatically after two minutes.

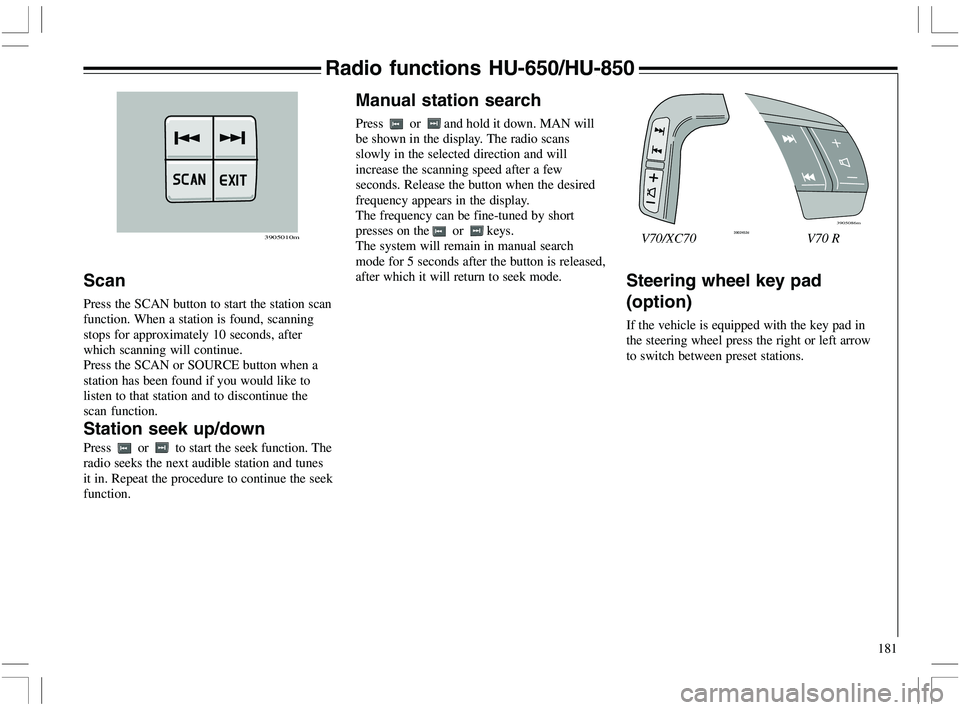

181
Steering wheel key pad
(option)
If the vehicle is equipped with the key pad in
the steering wheel press the right or left arrow
to switch between preset stations.
Scan
Press the SCAN button to start the station scan
function. When a station is found, scanning
stops for approximately 10 seconds, after
which scanning will continue.
Press the SCAN or SOURCE button when a
station has been found if you would like to
listen to that station and to discontinue the
scan function.
Station seek up/down
Press or to start the seek function. The
radio seeks the next audible station and tunes
it in. Repeat the procedure to continue the seek
function.
Radio functions HU-650/HU-850
3905010m
Manual station search
Press or and hold it down. MAN will
be shown in the display. The radio scans
slowly in the selected direction and will
increase the scanning speed after a few
seconds. Release the button when the desired
frequency appears in the display.
The frequency can be fine-tuned by short
presses on the
or keys.
The system will remain in manual search
mode for 5 seconds after the button is released,
after which it will return to seek mode.V70/XC70 V70 R3902452d3905086m
