18
Child safety
Auxiliary seat (option)







8










F2 &&
,*- /21





%.0
,&21
FF ,%/21

Raising
"






"






@


Lowering
Flip the seat cushion back into storage
position.
Pull the release handle and lower the backrest
to storage position.
8503151m


•Both rear seat backrests must be up when
the auxiliary seat is being used.
•Do not use a booster cushion or child seat
in conjunction with the auxiliary seat.
•The luggage net should be retracted.
•The child safety lock in the tailgate should
be on to prevent children from inadvert-
ently opening the tailgate from the inside.
•The exhaust pipe will still be hot when the
engine is turned off. Take care that
children do not burn themselves when
they get into or out of the car.

23
Chapter 2 - Instruments, switches and controls
Interior 24
Exterior 25
Instruments 26
Instrument panel 27
Indicator and warning lights 28
Text information window 30
Switches in the center console 31
Trip computer 32
Cruise control 33
Lighting panel 35
Steering wheel adjustment/lock, Ignition switch 36
Left-side steering wheel lever 37
Right-side steering wheel lever 38
Tailgate wipers/washers, Water repellent glass 39
Warning flashers, heated mirrors/rear window, heated front seats 40
Parking brake, auxiliary socket/ashtrays 41
Electrically operated windows 42
Rearview/sideview mirrors 43
Power moonroof 44
Sun visor 45

39

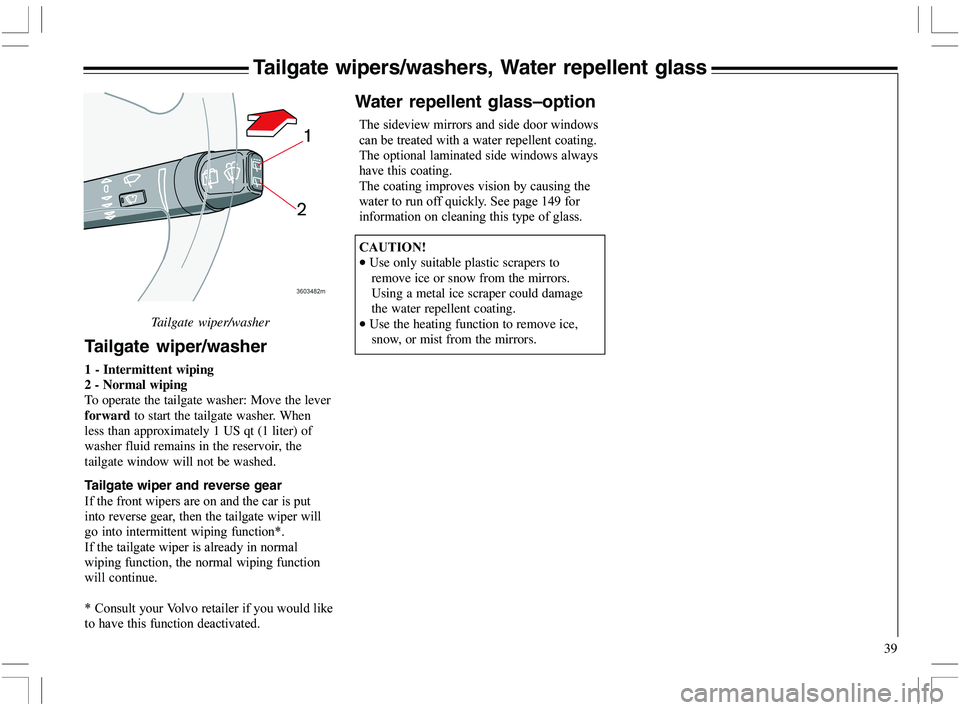

Tailgate wipers/washers, Water repellent glass
Tailgate wiper/washer
Tailgate wiper/washer
1 - Intermittent wiping
2 - Normal wiping
To operate the tailgate washer: Move the lever
forward to start the tailgate washer. When
less than approximately 1 US qt (1 liter) of
washer fluid remains in the reservoir, the
tailgate window will not be washed.
Tailgate wiper and reverse gear








     N











N5  6






Water repellent glass–option
























)
%/3






• Use only suitable plastic scrapers to
remove ice or snow from the mirrors.
Using a metal ice scraper could damage
the water repellent coating.
• Use the heating function to remove ice,
snow, or mist from the mirrors.

70
3903052m8901657m3501056m

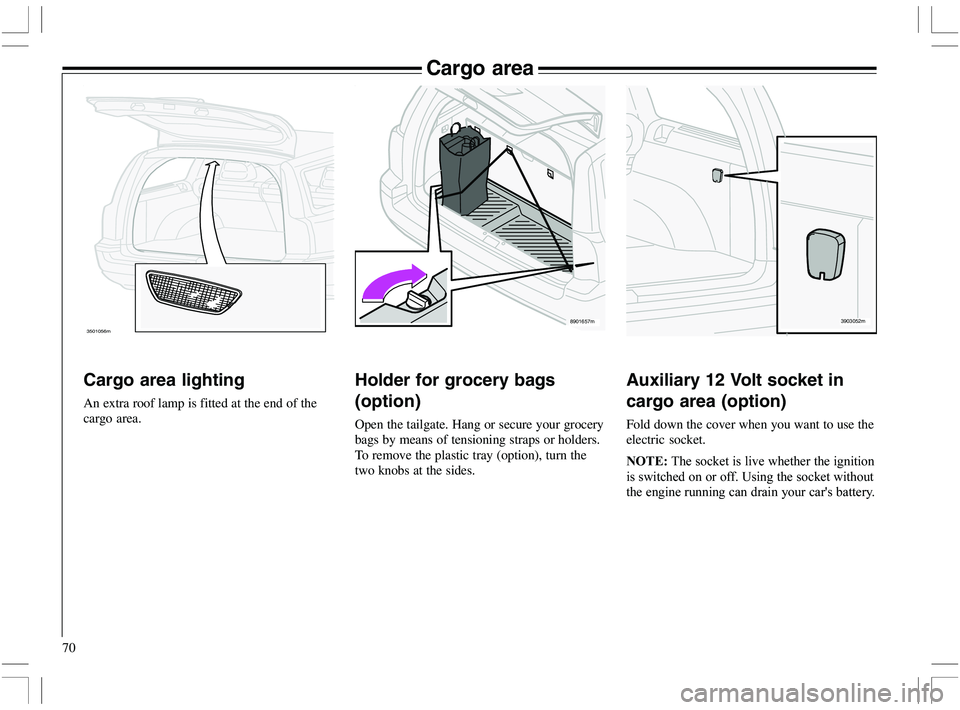

Cargo area
Cargo area lighting
An extra roof lamp is fitted at the end of the
cargo area.
Holder for grocery bags
(option)
Open the tailgate. Hang or secure your grocery
bags by means of tensioning straps or holders.
To remove the plastic tray (option), turn the
two knobs at the sides.
Auxiliary 12 Volt socket in
cargo area (option)
Fold down the cover when you want to use the
electric socket.


=



?


76
Auxiliary seat in cargo area, Extra handgrip - XC70
Extra handgrip
6J5.2
8


 C










Auxiliary seat (option)







8










F2 &&
,*- /21





%.0
,&21
FF ,%/21




"






"






@


+
"

Flip the seat cushion back into storage
position.
Pull the release handle and lower the backrest
to storage position.


•If your car is equipped with an
auxiliary seat (option or accessory),
the tailgate must be fitted with a lock
cylinder. Unlocking from the outside
can then be carried out in the usual
way (key in driver's door and/or
remote control) and also by using the
key in the tailgate.
•Both rear seat backrests must be up
when the auxiliary seat is being used.
•Do not use a booster cushion or child
seat in conjunction with the auxiliary
seat.
•The luggage net should be retracted.
•The child safety lock in the tailgate
should be on to prevent children from
inadvertently opening the tailgate
from the inside.









C  ,

 1





)
&/






8503151m8504941m











80
Keys, Immobilizer


(%"
,
%&



0(%"
,
" 1




%&
Keys
Two types of keys are provided with your car;
master keys and a service key. The master key,
the remote control, and the central locking
button may all be used to lock and unlock all
of your car’s locks.
The service key operates the driver’s door and
the ignition switch. It will also fit the tailgate
lock cylinder on models outfitted with a
factory installed third seat. The service key is
intended to help deter unwanted entry into the
glove compartment. $
  ?


Turn the key again (within 10 seconds) to
unlock all doors and the tailgate.
One turn with the key towards lock in the
drivers door locks all doors and tailgate.
=

$


WARNING!











,(

I5
 I1















!

$
"



#

!




%


!
&
Immobilizer (start inhibitor)
Each of the keys supplied with your car
contains a coded transmitter. The code in the
key is transmitted to an antenna in the ignition
switch where it is compared to the code stored
in the start inhibitor module. The car will start
only with a properly coded key.
8302499m
Each key has a unique code, which your Volvo
retailer uses if new keys are required. A
maximum of six remote controls/keys can be
programmed and used for one car.
If you misplace a key, take the other keys to an
authorized Volvo retailer for reprogramming as
an antitheft measure.
This device complies with part 15 of the
FCC rules. Operation is subject to the
following condition: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.

81

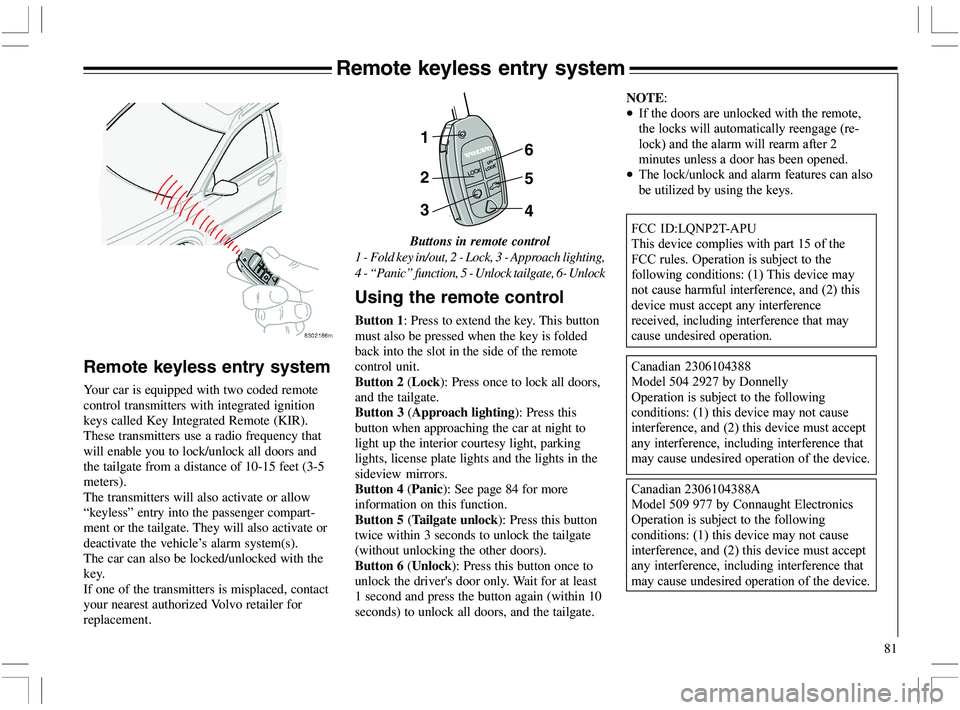

Remote keyless entry system
NOTE:
•





,
1




 *




•$






A

@55 '#GP9* (9=

%F
@55
+
  >
 #,%1




,*1










5


 *-20%2/-&&
7F2/*3*.'
+
  >
 #,%1



,*1








5


 *-20%2/-&&(
7F233..5
H
+
  >
 #,%1



,*1








Buttons in remote control
1 - Fold key in/out, 2 - Lock, 3 - Approach lighting,
4 - “Panic” function, 5 - Unlock tailgate, 6- Unlock
Using the remote control
Button 1: Press to extend the key. This button
must also be pressed when the key is folded
back into the slot in the side of the remote
control unit.
Button 2 (Lock): Press once to lock all doors,
and the tailgate.
Button 3 (Approach lighting): Press this
button when approaching the car at night to
light up the interior courtesy light, parking
lights, license plate lights and the lights in the
sideview mirrors.
Button 4 (Panic): See page 84 for more
information on this function.
Button 5 (Tailgate unlock): Press this button
twice within 3 seconds to unlock the tailgate
(without unlocking the other doors).
Button 6 (Unlock): Press this button once to
unlock the driver's door only. Wait for at least
1 second and press the button again (within 10
seconds) to unlock all doors, and the tailgate.
Remote keyless entry system
Your car is equipped with two coded remote
control transmitters with integrated ignition
keys called Key Integrated Remote (KIR).
These transmitters use a radio frequency that
will enable you to lock/unlock all doors and
the tailgate from a distance of 10-15 feet (3-5
meters).
The transmitters will also activate or allow
“keyless” entry into the passenger compart-
ment or the tailgate. They will also activate or
deactivate the vehicle’s alarm system(s).
The car can also be locked/unlocked with the
key.
If one of the transmitters is misplaced, contact
your nearest authorized Volvo retailer for
replacement.
8302070r
1
2
36
5
4

83

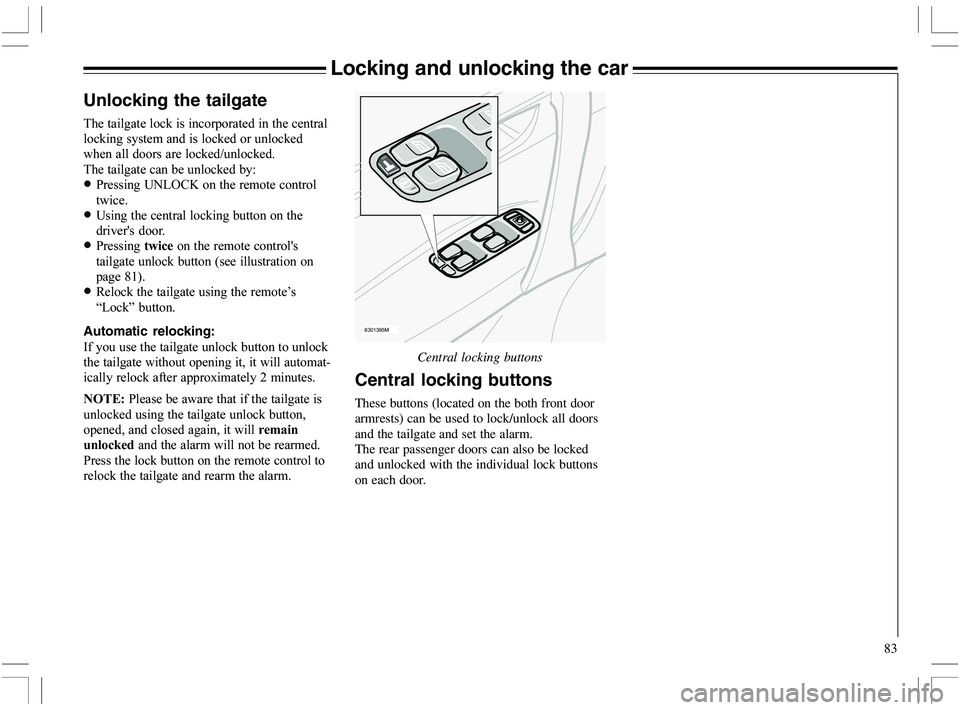

Locking and unlocking the car
Central locking buttons
Unlocking the tailgate









$




#
•9  =G+5!


•=

  ?

•9   "
  ?


,


&%1

•"

  C
:G;

Automatic relocking:











 8
*

9















$





9








Central locking buttons
These buttons (located on the both front door
armrests) can be used to lock/unlock all doors
and the tailgate and set the alarm.
The rear passenger doors can also be locked
and unlocked with the individual lock buttons
on each door.
8301395M

102
Points to remember
Electrical system
When replacing the battery or when carrying
out work involving the electrical system, the
   #
•(






<
















•




A




@   IE

I

•
  ,
8


 1







(










•



 ?

,

1














•




•)

%2


CAUTION:
'




 ,




1

'

  8









%,-221
)


F

WARNING!
•Driving with the tailgate open: Driving
with the tailgate open could mean that
poisonous exhaust gases enter the
passenger compartment.
If the tailgate must be kept open for any
reason, proceed as follows:
- Close the windows.
- Set the ventilation system to air flow to
floor, windshield and side windows and
blower control to its highest setting.
•Floor mats: An extra mat on the driver's
floor can cause the accelerator pedal to
catch. Check that the movement of the
accelerator pedal is not impeded. Not
more than one protective floor covering
may be used at one time.
Cooling system
The risk for engine overheating is greatest,
especially in hot weather, when:
•







•)

   ,
 ;
 ;

 1

•


#
'


/F22





"











'



'
8




4


,






  1


#
•)


•9










•)
 ,
81



 8
*222 , 1


WARNING!
'
8





8



%F/





164

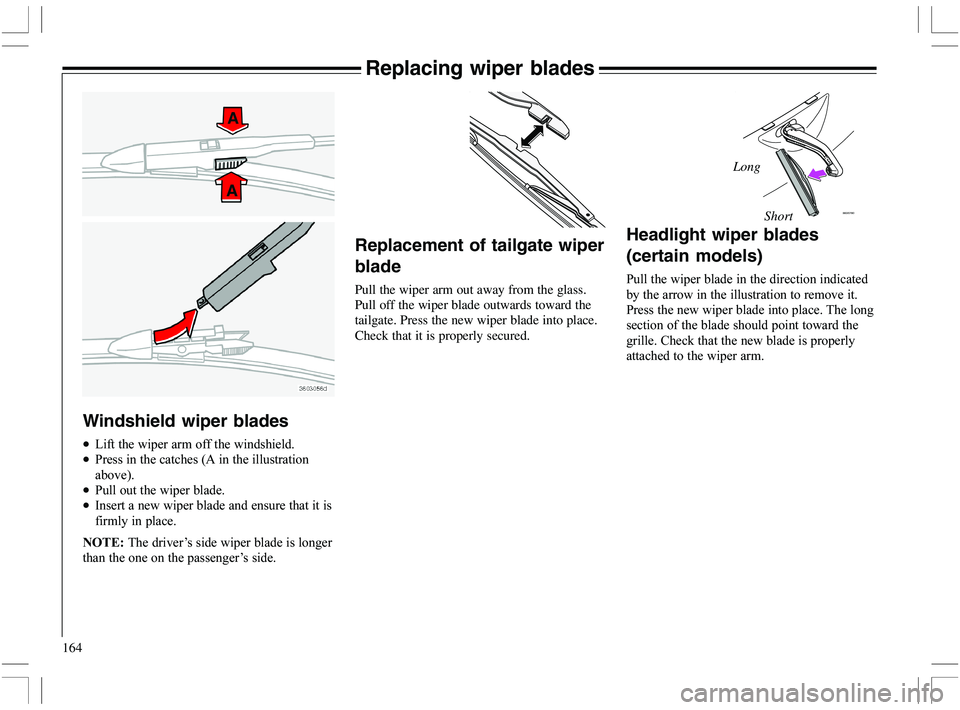

Replacing wiper blades
Headlight wiper blades
(certain models)
9






9







5






Replacement of tailgate wiper
blade
Pull the wiper arm out away from the glass.
Pull off the wiper blade outwards toward the
tailgate. Press the new wiper blade into place.
Check that it is properly secured.
3602076DShort Long
