2007 Volvo XC70
The gear selector must be in the D (Drive) position.
Kickdown
Automatic shift to a lower gear (kickdown) is achieved by depressing t\
he accelerator pedal fully and
briskly. An upshift will occur when approaching the top speed for a part\
icular gear or by releasing the
accelerator pedal slightly.
Kickdown can be used for maximum acceleration or when passing at highway\
speeds.
Kickdown does not function when the transmission is in the manual shift \
(Geartronic) mode.
W - Winter/Wet driving mode - enhanced vehicle traction
Please refer to the information on
page 131.
Sport mode (R-models only)
R-models are equipped with a (S)port button that can be used to engage\
/disengage the Sport shifting
mode. An indicator light in the button will go on when Sport mode is eng\
aged.
With Sport mode engaged, the transmission will shift up at higher rpm in\
first and second gears, and will
also shift down at higher rpm for more immediate engine response during \
acceleration and deceleration.
pg. 134 Starting and driving
All Wheel Drive (option)
All Wheel Drive (AWD) - general information
Your Volvo can be equipped with permanent All Wheel Drive, which means t\
hat power is distributed
automatically between the front and rear wheels. Under normal driving co\
nditions, most engine's power
is directed to the front wheels. However, if there is any tendency for t\
he front wheels to spin, an
electronically controlled coupling distributes power to the wheels that \
have the best traction.
Tire dimensions
file:///K|/ownersdocs/2007/2007_XC70/07xc70_06.htm (19 of 41)12/30/200\
6 5:51:38 PM

2007 Volvo XC70
Volvo recommends that you always drive on tires of the same brand, size,\
construction (radial), tread
pattern, load-, speed-, traction- , temperature-, and treadwear rating. \
Never drive on mixed tires, except
for brief periods when the temporary spare tire is in use.
Always use properly inflated tires of correct dimensions. Tire size and \
inflation pressures are shown on
the tire inflation pressure placards, located on the driver's side B-pil\
lar (the structural member at the side
of the vehicle, at the rear of the driver's door opening), or on the in\
side of the fuel filler door on
Canadian models.
Temporary Spare
The temporary spare tire is for temporary, low-speed, short-distance use\
only. Replace it with a full-
sized tire as soon as possible. Do not drive on the temporary spare at s\
peeds above 50 mph (80km/h) or
for distances greater than 50 miles (80 km).
Never install snow chains on a temporary spare.
pg. 135 Starting and driving
Four-C active chassis system
Four-C active chassis
The FOUR-C (Continuously Controlled Chassis Concept) active chassis sy\
stem, consisting of Comfort
and Sport modes, is available as an option.
NOTE: The V70 R has a standard FOUR-C system consisting of Comfort, Sport, an\
d Advanced sport
modes. The buttons for controlling these driving modes are located in ce\
nter instrument panel, above the
ventilation system panel vents, see the illustration in the right column\
. These buttons can be pressed at
any time to change driving modes. An indicator light in the selected but\
ton will come on to indicate the
driving mode that is currently selected.
This system is based on a number of sensors that continuously monitor fa\
ctors such as the vehicle's
lateral and vertical movements, speed, and movements of the wheels. The \
sensors receive data up to 500
times per second, which is used to provide extremely fast and precise ad\
justment of each shock
absorber. The system adjusts the stiffness of the shock absorbers approx\
imately 100 times per second

Use the button in the center console to switch between the driving modes\
Comfort and Sport. This can
be done at any time.
Comfort
The Comfort mode chassis setting offers the greatest amount of shock abs\
orption and the softest ride.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_06.htm (20 of 41)12/30/200\
6 5:51:38 PM

2007 Volvo XC70
NOTE: Please consult state or provincial regulations restricting the use of s\
tudded winter tires before
installing such tires.
1. Where permitted
pg. 171 Wheels and tires
Temporary spare
The spare tire in your vehicle is called a "Temporary Spare".
Recommended tire pressure (see the placard on the B-pillar or on the fu\
el filler door) should be
maintained irrespective of which position on the vehicle the temporary s\
pare tire is used on.
In the event of damage to this tire, a new one can be purchased from you\
r Volvo retailer.
WARNING!
Current legislation prohibits the use of the "Temporary Spare" tire othe\
r than as a temporary
replacement for a punctured tire. It must be replaced as soon as possibl\
e by a standard tire. Road
holding and handling may be affected with the "Temporary Spare" in use. \
Do not exceed 50 mph (80
km/h). Do not drive farther than 50 miles (80 km) on a temporary spar\
e tire.
CAUTION!
The vehicle must not be driven with wheels of different dimensions or wi\
th a spare tire other than the
one that came with the vehicle. The use of different size wheels can ser\
iously damage your vehicle's
transmission.
pg. 172 Wheels and tires
Temporary spare
file:///K|/ownersdocs/2007/2007_XC70/07xc70_07.htm (18 of 24)12/30/200\
6 5:51:40 PM

2007 Volvo XC70

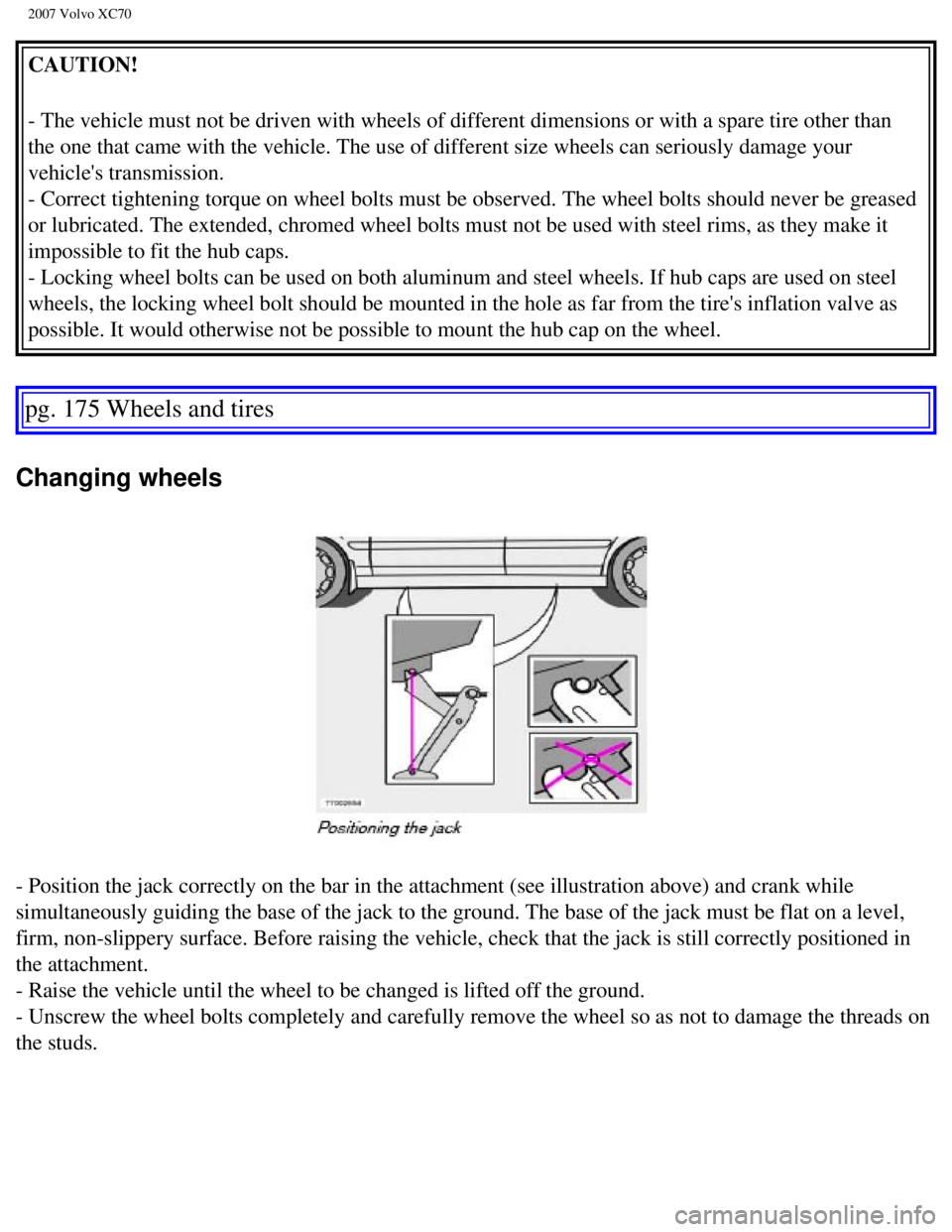

CAUTION!
- The vehicle must not be driven with wheels of different dimensions or \
with a spare tire other than
the one that came with the vehicle. The use of different size wheels can\
seriously damage your
vehicle's transmission.
- Correct tightening torque on wheel bolts must be observed. The wheel b\
olts should never be greased
or lubricated. The extended, chromed wheel bolts must not be used with s\
teel rims, as they make it
impossible to fit the hub caps.
- Locking wheel bolts can be used on both aluminum and steel wheels. If \
hub caps are used on steel
wheels, the locking wheel bolt should be mounted in the hole as far from\
the tire's inflation valve as
possible. It would otherwise not be possible to mount the hub cap on the\
wheel.
pg. 175 Wheels and tires
Changing wheels
- Position the jack correctly on the bar in the attachment (see illustr\
ation above) and crank while
simultaneously guiding the base of the jack to the ground. The base of t\
he jack must be flat on a level,
firm, non-slippery surface. Before raising the vehicle, check that the j\
ack is still correctly positioned in
the attachment.
- Raise the vehicle until the wheel to be changed is lifted off the grou\
nd.
- Unscrew the wheel bolts completely and carefully remove the wheel so a\
s not to damage the threads on
the studs.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_07.htm (22 of 24)12/30/200\
6 5:51:40 PM

2007 Volvo XC70
2 0 0 7
VOLVO XC70
Specifications

pg. 211 Specifications
Label information
212
Dimensions and weights
214
Capacities
216
Engine oil
217
Fluids and cooling system
218
Three way catalytic
converter
219
Suspension
220
Electrical system
221
Engine specifications
223
Volvo programs
224
All specifications are subject to change without prior notice.
pg. 212 Specifications
Label information
file:///K|/ownersdocs/2007/2007_XC70/07xc70_10.htm (1 of 11)12/30/2006\
5:51:45 PM

2007 Volvo XC70
Your Volvo is designed to meet all applicable emission standards, as evi\
denced by the certification label
on the underside of the hood. For further information regarding these re\
gulations, please consult your
Volvo retailer.
1. Not on vehicles equipped with the optional power child safety locks. \
pg. 214 Specifications
Dimensions and weights
Dimensions

1. Rear seat backrest up, load height - upper edge of backrest
2. Rear seat backrest folded down, load height - upper edge of front sea\
t backrests/lower edge of rear window
3. Rear seat backrest folded down, load height - head lining (ceiling)\

Max. loads
file:///K|/ownersdocs/2007/2007_XC70/07xc70_10.htm (3 of 11)12/30/2006\
5:51:45 PM

2007 Volvo XC70

1. When driving for prolonged periods at temperatures above 86 °F (3\
0 °C), the maximum recommended weight
is 2000 lbs (900 kg).
2. See also
page 145 for additional information
WARNING!
When adding accessories, equipment, luggage and other cargo to your vehi\
cle, the total capacity
weight must not be exceeded.
pg. 215 Specifications
Dimensions and weights
Weights
