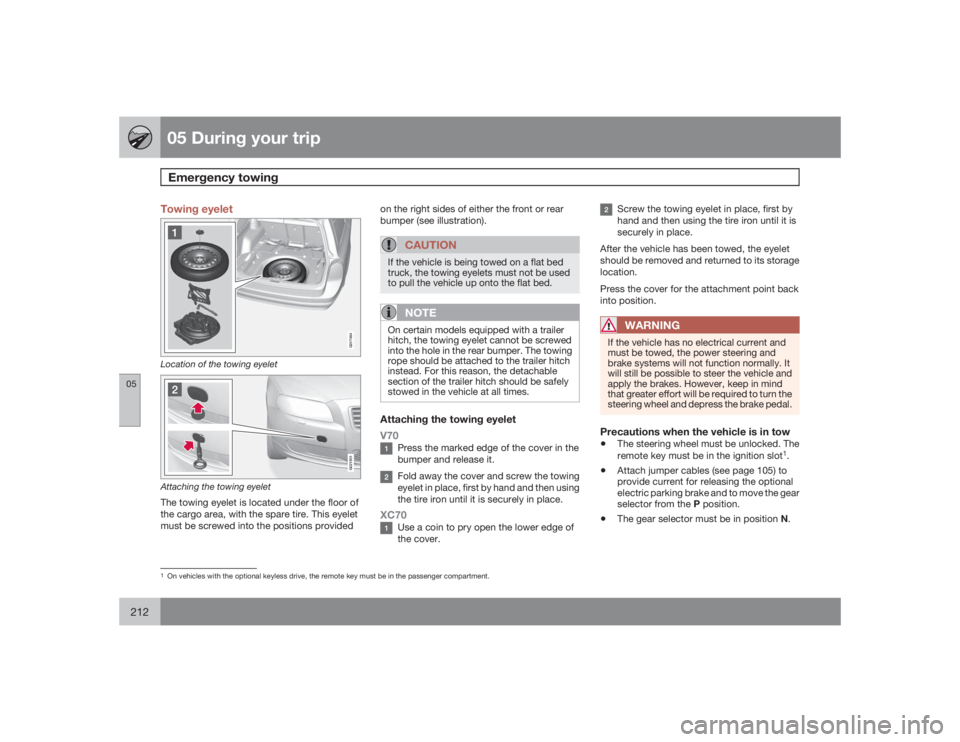

05 During your tripEmergency towing
05212
Towing eyelet
G017464
Location of the towing eyelet
G021501
Attaching the towing eyeletThe towing eyelet is located under the floor of
the cargo area, with the spare tire. This eyelet
must be screwed into the positions providedon the right sides of either the front or rear
bumper (see illustration).
CAUTION
If the vehicle is being towed on a flat bed
truck, the towing eyelets must not be used
to pull the vehicle up onto the flat bed.
NOTE
On certain models equipped with a trailer
hitch, the towing eyelet cannot be screwed
into the hole in the rear bumper. The towing
rope should be attached to the trailer hitch
instead. For this reason, the detachable
section of the trailer hitch should be safely
stowed in the vehicle at all times.Attaching the towing eyelet
V70
Press the marked edge of the cover in the
bumper and release it.Fold away the cover and screw the towing
eyelet in place, first by hand and then using
the tire iron until it is securely in place.
XC70
Use a coin to pry open the lower edge of
the cover.
Screw the towing eyelet in place, first by
hand and then using the tire iron until it is
securely in place.
After the vehicle has been towed, the eyelet
should be removed and returned to its storage
location.
Press the cover for the attachment point back
into position.WARNING
If the vehicle has no electrical current and
must be towed, the power steering and
brake systems will not function normally. It
will still be possible to steer the vehicle and
apply the brakes. However, keep in mind
that greater effort will be required to turn the
steering wheel and depress the brake pedal.Precautions when the vehicle is in tow•
The steering wheel must be unlocked. The
remote key must be in the ignition slot
1.
•
Attach jumper cables (see page 105) to
provide current for releasing the optional
electric parking brake and to move the gear
selector from the P position.
•
The gear selector must be in position N.
1On vehicles with the optional keyless drive, the remote key must be in the passenger compartment.

06 Maintenance and specifications
Wheels and tires
06``255
Tire rotationYour vehicle has no recommended tire rota-
tion. The following information is intended to
help you understand why.Tread setAs a tire ages and the rubber cures, front and
rear tires set at different angles. Therefore, if
tires are rotated, the tread will eventually set at
an angle that is a compromise. Even if ride,
handling, and road noise may still seem
acceptable, they may not be optimal. Further,
tires that are rotated, but not on a regular basis,
may actually cause more tire noise, faster tire
wear, and unpleasant changes in steering feel
and vehicle handling.
A tire that can fully adapt to its position will
provide better steering feel, lower tire noise,
and better fuel economy.Braking stability performanceYour vehicle is driven mainly by the front tires,
which will wear faster. This can be beneficial.
Having more tread on the rear tires will help
reduce oversteer. Oversteer is when a vehicle
wants to keep turning because of momentum
and dynamic forces on its suspension.Suspension wear diagnosticsEvery suspension needs periodic inspection
and maintenance. A tire's wear pattern can be
an aid in detecting a suspension problem. Each
tire, if left in place, tells a story about the sus-pension. Tire rotation, on the other hand, could
make suspension wear harder to detect. Early
detection is very important, because suspen-
sion problems can make tire wear worse.
If you do rotate your tires…Please follow the tire manufacturer's recom-
mendations, as outlined in the tire manufactur-
ers tire warranty pamphlet.
Your Volvo retailer can also provide guidance
based on your particular driving circumstan-
ces.Changing a wheel
G017464
Location of jack and toolsSpare wheelThe spare wheel (Temporary spare) is only
intended for temporary use. Replace the sparewheel with a normal wheel as soon as possible.
The car's handling may be altered by the use
of the spare wheel. The correct tire pressure for
the spare wheel is stated in the tire pressure
tables on pages 248 and 249.
WARNING
Current legislation prohibits the use of the
“Temporary Spare” tire other than as a tem-
porary replacement for a punctured tire. It
must be replaced as soon as possible by a
standard tire. Road holding and handling
may be affected with the “Temporary
Spare” in use.
CAUTION
The vehicle must never be driven with more
than one temporary spare wheel.The spare wheel is located in the spare wheel
well with the rim side down. There are two foam
blocks, one under the spare wheel and one
over/inside. The upper one contains all tools.
The same bolt runs through to secure the spare
wheel and the foam blocks.Taking out the spare wheel1. Fold the rear edge of the floor mat forward.
2. Open the floor hatch.
