brake VOLVO XC70 2009 Owners Manual

Contents
5
03
03 Your driving environmentInstruments and controls.......................... 70
Ignition modes.......................................... 77
Seats......................................................... 79
Steering wheel.......................................... 84
Lighting..................................................... 85
Wipers and washers................................. 91
Power windows......................................... 94
Mirrors....................................................... 96
Power moonroof....................................... 98
HomeLink® Wireless Control System
(option).................................................... 100
Starting the engine.................................. 103
Transmission...........................................107
Brakes..................................................... 110
Hill Descent Control (HDC)..................... 112
Parking brake.......................................... 114
04
04 Comfort and driving pleasureMenus and messages............................. 120
Climate system....................................... 124
Audio system.......................................... 131
BluetoothŸ hands-free connection......... 143
Rear Seat Entertainment - Dual Screen
(RSE)–option.......................................... 149
Trip computer.........................................152
Compass................................................. 153
Stability system....................................... 155
Active chassis system–Four C................157
Cruise control.......................................... 158
Collision warning with Auto-brake
(option).................................................... 160
Adaptive Cruise Control–ACC (option). . . 166
Distance alert ......................................... 173
Driver Alert System (option) ...................176
Park assist (option).................................181
Blind Spot Information System (option). . 184
Passenger compartment convenience. . . 188
05
05 During your tripDriving recommendations....................... 194
Refueling................................................. 198
Loading................................................... 202
Cargo area.............................................. 207
Towing a trailer....................................... 210
Emergency towing.................................. 212
ProCarManuals.com

IntroductionEnvironment
10
Volvo and the environmentVolvo is committed to the well being of its cus-
tomers. As a natural part of this commitment,
we care about the environment in which we all
live. Caring for the environment means an
everyday involvement in reducing our environ-
mental impact. Volvo's environmental activities
are based on a holistic view, which means we
consider the overall environmental impact of a
product throughout its complete life cycle. In
this context, design, production, product use,
and recycling are all important considerations.
In production, Volvo has partly or completely
phased out several chemicals including CFCs,
lead chromates, asbestos, and cadmium; and
reduced the number of chemicals used in our
plants 50% since 1991.
Volvo was the first in the world to introduce into
production a three-way catalytic converter with
a Lambda sond, now called the heated oxygen
sensor, in 1976. The current version of this
highly efficient system reduces emissions of
harmful substances (CO, HC, NOx) from the
exhaust pipe by approximately 95 – 99% and
the search to eliminate the remaining emis-
sions continues. Volvo is the only automobile
manufacturer to offer CFC-free retrofit kits for
the air conditioning system of all models as far
back as the 1975 model 240. Advanced elec-
tronic engine controls and cleaner fuels are
bringing us closer to our goal. After Volvo vehi-cles and parts have fulfilled their use, recycling
is the next critical step in completing the life
cycle. The metal content is about 75% of the
total weight of a vehicle, which makes the vehi-
cle among the most recycled industrial prod-
ucts. In order to have efficient and well-
controlled recycling, dismantling information is
available for all Volvo models. For Volvo, all
homogeneous plastic parts weighing more
than 3.4 oz. (100 grams) are marked with inter-
national symbols that indicate how the com-
ponent is to be sorted for recycling. In addition
to continuous environmental refinement of
conventional gasoline-powered internal com-
bustion engines, Volvo is actively looking at
advanced technology alternative-fuel vehicles.
When you drive a Volvo, you become our part-
ner in the work to lessen the car's impact on
the environment. To reduce your vehicle's
environmental impact, you can:
•
Maintain proper air pressure in your tires.
Tests have shown decreased fuel econ-
omy with improperly inflated tires.
•
Follow the recommended maintenance
schedule in your Warranty and Service
Records Information booklet.
•
Drive at a constant speed whenever pos-
sible.
•
See a trained and qualified Volvo service
technician as soon as possible for inspec-
tion if the check engine (malfunction indi-cator) light illuminates, or stays on after the
vehicle has started.
•
Properly dispose of any vehicle-related
waste such as used motor oil, used batter-
ies, brake pads, etc.
•
When cleaning your vehicle, please use
genuine Volvo car care products. All Volvo
car care products are formulated to be
environmentally friendly.WARNING
PROPOSITION 65 WARNING!
Engine exhaust, some of its constituents,
and certain vehicle components contain or
emit chemicals known to the state of Cali-
fornia to cause cancer, and birth defects or
other reproductive harm. In addition, certain
fluids contained in vehicles and certain
products of component wear contain or
emit chemicals known to the State of Cali-
fornia to cause cancer, and birth defects or
other reproductive harm.
ProCarManuals.com

01 SafetySupplemental Restraint System (SRS)
0118
General information
G022831
Warning symbols in the instrument panelAs an enhancement to the three-point seat
belts, your Volvo is equipped with a Supple-
mental Restraint System (SRS). Volvo's SRS
consists of seat belt pretensioners, front air-
bags, side impact airbags, a front passenger
occupant weight sensor, and inflatable cur-
tains. All of these systems are monitored by the
SRS control module. An SRS warning light in
the instrument panel (see the illustration) illu-
minates when the ignition is in modes I,II, or
III, and will normally go out after approximately
6 seconds if no faults are detected in the sys-
tem.
Where applicable, a text message will also be
displayed when the SRS warning light illumi-
nates. If this warning symbol is not functioningproperly, the general warning symbol illumi-
nates and a text message will be displayed.
See also page 72 and page 74 for more
information about indicator and warning sym-
bols.
WARNING
•
If the SRS warning light stays on after
the engine has started or if it illuminates
while you are driving, have the vehicle
inspected by a trained and qualified
Volvo service technician as soon as
possible.
•
Never try to repair any component or
part of the SRS yourself. Any interfer-
ence in the system could cause mal-
function and serious injury. All work on
these systems should be performed by
a trained and qualified Volvo service
technician.
WARNING
If your vehicle has been subjected to flood
conditions (e.g. soaked carpeting/standing
water on the floor of the vehicle) or if your
vehicle has become flood-damaged in any
way, do not attempt to start the vehicle or
insert the remote control into the ignition
slot before disconnecting the battery (see
below). This may cause airbag deployment
which could result in personal injury. Have
the vehicle towed to a trained and qualified
Volvo service technician for repairs.
Automatic transmission:
Before attempting to tow the vehicle, use
the following procedure to override the
shiftlock system to move the gear selector
to the neutral position:
1. Switch off the ignition for at least
10 minutes and disconnect the battery
2. Wait at least one minute.
3. Insert the remote key into the ignition
slot and press the Start button (without
depressing brake pedal) to go to ignition
modeII. See page 77 for more infor-
mation.
4. Press firmly on the brake pedal.
5.
Move the gear selector from Park (P) to
the Neutral (N) position. see page 107
for information on manually overriding
the shiftlock system.
ProCarManuals.com

01 SafetyCrash mode
0132
G022831
Driving after a collisionIf the vehicle has been involved in a collision,
the text
SAFETY MODE SEE MANUAL
may
appear in the information display. This indi-
cates that the vehicle's functionality has been
reduced.
NOTE
This text can only be shown if the display is
undamaged and the vehicle's electrical sys-
tem is intact.Safety mode is a feature that is triggered if one
or more of the safety systems (e.g. front or side
airbags, an inflatable curtain, or one or more of
the seat belt pretensioners) has deployed. The
collision may have damaged an importantfunction in the vehicle, such as the fuel lines,
sensors for one of the safety systems, the
brake system, etc.
WARNING
•
Never attempt to repair the vehicle
yourself or to reset the electrical system
after the vehicle has displayed
SAFETY
MODE SEE MANUAL
. This could
result in injury or improper system func-
tion.
•
Restoring the vehicle to normal operat-
ing status should only be done by a
trained and qualified Volvo service tech-
nician.
•
After
SAFETY MODE SEE MANUAL
has been displayed, if you detect the
odor of fuel vapor, or see any signs of
fuel leakage, do not attempt to start the
vehicle. Leave the vehicle immediately.
Attempting to start the vehicleIf damage to the vehicle is minor and there is
no fuel leakage, you may attempt to start the
vehicle. To do so:
1. Remove the remote control from the igni-
tion slot.2. Reinsert the remote in the ignition slot. The
vehicle will then attempt to reset Safety
mode to normal status.
3. Try to start the vehicle.
Moving the vehicleIf the electrical system is able to reset system
status to normal (
SAFETY MODE SEE
MANUAL
will no longer be shown in the dis-
play), the vehicle may be moved carefully from
its present position, if for example, it is blocking
traffic. It should, however, not be moved farther
than is absolutely necessary.
WARNING
Even if the vehicle appears to be drivable
after Safety mode has been set, it should
not be driven or towed (pulled by another
vehicle). There may be concealed damage
that could make it difficult or impossible to
control. The vehicle should be transported
on a flatbed tow truck to a trained and quali-
fied Volvo service technician for inspection/
repairs.
ProCarManuals.com

G020912
68
Instruments and controls........................................................................ 70
Ignition modes........................................................................................ 77
Seats....................................................................................................... 79
Steering wheel........................................................................................ 84
Lighting................................................................................................... 85
Wipers and washers................................................................................ 91
Power windows....................................................................................... 94
Mirrors..................................................................................................... 96
Power moonroof..................................................................................... 98
HomeLink® Wireless Control System (option).....................................100
Starting the engine................................................................................ 103
Transmission......................................................................................... 107
Brakes................................................................................................... 110
Hill Descent Control (HDC).................................................................... 112
Parking brake........................................................................................ 114
ProCarManuals.com

03 Your driving environment
Instruments and controls

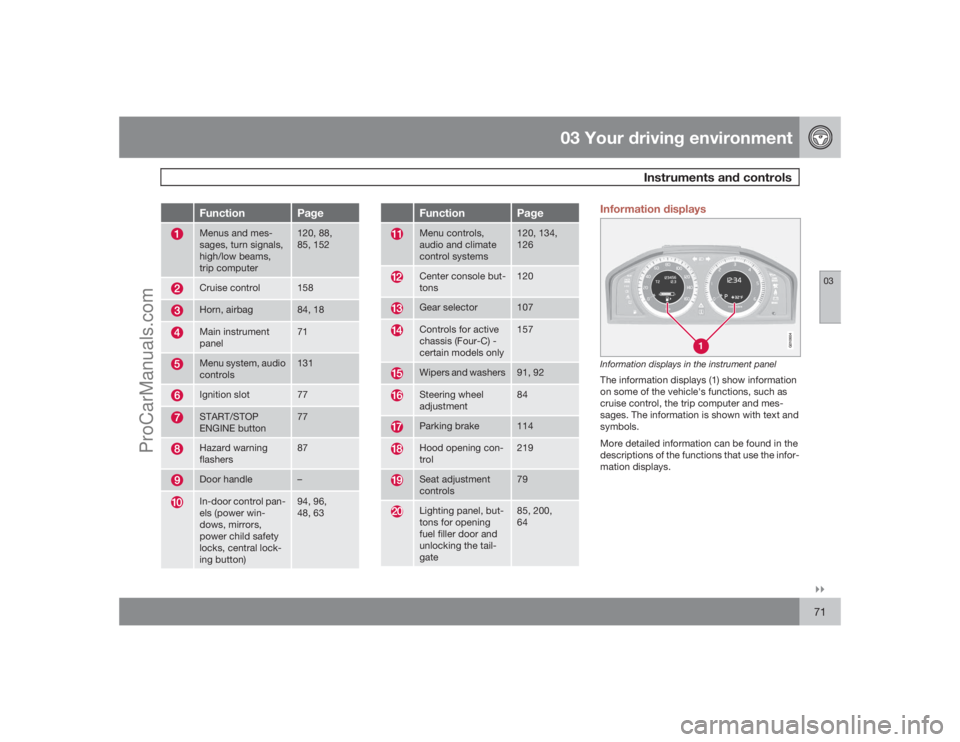

03``71
Function
Page
Menus and mes-
sages, turn signals,
high/low beams,
trip computer
120, 88,
85, 152
Cruise control
158
Horn, airbag
84, 18
Main instrument
panel
71
Menu system, audio
controls
131
Ignition slot
77
START/STOP
ENGINE button
77
Hazard warning
flashers
87
Door handle
–
In-door control pan-
els (power win-
dows, mirrors,
power child safety
locks, central lock-
ing button)
94, 96,
48, 63
Function
Page
Menu controls,
audio and climate
control systems
120, 134,
126
Center console but-
tons
120
Gear selector
107
Controls for active
chassis (Four-C) -
certain models only
157
Wipers and washers
91, 92
Steering wheel
adjustment
84
Parking brake
114
Hood opening con-
trol
219
Seat adjustment
controls
79
Lighting panel, but-
tons for opening
fuel filler door and
unlocking the tail-
gate
85, 200,
64
Information displays
G010604
Information displays in the instrument panelThe information displays (1) show information
on some of the vehicle's functions, such as
cruise control, the trip computer and mes-
sages. The information is shown with text and
symbols.
More detailed information can be found in the
descriptions of the functions that use the infor-
mation displays.
ProCarManuals.com

03 Your driving environmentInstruments and controls
0372
Gauges
G010605
Gauges in the instrument panel
SpeedometerFuel gauge. Please note that the fuel level
indicator in the gauge moves from right to
left as the amount of fuel in the tank
decreases. See also the section on refuel-
ing beginning on page 198. See page
152 for more information on fuel level and
consumption.The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
Do not drive continuously with the needle
in the red area of the gauge. The engine
management system will automatically
prevent excessively high engines speeds.
This will be noticeable as a pronounced
unevenness in engine speed.
Indicator, information, and warning
symbols
G010604
Indicator and warning symbols
Indicator and information symbolsIndicator and warning symbolsHigh beam and turn signal indicators
Function checkAll indicator and warning symbols light up in
ignition mode II or when the engine is started.
When the engine has started, all the symbols
should go out except the parking brake sym-
bol, which only goes out when the brake is
disengaged.
If the engine does not start or if the function
check is carried out in ignition mode II, all sym-
bols go out after 5 seconds except the symbolfor faults in the vehicle's emissions system and
the symbol for low oil pressure.
Certain symbols may not have their functions
illustrated, depending on the vehicle's equip-
ment.
Indicator and warning symbolsSymbol
DescriptionTrailer turn signal indicator
CHECK
ENGINE
Malfunction indicator lightAnti-lock brake system (ABS)Rear fog light onStability systemTire pressure monitoring sen-
sor (TPMS)Low fuel levelInformation symbol, see text
in information displayHigh beam indicator
ProCarManuals.com

03 Your driving environment
Instruments and controls
03``73
Symbol
DescriptionLeft turn signal indicatorRight turn signal indicator
Trailer turn signal indicator
If you are towing a trailer, this light will flash
simultaneously with the trailer's turn signals. If
the light does not flash, or if they flash faster
than usual when signaling a turn, the turn sig-
nals on the trailer or on the vehicle are not
functioning properly.CHECK
ENGINE
Malfunction Indicator Light
As you drive, a computer called On-Board
Diagnostics II (OBDII) monitors your vehicle's
engine, transmission, electrical and emission
systems.
The malfunction indicator (CHECK ENGINE)
light will illuminate if the computer senses a
condition that potentially may need correcting.
When this happens, please have your vehicle
checked by a trained and qualified Volvo serv-
ice technician as soon as possible.
A malfunction indicator (CHECK ENGINE) light
may have many causes. Sometimes, you may
not notice a change in your car's behavior.
Even so, an uncorrected condition could hurtfuel economy, emission controls, and drivabil-
ity. Extended driving without correcting the
cause could even damage other components
in your vehicle.
This light may illuminate if the fuel filler cap is
not closed tightly or if the engine was running
while the vehicle was refueled.
Canadian models are equipped with this sym-
bol:
Anti-lock Brake System (ABS)
warning light
If the warning light comes on, there may be a
malfunction in the ABS system (the standard
braking system will still function). Check the
system by:
1. Stopping in a safe place and switching off
the ignition.
2. Restart the engine.
3. If the warning light goes off, no further
action is required.
If the warning light remains on, the vehicle
should be driven to a trained and qualified
Volvo service technician for inspection, see
page 110 for additional information.
Canadian models are equipped with this sym-
bol:
Rear fog light
This symbol indicates that the rear fog light
(located in the driver's side tail light cluster) is
on.
Stability system
This indicator symbol flashes when the DSTC
(Dynamic Stability and Traction Control sys-
tem) is actively working to stabilize the vehicle,
see page 155 for more detailed information.
Tire pressure monitoring system
(TPMS) – option
This symbol illuminates to indicate that tire
pressure in one or more tires is low, see
page 259 for detailed information.
Low fuel level
When this light comes on, the vehicle should
be refueled as soon as possible.
Information symbol
The information symbol illuminates and a text
message is displayed if a fault is detected in
one of the vehicle's systems. The message can
be erased and the symbol can be turned off by
pressing the READ button (see page 121 for
information) or this will take place automati-
cally after a short time (the length of time varies,
depending on the function affected).
ProCarManuals.com

03 Your driving environmentInstruments and controls
0374
The information symbol may also illuminate
together with other symbols.
High beam indicator
This symbol illuminates when the high beam
headlights are on, or if the high beam flash
function is used.
Left turn signal indicator Right turn signal indicatorNOTE
•
Both turn signal indicators will flash
when the hazard warning flashers are
used.
•
If either of these indicators flash faster
than normal, the direction indicators are
not functioning properly.
Indicator and warning symbolsSymbol
DescriptionLow oil pressureParking brake appliedSRS airbags
Symbol
DescriptionSeat belt reminderGenerator not chargingFault in the brake systemWarning symbol
Low oil pressure
If the light comes on while driving, stop the
vehicle, stop the engine immediately, and
check the engine oil level. If the oil level is nor-
mal and the light stays on after restart, have the
vehicle towed to the nearest trained and quali-
fied Volvo service technician. This is normal,
provided it goes off when the engine speed is
increased.
Parking brake applied
This symbol illuminates when the parking
brake is applied. On models equipped with the
electric parking brake, this symbol flashes
while the brake is being applied and then glows
steadily.
A flashing symbol means that a fault has been
detected. See the message in the information
display.Canadian models are equipped with this sym-
bol:
NOTE
This symbol also comes on when the
mechanical parking brake is only slightly
applied.
Airbags – SRS
If this light comes on while the vehicle is being
driven, or remains on for longer than approxi-
mately 10 seconds after the vehicle has been
started, the SRS system's diagnostic functions
have detected a fault in a seat belt lock or pre-
tensioner, a front airbag, side impact airbag,
and/or an inflatable curtain. Have the system(s)
inspected by a trained and qualified Volvo
service technician as soon as possible.
Seat belt reminder
This symbol comes on for approximately 6 sec-
onds if the driver has not fastened his or her
seat belt.
Generator not charging
This symbol comes on during driving if a fault
has occurred in the electrical system. Contact
an authorized Volvo workshop.
ProCarManuals.com

03 Your driving environment
Instruments and controls
03``75
Engine temperatureEngine overheating can result from low oil or
coolant levels, towing or hard driving at high
heat and altitude, or mechanical malfunction.
Engine overheating will be signaled with text
and a red warning triangle in the middle of the
instrument display. The exact text will depend
on the degree of overheating. It may range from
"HIGH ENGINE TEMP – SLOW DOWN
" to
"
HIGH ENGINE TEMP – STOP ENGINE
." If
appropriate, other messages, such as
"
COOLANT LEVEL LOW
" will also be dis-
played. If your engine does overheat so that
you must stop the engine, always allow the
engine to cool before attempting to check oil
and coolant levels.
Fault in brake system
If this symbol lights, the brake fluid level may
be too low. Stop the vehicle in a safe place and
check the level in the brake fluid reservoir, see
page 219. If the level in the reservoir is below
MIN, the vehicle should be transported to an
authorized Volvo workshop to have the brake
system checked.
Canadian models are equipped with this sym-
bol:If the
and
symbols come on at
the same time, there may be a fault in the brake
force distribution system.1. Stop the vehicle in a safe place and turn off
the engine.
2. Restart the engine.
•
If both symbols extinguish, continue driv-
ing.
•
If the symbols remain on, check the level in
the brake fluid reservoir, see page 219. If
the brake fluid level is normal but the sym-
bols are still lit, the vehicle can be driven,
with great care, to an authorized Volvo
workshop to have the brake system
checked.
•
If the level in the reservoir is below MIN, the
vehicle should be transported to an author-
ized Volvo workshop to have the brake
system checked.WARNING
•
If the fluid level is below the MIN mark
in the reservoir or if a warning message
is displayed in the text window:
DO
NOT DRIVE
. Have the vehicle towed to
a trained and qualified Volvo service
technician and have the brake system
inspected.
•
If the ABS and Brake system lights are
on at the same time, there is a risk of
reduced vehicle stability.
Warning symbol
The red warning symbol comes on when a fault
has been indicated which could affect the
safety and/or drivability of the vehicle. An
explanatory text is shown on the information
display at the same time. The symbol remains
visible until the fault has been rectified but the
text message can be cleared with the READ
button, see page 121. The warning symbol can
also come on in conjunction with other sym-
bols.
Action:
1. Stop in a safe place. Do not drive the vehi-
cle further.
2. Read the information on the information
display. Implement the action in accord-
ance with the message in the display. Clear
the message using READ.Reminder – doors not closedIf one of the doors, the hood or tailgate is not
closed properly, the information or warning
symbol comes on together with an explanatory
text message in the instrument panel. Stop the
vehicle in a safe place as soon as possible and
close the door, hood or tailgate.
If the vehicle is driven at a speed
lower than approximately 5 mph
(7 km/h), the information symbol comes on.
ProCarManuals.com
