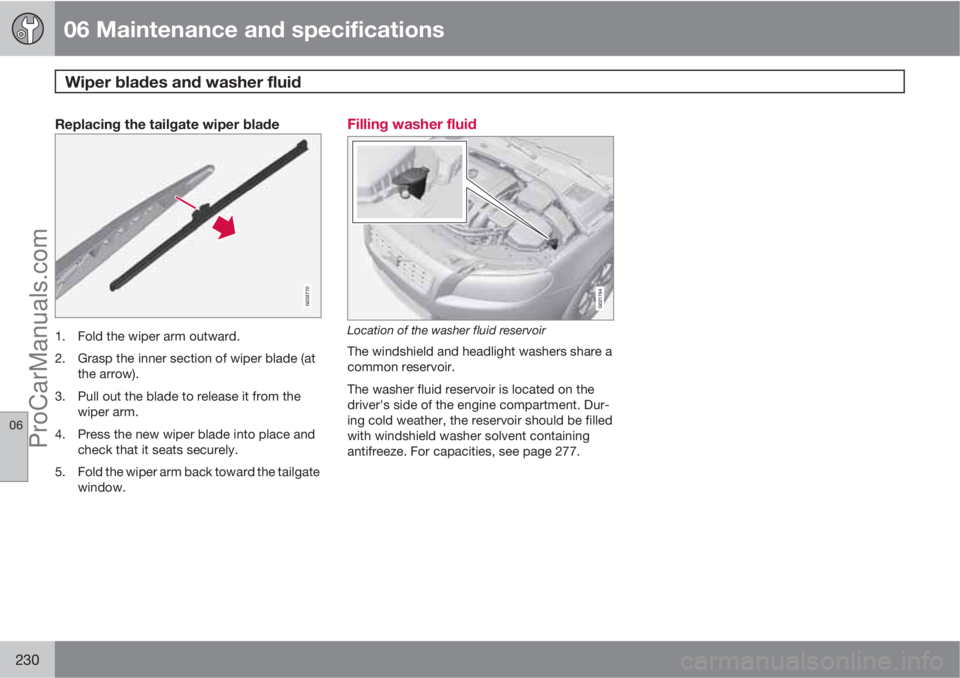

06 Maintenance and specifications
Wiper blades and washer fluid
06
230
Replacing the tailgate wiper blade
G032770
1. Fold the wiper arm outward.
2. Grasp the inner section of wiper blade (at
the arrow).
3. Pull out the blade to release it from the
wiper arm.
4. Press the new wiper blade into place and
check that it seats securely.
5. Fold the wiper arm back toward the tailgate
window.
Filling washer fluid
G021764
Location of the washer fluid reservoir
The windshield and headlight washers share a
common reservoir.
The washer fluid reservoir is located on the
driver's side of the engine compartment. Dur-
ing cold weather, the reservoir should be filled
with windshield washer solvent containing
antifreeze. For capacities, see page 277.
ProCarManuals.com

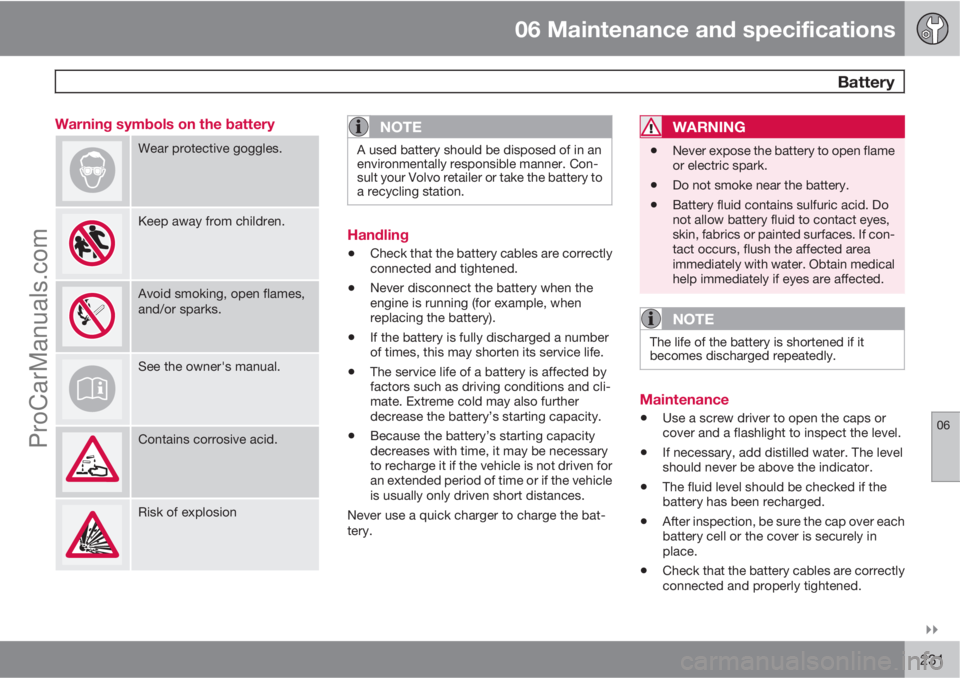

06 Maintenance and specifications
Battery
06

231 Warning symbols on the battery
Wear protective goggles.
Keep away from children.
Avoid smoking, open flames,
and/or sparks.
See the owner's manual.
Contains corrosive acid.
Risk of explosion
NOTE
A used battery should be disposed of in an
environmentally responsible manner. Con-
sult your Volvo retailer or take the battery to
a recycling station.
Handling
•Check that the battery cables are correctly
connected and tightened.
•Never disconnect the battery when the
engine is running (for example, when
replacing the battery).
•If the battery is fully discharged a number
of times, this may shorten its service life.
•The service life of a battery is affected by
factors such as driving conditions and cli-
mate. Extreme cold may also further
decrease the battery’s starting capacity.
•Because the battery’s starting capacity
decreases with time, it may be necessary
to recharge it if the vehicle is not driven for
an extended period of time or if the vehicle
is usually only driven short distances.
Never use a quick charger to charge the bat-
tery.
WARNING
•Never expose the battery to open flame
or electric spark.
•Do not smoke near the battery.
•Battery fluid contains sulfuric acid. Do
not allow battery fluid to contact eyes,
skin, fabrics or painted surfaces. If con-
tact occurs, flush the affected area
immediately with water. Obtain medical
help immediately if eyes are affected.
NOTE
The life of the battery is shortened if it
becomes discharged repeatedly.
Maintenance
•Use a screw driver to open the caps or
cover and a flashlight to inspect the level.
•If necessary, add distilled water. The level
should never be above the indicator.
•The fluid level should be checked if the
battery has been recharged.
•After inspection, be sure the cap over each
battery cell or the cover is securely in
place.
•Check that the battery cables are correctly
connected and properly tightened.
ProCarManuals.com

06 Maintenance and specifications
Wheels and tires
06
260
Inflating tires
The tire sealing system can be used to inflate
the tires. To do so:
1. Park the car in a safe place.
2. The compressor should be switched off.
Ensure that the on/off switch is in position
0 (the 0 side of the switch should be
pressed down).
3. Take out the electrical wire and hose.
4. Remove the valve cap from the tire’s infla-
tion valve and screw the hose connector
onto the valve as tightly as possible by
hand.
5. Connect the electrical wire to the nearest
12-volt socket in the vehicle.
6. Start the vehicle’s engine.
WARNING
•The vehicle’s engine should be running
when the tire sealing system is used to
avoid battery drain. Therefore, be sure
the vehicle is parked in a well ventilated
place, or outdoors, before using the sys-
tem.
•Children should never be left unattended
in the vehicle when the engine is running.
7. Check the tire’s inflation pressure on the
gauge. Switch off the compressor briefly to
get a clear reading from the pressure
gauge.
8. Refer to the tire inflation tables for the cor-
rect inflation pressure. If the tire needs to
be inflated, start the tire sealing system’s
compressor (press the on/off switch to
position I). If necessary, release air from the
tire by turning the air release knob coun-
terclockwise.
CAUTION
The compressor should not be used for
more than 10 minutes at a time to avoid
overheating.
9. Turn off the compressor (press the on/off
switch to position 0) when the correct infla-
tion pressure has been reached.
10. Unscrew the hose from the tire’s inflation
valve and reinstall the valve cap.
11. Disconnect the electrical wire from the
12-volt socket.
Tire Pressure Monitoring System
(TPMS)–U.S models only
NOTE
USA – FCC ID: KR5S122780002
This device complies with part 15 of the
FCC rules. Operation is subject to the fol-
lowing conditions: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
The tire pressure monitoring system uses sen-
sors mounted in the tire valves to check infla-
tion pressure levels. When the vehicle is mov-
ing at a speed of approximately 20 mph
(30 km/h) or faster, these sensors transmit
inflation pressure data to a receiver located in
the vehicle.
When low inflation pressure is detected, TPMS
will light up the tire pressure warning light
(
) (also referred to as a telltale) in the
instrument panel and will display one of the
following messages in the text window:
LOW
TIRE PRESS. CHECK TIRES or VERY LOW
TIRE PRESSURE.
ProCarManuals.com

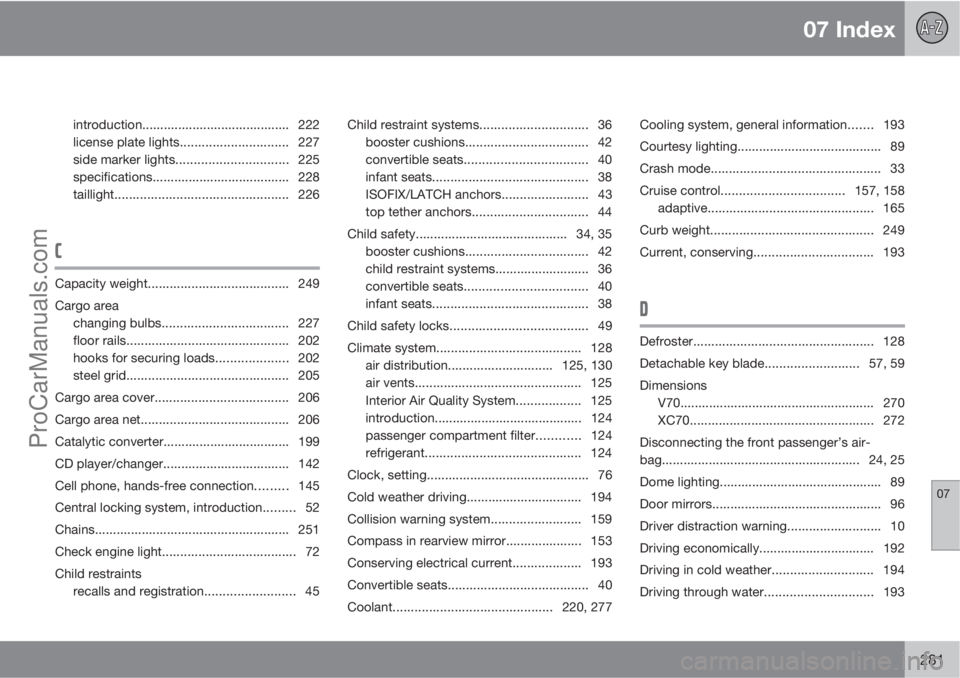

07 Index
07
281
introduction......................................... 222
license plate lights.............................. 227
side marker lights...............................225
specifications...................................... 228
taillight................................................ 226
C
Capacity weight....................................... 249
Cargo area
changing bulbs................................... 227
floor rails............................................. 202
hooks for securing loads.................... 202
steel grid............................................. 205
Cargo area cover..................................... 206
Cargo area net......................................... 206
Catalytic converter................................... 199
CD player/changer................................... 142
Cell phone, hands-free connection......... 145
Central locking system, introduction......... 52
Chains...................................................... 251
Check engine light..................................... 72
Child restraints
recalls and registration......................... 45Child restraint systems.............................. 36
booster cushions.................................. 42
convertible seats.................................. 40
infant seats........................................... 38
ISOFIX/LATCH anchors........................ 43
top tether anchors................................ 44
Child safety.......................................... 34, 35
booster cushions.................................. 42
child restraint systems.......................... 36
convertible seats.................................. 40
infant seats........................................... 38
Child safety locks...................................... 49
Climate system........................................ 128
air distribution............................. 125, 130
air vents.............................................. 125
Interior Air Quality System.................. 125
introduction......................................... 124
passenger compartment filter............ 124
refrigerant........................................... 124
Clock, setting............................................. 76
Cold weather driving................................ 194
Collision warning system......................... 159
Compass in rearview mirror..................... 153
Conserving electrical current................... 193
Convertible seats....................................... 40
Coolant............................................220, 277Cooling system, general information....... 193
Courtesy lighting........................................ 89
Crash mode............................................... 33
Cruise control..................................157, 158
adaptive.............................................. 165
Curb weight............................................. 249
Current, conserving................................. 193
D
Defroster.................................................. 128
Detachable key blade..........................57, 59
Dimensions
V70...................................................... 270
XC70................................................... 272
Disconnecting the front passenger’s air-
bag....................................................... 24, 25
Dome lighting............................................. 89
Door mirrors............................................... 96
Driver distraction warning.......................... 10
Driving economically................................ 192
Driving in cold weather............................ 194
Driving through water..............................193
ProCarManuals.com

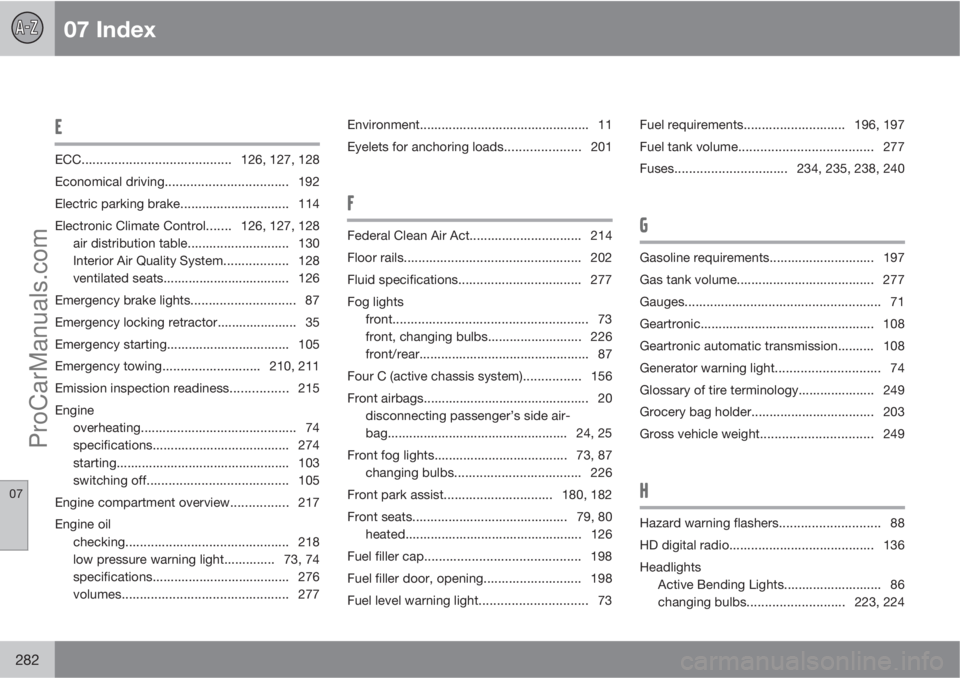

07 Index
07
282
E
ECC.........................................126, 127, 128
Economical driving.................................. 192
Electric parking brake.............................. 114
Electronic Climate Control.......126, 127, 128
air distribution table............................ 130
Interior Air Quality System.................. 128
ventilated seats................................... 126
Emergency brake lights............................. 87
Emergency locking retractor...................... 35
Emergency starting.................................. 105
Emergency towing...........................210, 211
Emission inspection readiness................ 215
Engine
overheating........................................... 74
specifications...................................... 274
starting................................................ 103
switching off....................................... 105
Engine compartment overview................217
Engine oil
checking............................................. 218
low pressure warning light.............. 73, 74
specifications...................................... 276
volumes.............................................. 277Environment............................................... 11
Eyelets for anchoring loads..................... 201
F
Federal Clean Air Act............................... 214
Floor rails................................................. 202
Fluid specifications.................................. 277
Fog lights
front...................................................... 73
front, changing bulbs.......................... 226
front/rear............................................... 87
Four C (active chassis system)................156
Front airbags.............................................. 20
disconnecting passenger’s side air-
bag.................................................. 24, 25
Front fog lights..................................... 73, 87
changing bulbs................................... 226
Front park assist.............................. 180, 182
Front seats...........................................79, 80
heated................................................. 126
Fuel filler cap........................................... 198
Fuel filler door, opening........................... 198
Fuel level warning light.............................. 73Fuel requirements............................ 196, 197
Fuel tank volume.....................................277
Fuses............................... 234, 235, 238, 240G
Gasoline requirements............................. 197
Gas tank volume...................................... 277
Gauges...................................................... 71
Geartronic................................................ 108
Geartronic automatic transmission.......... 108
Generator warning light............................. 74
Glossary of tire terminology..................... 249
Grocery bag holder.................................. 203
Gross vehicle weight...............................249
H
Hazard warning flashers............................ 88
HD digital radio........................................ 136
Headlights
Active Bending Lights........................... 86
changing bulbs...........................223, 224
ProCarManuals.com

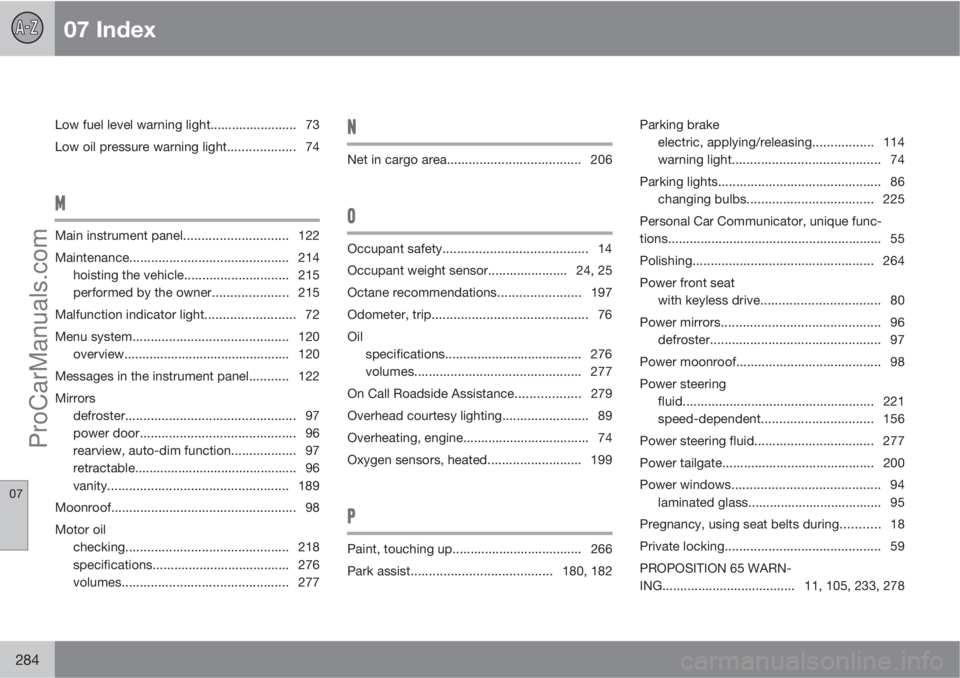

07 Index
07
284
Low fuel level warning light........................ 73
Low oil pressure warning light................... 74
M
Main instrument panel............................. 122
Maintenance............................................ 214
hoisting the vehicle............................. 215
performed by the owner.....................215
Malfunction indicator light......................... 72
Menu system........................................... 120
overview.............................................. 120
Messages in the instrument panel........... 122
Mirrors
defroster............................................... 97
power door........................................... 96
rearview, auto-dim function.................. 97
retractable............................................. 96
vanity.................................................. 189
Moonroof................................................... 98
Motor oil
checking............................................. 218
specifications...................................... 276
volumes.............................................. 277
N
Net in cargo area..................................... 206
O
Occupant safety........................................ 14
Occupant weight sensor...................... 24, 25
Octane recommendations.......................197
Odometer, trip........................................... 76
Oil
specifications...................................... 276
volumes.............................................. 277
On Call Roadside Assistance.................. 279
Overhead courtesy lighting........................ 89
Overheating, engine................................... 74
Oxygen sensors, heated.......................... 199
P
Paint, touching up.................................... 266
Park assist.......................................180, 182Parking brake
electric, applying/releasing................. 114
warning light......................................... 74
Parking lights............................................. 86
changing bulbs................................... 225
Personal Car Communicator, unique func-
tions........................................................... 55
Polishing.................................................. 264
Power front seat
with keyless drive................................. 80
Power mirrors............................................ 96
defroster............................................... 97
Power moonroof........................................ 98
Power steering
fluid..................................................... 221
speed-dependent............................... 156
Power steering fluid................................. 277
Power tailgate.......................................... 200
Power windows......................................... 94
laminated glass..................................... 95
Pregnancy, using seat belts during........... 18
Private locking........................................... 59
PROPOSITION 65 WARN-
ING..................................... 11, 105, 233, 278
ProCarManuals.com
