04 Comfort and driving pleasure
Audio system
04
132* Option/accessory, for more information, see Introduction.
Audio functions
Center console, controls for audio functions
Internal audio sources: AM, FM and CD
External audio source. For connection, see
page 131
Push button and knob controls for making
sound settings
Navigation button
Volume and on/off
Audio volume and automatic volume
control
The audio system compensates for disrupting
noises in the passenger compartment by
increasing the volume according to the speed
of the vehicle. The level of sound compensa-tion can be set at low, medium or high. Select
the level under Audio settings
Auto
volume control.
External audio source audio volumeExternal devices such as an MP3 player can be
connected to the AUX input, see page 131. The
volume of the external sound source AUX may
be different from the volume of the internal
sound sources such as the CD player or the
radio. If the external sound source's volume is
too high, the quality of the sound may be
impaired. To help prevent this, adjust the input
volume of the external audio source:
1. Set the audio system in AUX mode using
MODE and use (4) to navigate to
Volume,
AUX input.
2.
Turn the control (3) or press
/ the nav-
igation button.
Sound settingsPress the control (3) repeatedly to toggle
among the sound settings. Adjustments are
made by turning the control (3).
•Bass – Bass level.
•Treble – Treble level.
•Fader – Balance between the front and
rear speakers.
•Balance – Balance between the right and
left speakers.
•Subwoofer* – Level for the bass speaker.
The subwoofer can be switched off by
turning control (3) counterclockwise to
MIN. The location of the subwoofer is
shown in the illustration.
G019419
•Surround* – Surround settings.
Under
Surround, 3 channel stereo or Dolby
Surround Pro logic II can be activated by
selecting
3-ch or Dpl2 respectively. This ena-
bles the following options:
•Center level2 – Level for the center
speaker.
•Surround level2 – Level for surround
sound.
2Premium Sound
ProCarManuals.com

04 Comfort and driving pleasure
Audio system
04
134* Option/accessory, for more information, see Introduction.

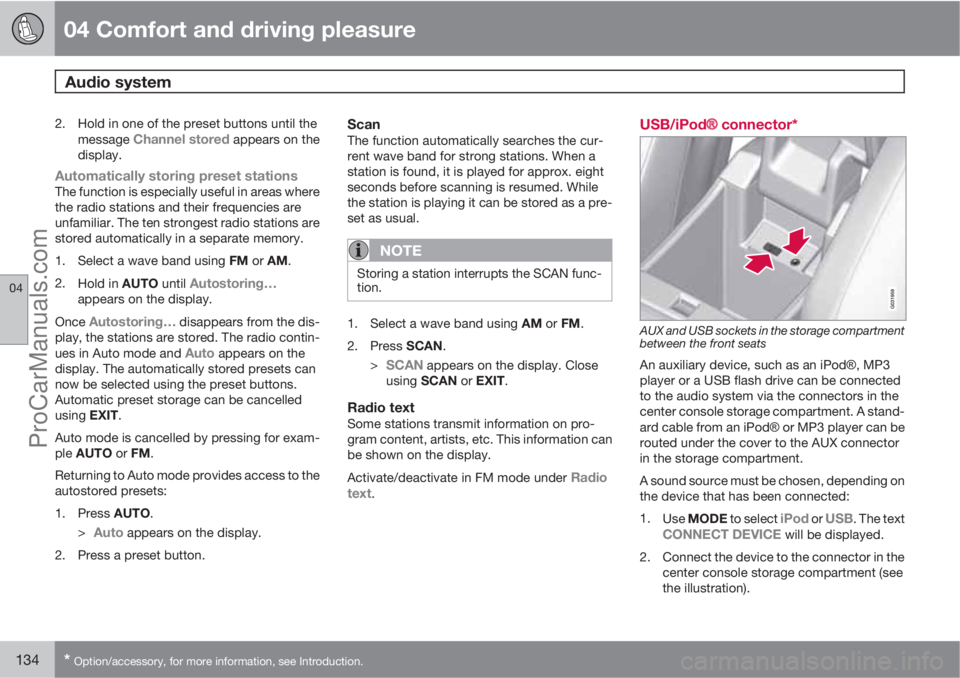

2. Hold in one of the preset buttons until the
message Channel stored appears on the
display.
Automatically storing preset stationsThe function is especially useful in areas where
the radio stations and their frequencies are
unfamiliar. The ten strongest radio stations are
stored automatically in a separate memory.
1.
Select a wave band using FM or AM.
2.
Hold in AUTO until
Autostoring…appears on the display.
Once
Autostoring… disappears from the dis-
play, the stations are stored. The radio contin-
ues in Auto mode and
Auto appears on the
display. The automatically stored presets can
now be selected using the preset buttons.
Automatic preset storage can be cancelled
using EXIT.
Auto mode is cancelled by pressing for exam-
ple AUTO or FM.
Returning to Auto mode provides access to the
autostored presets:
1.
Press AUTO.
>
Auto appears on the display.
2. Press a preset button.
ScanThe function automatically searches the cur-
rent wave band for strong stations. When a
station is found, it is played for approx. eight
seconds before scanning is resumed. While
the station is playing it can be stored as a pre-
set as usual.
NOTE
Storing a station interrupts the SCAN func-
tion.
1.
Select a wave band using AM or FM.
2.
Press SCAN.
>
SCAN appears on the display. Close
using SCAN or EXIT.
Radio textSome stations transmit information on pro-
gram content, artists, etc. This information can
be shown on the display.
Activate/deactivate in FM mode under
Radio
text.
USB/iPodŸ connector*
AUX and USB sockets in the storage compartment
between the front seats
An auxiliary device, such as an iPodŸ, MP3
player or a USB flash drive can be connected
to the audio system via the connectors in the
center console storage compartment. A stand-
ard cable from an iPodŸ or MP3 player can be
routed under the cover to the AUX connector
in the storage compartment.
A sound source must be chosen, depending on
the device that has been connected:
1.
Use MODE to select
iPod or USB. The textCONNECT DEVICE will be displayed.
2. Connect the device to the connector in the
center console storage compartment (see
the illustration).
ProCarManuals.com

04 Comfort and driving pleasure
Audio system
04

* Option/accessory, for more information, see Introduction.135
The text LOADING will be displayed while the
system loads the files (folder structure) on the
device. This may take a short time.
When information about the files (the folder
structure) on the device has been loaded, the
resulting list includes information on the artist,
genre and song title.
To navigate in the folder structure, press
ENTER and scroll up and down the folders
using the arrow buttons (on the audio system
control panel or on the steering wheel keypad).
Press the right arrow button to select a folder.
Press the left arrow button to go up a level in
the folder structure. Press ENTER to go down
a level in the folder structure.
Tracks can be selected in two ways:
•Turn the manual tuning knob clockwise or
counterclockwise
•Use the right or left arrow keys on the nav-
igation control to select the desired track.
The arrow keys on the steering wheel key-
pad can also be used in the same way.
NOTE
The system supports playback of files in the
most common versions of formats such as
mp3, wma, and wav. However, there may be
versions of these formats that the system
does not support.
The system also supports a number of
iPodŸ models produced in 2005 or later.
iPodŸ Shuffle is not supported.
USB flash driveTo simplify the use of a USB flash drive, it is
advisable to only store music files on the drive.
It will take considerably longer for the system
to index the files on the drive if it contains any-
thing other than compatible music files.
NOTE
The system supports removable media that
uses the USB 2.0 standard and the FAT32
file system and can index up to 500 folders
and a maximum of 64,000 files. The device
must have at least 256 Mb of memory.
MP3 playerMany MP3 players have a file indexing system
that is not supported by the vehicle's audio
system. In order to use an MP3 player, the sys-
tem must be set to USB Removable device/
Mass Storage Device.
iPodŸ
An iPodŸ receives current and its battery is
charged through the connecting cord. How-
ever, if the iPod's battery is completely
drained, it should be recharged before the
iPodŸ is connected to the audio system.
NOTE
When an iPodŸ is used as a sound source,
the vehicle's audio system has a menu
structure similar to the one in the iPodŸ. See
the iPod's manual for detailed information.
For further information, refer to the accessory
manual USB/iPodŸ Music Interface.
Rear control panel with headphones
socket*
Headphones with an impedance of
16 – 32 ohm and sensitivity of 102 dB or higher
are recommended for best sound reproduc-
tion.
ProCarManuals.com

04 Comfort and driving pleasure
Audio system
04
142* Option/accessory, for more information, see Introduction.

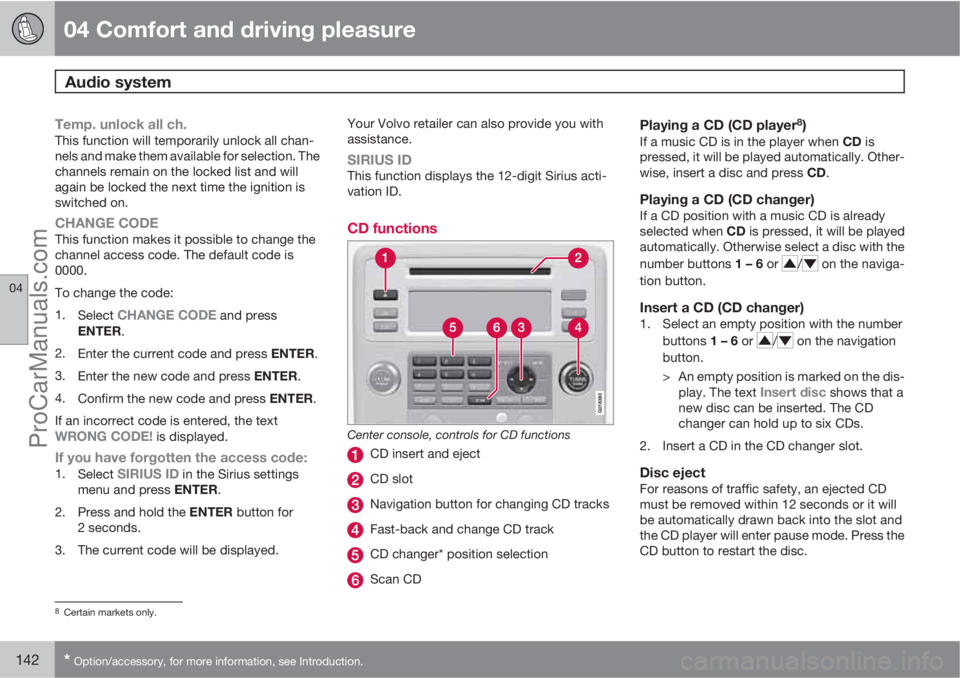

Temp. unlock all ch.This function will temporarily unlock all chan-
nels and make them available for selection. The
channels remain on the locked list and will
again be locked the next time the ignition is
switched on.
CHANGE CODEThis function makes it possible to change the
channel access code. The default code is
0000.
To change the code:
1.
Select
CHANGE CODE and press
ENTER.
2.
Enter the current code and press ENTER.
3.
Enter the new code and press ENTER.
4.
Confirm the new code and press ENTER.
If an incorrect code is entered, the text
WRONG CODE! is displayed.
If you have forgotten the access code:1.
Select SIRIUS ID in the Sirius settings
menu and press ENTER.
2.
Press and hold the ENTER button for
2 seconds.
3. The current code will be displayed.Your Volvo retailer can also provide you with
assistance.
SIRIUS IDThis function displays the 12-digit Sirius acti-
vation ID.
CD functions
Center console, controls for CD functions
CD insert and eject
CD slot
Navigation button for changing CD tracks
Fast-back and change CD track
CD changer* position selection
Scan CD
Playing a CD (CD player8)If a music CD is in the player when CD is
pressed, it will be played automatically. Other-
wise, insert a disc and press CD.
Playing a CD (CD changer)If a CD position with a music CD is already
selected when CD is pressed, it will be played
automatically. Otherwise select a disc with the
number buttons 1 – 6 or
/ on the naviga-
tion button.
Insert a CD (CD changer)1. Select an empty position with the number
buttons 1 – 6 or
/ on the navigation
button.
> An empty position is marked on the dis-
play. The text
Insert disc shows that a
new disc can be inserted. The CD
changer can hold up to six CDs.
2. Insert a CD in the CD changer slot.
Disc ejectFor reasons of traffic safety, an ejected CD
must be removed within 12 seconds or it will
be automatically drawn back into the slot and
the CD player will enter pause mode. Press the
CD button to restart the disc.
8Certain markets only.
ProCarManuals.com

04 Comfort and driving pleasure
Audio system
04

143

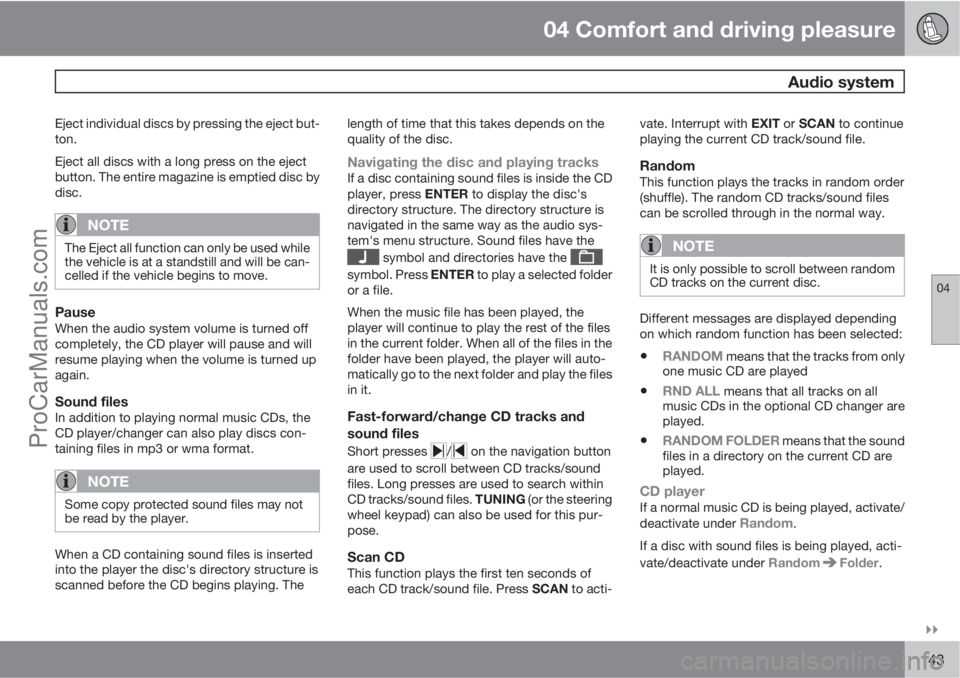

Eject individual discs by pressing the eject but-
ton.
Eject all discs with a long press on the eject
button. The entire magazine is emptied disc by
disc.
NOTE
The Eject all function can only be used while
the vehicle is at a standstill and will be can-
celled if the vehicle begins to move.
PauseWhen the audio system volume is turned off
completely, the CD player will pause and will
resume playing when the volume is turned up
again.
Sound filesIn addition to playing normal music CDs, the
CD player/changer can also play discs con-
taining files in mp3 or wma format.
NOTE
Some copy protected sound files may not
be read by the player.
When a CD containing sound files is inserted
into the player the disc's directory structure is
scanned before the CD begins playing. Thelength of time that this takes depends on the
quality of the disc.
Navigating the disc and playing tracksIf a disc containing sound files is inside the CD
player, press ENTER to display the disc's
directory structure. The directory structure is
navigated in the same way as the audio sys-
tem's menu structure. Sound files have the
symbol and directories have the
symbol. Press ENTER to play a selected folder
or a file.
When the music file has been played, the
player will continue to play the rest of the files
in the current folder. When all of the files in the
folder have been played, the player will auto-
matically go to the next folder and play the files
in it.
Fast-forward/change CD tracks and
sound files
Short presses / on the navigation button
are used to scroll between CD tracks/sound
files. Long presses are used to search within
CD tracks/sound files. TUNING (or the steering
wheel keypad) can also be used for this pur-
pose.
Scan CDThis function plays the first ten seconds of
each CD track/sound file. Press SCAN to acti-vate. Interrupt with EXIT or SCAN to continue
playing the current CD track/sound file.
RandomThis function plays the tracks in random order
(shuffle). The random CD tracks/sound files
can be scrolled through in the normal way.
NOTE
It is only possible to scroll between random
CD tracks on the current disc.
Different messages are displayed depending
on which random function has been selected:
•RANDOM means that the tracks from only
one music CD are played
•RND ALL means that all tracks on all
music CDs in the optional CD changer are
played.
•RANDOM FOLDER means that the sound
files in a directory on the current CD are
played.
CD playerIf a normal music CD is being played, activate/
deactivate under Random.
If a disc with sound files is being played, acti-
vate/deactivate under Random
Folder.
ProCarManuals.com

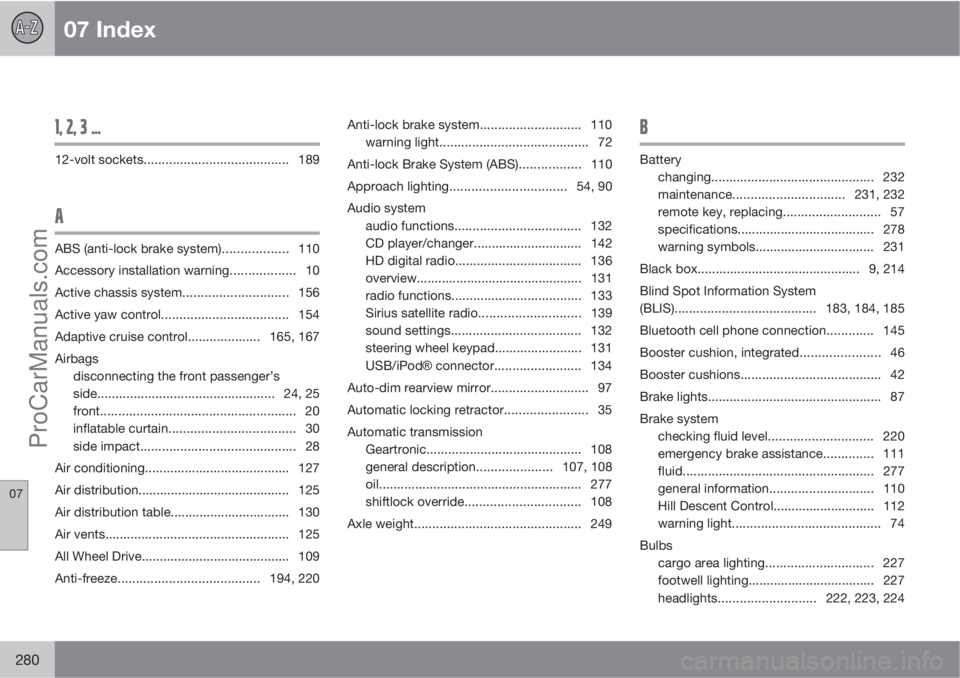

07 Index
07
280
1, 2, 3 ...
12-volt sockets........................................ 189
A
ABS (anti-lock brake system).................. 110
Accessory installation warning.................. 10
Active chassis system.............................156
Active yaw control................................... 154
Adaptive cruise control.................... 165, 167
Airbags
disconnecting the front passenger’s
side.................................................24, 25
front...................................................... 20
inflatable curtain................................... 30
side impact........................................... 28
Air conditioning........................................ 127
Air distribution.......................................... 125
Air distribution table................................. 130
Air vents................................................... 125
All Wheel Drive......................................... 109
Anti-freeze.......................................194, 220Anti-lock brake system............................ 110
warning light......................................... 72
Anti-lock Brake System (ABS)................. 110
Approach lighting................................54, 90
Audio system
audio functions................................... 132
CD player/changer.............................. 142
HD digital radio................................... 136
overview.............................................. 131
radio functions.................................... 133
Sirius satellite radio............................139
sound settings.................................... 132
steering wheel keypad........................ 131
USB/iPodŸ connector........................ 134
Auto-dim rearview mirror........................... 97
Automatic locking retractor....................... 35
Automatic transmission
Geartronic........................................... 108
general description.....................107, 108
oil........................................................ 277
shiftlock override................................ 108
Axle weight.............................................. 249
B
Battery
changing............................................. 232
maintenance...............................231, 232
remote key, replacing........................... 57
specifications...................................... 278
warning symbols................................. 231
Black box.............................................9, 214
Blind Spot Information System
(BLIS)....................................... 183, 184, 185
Bluetooth cell phone connection............. 145
Booster cushion, integrated...................... 46
Booster cushions....................................... 42
Brake lights................................................ 87
Brake system
checking fluid level............................. 220
emergency brake assistance.............. 111
fluid..................................................... 277
general information............................. 110
Hill Descent Control............................ 112
warning light......................................... 74
Bulbs
cargo area lighting.............................. 227
footwell lighting................................... 227
headlights...........................222, 223, 224
ProCarManuals.com

07 Index
07
281
introduction......................................... 222
license plate lights.............................. 227
side marker lights...............................225
specifications...................................... 228
taillight................................................ 226
C
Capacity weight....................................... 249
Cargo area
changing bulbs................................... 227
floor rails............................................. 202
hooks for securing loads.................... 202
steel grid............................................. 205
Cargo area cover..................................... 206
Cargo area net......................................... 206
Catalytic converter................................... 199
CD player/changer................................... 142
Cell phone, hands-free connection......... 145
Central locking system, introduction......... 52
Chains...................................................... 251
Check engine light..................................... 72
Child restraints
recalls and registration......................... 45Child restraint systems.............................. 36
booster cushions.................................. 42
convertible seats.................................. 40
infant seats........................................... 38
ISOFIX/LATCH anchors........................ 43
top tether anchors................................ 44
Child safety.......................................... 34, 35
booster cushions.................................. 42
child restraint systems.......................... 36
convertible seats.................................. 40
infant seats........................................... 38
Child safety locks...................................... 49
Climate system........................................ 128
air distribution............................. 125, 130
air vents.............................................. 125
Interior Air Quality System.................. 125
introduction......................................... 124
passenger compartment filter............ 124
refrigerant........................................... 124
Clock, setting............................................. 76
Cold weather driving................................ 194
Collision warning system......................... 159
Compass in rearview mirror..................... 153
Conserving electrical current................... 193
Convertible seats....................................... 40
Coolant............................................220, 277Cooling system, general information....... 193
Courtesy lighting........................................ 89
Crash mode............................................... 33
Cruise control..................................157, 158
adaptive.............................................. 165
Curb weight............................................. 249
Current, conserving................................. 193
D
Defroster.................................................. 128
Detachable key blade..........................57, 59
Dimensions
V70...................................................... 270
XC70................................................... 272
Disconnecting the front passenger’s air-
bag....................................................... 24, 25
Dome lighting............................................. 89
Door mirrors............................................... 96
Driver distraction warning.......................... 10
Driving economically................................ 192
Driving in cold weather............................ 194
Driving through water..............................193
ProCarManuals.com
