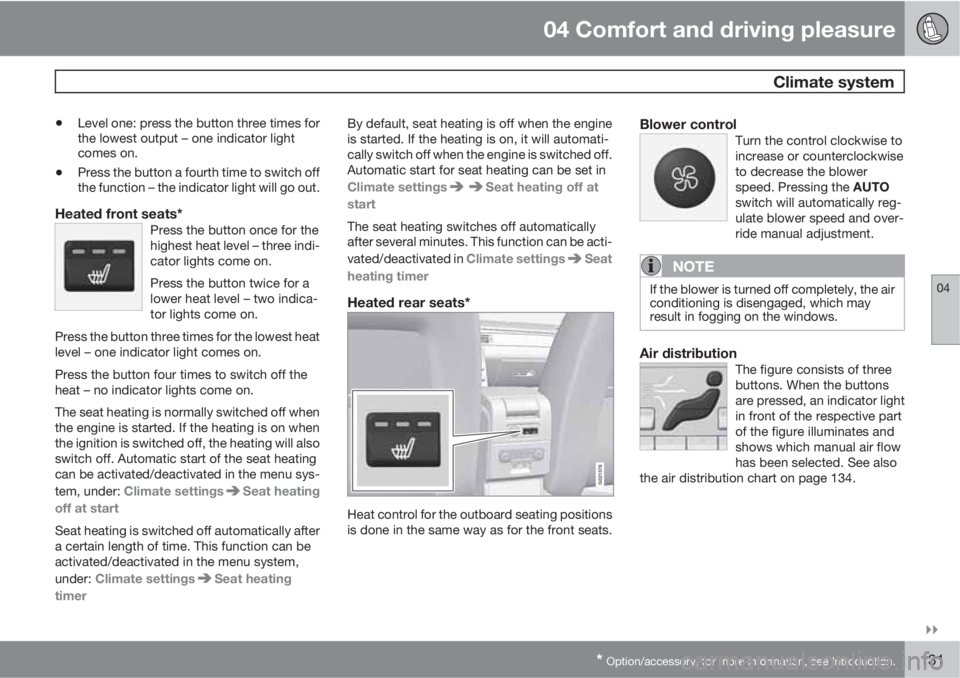

04 Comfort and driving pleasure
Climate system
04

* Option/accessory, for more information, see Introduction.131
•Level one: press the button three times for
the lowest output – one indicator light
comes on.
•Press the button a fourth time to switch off
the function – the indicator light will go out.
Heated front seats*Press the button once for the
highest heat level – three indi-
cator lights come on.
Press the button twice for a
lower heat level – two indica-
tor lights come on.
Press the button three times for the lowest heat
level – one indicator light comes on.
Press the button four times to switch off the
heat – no indicator lights come on.
The seat heating is normally switched off when
the engine is started. If the heating is on when
the ignition is switched off, the heating will also
switch off. Automatic start of the seat heating
can be activated/deactivated in the menu sys-
tem, under: Climate settings
Seat heating
off at start
Seat heating is switched off automatically after
a certain length of time. This function can be
activated/deactivated in the menu system,
under: Climate settings
Seat heating
timer
By default, seat heating is off when the engine
is started. If the heating is on, it will automati-
cally switch off when the engine is switched off.
Automatic start for seat heating can be set in
Climate settings
Seat heating off at
start
The seat heating switches off automatically
after several minutes. This function can be acti-
vated/deactivated in Climate settings
Seat
heating timer
Heated rear seats*
G021376
Heat control for the outboard seating positions
is done in the same way as for the front seats.
Blower controlTurn the control clockwise to
increase or counterclockwise
to decrease the blower
speed. Pressing the AUTO
switch will automatically reg-
ulate blower speed and over-
ride manual adjustment.
NOTE
If the blower is turned off completely, the air
conditioning is disengaged, which may
result in fogging on the windows.
Air distributionThe figure consists of three
buttons. When the buttons
are pressed, an indicator light
in front of the respective part
of the figure illuminates and
shows which manual air flow
has been selected. See also
the air distribution chart on page 134.

04 Comfort and driving pleasure
Climate system
04
132
AutoThe function automatically
regulates cooling, heating,
blower speed, recirculation,
and air distribution to main-
tain the chosen temperature.
If you select one or more man-
ual functions, the other func-
tions continue to be controlled automatically.
The air quality sensor is engaged and all man-
ual settings are switched off when AUTO is
pressed. The display shows
AUTO
CLIMATE.
Blower speed in automatic mode can be set
under Climate settings
Automatic fan
adjust. Choose between
Low, Normal orHigh.
NOTE
Selecting the lowest blower speed may
increases the risk of fog forming on the win-
dows.
Temperature controlThe temperatures on the
driver and passenger sides
can be set independently.
When the vehicle is started,
the most recent setting is
resumed.
NOTE
Heating or cooling cannot be speeded up by
selecting a higher/lower temperature than
the actual temperature required.
A/C – ON/OFFThe air conditioning is con-
trolled automatically by the
system when the ON light is
on. This cools/heats and
dehumidifies the incoming air.
When the OFF light is on, the
air conditioning is always dis-
engaged. Other functions are still controlled
automatically. When defroster is selected, the
air conditioning system is set for maximum
blower speed and dehumidification.
DefrosterThis function defrosts/de-ices
the windshield and front side
windows. The indicator light
in the defroster button lights
when the function is active.
•Blower speed increases automatically and
the air conditioning will switch on (if not
already on and if the passenger compart-
ment blower is not turned off) to dehumid-
ify the air in the passenger compartment.
Air conditioning can be switched off by
pressing the AC button.
•Recirculation will not function while defrost
is engaged.
The climate system will return to its previous
settings when the defroster function is
switched off.

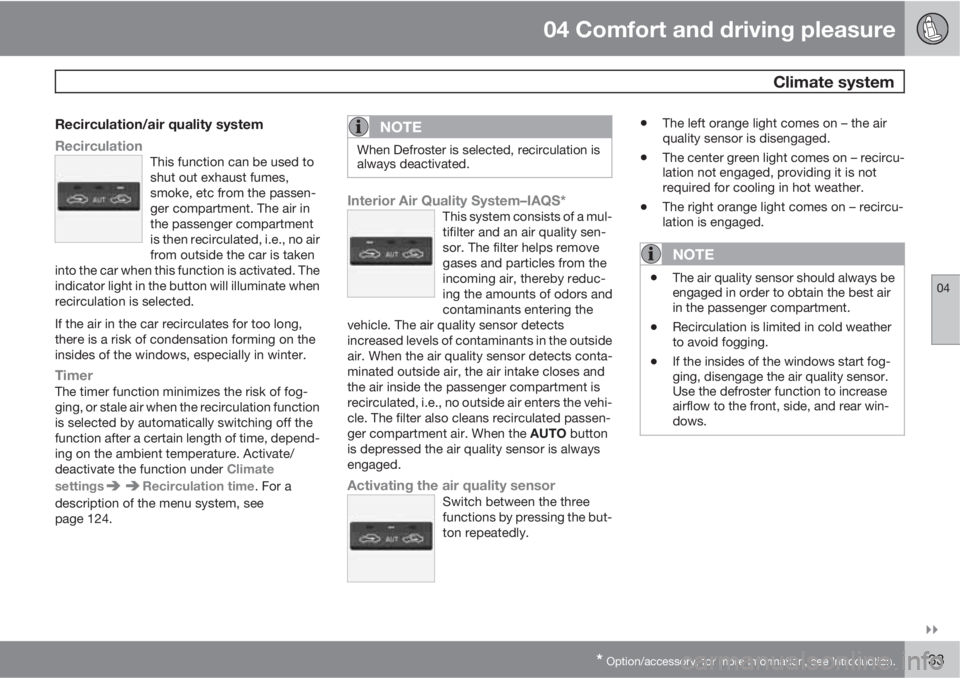

04 Comfort and driving pleasure
Climate system
04

* Option/accessory, for more information, see Introduction.133
Recirculation/air quality system
Recirculation
This function can be used to
shut out exhaust fumes,
smoke, etc from the passen-
ger compartment. The air in
the passenger compartment
is then recirculated, i.e., no air
from outside the car is taken
into the car when this function is activated. The
indicator light in the button will illuminate when
recirculation is selected.
If the air in the car recirculates for too long,
there is a risk of condensation forming on the
insides of the windows, especially in winter.
TimerThe timer function minimizes the risk of fog-
ging, or stale air when the recirculation function
is selected by automatically switching off the
function after a certain length of time, depend-
ing on the ambient temperature. Activate/
deactivate the function under Climate
settings
Recirculation time. For a
description of the menu system, see
page 124.
NOTE
When Defroster is selected, recirculation is
always deactivated.
Interior Air Quality System–IAQS*This system consists of a mul-
tifilter and an air quality sen-
sor. The filter helps remove
gases and particles from the
incoming air, thereby reduc-
ing the amounts of odors and
contaminants entering the
vehicle. The air quality sensor detects
increased levels of contaminants in the outside
air. When the air quality sensor detects conta-
minated outside air, the air intake closes and
the air inside the passenger compartment is
recirculated, i.e., no outside air enters the vehi-
cle. The filter also cleans recirculated passen-
ger compartment air. When the AUTO button
is depressed the air quality sensor is always
engaged.
Activating the air quality sensorSwitch between the three
functions by pressing the but-
ton repeatedly.
•The left orange light comes on – the air
quality sensor is disengaged.
•The center green light comes on – recircu-
lation not engaged, providing it is not
required for cooling in hot weather.
•The right orange light comes on – recircu-
lation is engaged.
NOTE
•The air quality sensor should always be
engaged in order to obtain the best air
in the passenger compartment.
•Recirculation is limited in cold weather
to avoid fogging.
•If the insides of the windows start fog-
ging, disengage the air quality sensor.
Use the defroster function to increase
airflow to the front, side, and rear win-
dows.

04 Comfort and driving pleasure
Climate system
04
134

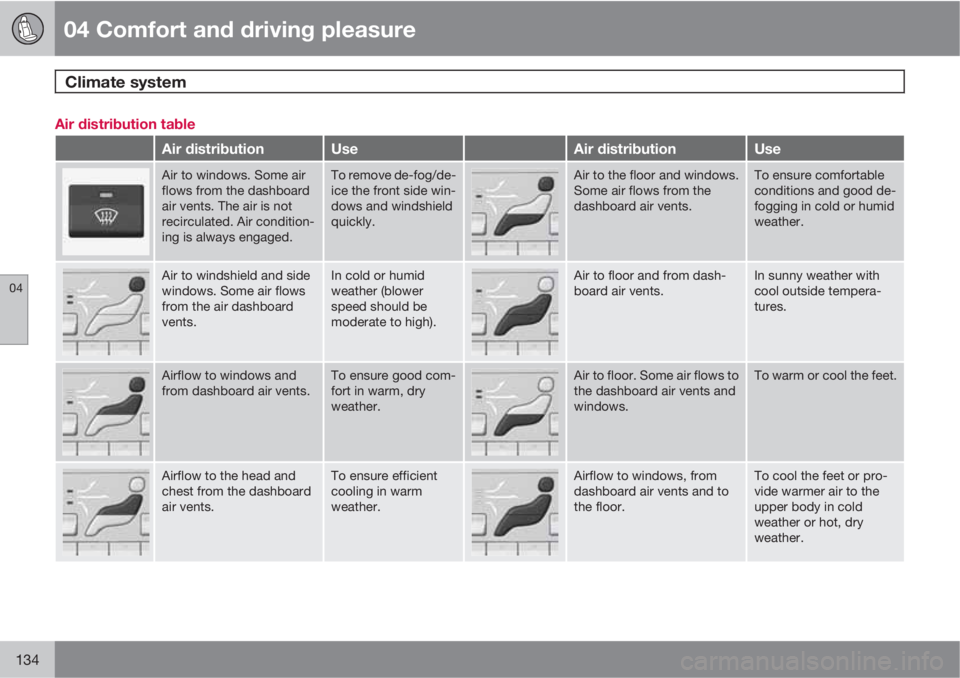

Air distribution table
Air distributionUseAir distributionUse
Air to windows. Some air
flows from the dashboard
air vents. The air is not
recirculated. Air condition-
ing is always engaged.To remove de-fog/de-
ice the front side win-
dows and windshield
quickly.Air to the floor and windows.
Some air flows from the
dashboard air vents.To ensure comfortable
conditions and good de-
fogging in cold or humid
weather.
Air to windshield and side
windows. Some air flows
from the air dashboard
vents.In cold or humid
weather (blower
speed should be
moderate to high).Air to floor and from dash-
board air vents.In sunny weather with
cool outside tempera-
tures.
Airflow to windows and
from dashboard air vents.To ensure good com-
fort in warm, dry
weather.Air to floor. Some air flows to
the dashboard air vents and
windows.To warm or cool the feet.
Airflow to the head and
chest from the dashboard
air vents.To ensure efficient
cooling in warm
weather.Airflow to windows, from
dashboard air vents and to
the floor.To cool the feet or pro-
vide warmer air to the
upper body in cold
weather or hot, dry
weather.

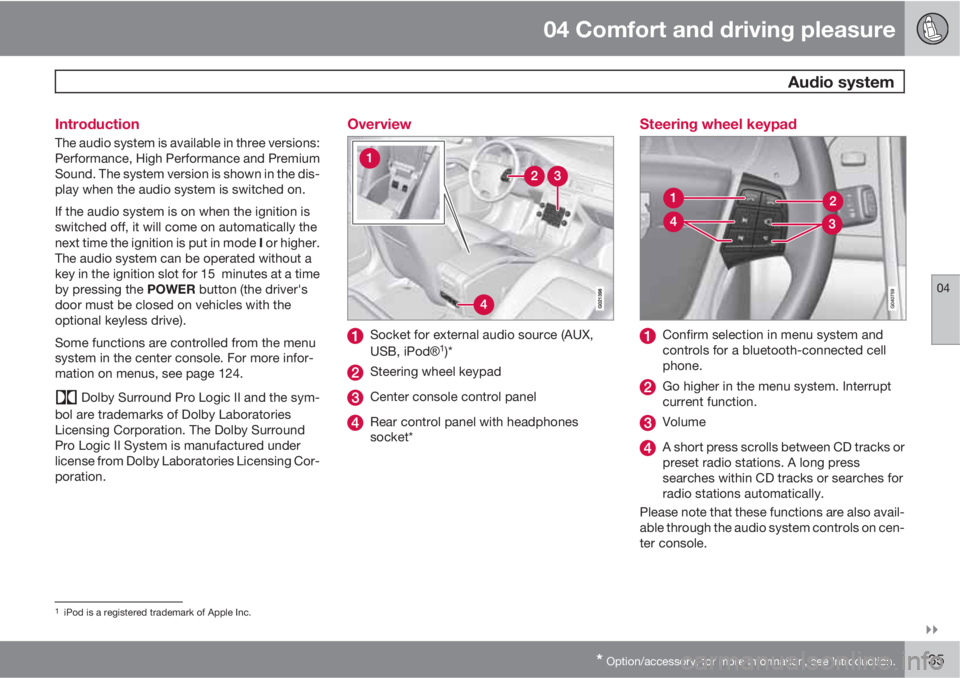

04 Comfort and driving pleasure
Audio system
04

* Option/accessory, for more information, see Introduction.135 Introduction
The audio system is available in three versions:
Performance, High Performance and Premium
Sound. The system version is shown in the dis-
play when the audio system is switched on.
If the audio system is on when the ignition is
switched off, it will come on automatically the
next time the ignition is put in mode I or higher.
The audio system can be operated without a
key in the ignition slot for 15 minutes at a time
by pressing the POWER button (the driver's
door must be closed on vehicles with the
optional keyless drive).
Some functions are controlled from the menu
system in the center console. For more infor-
mation on menus, see page 124.
Dolby Surround Pro Logic II and the sym-
bol are trademarks of Dolby Laboratories
Licensing Corporation. The Dolby Surround
Pro Logic II System is manufactured under
license from Dolby Laboratories Licensing Cor-
poration.
Overview
Socket for external audio source (AUX,
USB, iPodŸ1)*
Steering wheel keypad
Center console control panel
Rear control panel with headphones
socket*
Steering wheel keypad
Confirm selection in menu system and
controls for a bluetooth-connected cell
phone.
Go higher in the menu system. Interrupt
current function.
Volume
A short press scrolls between CD tracks or
preset radio stations. A long press
searches within CD tracks or searches for
radio stations automatically.
Please note that these functions are also avail-
able through the audio system controls on cen-
ter console.
1iPod is a registered trademark of Apple Inc.

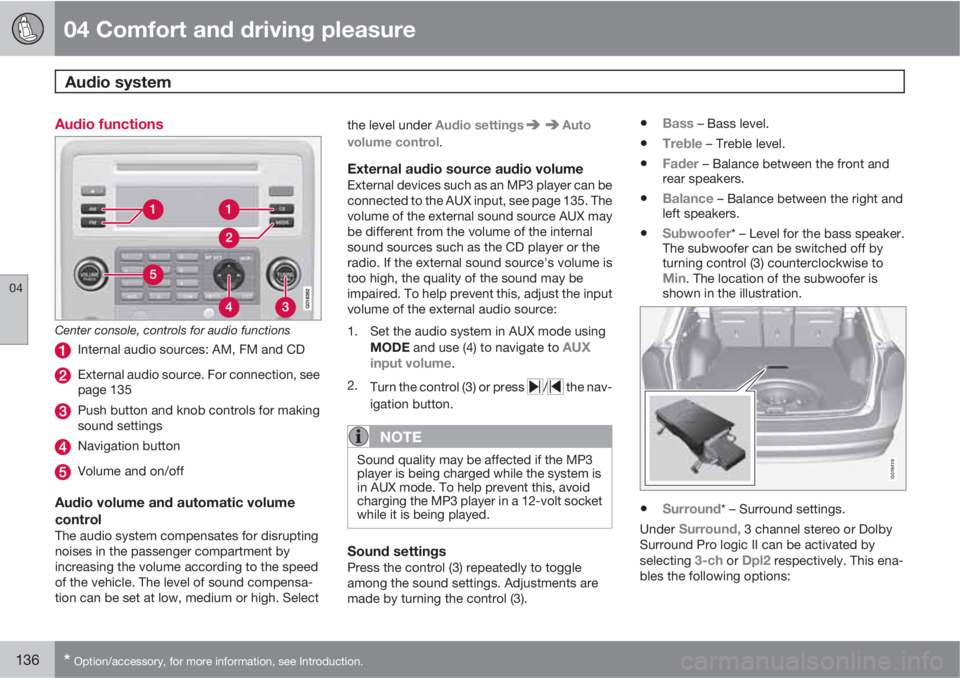

04 Comfort and driving pleasure
Audio system
04
136* Option/accessory, for more information, see Introduction.
Audio functions
Center console, controls for audio functions
Internal audio sources: AM, FM and CD
External audio source. For connection, see
page 135
Push button and knob controls for making
sound settings
Navigation button
Volume and on/off
Audio volume and automatic volume
control
The audio system compensates for disrupting
noises in the passenger compartment by
increasing the volume according to the speed
of the vehicle. The level of sound compensa-
tion can be set at low, medium or high. Selectthe level under Audio settings
Auto
volume control.
External audio source audio volumeExternal devices such as an MP3 player can be
connected to the AUX input, see page 135. The
volume of the external sound source AUX may
be different from the volume of the internal
sound sources such as the CD player or the
radio. If the external sound source's volume is
too high, the quality of the sound may be
impaired. To help prevent this, adjust the input
volume of the external audio source:
1. Set the audio system in AUX mode using
MODE and use (4) to navigate to
AUX
input volume.
2.
Turn the control (3) or press
/ the nav-
igation button.
NOTE
Sound quality may be affected if the MP3
player is being charged while the system is
in AUX mode. To help prevent this, avoid
charging the MP3 player in a 12-volt socket
while it is being played.
Sound settingsPress the control (3) repeatedly to toggle
among the sound settings. Adjustments are
made by turning the control (3).
•Bass – Bass level.
•Treble – Treble level.
•Fader – Balance between the front and
rear speakers.
•Balance – Balance between the right and
left speakers.
•Subwoofer* – Level for the bass speaker.
The subwoofer can be switched off by
turning control (3) counterclockwise to
Min. The location of the subwoofer is
shown in the illustration.
G019419
•Surround* – Surround settings.
Under
Surround, 3 channel stereo or Dolby
Surround Pro logic II can be activated by
selecting
3-ch or Dpl2 respectively. This ena-
bles the following options:

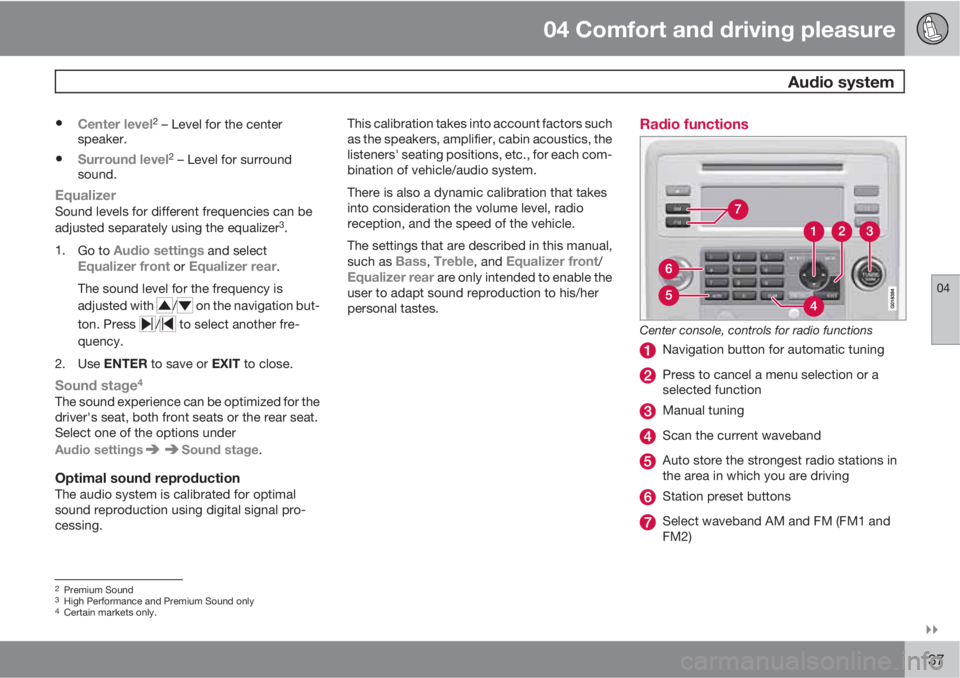

04 Comfort and driving pleasure
Audio system
04

137
•Center level2 – Level for the center
speaker.
•Surround level2 – Level for surround
sound.
EqualizerSound levels for different frequencies can be
adjusted separately using the equalizer3.
1.
Go to
Audio settings and selectEqualizer front or Equalizer rear.
The sound level for the frequency is
adjusted with
/ on the navigation but-
ton. Press
/ to select another fre-
quency.
2.
Use ENTER to save or EXIT to close.
Sound stage4
The sound experience can be optimized for the
driver's seat, both front seats or the rear seat.
Select one of the options under
Audio settings
Sound stage.
Optimal sound reproductionThe audio system is calibrated for optimal
sound reproduction using digital signal pro-
cessing.This calibration takes into account factors such
as the speakers, amplifier, cabin acoustics, the
listeners' seating positions, etc., for each com-
bination of vehicle/audio system.
There is also a dynamic calibration that takes
into consideration the volume level, radio
reception, and the speed of the vehicle.
The settings that are described in this manual,
such as
Bass, Treble, and Equalizer front/Equalizer rear are only intended to enable the
user to adapt sound reproduction to his/her
personal tastes.
Radio functions
Center console, controls for radio functions
Navigation button for automatic tuning
Press to cancel a menu selection or a
selected function
Manual tuning
Scan the current waveband
Auto store the strongest radio stations in
the area in which you are driving
Station preset buttons
Select waveband AM and FM (FM1 and
FM2)
2Premium Sound3High Performance and Premium Sound only4Certain markets only.

04 Comfort and driving pleasure
Audio system
04
138
Automatic tuning1.
Select a waveband using FM or AM.
2.
Press
/ on the navigation button.
Manual tuning1.
Select a waveband using FM or AM.
2.
Turn TUNING to select a station.
Preset stationsTen station presets can be stored for each
waveband. FM has two memories for presets:
FM1 and FM2. The stored presets are selected
using the preset buttons.
Preset storage can be carried out manually or
automatically.
Manually storing preset stations1. Tune into a station.
2. Hold in one of the preset buttons until the
message
Channel stored appears on the
display.
Automatically storing preset stationsThe function is especially useful in areas where
the radio stations and their frequencies are
unfamiliar. The ten strongest radio stations are
stored automatically in a separate memory.
1.
Select a waveband using FM or AM.2.
Hold in AUTO until
Autostoring appears
on the display.
Once
Autostoring disappears from the dis-
play, the stations are stored. The radio contin-
ues in Auto mode and
Auto appears on the
display. The automatically stored presets can
now be selected using the preset buttons.
Automatic preset storage can be cancelled
using EXIT.
Auto mode is cancelled by pressing for exam-
ple AUTO or FM.
Returning to Auto mode provides access to the
autostored presets:
1.
Press AUTO.
>
Auto appears on the display.
2. Press a preset button.
ScanThe function automatically searches the cur-
rent waveband for strong stations. When a sta-
tion is found, it is played for approx. eight sec-
onds before scanning is resumed. While the
station is playing it can be stored as a preset
as usual.
NOTE
Storing a station interrupts the SCAN func-
tion.
1.
Select a waveband using AM or FM.
2.
Press SCAN.
>
SCAN appears on the display. Close
using SCAN or EXIT.
Radio textSome stations transmit information on pro-
gram content, artists, etc. This information can
be shown on the display.
Activate/deactivate in FM mode under
Radio
text.

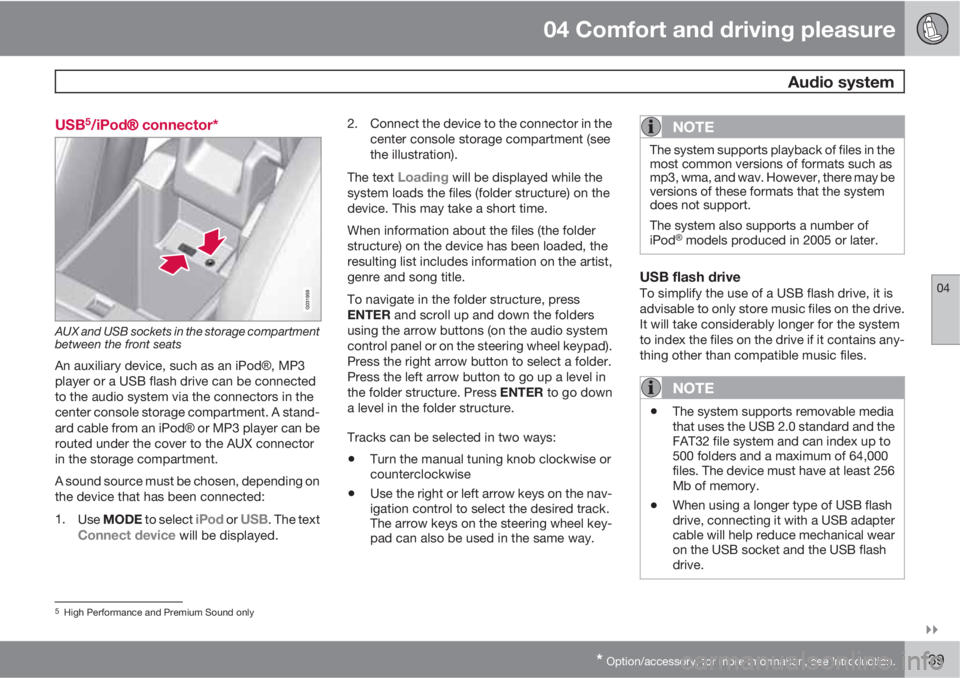

04 Comfort and driving pleasure
Audio system
04

* Option/accessory, for more information, see Introduction.139 USB
5/iPodŸŸ connector*
AUX and USB sockets in the storage compartment
between the front seats
An auxiliary device, such as an iPodŸ, MP3
player or a USB flash drive can be connected
to the audio system via the connectors in the
center console storage compartment. A stand-
ard cable from an iPodŸ or MP3 player can be
routed under the cover to the AUX connector
in the storage compartment.
A sound source must be chosen, depending on
the device that has been connected:
1.
Use MODE to select
iPod or USB. The textConnect device will be displayed.2. Connect the device to the connector in the
center console storage compartment (see
the illustration).
The text
Loading will be displayed while the
system loads the files (folder structure) on the
device. This may take a short time.
When information about the files (the folder
structure) on the device has been loaded, the
resulting list includes information on the artist,
genre and song title.
To navigate in the folder structure, press
ENTER and scroll up and down the folders
using the arrow buttons (on the audio system
control panel or on the steering wheel keypad).
Press the right arrow button to select a folder.
Press the left arrow button to go up a level in
the folder structure. Press ENTER to go down
a level in the folder structure.
Tracks can be selected in two ways:
•Turn the manual tuning knob clockwise or
counterclockwise
•Use the right or left arrow keys on the nav-
igation control to select the desired track.
The arrow keys on the steering wheel key-
pad can also be used in the same way.
NOTE
The system supports playback of files in the
most common versions of formats such as
mp3, wma, and wav. However, there may be
versions of these formats that the system
does not support.
The system also supports a number of
iPod
Ÿ models produced in 2005 or later.
USB flash driveTo simplify the use of a USB flash drive, it is
advisable to only store music files on the drive.
It will take considerably longer for the system
to index the files on the drive if it contains any-
thing other than compatible music files.
NOTE
•The system supports removable media
that uses the USB 2.0 standard and the
FAT32 file system and can index up to
500 folders and a maximum of 64,000
files. The device must have at least 256
Mb of memory.
•When using a longer type of USB flash
drive, connecting it with a USB adapter
cable will help reduce mechanical wear
on the USB socket and the USB flash
drive.
5High Performance and Premium Sound only

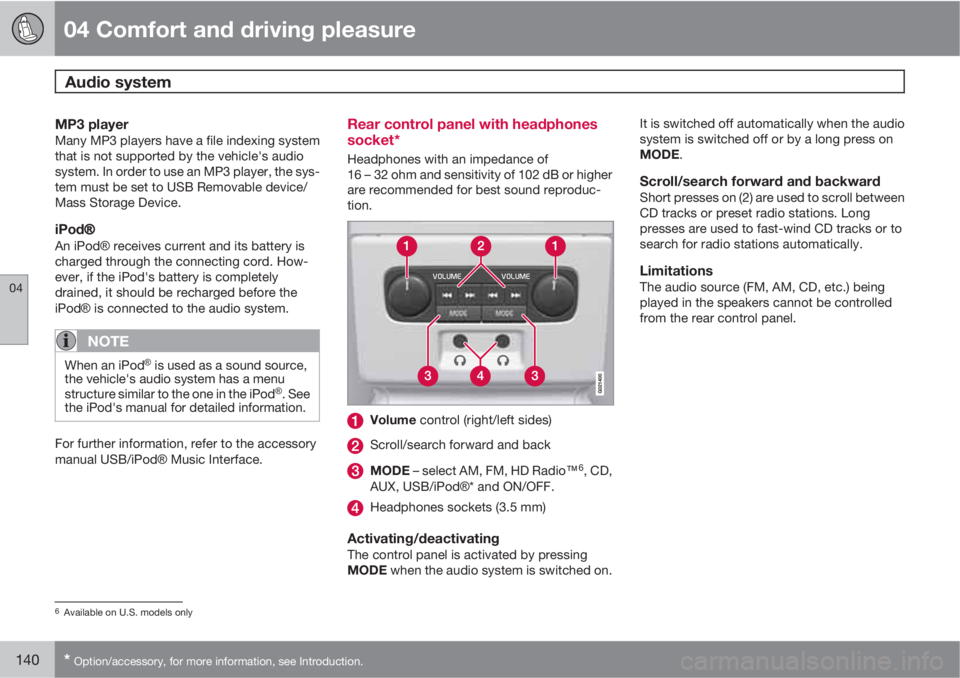

04 Comfort and driving pleasure
Audio system
04
140* Option/accessory, for more information, see Introduction.
MP3 playerMany MP3 players have a file indexing system
that is not supported by the vehicle's audio
system. In order to use an MP3 player, the sys-
tem must be set to USB Removable device/
Mass Storage Device.
iPodŸŸ
An iPodŸ receives current and its battery is
charged through the connecting cord. How-
ever, if the iPod's battery is completely
drained, it should be recharged before the
iPodŸ is connected to the audio system.
NOTE
When an iPodŸ is used as a sound source,
the vehicle's audio system has a menu
structure similar to the one in the iPod
Ÿ. See
the iPod's manual for detailed information.
For further information, refer to the accessory
manual USB/iPodŸ Music Interface.
Rear control panel with headphones
socket*
Headphones with an impedance of
16 – 32 ohm and sensitivity of 102 dB or higher
are recommended for best sound reproduc-
tion.
Volume control (right/left sides)
Scroll/search forward and back
MODE – select AM, FM, HD Radio
E6, CD,
AUX, USB/iPodŸ* and ON/OFF.
Headphones sockets (3.5 mm)
Activating/deactivatingThe control panel is activated by pressing
MODE when the audio system is switched on.It is switched off automatically when the audio
system is switched off or by a long press on
MODE.
Scroll/search forward and backwardShort presses on (2) are used to scroll between
CD tracks or preset radio stations. Long
presses are used to fast-wind CD tracks or to
search for radio stations automatically.
LimitationsThe audio source (FM, AM, CD, etc.) being
played in the speakers cannot be controlled
from the rear control panel.
6Available on U.S. models only
