VOLVO XC70 2012 Owner´s Manual

04 Comfort and driving pleasure
Driver Alert System*
04

* Option/accessory, for more information, see Introduction.181 Symbols and messages in the display
SymbolMessageDescription
-Driver Alert OFFThe function is not switched on.
-Driver Alert Standby <40
mph (Driver Alert Standby
<65 km/h)
The function has gone into standby mode because the vehicle's speed is below 40 mph (65 km/h).
-Driver Alert UnavailableThe road lacks clear marker lines.
Driver AlertThe function is analyzing the driver’s driving pattern. The number of bars varies from 1–5, where a low
number of bars indicates erratic driving. A high number of bars indicates stable driving.
Driver Alert Time for a
breakThe vehicle has been driven erratically. The driver receives an audible signal and a text message.
Windscreen Sensors
blockedThe camera is temporarily not functioning, due to snow, ice, or dirt on the windshield. Clean the area
of the windshield in front of the camera. See page 175 for information on the camera’s limitations.
Driver Alert Sys Service
requiredThe system is not functioning. Contact a trained and qualified Volvo service technician if the message
remains in the display.

04 Comfort and driving pleasure
Driver Alert System*
04
182* Option/accessory, for more information, see Introduction.
Lane Departure Warning (LDW)–
introduction
This function is designed to help reduce the
risk of accidents in situations where the vehicle
leaves its lane and there is a risk of driving off
the road or into the opposite lane. LDW con-
sists of a camera that monitors the lane’s side
marker lines. The driver is alerted by an audible
signal if the vehicle crosses a side marker line
or the road’s center dividing line.
Operation and function
LDW can be switched on or off by pressing the
button on the center console. A light in the but-
ton illuminates when the function is on.
The trip computer display shows
Lane Depart
Warn Standby <40 mph (Lane Depart Warn
Standby <65 km/h) when the function is in
standby mode.
When LDW is in standby mode, the function is
activated automatically after the camera has
monitored the road’s side marker lines and the
vehicle’s speed exceeds 40 mph (65 km/h).
Lane Depart Warn Available will be dis-
played.If the vehicle’s speed falls below 37 mph
(60 km/h), LDW will return to standby mode
and
Lane Depart Warn Standby <40 mph
(65 km/h) will be displayed.
If the camera can no longer monitor the road’s
side marker lines,
Lane Depart Warn
Unavailable will be displayed.
If the vehicle unexpectedly crosses the lane’s
left or right side marker lines, the driver will be
alerted by an audible signal.
No warning signal will be given in the follow-
ing situations:
•The turn signal is being used
•The driver’s foot is on the brake pedal1
•The throttle pedal is pressed quickly1
•If the steering wheel is moved quickly1
•In sharp turns that cause the vehicle’s
body to sway
See page 175 for information on the camera’s
limitations.
WARNING
The driver will only be warned once for each
time the wheels cross a marker line. No
alarm will be given if a marker line is
between the wheels.
1When Increased sensitivity has been selected, a warning will be issued if a side marker line is crossed in this situation.

04 Comfort and driving pleasure
Driver Alert System*
04

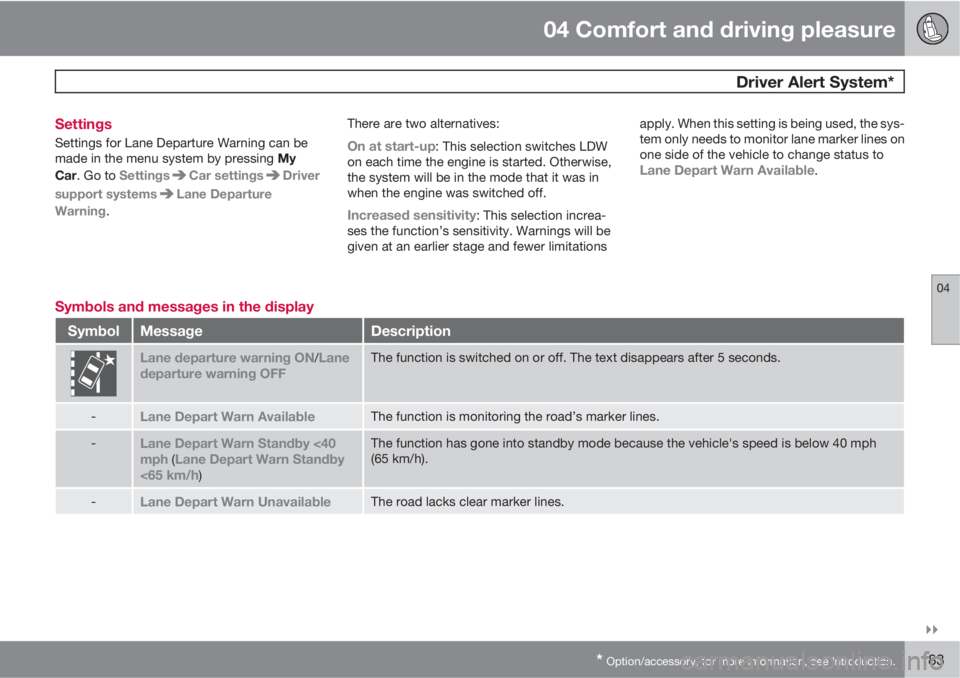

* Option/accessory, for more information, see Introduction.183 Settings
Settings for Lane Departure Warning can be
made in the menu system by pressing My
Car. Go to Settings
Car settingsDriver
support systems
Lane Departure
Warning.There are two alternatives:
On at start-up: This selection switches LDW
on each time the engine is started. Otherwise,
the system will be in the mode that it was in
when the engine was switched off.
Increased sensitivity: This selection increa-
ses the function’s sensitivity. Warnings will be
given at an earlier stage and fewer limitationsapply. When this setting is being used, the sys-
tem only needs to monitor lane marker lines on
one side of the vehicle to change status to
Lane Depart Warn Available.
Symbols and messages in the display
SymbolMessageDescription
Lane departure warning ON/Lane
departure warning OFFThe function is switched on or off. The text disappears after 5 seconds.
-Lane Depart Warn AvailableThe function is monitoring the road’s marker lines.
-Lane Depart Warn Standby <40
mph (Lane Depart Warn Standby
<65 km/h)
The function has gone into standby mode because the vehicle's speed is below 40 mph
(65 km/h).
-Lane Depart Warn UnavailableThe road lacks clear marker lines.

04 Comfort and driving pleasure
Driver Alert System*
04
184* Option/accessory, for more information, see Introduction.
SymbolMessageDescription
Windscreen Sensors blockedThe camera is temporarily not functioning, due to snow, ice, or dirt on the windshield. Clean
the area of the windshield in front of the camera. See page 175 for information on the camera’s
limitations.
Driver Alert Sys Service requiredThe system is not functioning. Contact a trained and qualified Volvo service technician if the
message remains in the display.

04 Comfort and driving pleasure
Park assist*
04

* Option/accessory, for more information, see Introduction.185 Introduction
The park assist system is designed to assist
you when driving into parking spaces, garages,
etc. It utilizes ultrasound sensors in the front
bumper and rear bumper(s) to measure the dis-
tance to a vehicle or an object that may be
close to the front or rear of your vehicle. An
audible signal and symbols in the audio sys-
tem’s display indicate the distance to the
object.
WARNING
Park Assist is an information system, NOT a
safety system. This system is designed to
be a supplementary aid when parking the
vehicle. It is not, however, intended to
replace the driver's attention and judge-
ment.
Function
Park assist button
The system is activated automatically when the
vehicle is started. The indicator light in the but-
ton in the center console illuminates when the
system is on.
•The front park assist system is active from
the time the engine is started until the vehi-
cle exceeds a speed of approximately
10 mph (15 km/h). It is also active when the
vehicle is backing up.
•Rear park assist is active when the engine
is running and reverse gear has been
selected.
Activating/deactivatingThe system is activated automatically when the
vehicle is started.

Press the Park assist button on the center
console to temporarily deactivate the sys-
tem(s).
> The indicator light in the button will go
out when the system has been deacti-
vated.
Park assist will be automatically reactivated the
next time the engine is started, or if the button
is pressed (the indicator light in the button will
illuminate).
NOTE
Park assist is disengaged automatically
when the parking brake is applied.

04 Comfort and driving pleasure
Park assist*
04
186* Option/accessory, for more information, see Introduction.
Signals from the park assist system
View in the display (warning for objects front left/
right rear)
Visual indicatorThe audio system’s display gives an overview
of the vehicle’s position in relation to a
detected object.
The marked sectors in the display indicate that
one or more of the sensors has detected an
object. The closer the car symbol comes to a
sector, the closer the vehicle is to the object.
If the infotainment system is switched off, the
park assist system will not be able to provide a
visual indicator. An audible signal will still be
provided.
Audible signalThe Park Assist system uses an intermittent
tone that pulses faster as you come close to an
object, and becomes constant when you are
within approximately 1 ft (30 cm) of an object
in front of or behind the vehicle. If there are
objects within this distance both behind and in
front of the vehicle, the tone alternates
between front and rear speakers.
NOTE
The level of the audible signal can be low-
ered/raised with the infotainment volume
control. The level can also be set in the MY
CAR menu system, see page 132.
If the volume of another source from the audio
system is high, this will be automatically low-
ered.
Rear park assist
G017833
The distance monitored behind the vehicle is
approximately 5 ft (1.5 m). The audible signal
comes from the rear speakers.
The system must be deactivated when towing
a trailer, carrying bicycles in a rear-mounted
carrier, etc, which could trigger the rear park
assist system's sensors.
NOTE
Rear park assist is deactivated automati-
cally when towing a trailer if Volvo genuine
trailer wiring is used.

04 Comfort and driving pleasure
Park assist*
04

* Option/accessory, for more information, see Introduction.187
Front park assist
G021424
The distance monitored in front of the vehicle
is approximately 2.5 ft (0.8 m). The audible sig-
nal comes from the audio system's front
speakers.
It may not be possible to combine auxiliary
headlights and front park assist since these
lights could trigger the system's sensors.
NOTE
Front park assist is deactivated when the
parking brake is applied and or when the
gear selector is in the P position.
Faults in the system
If the information symbol illuminates and Park
assist syst Service required is shown on the
information display, this indicates that the sys-
tem is not functioning properly and has been
disengaged. Consult a trained and qualified
Volvo service technician.
CAUTION
In certain circumstances, the park assist
system may give unexpected warning sig-
nals that can be caused by external sound
sources that use the same ultrasound fre-
quencies as the system. This may include
such things as the horns of other vehicles,
wet tires on asphalt, pneumatic brakes,
motorcycle exhaust pipes, etc. This does
not indicate a fault in the system.
Cleaning the sensors
Location of the front sensors
Location of the rear sensors
The sensors must be cleaned regularly to
ensure that they work properly. Clean them

04 Comfort and driving pleasure
Park assist*
04
188* Option/accessory, for more information, see Introduction.
with water and a suitable car washing deter-
gent.
Ice and snow covering the sensors may cause
incorrect warning signals.
NOTE
If the sensors are obstructed by e.g., dirt,
snow, or ice, this could result in false warn-
ing signals from the park assist system.

04 Comfort and driving pleasure
Rear Park Assist Camera (PAC)*
04

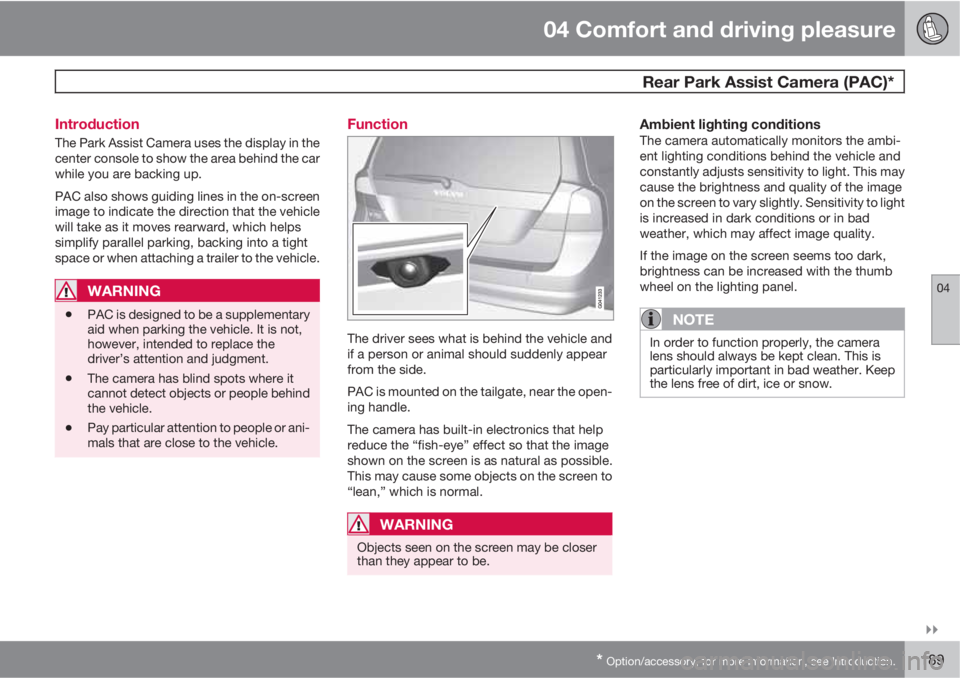

* Option/accessory, for more information, see Introduction.189 Introduction
The Park Assist Camera uses the display in the
center console to show the area behind the car
while you are backing up.
PAC also shows guiding lines in the on-screen
image to indicate the direction that the vehicle
will take as it moves rearward, which helps
simplify parallel parking, backing into a tight
space or when attaching a trailer to the vehicle.
WARNING
•PAC is designed to be a supplementary
aid when parking the vehicle. It is not,
however, intended to replace the
driver’s attention and judgment.
•The camera has blind spots where it
cannot detect objects or people behind
the vehicle.
•Pay particular attention to people or ani-
mals that are close to the vehicle.
Function
The driver sees what is behind the vehicle and
if a person or animal should suddenly appear
from the side.
PAC is mounted on the tailgate, near the open-
ing handle.
The camera has built-in electronics that help
reduce the “fish-eye” effect so that the image
shown on the screen is as natural as possible.
This may cause some objects on the screen to
“lean,” which is normal.
WARNING
Objects seen on the screen may be closer
than they appear to be.
Ambient lighting conditionsThe camera automatically monitors the ambi-
ent lighting conditions behind the vehicle and
constantly adjusts sensitivity to light. This may
cause the brightness and quality of the image
on the screen to vary slightly. Sensitivity to light
is increased in dark conditions or in bad
weather, which may affect image quality.
If the image on the screen seems too dark,
brightness can be increased with the thumb
wheel on the lighting panel.
NOTE
In order to function properly, the camera
lens should always be kept clean. This is
particularly important in bad weather. Keep
the lens free of dirt, ice or snow.

04 Comfort and driving pleasure
Rear Park Assist Camera (PAC)*
04
190* Option/accessory, for more information, see Introduction.
Using PAC
Activation
PAC is activated when the gear selector is
moved to R if the system is selected in the MY
CAR menu system or by pressing the CAM
button in the center console. See page 131 for
a description of the menu system.
If the Volvo Navigation System (VNS) is in use,
PAC will automatically override the navigation
system to show the camera's image on the
screen instead of navigation information, for as
long as reverse gear is selected.
ZoomThe camera can be useful when attaching a
trailer. Press CAM to zoom in on the trailer
hitch (and press this button again to return to
the normal camera view).With the camera zoomed in on the trailer hitch,
a guiding line showing the hitch's path toward
the trailer will be projected. This feature can be
activated in the MY CAR menu, see
page 132. The guiding lines for the wheels (see
the following section "Guiding lines") and for
the trailer hitch cannot be displayed at the
same time.
If the camera shows an enlarged (zoomed)
image, turn TUNE counterclockwise, or press
EXIT, CAM or OK to return to a normal view.
DeactivationMove the gear selector from R to another posi-
tion. There is a slight delay in the PAC system,
which means that the view from behind the
vehicle will remain on the screen for approxi-
mately 15 seconds after the gear selector has
been moved from the R position or until the
vehicle reaches a forward speed of 6 mph
(10 km/h). The screen will then revert to the
mode that it was in before R was selected and
will, for example, display navigation system
information.
NOTE
If any button on the center console control
panel is pressed, the camera image will dis-
appear from the display. Pressing CAM will
return the camera image to the display.
Guiding lines
The lines on the screen are projected as if they
were a path on the ground behind the vehicle
and are affected by the way in which the steer-
ing wheel is turned. This enables the driver to
see path the vehicle will take, even if he/she
turns the steering wheel while backing up.
NOTE
When backing up with a trailer, the guiding
lines show the path that the vehicle will
take, not the trailer.
