VOLVO XC70 2012 Owner´s Manual

05 Infotainment
BluetoothŸŸ media
05

231
See page 256 for more information about the
infotainment menu system.
Pairing and connecting an external
device
Before an external device can be connected, it
must be paired to the infotainment system. The
procedure for connecting an external device
varies, depending whether or not the device
has previously been paired to the infotainment
system. A maximum of 10 external devices can
be paired and each device only needs to be
paired once. To pair a device:
1.
Press MEDIA several times until
Bluetooth is displayed, release the button
and wait for several seconds or press OK/
MENU.
2.
Press OK/MENU.
>
When
Add device is displayed, press
OK/MENU.
3.
Be sure the external device's Bluetooth
Ÿ
function is turned on and that the device is
"discoverable." See the device's user's
guide if necessary.
4.
Press OK/MENU.
> The infotainment system will search for
external devices that are in range, which
may take several minutes. TheBluetooth
Ÿ-names of the devices found
will appear in the center console dis-
play.
5. Select the device to be paired and press
OK/MENU.
6. Using the external device’s keypad, enter
the digits shown in the audio system’s dis-
play and press the device's button used to
confirm a choice.
The external device will be automatically paired
and connected to the infotainment system.
Audio files can now be selected using the
/ buttons in the center console or on
the steering wheel keypad.
Automatic connection
When the BluetoothŸ function is active and the
most recently paired device is within range, it
is automatically connected. When the infotain-
ment system searches for the most recently
paired device, its name is shown in the display.
To connect another paired device, press
EXIT. See the following section for information
about switching to another device.
Switching to another deviceIt is possible to switch among paired
BluetoothŸ devices that are in the vehicle. To
do so:1.
Press MEDIA several times until
Bluetooth is displayed, release the button
and wait for several seconds or press OK/
MENU.
2.
Be sure the external device's Bluetooth
Ÿ
function is turned on and that the device is
"discoverable." See the devices user's
guide if necessary.
3.
Press OK/MENU.
4.
Turn TUNE to
Change Bluetooth
device and confirm by pressing OK/
MENU.
> After a short time, the external device's
name will appear in the display. If other
devices that have been paired are in
range, their names will also be dis-
played.
5. Select the device to be connected by turn-
ing TUNE and pressing OK/MENU to con-
firm.
> The external device will be connected to
the infotainment system.
Audio files can now be selected using the
/ buttons in the center console or on
the steering wheel keypad.
Removing a paired device1.
In Bluetooth mode, press OK/MENU.

05 Infotainment
BluetoothŸŸ media
05
232
2.
Turn TUNE to Remove Bluetooth
device and press OK/MENU.
3. Select the device to be removed by turning
TUNE and confirm by pressing OK/
MENU.
> A question asking if you would like to
remove the device will be displayed.
4.
Press OK/MENU to confirm or EXIT to
cancel.
Disconnecting an external deviceThe external device is automatically discon-
nected from the audio system if it is moved out
of range.
RandomThis function plays the audio files on the exter-
nal device in random order (shuffle). This func-
tion can be activated/deactivated under:
Bluetooth menu
Random
Press the
/ buttons on the center con-
sole or steering wheel keypad to change
tracks.
Scanning audio files on an external
device
This function plays the first ten seconds of
each audio file. This function can be activated/
deactivated under: Bluetooth menu
Scan.
BluetoothŸ version informationThis feature offers information about the
BluetoothŸ version installed in the vehicle's
infotainment system. This information can be
found under Bluetooth menu
Bluetooth
software version in car.

05 Infotainment
Bluetooth® hands-free connection
05

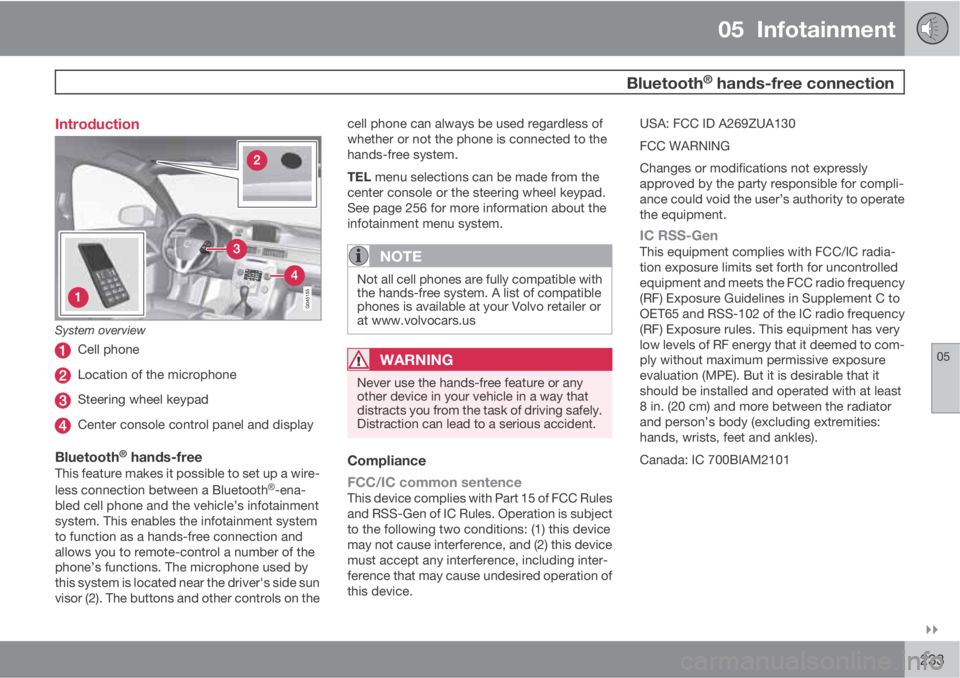

233 Introduction
System overview
Cell phone
Location of the microphone
Steering wheel keypad
Center console control panel and display
Bluetooth® hands-freeThis feature makes it possible to set up a wire-
less connection between a BluetoothŸ-ena-
bled cell phone and the vehicle’s infotainment
system. This enables the infotainment system
to function as a hands-free connection and
allows you to remote-control a number of the
phone’s functions. The microphone used by
this system is located near the driver's side sun
visor (2). The buttons and other controls on thecell phone can always be used regardless of
whether or not the phone is connected to the
hands-free system.
TEL menu selections can be made from the
center console or the steering wheel keypad.
See page 256 for more information about the
infotainment menu system.
NOTE
Not all cell phones are fully compatible with
the hands-free system. A list of compatible
phones is available at your Volvo retailer or
at www.volvocars.us
WARNING
Never use the hands-free feature or any
other device in your vehicle in a way that
distracts you from the task of driving safely.
Distraction can lead to a serious accident.
Compliance
FCC/IC common sentence
This device complies with Part 15 of FCC Rules
and RSS-Gen of IC Rules. Operation is subject
to the following two conditions: (1) this device
may not cause interference, and (2) this device
must accept any interference, including inter-
ference that may cause undesired operation of
this device.USA: FCC ID A269ZUA130
FCC WARNING
Changes or modifications not expressly
approved by the party responsible for compli-
ance could void the user’s authority to operate
the equipment.
IC RSS-GenThis equipment complies with FCC/IC radia-
tion exposure limits set forth for uncontrolled
equipment and meets the FCC radio frequency
(RF) Exposure Guidelines in Supplement C to
OET65 and RSS-102 of the IC radio frequency
(RF) Exposure rules. This equipment has very
low levels of RF energy that it deemed to com-
ply without maximum permissive exposure
evaluation (MPE). But it is desirable that it
should be installed and operated with at least
8 in. (20 cm) and more between the radiator
and person’s body (excluding extremities:
hands, wrists, feet and ankles).
Canada: IC 700BIAM2101

05 Infotainment
Bluetooth® hands-free connection
05
234

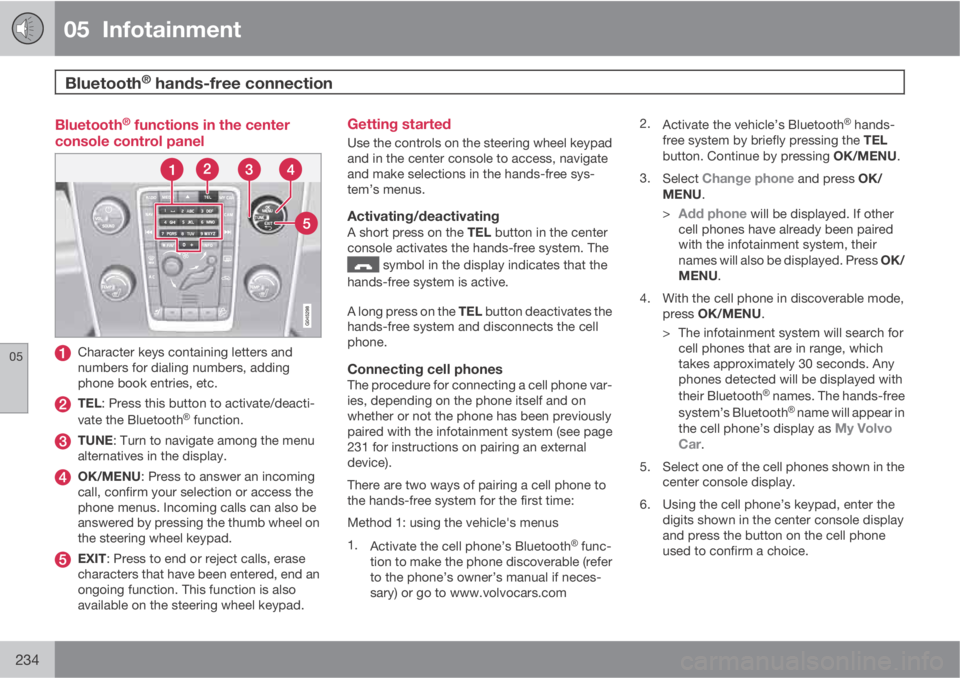

Bluetooth® functions in the center
console control panel
Character keys containing letters and
numbers for dialing numbers, adding
phone book entries, etc.
TEL: Press this button to activate/deacti-
vate the BluetoothŸ function.
TUNE: Turn to navigate among the menu
alternatives in the display.
OK/MENU: Press to answer an incoming
call, confirm your selection or access the
phone menus. Incoming calls can also be
answered by pressing the thumb wheel on
the steering wheel keypad.
EXIT: Press to end or reject calls, erase
characters that have been entered, end an
ongoing function. This function is also
available on the steering wheel keypad.
Getting started
Use the controls on the steering wheel keypad
and in the center console to access, navigate
and make selections in the hands-free sys-
tem’s menus.
Activating/deactivatingA short press on the TEL button in the center
console activates the hands-free system. The
symbol in the display indicates that the
hands-free system is active.
A long press on the TEL button deactivates the
hands-free system and disconnects the cell
phone.
Connecting cell phonesThe procedure for connecting a cell phone var-
ies, depending on the phone itself and on
whether or not the phone has been previously
paired with the infotainment system (see page
231 for instructions on pairing an external
device).
There are two ways of pairing a cell phone to
the hands-free system for the first time:
Method 1: using the vehicle's menus
1.
Activate the cell phone’s Bluetooth
Ÿ func-
tion to make the phone discoverable (refer
to the phone’s owner’s manual if neces-
sary) or go to www.volvocars.com2.
Activate the vehicle’s Bluetooth
Ÿ hands-
free system by briefly pressing the TEL
button. Continue by pressing OK/MENU.
3.
Select
Change phone and press OK/
MENU.
>
Add phone will be displayed. If other
cell phones have already been paired
with the infotainment system, their
names will also be displayed. Press OK/
MENU.
4. With the cell phone in discoverable mode,
press OK/MENU.
> The infotainment system will search for
cell phones that are in range, which
takes approximately 30 seconds. Any
phones detected will be displayed with
their Bluetooth
Ÿ names. The hands-free
system’s BluetoothŸ name will appear in
the cell phone’s display as My Volvo
Car.
5. Select one of the cell phones shown in the
center console display.
6. Using the cell phone’s keypad, enter the
digits shown in the center console display
and press the button on the cell phone
used to confirm a choice.

05 Infotainment
Bluetooth® hands-free connection
05

235
Method 2: using the cell phone’s menus
1. Activate the hands-free system by briefly
pressing the TEL button in the center con-
sole. If there is a cell phone connected,
disconnect it from the hands-free system.
2. Make the vehicle discoverable via the
Bluetooth
Ÿ function by pressing OK/
MENU and activating the menu selection
Phone settings
Discoverable.
3. Perform a search with the cell phone's
Bluetooth
Ÿ function (see the cell phone's
user's guide if necessary).
4.
Select
My Volvo Car in the list of devices
shown in the cell phone’s display.
5. When prompted, enter a PIN code of your
choice in the cell phone using the cell
phone's keypad. Enter the same PIN code
in the infotainment system using the sys-
tem's keypad in the center console.
6.
Connect to
My Volvo Car from the cell
phone.
The cell phone will be paired (registered) and
will be connected automatically to the infotain-
ment system. For more information on pairing
and connecting a cell phone, see page 237.
Making a call1.
Ensure that is shown at the top of the
center console display and that the hands-
free function is in telephone mode.
2. Dial the desired phone number using the
center console keypad or use the speed
dial function (see page 240). In normal
view (see page 207 for information about
the various display views). It is also possi-
ble to turn TUNE clockwise to access the
phone book and then counter-clockwise
for the call list. See page 237 for more
information about the phone book.
3.
Press OK/MENU
End or reject a call by pressing EXIT.
Disconnecting the cell phoneThe cell phone is automatically disconnected
from the infotainment system if it is moved out
of range.
The cell phone can be manually disconnected
from the hands-free system by pressing and
holding TEL or in phone mode, going to Phone
menu
Disconnect phone. See also page
236 for more information about connections.
The hands-free system is also deactivated
when the ignition is switched off (or if the
driver’s door is opened on vehicles equipped
with the optional keyless drive).When the cell phone is disconnected from the
hands-free system, a call in progress can be
continued using the cell phone’s own speaker
and microphone.
Even if the cell phone has been disconnected
manually, some phones may reconnect auto-
matically to the most recently used hands-free
unit, for example when a new call is initiated.
Handling calls
Incoming calls
Press OK/MENU (or the thumb wheel on
the steering wheel keypad) to answer a
call, even if the infotainment system is cur-
rently in another mode (e.g.,
RADIO orMEDIA).
Press EXIT to reject a call.
Automatic answerThis function means that incoming calls will be
answered automatically. Activate or deactivate
the function in the menu system under Phone
menu
Call optionsAuto answer.
Call settingsWhile a call is in progress, press OK/MENU or
the thumb wheel on the steering wheel keypad
to access the following functions:

05 Infotainment
Bluetooth® hands-free connection
05
236
•Mute: mute the infotainment system’s
microphone.
•Mobile phone: transfer the call from
hands-free to the cell phone. On certain
cell phones, the connection will be broken,
which is normal. The hands-free function
will ask if you would like to reconnect.
•Dial number: dial a third party during an
ongoing call using the number keys (the
current call will be put on hold).
Call listsCall lists are copied to the hands-free function
each time a cell phone is connected and the
lists are updated while the phone is connected.
In normal view, turn TUNE counter-clockwise
to see the
All calls list.
In phone mode, the various call lists can be
displayed in Phone menu
Call lists:
•All calls
•Missed calls
•Answered calls
•Dialed calls (certain cell phones show this
list in reverse order)
•Call duration
If no number has been stored, this menu can
be accessed by pressing and holding 1.
Voice mailIn normal view, a speed dial number for voice
mail can be programmed and accessed by
pressing and holding 1.
The number for voice mail can be changed in
phone mode in Phone menu
Call options
Voicemail numberChange number.
Sound settings
Call volumeCall volume can be only be adjusted during a
call. Use the buttons in the steering wheel key-
pad or the infotainment system’s VOL control.
Infotainment system volumeIf no phone call is in progress, volume for the
infotainment system can be adjusted in the
normal way with the infotainment system's
VOL control or from the steering wheel keypad.
Infotainment system sound can be automati-
cally muted when a phone call is received in
Phone menu
Phone settingsSounds
and volume
Mute radio/media.
Ringing volume
In phone mode, go to Phone menuPhone
settings
Sounds and volumeRingvolume and adjust the volume by turning
VOL. Save the setting by pressing EXIT.
Ringing tonesThe hands-free system’s integrated ringing
tones can be selected in Phone menu
Phone settingsSounds and volume
Ring signalsRing signal 1, etc.
NOTE
The connected cell phone’s ring tone may
not be switched off when one of the hands-
free system's ringing tones is used.
If you prefer to use the connected cell phone’s
ring tone1, go to Phone menuPhone
settings
Sounds and volumeRing
signals
Mobile phone ring signal.
More information about pairing and
connecting cell phones
A maximum of 10 cell phones can be paired
with the hands-free system. Pairing only needs
to be done once for each phone. After pairing,
the cell phone no longer needs to be in sight or
discoverable. Only one cell phone can be
actively connected to hands-free at a time.
1Not supported by all cell phones.

05 Infotainment
Bluetooth® hands-free connection
05

237

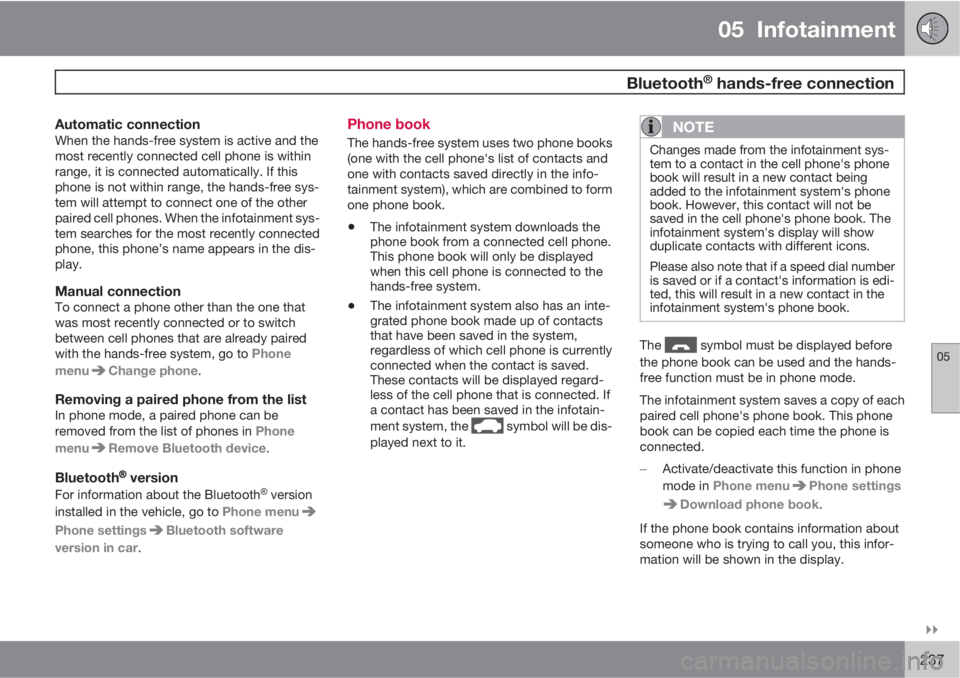

Automatic connectionWhen the hands-free system is active and the
most recently connected cell phone is within
range, it is connected automatically. If this
phone is not within range, the hands-free sys-
tem will attempt to connect one of the other
paired cell phones. When the infotainment sys-
tem searches for the most recently connected
phone, this phone’s name appears in the dis-
play.
Manual connectionTo connect a phone other than the one that
was most recently connected or to switch
between cell phones that are already paired
with the hands-free system, go to Phone
menu
Change phone.
Removing a paired phone from the listIn phone mode, a paired phone can be
removed from the list of phones in Phone
menu
Remove Bluetooth device.
BluetoothŸŸ version
For information about the BluetoothŸ version
installed in the vehicle, go to Phone menu
Phone settingsBluetooth software
version in car.
Phone book
The hands-free system uses two phone books
(one with the cell phone's list of contacts and
one with contacts saved directly in the info-
tainment system), which are combined to form
one phone book.
•The infotainment system downloads the
phone book from a connected cell phone.
This phone book will only be displayed
when this cell phone is connected to the
hands-free system.
•The infotainment system also has an inte-
grated phone book made up of contacts
that have been saved in the system,
regardless of which cell phone is currently
connected when the contact is saved.
These contacts will be displayed regard-
less of the cell phone that is connected. If
a contact has been saved in the infotain-
ment system, the
symbol will be dis-
played next to it.
NOTE
Changes made from the infotainment sys-
tem to a contact in the cell phone's phone
book will result in a new contact being
added to the infotainment system's phone
book. However, this contact will not be
saved in the cell phone's phone book. The
infotainment system's display will show
duplicate contacts with different icons.
Please also note that if a speed dial number
is saved or if a contact's information is edi-
ted, this will result in a new contact in the
infotainment system's phone book.
The symbol must be displayed before
the phone book can be used and the hands-
free function must be in phone mode.
The infotainment system saves a copy of each
paired cell phone's phone book. This phone
book can be copied each time the phone is
connected.

Activate/deactivate this function in phone
mode in Phone menu
Phone settings
Download phone book.
If the phone book contains information about
someone who is trying to call you, this infor-
mation will be shown in the display.

05 Infotainment
Bluetooth® hands-free connection
05
238

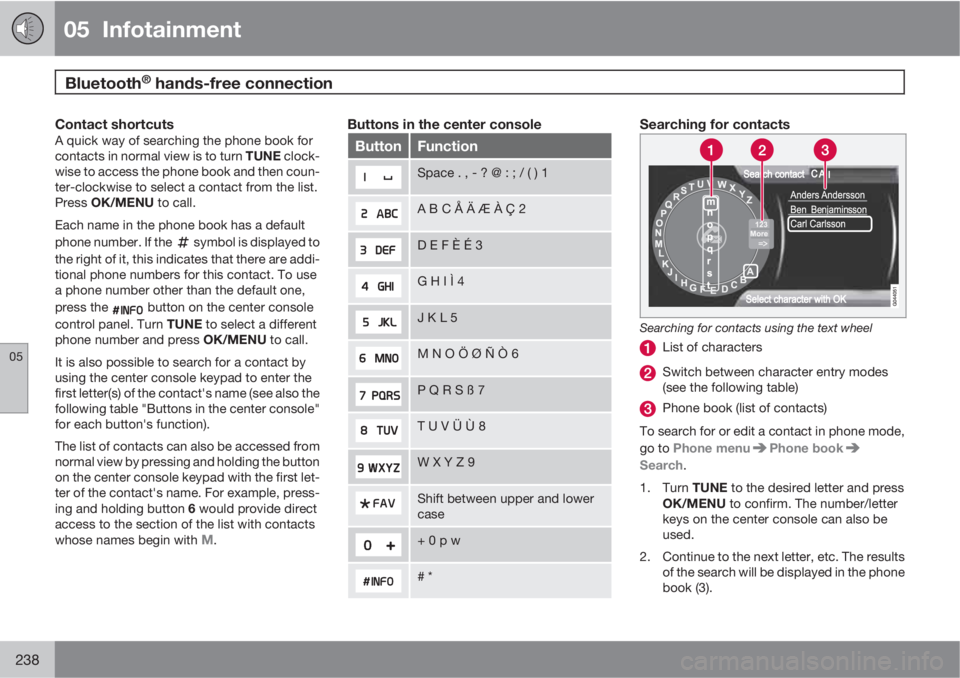

Contact shortcutsA quick way of searching the phone book for
contacts in normal view is to turn TUNE clock-
wise to access the phone book and then coun-
ter-clockwise to select a contact from the list.
Press OK/MENU to call.
Each name in the phone book has a default
phone number. If the
symbol is displayed to
the right of it, this indicates that there are addi-
tional phone numbers for this contact. To use
a phone number other than the default one,
press the
button on the center console
control panel. Turn TUNE to select a different
phone number and press OK/MENU to call.
It is also possible to search for a contact by
using the center console keypad to enter the
first letter(s) of the contact's name (see also the
following table "Buttons in the center console"
for each button's function).
The list of contacts can also be accessed from
normal view by pressing and holding the button
on the center console keypad with the first let-
ter of the contact's name. For example, press-
ing and holding button 6 would provide direct
access to the section of the list with contacts
whose names begin with
M.
Buttons in the center console
ButtonFunction
Space . , - ? @ : ; / ( ) 1
A B C Å Ä Æ À Ç 2
D E F È É 3
G H I Ì 4
J K L 5
M N O Ö Ø Ñ Ò 6
P Q R S ß 7
T U V Ü Ù 8
W X Y Z 9
Shift between upper and lower
case
+ 0 p w
# *
Searching for contacts
Searching for contacts using the text wheel
List of characters
Switch between character entry modes
(see the following table)
Phone book (list of contacts)
To search for or edit a contact in phone mode,
go to Phone menu
Phone book
Search.
1.
Turn TUNE to the desired letter and press
OK/MENU to confirm. The number/letter
keys on the center console can also be
used.
2. Continue to the next letter, etc. The results
of the search will be displayed in the phone
book (3).

05 Infotainment
Bluetooth® hands-free connection
05

239

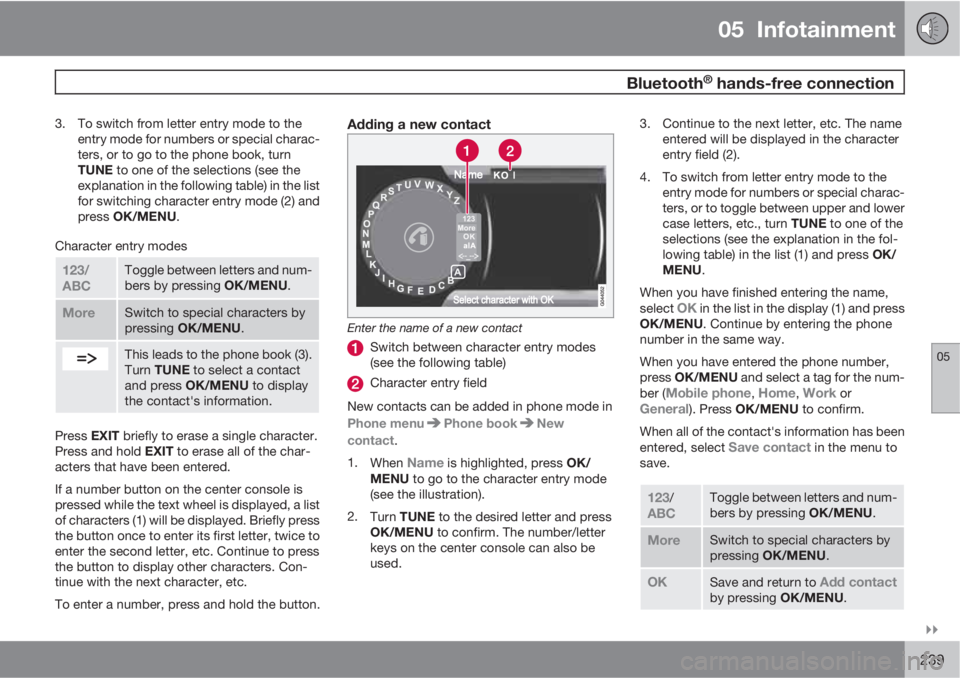

3. To switch from letter entry mode to the
entry mode for numbers or special charac-
ters, or to go to the phone book, turn
TUNE to one of the selections (see the
explanation in the following table) in the list
for switching character entry mode (2) and
press OK/MENU.
Character entry modes
123/
ABCToggle between letters and num-
bers by pressing OK/MENU.
MoreSwitch to special characters by
pressing OK/MENU.
This leads to the phone book (3).
Turn TUNE to select a contact
and press OK/MENU to display
the contact's information.
Press EXIT briefly to erase a single character.
Press and hold EXIT to erase all of the char-
acters that have been entered.
If a number button on the center console is
pressed while the text wheel is displayed, a list
of characters (1) will be displayed. Briefly press
the button once to enter its first letter, twice to
enter the second letter, etc. Continue to press
the button to display other characters. Con-
tinue with the next character, etc.
To enter a number, press and hold the button.
Adding a new contact
Enter the name of a new contact
Switch between character entry modes
(see the following table)
Character entry field
New contacts can be added in phone mode in
Phone menu
Phone bookNew
contact.
1.
When
Name is highlighted, press OK/
MENU to go to the character entry mode
(see the illustration).
2.
Turn TUNE to the desired letter and press
OK/MENU to confirm. The number/letter
keys on the center console can also be
used.3. Continue to the next letter, etc. The name
entered will be displayed in the character
entry field (2).
4. To switch from letter entry mode to the
entry mode for numbers or special charac-
ters, or to toggle between upper and lower
case letters, etc., turn TUNE to one of the
selections (see the explanation in the fol-
lowing table) in the list (1) and press OK/
MENU.
When you have finished entering the name,
select
OK in the list in the display (1) and press
OK/MENU. Continue by entering the phone
number in the same way.
When you have entered the phone number,
press OK/MENU and select a tag for the num-
ber (
Mobile phone, Home, Work orGeneral). Press OK/MENU to confirm.
When all of the contact's information has been
entered, select
Save contact in the menu to
save.
123/ABC
Toggle between letters and num-
bers by pressing OK/MENU.
MoreSwitch to special characters by
pressing OK/MENU.
OKSave and return to Add contactby pressing OK/MENU.

05 Infotainment
Bluetooth® hands-free connection
05
240
Toggle between upper and lower
case letters by pressing OK/
MENU.
Press OK/MENU and the cursor
will move to the character entry
field (2) at the top of the display.
The cursor can now be moved by
turning TUNE to a position where
new characters can be entered
or deleted by pressing EXIT. In
order to add characters, return to
text entry mode by pressing OK/
MENU.
Speed dialSpeed dial numbers can be added in phone
mode in Phone menu
Phone book
Speed dial.
To use speed dial to make a call in phone
mode, press a button on the center console
keypad followed by OK/MENU. If a contact
has not been saved on the speed dial number
used, you will be prompted to save a contact
on the number selected.
Accept vCardsvCards from other cell phones can be added to
the infotainment system's phone book. To ena-
ble this feature, put the infotainment system in
discoverable mode for Bluetooth
Ÿ. The featureis activated in Phone menu
Phone book
Receive vCard.
Memory statusIn phone mode, the memory status of the info-
tainment system's phone book and the con-
nected cell phone's phone book can be seen
in Phone menu
Phone bookMemory
status.
Clearing the phone bookIn phone mode, all entries in the infotainment
system's phone book can be cleared in Phone
menu
Phone bookClear phone book.
NOTE
Clearing the entries in the infotainment sys-
tem's phone book does not delete entries in
the cell phone's phone book.
