YOUR DRIVING ENVIRONMENT

03 Your driving environment
Instruments and controls
03
74

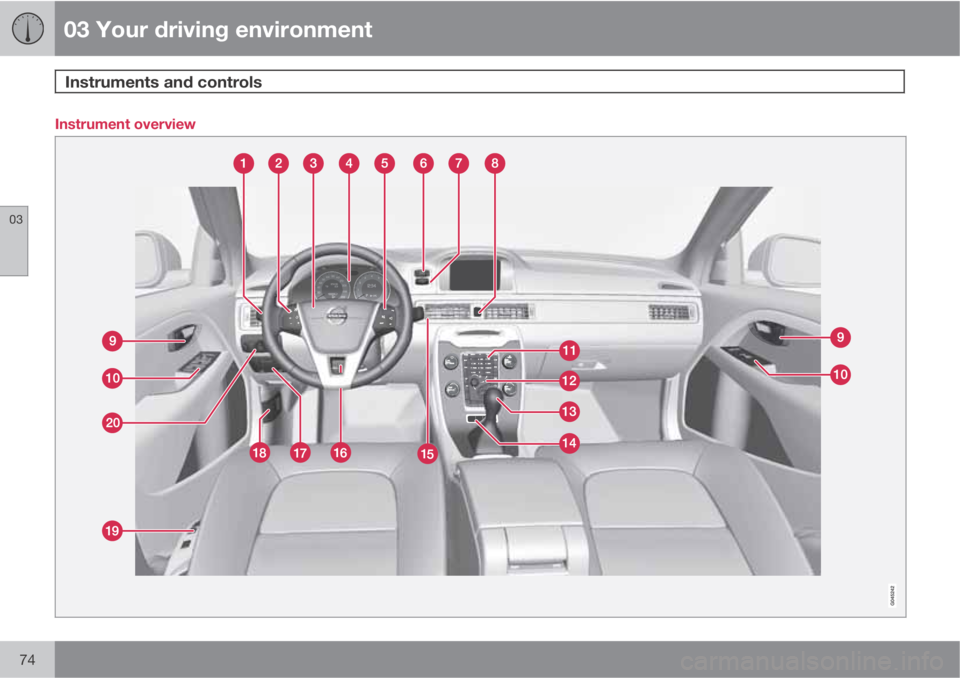

Instrument overview

03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.75
FunctionPage
Menus and mes-
sages, turn signals,
high/low beams,
trip computer131, 95,
92, 146
Cruise control151
Horn, airbag91, 22
Main instrument
panel75
Audio system/Blue-
tooth hands-free
controls204, 233
START/STOP
ENGINE button82
Ignition slot82
Hazard warning
flashers95
Door handle–
FunctionPage
In-door control pan-
els (power win-
dows, mirrors,
power child safety
locks, central lock-
ing button)101, 103,
51, 65
Menu controls, info-
tainment and cli-
mate control sys-
tems131, 204,
140
Center console but-
tons131
Gear selector115
Controls for active
chassis (Four-C)*150
Wipers and washers98, 99
Steering wheel
adjustment90
Parking brake121
Hood opening con-
trol319
FunctionPage
Power seat* adjust-
ment controls84
Lighting panel, but-
tons for opening
fuel filler door and
unlocking the tail-
gate92, 268,
66
Information displays
Information displays in the instrument panel
The information displays show information on
some of the vehicle's functions, such as cruise
control, the trip computer and messages. The
information is shown with text and symbols.

03 Your driving environment
Instruments and controls
03
76* Option/accessory, for more information, see Introduction.
More detailed information can be found in the
descriptions of the functions that use the infor-
mation displays.
Gauges
Gauges in the instrument panel
Speedometer
Fuel gauge. Please note that the fuel level
indicator in the gauge moves from right to
left as the amount of fuel in the tank
decreases. The arrow indicates the side of
the vehicle that the fuel filler door is on. See
also the section on refueling beginning on
page 266. See page 146 for more infor-
mation on fuel level and consumption.
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
Do not drive continuously with the needlein the red area of the gauge. The engine
management system will automatically
prevent excessively high engines speeds.
This will be noticeable as a pronounced
unevenness in engine speed.
Indicator, information, and warning
symbols
Indicator and warning symbols
High beam and turn signal indicators
Indicator and warning symbols
Information symbols
Indicator and warning symbols
Function checkAll indicator and warning symbols light up in
ignition mode II or when the engine is started.When the engine has started, all the symbols
should go out except the parking brake sym-
bol, which only goes out when the brake is dis-
engaged.
If the engine does not start or if the function
check is carried out in ignition mode II, all sym-
bols go out after 5 seconds except the symbol
for faults in the vehicle's emissions system and
the symbol for low oil pressure.
Certain symbols may not have their functions
illustrated, depending on the vehicle's equip-
ment.
Indicator and information symbols
SymbolDescription
Fault in the Active Bending
Light (ABL)*system
Malfunction indicator light
Anti-lock brake system (ABS)
Rear fog light on
Stability system
Tire pressure monitoring sen-
sor (TPMS)

03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.77
SymbolDescription
Low fuel level
Information symbol, see text
in information display
High beam indicator
Left turn signal indicator
Right turn signal indicator
The stability system's Sport
mode is activated.
Fault in the Active Bending Light
(ABL) system
This symbol will illuminate if the there is a fault
in the ABL system. See page 93 for more
information about this system.
Malfunction Indicator Light
As you drive, a computer called On-Board
Diagnostics II (OBDII) monitors your vehicle's
engine, transmission, electrical and emission
systems.
The malfunction indicator (CHECK ENGINE)
light will illuminate if the computer senses acondition that potentially may need correcting.
When this happens, please have your vehicle
checked by a trained and qualified Volvo serv-
ice technician as soon as possible.
A malfunction indicator (CHECK ENGINE) light
may have many causes. Sometimes, you may
not notice a change in your car's behavior.
Even so, an uncorrected condition could hurt
fuel economy, emission controls, and drivabil-
ity. Extended driving without correcting the
cause could even damage other components
in your vehicle.
This light may illuminate if the fuel filler cap is
not closed tightly or if the engine was running
while the vehicle was refueled.
Canadian models are equipped with this
symbol.
Anti-lock Brake System (ABS)
warning light
If the warning light comes on, there may be a
malfunction in the ABS system (the standard
braking system will still function). Check the
system by:
1. Stopping in a safe place and switching off
the ignition.
2. Restart the engine.
3. If the warning light goes off, no further
action is required.If the warning light remains on, the vehicle
should be driven to a trained and qualified
Volvo service technician for inspection, see
page 118 for additional information.
Canadian models are equipped with this
symbol.
Rear fog light
This symbol indicates that the rear fog light
(located in the driver's side tail light cluster) is
on.
Stability system
This indicator symbol flashes when the DSTC
(Dynamic Stability and Traction Control sys-
tem) is actively working to stabilize the vehicle,
see page 148 for more detailed information.
Tire pressure monitoring system
(TPMS)*
This symbol illuminates to indicate that tire
pressure in one or more tires is low, see
page 311 for detailed information.
Low fuel level
When this light comes on, the vehicle should
be refueled as soon as possible. See page
266 for information about fuel and refueling.
Information symbol
The information symbol lights up and a text
message is displayed to provide the driver with

03 Your driving environment
Instruments and controls
03
78
necessary information about one of the vehi-
cle's systems. The message can be erased and
the symbol can be turned off by pressing the
READ button (see page 129 for information) or
this will take place automatically after a short
time (the length of time varies, depending on
the function affected).
The information symbol may also illuminate
together with other symbols.
High beam indicator
This symbol illuminates when the high beam
headlights are on, or if the high beam flash
function is used.
Left turn signal indicator
Right turn signal indicator
NOTE
•Both turn signal indicators will flash
when the hazard warning flashers are
used.
•If either of these indicators flash faster
than normal, the direction indicators are
not functioning properly.
Sport mode
This symbol illuminates to indicate that the sta-
bility system's Sport mode has been activated
to help provide maximum tractive force, forexample when driving with snow chains, or
driving in deep snow or loose sand.
Indicator and warning symbols
SymbolDescription
Low oil pressure
Parking brake applied
SRS airbags
Seat belt reminder
Generator not charging
Fault in the brake system
Warning symbol
Low oil pressure
If the light comes on while driving, stop the
vehicle, stop the engine immediately, and
check the engine oil level. If the oil level is nor-
mal and the light stays on after restart, have the
vehicle towed to the nearest trained and quali-
fied Volvo service technician. This is normal,
provided it goes off when the engine speed is
increased.
Parking brake applied
This symbol illuminates when the parking
brake is applied. On models equipped with the
electric parking brake, this symbol flashes
while the brake is being applied and then glows
steadily.
A flashing symbol means that a fault has been
detected. See the message in the information
display.
Canadian models are equipped with this
symbol.
See page 121 for more information about
using the parking brake.
Airbags – SRS
If this light comes on while the vehicle is being
driven, or remains on for longer than approxi-
mately 10 seconds after the vehicle has been
started, the SRS system's diagnostic functions
have detected a fault in a seat belt lock or pre-
tensioner, a front airbag, side impact airbag,
and/or an inflatable curtain. Have the system(s)
inspected by a trained and qualified Volvo
service technician as soon as possible.
See page 21 for more information about the
airbag system.

03 Your driving environment
Instruments and controls
03

79
Seat belt reminder
This symbol comes on for approximately 6 sec-
onds if the driver has not fastened his or her
seat belt.
Generator not charging
This symbol comes on during driving if a fault
has occurred in the electrical system. Contact
an authorized Volvo workshop.
Engine temperatureEngine overheating can result from low oil or
coolant levels, towing or hard driving at high
heat and altitude, or mechanical malfunction.
Engine overheating will be signaled with text
and a red warning triangle in the middle of the
instrument display. The exact text will depend
on the degree of overheating. It may range from
High engine temp Reduce speed to High
engine temp Stop engine. If appropriate,
other messages, such as Coolant level low,
Stop safely will also be displayed. If your
engine does overheat so that you must stop the
engine, always allow the engine to cool before
attempting to check oil and coolant levels.
See page 322 for more information.
Fault in brake system
If this symbol lights, the brake fluid level may
be too low. Stop the vehicle in a safe place and
check the level in the brake fluid reservoir, see
page 322. If the level in the reservoir is belowMIN, the vehicle should be transported to an
authorized Volvo workshop to have the brake
system checked.
Canadian models are equipped with this
symbol.
If the
and symbols come on at the
same time, there may be a fault in the brake
force distribution system.
1. Stop the vehicle in a safe place and turn off
the engine.
2. Restart the engine.
•If both symbols extinguish, continue driv-
ing.
•If the symbols remain on, check the level in
the brake fluid reservoir, see page 322. If
the brake fluid level is normal but the sym-
bols are still lit, the vehicle can be driven,
with great care, to an authorized Volvo
workshop to have the brake system
checked.
•If the level in the reservoir is below MIN, the
vehicle should be transported to an author-
ized Volvo workshop to have the brake
system checked.
WARNING
•If the fluid level is below the MIN mark
in the reservoir or if a warning message
is displayed in the text window: DO
NOT DRIVE. Have the vehicle towed to
a trained and qualified Volvo service
technician and have the brake system
inspected.
•If the ABS and Brake system lights are
on at the same time, there is a risk of
reduced vehicle stability.
Warning symbol
The red warning symbol lights up to indicate a
problem related to safety and/or drivability. A
message will also appear in the main instru-
ments panel's display. The symbol remains
visible until the fault has been rectified but the
text message can be cleared with the READ
button, see page 129. The warning symbol can
also come on in conjunction with other sym-
bols.
Action:
1. Stop in a safe place. Do not drive the vehi-
cle further.
2. Read the information on the information
display. Implement the action in accord-
ance with the message in the display. Clear
the message using READ.

03 Your driving environment
Instruments and controls
03
80
Reminder – doors not closedIf one of the doors, the hood or tailgate is not
closed properly, the information or warning
symbol comes on together with an explanatory
text message in the instrument panel. Stop the
vehicle in a safe place as soon as possible and
close the door, hood or tailgate.
If the vehicle is driven at a speed
lower than approximately 5 mph
(7 km/h), the information symbol comes on.
If the vehicle is driven at a speed
higher than approximately 5 mph
(7 km/h), the warning symbol comes on.
Trip odometers
Trip odometers and reset button
Odometer display
Button for toggling between T1 and T2,
and for resetting the odometer
The trip odometers are used to measure short
distances. A short press the button toggles
between the two trip odometers
T1 and T2. A
long press (more than 2 seconds) resets an
active trip odometer to zero. The distance is
shown in the display.
Clock
Clock and setting control
Display
Control for setting the clockTurn the control clockwise/counterclockwise
to set the time. The set time is shown in the
information display.
The clock may be temporarily replaced by a
symbol in conjunction with a message, see
page 129.
Setting the clock in MY CARIn addition to setting the clock manually as
described above, it can also be set in the MY
CAR menu system. See page 131 for addi-
tional information about these menus.
1.
Go to SettingsSystem options
Time.
2.
The hour box will be selected. Press OK to
activate this box.
