VOLVO XC70 2013 Owner´s Manual

09 Maintenance and specifications
Fluids09
329
The brake fluid should always be between the
MIN and MAX marks on the inside of the res-
ervoir. Check, without removing the cap, that
there is sufficient fluid in the reservoir.
Fluid type: DOT 4+ boiling point >536 °F
(>280 °C), P/N 9437433
Replace: The fluid should be replaced accord-
ing to the intervals specified in the Warranty
and Service Records Information booklet.
When driving under extremely hard conditions
(mountain driving, etc), it may be necessary to
replace the fluid more often. Consult a trained
and qualified Volvo service technician.
Always entrust brake fluid changing to a
trained and qualified Volvo service technician.
WARNING
•If the fluid level is below the MIN mark
in the reservoir or if a brake-related
message is shown in the information
display: DO NOT DRIVE. Have the car
towed to a trained and qualified Volvo
service technician and have the brake
system inspected.
•Dot 4+ should never be mixed with any
other type of brake fluid.
Filling1. Turn and open the cover.2. Unscrew the reservoir cap and fill the fluid.
The level must be between the MIN and
MAX marks.
Power steering fluid
Check the level frequently. The fluid does not
require changing. The fluid level must be
between the MIN and MAX marks. For capaci-
ties and recommended fluid grade, see
page 364.
WARNING
If a problem should occur in the power
steering system or if the vehicle has no elec-
trical current and must be towed, it is still
possible to steer the vehicle. However, keep
in mind that greater effort will be required to
turn the steering wheel.
CAUTION
Keep the area around the power steering
fluid reservoir clean when checking.

09 Maintenance and specifications
Replacing bulbs 09
330* Option/accessory, for more information, see Introduction.

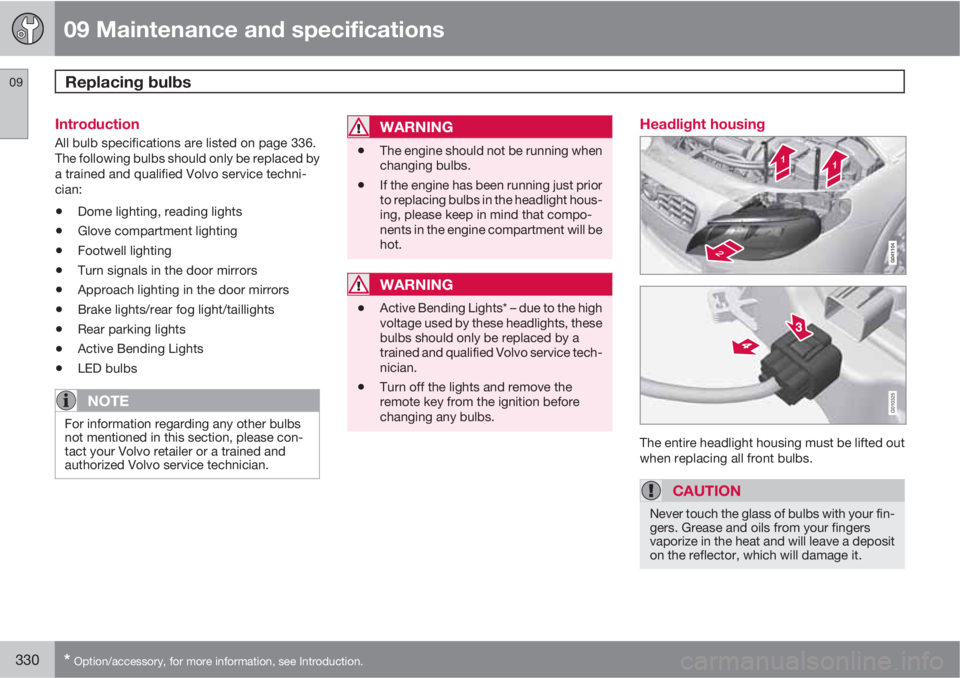

Introduction
All bulb specifications are listed on page 336.
The following bulbs should only be replaced by
a trained and qualified Volvo service techni-
cian:
•Dome lighting, reading lights
•Glove compartment lighting
•Footwell lighting
•Turn signals in the door mirrors
•Approach lighting in the door mirrors
•Brake lights/rear fog light/taillights
•Rear parking lights
•Active Bending Lights
•LED bulbs
NOTE
For information regarding any other bulbs
not mentioned in this section, please con-
tact your Volvo retailer or a trained and
authorized Volvo service technician.
WARNING
•The engine should not be running when
changing bulbs.
•If the engine has been running just prior
to replacing bulbs in the headlight hous-
ing, please keep in mind that compo-
nents in the engine compartment will be
hot.
WARNING
•Active Bending Lights* – due to the high
voltage used by these headlights, these
bulbs should only be replaced by a
trained and qualified Volvo service tech-
nician.
•Turn off the lights and remove the
remote key from the ignition before
changing any bulbs.
Headlight housing
G010325
The entire headlight housing must be lifted out
when replacing all front bulbs.
CAUTION
Never touch the glass of bulbs with your fin-
gers. Grease and oils from your fingers
vaporize in the heat and will leave a deposit
on the reflector, which will damage it.

09 Maintenance and specifications
Replacing bulbs09
331
NOTE
•Always switch off the ignition before
starting to replace a bulb.
•The optional Active Bending Light bulbs
contain trace amounts of mercury.
These bulbs should always be disposed
of by a trained and qualified Volvo serv-
ice technician.
Removing the headlight housing1. Switch off the ignition by briefly pressing
the START/STOP ENGINE button.
2. Remove the remote key from the ignition
slot
1.
3. (Upper illustration under "Headlight hous-
ing")
Withdraw the headlight housing's lock-
ing pins.
Pull the headlight housing straight out.
CAUTION
When disconnecting the connector, pull on
the connector itself and not on the wiring.
4. (Lower illustration under "Headlight hous-
ing")
Unplug the wiring connector by holding
down the clip with your thumb.
Pull out the connector with the other
hand.
5. Lift out the housing and place it on a soft
surface to avoid scratching the lens.
6. Replace the defective bulb(s).
Reinserting the headlight housing1. Plug in the connector until it clicks into
place.
2. Reinstall the headlight housing and locking
pins. Check that they are correctly
inserted. The headlight housing must be
properly inserted and secured in place
before the lighting is switched on or the
remote key is inserted into the ignition slot.
3. Check that the lights function properly.
Removing the cover to access the
bulbs
G021745
NOTE
Before starting to replace a bulb, see
page 330.
1. Open the retaining clamp by pressing it to
the side.
2. Press down the clips on the upper edge of
the cover and remove it.
Reinstall the cover in the reverse order.
1Does not apply to vehicles with the optional keyless drive.

09 Maintenance and specifications
Replacing bulbs 09
332

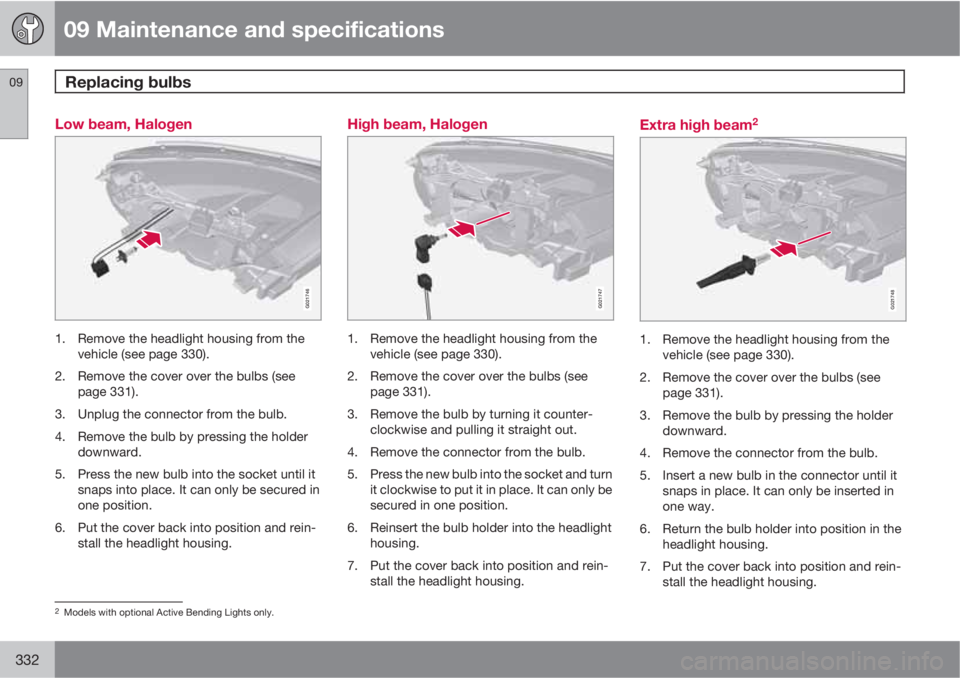

Low beam, Halogen
G021746
1. Remove the headlight housing from the
vehicle (see page 330).
2. Remove the cover over the bulbs (see
page 331).
3. Unplug the connector from the bulb.
4. Remove the bulb by pressing the holder
downward.
5. Press the new bulb into the socket until it
snaps into place. It can only be secured in
one position.
6. Put the cover back into position and rein-
stall the headlight housing.
High beam, Halogen
G021747
1. Remove the headlight housing from the
vehicle (see page 330).
2. Remove the cover over the bulbs (see
page 331).
3. Remove the bulb by turning it counter-
clockwise and pulling it straight out.
4. Remove the connector from the bulb.
5. Press the new bulb into the socket and turn
it clockwise to put it in place. It can only be
secured in one position.
6. Reinsert the bulb holder into the headlight
housing.
7. Put the cover back into position and rein-
stall the headlight housing.
Extra high beam2
G021748
1. Remove the headlight housing from the
vehicle (see page 330).
2. Remove the cover over the bulbs (see
page 331).
3. Remove the bulb by pressing the holder
downward.
4. Remove the connector from the bulb.
5. Insert a new bulb in the connector until it
snaps in place. It can only be inserted in
one way.
6. Return the bulb holder into position in the
headlight housing.
7. Put the cover back into position and rein-
stall the headlight housing.
2Models with optional Active Bending Lights only.

09 Maintenance and specifications
Replacing bulbs09

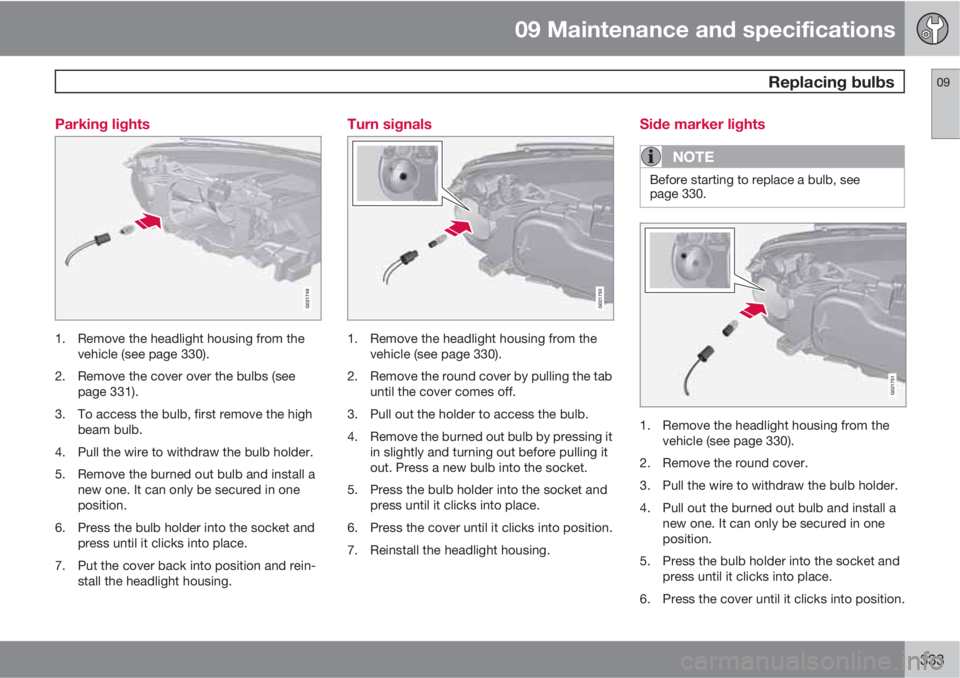

333 Parking lights
G021749
1. Remove the headlight housing from the
vehicle (see page 330).
2. Remove the cover over the bulbs (see
page 331).
3. To access the bulb, first remove the high
beam bulb.
4. Pull the wire to withdraw the bulb holder.
5. Remove the burned out bulb and install a
new one. It can only be secured in one
position.
6. Press the bulb holder into the socket and
press until it clicks into place.
7. Put the cover back into position and rein-
stall the headlight housing.
Turn signals
G021750
1. Remove the headlight housing from the
vehicle (see page 330).
2. Remove the round cover by pulling the tab
until the cover comes off.
3. Pull out the holder to access the bulb.
4. Remove the burned out bulb by pressing it
in slightly and turning out before pulling it
out. Press a new bulb into the socket.
5. Press the bulb holder into the socket and
press until it clicks into place.
6. Press the cover until it clicks into position.
7. Reinstall the headlight housing.
Side marker lights
NOTE
Before starting to replace a bulb, see
page 330.
G021751
1. Remove the headlight housing from the
vehicle (see page 330).
2. Remove the round cover.
3. Pull the wire to withdraw the bulb holder.
4. Pull out the burned out bulb and install a
new one. It can only be secured in one
position.
5. Press the bulb holder into the socket and
press until it clicks into place.
6. Press the cover until it clicks into position.

09 Maintenance and specifications
Replacing bulbs 09
334

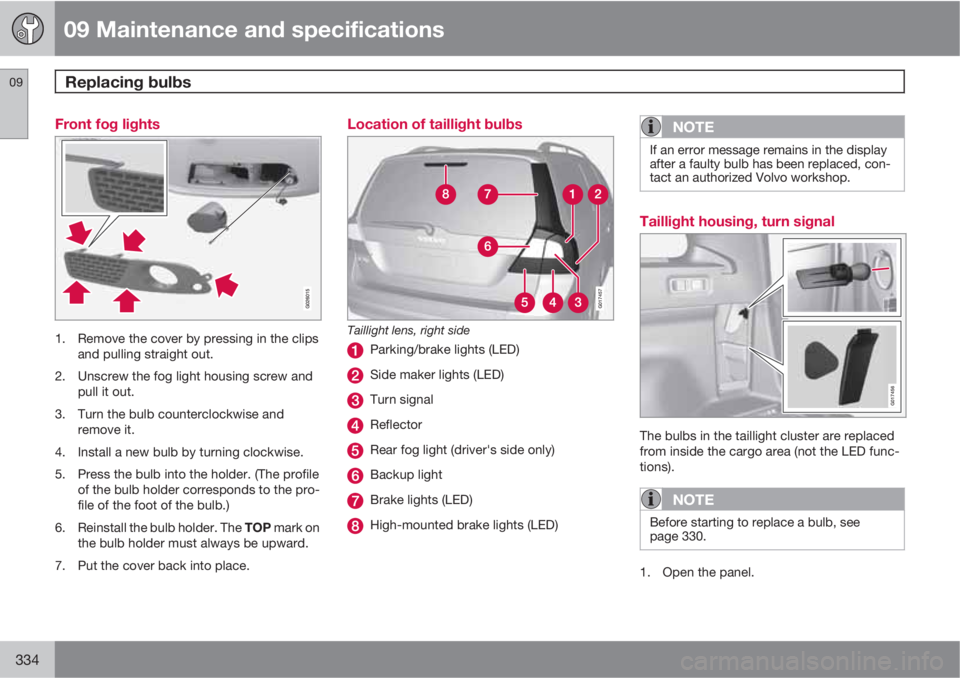

Front fog lights
1. Remove the cover by pressing in the clips
and pulling straight out.
2. Unscrew the fog light housing screw and
pull it out.
3. Turn the bulb counterclockwise and
remove it.
4. Install a new bulb by turning clockwise.
5. Press the bulb into the holder. (The profile
of the bulb holder corresponds to the pro-
file of the foot of the bulb.)
6.
Reinstall the bulb holder. The TOP mark on
the bulb holder must always be upward.
7. Put the cover back into place.
Location of taillight bulbs
G017457
Taillight lens, right side
Parking/brake lights (LED)
Side maker lights (LED)
Turn signal
Reflector
Rear fog light (driver's side only)
Backup light
Brake lights (LED)
High-mounted brake lights (LED)
NOTE
If an error message remains in the display
after a faulty bulb has been replaced, con-
tact an authorized Volvo workshop.
Taillight housing, turn signal
G017456
The bulbs in the taillight cluster are replaced
from inside the cargo area (not the LED func-
tions).
NOTE
Before starting to replace a bulb, see
page 330.
1. Open the panel.

09 Maintenance and specifications
Replacing bulbs09
335
2. Remove the insulation by pulling it straight
out.
3. Remove the entire bulb unit by turning its
handle counterclockwise.
4. Remove the bulb by pulling it straight out.
Replace the bulb in the reverse order.

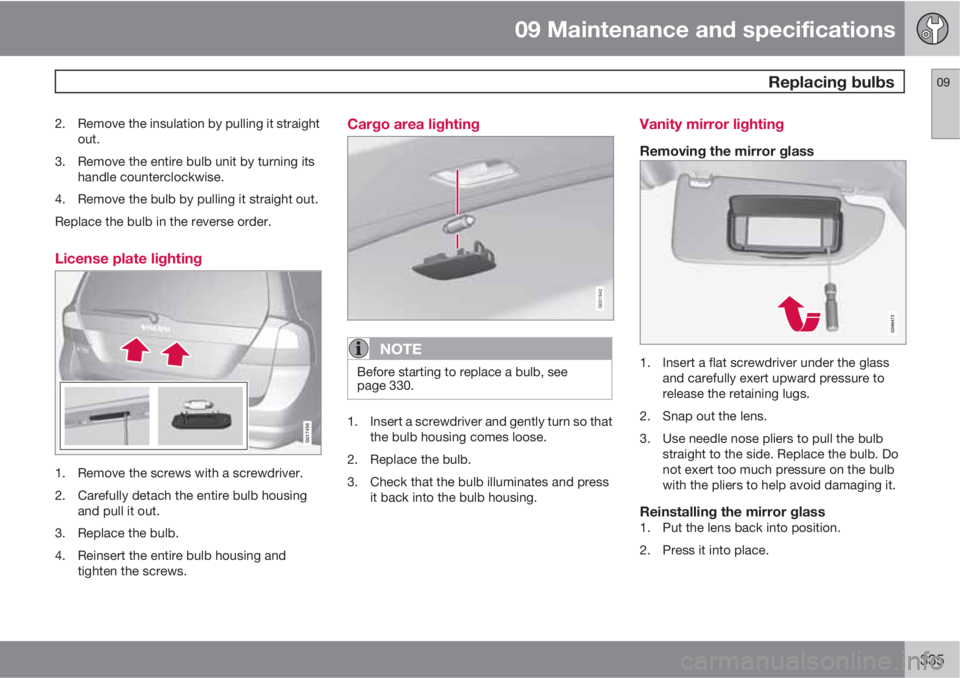

License plate lighting
G017458
1. Remove the screws with a screwdriver.
2. Carefully detach the entire bulb housing
and pull it out.
3. Replace the bulb.
4. Reinsert the entire bulb housing and
tighten the screws.
Cargo area lighting
G031942
NOTE
Before starting to replace a bulb, see
page 330.
1. Insert a screwdriver and gently turn so that
the bulb housing comes loose.
2. Replace the bulb.
3. Check that the bulb illuminates and press
it back into the bulb housing.
Vanity mirror lighting
Removing the mirror glass
1. Insert a flat screwdriver under the glass
and carefully exert upward pressure to
release the retaining lugs.
2. Snap out the lens.
3. Use needle nose pliers to pull the bulb
straight to the side. Replace the bulb. Do
not exert too much pressure on the bulb
with the pliers to help avoid damaging it.
Reinstalling the mirror glass1. Put the lens back into position.
2. Press it into place.

09 Maintenance and specifications
Replacing bulbs 09
336* Option/accessory, for more information, see Introduction.

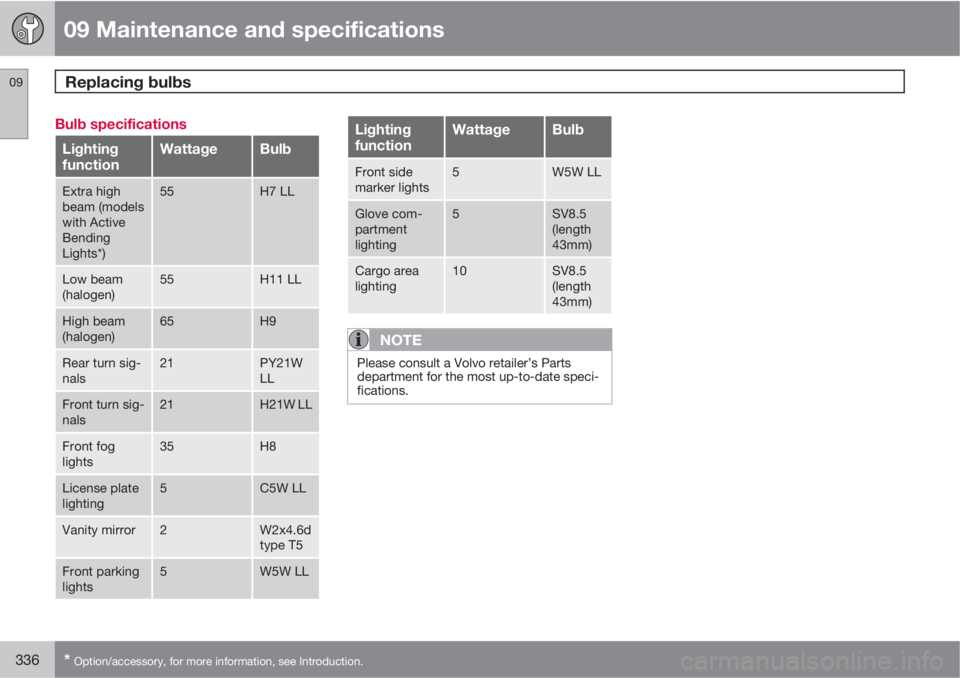

Bulb specifications
Lighting
functionWattageBulb
Extra high
beam (models
with Active
Bending
Lights*)55H7 LL
Low beam
(halogen)55H11 LL
High beam
(halogen)65H9
Rear turn sig-
nals21PY21W
LL
Front turn sig-
nals21H21W LL
Front fog
lights35H8
License plate
lighting5C5W LL
Vanity mirror2W2x4.6d
type T5
Front parking
lights5W5W LL
Lighting
functionWattageBulb
Front side
marker lights5W5W LL
Glove com-
partment
lighting5SV8.5
(length
43mm)
Cargo area
lighting10SV8.5
(length
43mm)
NOTE
Please consult a Volvo retailer’s Parts
department for the most up-to-date speci-
fications.

09 Maintenance and specifications
Wiper blades and washer fluid09

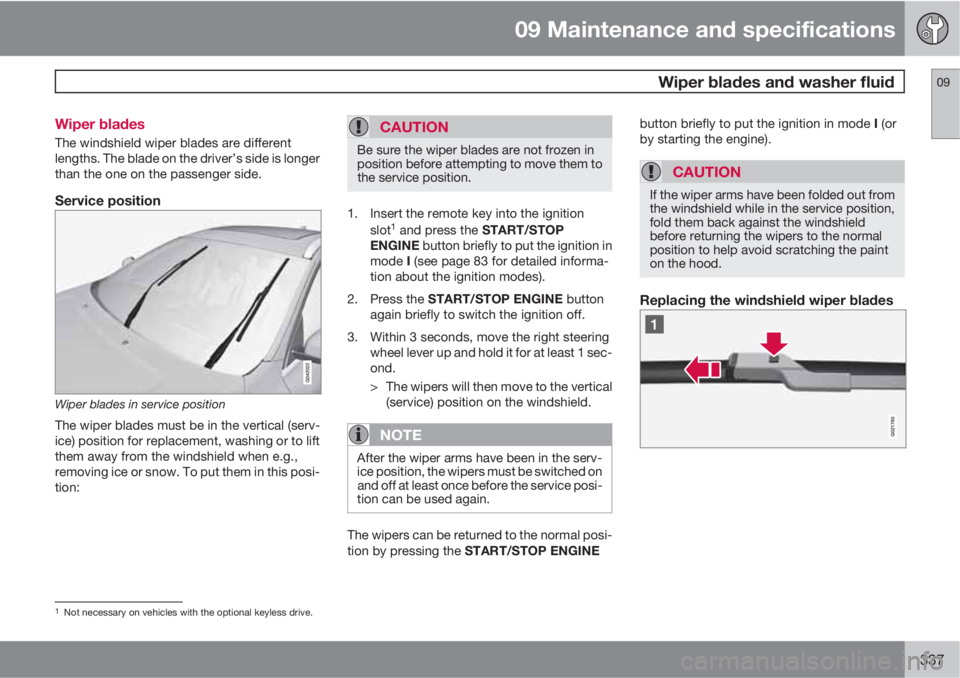

337 Wiper blades
The windshield wiper blades are different
lengths. The blade on the driver’s side is longer
than the one on the passenger side.
Service position
Wiper blades in service position
The wiper blades must be in the vertical (serv-
ice) position for replacement, washing or to lift
them away from the windshield when e.g.,
removing ice or snow. To put them in this posi-
tion:
CAUTION
Be sure the wiper blades are not frozen in
position before attempting to move them to
the service position.
1. Insert the remote key into the ignition
slot1 and press the START/STOP
ENGINE button briefly to put the ignition in
mode I (see page 83 for detailed informa-
tion about the ignition modes).
2.
Press the START/STOP ENGINE button
again briefly to switch the ignition off.
3. Within 3 seconds, move the right steering
wheel lever up and hold it for at least 1 sec-
ond.
> The wipers will then move to the vertical
(service) position on the windshield.
NOTE
After the wiper arms have been in the serv-
ice position, the wipers must be switched on
and off at least once before the service posi-
tion can be used again.
The wipers can be returned to the normal posi-
tion by pressing the START/STOP ENGINEbutton briefly to put the ignition in mode I (or
by starting the engine).
CAUTION
If the wiper arms have been folded out from
the windshield while in the service position,
fold them back against the windshield
before returning the wipers to the normal
position to help avoid scratching the paint
on the hood.
Replacing the windshield wiper blades
1Not necessary on vehicles with the optional keyless drive.

09 Maintenance and specifications
Wiper blades and washer fluid 09
338
With the wipers in the service position, fold
out the wiper arm from the windshield.
Press the button on the wiper blade attach-
ment and pull the wiper blade straight out,
parallel with the wiper arm.
Slide in the new wiper blade until it clicks
into place.
Check that the blade is securely in place.
4. Press the wipers back against the wind-
shield.To return the wipers from the service position
to the normal position, fold the wipers back
against the windshield and press the START/
STOP ENGINE button briefly to put the ignition
in mode I (or start the engine).
CleaningKeeping the windshield and wiper blades clean
helps improve visibility and prolongs the serv-
ice life of the wiper blades. Clean the wiper
blades with a stiff-bristle brush and lukewarm
soap solution or car washing detergent.
Replacing the tailgate wiper blade
G032770
1. Fold the wiper arm outward.
2. Grasp the inner section of wiper blade (at
the arrow).3. Pull out the blade to release it from the
wiper arm.
4. Press the new wiper blade into place and
check that it seats securely.
5. Fold the wiper arm back toward the tailgate
window.
Filling washer fluid
G021764
Location of the washer fluid reservoir
The windshield and headlight washers share a
common reservoir.
The washer fluid reservoir is located on the
driver's side of the engine compartment. Dur-
ing cold weather, the reservoir should be filled
with windshield washer solvent containing
antifreeze. For capacities, see page 364.
