03 Your driving environment
Instruments and controls
03

* Option/accessory, for more information, see Introduction.75
FunctionPage
Menus and mes-
sages, turn signals,
high/low beams,
trip computer189, 97,
92, 204
Cruise control136
Horn, airbag91, 22
Main instrument
panel75
Audio system/Blue-
tooth hands-free
controls214, 243
START/STOP
ENGINE button82
Ignition slot82
Hazard warning
flashers97
Door handle–
FunctionPage
In-door control pan-
els (power win-
dows, mirrors,
power child safety
locks, central lock-
ing button)103, 105,
51, 66
Menu controls, info-
tainment and cli-
mate control sys-
tems189, 214,
198
Center console but-
tons189
Gear selector118
Controls for active
chassis (Four-C)*206
Wipers and washers100, 101
Steering wheel
adjustment91
Parking brake124
Hood opening con-
trol325
FunctionPage
Power seat* adjust-
ment controls84
Lighting panel, but-
tons for opening
fuel filler door and
unlocking the tail-
gate92, 273,
67
Information displays
Information displays in the instrument panel
The information displays show information on
some of the vehicle's functions, such as cruise
control, the trip computer and messages. The
information is shown with text and symbols.

03 Your driving environment
Seats
03
85
Power seat1
Power seat adjustment controls
Front edge of seat cushion up/down
Seat forward/rearward and up/down
Backrest tilt
OperationThe seats can be adjusted for a short period
after unlocking the door with the remote con-
trol without the key in the ignition slot. Seat
adjustment is normally made when the ignition
is on and can always be made when the engine
is running.
NOTE
•Only one of the power seat's controls
can be used at the same time.
•The power seats have an overload pro-
tector that activates if a seat is blocked
by any object. If this occurs, switch off
the ignition (key in position 0) and wait
for a short period before operating the
seat again.
Power seat memory function
Power seat memory buttons
Button for storing a position
Button for storing a position
Button for storing a position
M (memory) button
Programming the seat's memoryThree different seating and door mirror posi-
tions can be stored in the driver seat's memory.
The following example explains how button (1)
can be programmed. Buttons (2) and (3) are
programmed in the same way.
To program (store) a seat and door mirror posi-
tion in button (1):
1. Move the seat (and door mirrors) to the
desired positions using the seat and mirror
adjustment controls.
2.
Press and hold down the M (memory) but-
ton (4).
3. With the memory button depressed, press
button (1) briefly to store the current posi-
tion for the seat/mirrors.
To move the seat and mirrors to the position
that they were in when a button was pro-
grammed:
–Press and hold down button (1) until the
seat and mirrors stop moving.
1Optional on certain models

03 Your driving environment
Seats
03
86* Option/accessory, for more information, see Introduction.
NOTE
As a safety precaution, the seat will stop
automatically if the button is released before
the seat has reached the preset position.
Remote key memory and the power
driver's seat* and door mirrors2
Each remote key has a feature that enables it
to store (remember) the position of the power
driver's seat and door mirrors when the vehicle
is locked with that remote key.
This feature has to be activated for each of the
remote keys used in the vehicle as follows:
1. Insert a remote key in the ignition slot.2.
Go into the MY CAR menu and go to
Settings
Car settingsCar key
memory
3. To activate the remote key memory fea-
ture, press ENTER (check the box).
> The remote key is now ready to store the
position of the power driver's seat and
door mirrors.
Repeat this procedure for each of the vehicle's
remote keys.
See page 189 for a description of the menu
system.
Storing the positions of the power
driver's seat/mirrors in the remote key
1. Move the seat and door mirrors to the
desired position using the seat and mirror
adjustment controls.
2. Exit the vehicle and lock the doors with the
remote key (or close the driver's door and
press the lock button on the door handle
with the remote key in your possession on
vehicles with the optional keyless drive).
> The positions of the power driver's seat
and door mirrors are now stored in the
remote key's memory.
NOTE
The remote key's memory feature and the
power driver's seat memory function (the
settings made using the buttons on the side
of the seat, see the section "Power seat
memory function" on page 85) work inde-
pendently of each other.
Returning the seat/mirrors to the stored
positions
To move the seat and door mirrors to the posi-
tion stored in the remote key:
1.
Unlock the driver's door with the same
remote key (the one used to lock the
doors). For models equipped with the
optional keyless drive, you must have the
same remote key in your possession.
2. Open the driver's door within 2 minutes.
The driver's seat and door mirrors will auto-
matically move to the position in which you left
them (if the vehicle has been unlocked with one
of the other keys and new seat/mirror adjust-
ments have been made).
2This information also applies to vehicles with the optional keyless drive.

03 Your driving environment
Mirrors
03
* Option/accessory, for more information, see Introduction.105 Power door mirrors
Door mirror controls
Adjusting1.
Press the L button for the left door mirror
or the R button for the right door mirror.
The light in the button comes on.
2. Adjust the position with the joystick in the
center.
3.
Press the L or R button again. The light
should no longer be on.
WARNING
Objects seen in the mirrors may appear fur-
ther away than they actually are.
Retractable power door mirrors*The mirrors can be retracted for parking/driving
in narrow spaces:
1.
Press down the L and R buttons at the
same time.
2. Release them after approximately one sec-
ond. The mirrors automatically stop in the
fully retracted position.
Fold out the mirrors by pressing down the L
and R buttons at the same time. The mirrors
automatically stop in the fully extended posi-
tion.
Storing the position*The mirror positions are stored in the key mem-
ory when the vehicle has been locked with the
remote key. When the vehicle is unlocked with
the same remote control the mirrors and the
driver's seat adopt the stored positions when
the driver's door is opened.
The function can be activated/deactivated in
MY CAR under Settings
Car settings
Car key memoryPersonal settings in key
memory. See page 189 for a description of the
menu system.
Tilting the door mirrors when parking*The door mirrors can be tilted down to help
give the driver a better view along the sides of
the vehicle, for example when parallel parking.To activate this function, select reverse gear
and press the L or R mirror control button to tilt
the mirror down.
The function can be activated/deactivated in
MY CAR under Settings
Car settings
Side mirror settingsTilt left mirror or Tilt
right mirror
. See page 189 for a description
of the menu system.
The door mirror will reset to its normal position:
•after 10 seconds when reverse is disen-
gaged and the car remains stopped.
•immediately when reverse is disengaged
and the vehicle's forward speed exceeds
approximately 6 mph (10 km/h).
•immediately if you press the correspond-
ing L or R button again.
•when the engine is turned off.
•when the side mirrors are folded in.
NOTE
Only one mirror can be tilted down at a time.
Automatically tilting the door mirrors
when parking
The door mirrors can tilt down automatically to
help give the driver a better view along the
sides of the vehicle, for example when parallel
parking. When the transmission is no longer in

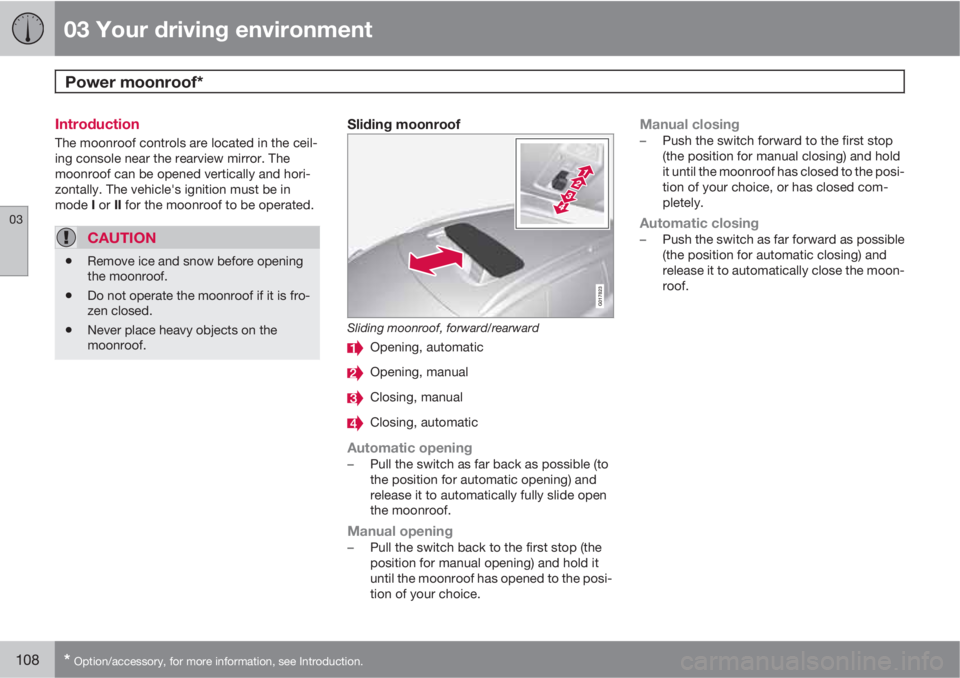

03 Your driving environment
Power moonroof*
03
108* Option/accessory, for more information, see Introduction.
Introduction
The moonroof controls are located in the ceil-
ing console near the rearview mirror. The
moonroof can be opened vertically and hori-
zontally. The vehicle's ignition must be in
mode I or II for the moonroof to be operated.
CAUTION
•Remove ice and snow before opening
the moonroof.
•Do not operate the moonroof if it is fro-
zen closed.
•Never place heavy objects on the
moonroof.
Sliding moonroof
G017823
Sliding moonroof, forward/rearward
Opening, automatic
Opening, manual
Closing, manual
Closing, automatic
Automatic opening–Pull the switch as far back as possible (to
the position for automatic opening) and
release it to automatically fully slide open
the moonroof.
Manual opening–Pull the switch back to the first stop (the
position for manual opening) and hold it
until the moonroof has opened to the posi-
tion of your choice.
Manual closing–Push the switch forward to the first stop
(the position for manual closing) and hold
it until the moonroof has closed to the posi-
tion of your choice, or has closed com-
pletely.
Automatic closing–Push the switch as far forward as possible
(the position for automatic closing) and
release it to automatically close the moon-
roof.

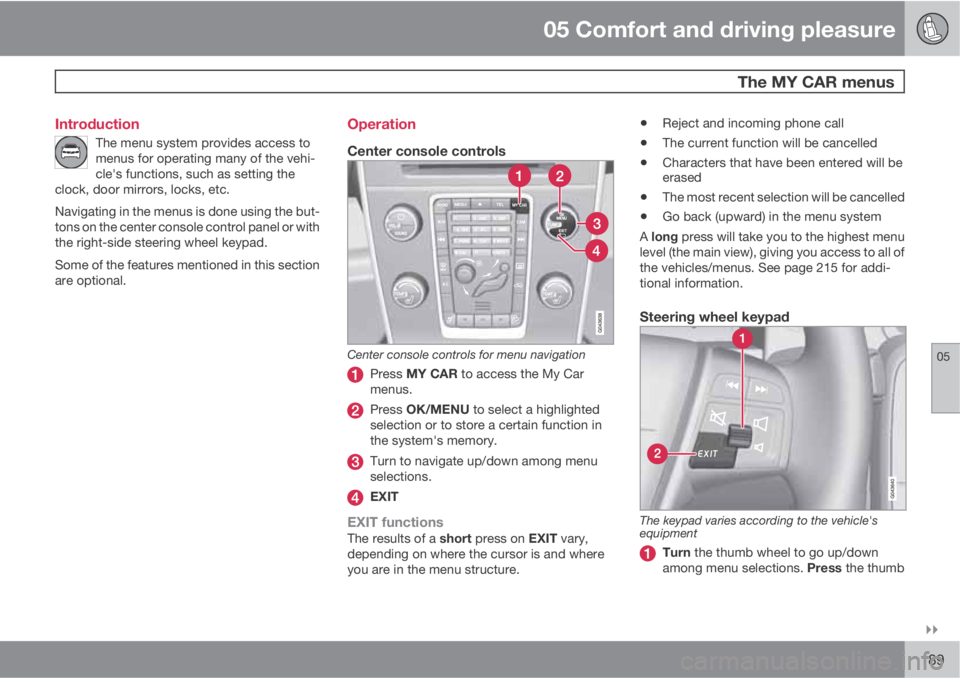

05 Comfort and driving pleasure
The MY CAR menus
05

189 Introduction
The menu system provides access to
menus for operating many of the vehi-
cle's functions, such as setting the
clock, door mirrors, locks, etc.
Navigating in the menus is done using the but-
tons on the center console control panel or with
the right-side steering wheel keypad.
Some of the features mentioned in this section
are optional.
Operation
Center console controls
Center console controls for menu navigation
Press MY CAR to access the My Car
menus.
Press OK/MENU to select a highlighted
selection or to store a certain function in
the system's memory.
Turn to navigate up/down among menu
selections.
EXIT
EXIT functionsThe results of a short press on EXIT vary,
depending on where the cursor is and where
you are in the menu structure.
•Reject and incoming phone call
•The current function will be cancelled
•Characters that have been entered will be
erased
•The most recent selection will be cancelled
•Go back (upward) in the menu system
A long press will take you to the highest menu
level (the main view), giving you access to all of
the vehicles/menus. See page 215 for addi-
tional information.
Steering wheel keypad
The keypad varies according to the vehicle's
equipment
Turn the thumb wheel to go up/down
among menu selections. Press the thumb

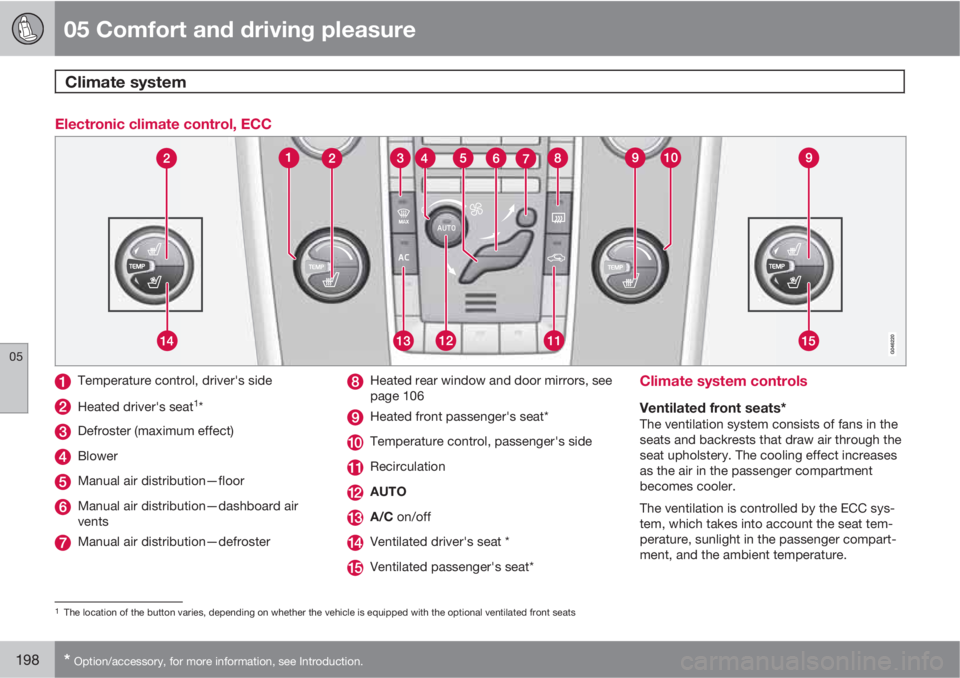

05 Comfort and driving pleasure
Climate system
05
198* Option/accessory, for more information, see Introduction.
Electronic climate control, ECC
Temperature control, driver's side
Heated driver's seat1*
Defroster (maximum effect)
Blower
Manual air distribution—floor
Manual air distribution—dashboard air
vents
Manual air distribution—defroster
Heated rear window and door mirrors, see
page 106
Heated front passenger's seat*
Temperature control, passenger's side
Recirculation
AUTO
A/C on/off
Ventilated driver's seat *
Ventilated passenger's seat*
Climate system controls
Ventilated front seats*The ventilation system consists of fans in the
seats and backrests that draw air through the
seat upholstery. The cooling effect increases
as the air in the passenger compartment
becomes cooler.
The ventilation is controlled by the ECC sys-
tem, which takes into account the seat tem-
perature, sunlight in the passenger compart-
ment, and the ambient temperature.
1The location of the button varies, depending on whether the vehicle is equipped with the optional ventilated front seats

11 Index
11
371
Hill Descent Control............................ 127
warning light......................................... 78
Bulbs
cargo area lighting.............................. 335
headlights...........................330, 331, 332
introduction......................................... 330
license plate lights.............................. 335
side marker lights...............................333
specifications...................................... 336
taillight................................................ 334
C
Camera, Park Assist................................ 176
Capacity weight....................................... 303
Cargo area
changing bulbs................................... 335
floor rails............................................. 278
hooks for securing loads............278, 279
steel grid............................................. 281
Cargo area cover..................................... 282
Cargo area net......................................... 282
Catalytic converter................................... 274
Cell phone, hands-free connection......... 243
Cell phone voice control.......................... 251Central locking system, introduction......... 54
Chains...................................................... 306
Check engine light..................................... 76
Check Engine warning light....................... 77
Child restraints
recalls and registration......................... 38
Child restraint systems.............................. 39
booster cushions.................................. 45
convertible seats.................................. 43
infant seats........................................... 41
ISOFIX/LATCH anchors........................ 46
top tether anchors................................ 47
Child safety................................................ 36
booster cushions.................................. 45
child restraint systems.......................... 39
convertible seats.................................. 43
infant seats........................................... 41
Child safety locks...................................... 51
City Safety™............................................ 152
Climate system........................................ 201
air distribution............................. 196, 202
air vents.............................................. 197
Interior Air Quality System.................. 196
introduction......................................... 195
passenger compartment filter............ 195
refrigerant........................................... 195Clock, setting............................................. 80
Cold weather driving................................ 270
Collision warning system.................158, 159
Compass in rearview mirror..................... 107
Conserving electrical current................... 269
Controls, center console.......................... 215
Convertible seats....................................... 43
Coolant............................................328, 364
Cooling system, general information....... 269
Courtesy lighting.................................. 98, 99
Crash event data......................................... 9
Crash mode............................................... 35
Cruise control..................................136, 137
adaptive.............................................. 138
Curb weight............................................. 303
Current, conserving................................. 269
D
Defroster.................................................. 201
Detachable key blade..........................59, 62
Dimensions
XC70................................................... 360
