VOLVO XC90 2003 Owners Manual

2003 VOLVO XC90
Pull out the cargo area cover and hook it in the holes in the rear cargo\
area pillars (see illustration above).
Removing the cargo area cover:
Press the end pieces of the cover inward. Pull up and lift out.
Grocery bag holder (five-seat models only)
1. Fold down the lower section of the tailgate.
2. Fold up the rear section of the cargo compartment floor.
3. Hang or secure your grocery bags by means of the straps or holders.
pg. 71 Interior
Compartments under the cargo area floor - five-seat models
Fold up the rear section of the cargo area floor and lift out the recess\
ed cover to access these compartments.
If the vehicle is equipped with the optional grocery bag holder:
Fold up the rear section of the cargo area floor, disconnect the grocery\
bag holder's retaining cords and lift out the grocery
bag holder.
The following items are stored under the cargo area floor:
1. Tool bag (including the crank for the jack)
2. Jack
file:///K|/ownersdocs/2003/2003_XC90/03xc90_04b.htm (9 of 10)12/30/200\
6 4:18:55 PM

2003 VOLVO XC90
Compartments under the cargo area floor - seven-seat models
Fold up the rear section of the cargo area floor to access these compart\
ments.
If the vehicle is equipped with the optional grocery bag holder:
Fold up the rear section of the cargo area floor, disconnect the grocery\
bag holder's retaining cords and fold up the lower
section of the floor.
The following items are stored under the cargo area floor:
1. Tool bag (including the crank for the jack)
2. Jack CAUTION
Do not store objects in the area for the rear seat cushions (when the b\
ackrests are to be folded down). This could damage
the cushions.
pg. 72 Interior
This page intentionally left blank




Contents | Top of Page
file:///K|/ownersdocs/2003/2003_XC90/03xc90_04b.htm (10 of 10)12/30/20\
06 4:18:55 PM

2003 VOLVO XC90
2 0 0 3
VOLVO XC90

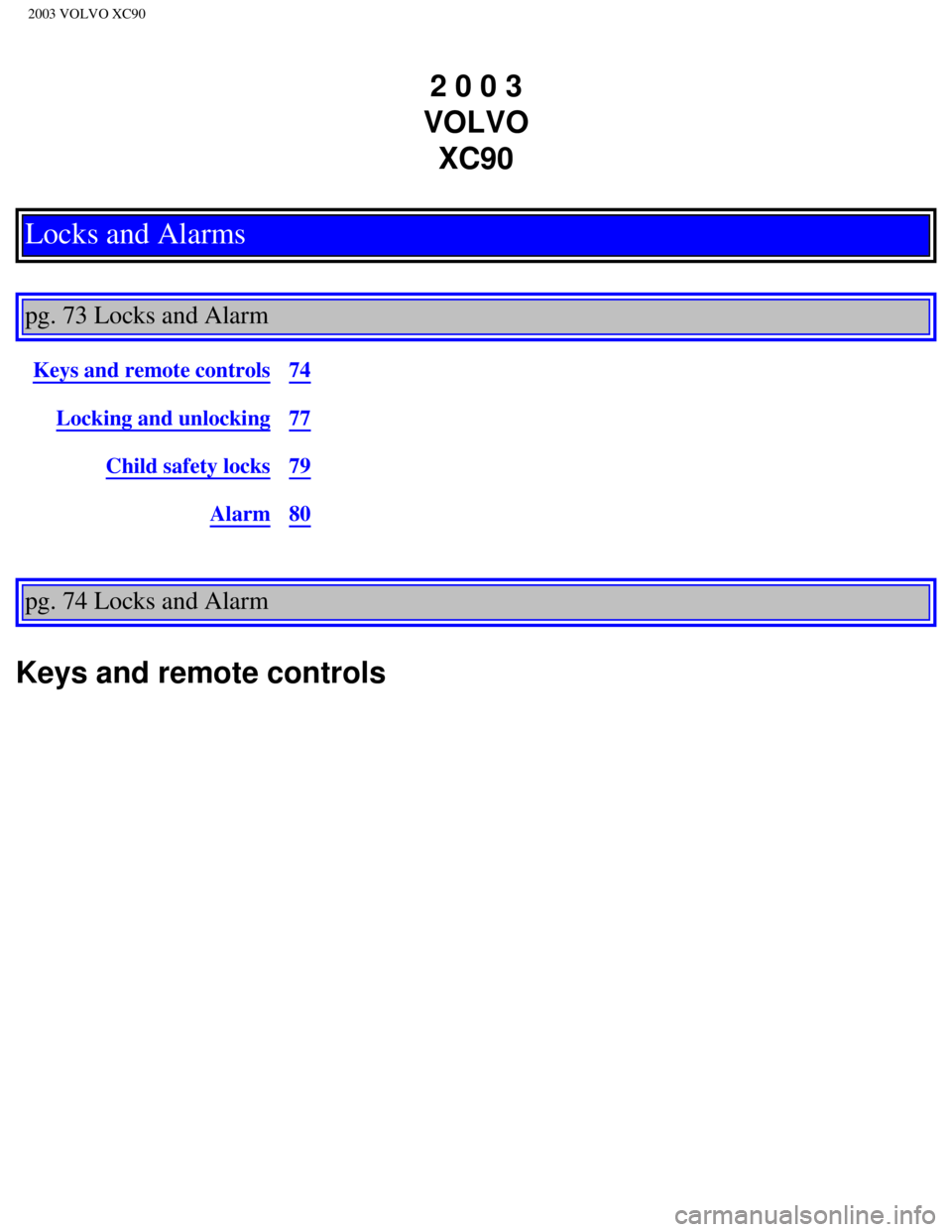

Locks and Alarms

pg. 73 Locks and Alarm
Keys and remote controls74
Locking and unlocking77
Child safety locks79
Alarm80
pg. 74 Locks and Alarm
Keys and remote controls
file:///K|/ownersdocs/2003/2003_XC90/03xc90_05.htm (1 of 11)12/30/2006\
4:18:56 PM

2003 VOLVO XC90
Keys
Two keys are provided with your vehicle; a master key and a service (va\
let) key. The master key, the
remote control, and the central locking button may all be used to lock a\
nd unlock all of your vehicle's
locks.
The service key will operate only the driver's door and the ignition swi\
tch. It is intended to help deter
unwanted entry into the glove compartment and tailgate.
To use your keys:
l Turn the key once to unlock the driver's door only.
l Turn the key again (within 10 seconds) to unlock all doors and the tai\
lgate.
l One turn with the key towards lock in the drivers door locks all doors, \
tailgate.
l Use the switch on the driver's door armrest to lock/unlock the vehicle f\
rom the inside.
file:///K|/ownersdocs/2003/2003_XC90/03xc90_05.htm (2 of 11)12/30/2006\
4:18:56 PM

2003 VOLVO XC90
WARNING!
If the doors are locked while driving, this may hinder rapid access to t\
he occupants of the vehicle in
the event of an accident. (Also see information on "Child safety locks"\
).
NOTE: To help prevent accidentally locking the keys in the vehicle, the centra\
l locking system is
designed to unlock the doors immediately if the key is left in the ignit\
ion switch, the vehicle is locked
using the lock button on the door and the door is then closed. A sound f\
rom the lock will be audible at
this time.
Please note that this function will not unlock the doors if the engine i\
s running.
Immobilizer (start inhibitor)
Each of the keys supplied with your vehicle contains a coded transmitter\
. The code in the key is
transmitted to an antenna in the ignition switch where it is compared to\
the code stored in the start
inhibitor module. The vehicle will start only with a properly coded key.\
If you misplace a key, take the
other keys to an authorized Volvo retailer for reprogramming as an antit\
heft measure.
NOTE: If two of the keys to your vehicle are close together, e.g., on the same\
key ring, when you try to
start the vehicle, this could cause interference in the immobilizer syst\
em and result in the vehicle not
starting. If this should occur, remove one of the keys from the key ring\
before trying to start the vehicle
again.
This device complies with part 15 of the FCC rules. Operation is subject\
to the following condition: (1)
This device may not cause harmful interference, and (2) this device mu\
st accept any interference
received, including interference that may cause undesired operation.
pg. 75 Locks and Alarm
file:///K|/ownersdocs/2003/2003_XC90/03xc90_05.htm (3 of 11)12/30/2006\
4:18:56 PM

2003 VOLVO XC90
Remote controls
Your vehicle is equipped with a remote control transmitter. This transmi\
tter uses a radio signal to allow
"keyless" entry into the passenger compartment or the tailgate. You will\
be supplied with two coded key
ring transmitters, which will enable you to lock/unlock all doors and th\
e tailgate from a distance of 10-
15 feet (3- 5 meters).
On vehicles equipped with an alarm, the alarm will also be activated/dea\
ctivated by this system.
The vehicle can also be locked/unlocked with the key.

Buttons in remote control:
1-Lock, 2-Unlock, 3-Unlock tailgate,
4-"Panic" function,*, 5-Approach lighting
As an extra security precaution in certain situations (valet parking, e\
tc.), Volvo recommends that the
transmitter not be included when the keys are given to anyone. The servi\
ce key can be used instead. If
one of the transmitters is misplaced, contact the nearest authorized Vol\
vo retailer for assistance.
Using the remote control
l Press the LOCK button once to lock all doors and tailgate.
l Press the UNLOCK button once to unlock the driver's door and fuel filler\
door. Wait for at least 1
second and press this button again (within 10 seconds) to unlock all d\
oors and the tailgate.
l To unlock the tailgate (without unlocking the doors), press the Unlock\
tailgate button twice within 3
seconds.
NOTE:
l Airbag deployment will automatically unlock the doors.
l The keys may also be used to lock and unlock the doors, and to activate \
and deactivate the alarm
system.
l To avoid leaving your keys in the vehicle, make a habit of always lockin\
g the vehicle with the remote
control.
file:///K|/ownersdocs/2003/2003_XC90/03xc90_05.htm (4 of 11)12/30/2006\
4:18:56 PM

2003 VOLVO XC90
Automatic re-locking
If the doors are unlocked, the locks will automatically reengage (re-lo\
ck) and the alarm will rearm after
2 minutes unless a door or the tailgate has been opened.
* See
page 80 for more information on this function.
pg. 76 Locks and Alarm
l FCC ID:LQNP2T-APU This device complies with part 15 of the FCC rules. Op\
eration is subject to
the following conditions: (1) This device may not cause harmful interf\
erence, and (2) this device must
accept any interference received, including interference that may cause \
undesired operation.
l Canadian 2306104388 Model 504 2927 by Donnelly Operation is subject to t\
he following conditions:
(1) this device may not cause interference, and (2) this device must\
accept any interference, including
interference that may cause undesired operation of the device.
l Canadian 2306104388A Model 509 977 by Connaught Electronics Operation is\
subject to the
following conditions: (1) this device may not cause interference, and \
(2) this device must accept any
interference, including interference that may cause undesired operation \
of the device.
WARNING!
Never use the transmitter to lock the doors from inside the vehicle.
Doing so would ACTIVATE:
- the break-in alarm, which would sound if one of the doors were opened \
- the optional interior motion and inclination alarm sensors.
Doing so would DEACTIVATE:
- the moonroof and interior courtesy light controls.
- the central locking buttons on the front door armrests, although the i\
nterior door handles would still
function to allow occupants to leave the vehicle.
Disabled features would remain disabled until the remote were used again\
to unlock the vehicle.
In addition, locking an occupied vehicle would hinder rapid access to th\
e occupants in an accident or
emergency.
file:///K|/ownersdocs/2003/2003_XC90/03xc90_05.htm (5 of 11)12/30/2006\
4:18:56 PM

2003 VOLVO XC90
Replacing the battery in the remote control
If the range of the transmitter is noticeably reduced, this indicates th\
at the battery is weak and should be
replaced.
To replace the battery
l Remove the screw on the transmitter cover with a small screwdriver.
l Remove the cover carefully pressing it rearward/upward.
l Replace the battery with a new 3-volt, CR 2032 battery. The battery shou\
ld be inserted with the minus
side upward. Avoid touching the contact surfaces of the battery with you\
r fingers.
l Reinstall the cover and tighten the screw to help protect the transmitte\
r.
pg. 77 Locks and Alarm
Locking and unlocking
Locking and unlocking the vehicle from the inside
The switch on the driver's door armrest can be used to lock or unlock al\
l doors and the tailgate, and to
file:///K|/ownersdocs/2003/2003_XC90/03xc90_05.htm (6 of 11)12/30/2006\
4:18:56 PM

2003 VOLVO XC90
set the alarm.

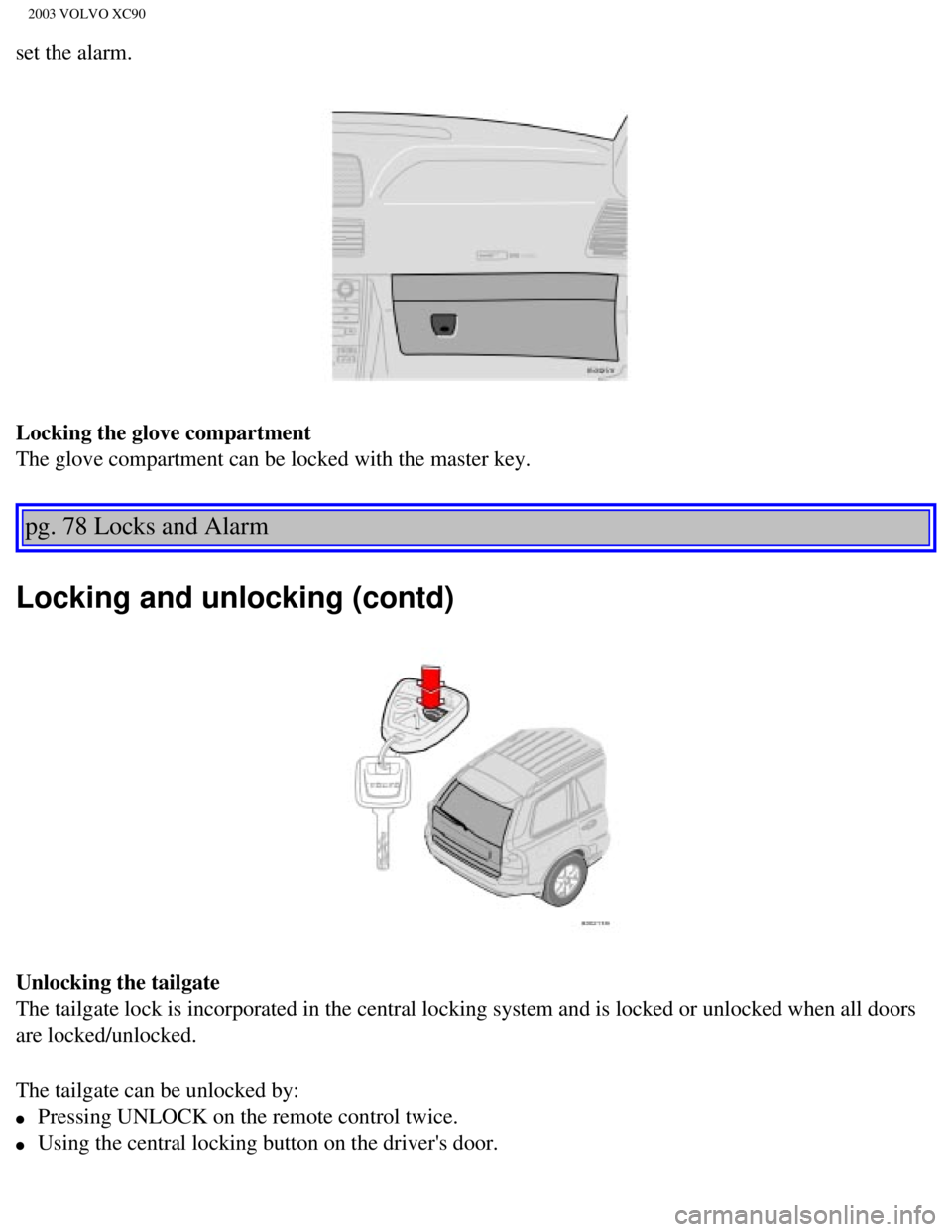

Locking the glove compartment
The glove compartment can be locked with the master key.
pg. 78 Locks and Alarm
Locking and unlocking (contd)
Unlocking the tailgate
The tailgate lock is incorporated in the central locking system and is l\
ocked or unlocked when all doors
are locked/unlocked.
The tailgate can be unlocked by:
l Pressing UNLOCK on the remote control twice.
l Using the central locking button on the driver's door.
file:///K|/ownersdocs/2003/2003_XC90/03xc90_05.htm (7 of 11)12/30/2006\
4:18:56 PM

2003 VOLVO XC90
l Pressing twice on the remote control's tailgate unlock button (see illustration above\
).
Automatic relocking:
l If you use the tailgate unlock button to unlock the tailgate without ope\
ning it, it will automatically
relock after approximately 2 minutes.
l However, if you open the tailgate and close it again, it will remain unl\
ocked and the alarm will not be
rearmed. Press the lock button on the remote control to relock the tailg\
ate and rearm the alarm.
pg. 79 Locks and Alarm
Child safety locks

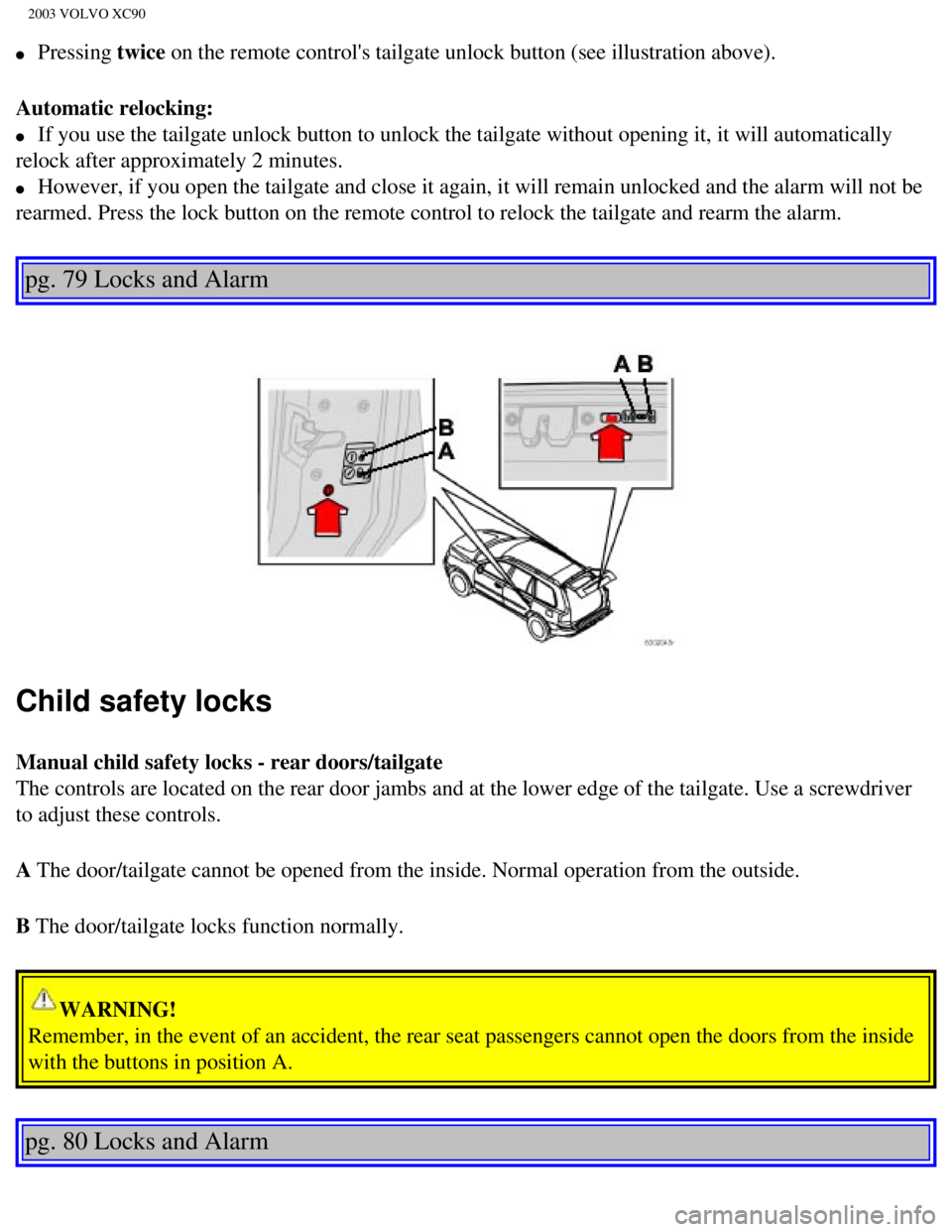

Manual child safety locks - rear doors/tailgate
The controls are located on the rear door jambs and at the lower edge of\
the tailgate. Use a screwdriver
to adjust these controls.
A The door/tailgate cannot be opened from the inside. Normal operation fr\
om the outside.
B The door/tailgate locks function normally.
WARNING!
Remember, in the event of an accident, the rear seat passengers cannot o\
pen the doors from the inside
with the buttons in position A.
pg. 80 Locks and Alarm
file:///K|/ownersdocs/2003/2003_XC90/03xc90_05.htm (8 of 11)12/30/2006\
4:18:56 PM
