center console VOLVO XC90 2004 Owners Manual

2004 VOLVO XC90
5. Temperature gauge 24
6. Odometer/Trip odometer/Cruise control indicator 24, 37
7. Speedometer iv
8. Turn signal indicator lights 24
9. Tachometer 24
10. Ambient temperature gauge, clock, gear indicator 24
11. Fuel gauge 24
12. Indicator and warning symbols 25
13. Panel vents 47
14. Glove compartment 65
15. Hazard warning flashers 35
16. Audio system 159
17. Switches in the center console 29
18. Climate system controls 48
19. Windshield wiper/washer lever 33
20. Audio control buttons in steering wheel 161
21. Instrument panel 24
22. Horn iv
23. Cruise control buttons in steering wheel 37
24. Turn signals, High/low beams 32
25. Front fog lights, Rear fog light 30
26. Parking brake pedal 38
27. Parking brake release handle 38
28. Button for unlocking fuel filler door 30
29. Reading lights 61
30. Courtesy light 61
31. Moonroof control (option) 43
32. Seat belt reminder 27
33. Rearview mirror 42
34. Central locking button 75
35. Lockout switch for rear seat power windows 41
36. Power window controls 40
37. Sideview mirror controls 42
WARNING!
If your vehicle is involved in an accident, unseen damage may affect you\
r vehicle's driveability and
safety.
Contents
file:///K|/ownersdocs/2004/2004_XC90/04xc90_00.htm (6 of 7)12/30/2006 \
4:35:10 PM

2004 VOLVO XC90
2 0 0 4
VOLVO XC90
Instruments and controls

pg. 23 Instruments and controls
Instrument panel24
Indicator and warning symbols25
Switches in center console29
Lighting panel30
Lighting panel, Manually unlocking the fuel filler door31
Turn signals, Steering wheel adjustment32
Windshield wipers33
Tailgate wiper/washer34
Hazard warning flashers, rear window/sideview mirror defroster, heated f\
ront seats35
Trip computer (option)36
Cruise control37
Parking brake, Opening/closing the hood38
Opening the tailgate, Auxiliary 12-volt sockets39
Electrically operated windows40
Rearview mirror/power folding sideview mirror42
Power moonroof (option)43
file:///K|/ownersdocs/2004/2004_XC90/04xc90_02a.htm (1 of 16)12/30/200\
6 4:35:14 PM

2004 VOLVO XC90
WARNING!
The If the fluid level is below the MIN mark in the reservoir or if a "B\
rake failure - Service urgent"
message is displayed in the text window: DO NOT DRIVE. Have the vehicle \
towed to an authorized
Volvo retailer and have the brake system inspected.
l If the brake fluid level is above the MIN mark, drive carefully to an au\
thorized Volvo retailer and
have the brake system inspected Volvo retailer and have the brake system\
inspected.
DSTC
The Dynamic Stability and Traction Control system (DSTC) is explained \
in greater detail on
pages 95
and 96. This system consists of several functions:
Risk for slippery conditions
If the warning light comes on and stays on, this indicates that traction\
with the road surface is reduced.
Drive with caution.
If this light flashes, it indicates that the DSTC system is working to restore traction to on\
e or more of the
wheels.
Reduced Stability Control
If the green indicator light in the DSTC button goes out, DSTC has reduc\
ed effect because the system
had been switched off with the button in the center console. The text DS\
TC SPIN CONTROL OFF will
be displayed in the text window.
Reduced anti-spin function
If the yellow indicator light comes on and remains on, DSTC's Stability \
Control function has been
switched off due to excessively high brake temperature. The text TRACTIO\
N CONTROL
TEMPORARILY OFF will be displayed in the text window.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_02a.htm (5 of 16)12/30/200\
6 4:35:14 PM

2004 VOLVO XC90
When a warning light in the instrument panel comes on, a message is also\
displayed in the text window.
After you have read the message, you can erase it by pressing button A (\
see illustration).
NOTE: Certain messages cannot be erased until the condition has been correcte\
d.
If a warning message is displayed when e.g. you are using the trip compu\
ter, this message must be
erased before you can access the function of your choice. Press button A\
to erase the warning message.
You can scroll through the stored messages by pressing button A (see il\
lustration). The text window can
be cleared (the message will be returned to memory) by pressing button\
A again. Message Meaning:
STOP SAFELY: Stop and switch off the engine - to help prevent serious risk of
damage.
STOP ENGINE: Stop and switch off the engine - to help prevent serious risk of
damage.
SERVICE URGENT: Take your vehicle to an authorized Volvo retailer for inspection as
soon as possible.
SEE MANUAL: Refer to your owner's manual. For additional information, please
contact your Volvo retailer.
SERVICE REQUIRED: Take your vehicle to an authorized Volvo retailer for inspection at
your convenience (but preferably before the next scheduled
maintenance).
FIX NEXT SERVICE: Have the system affected inspected at the next scheduled
maintenance.
TIME FOR REGULAR
SERVICE This light will come on at 7,500 mile (12,000 km) intervals, after
750 hours of driving or after 12 months, whichever occurs first, to
remind the driver that the maintenance interval has been exceeded.
The light will stay on for 2 minutes after start until reset by the
servicing retailer.
pg. 29 Instruments and controls
Switches in center console
file:///K|/ownersdocs/2004/2004_XC90/04xc90_02a.htm (8 of 16)12/30/200\
6 4:35:14 PM

2004 VOLVO XC90
Opening the tailgate
To open the upper section of the tailgate, pull the handle (A) downwar\
d.
To fold down the lower section of the tailgate, pull handle (B) upward\
.

12-volt socket at the rear of the center console
Auxiliary 12-volt sockets
These 12 volt sockets can be used to plug in certain accessories such as\
cellular telephones, etc.
12-volt socket in the cargo compartment
Fold down the lid to use the socket.
NOTE!
l If the 12-volt sockets are used while the engine is not running, there i\
s a risk that the vehicle's battery
will be discharged.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_02b.htm (8 of 16)12/30/200\
6 4:35:15 PM

2004 VOLVO XC90
pg. 58 Interior
Rear seats
Entering the optional third row of seats
Tilting the outboard backrests in the second row of the seats:
Pull up the handle (1), hold it up, and tilt the backrest forward to m\
ove the seat.
Return the backrest to the upright position to slide the seat back to it\
s original position.
Forward/rearward seat adjustment
Lift the adjustment bar (2) to move the seat forward or rearward.
Removing the center console (seven-seat models only)
In order to make it possible to move the center seat in the second row o\
f seats as far forward as possible
(seven-seat models only), the rear section of the center console can b\
e removed.
l Pull the handle (see illustration above) and lift out the console.
l To return the console to its original position, slide it back into posit\
ion until it clicks into place.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_04a.htm (6 of 11)12/30/200\
6 4:35:19 PM

2004 VOLVO XC90
Storage compartment in the center console
To open the lid on the storage compartment, press the lower edge of the \
opening latch (see illustration above). This lid can
be folded back to form a small table area for rear seat passengers.
Lift the tray under the lid to expose the deep storage bin with slots fo\
r CD storage.
Cup holders for the front seats
Two cup holders are provided for the front seat occupants. Press lightly\
on the rear edge of the cover to open it.
Ashtray (accessory)
An ashtray insert is available from your Volvo retailer. This insert sli\
des into either of the cup holders.
Pen holder
There is a pen holder in the center console, in front of the gear select\
or.
pg. 65 Interior
file:///K|/ownersdocs/2004/2004_XC90/04xc90_04b.htm (2 of 9)12/30/2006\
4:35:19 PM

2004 VOLVO XC90

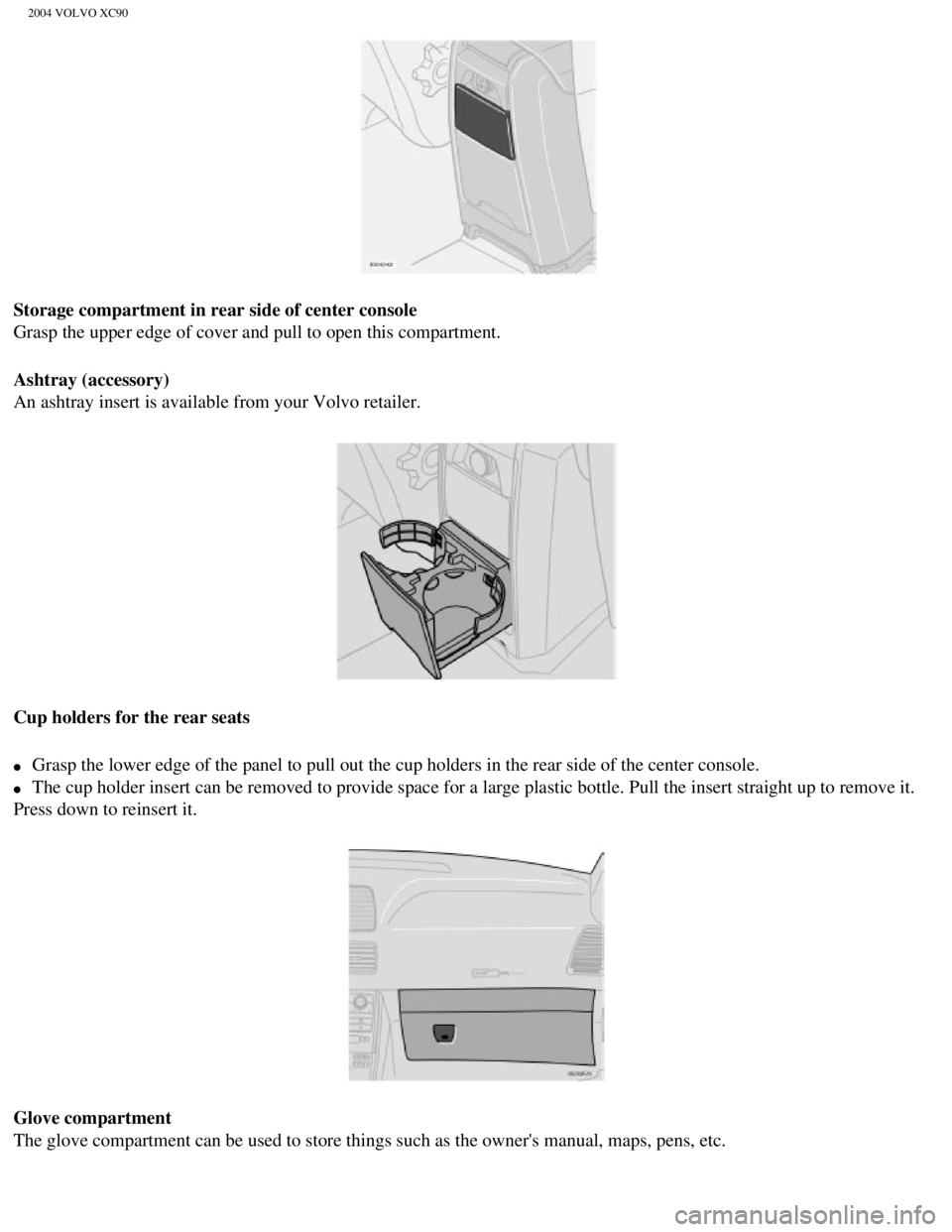

Storage compartment in rear side of center console
Grasp the upper edge of cover and pull to open this compartment.
Ashtray (accessory)
An ashtray insert is available from your Volvo retailer.
Cup holders for the rear seats
l Grasp the lower edge of the panel to pull out the cup holders in the rea\
r side of the center console.
l The cup holder insert can be removed to provide space for a large plasti\
c bottle. Pull the insert straight up to remove it.
Press down to reinsert it.
Glove compartment
The glove compartment can be used to store things such as the owner's ma\
nual, maps, pens, etc.
file:///K|/ownersdocs/2004/2004_XC90/04xc90_04b.htm (3 of 9)12/30/2006\
4:35:19 PM

2004 VOLVO XC90
Temporarily turning off the alarm sensor(s) - accessory
This button will only be found in vehicles equipped with the accessory i\
nclination and/or movement
sensors.
FCC ID: MAYDA5823
This device complies with part 15 of the FCC rules. Operation is subject\
to the following conditions: (1)
This device may not cause harmful interference, and (2) this device mu\
st accept any interference
received, including interference that may cause undesired operation.
Canadian IC: 4405A-DA5823
Movement sensor DA5823 by Dynex Operation is subject to the following co\
nditions: (1) this device
may not cause interference, including interference that may cause undesi\
red operation of the device.
In certain situations it may be desirable to turn off the accessory incl\
ination and movement alarm
sensors if, for example, you drive your vehicle onto a ferry where the r\
ocking of the boat could trigger
the alarm or if a pet is left in the vehicle with the doors locked.
To temporarily turn off the inclination and movement alarm sensors from \
the alarm system:
From the time the ignition key is turned from the Drive position (posit\
ion II) until you lock the vehicle,
you can press the button in the center console. The LED in the switch wi\
ll light up and a message will be
displayed in the text window to indicate that the sensors are disconnect\
ed.
The vehicle can then be locked in the usual way to set the alarm.
NOTE:
l This function will not turn off the vehicle's standard alarm.
l The optional sensors are automatically reconnected to the alarm system t\
he next time the vehicle is
file:///K|/ownersdocs/2004/2004_XC90/04xc90_05.htm (11 of 12)12/30/200\
6 4:35:20 PM

2004 VOLVO XC90
