09 Maintenance and servicing
Replacing bulbs

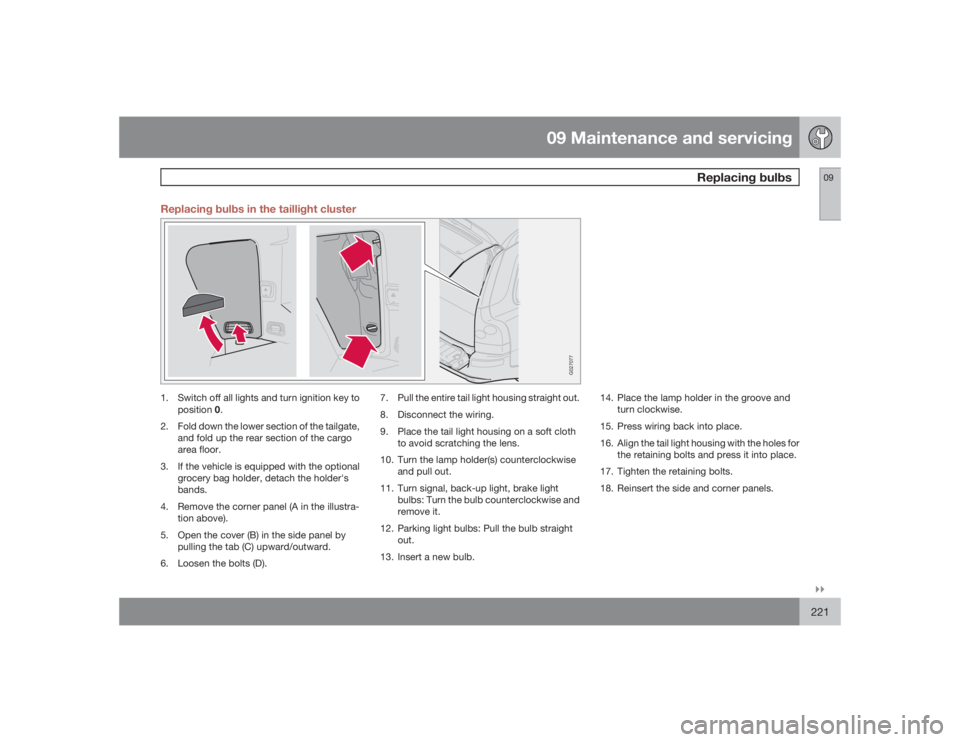

09``221 Replacing bulbs in the taillight cluster
G027077
1. Switch off all lights and turn ignition key to
position0.
2. Fold down the lower section of the tailgate,
and fold up the rear section of the cargo
area floor.
3. If the vehicle is equipped with the optional
grocery bag holder, detach the holder's
bands.
4. Remove the corner panel (A in the illustra-
tion above).
5. Open the cover (B) in the side panel by
pulling the tab (C) upward/outward.
6. Loosen the bolts (D).7. Pull the entire tail light housing straight out.
8. Disconnect the wiring.
9. Place the tail light housing on a soft cloth
to avoid scratching the lens.
10. Turn the lamp holder(s) counterclockwise
and pull out.
11. Turn signal, back-up light, brake light
bulbs: Turn the bulb counterclockwise and
remove it.
12. Parking light bulbs: Pull the bulb straight
out.
13. Insert a new bulb.14. Place the lamp holder in the groove and
turn clockwise.
15. Press wiring back into place.
16. Align the tail light housing with the holes for
the retaining bolts and press it into place.
17. Tighten the retaining bolts.
18. Reinsert the side and corner panels.

09 Maintenance and servicingReplacing bulbs
09222

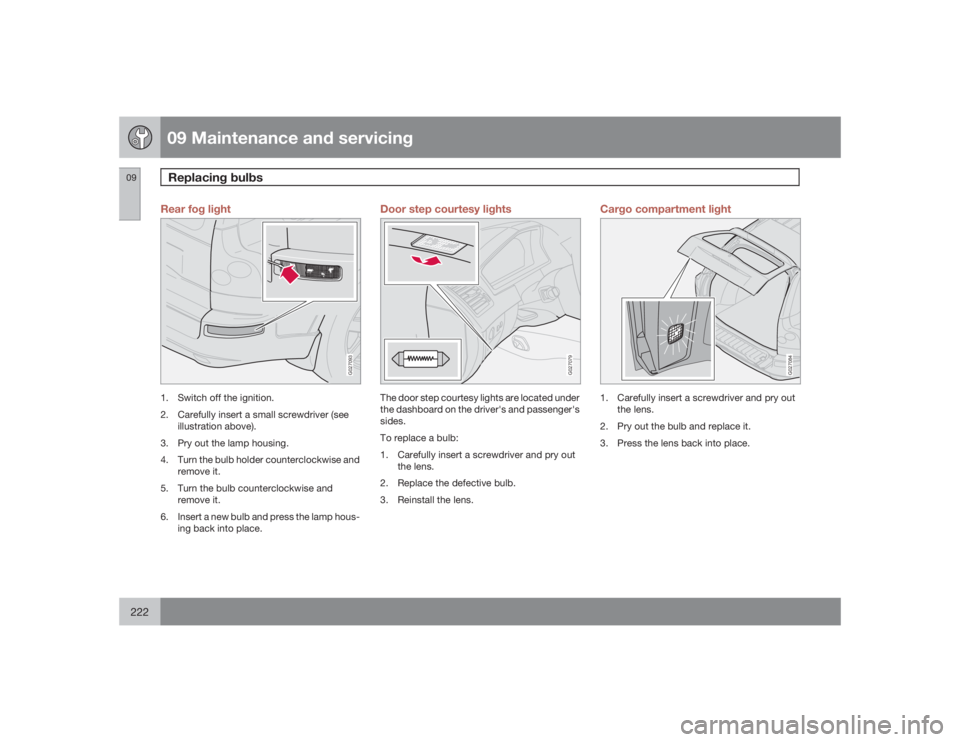

Rear fog light
G027093
1. Switch off the ignition.
2. Carefully insert a small screwdriver (see
illustration above).
3. Pry out the lamp housing.
4. Turn the bulb holder counterclockwise and
remove it.
5. Turn the bulb counterclockwise and
remove it.
6. Insert a new bulb and press the lamp hous-
ing back into place.
Door step courtesy lights
G027079
The door step courtesy lights are located under
the dashboard on the driver's and passenger's
sides.
To replace a bulb:
1. Carefully insert a screwdriver and pry out
the lens.
2. Replace the defective bulb.
3. Reinstall the lens.
Cargo compartment light
G027084
1. Carefully insert a screwdriver and pry out
the lens.
2. Pry out the bulb and replace it.
3. Press the lens back into place.

09 Maintenance and servicing
Replacing bulbs
09

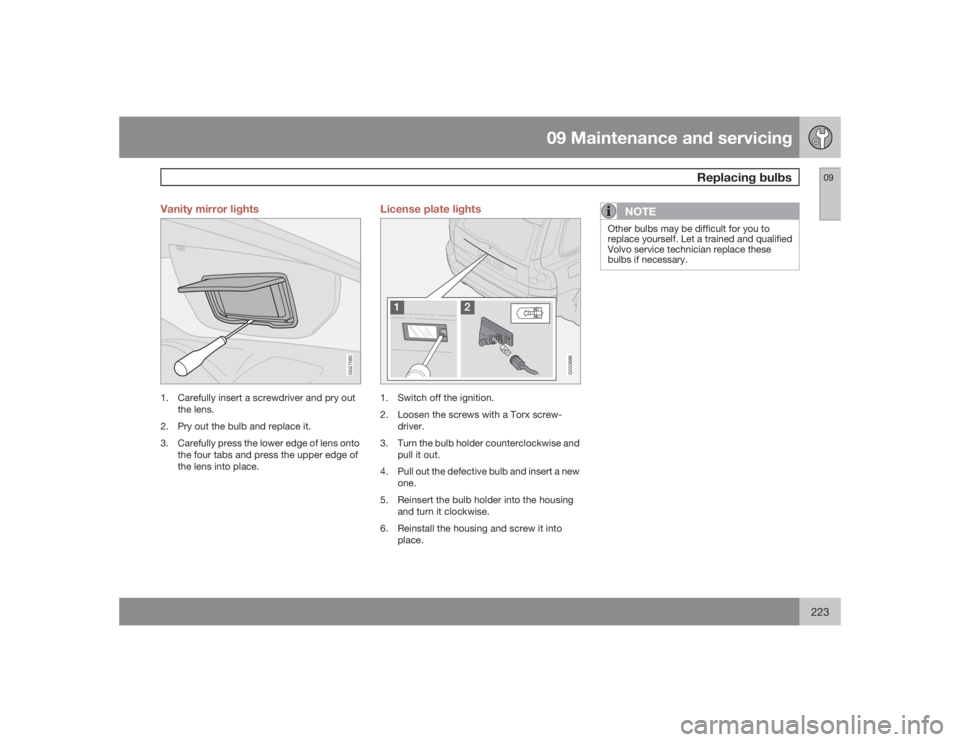

223 Vanity mirror lights
G027080
1. Carefully insert a screwdriver and pry out
the lens.
2. Pry out the bulb and replace it.
3. Carefully press the lower edge of lens onto
the four tabs and press the upper edge of
the lens into place.
License plate lights
G030886
1. Switch off the ignition.
2. Loosen the screws with a Torx screw-
driver.
3. Turn the bulb holder counterclockwise and
pull it out.
4. Pull out the defective bulb and insert a new
one.
5. Reinsert the bulb holder into the housing
and turn it clockwise.
6. Reinstall the housing and screw it into
place.
NOTE
Other bulbs may be difficult for you to
replace yourself. Let a trained and qualified
Volvo service technician replace these
bulbs if necessary.

09 Maintenance and servicingFuses
09224

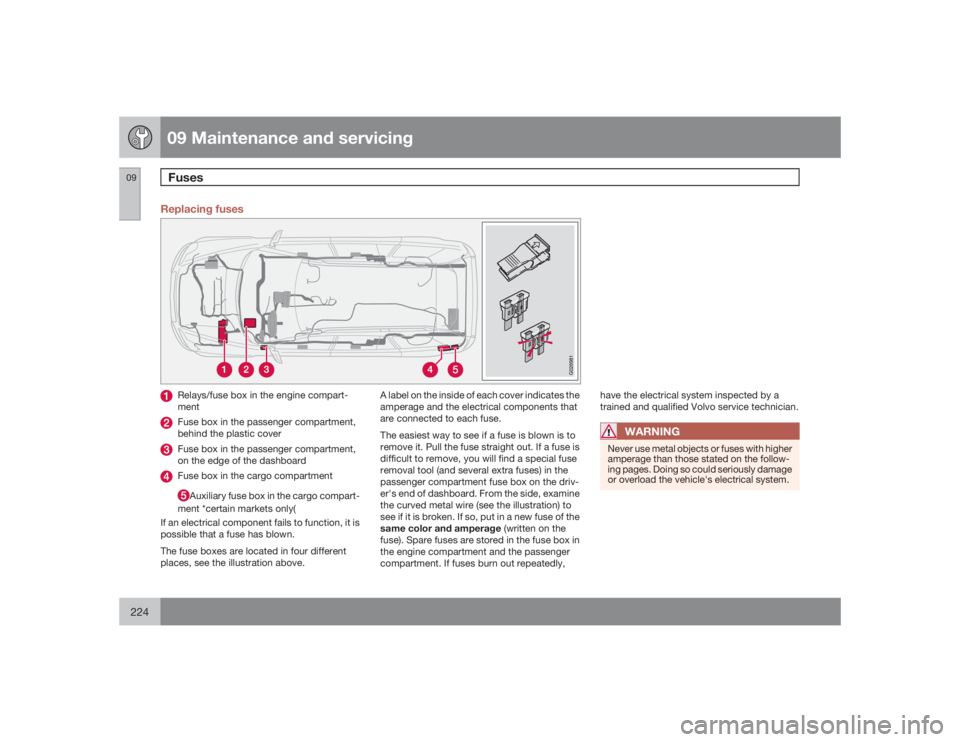

Replacing fuses
5
G026981
Relays/fuse box in the engine compart-
mentFuse box in the passenger compartment,
behind the plastic coverFuse box in the passenger compartment,
on the edge of the dashboardFuse box in the cargo compartmentAuxiliary fuse box in the cargo compart-
ment *certain markets only(
If an electrical component fails to function, it is
possible that a fuse has blown.
The fuse boxes are located in four different
places, see the illustration above.A label on the inside of each cover indicates the
amperage and the electrical components that
are connected to each fuse.
The easiest way to see if a fuse is blown is to
remove it. Pull the fuse straight out. If a fuse is
difficult to remove, you will find a special fuse
removal tool (and several extra fuses) in the
passenger compartment fuse box on the driv-
er's end of dashboard. From the side, examine
the curved metal wire (see the illustration) to
see if it is broken. If so, put in a new fuse of the
same color and amperage (written on the
fuse). Spare fuses are stored in the fuse box in
the engine compartment and the passenger
compartment. If fuses burn out repeatedly,have the electrical system inspected by a
trained and qualified Volvo service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.

09 Maintenance and servicing
Fuses

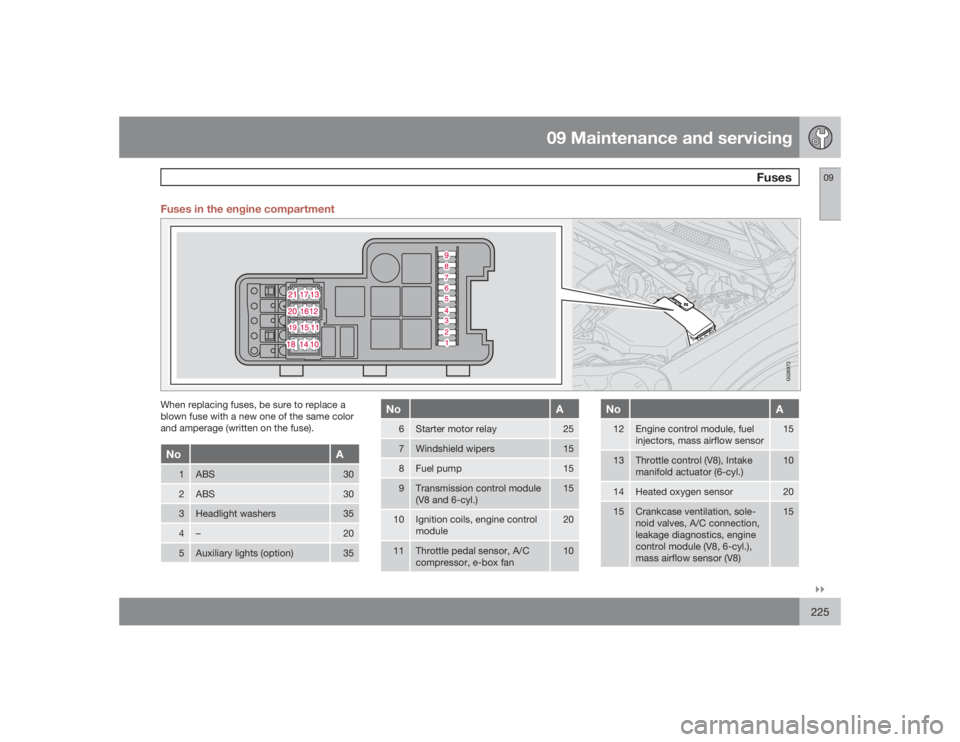

09``225 Fuses in the engine compartment
G026972
When replacing fuses, be sure to replace a
blown fuse with a new one of the same color
and amperage (written on the fuse).No
A
1
ABS
30
2
ABS
30
3
Headlight washers
35
4
–
20
5
Auxiliary lights (option)
35
No
A
6
Starter motor relay
25
7
Windshield wipers
15
8
Fuel pump
15
9
Transmission control module
(V8 and 6-cyl.)
15
10
Ignition coils, engine control
module
20
11
Throttle pedal sensor, A/C
compressor, e-box fan
10
No
A
12
Engine control module, fuel
injectors, mass airflow sensor
15
13
Throttle control (V8), Intake
manifold actuator (6-cyl.)
10
14
Heated oxygen sensor
20
15
Crankcase ventilation, sole-
noid valves, A/C connection,
leakage diagnostics, engine
control module (V8, 6-cyl.),
mass airflow sensor (V8)
15

09 Maintenance and servicingFuses
09226

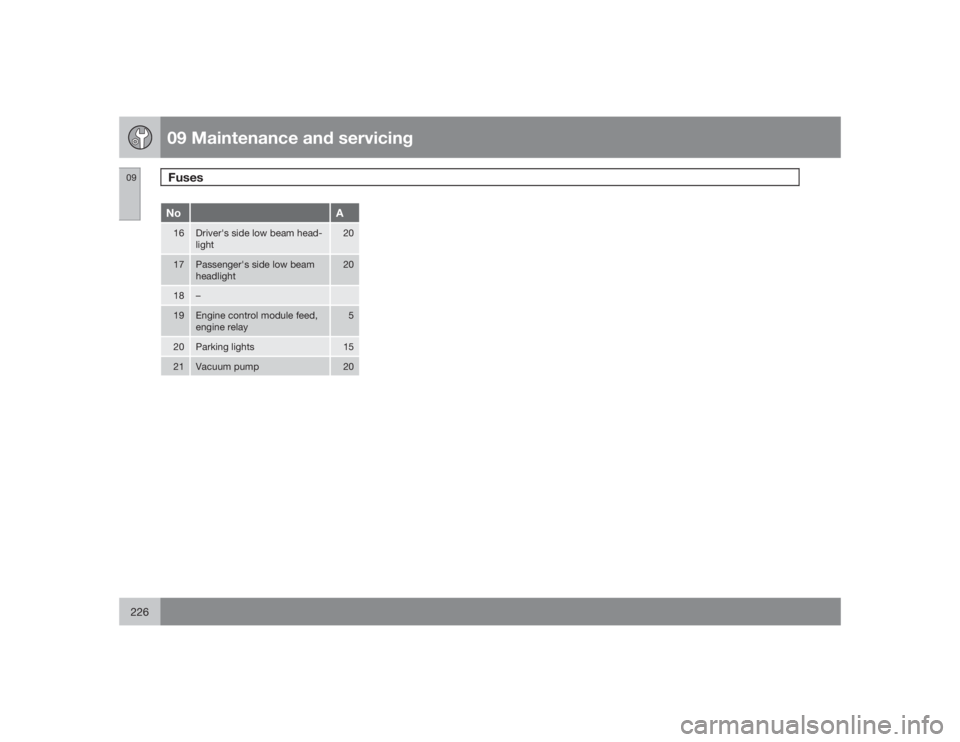

No
A
16
Driver's side low beam head-
light
20
17
Passenger's side low beam
headlight
20
18
–
19
Engine control module feed,
engine relay
5
20
Parking lights
15
21
Vacuum pump
20

09 Maintenance and servicing
Fuses

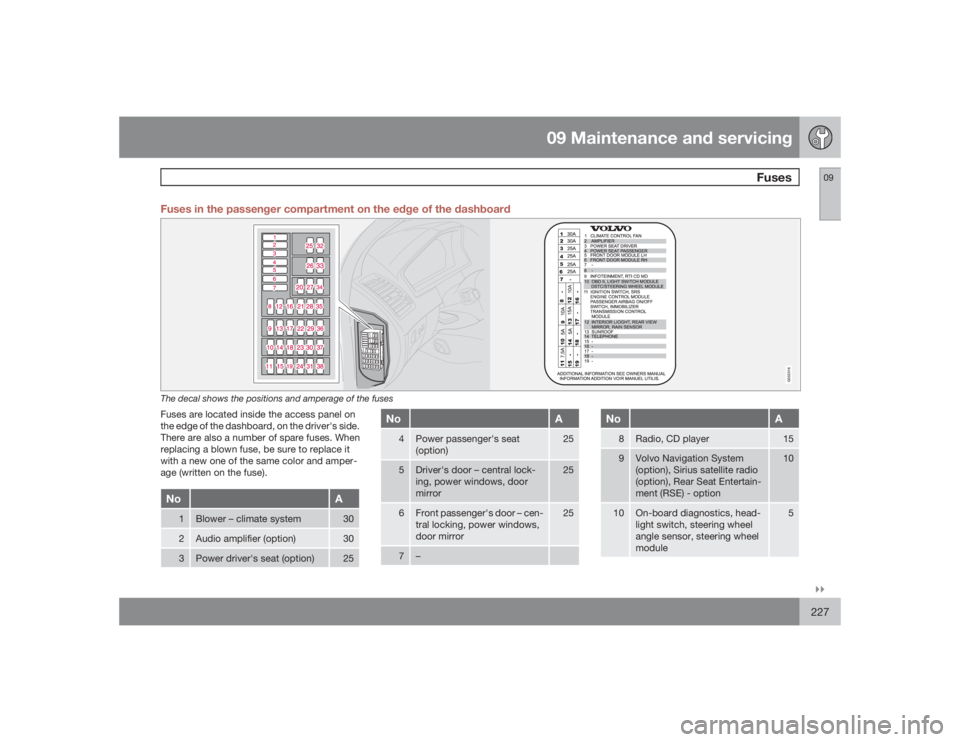

09``227 Fuses in the passenger compartment on the edge of the dashboard
G032316
The decal shows the positions and amperage of the fusesFuses are located inside the access panel on
the edge of the dashboard, on the driver's side.
There are also a number of spare fuses. When
replacing a blown fuse, be sure to replace it
with a new one of the same color and amper-
age (written on the fuse).No
A
1
Blower – climate system
30
2
Audio amplifier (option)
30
3
Power driver's seat (option)
25
No
A
4
Power passenger's seat
(option)
25
5
Driver's door – central lock-
ing, power windows, door
mirror
25
6
Front passenger's door – cen-
tral locking, power windows,
door mirror
25
7
–
No
A
8
Radio, CD player
15
9
Volvo Navigation System
(option), Sirius satellite radio
(option), Rear Seat Entertain-
ment (RSE) - option
10
10
On-board diagnostics, head-
light switch, steering wheel
angle sensor, steering wheel
module
5

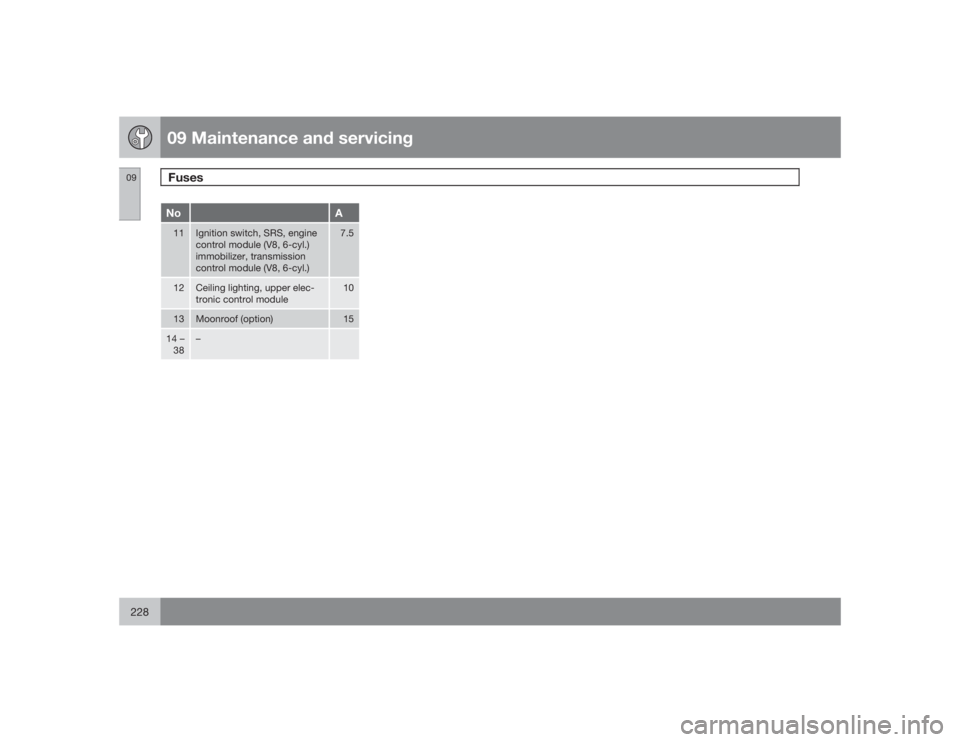

09 Maintenance and servicingFuses
09228
No
A
11
Ignition switch, SRS, engine
control module (V8, 6-cyl.)
immobilizer, transmission
control module (V8, 6-cyl.)
7.5
12
Ceiling lighting, upper elec-
tronic control module
10
13
Moonroof (option)
15
14 –
38
–

09 Maintenance and servicing
Fuses

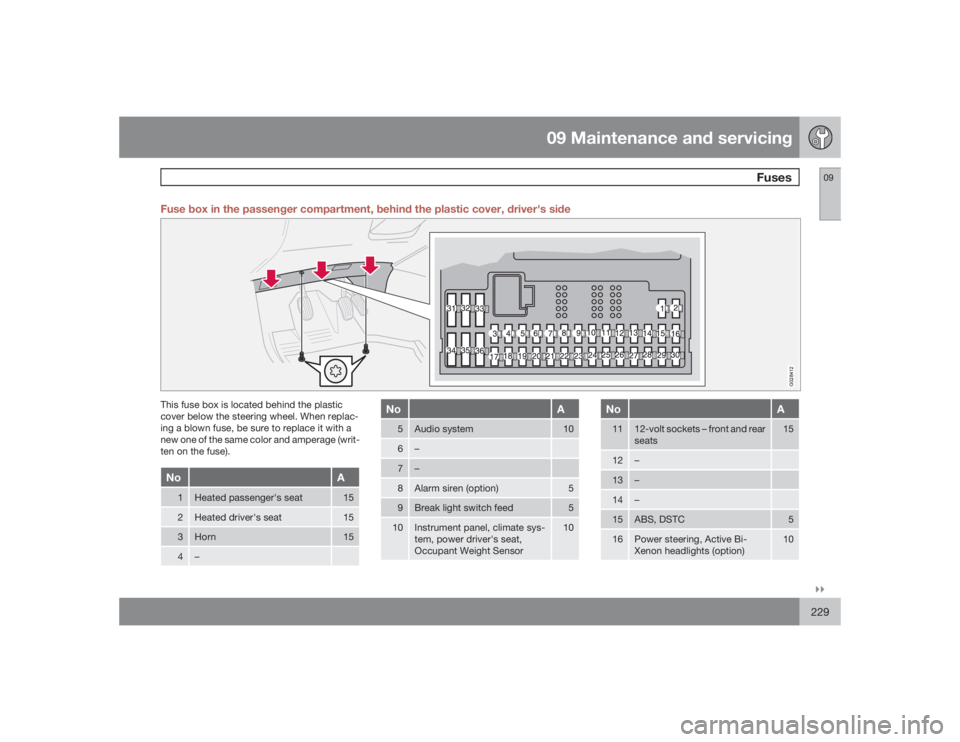

09``229 Fuse box in the passenger compartment, behind the plastic cover, driver's side
G028412
This fuse box is located behind the plastic
cover below the steering wheel. When replac-
ing a blown fuse, be sure to replace it with a
new one of the same color and amperage (writ-
ten on the fuse).No
A
1
Heated passenger's seat
15
2
Heated driver's seat
15
3
Horn
15
4
–
No
A
5
Audio system
10
6
–
7
–
8
Alarm siren (option)
5
9
Break light switch feed
5
10
Instrument panel, climate sys-
tem, power driver's seat,
Occupant Weight Sensor
10
No
A
11
12-volt sockets – front and rear
seats
15
12
–
13
–
14
–
15
ABS, DSTC
5
16
Power steering, Active Bi-
Xenon headlights (option)
10

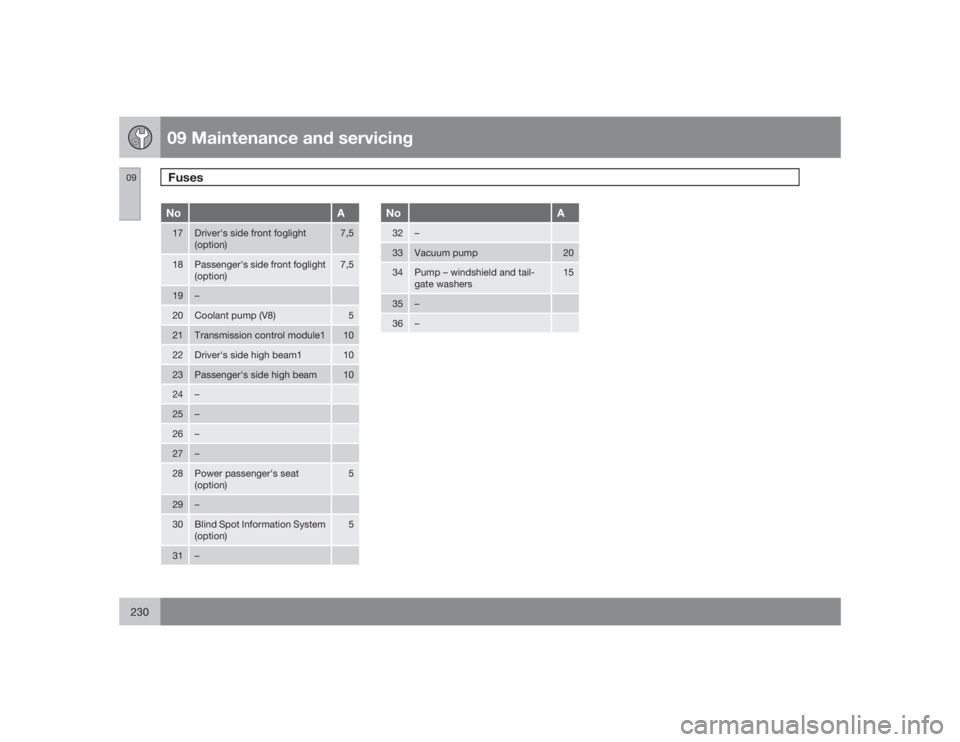

09 Maintenance and servicingFuses
09230
No
A
17
Driver's side front foglight
(option)
7,5
18
Passenger's side front foglight
(option)
7,5
19
–
20
Coolant pump (V8)
5
21
Transmission control module1
10
22
Driver's side high beam1
10
23
Passenger's side high beam
10
24
–
25
–
26
–
27
–
28
Power passenger's seat
(option)
5
29
–
30
Blind Spot Information System
(option)
5
31
–
No
A
32
–
33
Vacuum pump
20
34
Pump – windshield and tail-
gate washers
15
35
–
