VOLVO XC90 2009 Owner´s Manual

11 Specifications

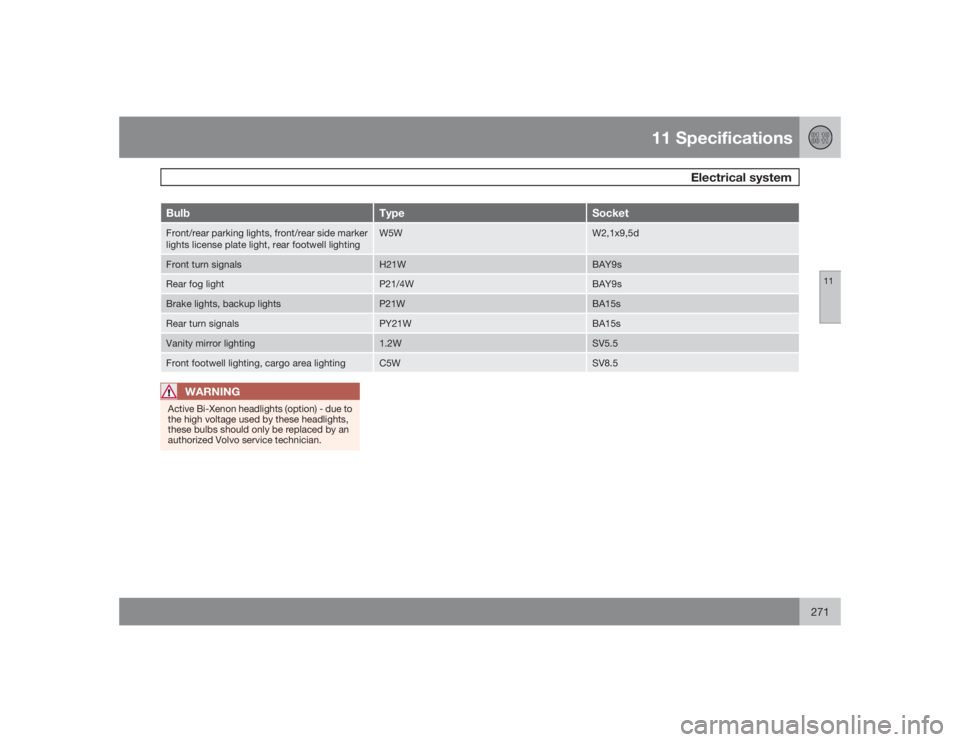

Electrical system
11
271
Bulb
Type
Socket
Front/rear parking lights, front/rear side marker
lights license plate light, rear footwell lighting
W5W
W2,1x9,5d
Front turn signals
H21W
BAY9s
Rear fog light
P21/4W
BAY9s
Brake lights, backup lights
P21W
BA15s
Rear turn signals
PY21W
BA15s
Vanity mirror lighting
1.2W
SV5.5
Front footwell lighting, cargo area lighting
C5W
SV8.5
WARNING
Active Bi-Xenon headlights (option) - due to
the high voltage used by these headlights,
these bulbs should only be replaced by an
authorized Volvo service technician.

11 SpecificationsThree-way catalytic converter
11272
Three-way catalytic converter -
general information•
Keep your engine properly tuned. Certain
engine malfunctions, particularly involving
the electrical, fuel or distributor ignition
systems, may cause unusually high three-
way catalytic converter temperatures. Do
not continue to operate your vehicle if you
detect engine misfire, noticeable loss of
power or other unusual operating condi-
tions, such as engine overheating or back-
firing. A properly tuned engine will help
avoid malfunctions that could damage the
three-way catalytic converter.
•
Do not park your vehicle over combustible
materials, such as grass or leaves, which
can come into contact with the hot exhaust
system and cause such materials to ignite
under certain wind and weather condi-
tions.
•
Excessive starter cranking (in excess of
one minute), or an intermittently firing or
flooded engine can cause three-way cata-
lytic converter or exhaust system over-
heating.
•
Remember that tampering or unauthorized
modifications to the engine, the Electronic
Control Module, or the vehicle may be ille-
gal and can cause three-way catalytic con-
verter or exhaust system overheating. This
includes:
NOTE
Unleaded fuel is required for vehicles with
three-way catalytic converters.

11 Specifications
Volvo programs
11
273 Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON
CALL roadside assistance. Additional informa-
tion, features, and benefits are described in a
separate information package in your glove
compartment.
If you require assistance, dial:
American customers: 1-800-638-6586
(1-800-63-VOLVO)
Canadian customers: 1-800-263-0475Technician certificationIn addition to Volvo factory training, Volvo sup-
ports certification by the National Institute for
Automotive Service Excellence (A.S.E.). Certi-
fied technicians have demonstrated a high
degree of competence in specific areas.
Besides passing exams, each technician must
also have worked in the field for two or more
years before a certificate is issued. These pro-
fessional technicians are best able to analyze
vehicle problems and perform the necessary
maintenance procedures to keep your Volvo at
peak operating condition.

12 Index
12274
1, 2, 3 ...12-volt sockets.......................................... 75AA/C (air conditioning)...........................93, 94
ABS.......................................................... 143
Active Bi-Xenon headlights (ABL)........60, 64
Airbag system............................................ 20
Air cleaner................................................ 207
Air conditioning.......................................... 90
Air distribution...................................... 92, 94
Air quality sensor....................................... 93
Air vents..................................................... 92
Alarm........................................................ 125
All Wheel Drive......................................... 142
All Wheel Drive – towing.......................... 150
Anti-lock brake system
warning light......................................... 56
Anti-lock Brake System (ABS)................. 143
Ashtray..................................................... 109Audio
system introduction............................ 236
Audio system
Rear seat entertainment (option)........ 253
AUTO (climate control)......................... 94, 95
Automatic transmission........................... 138
Autostart..........................................133, 135
AUX (audio system).................................248
Average speed........................................... 71
AWD......................................................... 142
BBass......................................................... 239
Battery..................................................... 205
maintenance....................................... 214
specifications...................................... 270
Battery – replacing................................... 215
Belt check................................................ 206
Black Box (Vehicle Event Data)............... 202
Blind Spot Information System (BLIS)..... 159
Blower (fan)................................................ 95Booster cushion
accessory............................................. 42
integrated.............................................. 47
Brake fluid................................................ 212
Brake system........................................... 143
Bulbs........................................................ 217
Bulbs, replacing....................................... 217
CCapacities, fluids..................................... 265
Capacity weight....................................... 175
Cargo area cover..................................... 115
Cargo grid................................................ 114
Cargo net................................................. 112
Catalytic converter, three-way................. 272
CD Pause................................................. 249
Central locking system - remote control. 119
Changing a wheel.................................... 182
Changing coolant..................................... 206
Charge air cooler..................................... 269
Check Engine warning light....................... 57
Child restraint anchors......................... 43, 45

12 Index
12
275
Child restraints
recalls and registration......................... 46
Child safety................................................ 33
Child safety locks....................................124
Climate system.......................................... 90
refrigerant............................................. 90
Clock reset button..................................... 54
Coat hanger............................................. 111
Cold weather precautions........................ 157
Compact disc care
CD care............................................... 251
Convertible seats....................................... 39
Coolant.................................................... 211
changing............................................. 206
Courtesy light........................................... 106
Cup holder
rear seat.............................................. 110
Curb weight............................................. 175
Current fuel consumption.......................... 71
DDefroster
rear window and door mirrors.............. 70
rear window and mirrors....................... 95
windshield............................................. 94
Detachable trailer hitch............................ 155
Dimensions.............................................. 260
Disabling the passenger's side front air-
bag............................................................. 25
Display, instrument panel.......................... 54
Dolby Pro Logic II (DPL II)........................ 239
Door mirrors............................................... 81
defroster............................................... 70
Door mirrors, folding.................................. 60
Driving conditions, difficult......................137
Driving economically................................ 136
Driving through water..............................137EEconomical driving..................................136
Electrically operated moonroof.................. 83
Electrical system...................................... 270Emission inspection readiness................ 203
Engine
specifications...................................... 269
starting................................................ 133
Engine oil................................................. 208
specifications...................................... 268
FFederal Clean Air Act............................... 202
Flat tires
changing............................................. 180
repairing with tire sealing system....... 185
Fog light..................................................... 56
Fog lights
front*.....................................................64
Folding door mirrors.................................. 60
Front airbags.................................. 21, 22, 25
Front seat
folding backrest.................................. 100
manually adjusted............................... 100
Front seats
power.................................................. 100
Front suspension..................................... 267

12 Index
12276
Fuel.......................................................... 128
Fuel filler cap............................................ 131
Fuel filler door
opening manually...............................131
unlocking.............................................. 64
Fuel system.............................................. 269
Fuses.......................................................224GGasoline................................................... 128
Geartronic – manual shifting.................... 139
Generator................................................. 270
Generator warning light............................. 56
Glove compartment................................. 110
Grocery bag holder.................................. 115
Gross vehicle weight (GVW).................... 175HHand brake................................................ 76
Hazard warning flashers............................ 70
Headlights.................................................. 63Headlights, high and low beams............... 66
Heated front seats..................................... 94
High/low beams – replacing....................217
High beam bulb, replacing....................... 222
High beam flash......................................... 66
High beam indicator.................................. 54
Hoisting the car........................................ 205
Home safe lighting..................................... 66
Hood, opening/closing.............................. 77
IImmobilizer (start inhibitor)...................... 118
Indicator and warning symbols.................. 54
indicator light............................................. 56
Infant seats................................................ 37
Inflatable Curtain........................................ 29
Inflation pressure, checking..................... 168
Inflation pressure table
Canadian models................................ 171
Information display.................................... 54
Inspection readiness................................ 203
Instrument overview.................................. 52Instrument panel........................................ 54
Instrument panel lighting........................... 64
Interior lighting......................................... 106
ISOFIX/LATCH anchors............................. 43
JJack.........................................................180KKeys......................................................... 118LLabel information..................................... 258
Lighting panel............................................ 63
Load carriers............................................ 156
Locking steering wheel............................ 135
Locking the car........................................ 122
Locks, child safety................................... 124
Long distance trips.................................. 157

12 Index
12
277
Low beam headlight.................................. 66MMaintenance............................................ 202
Maintenance, periodic............................. 203
Malfunction indicator light......................... 57
Mirrors
door, folding......................................... 60
power door........................................... 81
rearview, auto-dim function.................. 80
Moonroof................................................... 83
MP3 player, connecting........................... 248
Multifilter with air quality sensor................ 93OOBD II...................................................... 203
Occupant safety........................................ 16
Oil quality................................................. 208
Onboard Diagnostic System (OBD II)...... 203
On Call Roadside Assistance.................. 273
Owner maintenance................................. 203
PPaint - color code....................................198
Panel lighting, instrument.......................... 64
Park assist.......................................147, 148
Parking brake............................................. 76
warning symbol.................................... 56
Parking lights............................................. 63
Passenger’s side front airbag, disabling. . . 25
Periodic owner-performed maintenance. 203
Permissible axle weight........................... 175
Polishing.................................................. 195
Power moonroof........................................ 83
Power seat............................................... 100
Power steering fluid................................. 212RRadiator................................................... 207
Radio functions........................................ 239
Rain sensor - windshield wipers................ 69
Rear seat entertainment (option)............. 253
Rear suspension...................................... 267Rearview mirror with compass (option)..... 80
Rear window defroster.............................. 70
Recalls, child restraints.............................. 46
Recirculation.............................................. 94
REDUCE SPEED........................................ 58
Refrigerant (A/C system)............................ 90
Registering child restraints........................ 46
Remote control........................................ 119
replacing the battery........................... 121
Reporting safety defects
Canada................................................. 17
USA....................................................... 16
Rotating tires........................................... 179
SSafety defects, reporting
Canada................................................. 17
USA....................................................... 16
Safety locks, child.................................... 124
Seat belt..................................................... 18
Seats........................................................ 100
Service.....................................................202
Service key.............................................. 118

12 Index
12278
Shiftlock...................................................133
Side impact protection (SIPS) airbags....... 28
Snow chains............................................ 177
Snow tires................................................ 177
Spare tire – accessing.............................181
Spare wheel, lowering.............................181
Speedometer............................................. 54
Starting the car........................................ 133
Start inhibitor (immobilizer)...................... 118
Steering wheel lock.................................135
Stone chips, touching up......................... 198
Storage compartments............108, 110, 111
Studded tires........................................... 177
Sun visor.................................................... 84TTachometer................................................ 54
Tailgate
locking/unlocking................................ 122
opening................................................. 77
Tailgate wipers......................................... 213
Technician certification............................ 273Temperature control.................................. 95
Temperature gauge................................... 54
Three-way catalytic converter................. 272
TIME FOR REGULAR SERVICE................. 58
Tire inflation pressure table
Canadian models................................ 171
US models.......................................... 170
Tire Pressure Monitoring System (TPMS) 190
Tires
changing............................................. 180
designations....................................... 172
improving economy............................ 167
inflation............................................... 168
inflation pressure, checking................ 168
inflation pressure tables..................... 170
rotation............................................... 179
tire sealing system.............................. 185
tread wear indicator............................ 166
Tire sealing system.................................. 185
Towing a trailer........................................ 151
V8-engine........................................... 153
Towing - cars with All Wheel Drive.......... 150
Towing the vehicle................................... 149
Trailer hitch - detachable......................... 155
Trailer towing...................................151, 153Transmission, automatic.......................... 138
Tread wear indicator................................ 166
Treble....................................................... 239
Trip computer............................................ 71
Trip odometer............................................ 54
Turn signals............................................... 66
UUniform Tire Quality Grading................... 176
Unlocking fuel filler door............................ 64
Unlocking the car..................................... 122
Unpaved roads, driving on...................... 137VV8 engine and trailer towing....................153
Valet key.................................................. 118
Vanity mirror............................................. 107
Vehicle dimensions.................................. 260
Vehicle Event Data................................... 202
Vehicle Identification Number (VIN)......... 259

12 Index
12
279
Vehicle loading......................................... 175
Vehicle weights........................................ 262
Volvo Inflatable Curtain.............................. 29
Volvo On Call Roadside Assistance........ 273WWarning symbol......................................... 54
Warning symbol in center of dashboard.... 54
Warranties................................................ 202
Washer fluid reservoir......................207, 211
Washing the vehicle................................. 194
Water, driving through............................. 137
Waxing..................................................... 195
Weights.................................................... 262
Windshield washer fluid reservoir............211
Windshield wipers.................................... 213
Winter/Wet driving mode......................... 157
Wipers...................................................... 213
W – Winter............................................... 139

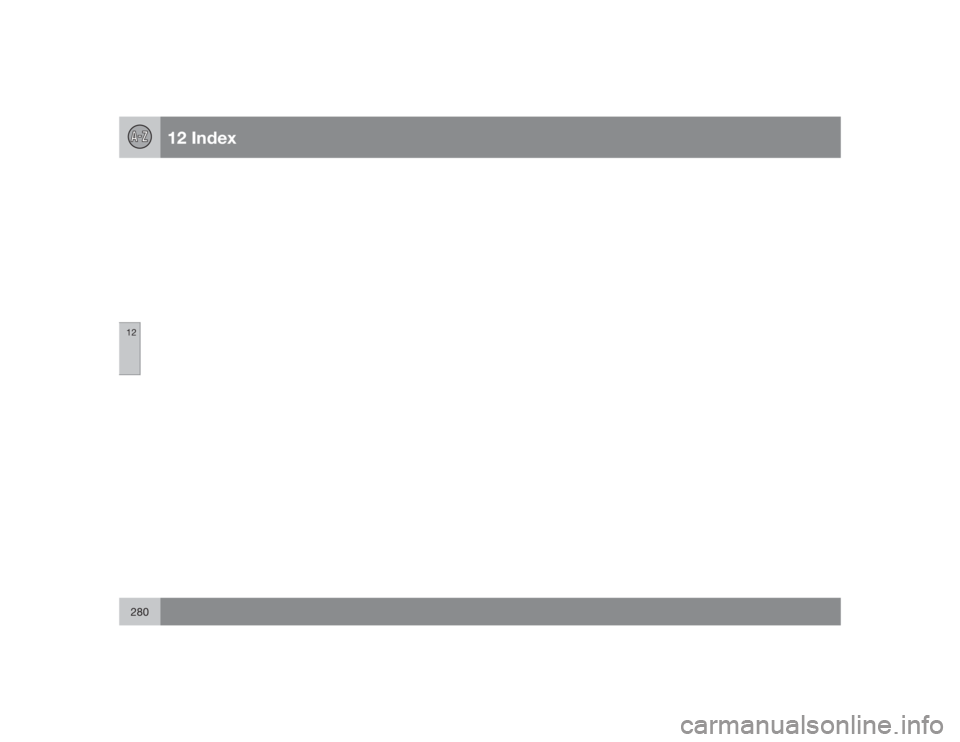

12 Index
12280
