04 InteriorInterior lighting
04106
Reading lights and courtesy light
G026960
Driver's side front reading lampCourtesy lightsPassenger's side front reading lamp The
reading lights can be switched on or off by
pressing buttons 1 or 3. The courtesy light-
ing (including footwell lighting) can be
turned on or off by pressing button 2. This
also activates the automatic function.
G027153
Rear reading lights
Driver's side rear reading lightPassenger's side rear reading light The
rear reading lights can be switched on and
off by pressing buttons (4) or (5).
Automatic functionThe reading lights and courtesy lights will
switch off automatically approximately
10 minutes after the engine has been turned
off. The lights can be turned off sooner by
pressing the respective buttons.The courtesy lights come on automatically
1
and remain on for approximately 30 seconds
when:•
The vehicle has been unlocked from the
outside with the remote control or key
•
If the engine has been switched off and the
ignition key has been turned to position 0
The courtesy lights will come on and remain on
for approximately 10 minutes when:
•
One of the doors is opened (assuming the
courtesy lighting has not previously been
switched off)
The courtesy lighting will go off when:
•
The engine is started
•
The vehicle is locked from the outside with
the remote control or key
The automatic function can be disconnected
by pressing button (2) for more than 3 seconds.
Briefly pressing the button again automatically
reconnects the function.
The courtesy light timer periods can be
changed. Contact a trained and qualified Volvo
service technician.
1This function is light dependent and is only activated in dark conditions.

05 Locks and alarmKeys and remote controls
05118

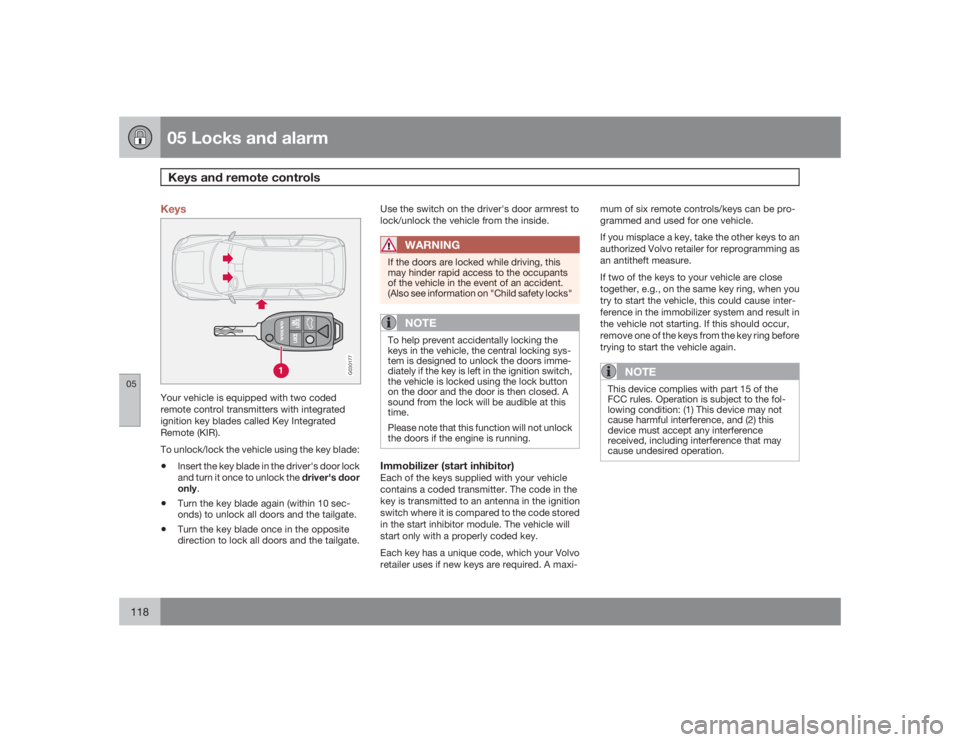

Keys
G030177
Your vehicle is equipped with two coded
remote control transmitters with integrated
ignition key blades called Key Integrated
Remote (KIR).
To unlock/lock the vehicle using the key blade:•
Insert the key blade in the driver's door lock
and turn it once to unlock the driver's door
only.
•
Turn the key blade again (within 10 sec-
onds) to unlock all doors and the tailgate.
•
Turn the key blade once in the opposite
direction to lock all doors and the tailgate.Use the switch on the driver's door armrest to
lock/unlock the vehicle from the inside.
WARNING
If the doors are locked while driving, this
may hinder rapid access to the occupants
of the vehicle in the event of an accident.
(Also see information on "Child safety locks"
NOTE
To help prevent accidentally locking the
keys in the vehicle, the central locking sys-
tem is designed to unlock the doors imme-
diately if the key is left in the ignition switch,
the vehicle is locked using the lock button
on the door and the door is then closed. A
sound from the lock will be audible at this
time.
Please note that this function will not unlock
the doors if the engine is running.Immobilizer (start inhibitor)Each of the keys supplied with your vehicle
contains a coded transmitter. The code in the
key is transmitted to an antenna in the ignition
switch where it is compared to the code stored
in the start inhibitor module. The vehicle will
start only with a properly coded key.
Each key has a unique code, which your Volvo
retailer uses if new keys are required. A maxi-mum of six remote controls/keys can be pro-
grammed and used for one vehicle.
If you misplace a key, take the other keys to an
authorized Volvo retailer for reprogramming as
an antitheft measure.
If two of the keys to your vehicle are close
together, e.g., on the same key ring, when you
try to start the vehicle, this could cause inter-
ference in the immobilizer system and result in
the vehicle not starting. If this should occur,
remove one of the keys from the key ring before
trying to start the vehicle again.
NOTE
This device complies with part 15 of the
FCC rules. Operation is subject to the fol-
lowing condition: (1) This device may not
cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.

05 Locks and alarmKeys and remote controls
05120
NOTE
•
If an airbag deploys, your vehicle's SRS
control module will attempt to automat-
ically unlock all doors.
•
The key blade may also be used to lock
and unlock the doors, and to activate
and deactivate the alarm system.
•
To avoid leaving your keys in the vehi-
cle, make a habit of always locking the
vehicle with the remote control.
•
If the key blade section of the remote is
not fully folded out when starting the
vehicle, the immobilizer function may
make it impossible to start the engine.
•
The vehicle can be locked even if a door
is open. When the door(s) are closed,
they will be locked. Please be aware
that the keys could be locked in the car
when this is done.
Automatic re-lockingIf the doors are unlocked, the locks will auto-
matically reengage (re-lock) and the alarm will
rearm after 2 minutes unless a door or the tail-
gate has been opened. This helps prevent the
car from inadvertently being left unlocked.
FCC ID: LQNP2T-APU
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canadian 2306104388
Model 504 2927 by Donnelly
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
Canadian 2306104388A
Model 509 977 by Connaught Electronics
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
WARNING
Never use the transmitter to lock the doors
from inside the vehicle.•
Doing so would ACTIVATE:
•
the break-in alarm, which would sound
if one of the doors were opened
•
the optional interior motion and inclina-
tion alarm sensors.
•
Doing so would DEACTIVATE:
•
the moonroof and interior courtesy light
controls.
•
the central locking buttons on the front
door armrests, although the interior
door handles would still function to
allow occupants to leave the vehicle.
•
Disabled features would remain disa-
bled until the remote is used again to
unlock the vehicle.
•
In addition, locking an occupied vehicle
would hinder rapid access to the occu-
pants in an accident or emergency.

06 Starting and driving
Starting the vehicle

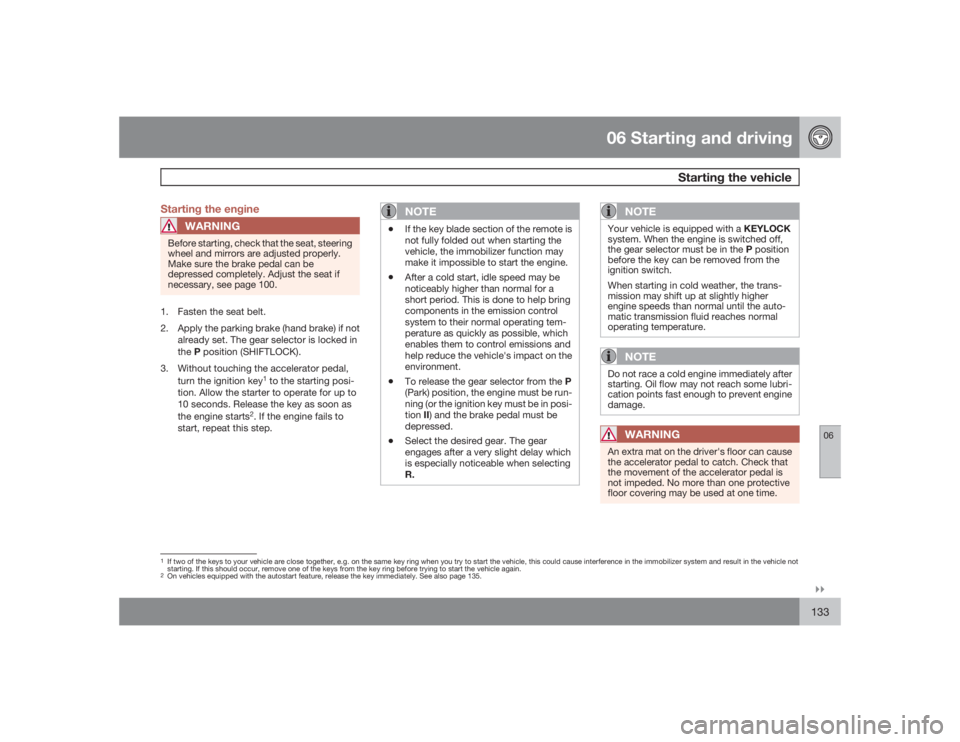

06``133 Starting the engine
WARNING
Before starting, check that the seat, steering
wheel and mirrors are adjusted properly.
Make sure the brake pedal can be
depressed completely. Adjust the seat if
necessary, see page 100.1. Fasten the seat belt.
2. Apply the parking brake (hand brake) if not
already set. The gear selector is locked in
theP position (SHIFTLOCK).
3. Without touching the accelerator pedal,
turn the ignition key
1 to the starting posi-
tion. Allow the starter to operate for up to
10 seconds. Release the key as soon as
the engine starts
2. If the engine fails to
start, repeat this step.
NOTE
•
If the key blade section of the remote is
not fully folded out when starting the
vehicle, the immobilizer function may
make it impossible to start the engine.
•
After a cold start, idle speed may be
noticeably higher than normal for a
short period. This is done to help bring
components in the emission control
system to their normal operating tem-
perature as quickly as possible, which
enables them to control emissions and
help reduce the vehicle's impact on the
environment.
•
To release the gear selector from the P
(Park) position, the engine must be run-
ning (or the ignition key must be in posi-
tionII) and the brake pedal must be
depressed.
•
Select the desired gear. The gear
engages after a very slight delay which
is especially noticeable when selecting
R.
NOTE
Your vehicle is equipped with a KEYLOCK
system. When the engine is switched off,
the gear selector must be in the P position
before the key can be removed from the
ignition switch.
When starting in cold weather, the trans-
mission may shift up at slightly higher
engine speeds than normal until the auto-
matic transmission fluid reaches normal
operating temperature.
NOTE
Do not race a cold engine immediately after
starting. Oil flow may not reach some lubri-
cation points fast enough to prevent engine
damage.
WARNING
An extra mat on the driver's floor can cause
the accelerator pedal to catch. Check that
the movement of the accelerator pedal is
not impeded. No more than one protective
floor covering may be used at one time.
1If two of the keys to your vehicle are close together, e.g. on the same key ring when you try to start the vehicle, this could cause interference in the immobilizer system and result in the vehicle not
starting. If this should occur, remove one of the keys from the key ring before trying to start the vehicle again.2On vehicles equipped with the autostart feature, release the key immediately. See also page 135.

10 Audio
Rear Seat Entertainment - Dual Screen (RSE)–option
10``253 Introduction
The RSE system can be used at the same time
as the vehicle’s audio system.
When the rear seat passengers play a DVD,
connect an external device to the RSE AUX
connectors, etc., and listen to the audio
through the cordless headphones, the driver
and front seat passenger can still use the vehi-
cle's audio system to listen to the radio, a CD,
music stored on an MP3 player, etc.
Please also refer to the Quick Guide provided
with the RSE system for additional information.Electrical current - ignition keyThe RSE system can be activated with the igni-
tion in position I or II (see page 135 for infor-
mation on the ignition positions), or when the
engine is running. While the engine is being
started, a film or music that is currently being
played will pause momentarily and resume
playing when the engine has started.
When the RSE system has been used once
when the ignition is switched off, it will be then
be blocked for further use. RSE can be restar-
ted by turning the ignition key to position I.
NOTE
Using RSE for more than approximately
10 minutes with the engine switched off may
drain the vehicle’s battery and make it diffi-
cult or impossible to start the engine.
If this occurs, a message will be displayed
on the RSE system’s screens.MusicListening to a music CD1. Insert a CD into the RSE player’s slot with
the disc’s label facing upward.
> The CD will begin to play automatically.
2. Switch on the cordless headphones and
selectCH A for the left screen or CH B for
the right screen.
> This will direct the sound to the head-
phones.
3. Adjust the headphone volume by using the
thumb wheel on the headphones.
To listen through the vehicle’s audio sys-
tem speakers, press MODE on the audio
system control panel and select
AUX
.
Press
A B
on the RSE remote to route
the sound through the speakers.
Selecting a folder on the CD1. Insert the CD in the player.
2.
Press
.
3. Use the navigation buttons (the arrow keys
surrounding the OK button on the RSE
remote control) to highlight a folder and/or
a specific track.
4.
Press to select a sub-folder.
Playback alternativesThe CD can be played in several different ways.
Use the navigation buttons to select one of the
alternatives.
With the dialogue box displayed:
1. Press the right navigation button to access
the menu to the right..
2. Use the navigation keys to select one of the
alternatives.
3.
Confirm your choice by pressing
.
Changing tracks on the CD±
Change tracks on the CD by pressing
or
. Hold the respective
buttons down for fast forward or reverse.

12 Index
12274
1, 2, 3 ...12-volt sockets.......................................... 75AA/C (air conditioning)...........................93, 94
ABS.......................................................... 143
Active Bi-Xenon headlights (ABL)........60, 64
Airbag system............................................ 20
Air cleaner................................................ 207
Air conditioning.......................................... 90
Air distribution...................................... 92, 94
Air quality sensor....................................... 93
Air vents..................................................... 92
Alarm........................................................ 125
All Wheel Drive......................................... 142
All Wheel Drive – towing.......................... 150
Anti-lock brake system
warning light......................................... 56
Anti-lock Brake System (ABS)................. 143
Ashtray..................................................... 109Audio
system introduction............................ 236
Audio system
Rear seat entertainment (option)........ 253
AUTO (climate control)......................... 94, 95
Automatic transmission........................... 138
Autostart..........................................133, 135
AUX (audio system).................................248
Average speed........................................... 71
AWD......................................................... 142
BBass......................................................... 239
Battery..................................................... 205
maintenance....................................... 214
specifications...................................... 270
Battery – replacing................................... 215
Belt check................................................ 206
Black Box (Vehicle Event Data)............... 202
Blind Spot Information System (BLIS)..... 159
Blower (fan)................................................ 95Booster cushion
accessory............................................. 42
integrated.............................................. 47
Brake fluid................................................ 212
Brake system........................................... 143
Bulbs........................................................ 217
Bulbs, replacing....................................... 217
CCapacities, fluids..................................... 265
Capacity weight....................................... 175
Cargo area cover..................................... 115
Cargo grid................................................ 114
Cargo net................................................. 112
Catalytic converter, three-way................. 272
CD Pause................................................. 249
Central locking system - remote control. 119
Changing a wheel.................................... 182
Changing coolant..................................... 206
Charge air cooler..................................... 269
Check Engine warning light....................... 57
Child restraint anchors......................... 43, 45
