VOLVO XC90 2010 Owner´s Manual

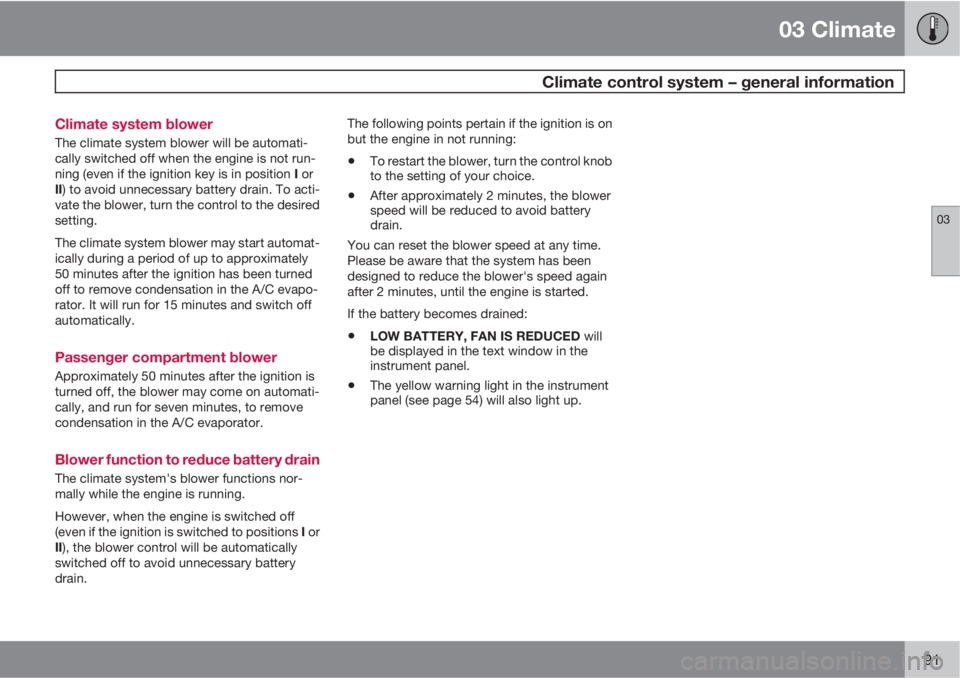

03 Climate
Climate control system – general information
03
91 Climate system blower
The climate system blower will be automati-
cally switched off when the engine is not run-
ning (even if the ignition key is in position I or
II) to avoid unnecessary battery drain. To acti-
vate the blower, turn the control to the desired
setting.
The climate system blower may start automat-
ically during a period of up to approximately
50 minutes after the ignition has been turned
off to remove condensation in the A/C evapo-
rator. It will run for 15 minutes and switch off
automatically.
Passenger compartment blower
Approximately 50 minutes after the ignition is
turned off, the blower may come on automati-
cally, and run for seven minutes, to remove
condensation in the A/C evaporator.
Blower function to reduce battery drain
The climate system's blower functions nor-
mally while the engine is running.
However, when the engine is switched off
(even if the ignition is switched to positions I or
II), the blower control will be automatically
switched off to avoid unnecessary battery
drain.The following points pertain if the ignition is on
but the engine in not running:
•To restart the blower, turn the control knob
to the setting of your choice.
•After approximately 2 minutes, the blower
speed will be reduced to avoid battery
drain.
You can reset the blower speed at any time.
Please be aware that the system has been
designed to reduce the blower's speed again
after 2 minutes, until the engine is started.
If the battery becomes drained:
•LOW BATTERY, FAN IS REDUCED will
be displayed in the text window in the
instrument panel.
•The yellow warning light in the instrument
panel (see page 54) will also light up.

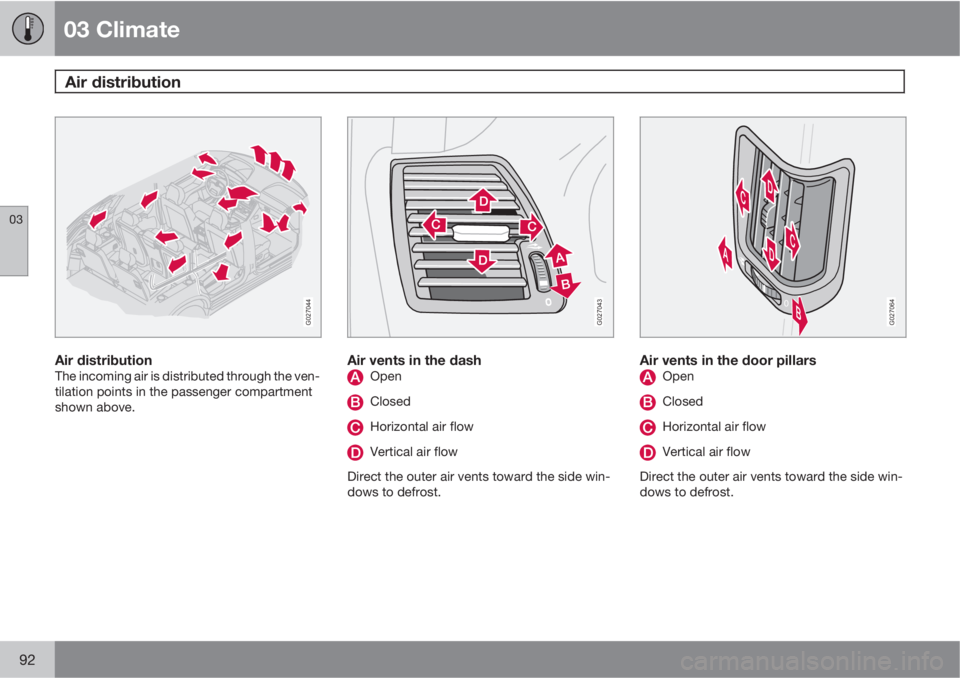

03 Climate
Air distribution
03
92
G027044
Air distributionThe incoming air is distributed through the ven-
tilation points in the passenger compartment
shown above.
G027043
Air vents in the dashOpen
Closed
Horizontal air flow
Vertical air flow
Direct the outer air vents toward the side win-
dows to defrost.
0
G027064
Air vents in the door pillarsOpen
Closed
Horizontal air flow
Vertical air flow
Direct the outer air vents toward the side win-
dows to defrost.

03 Climate
Air distribution
03
* Option/accessory, for more information, see Introduction.93 Ventilated front seats (XC90
Executive*)
G030244
Controls for ventilated front seats
The ventilation system consists of fans in the
seats and backrests that draw air through the
seat upholstery. The cooling effect increases
as the air in the passenger compartment
becomes cooler.
The level of ventilation is adjusted on the con-
trol panel on the side of the seat. The fans can
be set to three speeds.
To start seat ventilation:

Press briefly on
.To gradually increase ventilation:

Press briefly on
.
For maximum ventilation:

Hold down
for approximately 2 sec-
onds.
To gradually decrease ventilation:

Press briefly on
.
To switch off ventilation:

Hold down
for approximately 2 sec-
onds.
The ventilation can be used at the same time
as seat heating*, for example, to help dry damp
clothing.
NOTE
•Seat ventilation cannot be started if the
temperature in the passenger compart-
ment is below 41°F (5°C).
•Seat ventilation should be used with
caution by people who are sensitive to
drafts. A moderate ventilation level
should be set if the function is used for
extended periods.

03 Climate
Electronic climate control (ECC)
03
94* Option/accessory, for more information, see Introduction.
Overview
AC – (ON/OFF)
Recirculation/Multifilter with sensor*
Recirculation
AUTO
Airdistribution
Passenger compartment temperature sen-
sor
Defroster windshield and side windows
Rear window and door mirrors defroster
Heated front seats*
Temperature passenger´s side
Temperature driver´s side
Blower
Blower control for rear climate system*
Functions
A/C – ON/OFF
•The air conditioning functions only at tem-
peratures above 32 °F (0 °C).
•While the Defroster function is selected,
the air conditioning is temporarily activated
to dehumidify the air, even if you have man-
ually switched the air conditioning off. Thiswill only function if the blower is not
switched off.
Press the switch to turn the air conditioning on
or off. The "ON" or "OFF" LED will light up to
indicate if the system is switched on or off.
Other functions will still be regulated automat-
ically (if the AUTO switch is on).
Interior air quality sensor*
Some vehicles are equipped with a multifilter
and air quality sensor. The filter separates
gases and particles, thereby reducing the
amounts of odors and contaminants entering
the vehicle. The air quality sensor detects
increased levels of contaminants in the outside
air. When the air quality sensor detects conta-

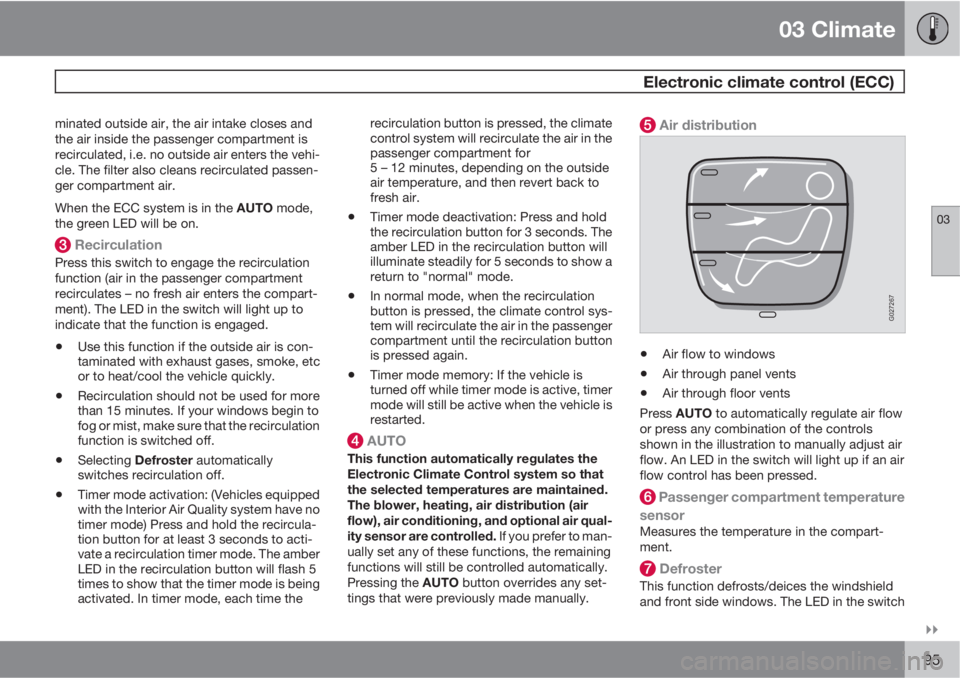

03 Climate
Electronic climate control (ECC)
03

95
minated outside air, the air intake closes and
the air inside the passenger compartment is
recirculated, i.e. no outside air enters the vehi-
cle. The filter also cleans recirculated passen-
ger compartment air.
When the ECC system is in the AUTO mode,
the green LED will be on.
Recirculation
Press this switch to engage the recirculation
function (air in the passenger compartment
recirculates – no fresh air enters the compart-
ment). The LED in the switch will light up to
indicate that the function is engaged.
•Use this function if the outside air is con-
taminated with exhaust gases, smoke, etc
or to heat/cool the vehicle quickly.
•Recirculation should not be used for more
than 15 minutes. If your windows begin to
fog or mist, make sure that the recirculation
function is switched off.
•Selecting Defroster automatically
switches recirculation off.
•Timer mode activation: (Vehicles equipped
with the Interior Air Quality system have no
timer mode) Press and hold the recircula-
tion button for at least 3 seconds to acti-
vate a recirculation timer mode. The amber
LED in the recirculation button will flash 5
times to show that the timer mode is being
activated. In timer mode, each time therecirculation button is pressed, the climate
control system will recirculate the air in the
passenger compartment for
5 – 12 minutes, depending on the outside
air temperature, and then revert back to
fresh air.
•Timer mode deactivation: Press and hold
the recirculation button for 3 seconds. The
amber LED in the recirculation button will
illuminate steadily for 5 seconds to show a
return to "normal" mode.
•In normal mode, when the recirculation
button is pressed, the climate control sys-
tem will recirculate the air in the passenger
compartment until the recirculation button
is pressed again.
•Timer mode memory: If the vehicle is
turned off while timer mode is active, timer
mode will still be active when the vehicle is
restarted.
AUTO
This function automatically regulates the
Electronic Climate Control system so that
the selected temperatures are maintained.
The blower, heating, air distribution (air
flow), air conditioning, and optional air qual-
ity sensor are controlled. If you prefer to man-
ually set any of these functions, the remaining
functions will still be controlled automatically.
Pressing the AUTO button overrides any set-
tings that were previously made manually.
Air distribution
G027267
•Air flow to windows
•Air through panel vents
•Air through floor vents
Press AUTO to automatically regulate air flow
or press any combination of the controls
shown in the illustration to manually adjust air
flow. An LED in the switch will light up if an air
flow control has been pressed.
Passenger compartment temperature
sensor
Measures the temperature in the compart-
ment.
Defroster
This function defrosts/deices the windshield
and front side windows. The LED in the switch

03 Climate
Electronic climate control (ECC)
03
96* Option/accessory, for more information, see Introduction.
will light up to indicate that the defrost function
is engaged.
•Blower speed increases automatically and
the air conditioning will switch on (if not
already on and if the passenger compart-
ment blower is not turned off) to dehumid-
ify the air in the passenger compartment.
•Recirculation will not function while defrost
is engaged.
The climate system will return to its previous
settings when the defroster function is
switched off.
Rear window and door mirror
defrosters
This function defrosts/deices the rear window
and door mirrors. The LED in the switch will
light up to indicate that the heating function is
engaged. For additional information on this
function see page 70.
Never use ice scrapers made of metal as they
can easily scratch the mirror surface.
Heated front seats*
1. Press the switch once for maximum seat
heating. Both LEDs in the switch will be lit.
2. Press the switch a second time for comfort
heating. One LED in the switch will be lit.3. Press the switch a third time to turn the
heating off completely. The LED will go off.
The seat heating for the passenger seat should
be switched off when the seat is not occupied.
Heated rear seats (XC90 Executive*)
G030976
Button for rear seat heating
Heating for the respective outboard rear seats
can be switched on or off with buttons on either
side of the center console (see the illustration).
To switch on rear seat heating:

Press the button.
> The symbol in the button will illuminate.To switch off rear seat heating:

Press the button.
> The symbol in the button will go out.
Temperature
These controls are used to individually set the
temperature for both sides of the passenger
compartment. Please note that the compart-
ment will not be heated or cooled faster by set-
ting the temperature higher or lower than nec-
essary.
Set the control to the temperature you prefer.
Blower control1
Turn the control clockwise to increase or coun-
terclockwise to decrease the blower speed.
Pressing the AUTO switch will automatically
regulate blower speed and override manual
adjustment.
Turning the blower control counterclockwise
until an orange LED comes on will turn both the
blower and the air conditioning off.
Blower control for rear climate
system*
Turn the control to increase or decrease blower
speed.
1See also see page 90.

03 Climate
Electronic climate control (ECC)
03
97

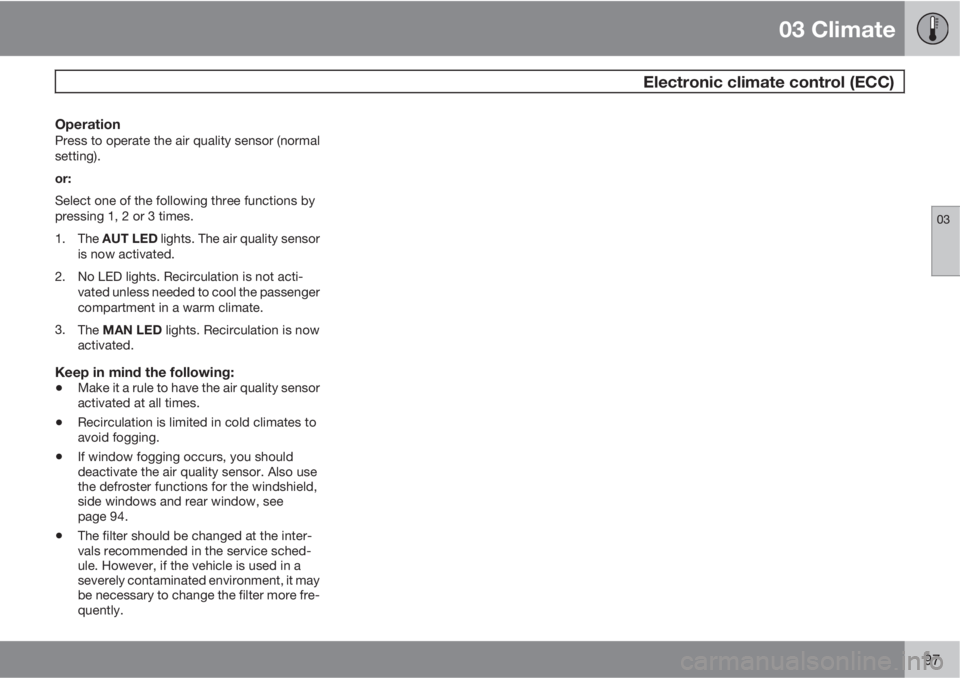

OperationPress to operate the air quality sensor (normal
setting).
or:
Select one of the following three functions by
pressing 1, 2 or 3 times.
1.
The AUT LED lights. The air quality sensor
is now activated.
2. No LED lights. Recirculation is not acti-
vated unless needed to cool the passenger
compartment in a warm climate.
3.
The MAN LED lights. Recirculation is now
activated.
Keep in mind the following:
•Make it a rule to have the air quality sensor
activated at all times.
•Recirculation is limited in cold climates to
avoid fogging.
•If window fogging occurs, you should
deactivate the air quality sensor. Also use
the defroster functions for the windshield,
side windows and rear window, see
page 94.
•The filter should be changed at the inter-
vals recommended in the service sched-
ule. However, if the vehicle is used in a
severely contaminated environment, it may
be necessary to change the filter more fre-
quently.

G020908
98
Front seats............................................................................................ 100
Rear seats............................................................................................. 104
Interior lighting...................................................................................... 107
Storage compartments......................................................................... 109
Securing cargo...................................................................................... 114

04
INTERIOR

04 Interior
Front seats
04
100* Option/accessory, for more information, see Introduction.
Manually adjusted front seats
G027214
Front-rear adjustment: lift the bar and
move the seat to the position of your
choice.
Raise/lower the front edge of the seat
cushion*: use the control to pump the front
edge of the cushion up or down.
Raise/lower seat height: pump the seat up
or down.
Lumbar support: turn the control for firmer
or softer lumbar support.
Backrest tilt: turn the control to adjust the
angle of the backrest.
Control panel for optional power seat (see
page 100 for more information).
WARNING
•Do not adjust the seat while driving. The
seat should be adjusted so that the
brake pedal can be depressed fully. In
addition, position the seat as far rear-
ward as comfort and control allow.
•Check that the seat is securely locked
into position after adjusting.
Folding the backrests in the front seat
G014805
The front passenger seat backrest can be
folded to a horizontal position to make room for
a long load. Fold the backrest as follows:1. Move the seat as far back as possible.
2. Adjust the backrest to the upright position.
3. Lift the catches on the rear of the backrest.
4. Without releasing the catches, push the
backrest forward.
5. Move the seat as far forward as possible
so that the head restraint slides under the
glove compartment.
WARNING
Cover sharp edges on the load to help pre-
vent injury to occupants. Secure the load to
help prevent shifting during sudden stops.
Power seat*
OperationDriver's seat: The seat can be adjusted if the
ignition key is in position I, II or if the engine is
running. It can also be adjusted as follows with
the ignition off:
