09 Maintenance and servicing

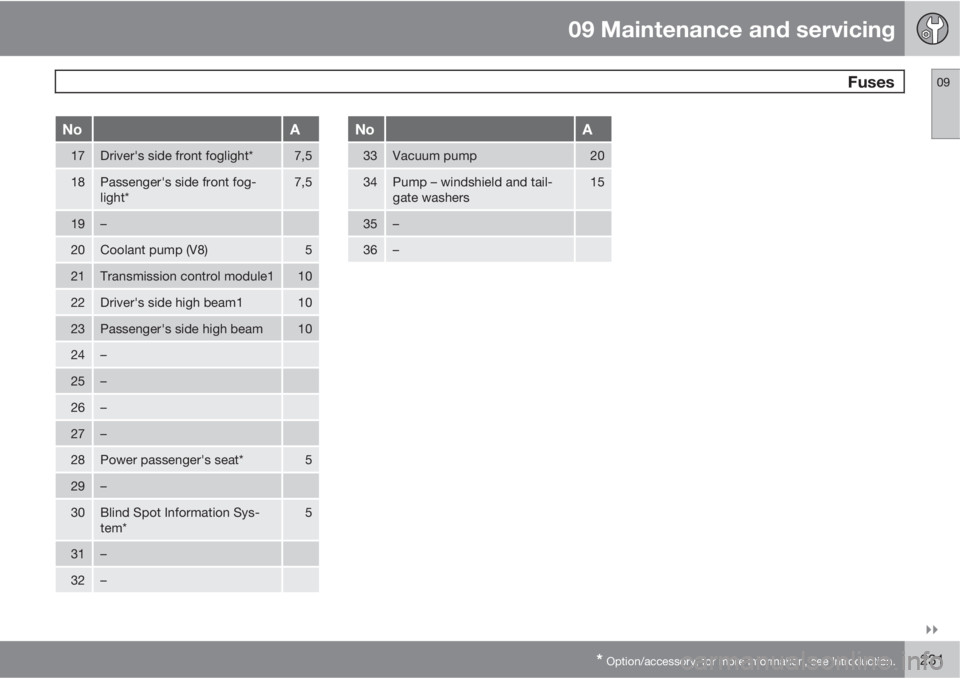

Fuses09

* Option/accessory, for more information, see Introduction.231
NoA
17Driver's side front foglight*7,5
18Passenger's side front fog-
light*7,5
19–
20Coolant pump (V8)5
21Transmission control module110
22Driver's side high beam110
23Passenger's side high beam10
24–
25–
26–
27–
28Power passenger's seat*5
29–
30Blind Spot Information Sys-
tem*5
31–
32–
NoA
33Vacuum pump20
34Pump – windshield and tail-
gate washers15
35–
36–

09 Maintenance and servicing
Fuses 09
232

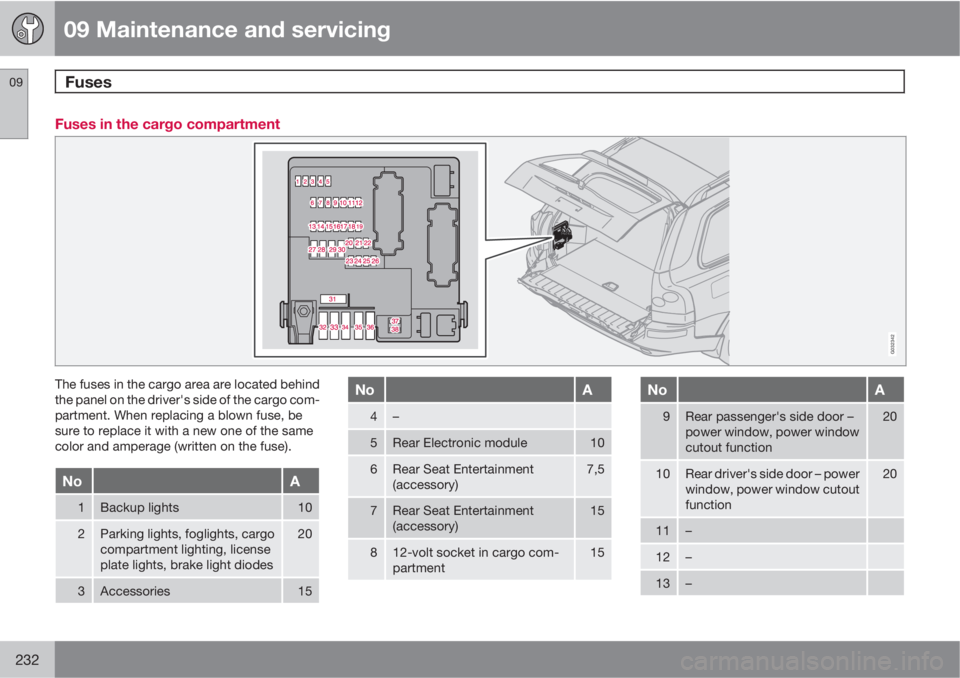

Fuses in the cargo compartment
G032342
The fuses in the cargo area are located behind
the panel on the driver's side of the cargo com-
partment. When replacing a blown fuse, be
sure to replace it with a new one of the same
color and amperage (written on the fuse).
NoA
1Backup lights10
2Parking lights, foglights, cargo
compartment lighting, license
plate lights, brake light diodes20
3Accessories15
NoA
4–
5Rear Electronic module10
6Rear Seat Entertainment
(accessory)7,5
7Rear Seat Entertainment
(accessory)15
812-volt socket in cargo com-
partment15
NoA
9Rear passenger's side door –
power window, power window
cutout function20
10Rear driver's side door – power
window, power window cutout
function20
11–
12–
13–

09 Maintenance and servicing
Fuses09

* Option/accessory, for more information, see Introduction.233
NoA

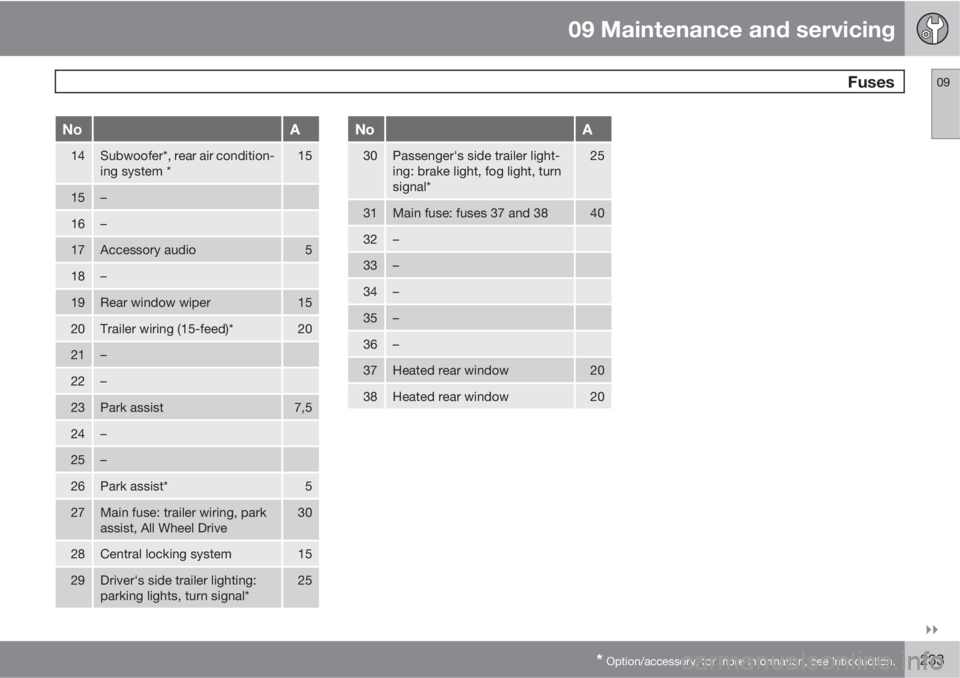

14Subwoofer*, rear air condition-
ing system *15
15–
16–
17Accessory audio5
18–
19Rear window wiper15
20Trailer wiring (15-feed)*20
21–
22–
23Park assist7,5
24–
25–
26Park assist*5
27Main fuse: trailer wiring, park
assist, All Wheel Drive30
28Central locking system15
29Driver's side trailer lighting:
parking lights, turn signal*25
NoA
30Passenger's side trailer light-
ing: brake light, fog light, turn
signal*25
31Main fuse: fuses 37 and 3840
32–
33–
34–
35–
36–
37Heated rear window20
38Heated rear window20

09 Maintenance and servicing
Fuses 09
234* Option/accessory, for more information, see Introduction.

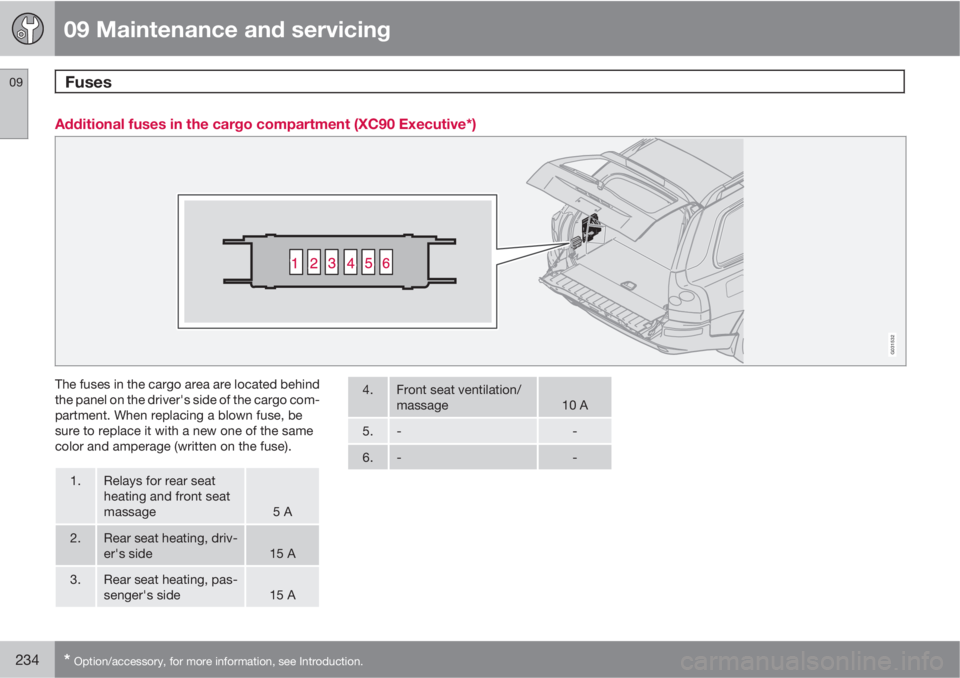

Additional fuses in the cargo compartment (XC90 Executive*)
G031532
The fuses in the cargo area are located behind
the panel on the driver's side of the cargo com-
partment. When replacing a blown fuse, be
sure to replace it with a new one of the same
color and amperage (written on the fuse).
1.Relays for rear seat
heating and front seat
massage
5 A
2.Rear seat heating, driv-
er's side15 A
3.Rear seat heating, pas-
senger's side15 A
4.Front seat ventilation/
massage10 A
5.--
6.--

09 Maintenance and servicing
09
235

G020924
236* Option/accessory, for more information, see Introduction.
Audio system overview......................................................................... 238
Audio system controls.......................................................................... 239
Radio functions..................................................................................... 244
Sirius satellite radio............................................................................... 249
Auxiliary equipment............................................................................... 253
CD player/changer................................................................................ 255
Menu structure...................................................................................... 258
Rear Seat Entertainment – Dual Screen (RSE)*.................................... 259

10
AUDIO

10 Audio
Audio system overview
10

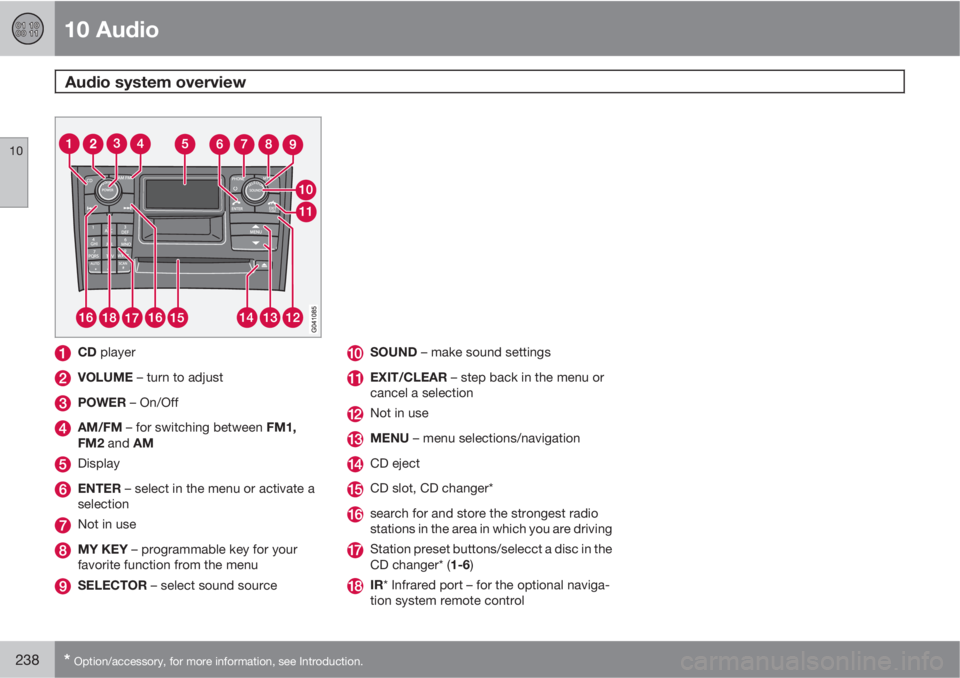

238* Option/accessory, for more information, see Introduction.
CD player
VOLUME – turn to adjust
POWER – On/Off
AM/FM – for switching between FM1,
FM2 and AM
Display
ENTER – select in the menu or activate a
selection
Not in use
MY KEY – programmable key for your
favorite function from the menu
SELECTOR – select sound source
SOUND – make sound settings
EXIT/CLEAR – step back in the menu or
cancel a selection
Not in use
MENU – menu selections/navigation
CD eject
CD slot, CD changer*
search for and store the strongest radio
stations in the area in which you are driving
Station preset buttons/selecct a disc in the
CD changer* (1-6)
IR* Infrared port – for the optional naviga-
tion system remote control

10 Audio
Audio system controls
10

239 Steering wheel keypad
G027135
The four buttons on the steering wheel keypad
can be used to control the audio system. The
steering wheel keypad can be used to adjust
volume, shift between preset stations and
change CD tracks.
•Press the or buttons briefly to
search for a radio station, or to go to the
next/previous track on a CD.
•Press and hold down these buttons to
search within a track.

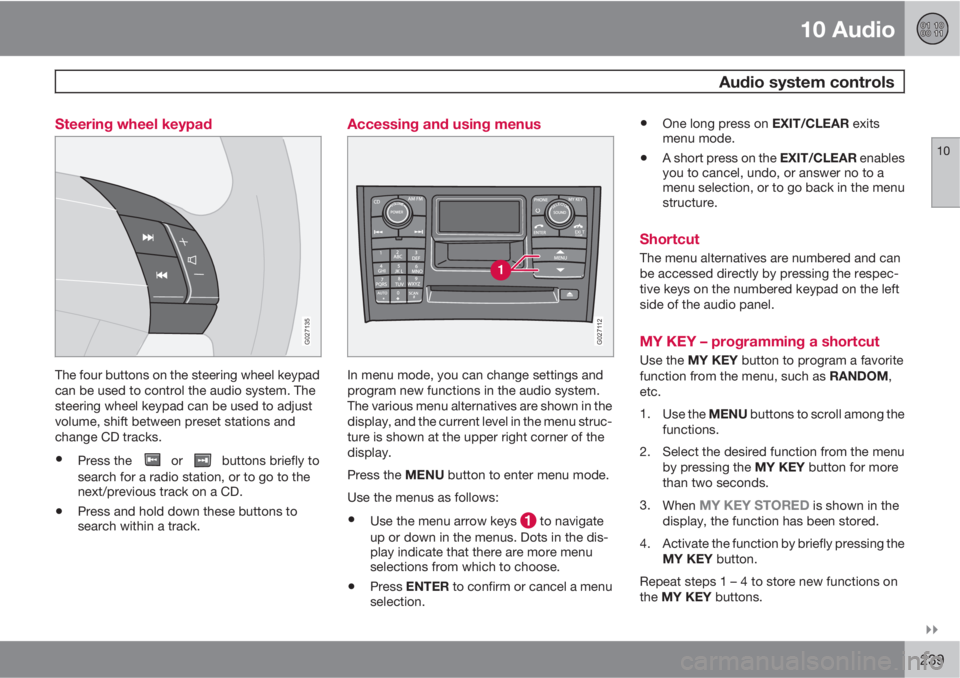

Accessing and using menus
G027112
In menu mode, you can change settings and
program new functions in the audio system.
The various menu alternatives are shown in the
display, and the current level in the menu struc-
ture is shown at the upper right corner of the
display.
Press the MENU button to enter menu mode.
Use the menus as follows:
•Use the menu arrow keys to navigate
up or down in the menus. Dots in the dis-
play indicate that there are more menu
selections from which to choose.
•Press ENTER to confirm or cancel a menu
selection.
•One long press on EXIT/CLEAR exits
menu mode.
•A short press on the EXIT/CLEAR enables
you to cancel, undo, or answer no to a
menu selection, or to go back in the menu
structure.
Shortcut
The menu alternatives are numbered and can
be accessed directly by pressing the respec-
tive keys on the numbered keypad on the left
side of the audio panel.
MY KEY – programming a shortcut
Use the MY KEY button to program a favorite
function from the menu, such as RANDOM,
etc.
1.
Use the MENU buttons to scroll among the
functions.
2. Select the desired function from the menu
by pressing the MY KEY button for more
than two seconds.
3.
When
MY KEY STORED is shown in the
display, the function has been stored.
4. Activate the function by briefly pressing the
MY KEY button.
Repeat steps 1 – 4 to store new functions on
the MY KEY buttons.

10 Audio
Audio system controls
10
240* Option/accessory, for more information, see Introduction.
NOTE
The MY KEY buttons can only be pro-
grammed for one shortcut function at a
time.

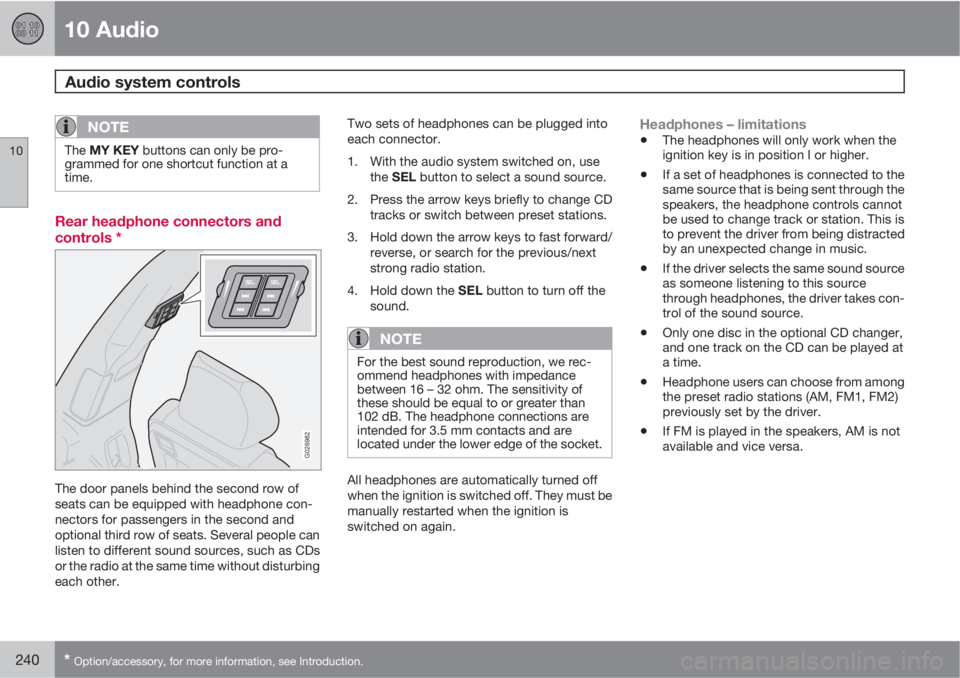

Rear headphone connectors and
controls *
G026982
The door panels behind the second row of
seats can be equipped with headphone con-
nectors for passengers in the second and
optional third row of seats. Several people can
listen to different sound sources, such as CDs
or the radio at the same time without disturbing
each other.Two sets of headphones can be plugged into
each connector.
1. With the audio system switched on, use
the SEL button to select a sound source.
2. Press the arrow keys briefly to change CD
tracks or switch between preset stations.
3. Hold down the arrow keys to fast forward/
reverse, or search for the previous/next
strong radio station.
4.
Hold down the SEL button to turn off the
sound.
NOTE
For the best sound reproduction, we rec-
ommend headphones with impedance
between 16 – 32 ohm. The sensitivity of
these should be equal to or greater than
102 dB. The headphone connections are
intended for 3.5 mm contacts and are
located under the lower edge of the socket.
All headphones are automatically turned off
when the ignition is switched off. They must be
manually restarted when the ignition is
switched on again.
Headphones – limitations
•The headphones will only work when the
ignition key is in position I or higher.
•If a set of headphones is connected to the
same source that is being sent through the
speakers, the headphone controls cannot
be used to change track or station. This is
to prevent the driver from being distracted
by an unexpected change in music.
•If the driver selects the same sound source
as someone listening to this source
through headphones, the driver takes con-
trol of the sound source.
•Only one disc in the optional CD changer,
and one track on the CD can be played at
a time.
•Headphone users can choose from among
the preset radio stations (AM, FM1, FM2)
previously set by the driver.
•If FM is played in the speakers, AM is not
available and vice versa.
