06 Starting and driving

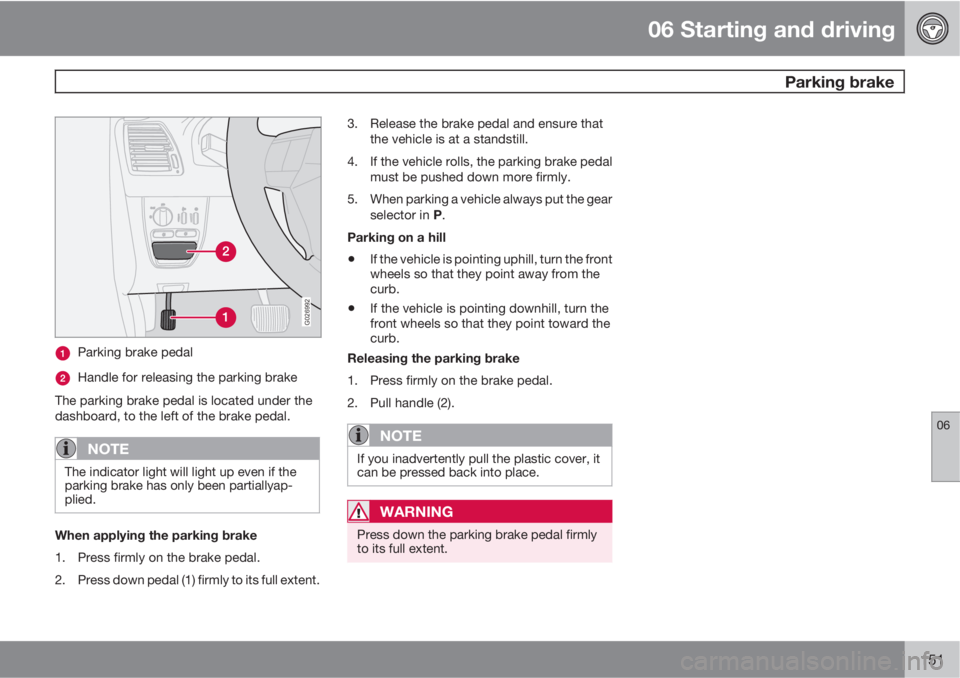

Parking brake
06
151
G026992
Parking brake pedal
Handle for releasing the parking brake
The parking brake pedal is located under the
dashboard, to the left of the brake pedal.
NOTE
The indicator light will light up even if the
parking brake has only been partiallyap-
plied.
When applying the parking brake
1. Press firmly on the brake pedal.
2. Press down pedal (1) firmly to its full extent.3. Release the brake pedal and ensure that
the vehicle is at a standstill.
4. If the vehicle rolls, the parking brake pedal
must be pushed down more firmly.
5. When parking a vehicle always put the gear
selector in P.
Parking on a hill
•If the vehicle is pointing uphill, turn the front
wheels so that they point away from the
curb.
•If the vehicle is pointing downhill, turn the
front wheels so that they point toward the
curb.
Releasing the parking brake
1. Press firmly on the brake pedal.
2. Pull handle (2).
NOTE
If you inadvertently pull the plastic cover, it
can be pressed back into place.
WARNING
Press down the parking brake pedal firmly
to its full extent.
Page 152 of 302
06 Starting and driving
Stability system
06
152

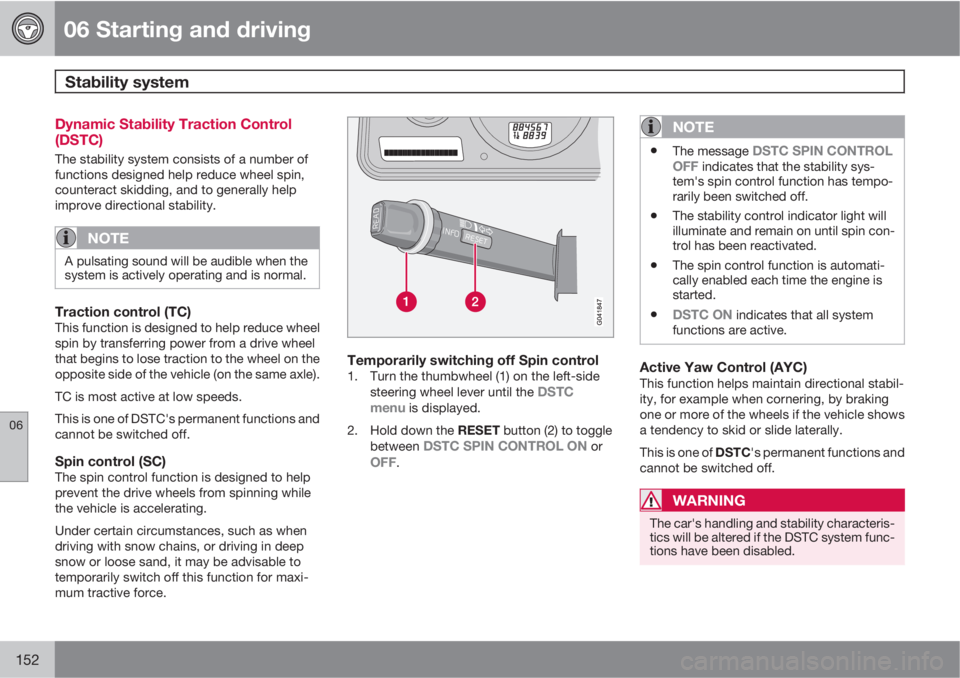

Dynamic Stability Traction Control
(DSTC)
The stability system consists of a number of
functions designed help reduce wheel spin,
counteract skidding, and to generally help
improve directional stability.
NOTE
A pulsating sound will be audible when the
system is actively operating and is normal.
Traction control (TC)This function is designed to help reduce wheel
spin by transferring power from a drive wheel
that begins to lose traction to the wheel on the
opposite side of the vehicle (on the same axle).
TC is most active at low speeds.
This is one of DSTC's permanent functions and
cannot be switched off.
Spin control (SC)The spin control function is designed to help
prevent the drive wheels from spinning while
the vehicle is accelerating.
Under certain circumstances, such as when
driving with snow chains, or driving in deep
snow or loose sand, it may be advisable to
temporarily switch off this function for maxi-
mum tractive force.
Temporarily switching off Spin control1. Turn the thumbwheel (1) on the left-side
steering wheel lever until the DSTC
menu is displayed.
2.
Hold down the RESET button (2) to toggle
between
DSTC SPIN CONTROL ON orOFF.
NOTE
•The message DSTC SPIN CONTROL
OFF indicates that the stability sys-
tem's spin control function has tempo-
rarily been switched off.
•The stability control indicator light will
illuminate and remain on until spin con-
trol has been reactivated.
•The spin control function is automati-
cally enabled each time the engine is
started.
•DSTC ON indicates that all system
functions are active.
Active Yaw Control (AYC)This function helps maintain directional stabil-
ity, for example when cornering, by braking
one or more of the wheels if the vehicle shows
a tendency to skid or slide laterally.
This is one of DSTC's permanent functions and
cannot be switched off.
WARNING
The car's handling and stability characteris-
tics will be altered if the DSTC system func-
tions have been disabled.
Page 153 of 302
06 Starting and driving
Stability system
06
153

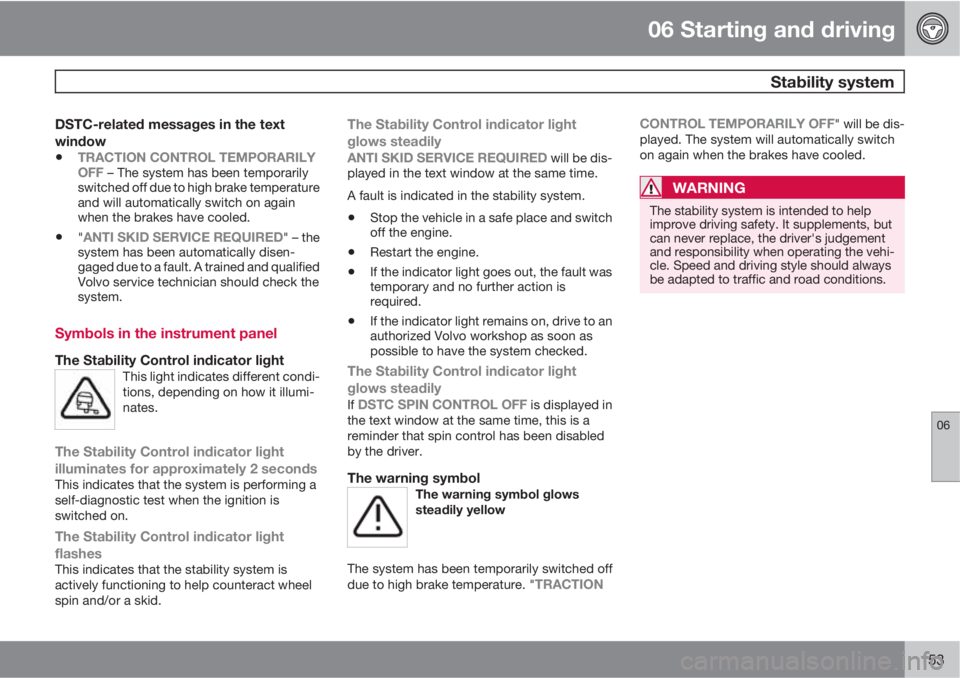

DSTC-related messages in the text
window
•TRACTION CONTROL TEMPORARILY
OFF – The system has been temporarily
switched off due to high brake temperature
and will automatically switch on again
when the brakes have cooled.
•"ANTI SKID SERVICE REQUIRED" – the
system has been automatically disen-
gaged due to a fault. A trained and qualified
Volvo service technician should check the
system.
Symbols in the instrument panel
The Stability Control indicator lightThis light indicates different condi-
tions, depending on how it illumi-
nates.
The Stability Control indicator light
illuminates for approximately 2 seconds
This indicates that the system is performing a
self-diagnostic test when the ignition is
switched on.
The Stability Control indicator light
flashes
This indicates that the stability system is
actively functioning to help counteract wheel
spin and/or a skid.
The Stability Control indicator light
glows steadily
ANTI SKID SERVICE REQUIRED will be dis-
played in the text window at the same time.
A fault is indicated in the stability system.
•Stop the vehicle in a safe place and switch
off the engine.
•Restart the engine.
•If the indicator light goes out, the fault was
temporary and no further action is
required.
•If the indicator light remains on, drive to an
authorized Volvo workshop as soon as
possible to have the system checked.
The Stability Control indicator light
glows steadily
If DSTC SPIN CONTROL OFF is displayed in
the text window at the same time, this is a
reminder that spin control has been disabled
by the driver.
The warning symbolThe warning symbol glows
steadily yellow
The system has been temporarily switched off
due to high brake temperature. "TRACTIONCONTROL TEMPORARILY OFF
" will be dis-
played. The system will automatically switch
on again when the brakes have cooled.
WARNING
The stability system is intended to help
improve driving safety. It supplements, but
can never replace, the driver's judgement
and responsibility when operating the vehi-
cle. Speed and driving style should always
be adapted to traffic and road conditions.
Page 154 of 302
06 Starting and driving
Front/rear park assist*
06
154* Option/accessory, for more information, see Introduction.
Front/rear park assist
The park assist system is designed to assist
you when driving into parking spaces, garages,
etc. It utilizes four ultrasound sensors located
in one or both bumpers to measure the dis-
tance to a vehicle, object, or a person who may
be close to the front or rear of your vehicle.
Park assist is available in two versions:
•Rear bumper only
•Front and rear bumpers
WARNING
Park Assist is an information system, NOT a
safety system. This system is designed to
be a supplementary aid when parking the
vehicle. It is not, however, intended to
replace the driver's attention and judge-
ment.
Function
The system is activated automatically when the
vehicle is started. The indicator light in the but-
ton in the center console illuminates.
•The front park assist system is active from
the time the engine is started until the vehi-
cle exceeds a speed of approximately
10 mph (15 km/h). It is also active when the
vehicle is backing up.
•Rear park assist is active when the engine
is running and reverse gear has been
selected.
Rear park assistThe distance monitored behind the vehicle is
approximately 5 ft (1.5 m). The signal comes
from the rear speakers.
The system must be deactivated when towing
a trailer, carrying bicycles in a rear-mounted
carrier, etc, which could trigger the rear park
assist system's sensors.
NOTE
Rear park assist is deactivated automati-
cally when towing a trailer if Volvo genuine
trailer wiring is used.
Front park assistThe distance monitored in front of the vehicle
is approximately 2.5 ft (0.8 m). The audible sig-
nal comes from the audio system's front
speakers.
•It may not be possible to combine auxiliary
headlights and front park assist since
these lights could trigger the system's sen-
sors.
Activating/deactivating park assist
The system is activated automatically when the
vehicle is started.
•Press the Park assist button on the center
console (see page 64) to temporarily deac-
tivate the system(s). The indicator light in
the button will go out when the system has
been deactivated.
•Park assist will be automatically reactiva-
ted the next time the engine is started, or if
the button is pressed (the indicator light in
the button will illuminate).
Page 155 of 302
06 Starting and driving
Front/rear park assist*
06
* Option/accessory, for more information, see Introduction.155
NOTE
•Front park assist is disengaged auto-
matically when the parking brake is
applied.
•If the vehicle is equipped with front and
rear park assist, both systems will be
deactivated by pressing the button.
Audible signals from the park assist
system
The Park Assist system uses an intermittent
tone that pulses faster as you come close to an
object, and becomes constant when you are
within approximately 1 ft (30 cm) of an object
in front of or behind the vehicle. If the volume
of another source from the audio system is
high, this will be automatically lowered.
If there are objects within this distance both
behind and in front of the vehicle, the signal
alternates between front and rear speakers.
Faults in the system
If the yellow warning symbol illu-
minates and PARK ASSIST
SERVICE REQUIRED is shown
on the information display, this
indicates that the system is not
functioning properly and has been disengaged.
Consult a trained and qualified Volvo service
technician.
CAUTION
In certain circumstances, the park assist
system may give unexpected warning sig-
nals that can be caused by external sound
sources that use the same ultrasound fre-
quencies as the system. This may include
such things as the horns of other vehicles,
wet tires on asphalt, pneumatic brakes,
motorcycle exhaust pipes, etc. This does
not indicate a fault in the system.
Cleaning the sensors
G026946
Park assist sensors
The sensors must be cleaned regularly to
ensure that they work properly. Clean them
with water and a suitable car washing deter-
gent.
Ice and snow covering the sensors may cause
incorrect warning signals.
NOTE
If the sensors are obstructed by e.g., dirt,
snow, or ice, this could result in false warn-
ing signals from the park assist system.
Page 156 of 302
06 Starting and driving
Towing
06
156

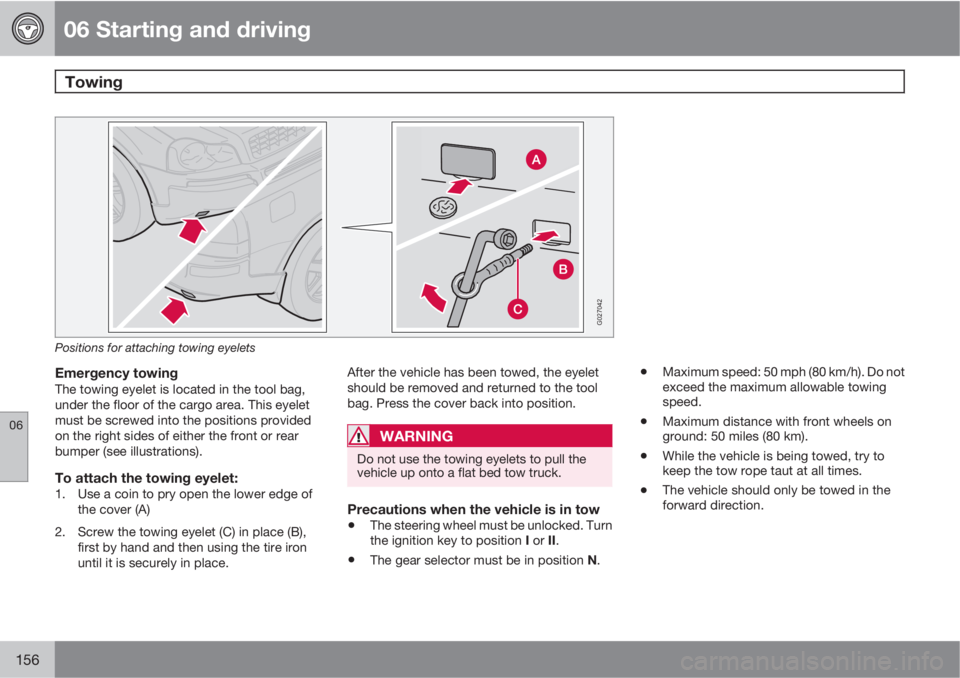

G027042
Positions for attaching towing eyelets
Emergency towingThe towing eyelet is located in the tool bag,
under the floor of the cargo area. This eyelet
must be screwed into the positions provided
on the right sides of either the front or rear
bumper (see illustrations).
To attach the towing eyelet:1. Use a coin to pry open the lower edge of
the cover (A)
2. Screw the towing eyelet (C) in place (B),
first by hand and then using the tire iron
until it is securely in place.After the vehicle has been towed, the eyelet
should be removed and returned to the tool
bag. Press the cover back into position.
WARNING
Do not use the towing eyelets to pull the
vehicle up onto a flat bed tow truck.
Precautions when the vehicle is in tow
•The steering wheel must be unlocked. Turn
the ignition key to position I or II.
•The gear selector must be in position N.
•Maximum speed: 50 mph (80 km/h). Do not
exceed the maximum allowable towing
speed.
•Maximum distance with front wheels on
ground: 50 miles (80 km).
•While the vehicle is being towed, try to
keep the tow rope taut at all times.
•The vehicle should only be towed in the
forward direction.
Page 157 of 302
06 Starting and driving
Towing
06
157
CAUTION

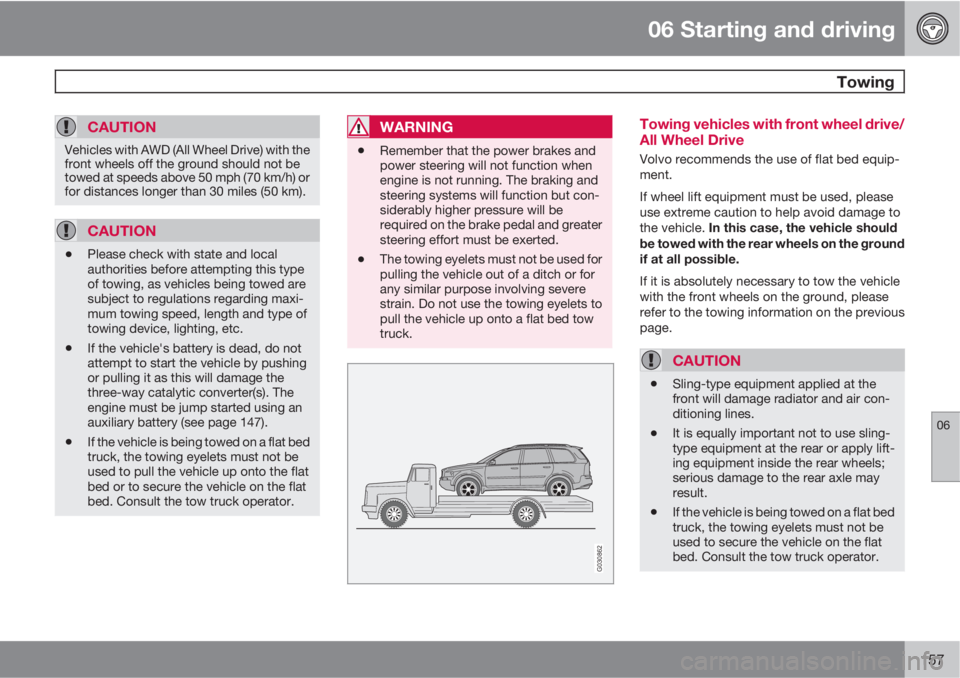

Vehicles with AWD (All Wheel Drive) with the
front wheels off the ground should not be
towed at speeds above 50 mph (70 km/h) or
for distances longer than 30 miles (50 km).
CAUTION
•Please check with state and local
authorities before attempting this type
of towing, as vehicles being towed are
subject to regulations regarding maxi-
mum towing speed, length and type of
towing device, lighting, etc.
•If the vehicle's battery is dead, do not
attempt to start the vehicle by pushing
or pulling it as this will damage the
three-way catalytic converter(s). The
engine must be jump started using an
auxiliary battery (see page 147).
•If the vehicle is being towed on a flat bed
truck, the towing eyelets must not be
used to pull the vehicle up onto the flat
bed or to secure the vehicle on the flat
bed. Consult the tow truck operator.
WARNING
•Remember that the power brakes and
power steering will not function when
engine is not running. The braking and
steering systems will function but con-
siderably higher pressure will be
required on the brake pedal and greater
steering effort must be exerted.
•The towing eyelets must not be used for
pulling the vehicle out of a ditch or for
any similar purpose involving severe
strain. Do not use the towing eyelets to
pull the vehicle up onto a flat bed tow
truck.
G030862
Towing vehicles with front wheel drive/
All Wheel Drive
Volvo recommends the use of flat bed equip-
ment.
If wheel lift equipment must be used, please
use extreme caution to help avoid damage to
the vehicle. In this case, the vehicle should
be towed with the rear wheels on the ground
if at all possible.
If it is absolutely necessary to tow the vehicle
with the front wheels on the ground, please
refer to the towing information on the previous
page.
CAUTION
•Sling-type equipment applied at the
front will damage radiator and air con-
ditioning lines.
•It is equally important not to use sling-
type equipment at the rear or apply lift-
ing equipment inside the rear wheels;
serious damage to the rear axle may
result.
•If the vehicle is being towed on a flat bed
truck, the towing eyelets must not be
used to secure the vehicle on the flat
bed. Consult the tow truck operator.
Page 158 of 302
06 Starting and driving
Towing a trailer
06
158* Option/accessory, for more information, see Introduction.

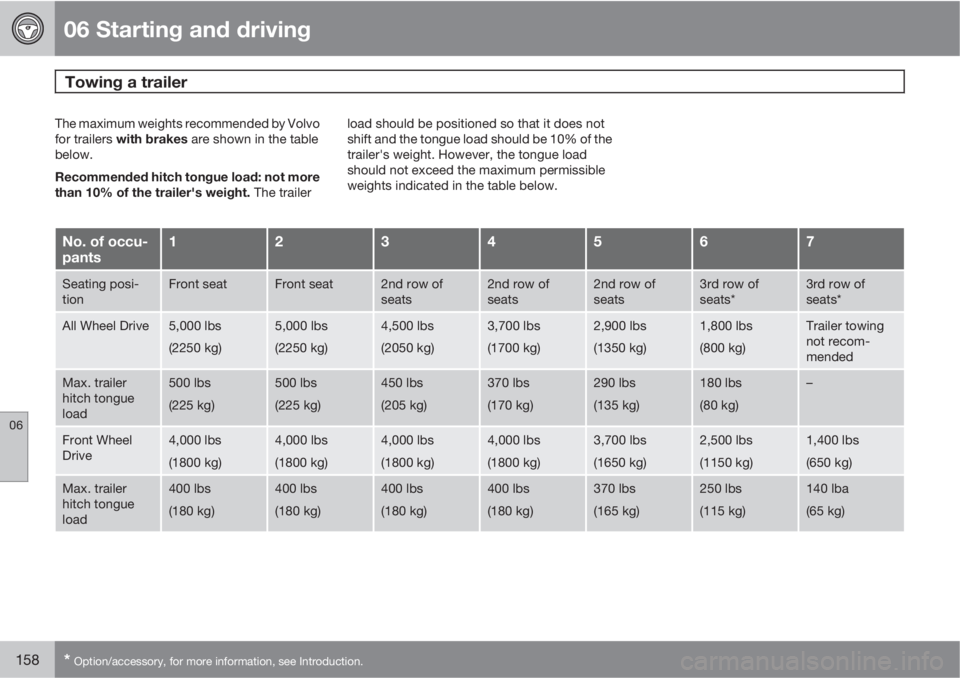

The maximum weights recommended by Volvo
for trailers with brakes are shown in the table
below.
Recommended hitch tongue load: not more
than 10% of the trailer's weight. The trailerload should be positioned so that it does not
shift and the tongue load should be 10% of the
trailer's weight. However, the tongue load
should not exceed the maximum permissible
weights indicated in the table below.
No. of occu-
pants1234567
Seating posi-
tionFront seatFront seat2nd row of
seats2nd row of
seats2nd row of
seats3rd row of
seats*3rd row of
seats*
All Wheel Drive5,000 lbs
(2250 kg)5,000 lbs
(2250 kg)4,500 lbs
(2050 kg)3,700 lbs
(1700 kg)2,900 lbs
(1350 kg)1,800 lbs
(800 kg)Trailer towing
not recom-
mended
Max. trailer
hitch tongue
load500 lbs
(225 kg)500 lbs
(225 kg)450 lbs
(205 kg)370 lbs
(170 kg)290 lbs
(135 kg)180 lbs
(80 kg)–
Front Wheel
Drive4,000 lbs
(1800 kg)4,000 lbs
(1800 kg)4,000 lbs
(1800 kg)4,000 lbs
(1800 kg)3,700 lbs
(1650 kg)2,500 lbs
(1150 kg)1,400 lbs
(650 kg)
Max. trailer
hitch tongue
load400 lbs
(180 kg)400 lbs
(180 kg)400 lbs
(180 kg)400 lbs
(180 kg)370 lbs
(165 kg)250 lbs
(115 kg)140 lba
(65 kg)
Page 159 of 302
06 Starting and driving
Towing a trailer
06
159
Points to keep in mind when towing a
trailer
•When towing trailers without brakes, the
maximum permissible trailer weight is
1,700 lbs (750 kg).
•If necessary, redistribute the weight of any
cargo in the trailer to avoid excessive
weight on the trailer hitch.
•The maximum trailer weight listed in the
table for All Wheel Drive models, 5,000 lbs
(2250 kg) is only applicable when there are
not more than two occupants in the vehi-
cle, in the front seats, with a combined
weight of 300 lbs (135 kg), with no other
cargo in the vehicle.
•The maximum weight listed for Front
Wheel Drive models, 4,000 lbs (1800 kg) is
only applicable when there are not more
than four occupants in the vehicle, in the
front seats and second row of seats, with
a combined weight of 600 lbs (270 kg), with
no other cargo in the vehicle.
•Vehicles used for towing a trailer on a reg-
ular basis, or for long-distance highway
towing should be equipped with an auto-
matic transmission oil cooler and Volvo's
automatic self-leveling system for the rear
suspension. Consult your Volvo retailer.
•Volvo recommends the use of Volvo trailer
hitches that are specially designed for the
vehicle.
•All Volvo models are equipped with
energy-absorbing shock-mounted bump-
ers. Trailer hitch installation should not
interfere with the proper operation of this
bumper system.
•Increase tire pressure to recommended full
inflation pressure. See chapter "Wheels
and tires."
•When your vehicle is new, avoid towing
heavy trailers during the first 620 miles
(1,000 km).
•Engine and transmission are subject to
increased loads. Therefore, engine coolant
temperature should be closely watched
when driving in hot climates or hilly terrain.
Use a lower gear and turn off the air con-
ditioner if the temperature gauge needle
enters the red range.
•If the automatic transmission begins to
overheat, a message will be displayed in
the text window.
•Hauling a trailer affects handling, durabil-
ity, and economy.
•It is necessary to balance trailer brakes
with the towing vehicle brakes to provide a
safe stop (check and observe state/local
regulations).
•Do not connect the trailer's brake system
directly to the vehicle's brake system.
•Remove the ball and drawbar assembly
when the hitch is not being used.
•Volvo recommends the use of synthetic
engine oil when towing a trailer over long
distances or in mountainous areas.
NOTE
•When parking the vehicle with a trailer
on a hill, apply the parking brake before
putting the gear selector in P. When
starting on a hill, put the gear selector in
D before releasing the parking brake.
Always follow the trailer manufacturer's
recommendations for wheel chocking.
•If you use the manual (Geartronic) shift
positions while towing a trailer, make
sure the gear you select does not put
too much strain on the engine (using too
high a gear).
Page 160 of 302
06 Starting and driving
Towing a trailer
06
160

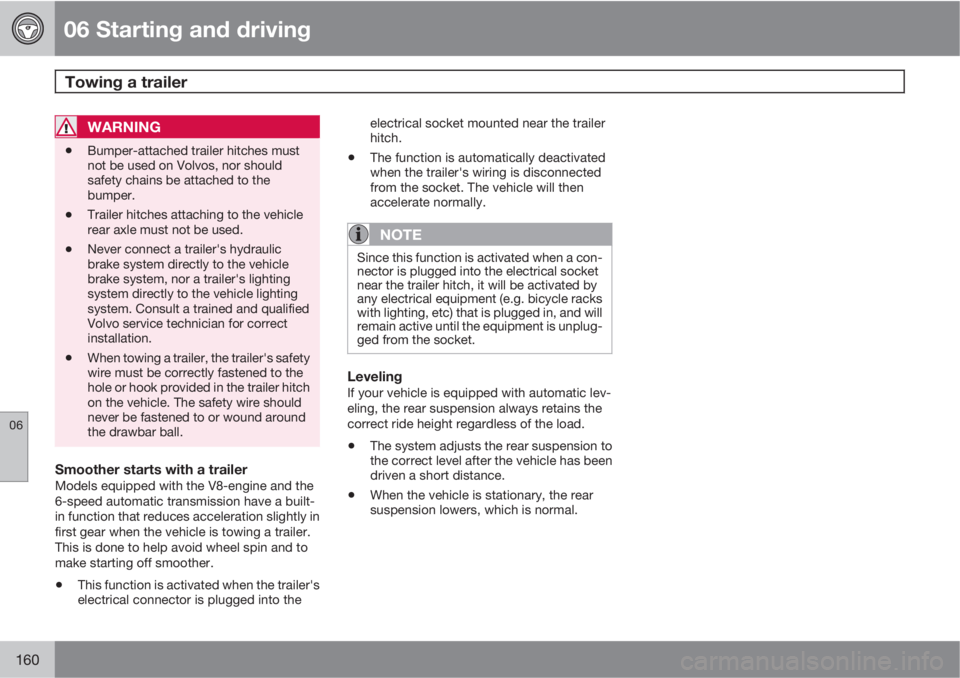

WARNING
•Bumper-attached trailer hitches must
not be used on Volvos, nor should
safety chains be attached to the
bumper.
•Trailer hitches attaching to the vehicle
rear axle must not be used.
•Never connect a trailer's hydraulic
brake system directly to the vehicle
brake system, nor a trailer's lighting
system directly to the vehicle lighting
system. Consult a trained and qualified
Volvo service technician for correct
installation.
•When towing a trailer, the trailer's safety
wire must be correctly fastened to the
hole or hook provided in the trailer hitch
on the vehicle. The safety wire should
never be fastened to or wound around
the drawbar ball.
Smoother starts with a trailerModels equipped with the V8-engine and the
6-speed automatic transmission have a built-
in function that reduces acceleration slightly in
first gear when the vehicle is towing a trailer.
This is done to help avoid wheel spin and to
make starting off smoother.
•This function is activated when the trailer's
electrical connector is plugged into theelectrical socket mounted near the trailer
hitch.
•The function is automatically deactivated
when the trailer's wiring is disconnected
from the socket. The vehicle will then
accelerate normally.
NOTE
Since this function is activated when a con-
nector is plugged into the electrical socket
near the trailer hitch, it will be activated by
any electrical equipment (e.g. bicycle racks
with lighting, etc) that is plugged in, and will
remain active until the equipment is unplug-
ged from the socket.
LevelingIf your vehicle is equipped with automatic lev-
eling, the rear suspension always retains the
correct ride height regardless of the load.
•The system adjusts the rear suspension to
the correct level after the vehicle has been
driven a short distance.
•When the vehicle is stationary, the rear
suspension lowers, which is normal.
