wheel VOLVO XC90 2011 Owner´s Manual

02 Instruments and controls
Lighting panel
02
68* Option/accessory, for more information, see Introduction.
Active Bending Lights (ABL)*
When this function is activated, the headlight
beams adjust laterally to help light up a curve
according to movements of the steering wheel
(see the right-pointing beam in the illustration).
The ABL function is activated automatically
when the engine is started and can be deacti-
vated/reactivated by pressing the button in the
center console (see page 64.
Fog lights
Front fog lights*The front fog lights can be used in combination
with either the headlights or the parking lights.
1.
Turn the ignition key to position II.
2. Press button (2) to turn on the front fog
lights.
An indicator light in the button illuminates when
the front fog lights are on.
Rear fog lightThe single rear fog light is located in the driver's
side of the vehicle.
The rear fog light will only function in combi-
nation with the high/low beam headlights or the
optional front fog lights.
1.
Turn the ignition key to position II.2. Press button (3) to turn on the rear fog light.
An indicator light in the button illuminates when
the rear fog light is on.
NOTE
The rear fog light is considerably brighter
than the normal tail lights and should be
used only when conditions such as fog, rain,
snow, smoke or dust reduce visibility for
other vehicles to less than 500 ft.
(150 meters).
Instrument panel lighting
The instrument panel lighting illuminates when
the ignition key is in position II and the light
switch (1) is in either position
or .

Move the thumb wheel (4) up to increase
brightness or down to decrease bright-
ness.
Unlocking the fuel filler door
Press button (5) when the vehicle is at a stand-
still to unlock the fuel filler door. Please note
that the fuel filler door will remain unlocked until
the vehicle begins to move forward. An audible
click will be heard when the fuel filler door
relocks.
NOTE
If the fuel filler door does not unlock after the
button has been pressed, drive the vehicle
at a speed of at least 5 mph (8 km/h), stop
the vehicle, and press the button again.
For information on unlocking the fuel filler door
manually, see page 69.

02 Instruments and controls
Left-side steering wheel lever
02
70
Lever positions
G026954
Turn signals, lane change position
Turn signals, position for normal turns
High beam flash
Toggle between high and low beams,
Home Safe lighting
Turn signals
When turningMove the lever as far up or down as possible
(to position 2) to start the turn signals. The turn
signals will be cancelled automatically by the
movement of the steering wheel, or the lever
can be returned to its initial position by hand.
When changing lanesThe driver can automatically flash the turn sig-
nals 3 times by:
•Moving the turn signal lever up or down to
position (1) and releasing it.
•Moving the lever up or down to position (2)
and immediately back to its original posi-
tion.
NOTE
•This automatic flashing sequence can
be interrupted by immediately moving
the lever in the opposite direction.
•If the turn signal indicator flashes faster
than normal, check for a burned-out
turn signal bulb.
High/low beam headlights
Continuous high beams1.
Turn the ignition key to position II.
2.
With the light switch in position
, (see
page 67) pull the turn signal lever toward
the steering wheel to toggle between high
and low beams.
High beam flash1.
Turn the ignition key to position II.
2. Pull the turn signal lever to position (3). The
high beams will remain on until the lever is
released.
Home safe lightingWhen leaving your vehicle at night, home safe
lighting can illuminate the area in front of the
vehicle.
1. Remove the key from the ignition switch.
2. Pull the turn signal lever as far as possible
toward the steering wheel and release it.
3. Exit the vehicle and lock the doors.
The headlights and parking lights will illuminate
and remain on for 30
1, 60 or 90 seconds. The
time interval can be changed by a trained and
qualified Volvo service technician.
1Factory setting

02 Instruments and controls
Right-side steering wheel lever
02

71 Windshield wipers
G026953
Thumb wheel
Rain sensor on/off
Windshield wipers offIf the lever is in the 0 position and
you move it upwards, the wipers
will sweep one stroke at a time for
as long as you hold the lever up.
Single sweep positionMove the lever slightly upward
from the 0 position for one sweep
of the wipers. The lever returns
automatically to 0 when released.
Intermittent wiper functionWith the lever in this position, you
can set the wiper interval by twist-
ing the control ring (1) upward to
increase wiper speed or down-
ward to decrease the speed.
Windshield washer/headlight washer
(certain models)
When the lever is pulled to wash the wind-
shield, high pressure jets mounted in the
bumper will spray the headlights.
CAUTION
•Use ample washer fluid when washing
the windshield to avoid scratching the
glass. The windshield should be thor-
oughly wet when the wipers are in oper-
ation.
•Before using the wipers, ice and snow
should be removed from the wind-
shield/rear window. Be sure the wiper
blades are not frozen in place.
•To conserve washer fluid in driving condi-
tions where the windshield washers are
used frequently, the headlights will only be
washed once for every five times the wind-
shield is washed within a 10-minute period.
•A short pull on the lever will wash the wind-
shield only.
•When approximately 1 US quart (1 liter)
remains in the washer fluid reservoir, the
headlights will not be washed when the
lever is pulled to conserve washer fluid for
the windshield.
Continuous wiper functionTop arrow: normal speed
Bottom arrows: higher speed

02 Instruments and controls
Right-side steering wheel lever
02
72* Option/accessory, for more information, see Introduction.
Tailgate wiper/washer
G027127
Intermittent wiping: Press the upper
section of the switch
Neutral position: The wiper is switched
off
Normal (continuous) wiping: Press the
lower section of the switch
Move the lever forward to start the tailgate
washer. After washing the rear window, the
wiper will make several additional sweeps.
Tailgate wiper and reverse gearIf the front wipers are on and the transmission
is put into reverse gear, the tailgate wiper will
go into intermittent wiping function
1.
If the tailgate wiper is already in normal wiping
function, the normal wiping function will con-
tinue.
Rain sensor*
The rain sensor automatically regulates wiper
speed according to the amount of water on the
windshield.
The sensitivity of the sensor can be adjusted
by twisting ring (1) up (the wipers will sweep the
windshield more frequently) or down (the wip-
ers will sweep the windshield less frequently).
Activating the rain sensor:1.
Turn the ignition key to at least position I
and put the windshield wiper lever in posi-
tion 0.
2. Press button (2), see page 71.
> A light in the button will light up to indi-
cate that the rain sensor is active.
Deactivating the rain sensor:
•Press button (2), see page 71.
or
•Move the windshield wiper lever down to
another position. Moving the lever up will
not deactivate the rain sensor. Doing so
will cause the wipers to sweep the wind-
shield until the lever is released, at which
time the wipers return to rain sensor mode.
The rain sensor is also deactivated when the
key is removed from the ignition.
CAUTION
The rain sensor should be deactivated when
washing the vehicle in an automatic car
wash, etc. If the rain sensor function is left
on, the wipers will start inadvertently in the
car wash and could be damaged.
1Consult your Volvo retailer if you would like to have this function deactivated.

02 Instruments and controls
Right-side steering wheel lever
02
* Option/accessory, for more information, see Introduction.73 IR-reflecting windshield*
Section of the windshield where the IR-coating is
not applied
An optional factory-installed infrared (IR) coa-
ting can be applied to the windshield to help
protect the cabin from the sun's heat and the
fading effect of sunlight on upholstery, panels,
etc.
Electronic equipment such as garage door
openers, electronic toll tags and similar devi-
ces should not be placed on sections of the
windshield with the IR coating because this
could affect their function and limit their range.
For best performance, place the device on the
section of the windshield without the IR coating
(see the area marked in the illustration).

02 Instruments and controls

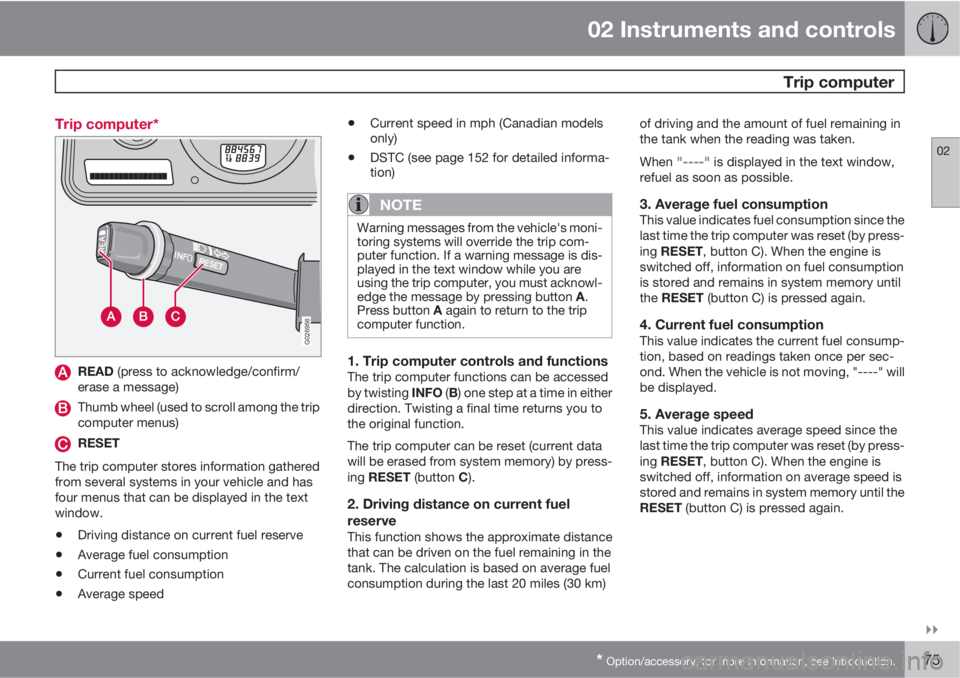

Trip computer
02

* Option/accessory, for more information, see Introduction.75 Trip computer*
G026956
READ (press to acknowledge/confirm/
erase a message)
Thumb wheel (used to scroll among the trip
computer menus)
RESET
The trip computer stores information gathered
from several systems in your vehicle and has
four menus that can be displayed in the text
window.
•Driving distance on current fuel reserve
•Average fuel consumption
•Current fuel consumption
•Average speed
•Current speed in mph (Canadian models
only)
•DSTC (see page 152 for detailed informa-
tion)
NOTE
Warning messages from the vehicle's moni-
toring systems will override the trip com-
puter function. If a warning message is dis-
played in the text window while you are
using the trip computer, you must acknowl-
edge the message by pressing button A.
Press button A again to return to the trip
computer function.
1. Trip computer controls and functionsThe trip computer functions can be accessed
by twisting INFO (B) one step at a time in either
direction. Twisting a final time returns you to
the original function.
The trip computer can be reset (current data
will be erased from system memory) by press-
ing RESET (button C).
2. Driving distance on current fuel
reserve
This function shows the approximate distance
that can be driven on the fuel remaining in the
tank. The calculation is based on average fuel
consumption during the last 20 miles (30 km)of driving and the amount of fuel remaining in
the tank when the reading was taken.
When
"----" is displayed in the text window,
refuel as soon as possible.
3. Average fuel consumptionThis value indicates fuel consumption since the
last time the trip computer was reset (by press-
ing RESET, button C). When the engine is
switched off, information on fuel consumption
is stored and remains in system memory until
the RESET (button C) is pressed again.
4. Current fuel consumptionThis value indicates the current fuel consump-
tion, based on readings taken once per sec-
ond. When the vehicle is not moving, "----" will
be displayed.
5. Average speedThis value indicates average speed since the
last time the trip computer was reset (by press-
ing RESET, button C). When the engine is
switched off, information on average speed is
stored and remains in system memory until the
RESET (button C) is pressed again.

02 Instruments and controls

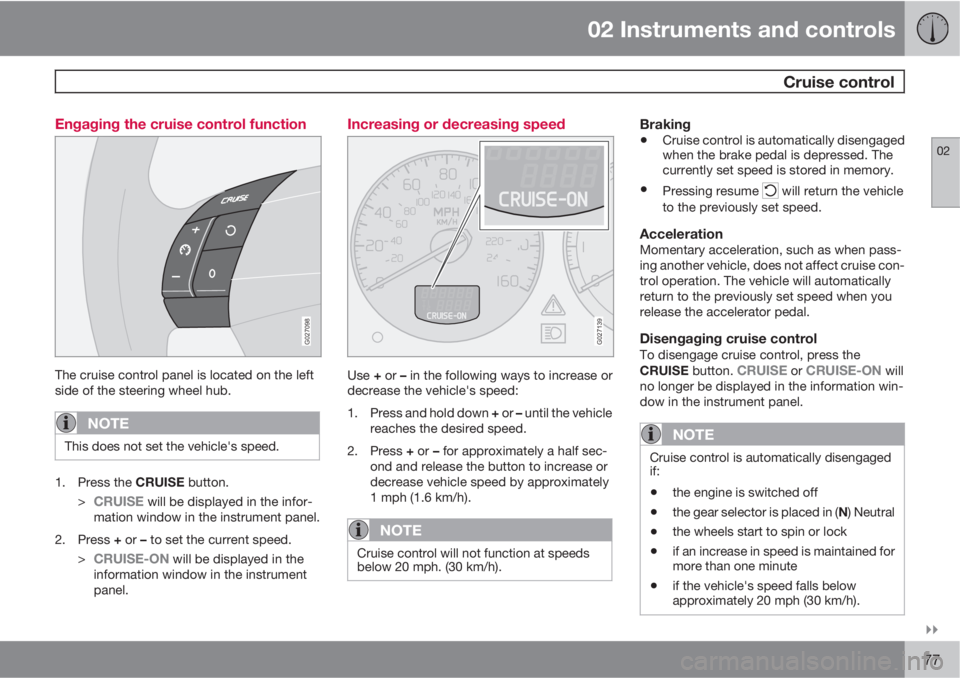

Cruise control
02

77 Engaging the cruise control function
G027098
The cruise control panel is located on the left
side of the steering wheel hub.
NOTE
This does not set the vehicle's speed.
1.
Press the CRUISE button.
>
CRUISE will be displayed in the infor-
mation window in the instrument panel.
2.
Press + or – to set the current speed.
>
CRUISE-ON will be displayed in the
information window in the instrument
panel.
Increasing or decreasing speed
G027139
Use + or – in the following ways to increase or
decrease the vehicle's speed:
1.
Press and hold down + or – until the vehicle
reaches the desired speed.
2.
Press + or – for approximately a half sec-
ond and release the button to increase or
decrease vehicle speed by approximately
1 mph (1.6 km/h).
NOTE
Cruise control will not function at speeds
below 20 mph. (30 km/h).
Braking
•Cruise control is automatically disengaged
when the brake pedal is depressed. The
currently set speed is stored in memory.
•Pressing resume will return the vehicle
to the previously set speed.
AccelerationMomentary acceleration, such as when pass-
ing another vehicle, does not affect cruise con-
trol operation. The vehicle will automatically
return to the previously set speed when you
release the accelerator pedal.
Disengaging cruise controlTo disengage cruise control, press the
CRUISE button. CRUISE or CRUISE-ON will
no longer be displayed in the information win-
dow in the instrument panel.
NOTE
Cruise control is automatically disengaged
if:
•the engine is switched off
•the gear selector is placed in (N) Neutral
•the wheels start to spin or lock
•if an increase in speed is maintained for
more than one minute
•if the vehicle's speed falls below
approximately 20 mph (30 km/h).

04 Interior
Securing cargo
04
118
G027031
As a safety precaution, all cargo in your vehicle
should be securely anchored to keep it from
being thrown forward in the event of sudden
braking, etc. The vehicle is equipped with eye-
lets in the cargo space to which straps or other
cargo restraints can be attached.
WARNING
The eyelets are not to be used as passenger
restraints or as anchorages for child
restraints.
Consult your Volvo retailer about suitable
accessories for this purpose.Remember that an object weighing 44 lbs
(20 kg) produces a force of 2,200 lbs
(1,000 kg) in a head-on collision at 30 mph
(50 km/h)!
Keep the following in mind when loading the
vehicle:
•The load carrying capacity of your vehicle
is determined by factors such as the num-
ber of passengers, the amount of cargo,
the weight of any accessories that may be
installed, etc. See the section "Vehicle
loading" in the chapter "Wheel and tires"
for more detailed information.
•Load the cargo against the backrest.
•Load heavy cargo as low as possible.
•If no one is sitting in the outboard rear
seat(s), reinforce the backrest by fastening
the seat belts.
•Never load cargo above the backrest with-
out a cargo net.
WARNING
When the rear backrest(s) are folded down,
the vehicle should not be loaded to a level
higher than 2 in. (5 cm) below the upper
edge of the rear side windows. Objects
placed higher than this level could impede
the function of the inflatable curtain.
G027058
Attachment bracket
Nylon cargo net (accessory)The Volvo XC90 can be equipped with a cargo
net made of strong nylon fabric.
This net can be installed in two places:
•Behind the rear seat backrests (the second
row of seats in seven-seat models)
•Behind the front seat backrests if the rear
seat backrests (the second row of seats in
seven-seat models) have been folded
down.

05 Locks and alarm
Locking and unlocking
05
128
G029646
Locking and unlocking the vehicle from
the inside
The switch on the driver's door armrest can be
used to lock or unlock all doors and the tail-
gate, and to set the alarm.
Each door can also be locked with the lock
button on the respective door and opened by
pulling the door handle on the door.
Automatic lockingThe function locks the doors automatically
when the vehicle's speed exceeds approxi-
mately 5 mph (7 km/h). The doors will then
remain locked until a door in opened from the
inside or if all of the doors are unlocked from
the control panel in the driver's door.This function can be activated/deactivated
from the control panel in the driver's door.
Activating/deactivating automatic
locking
1.
Turn the ignition key to position I or II.
2.
Press the READ button on the left-side
steering wheel lever to erase any mes-
sages that may be displayed in the infor-
mation display.
3. Depress the central locking button on the
control panel until a new message about
the locking status is displayed.
The message
AUTOLOCK ON (the doors will
be locked when the vehicle begins to move) or
AUTOLOCK OFF will be displayed.
ATTENTIONPakjdskdl ioiuip kjöpp opoodidåuswi
CSOUND
MENU
80
ENTERLSEEEXITMY KEYRTO
AIRBAG
G027025
Locking the glove compartmentThe glove compartment can be locked with the
master key.
G028485
Unlocking the tailgateThe tailgate lock is incorporated in the central
locking system and is locked or unlocked when
all doors are locked/unlocked.
The tailgate can be unlocked by:
•Pressing UNLOCK on the remote key
twice.
•Using the central locking button on the
driver's door.

132* Option/accessory, for more information, see Introduction.
General information............................................................................... 134
Fuel requirements................................................................................. 135
Refueling............................................................................................... 137
Starting the vehicle............................................................................... 139
Ignition switch and steering wheel lock................................................ 141
Economical driving................................................................................ 142
Difficult driving conditions..................................................................... 143
Automatic transmission........................................................................ 144
Jump starting........................................................................................ 147
All Wheel Drive*..................................................................................... 148
Brake system........................................................................................ 149
Parking brake........................................................................................ 151
Stability system..................................................................................... 152
Front/rear park assist*........................................................................... 154
Towing.................................................................................................. 156
Towing a trailer...................................................................................... 158
Detachable trailer hitch......................................................................... 161
Load carriers (accessory)...................................................................... 162
Cold weather precautions..................................................................... 163
Before a long distance trip.................................................................... 164
Blind Spot Information System*............................................................ 165
