01 Safety
Infant seats01

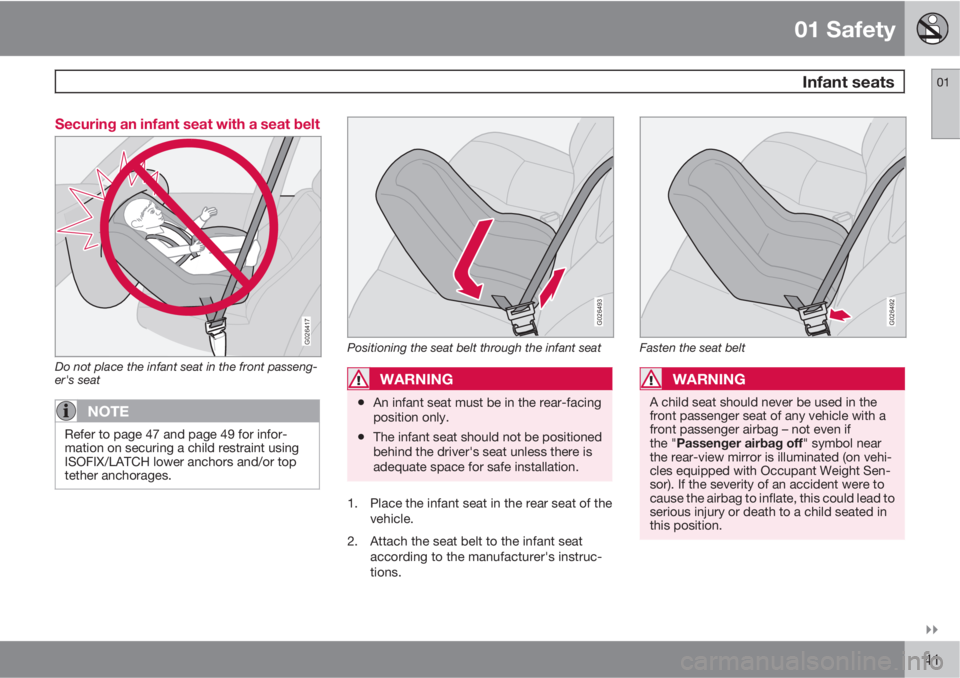

41 Securing an infant seat with a seat belt
G026417
Do not place the infant seat in the front passeng-
er's seat
NOTE
Refer to page 47 and page 49 for infor-
mation on securing a child restraint using
ISOFIX/LATCH lower anchors and/or top
tether anchorages.
G026493
Positioning the seat belt through the infant seat
WARNING
•An infant seat must be in the rear-facing
position only.
•The infant seat should not be positioned
behind the driver's seat unless there is
adequate space for safe installation.
1. Place the infant seat in the rear seat of the
vehicle.
2. Attach the seat belt to the infant seat
according to the manufacturer's instruc-
tions.
G026492
Fasten the seat belt
WARNING
A child seat should never be used in the
front passenger seat of any vehicle with a
front passenger airbag – not even if
the "Passenger airbag off" symbol near
the rear-view mirror is illuminated (on vehi-
cles equipped with Occupant Weight Sen-
sor). If the severity of an accident were to
cause the airbag to inflate, this could lead to
serious injury or death to a child seated in
this position.

01 Safety
Infant seats 01
42

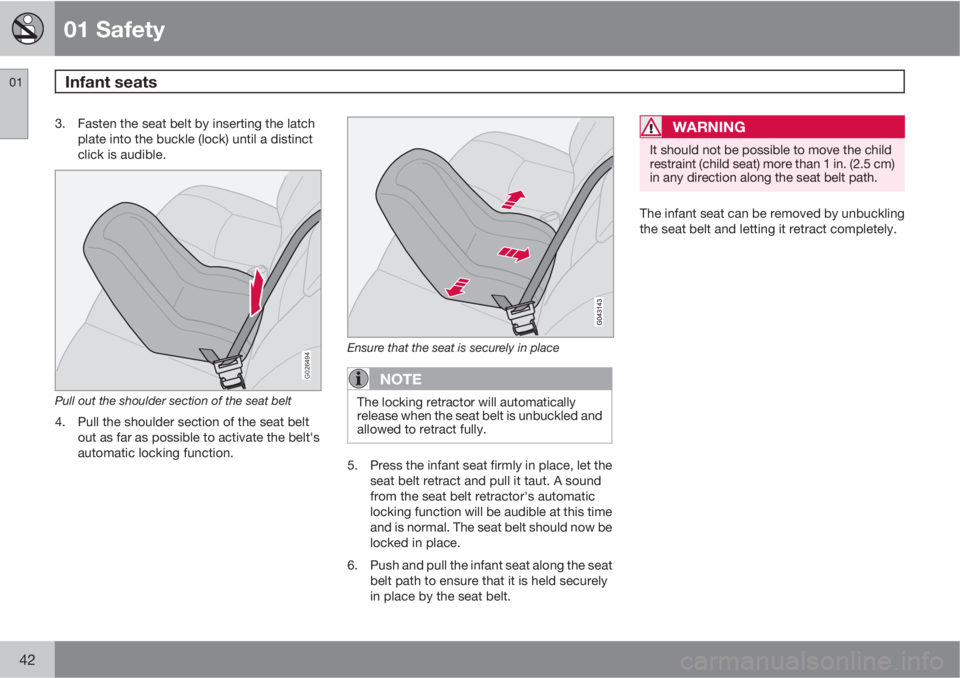

3. Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.
G026494
Pull out the shoulder section of the seat belt
4. Pull the shoulder section of the seat belt
out as far as possible to activate the belt's
automatic locking function.
Ensure that the seat is securely in place
NOTE
The locking retractor will automatically
release when the seat belt is unbuckled and
allowed to retract fully.
5. Press the infant seat firmly in place, let the
seat belt retract and pull it taut. A sound
from the seat belt retractor's automatic
locking function will be audible at this time
and is normal. The seat belt should now be
locked in place.
6. Push and pull the infant seat along the seat
belt path to ensure that it is held securely
in place by the seat belt.
WARNING
It should not be possible to move the child
restraint (child seat) more than 1 in. (2.5 cm)
in any direction along the seat belt path.
The infant seat can be removed by unbuckling
the seat belt and letting it retract completely.

01 Safety
Convertible seats01

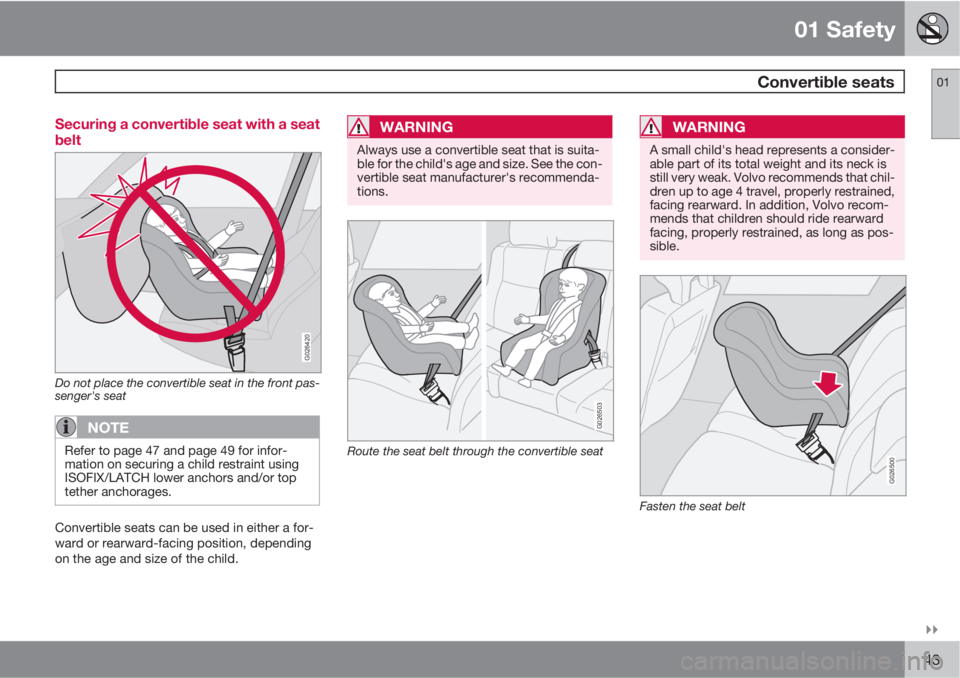

43 Securing a convertible seat with a seat
belt
G026420
Do not place the convertible seat in the front pas-
senger's seat
NOTE
Refer to page 47 and page 49 for infor-
mation on securing a child restraint using
ISOFIX/LATCH lower anchors and/or top
tether anchorages.
Convertible seats can be used in either a for-
ward or rearward-facing position, depending
on the age and size of the child.
WARNING
Always use a convertible seat that is suita-
ble for the child's age and size. See the con-
vertible seat manufacturer's recommenda-
tions.
G026503
Route the seat belt through the convertible seat
WARNING
A small child's head represents a consider-
able part of its total weight and its neck is
still very weak. Volvo recommends that chil-
dren up to age 4 travel, properly restrained,
facing rearward. In addition, Volvo recom-
mends that children should ride rearward
facing, properly restrained, as long as pos-
sible.
G026500
Fasten the seat belt

01 Safety
Convertible seats 01
44
WARNING
•Convertible child seats should be instal-
led in the rear seat only.
•A rear-facing convertible seat should not
be positioned behind the driver's seat
unless there is adequate space for safe
installation.

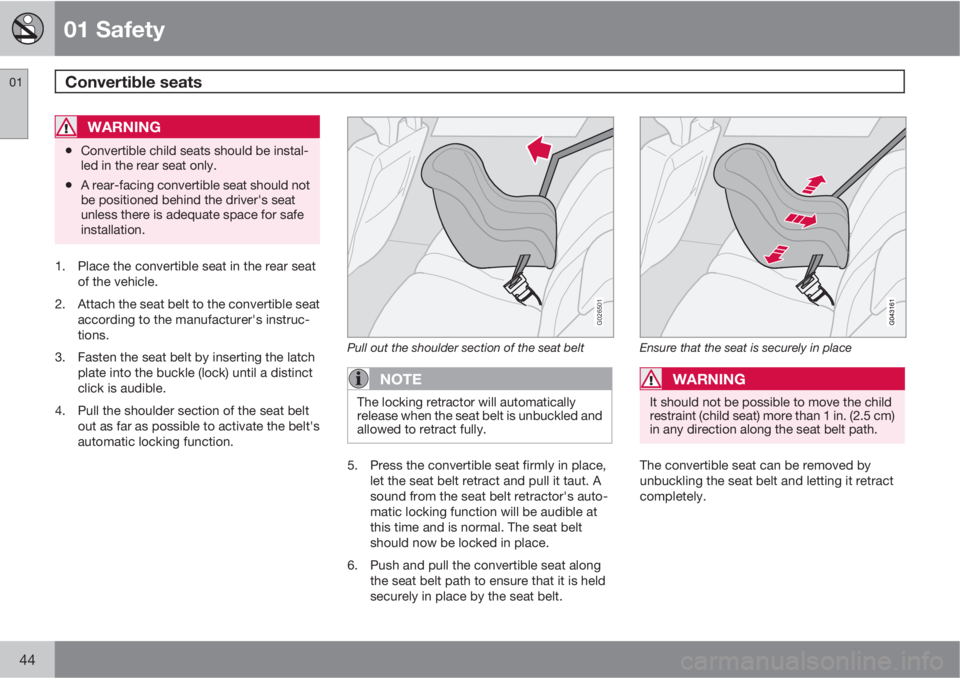

1. Place the convertible seat in the rear seat
of the vehicle.
2. Attach the seat belt to the convertible seat
according to the manufacturer's instruc-
tions.
3. Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.
4. Pull the shoulder section of the seat belt
out as far as possible to activate the belt's
automatic locking function.
G026501
Pull out the shoulder section of the seat belt
NOTE
The locking retractor will automatically
release when the seat belt is unbuckled and
allowed to retract fully.
5. Press the convertible seat firmly in place,
let the seat belt retract and pull it taut. A
sound from the seat belt retractor's auto-
matic locking function will be audible at
this time and is normal. The seat belt
should now be locked in place.
6. Push and pull the convertible seat along
the seat belt path to ensure that it is held
securely in place by the seat belt.
Ensure that the seat is securely in place
WARNING
It should not be possible to move the child
restraint (child seat) more than 1 in. (2.5 cm)
in any direction along the seat belt path.
The convertible seat can be removed by
unbuckling the seat belt and letting it retract
completely.

01 Safety
Convertible seats01
45
WARNING
A child seat should never be used in the
front passenger seat of any vehicle with a
front passenger airbag – not even if the
PASSENGER AIRBAG OFF symbol near
the rear-view mirror is illuminated (on vehi-
cles equipped with Occupant Weight Sen-
sor). If the severity of an accident were to
cause the airbag to inflate, this could lead to
serious injury or death to a child seated in
this position.

01 Safety
Booster cushions 01
46

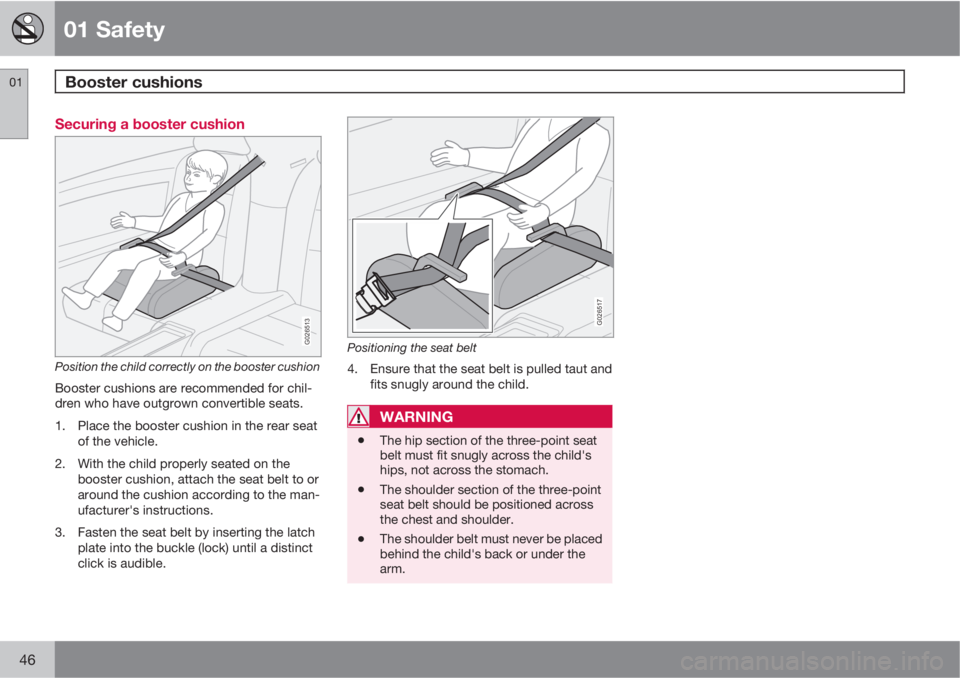

Securing a booster cushion
G026513
Position the child correctly on the booster cushion
Booster cushions are recommended for chil-
dren who have outgrown convertible seats.
1. Place the booster cushion in the rear seat
of the vehicle.
2. With the child properly seated on the
booster cushion, attach the seat belt to or
around the cushion according to the man-
ufacturer's instructions.
3. Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.
G026517
Positioning the seat belt
4. Ensure that the seat belt is pulled taut and
fits snugly around the child.
WARNING
•The hip section of the three-point seat
belt must fit snugly across the child's
hips, not across the stomach.
•The shoulder section of the three-point
seat belt should be positioned across
the chest and shoulder.
•The shoulder belt must never be placed
behind the child's back or under the
arm.

01 Safety
ISOFIX/LATCH lower anchors01

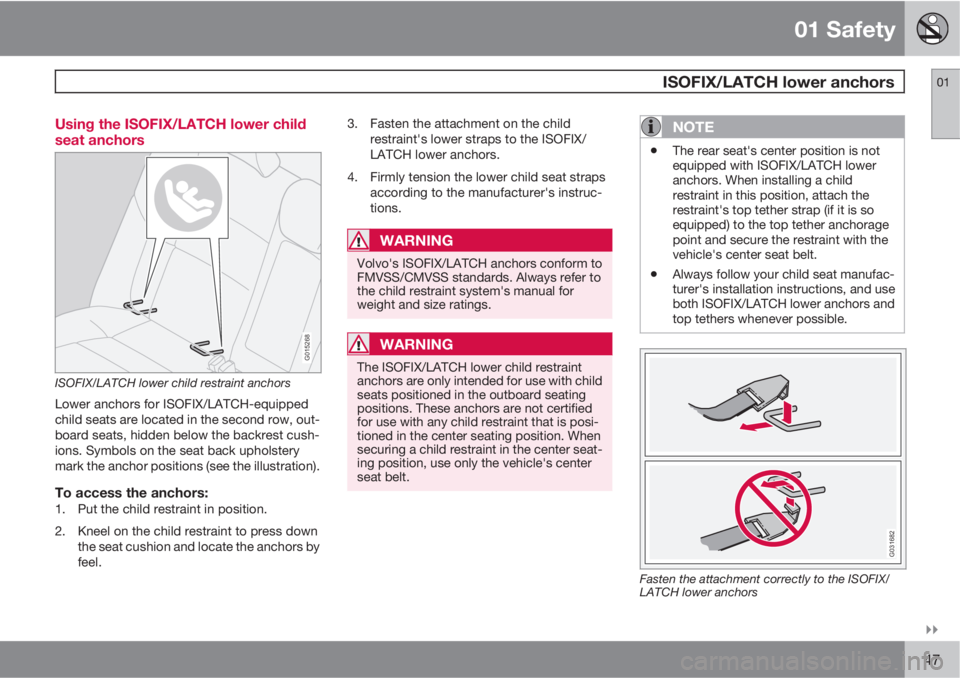

47 Using the ISOFIX/LATCH lower child
seat anchors
G015268
ISOFIX/LATCH lower child restraint anchors
Lower anchors for ISOFIX/LATCH-equipped
child seats are located in the second row, out-
board seats, hidden below the backrest cush-
ions. Symbols on the seat back upholstery
mark the anchor positions (see the illustration).
To access the anchors:1. Put the child restraint in position.
2. Kneel on the child restraint to press down
the seat cushion and locate the anchors by
feel.3. Fasten the attachment on the child
restraint's lower straps to the ISOFIX/
LATCH lower anchors.
4. Firmly tension the lower child seat straps
according to the manufacturer's instruc-
tions.
WARNING
Volvo's ISOFIX/LATCH anchors conform to
FMVSS/CMVSS standards. Always refer to
the child restraint system's manual for
weight and size ratings.
WARNING
The ISOFIX/LATCH lower child restraint
anchors are only intended for use with child
seats positioned in the outboard seating
positions. These anchors are not certified
for use with any child restraint that is posi-
tioned in the center seating position. When
securing a child restraint in the center seat-
ing position, use only the vehicle's center
seat belt.
NOTE
•The rear seat's center position is not
equipped with ISOFIX/LATCH lower
anchors. When installing a child
restraint in this position, attach the
restraint's top tether strap (if it is so
equipped) to the top tether anchorage
point and secure the restraint with the
vehicle's center seat belt.
•Always follow your child seat manufac-
turer's installation instructions, and use
both ISOFIX/LATCH lower anchors and
top tethers whenever possible.
G031682
Fasten the attachment correctly to the ISOFIX/
LATCH lower anchors

01 Safety
ISOFIX/LATCH lower anchors 01
48
WARNING
Be sure to fasten the attachment correctly
to the anchor (see the illustration). If the
attachment is not correctly fastened, the
child restraint may not be properly secured
in the event of a collision.

01 Safety
Top tether anchors01

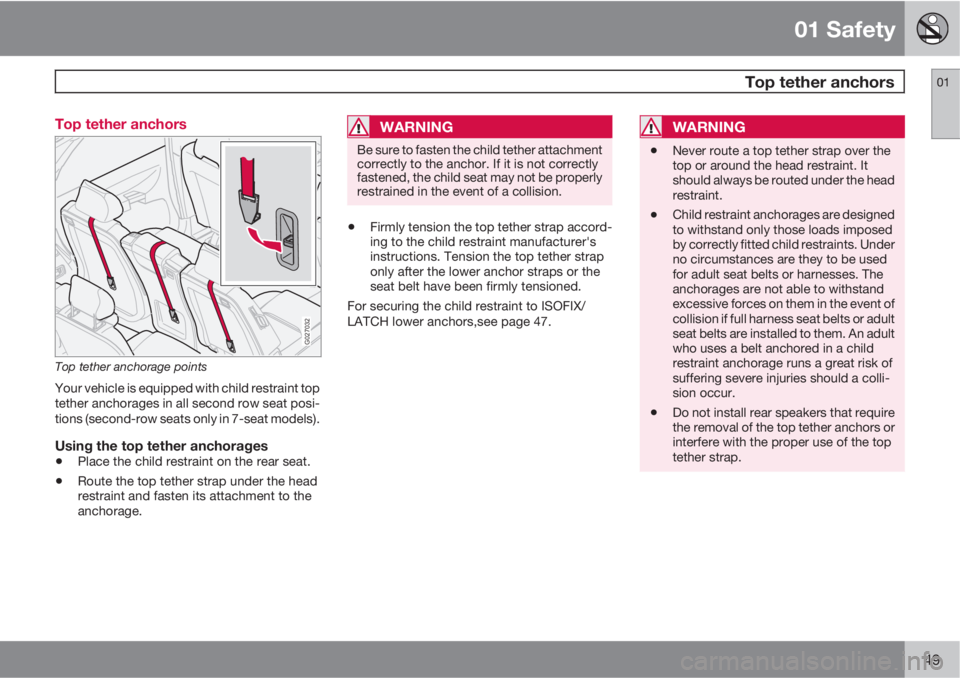

49 Top tether anchors
G027032
Top tether anchorage points
Your vehicle is equipped with child restraint top
tether anchorages in all second row seat posi-
tions (second-row seats only in 7-seat models).
Using the top tether anchorages
•Place the child restraint on the rear seat.
•Route the top tether strap under the head
restraint and fasten its attachment to the
anchorage.
WARNING
Be sure to fasten the child tether attachment
correctly to the anchor. If it is not correctly
fastened, the child seat may not be properly
restrained in the event of a collision.
•Firmly tension the top tether strap accord-
ing to the child restraint manufacturer's
instructions. Tension the top tether strap
only after the lower anchor straps or the
seat belt have been firmly tensioned.
For securing the child restraint to ISOFIX/
LATCH lower anchors,see page 47.
WARNING
•Never route a top tether strap over the
top or around the head restraint. It
should always be routed under the head
restraint.
•Child restraint anchorages are designed
to withstand only those loads imposed
by correctly fitted child restraints. Under
no circumstances are they to be used
for adult seat belts or harnesses. The
anchorages are not able to withstand
excessive forces on them in the event of
collision if full harness seat belts or adult
seat belts are installed to them. An adult
who uses a belt anchored in a child
restraint anchorage runs a great risk of
suffering severe injuries should a colli-
sion occur.
•Do not install rear speakers that require
the removal of the top tether anchors or
interfere with the proper use of the top
tether strap.

01 Safety
Child restraint registration and recalls 01
50
Registering a child restraint
Child restraints could be recalled for safety
reasons. You must register your child restraint
to be reached in a recall. To stay informed
about child safety seat recalls, be sure to fill out
and return the registration card that comes
with new child restraints.
Child restraint recall information is readily avail-
able in both the U.S. and Canada. For recall
information in the U.S., call the U.S. Govern-
ment's Auto Safety Hotline at 1-800-424-9393.
In Canada, visit Transport Canada's Child
Safety website at http://www.tc.gc.ca/
roadsafety/childsafety/menu.htm.
