CD changer VOLVO XC90 2011 Owner´s Manual

Contents
* Option/accessory, for more information, see Introduction.7
09
09 Maintenance and servicing
Volvo service........................................... 208
Maintaining your vehicle.........................209
Working on your vehicle......................... 211
Engine compartment............................... 213
Engine oil................................................ 214
Fluids...................................................... 217
Wiper blades........................................... 219
Battery..................................................... 220
Replacing bulbs...................................... 223
Fuses...................................................... 230
10
10 Audio
Audio system overview........................... 244
Audio system controls............................245
Radio functions....................................... 250
Sirius satellite radio................................. 255
Auxiliary equipment................................259
CD player/changer.................................. 261
Menu structure........................................ 264
Bluetooth
® hands-free connection......... 265
Rear Seat Entertainment – Dual Screen
(RSE)*......................................................270
11
11 Specifications
Label information.................................... 276
Dimensions ............................................ 278
Weights .................................................. 280
Fluids...................................................... 282
Suspension............................................. 284
Engine oil................................................ 285
Engine specifications.............................. 286
Electrical system..................................... 287
Three-way catalytic converter................. 289
Overview of information and warning sym-
bols ........................................................290
Volvo programs....................................... 292

242* Option/accessory, for more information, see Introduction.
Audio system overview......................................................................... 244
Audio system controls.......................................................................... 245
Radio functions..................................................................................... 250
Sirius satellite radio............................................................................... 255
Auxiliary equipment............................................................................... 259
CD player/changer................................................................................ 261
Menu structure...................................................................................... 264
Bluetooth
® hands-free connection....................................................... 265
Rear Seat Entertainment – Dual Screen (RSE)*.................................... 270

10 Audio

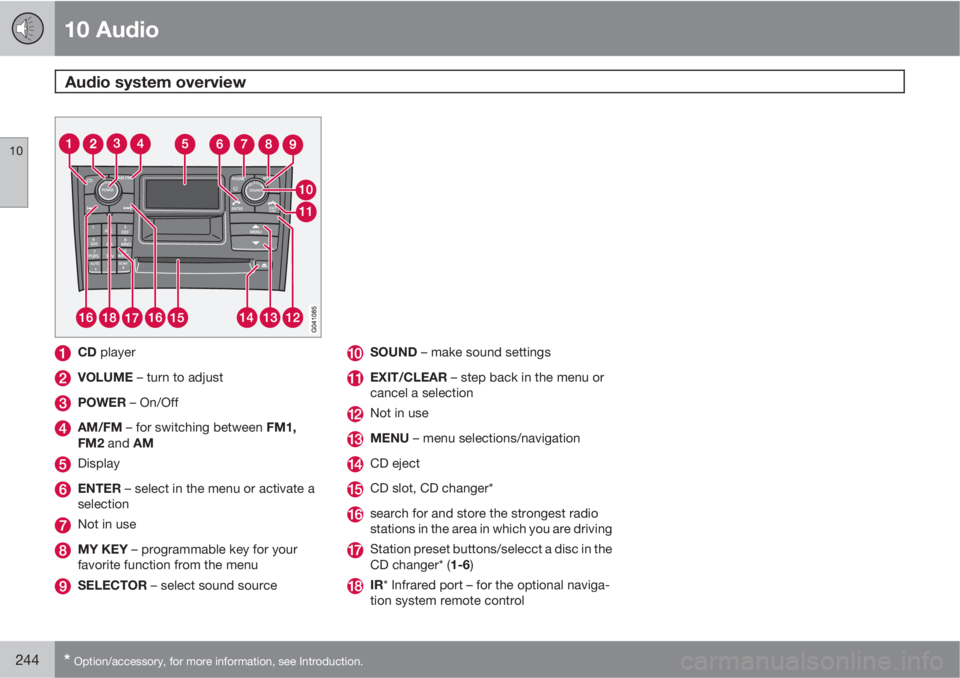

Audio system overview
10
244* Option/accessory, for more information, see Introduction.
CD player
VOLUME – turn to adjust
POWER – On/Off
AM/FM – for switching between FM1,
FM2 and AM
Display
ENTER – select in the menu or activate a
selection
Not in use
MY KEY – programmable key for your
favorite function from the menu
SELECTOR – select sound source
SOUND – make sound settings
EXIT/CLEAR – step back in the menu or
cancel a selection
Not in use
MENU – menu selections/navigation
CD eject
CD slot, CD changer*
search for and store the strongest radio
stations in the area in which you are driving
Station preset buttons/selecct a disc in the
CD changer* (1-6)
IR* Infrared port – for the optional naviga-
tion system remote control

10 Audio
Audio system controls
10
246* Option/accessory, for more information, see Introduction.
NOTE
The MY KEY buttons can only be pro-
grammed for one shortcut function at a
time.
Rear headphone connectors and
controls *
G026982
The door panels behind the second row of
seats can be equipped with headphone con-
nectors for passengers in the second and third
row of seats. Several people can listen to dif-
ferent sound sources, such as CDs or the radio
at the same time without disturbing each other.
Two sets of headphones can be plugged into
each connector.1. With the audio system switched on, use
the SEL button to select a sound source.
2. Press the arrow keys briefly to change CD
tracks or switch between preset stations.
3. Hold down the arrow keys to fast forward/
reverse, or search for the previous/next
strong radio station.
4.
Hold down the SEL button to turn off the
sound.
NOTE
For the best sound reproduction, we rec-
ommend headphones with impedance
between 16 – 32 ohm. The sensitivity of
these should be equal to or greater than
102 dB. The headphone connections are
intended for 3.5 mm contacts and are
located under the lower edge of the socket.
All headphones are automatically turned off
when the ignition is switched off. They must be
manually restarted when the ignition is
switched on again.
Headphones – limitations
•The headphones will only work when the
ignition key is in position I or higher.
•If a set of headphones is connected to the
same source that is being sent through the
speakers, the headphone controls cannot
be used to change track or station. This isto prevent the driver from being distracted
by an unexpected change in music.
•If the driver selects the same sound source
as someone listening to this source
through headphones, the driver takes con-
trol of the sound source.
•Only one disc in the optional CD changer,
and one track on the CD can be played at
a time.
•Headphone users can choose from among
the preset radio stations (AM, FM1, FM2)
previously set by the driver.
•If FM is played in the speakers, AM is not
available and vice versa.
On/Off button
G027146

10 Audio
Audio system controls
10

* Option/accessory, for more information, see Introduction.247
To activate the system:
1.
Turn the ignition key to position I.
NOTE
If you switch off the ignition while the audio
system is on, the system will be on when the
ignition is switched on again.
2.
Press the POWER button (3) to switch the
audio system on or off.
Volume control
Turn the knob (2) clockwise or counterclock-
wise to raise or lower the volume. The volume
control is electronic and has no end position.
Volume can also be raised (+) or lowered (–)
using the steering wheel keypad.
Pause modeIf the volume is turned off, the CD player will go
into pause mode. Re-activate the player by
turning up the volume.
Selecting a sound source
•Press AM/FM (4) repeatedly to toggle
between FM1, FM2, and AM
•Press the CD button (1) to change to the
CD player or optional CD changer
•Turn the SELECTOR control (5) to choose
FM1, FM2, AM, CD, CD changer*, AUX*, or
Sirius satellite radio*.
The selected sound source will be shown in the
display.
Sound settings
G027147
1.
Press the SOUND button (2) repeatedly
until you come to the setting that you wishto change. Choose
BASS, TREBLE,
FADER, BALANCE, SUBWOOFER*,CENTER* or SURROUND*.
2.
Use the SELECTOR control (1) to adjust
the level of the setting you have selected.
The display shows a scale from min. to
max. position. The center indicates the
normal position.
NOTE
Sound level for the center speaker can only
be set if Dolby Pro Logic II (DPL II) or three-
channel stereo (3-CH) is selected in the
menu.
Sound level for the subwoofer can only be set
if SUBWOOFER is selected in the menu (acti-
vated).
SettingShown in the dis-
play
BassBASS
TrebleTREBLE
Balance between
the right and left
speakersBALANCE

10 Audio
Radio functions
10

251
When AUTOSTORING is no longer displayed,
the autostore process is complete. The auto-
matically stored stations can be selected withe
the preset (number) keys If there are no stations
with sufficient signal strength,
NO AST
FOUND is displayed.
Stopping autostorePress EXIT.
Selecting an autostored station1.
Press AUTO (1) briefly. AUTO will be dis-
played.
2. Press one of the preset buttons (0 – 9).
The radio will remain in Autostore mode until
AUTO, EXIT, or AM/FM is pressed.
SCAN
This function automatically searches the cur-
rently selected waveband (AM, FM1, or FM2)
for strong stations. When the radio finds a sta-
tion, it will pause for approximately 8 seconds,
after which it will continue scanning.
Activating/deactivating Scan1.
Choose a waveband by pressing the AM/
FM button.2.
Press SCAN (2). SCAN will be shown in the
display.
3.
Press EXIT to stop scanning.
Storing a station found by SCANStations can be stored on the preset buttons
while the SCAN function is activated.
•Press a preset button and hold it down until
Station stored is displayed.
This deactivates SCAN and the stored station
can be selected by pressing the preset button.
Radio text
Certain stations broadcast program informa-
tion, which can be shown in the display.
1.
Press the MENU button.
2.
Select
RADIOTEXT in the menu and press
ENTER.
Select
RADIOTEXT again to deactivate.
HD Radio
E
Ereception (U.S.
models only)1
Introduction
Display when the radio is receiving an HD Radio
broadcast
HD radio is a brand name registered by the
Ibiquity digital corporation2. They are the
developer of a broadcasting technology called
IBOC or In Band On Channel, which refers to
the method of transmitting a digital radio
broadcast signal centered on the same fre-
1HD Radio(TM) technology is manufactured under license from iBiquity Digital Corp. U.S. and Foreign Patents. HD Radio(TM) and the HD and HD Radio logos are proprietary trademarks of iBiquity
Digital Corp. HD Radio(TM) is only available in vehicles not equipped with the optional integrated CD changer.
2HD Radio (TM) technology is manufactured under license from iBiquity Digital Corp. U.S. and Foreign Patents. HD Radio(TM) and the HD and HD Radio logos are proprietary trademarks of iBiquity
Digital Corp.

10 Audio
CD player/changer
10

* Option/accessory, for more information, see Introduction.261
G027151
Playing a CD
CD player
If a CD is in the slot and the audio system is in
CD mode when it is switched on, the CD will be
played automatically. Otherwise, to play a CD:
1. Insert a CD into the slot (2).
2. Select the CD mode using the
SELECTOR control (4) or the CD button
(1).
CD changer*The CD changer can hold up to six discs.
If a CD position in the changer containing a disc
is selected, and the audio system is in CDmode when it is switched on, the CD will play
automatically. Otherwise, to play a CD:
1. Select an empty position using the station
setting buttons 1 – 6.
INSERT DISC will be
displayed. Be sure this text is displayed
before inserting a disc. The numbers of
positions already containing discs are
shown in the display.
2. Insert a CD into the slot (2).
3. Select the CD mode using the
SELECTOR control (4) or the CD button
(1).
Ejecting CDs
CD player
Press the EJECT button (3) to eject the CD.
CD changer
Ejecting one disc
A short press on the EJECT button (3) will
eject the CD that is currently playing.
NOTE
For reasons of traffic safety, the ejected CD
must be removed within 12 seconds or it will
be automatically drawn back into the slot
and the CD player will enter pause mode.
Press the CD button to restart the disc.
Ejecting all discsA long press on the EJECT button (3) starts
the EJECT ALL function.
The text
EJECTING ALL will be displayed and
the entire magazine will be emptied disc by
disc.
PauseTo pause CD playback, turn the volume all the
way down. "CD paused" will be displayed.
This will not occur if someone in the rear seat
is listening to the CD through the optional
headphones.
Play will resume when the volume is turned up
again.
Audio filesIn addition to playing normal music CDs, the
CD player/changer can also play discs con-
taining files in mp3 or wma format.
NOTE
Certain discs that are copy protected can-
not be read by the player.
When a disc with audio files is inserted in the
player, the player scans the disc's folders
before it begins playing the files. The length of
time that this takes depends on the quality of
the disc.

10 Audio
CD player/changer
10
262
Navigating the disc and playing tracksIf a disc with audio files is in the CD player,
press ENTER to display a list of folders on the
disc.
Use the up and down arrows to move among
the folders on the disc. Audio files have the
symbol and folders containing these
files have the
symbol.
Press ENTER to play a selected folder or a file.
When the music file has been played, the
player will continue to play the rest of the files
in the current folder. When all of the files in the
folder have been played, the player will auto-
matically go to the next folder and play the files
in it.
NOTE
Press or if the entire name of
the current track does not fit in the display.
Changing tracks
CD player/CD changer
1.
Briefly press or to go to the
next/previous track or file. The steering
wheel keypad can be used in the same
way.2.
Press and hold down
or to
search within a track/file. The search con-
tinues as long as the buttons are
depressed. The steering wheel keypad can
be used in the same way.
SCANThis function plays the first ten seconds of
each track or file1.
1.
Press SCAN to begin scanning the tracks
or files on the currently selected CD.
2.
Press EXIT/CLEAR or SCAN to interrupt
the scan function and listen to an entire
track or file.
Random play
CD player
This function plays the tracks or files on a CD
in random order (shuffle).
If a normal music CD is being playedSelect RANDOM in the menu and press
ENTER.
If a CD with mp3 or wma files is being
played
Select DISC or FOLDER in the menu and
press ENTER.
CD changerThis function offers two alternatives for playing
the tracks on the disc(s) in the CD changer in
random order (shuffle).
•SINGLE DISC (random order on the cur-
rently selected disc)
•ALL DISCS (random order on all of the
CDs in the changer)
If a normal music CD is being played
•Select RANDOM in the menu and press
ENTER.
•Select SINGLE DISC or ALL DISCS and
press ENTER.
NOTE
Press to play the next randomly selected
track. This can only be done on the currently
selected disc.
If a CD with mp3 or wma files is being
played
Select SINGLE DISC or FOLDER In the menu
and press ENTER.
This function is deactivated when a new disc is
selected.
1CD changer: SCAN only functions on the currently selected disc.

10 Audio
CD player/changer
10
263
DisctextCertain CDs contain information about the
disc, such as the titles of the tracks, etc. This
information can be shown in the display by
activating the
DISCTEXT function.
1.
Press the MENU button.
2.
Select
DISCTEXT in the menu and press
ENTER.
3. Any information that may be stored on the
disc will be displayed.
To deactivate this function, select
DISCTEXTand press ENTER.
Compact disc care
•Do not put tape or labels on the disc itself.
They could become stuck in the player.
•Use CD standard EN 60908 discs only.
Discs not meeting this standard may cause
problems with system (poor sound). CDR
discs can cause listening problems due to
the quality of the disc or recording equip-
ment used.
•DualDisc: The audio side of a DualDisc
(combined CD/DVD) does not meet CD
specifications and may not play in your
audio system.
•Keep the discs clean. Wipe them with a
soft, clean, lint-free cloth, working from the
center outwards. If necessary, dampen thecloth with a neutral soap solution. Dry thor-
oughly before using.
•Never use cleaning spray or antistatic liq-
uid. Use only cleaners specifically made for
CD's.
•Use discs of the correct size only (3.5"
discs should never be used).
•Volvo does not recommend the use of
plastic outer rings on the disc.
•Condensation may occur on discs/optical
components of the changer in cold winter
weather. The disc can be dried with a
clean, lint-free cloth. Optical components
in the CD changer may, however, take up
to one hour to dry off.
•Never attempt to play a disc which is dam-
aged in any way.
•When not in use, the discs should be
stored in their covers. Avoid storing discs
in excessive heat, direct sunlight or dusty
locations.
