Contents
* Option/accessory, for more information, see Introduction.7
09
09 Maintenance and servicing
Volvo service........................................... 208
Maintaining your vehicle.........................209
Working on your vehicle......................... 211
Engine compartment............................... 213
Engine oil................................................ 214
Fluids...................................................... 217
Wiper blades........................................... 219
Battery..................................................... 220
Replacing bulbs...................................... 223
Fuses...................................................... 230
10
10 Audio
Audio system overview........................... 244
Audio system controls............................245
Radio functions....................................... 250
Sirius satellite radio................................. 255
Auxiliary equipment................................259
CD player/changer.................................. 261
Menu structure........................................ 264
Bluetooth
® hands-free connection......... 265
Rear Seat Entertainment – Dual Screen
(RSE)*......................................................270
11
11 Specifications
Label information.................................... 276
Dimensions ............................................ 278
Weights .................................................. 280
Fluids...................................................... 282
Suspension............................................. 284
Engine oil................................................ 285
Engine specifications.............................. 286
Electrical system..................................... 287
Three-way catalytic converter................. 289
Overview of information and warning sym-
bols ........................................................290
Volvo programs....................................... 292

02 Instruments and controls

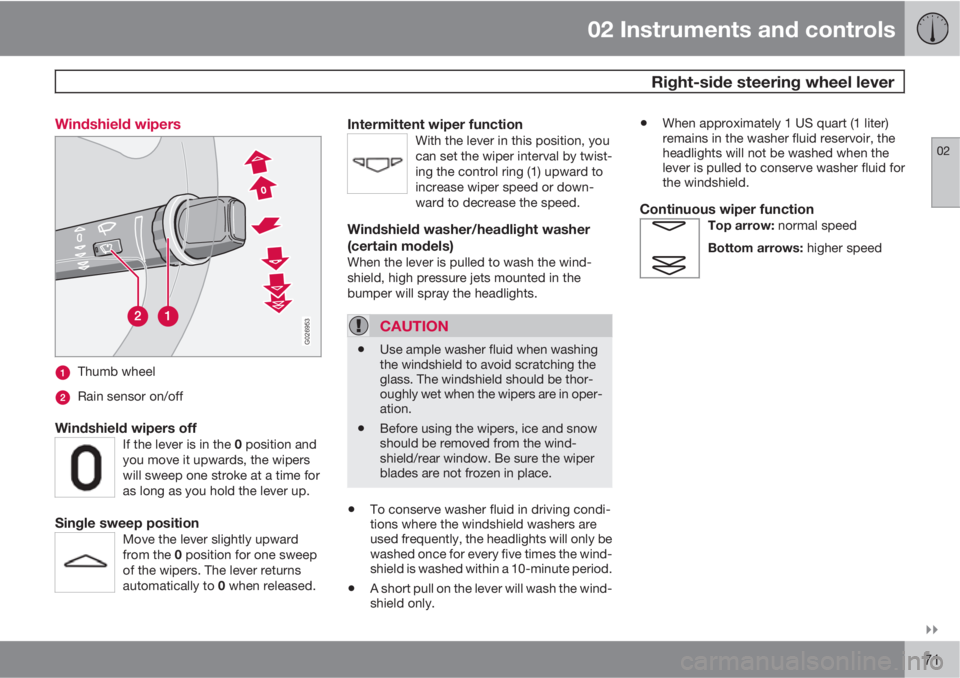

Right-side steering wheel lever
02

71 Windshield wipers
G026953
Thumb wheel
Rain sensor on/off
Windshield wipers offIf the lever is in the 0 position and
you move it upwards, the wipers
will sweep one stroke at a time for
as long as you hold the lever up.
Single sweep positionMove the lever slightly upward
from the 0 position for one sweep
of the wipers. The lever returns
automatically to 0 when released.
Intermittent wiper functionWith the lever in this position, you
can set the wiper interval by twist-
ing the control ring (1) upward to
increase wiper speed or down-
ward to decrease the speed.
Windshield washer/headlight washer
(certain models)
When the lever is pulled to wash the wind-
shield, high pressure jets mounted in the
bumper will spray the headlights.
CAUTION
•Use ample washer fluid when washing
the windshield to avoid scratching the
glass. The windshield should be thor-
oughly wet when the wipers are in oper-
ation.
•Before using the wipers, ice and snow
should be removed from the wind-
shield/rear window. Be sure the wiper
blades are not frozen in place.
•To conserve washer fluid in driving condi-
tions where the windshield washers are
used frequently, the headlights will only be
washed once for every five times the wind-
shield is washed within a 10-minute period.
•A short pull on the lever will wash the wind-
shield only.
•When approximately 1 US quart (1 liter)
remains in the washer fluid reservoir, the
headlights will not be washed when the
lever is pulled to conserve washer fluid for
the windshield.
Continuous wiper functionTop arrow: normal speed
Bottom arrows: higher speed

06 Starting and driving

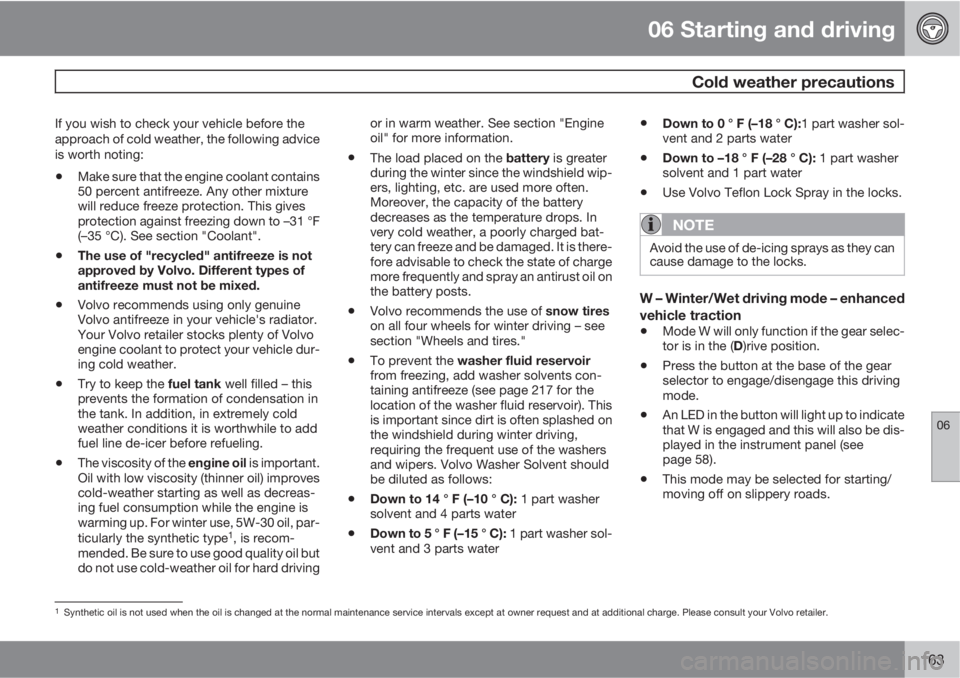

Cold weather precautions
06
163
If you wish to check your vehicle before the
approach of cold weather, the following advice
is worth noting:
•Make sure that the engine coolant contains
50 percent antifreeze. Any other mixture
will reduce freeze protection. This gives
protection against freezing down to –31 °F
(–35 °C). See section "Coolant".
•The use of "recycled" antifreeze is not
approved by Volvo. Different types of
antifreeze must not be mixed.
•Volvo recommends using only genuine
Volvo antifreeze in your vehicle's radiator.
Your Volvo retailer stocks plenty of Volvo
engine coolant to protect your vehicle dur-
ing cold weather.
•Try to keep the fuel tank well filled – this
prevents the formation of condensation in
the tank. In addition, in extremely cold
weather conditions it is worthwhile to add
fuel line de-icer before refueling.
•The viscosity of the engine oil is important.
Oil with low viscosity (thinner oil) improves
cold-weather starting as well as decreas-
ing fuel consumption while the engine is
warming up. For winter use, 5W-30 oil, par-
ticularly the synthetic type
1, is recom-
mended. Be sure to use good quality oil but
do not use cold-weather oil for hard drivingor in warm weather. See section "Engine
oil" for more information.
•The load placed on the battery is greater
during the winter since the windshield wip-
ers, lighting, etc. are used more often.
Moreover, the capacity of the battery
decreases as the temperature drops. In
very cold weather, a poorly charged bat-
tery can freeze and be damaged. It is there-
fore advisable to check the state of charge
more frequently and spray an antirust oil on
the battery posts.
•Volvo recommends the use of snow tires
on all four wheels for winter driving – see
section "Wheels and tires."
•To prevent the washer fluid reservoir
from freezing, add washer solvents con-
taining antifreeze (see page 217 for the
location of the washer fluid reservoir). This
is important since dirt is often splashed on
the windshield during winter driving,
requiring the frequent use of the washers
and wipers. Volvo Washer Solvent should
be diluted as follows:
•Down to 14 ° F (–10 ° C): 1 part washer
solvent and 4 parts water
•Down to 5 ° F (–15 ° C): 1 part washer sol-
vent and 3 parts water
•Down to 0 ° F (–18 ° C):1 part washer sol-
vent and 2 parts water
•Down to –18 ° F (–28 ° C): 1 part washer
solvent and 1 part water
•Use Volvo Teflon Lock Spray in the locks.
NOTE
Avoid the use of de-icing sprays as they can
cause damage to the locks.
W – Winter/Wet driving mode – enhanced
vehicle traction
•Mode W will only function if the gear selec-
tor is in the (D)rive position.
•Press the button at the base of the gear
selector to engage/disengage this driving
mode.
•An LED in the button will light up to indicate
that W is engaged and this will also be dis-
played in the instrument panel (see
page 58).
•This mode may be selected for starting/
moving off on slippery roads.
1Synthetic oil is not used when the oil is changed at the normal maintenance service intervals except at owner request and at additional charge. Please consult your Volvo retailer.

06 Starting and driving

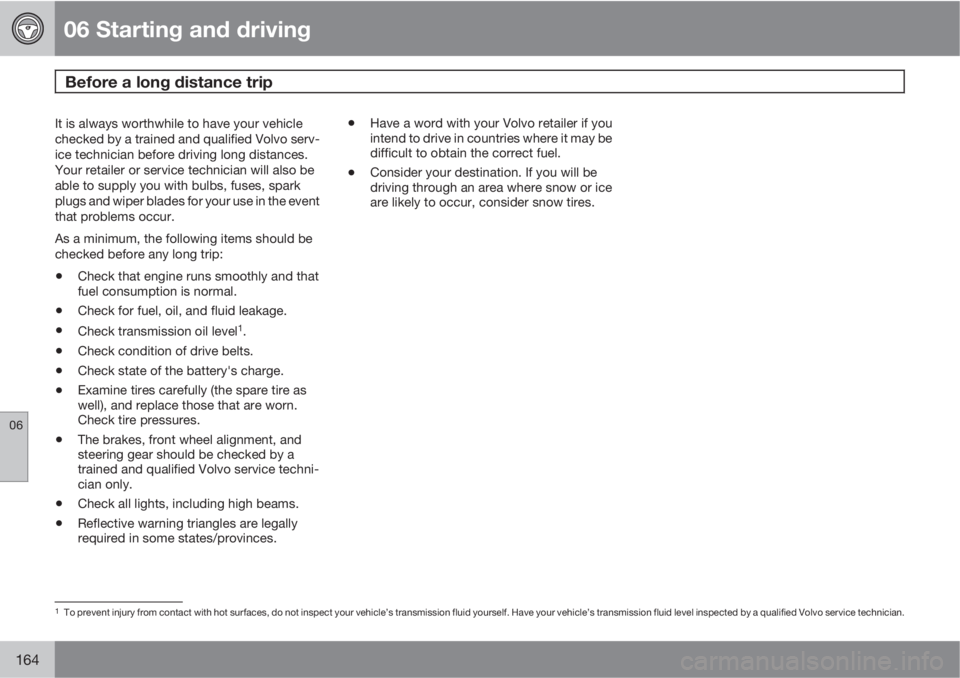

Before a long distance trip
06
164
It is always worthwhile to have your vehicle
checked by a trained and qualified Volvo serv-
ice technician before driving long distances.
Your retailer or service technician will also be
able to supply you with bulbs, fuses, spark
plugs and wiper blades for your use in the event
that problems occur.
As a minimum, the following items should be
checked before any long trip:
•Check that engine runs smoothly and that
fuel consumption is normal.
•Check for fuel, oil, and fluid leakage.
•Check transmission oil level1.
•Check condition of drive belts.
•Check state of the battery's charge.
•Examine tires carefully (the spare tire as
well), and replace those that are worn.
Check tire pressures.
•The brakes, front wheel alignment, and
steering gear should be checked by a
trained and qualified Volvo service techni-
cian only.
•Check all lights, including high beams.
•Reflective warning triangles are legally
required in some states/provinces.
•Have a word with your Volvo retailer if you
intend to drive in countries where it may be
difficult to obtain the correct fuel.
•Consider your destination. If you will be
driving through an area where snow or ice
are likely to occur, consider snow tires.
1To prevent injury from contact with hot surfaces, do not inspect your vehicle’s transmission fluid yourself. Have your vehicle’s transmission fluid level inspected by a qualified Volvo service technician.

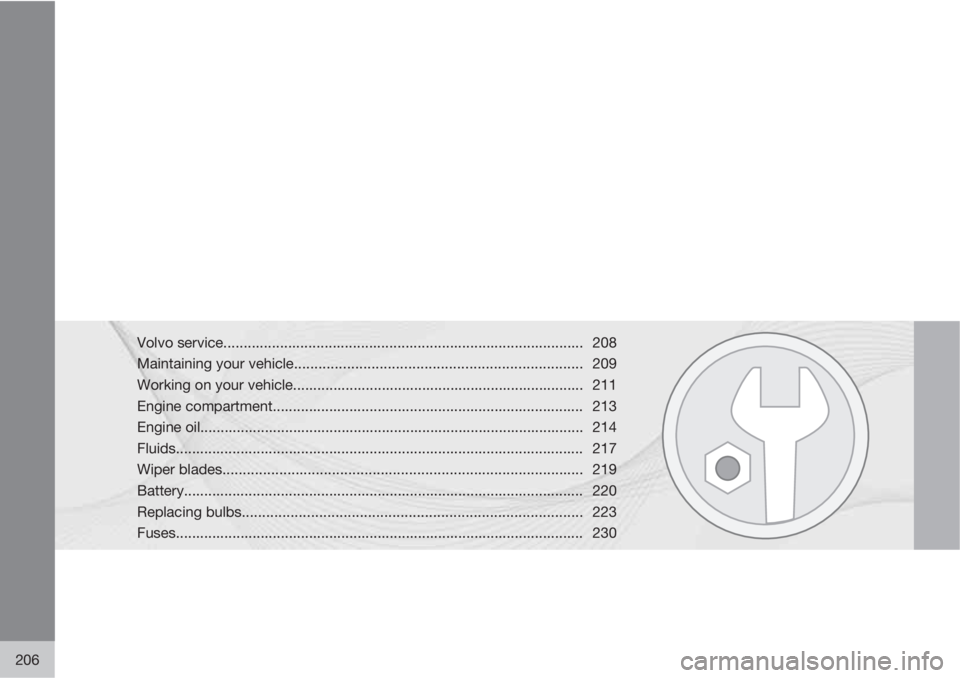

206
Volvo service......................................................................................... 208
Maintaining your vehicle....................................................................... 209
Working on your vehicle........................................................................ 211
Engine compartment............................................................................. 213
Engine oil............................................................................................... 214
Fluids..................................................................................................... 217
Wiper blades......................................................................................... 219
Battery................................................................................................... 220
Replacing bulbs.................................................................................... 223
Fuses..................................................................................................... 230

09 Maintenance and servicing

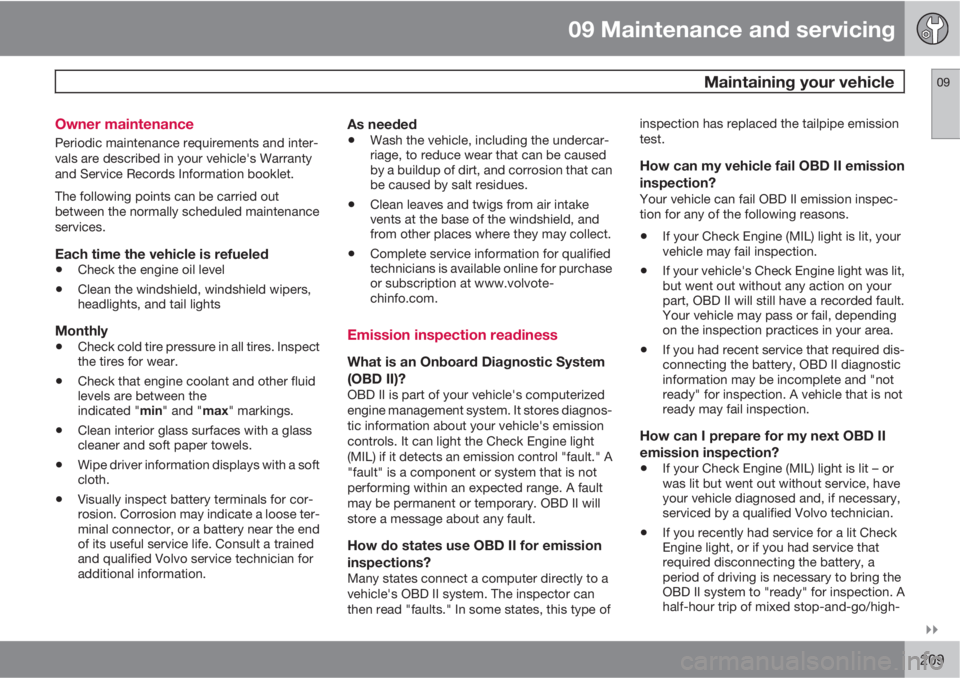

Maintaining your vehicle09

209 Owner maintenance
Periodic maintenance requirements and inter-
vals are described in your vehicle's Warranty
and Service Records Information booklet.
The following points can be carried out
between the normally scheduled maintenance
services.
Each time the vehicle is refueled
•Check the engine oil level
•Clean the windshield, windshield wipers,
headlights, and tail lights
Monthly
•Check cold tire pressure in all tires. Inspect
the tires for wear.
•Check that engine coolant and other fluid
levels are between the
indicated "min" and "max" markings.
•Clean interior glass surfaces with a glass
cleaner and soft paper towels.
•Wipe driver information displays with a soft
cloth.
•Visually inspect battery terminals for cor-
rosion. Corrosion may indicate a loose ter-
minal connector, or a battery near the end
of its useful service life. Consult a trained
and qualified Volvo service technician for
additional information.
As needed
•Wash the vehicle, including the undercar-
riage, to reduce wear that can be caused
by a buildup of dirt, and corrosion that can
be caused by salt residues.
•Clean leaves and twigs from air intake
vents at the base of the windshield, and
from other places where they may collect.
•Complete service information for qualified
technicians is available online for purchase
or subscription at www.volvote-
chinfo.com.
Emission inspection readiness
What is an Onboard Diagnostic System
(OBD II)?
OBD II is part of your vehicle's computerized
engine management system. It stores diagnos-
tic information about your vehicle's emission
controls. It can light the Check Engine light
(MIL) if it detects an emission control "fault." A
"fault" is a component or system that is not
performing within an expected range. A fault
may be permanent or temporary. OBD II will
store a message about any fault.
How do states use OBD II for emission
inspections?
Many states connect a computer directly to a
vehicle's OBD II system. The inspector can
then read "faults." In some states, this type ofinspection has replaced the tailpipe emission
test.
How can my vehicle fail OBD II emission
inspection?
Your vehicle can fail OBD II emission inspec-
tion for any of the following reasons.
•If your Check Engine (MIL) light is lit, your
vehicle may fail inspection.
•If your vehicle's Check Engine light was lit,
but went out without any action on your
part, OBD II will still have a recorded fault.
Your vehicle may pass or fail, depending
on the inspection practices in your area.
•If you had recent service that required dis-
connecting the battery, OBD II diagnostic
information may be incomplete and "not
ready" for inspection. A vehicle that is not
ready may fail inspection.
How can I prepare for my next OBD II
emission inspection?
•If your Check Engine (MIL) light is lit – or
was lit but went out without service, have
your vehicle diagnosed and, if necessary,
serviced by a qualified Volvo technician.
•If you recently had service for a lit Check
Engine light, or if you had service that
required disconnecting the battery, a
period of driving is necessary to bring the
OBD II system to "ready" for inspection. A
half-hour trip of mixed stop-and-go/high-

12 Index
12
297
K
Key (ignition switch) positions................. 141
Keys......................................................... 124
L
Label information..................................... 276
Lighting panel............................................ 67
Load carriers............................................ 162
Locking steering wheel............................ 141
Locking the car........................................ 128
Locks, child safety................................... 130
Long distance trips.................................. 163
Low beam headlight.................................. 70
M
Maintenance............................................ 208
Maintenance, periodic............................. 209
Malfunction indicator light......................... 61Mirrors
door, folding......................................... 64
power door........................................... 84
rearview, auto-dim function.................. 83
Moonroof................................................... 86
Motor oil
checking............................................. 215
MP3 player, connecting........................... 259
Multifilter with air quality sensor................ 98
O
OBD II...................................................... 209
Occupant safety........................................ 18
Oil
checking............................................. 215
Oil quality................................................. 214
Onboard Diagnostic System (OBD II)...... 209
On Call Roadside Assistance.................. 292
Owner maintenance................................. 209
P
Paint - color code....................................204
Panel lighting, instrument.......................... 68
Park assist.......................................154, 155
Parking brake........................................... 151
warning symbol.................................... 60
Parking lights............................................. 67
Passenger’s side front airbag, disabling. . . 28
Periodic owner-performed maintenance. 209
Permissible axle weight........................... 182
Polishing.................................................. 201
Power moonroof........................................ 86
Power seat............................................... 105
Power steering fluid................................. 218
R
Radiator................................................... 213
Radio
Sirius satellite radio............................255
Radio functions........................................ 246
HD digital radio................................... 251
Rain sensor - windshield wipers................ 72

12 Index
12
299
inflation pressure tables..................... 177
load ratings......................................... 176
rotation............................................... 173
spare................................................... 185
speed ratings...................................... 176
storing................................................. 173
tire sealing system.............................. 186
tread wear indicator............................ 174
Tire sealing system.................................. 186
Towing a trailer........................................ 158
V8-engine........................................... 160
Towing - cars with All Wheel Drive.......... 157
Towing the vehicle................................... 156
Trailer hitch - detachable......................... 161
Trailer towing...................................158, 160
Transmission, automatic.......................... 144
Tread wear indicator................................ 174
Treble....................................................... 247
Trip computer............................................ 75
Trip odometer............................................ 58
Turn signals............................................... 70U
Uniform Tire Quality Grading...................183
Unlocking fuel filler door............................ 68
Unlocking the car..................................... 128
Unpaved roads, driving on...................... 143
V
V8 engine and trailer towing....................160
Vanity mirror............................................ 112
Vehicle dimensions.................................. 278
Vehicle Event Data..................................... 13
Vehicle Identification Number (VIN)......... 277
Vehicle loading........................................ 182
Vehicle maintenance................................ 208
Vehicle weights........................................ 280
Ventilated seats......................................... 97
Volvo and the environment........................ 14
Volvo maintenance.................................. 208
Volvo On Call Roadside Assistance........ 292
W
Warning symbol......................................... 58
Warning symbol in center of dashboard.... 58
Warranties................................................ 208
Washer fluid reservoir......................213, 217
Washing the vehicle................................. 200
Water, driving through............................. 143
Waxing..................................................... 201
Weights.................................................... 280
Wheels.....................................................172
storing................................................. 173
Windshield
IR coating............................................. 73
Windshield washer fluid reservoir............217
Windshield wipers.................................... 219
Winter/Wet driving mode......................... 163
Wipers...................................................... 219
W – Winter............................................... 145
