VOLVO XC90 2012 Owner´s Manual

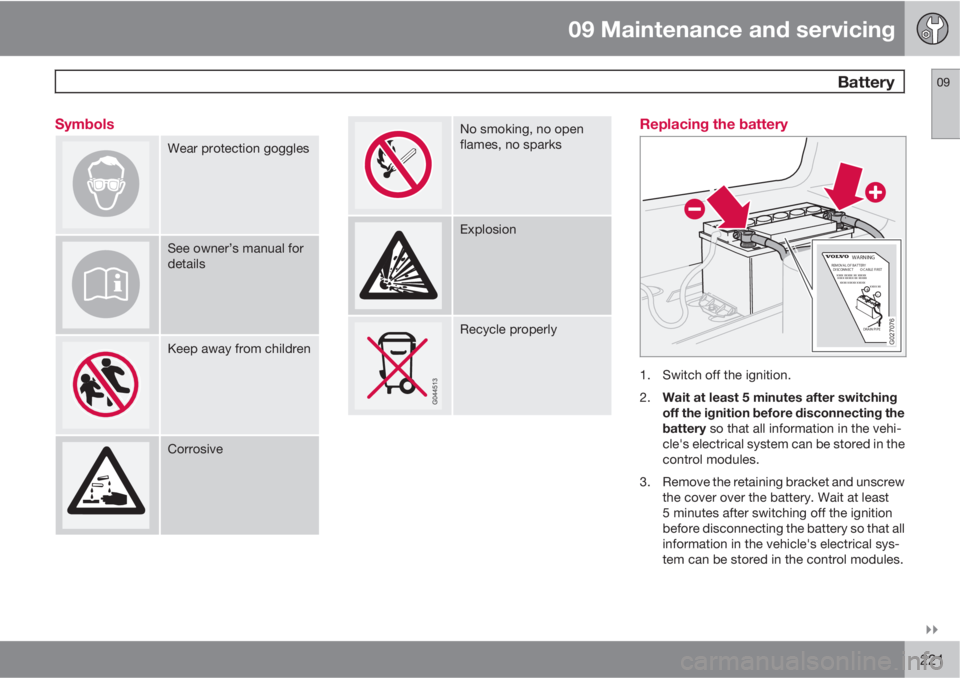

09 Maintenance and servicing
Battery09

221 Symbols
Wear protection goggles
See owner’s manual for
details
Keep away from children
Corrosive
No smoking, no open
flames, no sparks
Explosion
Recycle properly
Replacing the battery
DRAIN PIPE
xxxx xxxxx xx xxxxx DISCONNECT REMOVAL OF BATTERYO CABLE FIRSTxxxx xxxxx xxxxxxxxx xx+-
WARNING
xxxx xxxxx xx xxxxx
G027076
1. Switch off the ignition.
2.
Wait at least 5 minutes after switching
off the ignition before disconnecting the
battery so that all information in the vehi-
cle's electrical system can be stored in the
control modules.
3. Remove the retaining bracket and unscrew
the cover over the battery. Wait at least
5 minutes after switching off the ignition
before disconnecting the battery so that all
information in the vehicle's electrical sys-
tem can be stored in the control modules.

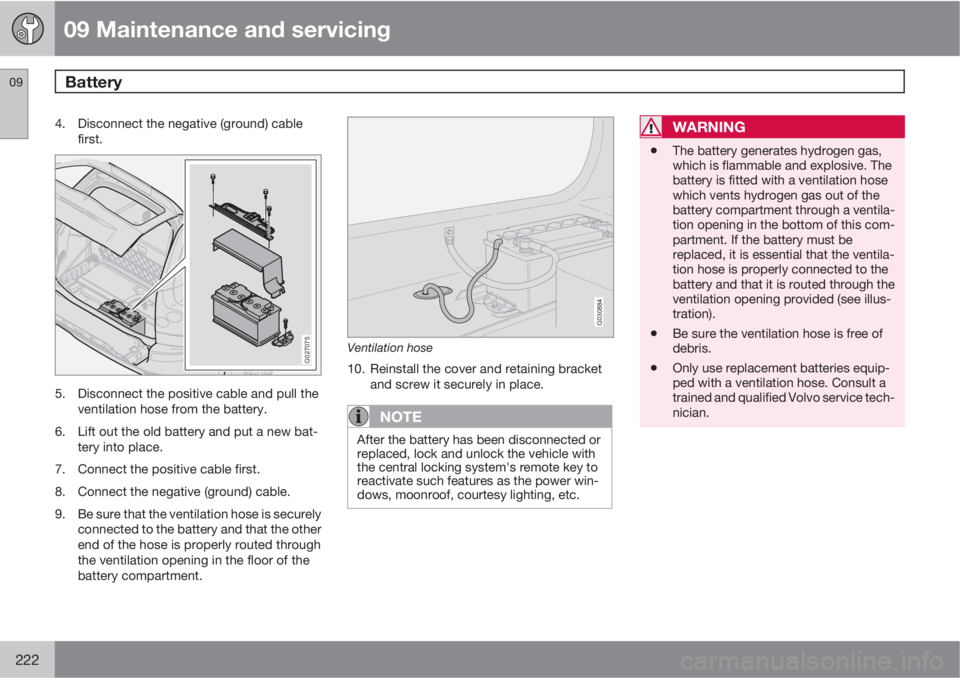

09 Maintenance and servicing
Battery 09
222
4. Disconnect the negative (ground) cable
first.
G027075
5. Disconnect the positive cable and pull the
ventilation hose from the battery.
6. Lift out the old battery and put a new bat-
tery into place.
7. Connect the positive cable first.
8. Connect the negative (ground) cable.
9. Be sure that the ventilation hose is securely
connected to the battery and that the other
end of the hose is properly routed through
the ventilation opening in the floor of the
battery compartment.
G030884
Ventilation hose
10. Reinstall the cover and retaining bracket
and screw it securely in place.
NOTE
After the battery has been disconnected or
replaced, lock and unlock the vehicle with
the central locking system's remote key to
reactivate such features as the power win-
dows, moonroof, courtesy lighting, etc.
WARNING
•The battery generates hydrogen gas,
which is flammable and explosive. The
battery is fitted with a ventilation hose
which vents hydrogen gas out of the
battery compartment through a ventila-
tion opening in the bottom of this com-
partment. If the battery must be
replaced, it is essential that the ventila-
tion hose is properly connected to the
battery and that it is routed through the
ventilation opening provided (see illus-
tration).
•Be sure the ventilation hose is free of
debris.
•Only use replacement batteries equip-
ped with a ventilation hose. Consult a
trained and qualified Volvo service tech-
nician.

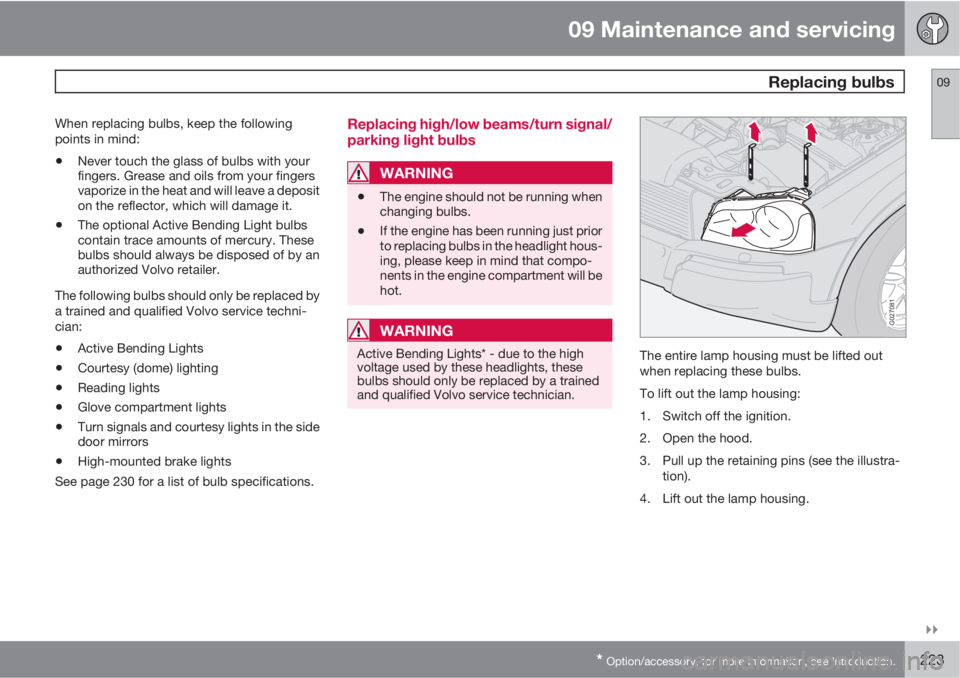

09 Maintenance and servicing
Replacing bulbs09

* Option/accessory, for more information, see Introduction.223
When replacing bulbs, keep the following
points in mind:
•Never touch the glass of bulbs with your
fingers. Grease and oils from your fingers
vaporize in the heat and will leave a deposit
on the reflector, which will damage it.
•The optional Active Bending Light bulbs
contain trace amounts of mercury. These
bulbs should always be disposed of by an
authorized Volvo retailer.
The following bulbs should only be replaced by
a trained and qualified Volvo service techni-
cian:
•Active Bending Lights
•Courtesy (dome) lighting
•Reading lights
•Glove compartment lights
•Turn signals and courtesy lights in the side
door mirrors
•High-mounted brake lights
See page 230 for a list of bulb specifications.
Replacing high/low beams/turn signal/
parking light bulbs
WARNING
•The engine should not be running when
changing bulbs.
•If the engine has been running just prior
to replacing bulbs in the headlight hous-
ing, please keep in mind that compo-
nents in the engine compartment will be
hot.
WARNING
Active Bending Lights* - due to the high
voltage used by these headlights, these
bulbs should only be replaced by a trained
and qualified Volvo service technician.
G027081
The entire lamp housing must be lifted out
when replacing these bulbs.
To lift out the lamp housing:
1. Switch off the ignition.
2. Open the hood.
3. Pull up the retaining pins (see the illustra-
tion).
4. Lift out the lamp housing.

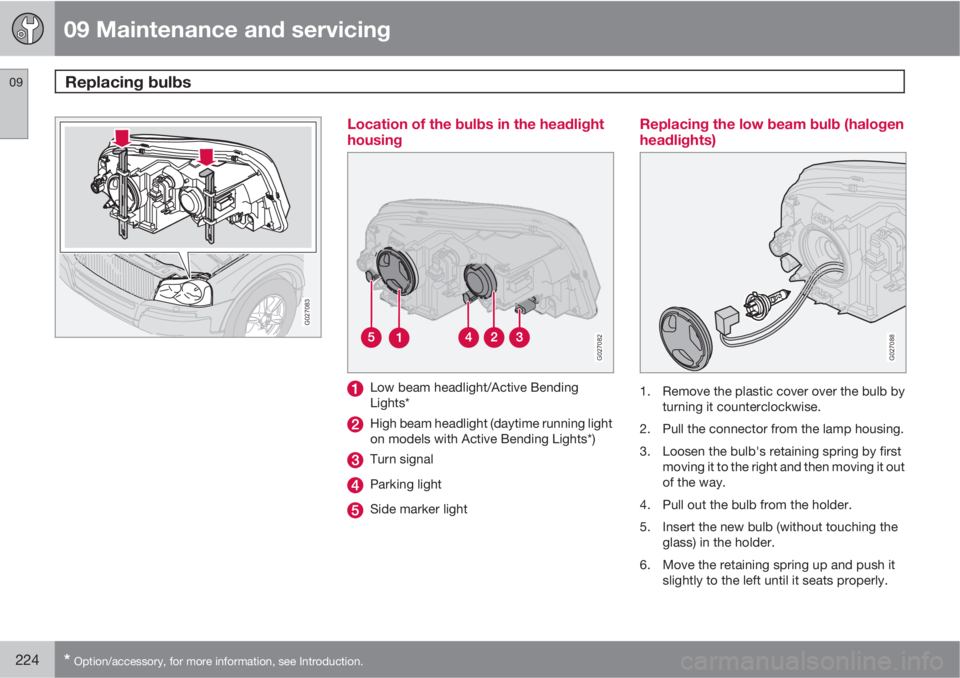

09 Maintenance and servicing
Replacing bulbs 09
224* Option/accessory, for more information, see Introduction.
G027083
Location of the bulbs in the headlight
housing
G027082
Low beam headlight/Active Bending
Lights*
High beam headlight (daytime running light
on models with Active Bending Lights*)
Turn signal
Parking light
Side marker light
Replacing the low beam bulb (halogen
headlights)
G027088
1. Remove the plastic cover over the bulb by
turning it counterclockwise.
2. Pull the connector from the lamp housing.
3. Loosen the bulb's retaining spring by first
moving it to the right and then moving it out
of the way.
4. Pull out the bulb from the holder.
5. Insert the new bulb (without touching the
glass) in the holder.
6. Move the retaining spring up and push it
slightly to the left until it seats properly.

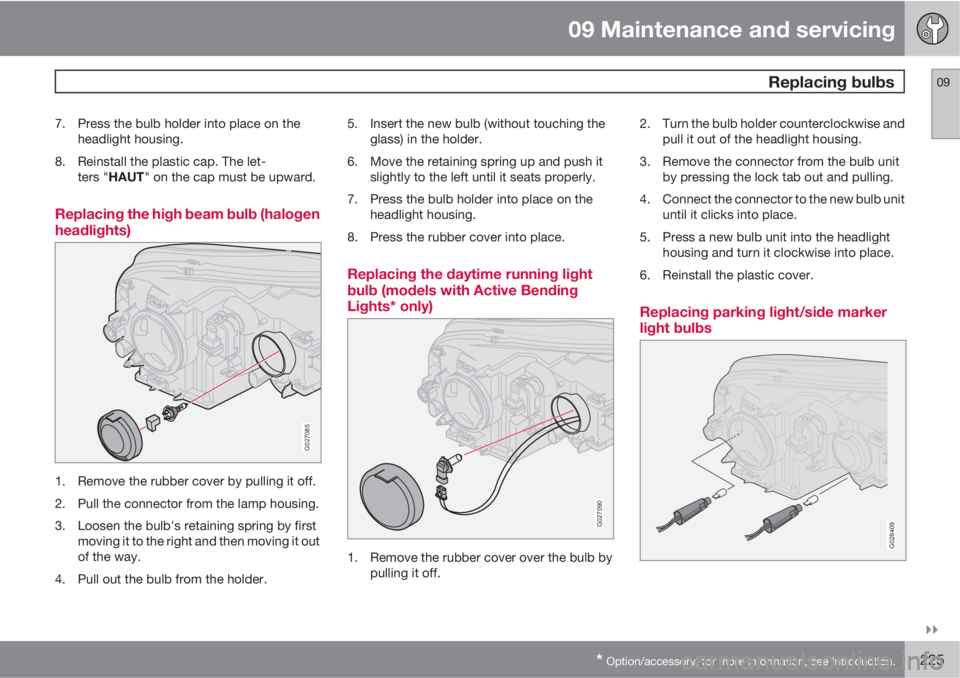

09 Maintenance and servicing
Replacing bulbs09

* Option/accessory, for more information, see Introduction.225
7. Press the bulb holder into place on the
headlight housing.
8. Reinstall the plastic cap. The let-
ters "HAUT" on the cap must be upward.
Replacing the high beam bulb (halogen
headlights)
G027085
1. Remove the rubber cover by pulling it off.
2. Pull the connector from the lamp housing.
3. Loosen the bulb's retaining spring by first
moving it to the right and then moving it out
of the way.
4. Pull out the bulb from the holder.5. Insert the new bulb (without touching the
glass) in the holder.
6. Move the retaining spring up and push it
slightly to the left until it seats properly.
7. Press the bulb holder into place on the
headlight housing.
8. Press the rubber cover into place.
Replacing the daytime running light
bulb (models with Active Bending
Lights* only)
G027090
1. Remove the rubber cover over the bulb by
pulling it off.2. Turn the bulb holder counterclockwise and
pull it out of the headlight housing.
3. Remove the connector from the bulb unit
by pressing the lock tab out and pulling.
4. Connect the connector to the new bulb unit
until it clicks into place.
5. Press a new bulb unit into the headlight
housing and turn it clockwise into place.
6. Reinstall the plastic cover.
Replacing parking light/side marker
light bulbs
G028409

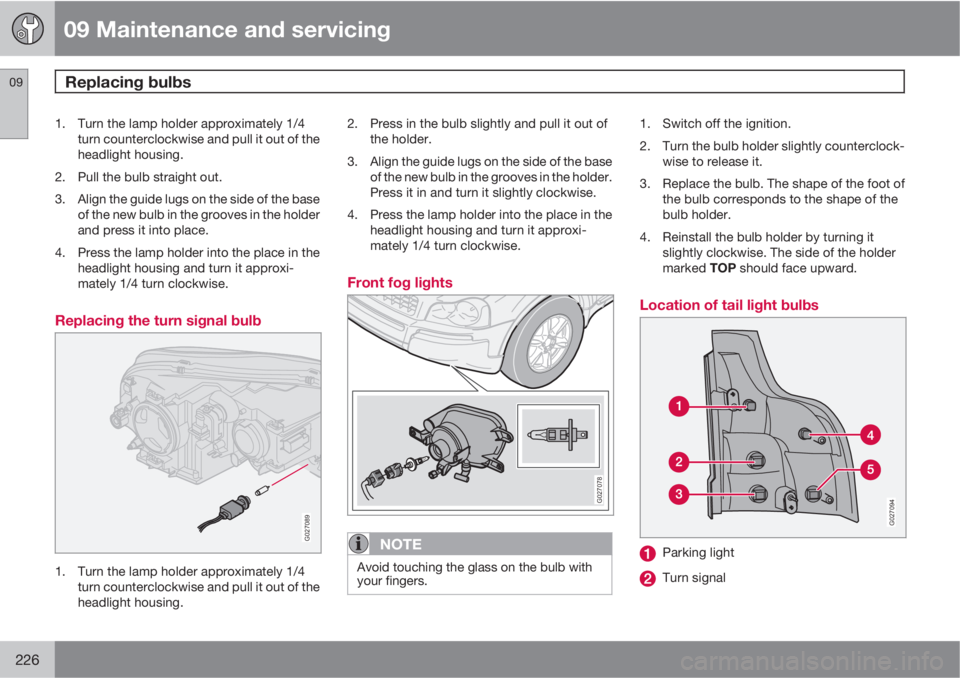

09 Maintenance and servicing
Replacing bulbs 09
226
1. Turn the lamp holder approximately 1/4
turn counterclockwise and pull it out of the
headlight housing.
2. Pull the bulb straight out.
3. Align the guide lugs on the side of the base
of the new bulb in the grooves in the holder
and press it into place.
4. Press the lamp holder into the place in the
headlight housing and turn it approxi-
mately 1/4 turn clockwise.
Replacing the turn signal bulb
G027089
1. Turn the lamp holder approximately 1/4
turn counterclockwise and pull it out of the
headlight housing.2. Press in the bulb slightly and pull it out of
the holder.
3. Align the guide lugs on the side of the base
of the new bulb in the grooves in the holder.
Press it in and turn it slightly clockwise.
4. Press the lamp holder into the place in the
headlight housing and turn it approxi-
mately 1/4 turn clockwise.
Front fog lights
G027078
NOTE
Avoid touching the glass on the bulb with
your fingers.
1. Switch off the ignition.
2. Turn the bulb holder slightly counterclock-
wise to release it.
3. Replace the bulb. The shape of the foot of
the bulb corresponds to the shape of the
bulb holder.
4. Reinstall the bulb holder by turning it
slightly clockwise. The side of the holder
marked TOP should face upward.
Location of tail light bulbs
G027094
Parking light
Turn signal

09 Maintenance and servicing
Replacing bulbs09

227
Back-up light
Parking light
Brake light
NOTE
If the message indicating a burned out bulb
remains in the information display after a
bulb has been replaced, consult a trained
and qualified Volvo service technician.

09 Maintenance and servicing
Replacing bulbs 09
228

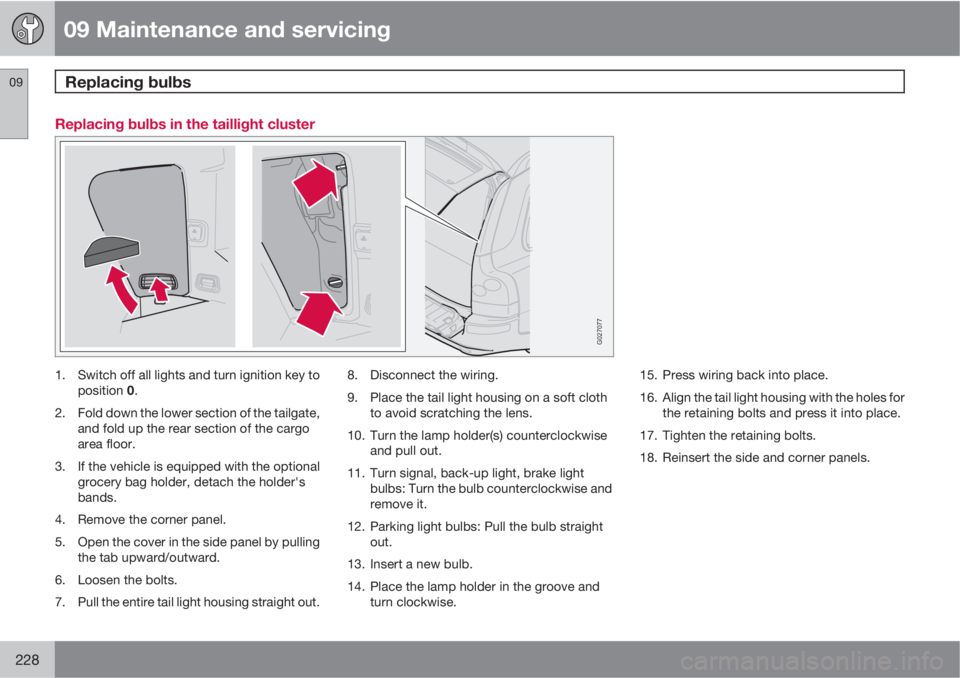

Replacing bulbs in the taillight cluster
G027077
1. Switch off all lights and turn ignition key to
position 0.
2. Fold down the lower section of the tailgate,
and fold up the rear section of the cargo
area floor.
3. If the vehicle is equipped with the optional
grocery bag holder, detach the holder's
bands.
4. Remove the corner panel.
5. Open the cover in the side panel by pulling
the tab upward/outward.
6. Loosen the bolts.
7. Pull the entire tail light housing straight out.8. Disconnect the wiring.
9. Place the tail light housing on a soft cloth
to avoid scratching the lens.
10. Turn the lamp holder(s) counterclockwise
and pull out.
11. Turn signal, back-up light, brake light
bulbs: Turn the bulb counterclockwise and
remove it.
12. Parking light bulbs: Pull the bulb straight
out.
13. Insert a new bulb.
14. Place the lamp holder in the groove and
turn clockwise.15. Press wiring back into place.
16. Align the tail light housing with the holes for
the retaining bolts and press it into place.
17. Tighten the retaining bolts.
18. Reinsert the side and corner panels.

09 Maintenance and servicing
Replacing bulbs09

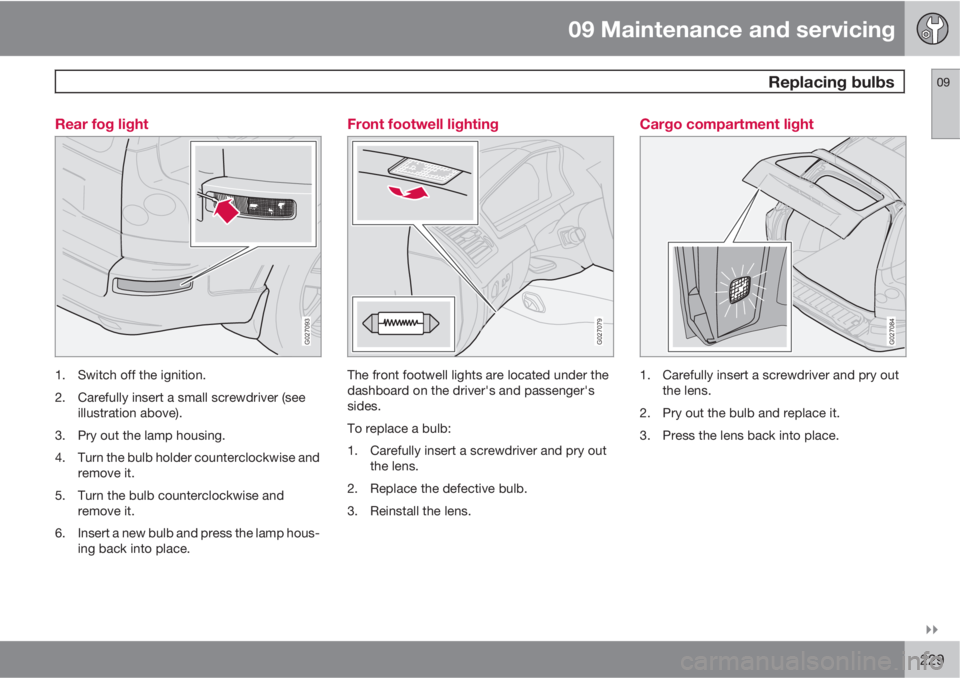

229 Rear fog light
G027093
1. Switch off the ignition.
2. Carefully insert a small screwdriver (see
illustration above).
3. Pry out the lamp housing.
4. Turn the bulb holder counterclockwise and
remove it.
5. Turn the bulb counterclockwise and
remove it.
6. Insert a new bulb and press the lamp hous-
ing back into place.
Front footwell lighting
G027079
The front footwell lights are located under the
dashboard on the driver's and passenger's
sides.
To replace a bulb:
1. Carefully insert a screwdriver and pry out
the lens.
2. Replace the defective bulb.
3. Reinstall the lens.
Cargo compartment light
G027084
1. Carefully insert a screwdriver and pry out
the lens.
2. Pry out the bulb and replace it.
3. Press the lens back into place.

09 Maintenance and servicing
Replacing bulbs 09
230

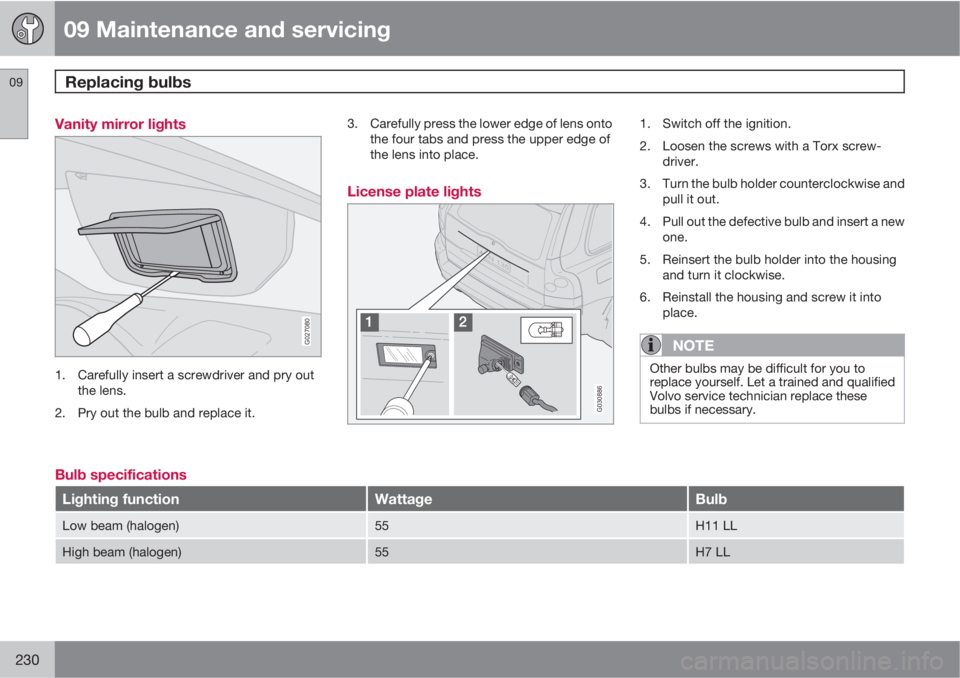

Vanity mirror lights
G027080
1. Carefully insert a screwdriver and pry out
the lens.
2. Pry out the bulb and replace it.3. Carefully press the lower edge of lens onto
the four tabs and press the upper edge of
the lens into place.
License plate lights
G030886
1. Switch off the ignition.
2. Loosen the screws with a Torx screw-
driver.
3. Turn the bulb holder counterclockwise and
pull it out.
4. Pull out the defective bulb and insert a new
one.
5. Reinsert the bulb holder into the housing
and turn it clockwise.
6. Reinstall the housing and screw it into
place.
NOTE
Other bulbs may be difficult for you to
replace yourself. Let a trained and qualified
Volvo service technician replace these
bulbs if necessary.
Bulb specifications
Lighting functionWattageBulb
Low beam (halogen)55H11 LL
High beam (halogen)55H7 LL
