VOLVO XC90 2012 Owner´s Manual

11 Specifications

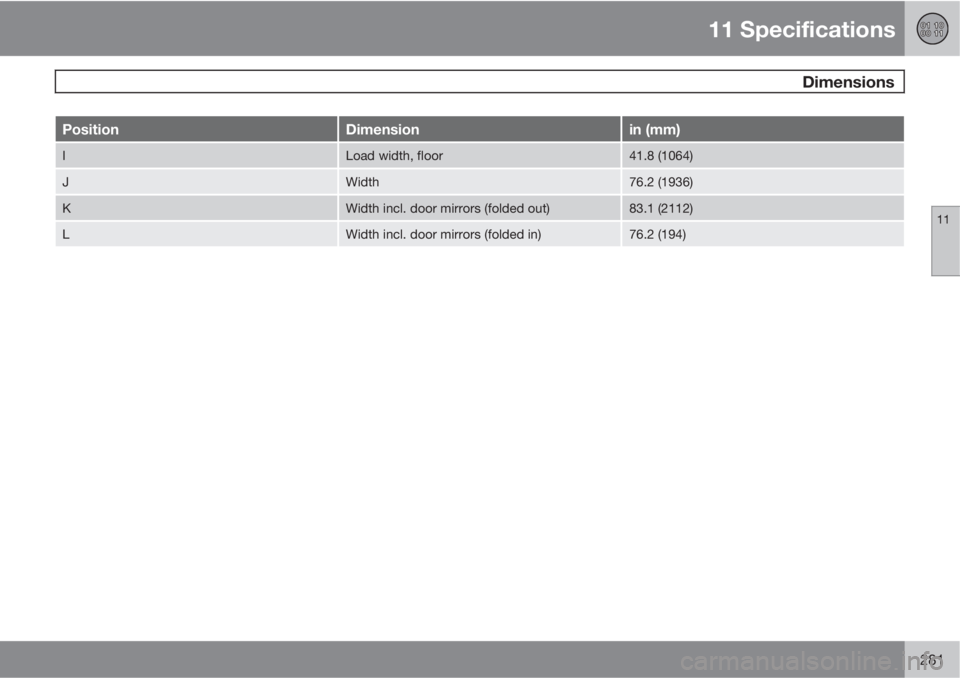

Dimensions
11
281
PositionDimensionin (mm)
ILoad width, floor41.8 (1064)
JWidth76.2 (1936)
KWidth incl. door mirrors (folded out)83.1 (2112)
LWidth incl. door mirrors (folded in)76.2 (194)

11 Specifications

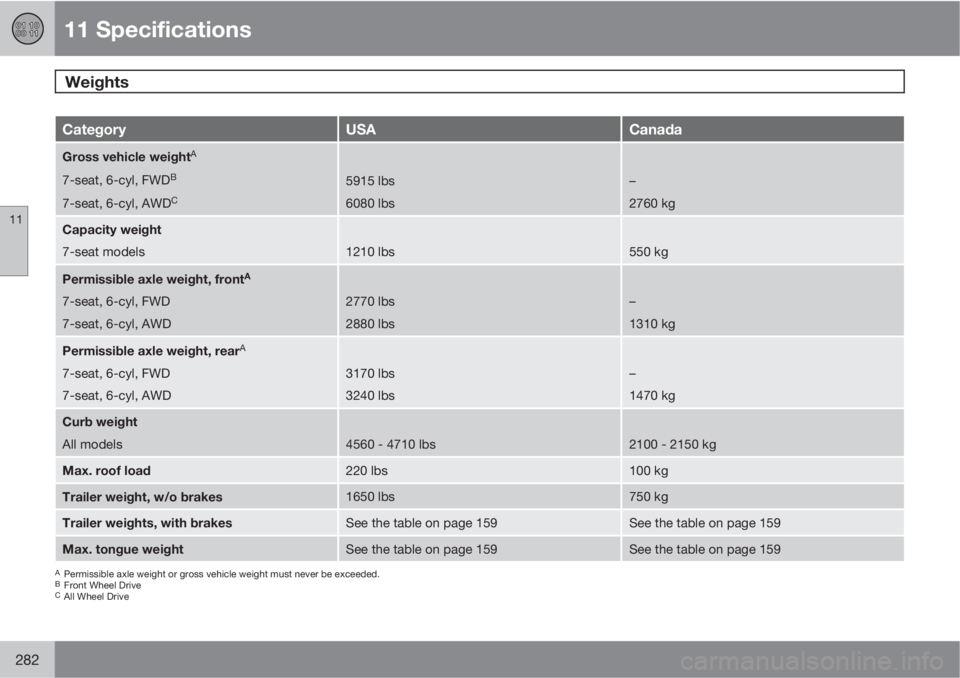

Weights
11
282
CategoryUSACanada
Gross vehicle weightA
7-seat, 6-cyl, FWDB
7-seat, 6-cyl, AWDC
5915 lbs
6080 lbs–
2760 kg
Capacity weight
7-seat models
1210 lbs550 kg
Permissible axle weight, frontA
7-seat, 6-cyl, FWD
7-seat, 6-cyl, AWD2770 lbs
2880 lbs–
1310 kg
Permissible axle weight, rearA
7-seat, 6-cyl, FWD
7-seat, 6-cyl, AWD3170 lbs
3240 lbs–
1470 kg
Curb weight
All models
4560 - 4710 lbs2100 - 2150 kg
Max. roof load220 lbs100 kg
Trailer weight, w/o brakes1650 lbs750 kg
Trailer weights, with brakesSee the table on page 159See the table on page 159
Max. tongue weightSee the table on page 159See the table on page 159
APermissible axle weight or gross vehicle weight must never be exceeded.BFront Wheel DriveCAll Wheel Drive

11 Specifications
Weights
11
283
CAUTION
The maximum permissible axle loads and/
or the gross vehicle weight must not be
exceeded.
WARNING
When adding accessories, equipment, lug-
gage and other cargo to your vehicle, the
total capacity weight must not be exceeded.

11 Specifications

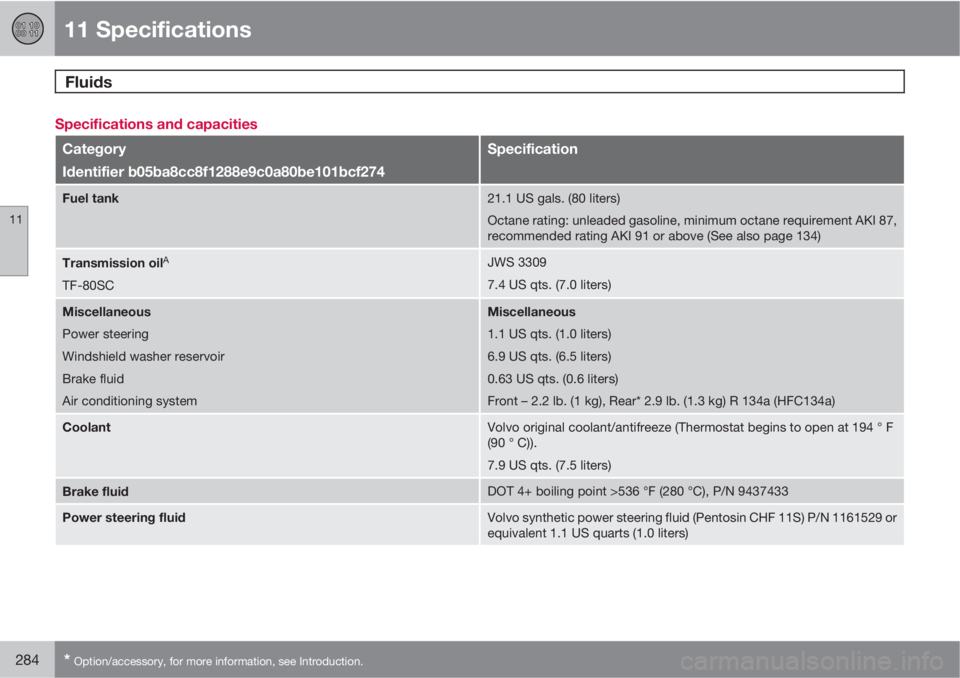

Fluids
11
284* Option/accessory, for more information, see Introduction.
Specifications and capacities
Category
Identifier b05ba8cc8f1288e9c0a80be101bcf274Specification
Fuel tank21.1 US gals. (80 liters)
Octane rating: unleaded gasoline, minimum octane requirement AKI 87,
recommended rating AKI 91 or above (See also page 134)
Transmission oilA
TF-80SC
JWS 3309
7.4 US qts. (7.0 liters)
Miscellaneous
Power steering
Windshield washer reservoir
Brake fluid
Air conditioning systemMiscellaneous
1.1 US qts. (1.0 liters)
6.9 US qts. (6.5 liters)
0.63 US qts. (0.6 liters)
Front – 2.2 lb. (1 kg), Rear* 2.9 lb. (1.3 kg) R 134a (HFC134a)
CoolantVolvo original coolant/antifreeze (Thermostat begins to open at 194 ° F
(90 ° C)).
7.9 US qts. (7.5 liters)
Brake fluidDOT 4+ boiling point >536 °F (280 °C), P/N 9437433
Power steering fluidVolvo synthetic power steering fluid (Pentosin CHF 11S) P/N 1161529 or
equivalent 1.1 US quarts (1.0 liters)

11 Specifications

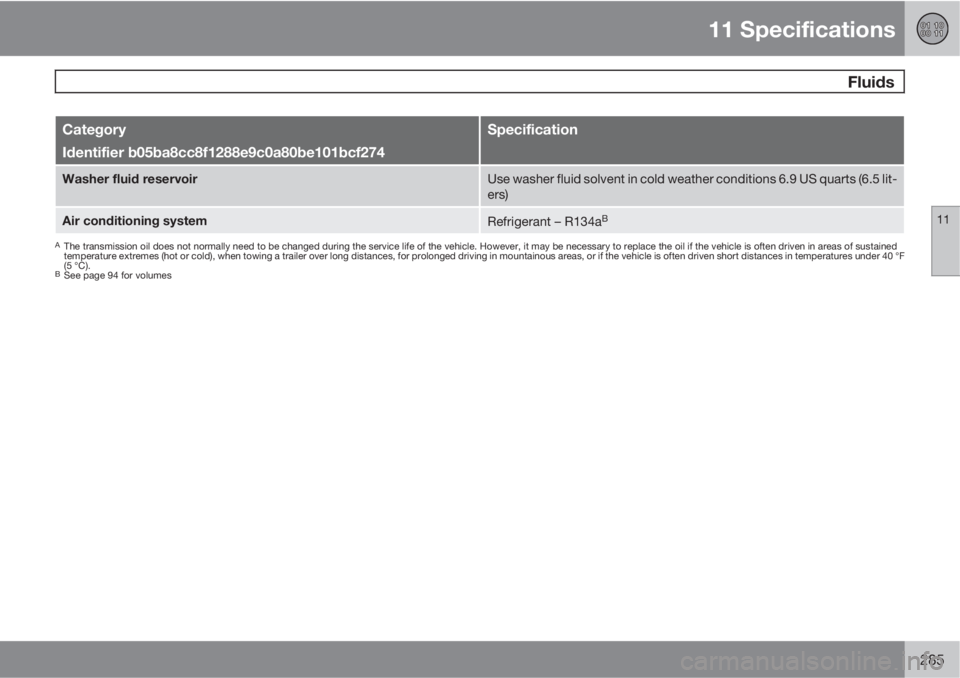

Fluids
11
285
Category
Identifier b05ba8cc8f1288e9c0a80be101bcf274Specification
Washer fluid reservoirUse washer fluid solvent in cold weather conditions 6.9 US quarts (6.5 lit-
ers)
Air conditioning systemRefrigerant – R134aB
AThe transmission oil does not normally need to be changed during the service life of the vehicle. However, it may be necessary to replace the oil if the vehicle is often driven in areas of sustained
temperature extremes (hot or cold), when towing a trailer over long distances, for prolonged driving in mountainous areas, or if the vehicle is often driven short distances in temperatures under 40 °F
(5 °C).
BSee page 94 for volumes

11 Specifications

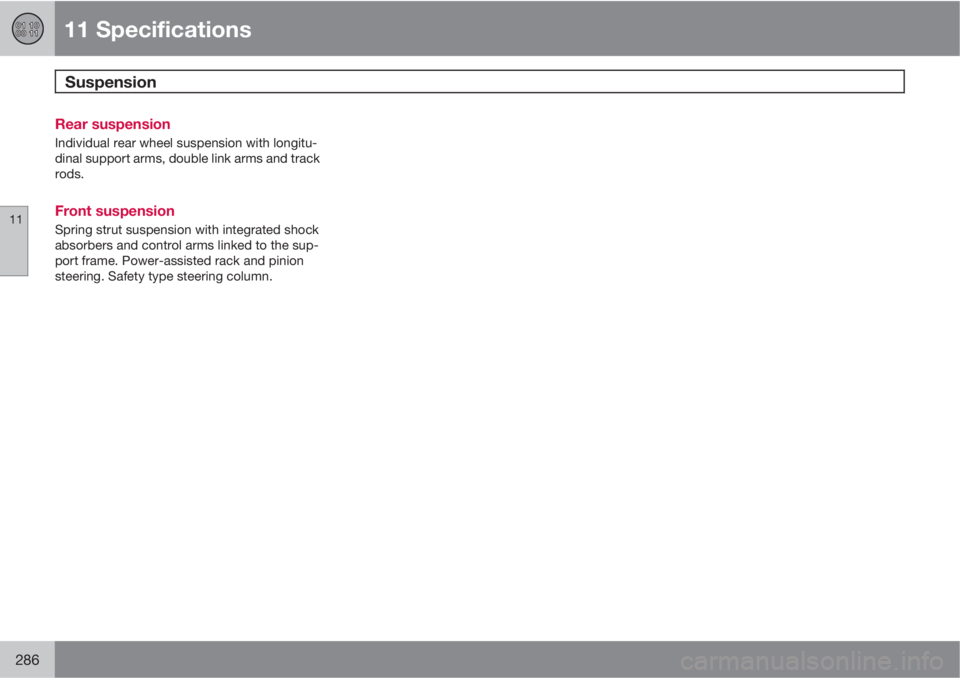

Suspension
11
286
Rear suspension
Individual rear wheel suspension with longitu-
dinal support arms, double link arms and track
rods.
Front suspension
Spring strut suspension with integrated shock
absorbers and control arms linked to the sup-
port frame. Power-assisted rack and pinion
steering. Safety type steering column.

11 Specifications

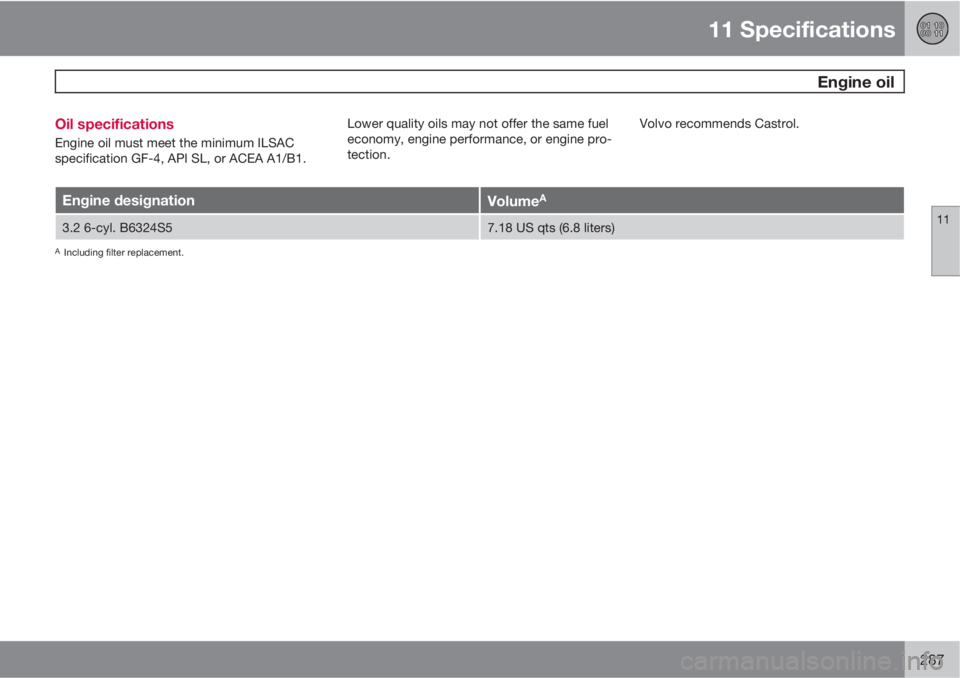

Engine oil
11
287 Oil specifications
Engine oil must meet the minimum ILSAC
specification GF-4, API SL, or ACEA A1/B1.Lower quality oils may not offer the same fuel
economy, engine performance, or engine pro-
tection.Volvo recommends Castrol.
Engine designationVolumeA
3.2 6-cyl. B6324S57.18 US qts (6.8 liters)
AIncluding filter replacement.

11 Specifications

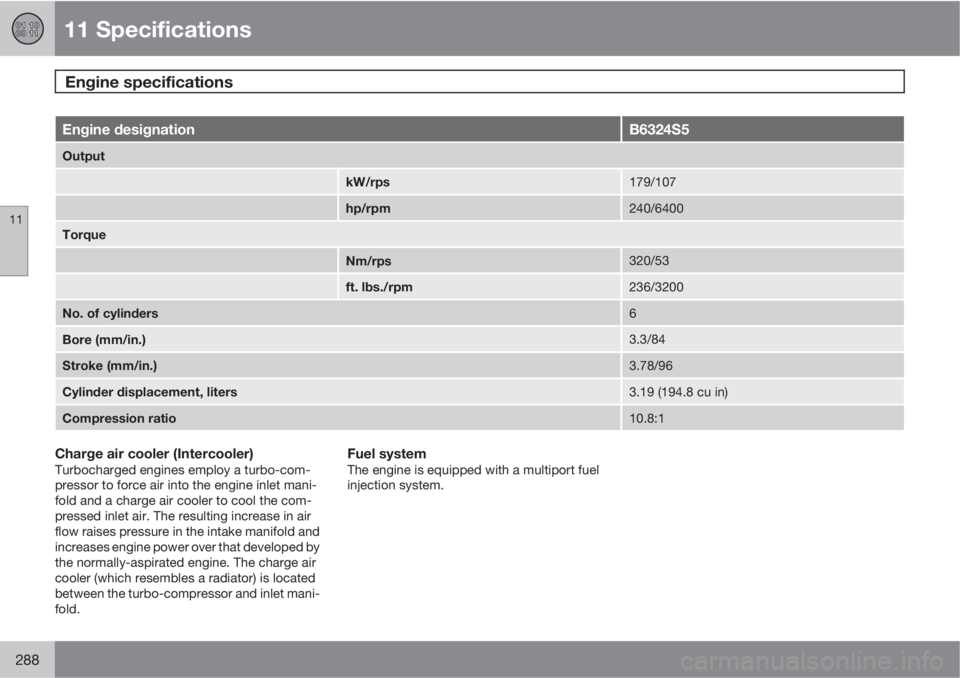

Engine specifications
11
288
Engine designationB6324S5
Output
kW/rps179/107
hp/rpm240/6400
Torque
Nm/rps320/53
ft. lbs./rpm236/3200
No. of cylinders6
Bore (mm/in.)3.3/84
Stroke (mm/in.)3.78/96
Cylinder displacement, liters3.19 (194.8 cu in)
Compression ratio10.8:1
Charge air cooler (Intercooler)Turbocharged engines employ a turbo-com-
pressor to force air into the engine inlet mani-
fold and a charge air cooler to cool the com-
pressed inlet air. The resulting increase in air
flow raises pressure in the intake manifold and
increases engine power over that developed by
the normally-aspirated engine. The charge air
cooler (which resembles a radiator) is located
between the turbo-compressor and inlet mani-
fold.Fuel systemThe engine is equipped with a multiport fuel
injection system.

11 Specifications

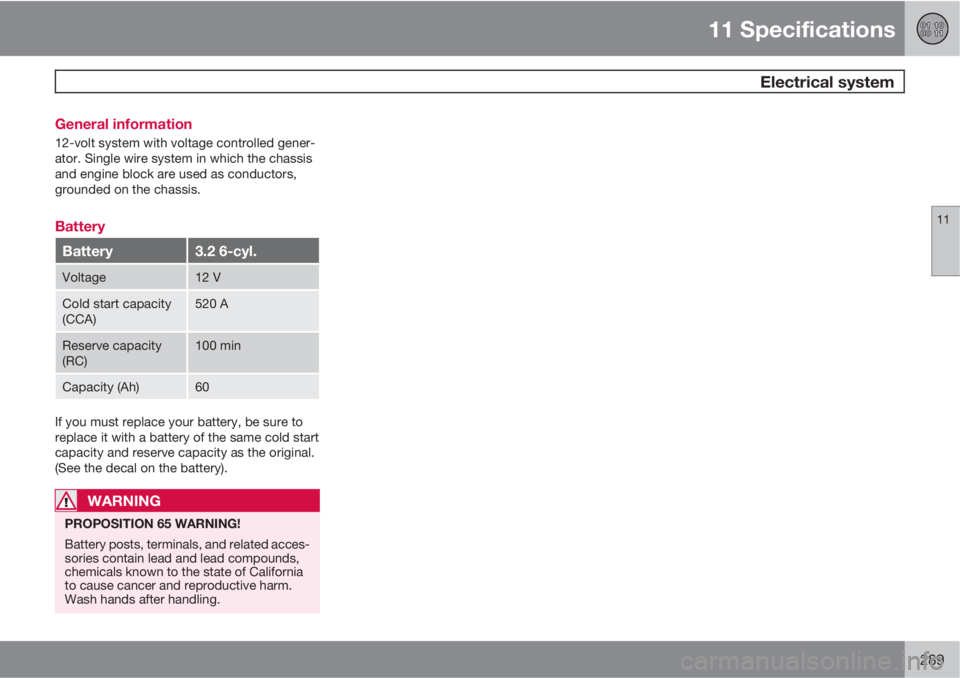

Electrical system
11
289 General information
12-volt system with voltage controlled gener-
ator. Single wire system in which the chassis
and engine block are used as conductors,
grounded on the chassis.
Battery
Battery3.2 6-cyl.
Voltage12 V
Cold start capacity
(CCA)520 A
Reserve capacity
(RC)100 min
Capacity (Ah)60
If you must replace your battery, be sure to
replace it with a battery of the same cold start
capacity and reserve capacity as the original.
(See the decal on the battery).
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.

11 Specifications

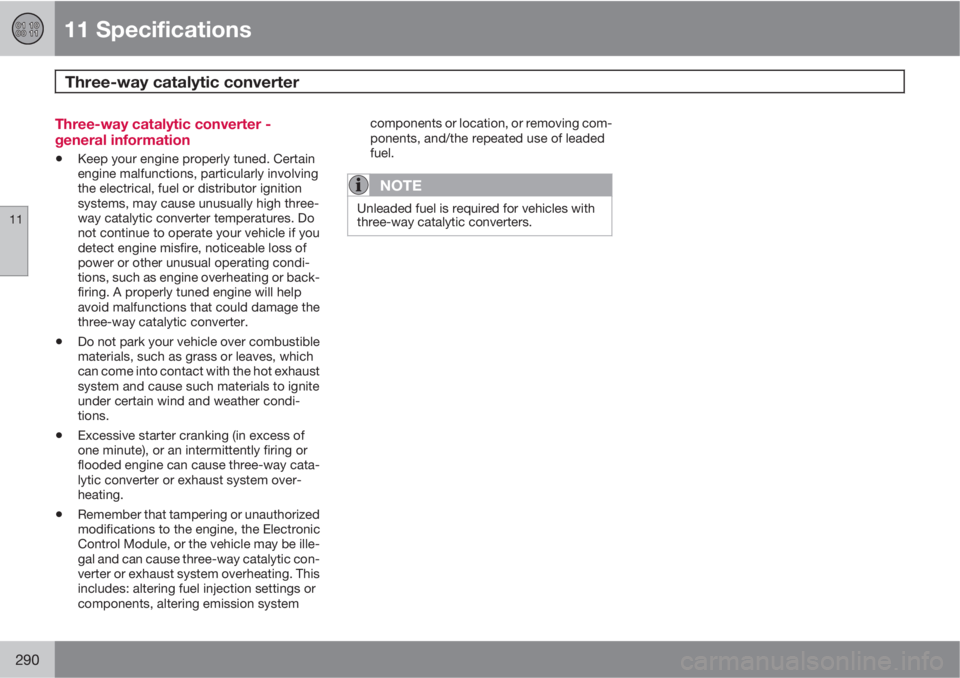

Three-way catalytic converter
11
290
Three-way catalytic converter -
general information
•Keep your engine properly tuned. Certain
engine malfunctions, particularly involving
the electrical, fuel or distributor ignition
systems, may cause unusually high three-
way catalytic converter temperatures. Do
not continue to operate your vehicle if you
detect engine misfire, noticeable loss of
power or other unusual operating condi-
tions, such as engine overheating or back-
firing. A properly tuned engine will help
avoid malfunctions that could damage the
three-way catalytic converter.
•Do not park your vehicle over combustible
materials, such as grass or leaves, which
can come into contact with the hot exhaust
system and cause such materials to ignite
under certain wind and weather condi-
tions.
•Excessive starter cranking (in excess of
one minute), or an intermittently firing or
flooded engine can cause three-way cata-
lytic converter or exhaust system over-
heating.
•Remember that tampering or unauthorized
modifications to the engine, the Electronic
Control Module, or the vehicle may be ille-
gal and can cause three-way catalytic con-
verter or exhaust system overheating. This
includes: altering fuel injection settings or
components, altering emission systemcomponents or location, or removing com-
ponents, and/the repeated use of leaded
fuel.
NOTE
Unleaded fuel is required for vehicles with
three-way catalytic converters.
