VOLVO XC90 2013 Owner´s Manual

10 Audio

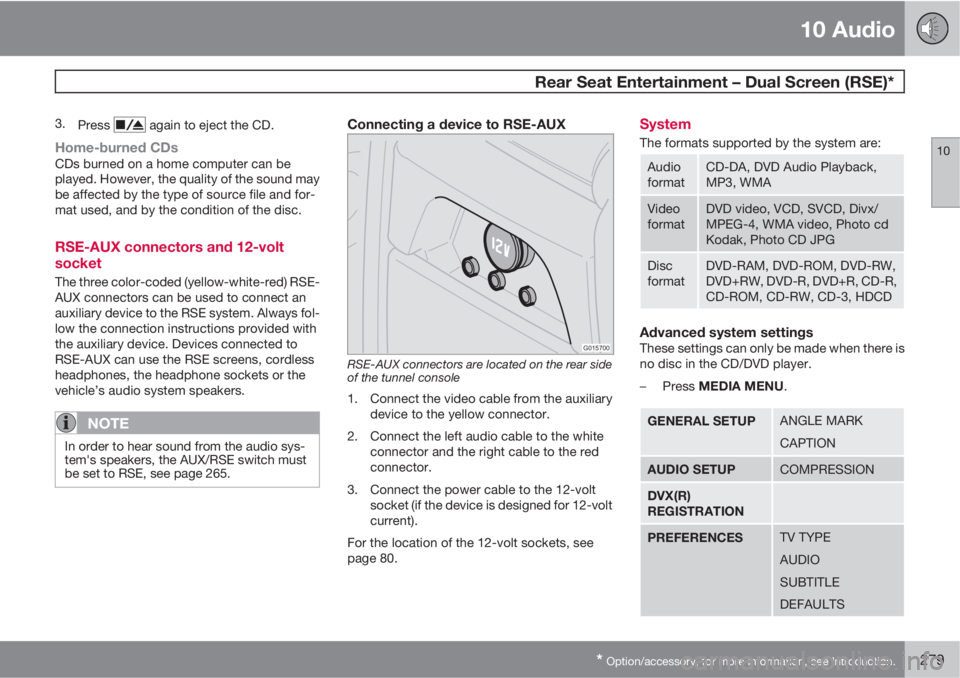

Rear Seat Entertainment – Dual Screen (RSE)*
10
* Option/accessory, for more information, see Introduction.279
3.
Press again to eject the CD.
Home-burned CDsCDs burned on a home computer can be
played. However, the quality of the sound may
be affected by the type of source file and for-
mat used, and by the condition of the disc.
RSE-AUX connectors and 12-volt
socket
The three color-coded (yellow-white-red) RSE-
AUX connectors can be used to connect an
auxiliary device to the RSE system. Always fol-
low the connection instructions provided with
the auxiliary device. Devices connected to
RSE-AUX can use the RSE screens, cordless
headphones, the headphone sockets or the
vehicle’s audio system speakers.
NOTE
In order to hear sound from the audio sys-
tem's speakers, the AUX/RSE switch must
be set to RSE, see page 265.
Connecting a device to RSE-AUX
G015700
RSE-AUX connectors are located on the rear side
of the tunnel console
1. Connect the video cable from the auxiliary
device to the yellow connector.
2. Connect the left audio cable to the white
connector and the right cable to the red
connector.
3. Connect the power cable to the 12-volt
socket (if the device is designed for 12-volt
current).
For the location of the 12-volt sockets, see
page 80.
System
The formats supported by the system are:
Audio
formatCD-DA, DVD Audio Playback,
MP3, WMA
Video
formatDVD video, VCD, SVCD, Divx/
MPEG-4, WMA video, Photo cd
Kodak, Photo CD JPG
Disc
formatDVD-RAM, DVD-ROM, DVD-RW,
DVD+RW, DVD-R, DVD+R, CD-R,
CD-ROM, CD-RW, CD-3, HDCD
Advanced system settingsThese settings can only be made when there is
no disc in the CD/DVD player.
–
Press MEDIA MENU.
GENERAL SETUPANGLE MARK
CAPTION
AUDIO SETUPCOMPRESSION
DVX(R)
REGISTRATION
PREFERENCESTV TYPE
AUDIO
SUBTITLE
DEFAULTS

10 Audio
Rear Seat Entertainment – Dual Screen (RSE)*
10
280* Option/accessory, for more information, see Introduction.

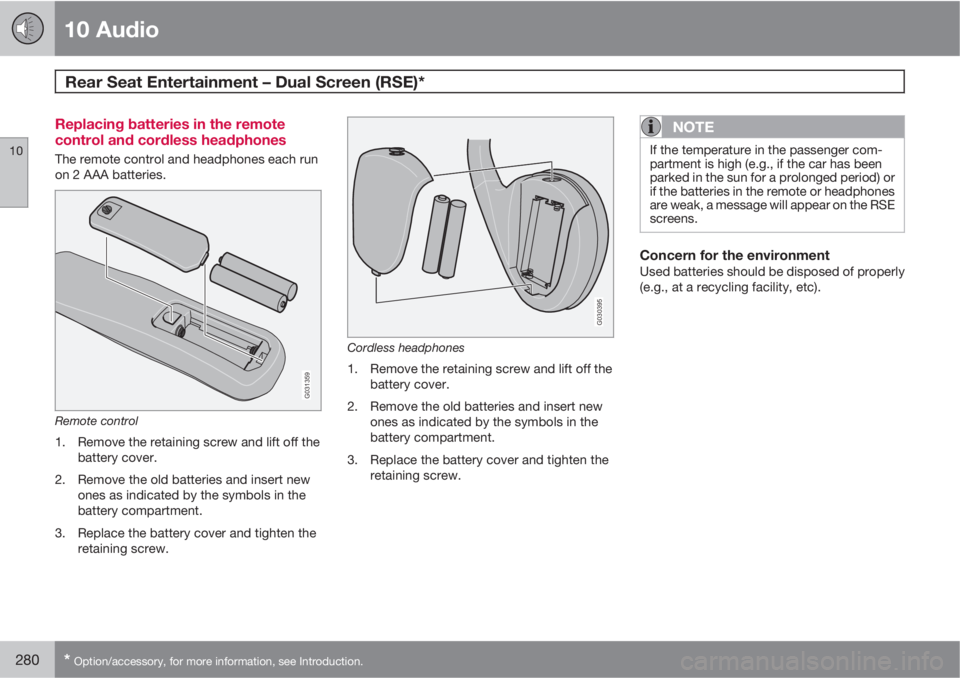

Replacing batteries in the remote
control and cordless headphones
The remote control and headphones each run
on 2 AAA batteries.
G031359
Remote control
1. Remove the retaining screw and lift off the
battery cover.
2. Remove the old batteries and insert new
ones as indicated by the symbols in the
battery compartment.
3. Replace the battery cover and tighten the
retaining screw.
G030395
Cordless headphones
1. Remove the retaining screw and lift off the
battery cover.
2. Remove the old batteries and insert new
ones as indicated by the symbols in the
battery compartment.
3. Replace the battery cover and tighten the
retaining screw.
NOTE
If the temperature in the passenger com-
partment is high (e.g., if the car has been
parked in the sun for a prolonged period) or
if the batteries in the remote or headphones
are weak, a message will appear on the RSE
screens.
Concern for the environmentUsed batteries should be disposed of properly
(e.g., at a recycling facility, etc).

10 Audio

10
281

282
Label information.................................................................................. 284
Dimensions .......................................................................................... 286
Weights ................................................................................................ 288
Fluids..................................................................................................... 290
Suspension........................................................................................... 292
Engine oil............................................................................................... 293
Engine specifications............................................................................ 294
Electrical system................................................................................... 295
Three-way catalytic converter............................................................... 296
Overview of information and warning symbols .................................... 297
Volvo programs..................................................................................... 299

SPECIFICATIONS

11 Specifications

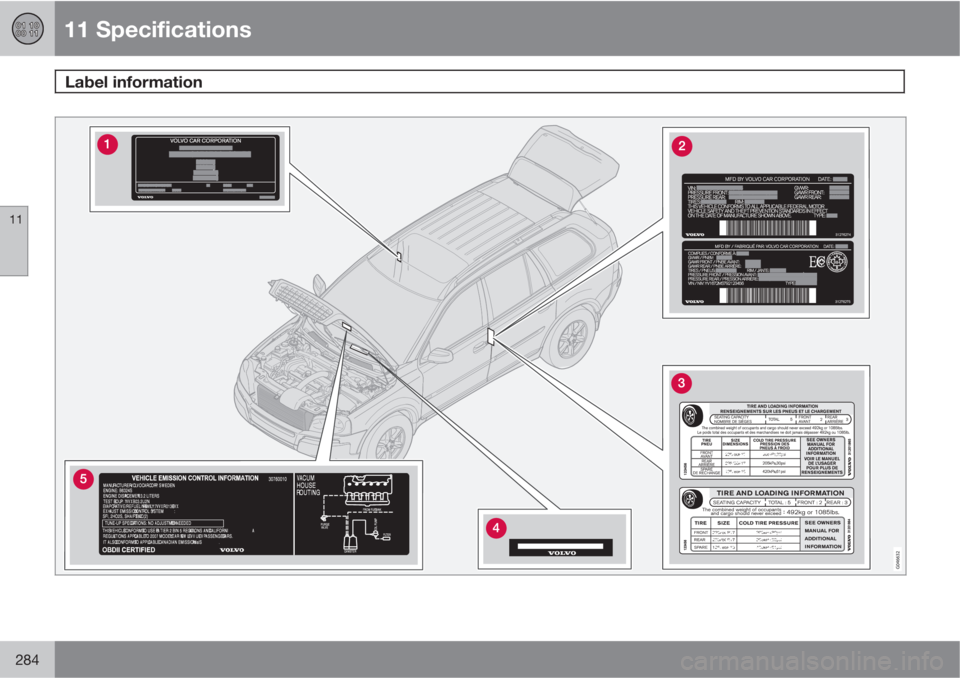

Label information
11
284

11 Specifications
Label information
11
285
Model plate: includes e.g., Vehicle Identi-
fication Number (VIN), codes for color and
upholstery, etc. The model plate is located
on the rear side of the B-pillar (the pillar
between the front and rear passenger
doors) and the rear passenger's door must
be open in order to see it.
Federal Motor Vehicle Safety Standards
(FMVSS) specifications (USA) and Min-
istry of Transport (CMVSS) standards
(Canada): Your Volvo is designed to meet
all applicable safety standards, as evi-
denced by the certification label on the
driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of
the driver's door opening). For further infor-
mation regarding these regulations, please
consult your Volvo retailer.
Tire inflation pressures: This label indi-
cates the correct inflation pressures for the
tires that were on the vehicle when it left
the factory. Canadian models have the
upper decal; U.S. models have the lower
one.
Vehicle Identification Number (VIN): The
VIN plate is located on the top center of the
dashboard at the base of the windshield.
The VIN is also stamped on the right hand
door pillar.
Vehicle Emission Control Information:
Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by
the certification label on the underside of
the hood. For further information regarding
these regulations, please consult your
Volvo retailer.

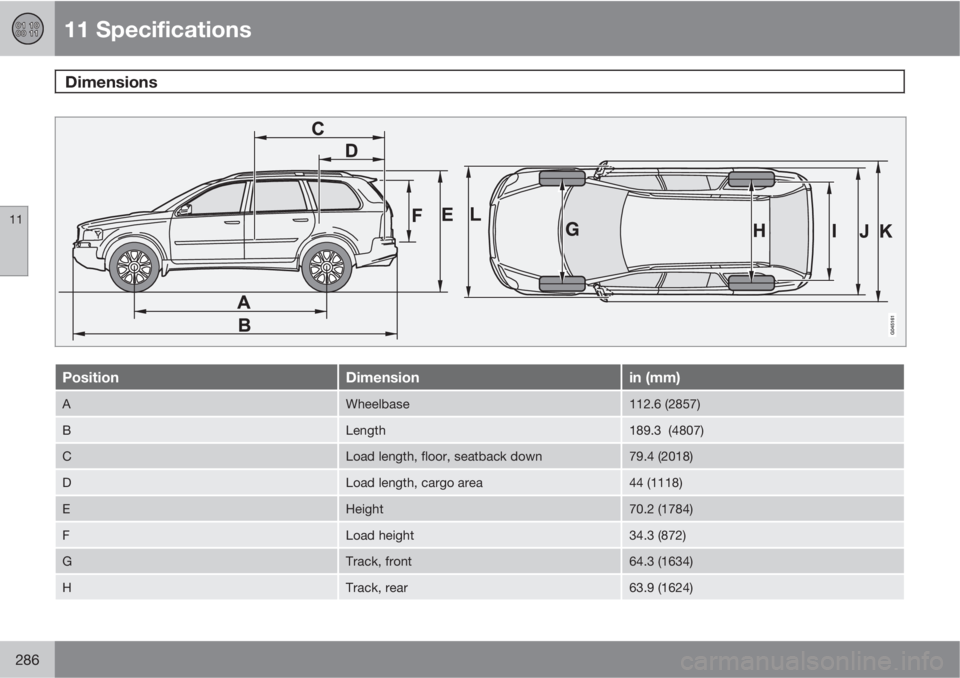

11 Specifications
Dimensions
11
286
PositionDimensionin (mm)
AWheelbase112.6 (2857)
BLength189.3 (4807)
CLoad length, floor, seatback down79.4 (2018)
DLoad length, cargo area44 (1118)
EHeight70.2 (1784)
FLoad height34.3 (872)
GTrack, front64.3 (1634)
HTrack, rear63.9 (1624)

11 Specifications
Dimensions
11
287
PositionDimensionin (mm)
ILoad width, floor41.8 (1064)
JWidth76.2 (1936)
KWidth incl. door mirrors (folded out)83.1 (2112)
LWidth incl. door mirrors (folded in)76.2 (194)

11 Specifications

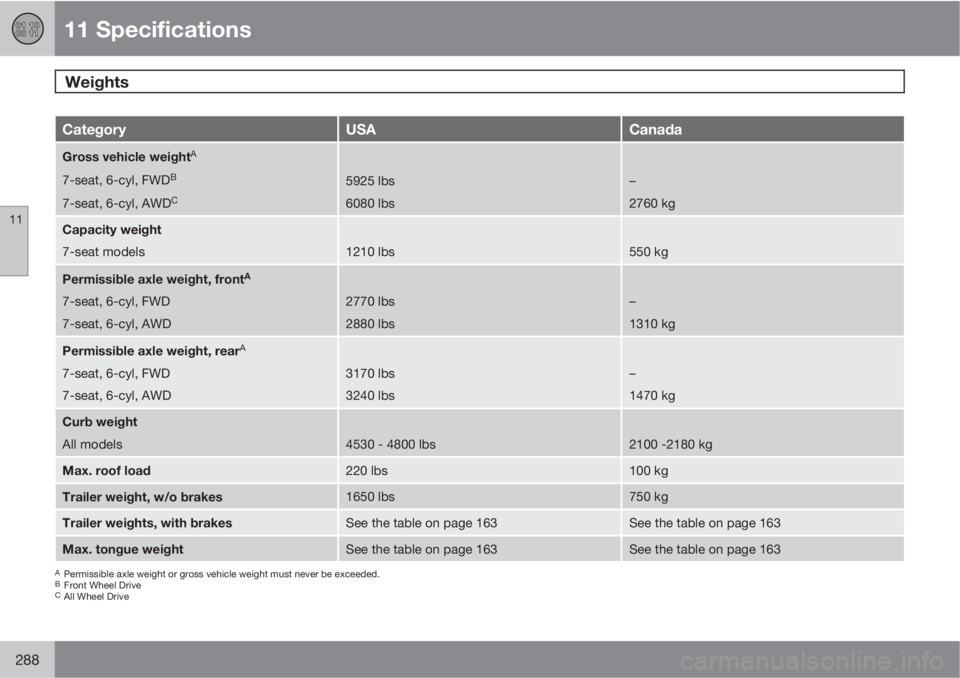

Weights
11
288
CategoryUSACanada
Gross vehicle weightA
7-seat, 6-cyl, FWDB
7-seat, 6-cyl, AWDC
5925 lbs
6080 lbs–
2760 kg
Capacity weight
7-seat models
1210 lbs550 kg
Permissible axle weight, frontA
7-seat, 6-cyl, FWD
7-seat, 6-cyl, AWD2770 lbs
2880 lbs–
1310 kg
Permissible axle weight, rearA
7-seat, 6-cyl, FWD
7-seat, 6-cyl, AWD3170 lbs
3240 lbs–
1470 kg
Curb weight
All models
4530 - 4800 lbs2100 -2180 kg
Max. roof load220 lbs100 kg
Trailer weight, w/o brakes1650 lbs750 kg
Trailer weights, with brakesSee the table on page 163See the table on page 163
Max. tongue weightSee the table on page 163See the table on page 163
APermissible axle weight or gross vehicle weight must never be exceeded.BFront Wheel DriveCAll Wheel Drive
