VOLVO XC90 2017 Owner´s Manual

MAINTENANCE AND SERVICING
}}
529

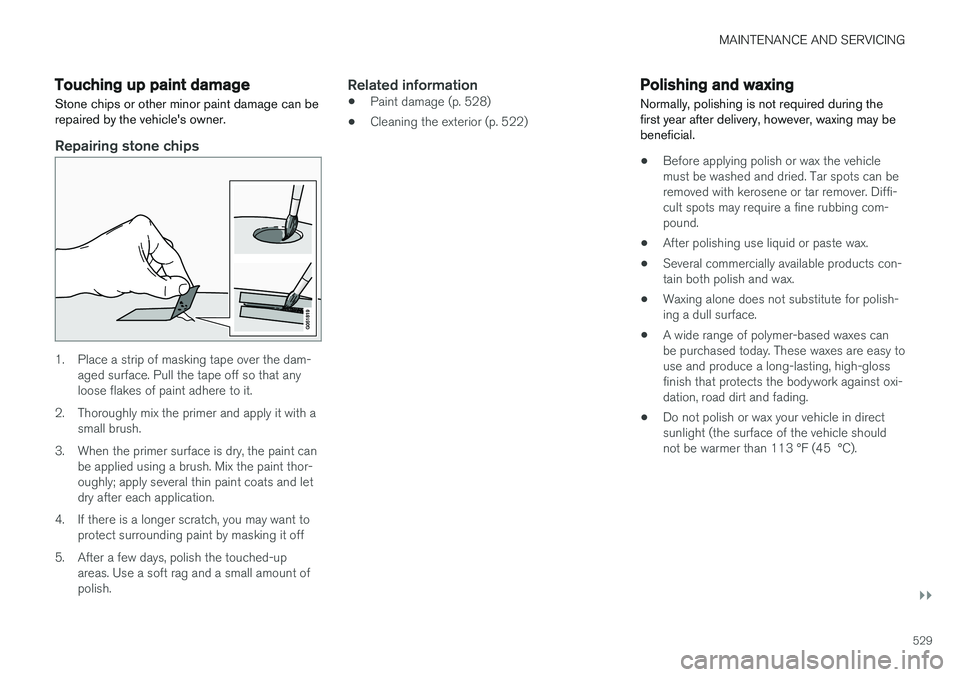

Touching up paint damage
Stone chips or other minor paint damage can be repaired by the vehicle's owner.
Repairing stone chips
1. Place a strip of masking tape over the dam- aged surface. Pull the tape off so that any loose flakes of paint adhere to it.
2. Thoroughly mix the primer and apply it with a small brush.
3. When the primer surface is dry, the paint can be applied using a brush. Mix the paint thor-oughly; apply several thin paint coats and letdry after each application.
4. If there is a longer scratch, you may want to protect surrounding paint by masking it off
5. After a few days, polish the touched-up areas. Use a soft rag and a small amount ofpolish.
Related information
• Paint damage (p. 528)
• Cleaning the exterior (p. 522)
Polishing and waxing
Normally, polishing is not required during the first year after delivery, however, waxing may bebeneficial.
• Before applying polish or wax the vehicle must be washed and dried. Tar spots can beremoved with kerosene or tar remover. Diffi-cult spots may require a fine rubbing com-pound.
• After polishing use liquid or paste wax.
• Several commercially available products con-tain both polish and wax.
• Waxing alone does not substitute for polish-ing a dull surface.
• A wide range of polymer-based waxes canbe purchased today. These waxes are easy touse and produce a long-lasting, high-glossfinish that protects the bodywork against oxi-dation, road dirt and fading.
• Do not polish or wax your vehicle in directsunlight (the surface of the vehicle shouldnot be warmer than 113 °F (45 °C).

||
MAINTENANCE AND SERVICING
530

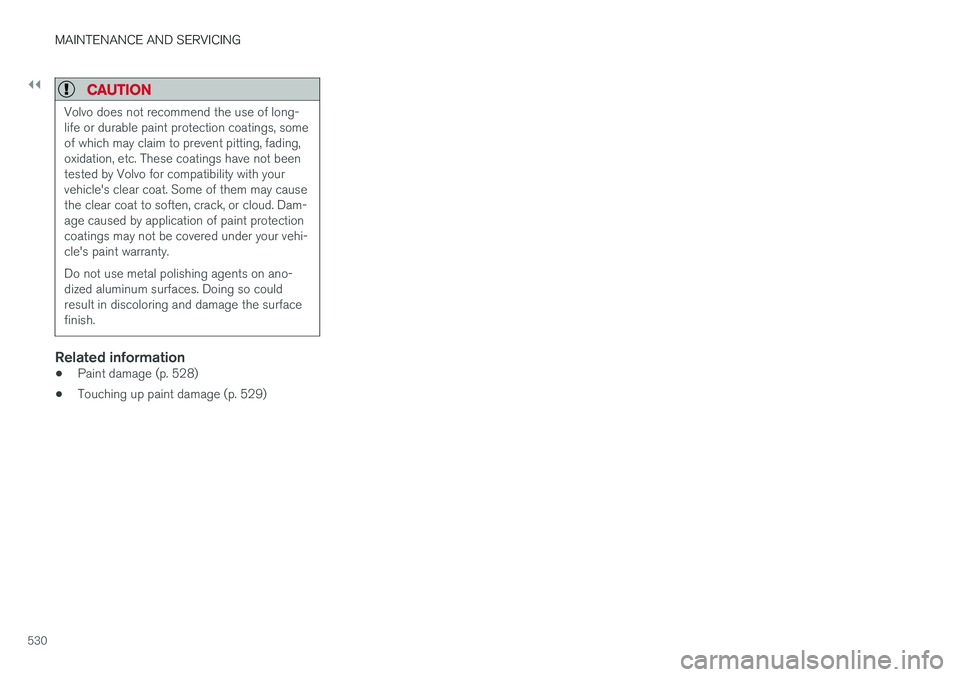

CAUTION
Volvo does not recommend the use of long- life or durable paint protection coatings, someof which may claim to prevent pitting, fading,oxidation, etc. These coatings have not beentested by Volvo for compatibility with yourvehicle's clear coat. Some of them may causethe clear coat to soften, crack, or cloud. Dam-age caused by application of paint protectioncoatings may not be covered under your vehi-cle's paint warranty. Do not use metal polishing agents on ano- dized aluminum surfaces. Doing so couldresult in discoloring and damage the surfacefinish.
Related information
•Paint damage (p. 528)
• Touching up paint damage (p. 529)

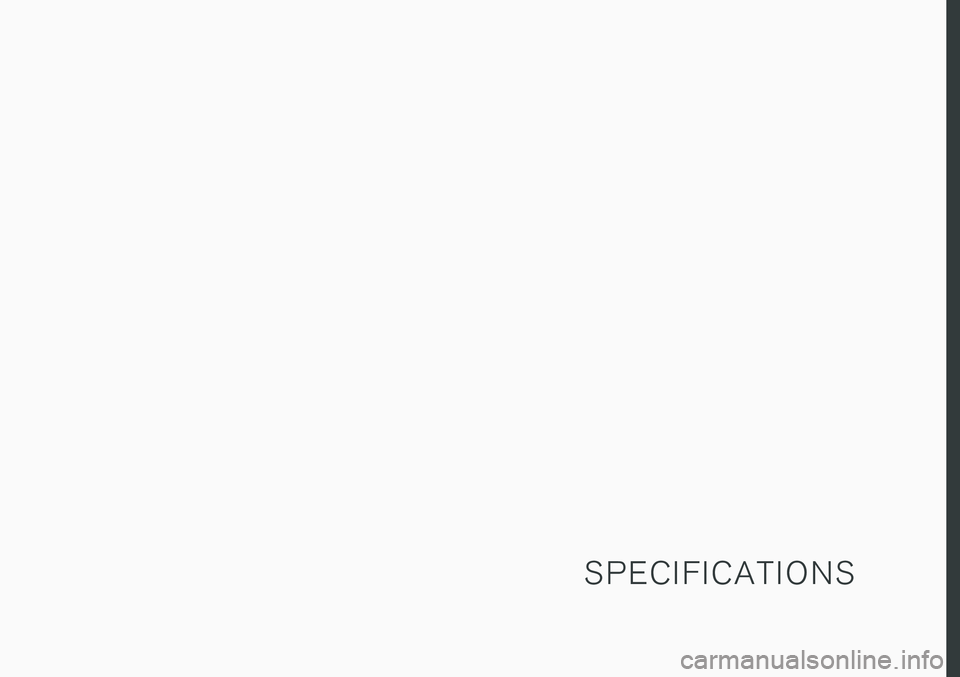

S P E C I F I C A T I O N S

SPECIFICATIONS
532

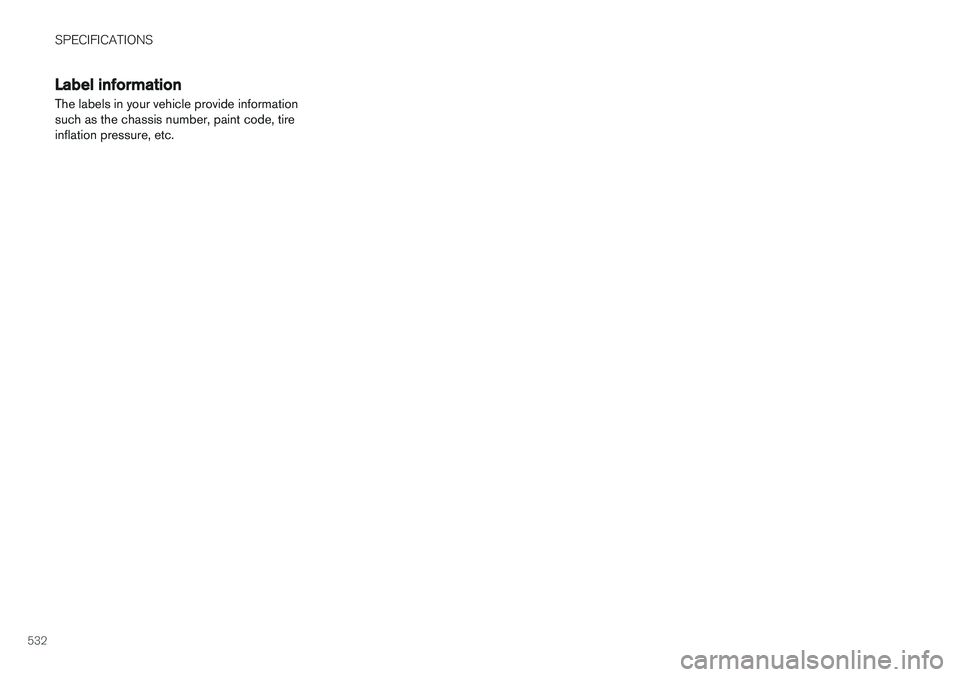

Label information
The labels in your vehicle provide information such as the chassis number, paint code, tireinflation pressure, etc.

SPECIFICATIONS
}}
533

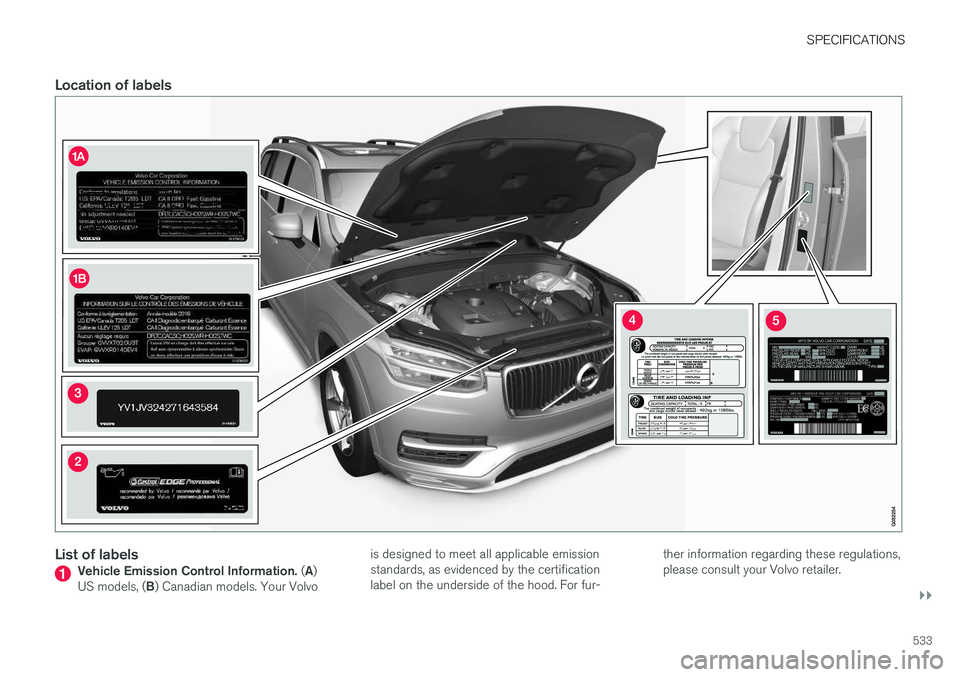

Location of labels
List of labelsVehicle Emission Control Information. (A )
US models, ( B) Canadian models. Your Volvo is designed to meet all applicable emission standards, as evidenced by the certificationlabel on the underside of the hood. For fur-
ther information regarding these regulations,please consult your Volvo retailer.

||
SPECIFICATIONS
534

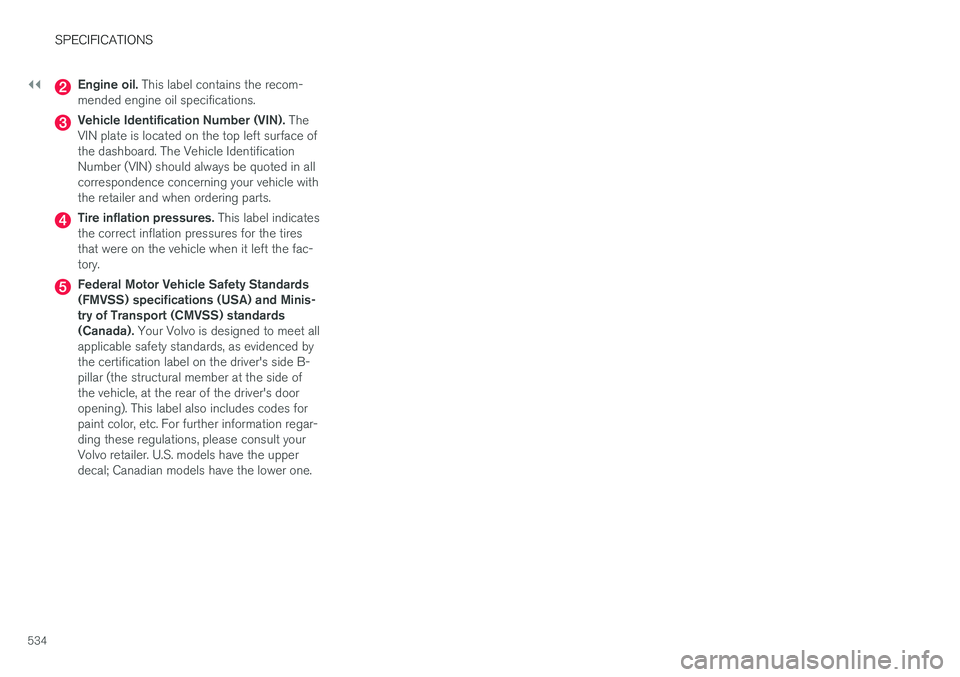

Engine oil. This label contains the recom-
mended engine oil specifications.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle IdentificationNumber (VIN) should always be quoted in allcorrespondence concerning your vehicle withthe retailer and when ordering parts.
Tire inflation pressures. This label indicates
the correct inflation pressures for the tires that were on the vehicle when it left the fac-tory.
Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Minis-try of Transport (CMVSS) standards(Canada). Your Volvo is designed to meet all
applicable safety standards, as evidenced bythe certification label on the driver's side B-pillar (the structural member at the side ofthe vehicle, at the rear of the driver's dooropening). This label also includes codes forpaint color, etc. For further information regar-ding these regulations, please consult yourVolvo retailer. U.S. models have the upperdecal; Canadian models have the lower one.

SPECIFICATIONS
}}
* Option/accessory.535

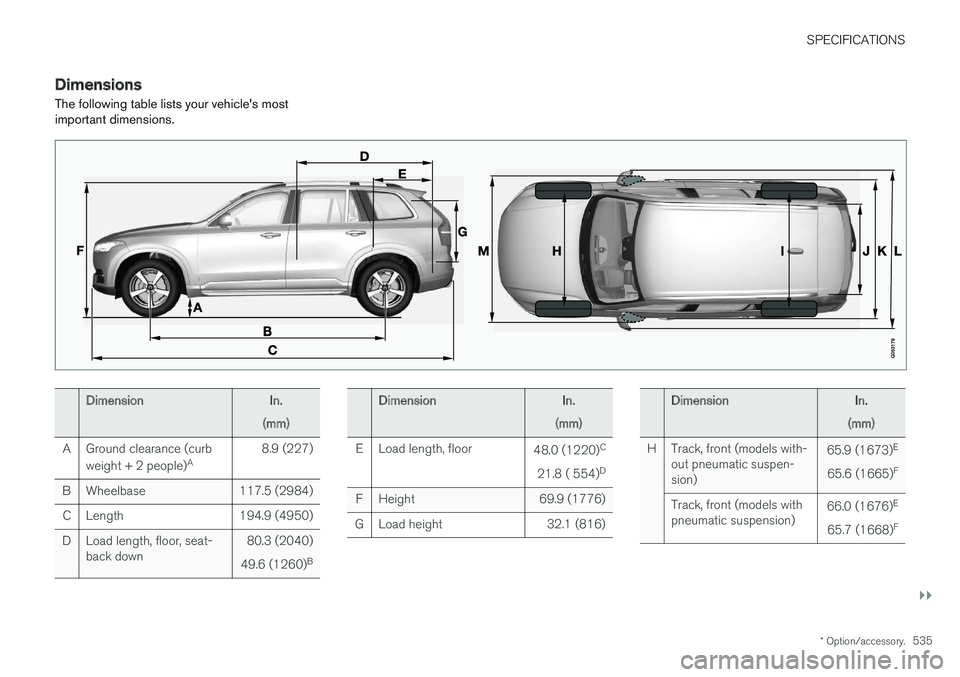

Dimensions
The following table lists your vehicle's most important dimensions.
Dimension In.
(mm)
A Ground clearance (curb weight + 2 people) A8.9 (227)
B Wheelbase 117.5 (2984) C Length 194.9 (4950)
D Load length, floor, seat- back down 80.3 (2040)
49.6 (1260) BDimension
In.
(mm)
E Load length, floor 48.0 (1220)C
21.8 ( 554) D
F Height 69.9 (1776)
G Load height 32.1 (816)Dimension In.
(mm)
H Track, front (models with- out pneumatic suspen- sion) 65.9 (1673)
E
65.6 (1665) F
Track, front (models withpneumatic suspension) 66.0 (1676)
E
65.7 (1668) F

||
SPECIFICATIONS
536

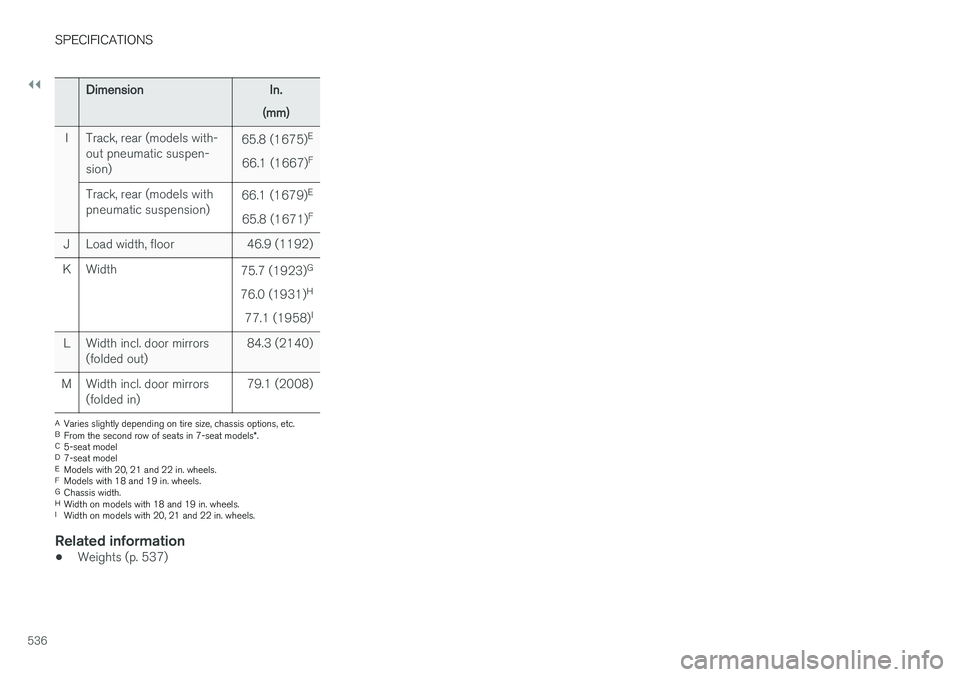

DimensionIn.
(mm)
I Track, rear (models with- out pneumatic suspen- sion) 65.8 (1675)
E
66.1 (1667) F
Track, rear (models withpneumatic suspension) 66.1 (1679)
E
65.8 (1671) F
J Load width, floor 46.9 (1192)
K Width 75.7 (1923)G
76.0 (1931) H
77.1 (1958) I
L Width incl. door mirrors (folded out) 84.3 (2140)
M Width incl. door mirrors (folded in) 79.1 (2008)
A
Varies slightly depending on tire size, chassis options, etc.
B From the second row of seats in 7-seat models *.
C 5-seat model
D 7-seat model
E Models with 20, 21 and 22 in. wheels.
F Models with 18 and 19 in. wheels.
G Chassis width.
H Width on models with 18 and 19 in. wheels.
I Width on models with 20, 21 and 22 in. wheels.
Related information
• Weights (p. 537)

SPECIFICATIONS
}}
537

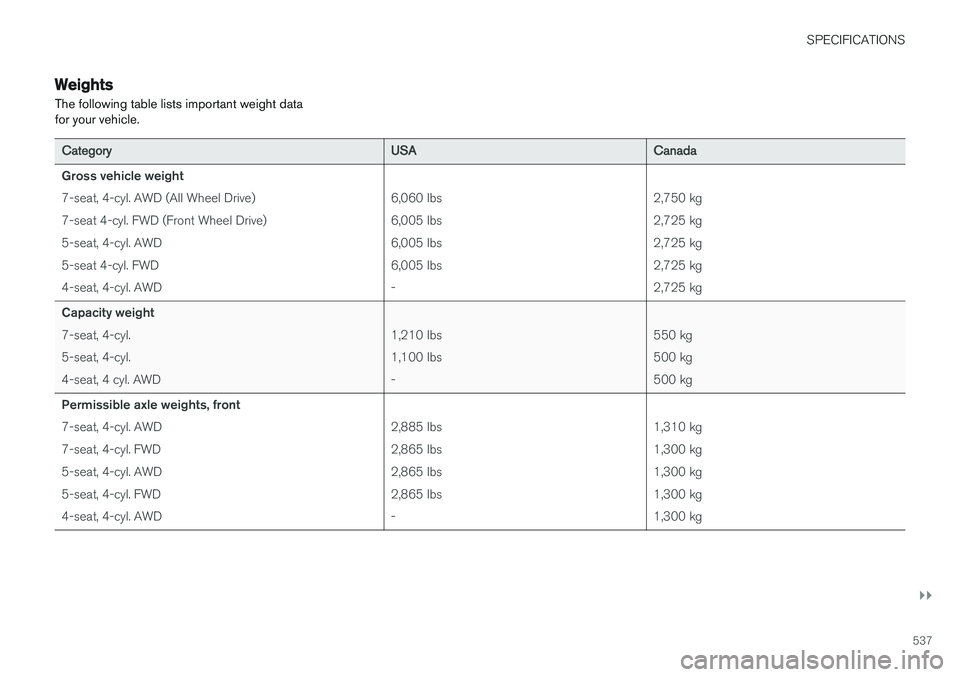

Weights The following table lists important weight data for your vehicle.
CategoryUSACanada
Gross vehicle weight 7-seat, 4-cyl. AWD (All Wheel Drive) 7-seat 4-cyl. FWD (Front Wheel Drive)5-seat, 4-cyl. AWD5-seat 4-cyl. FWD4-seat, 4-cyl. AWD 6,060 lbs6,005 lbs6,005 lbs6,005 lbs-2,750 kg2,725 kg2,725 kg2,725 kg2,725 kg
Capacity weight 7-seat, 4-cyl. 5-seat, 4-cyl.4-seat, 4 cyl. AWD 1,210 lbs1,100 lbs-550 kg500 kg500 kg
Permissible axle weights, front 7-seat, 4-cyl. AWD 7-seat, 4-cyl. FWD5-seat, 4-cyl. AWD5-seat, 4-cyl. FWD4-seat, 4-cyl. AWD 2,885 lbs2,865 lbs2,865 lbs2,865 lbs-1,310 kg1,300 kg1,300 kg1,300 kg1,300 kg

||
SPECIFICATIONS
538

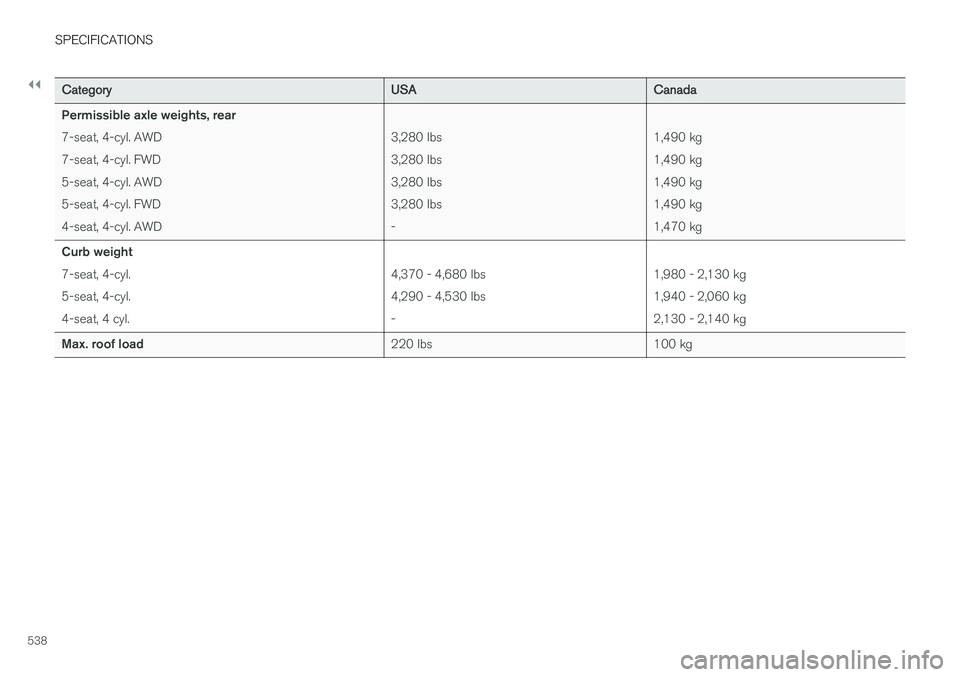

CategoryUSACanada
Permissible axle weights, rear 7-seat, 4-cyl. AWD 7-seat, 4-cyl. FWD5-seat, 4-cyl. AWD5-seat, 4-cyl. FWD4-seat, 4-cyl. AWD 3,280 lbs3,280 lbs3,280 lbs3,280 lbs-1,490 kg1,490 kg1,490 kg1,490 kg1,470 kg
Curb weight 7-seat, 4-cyl. 5-seat, 4-cyl.4-seat, 4 cyl. 4,370 - 4,680 lbs4,290 - 4,530 lbs-1,980 - 2,130 kg1,940 - 2,060 kg2,130 - 2,140 kg
Max. roof load 220 lbs
100 kg
