VOLVO XC90 T8 2017 Owner´s Manual

SPECIFICATIONS
* Option/accessory.559

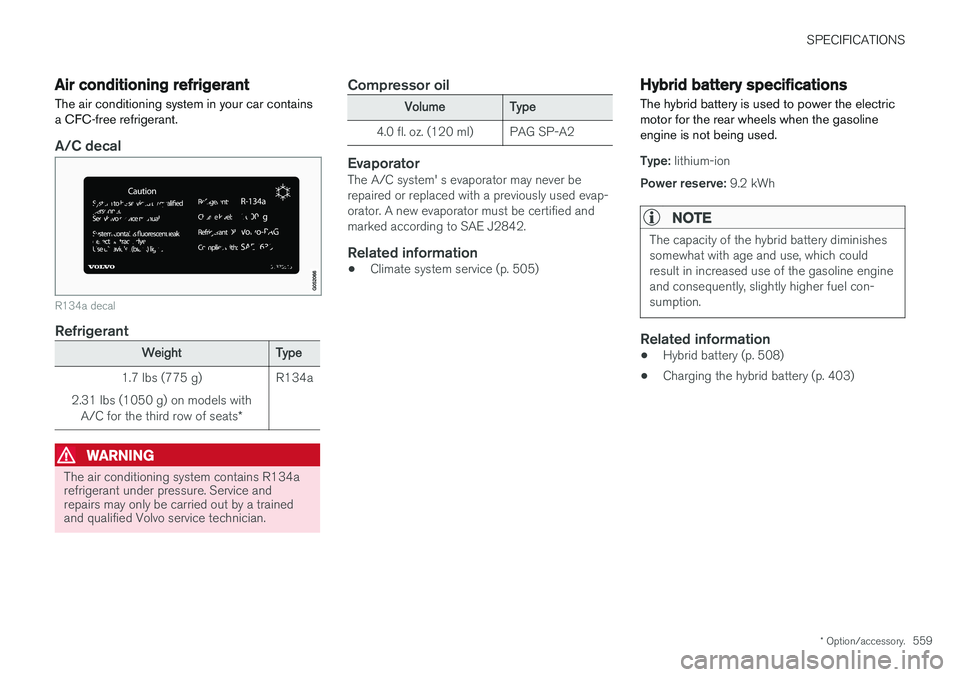

Air conditioning refrigerant
The air conditioning system in your car contains a CFC-free refrigerant.
A/C decal
R134a decal
Refrigerant
Weight Type
1.7 lbs (775 g)
2.31 lbs (1050 g) on models with A/C for the third row of seats *R134a
WARNING
The air conditioning system contains R134a refrigerant under pressure. Service andrepairs may only be carried out by a trainedand qualified Volvo service technician.
Compressor oil
Volume
Type
4.0 fl. oz. (120 ml) PAG SP-A2
EvaporatorThe A/C system' s evaporator may never be repaired or replaced with a previously used evap-orator. A new evaporator must be certified andmarked according to SAE J2842.
Related information
• Climate system service (p. 505)
Hybrid battery specifications
The hybrid battery is used to power the electric motor for the rear wheels when the gasolineengine is not being used.
Type: lithium-ion
Power reserve: 9.2 kWh
NOTE
The capacity of the hybrid battery diminishes somewhat with age and use, which couldresult in increased use of the gasoline engineand consequently, slightly higher fuel con-sumption.
Related information
•Hybrid battery (p. 508)
• Charging the hybrid battery (p. 403)

SPECIFICATIONS
560

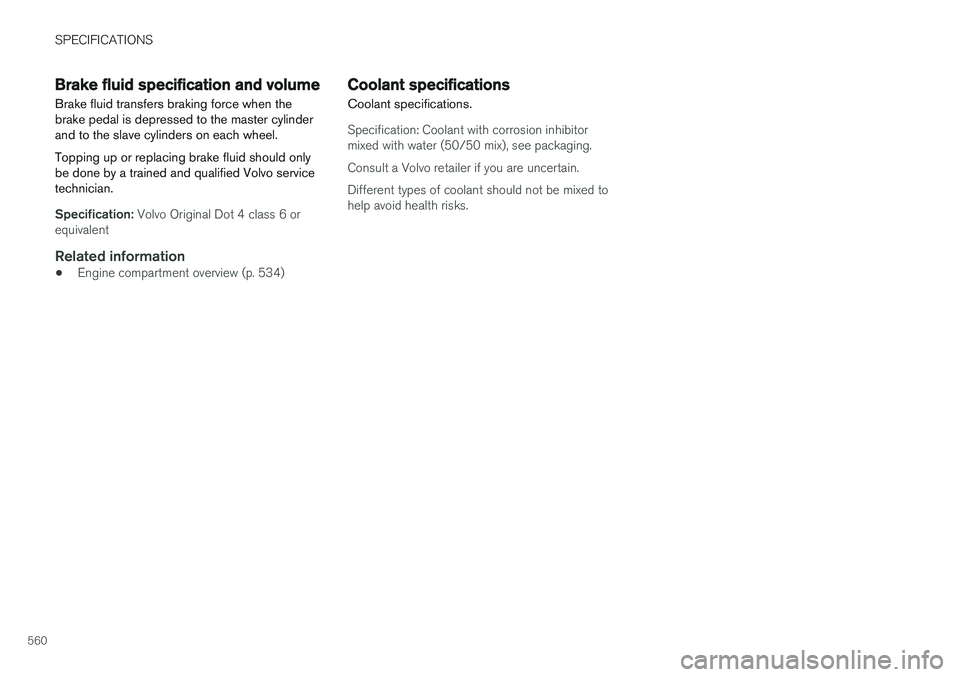

Brake fluid specification and volume
Brake fluid transfers braking force when the brake pedal is depressed to the master cylinderand to the slave cylinders on each wheel. Topping up or replacing brake fluid should only be done by a trained and qualified Volvo servicetechnician.
Specification: Volvo Original Dot 4 class 6 or
equivalent
Related information
• Engine compartment overview (p. 534)
Coolant specifications
Coolant specifications.
Specification: Coolant with corrosion inhibitor mixed with water (50/50 mix), see packaging. Consult a Volvo retailer if you are uncertain.Different types of coolant should not be mixed to help avoid health risks.

SPECIFICATIONS
561
Engine specificationsThe following table provides technical data for the respective engines. Engine specifications forSpecial Edition vehicles may vary. Not all engines listed here are available in allmarkets.
Specification
T8
Engine designation B4204T28
Output (kW/rps) 233/100
Output (hp/rpm) 313/6000
Torque (Nm/rps) 400/37–90
Torque (ft. lbs./rpm) 295/2200–5400
No. of cylinders 4
Electric motorMax. power:87/7000 (65 kW/117).
Torque: 240 Nm/0-50 rpm.
Related information
•Engine oil specifications and volume (p. 562)
• Coolant specifications (p. 560)

SPECIFICATIONS
562

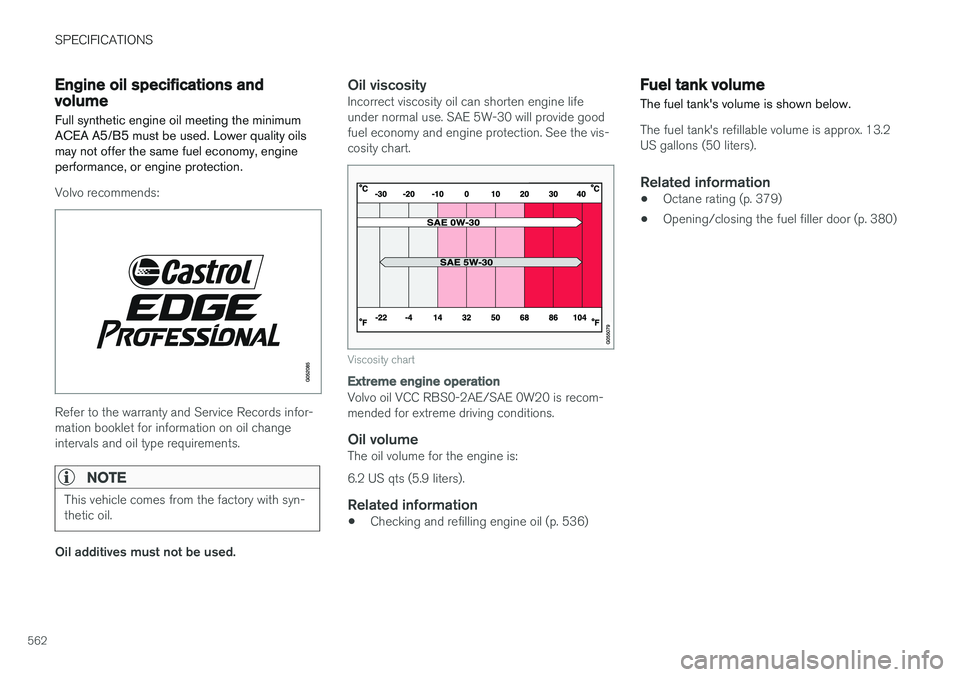

Engine oil specifications and volume
Full synthetic engine oil meeting the minimum ACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection.
Volvo recommends:
Refer to the warranty and Service Records infor- mation booklet for information on oil changeintervals and oil type requirements.
NOTE
This vehicle comes from the factory with syn- thetic oil.
Oil additives must not be used.
Oil viscosityIncorrect viscosity oil can shorten engine life under normal use. SAE 5W-30 will provide goodfuel economy and engine protection. See the vis-cosity chart.
Viscosity chart
Extreme engine operation
Volvo oil VCC RBS0-2AE/SAE 0W20 is recom- mended for extreme driving conditions.
Oil volumeThe oil volume for the engine is: 6.2 US qts (5.9 liters).
Related information
• Checking and refilling engine oil (p. 536)
Fuel tank volume
The fuel tank's volume is shown below.
The fuel tank's refillable volume is approx. 13.2 US gallons (50 liters).
Related information
• Octane rating (p. 379)
• Opening/closing the fuel filler door (p. 380)

SPECIFICATIONS
563

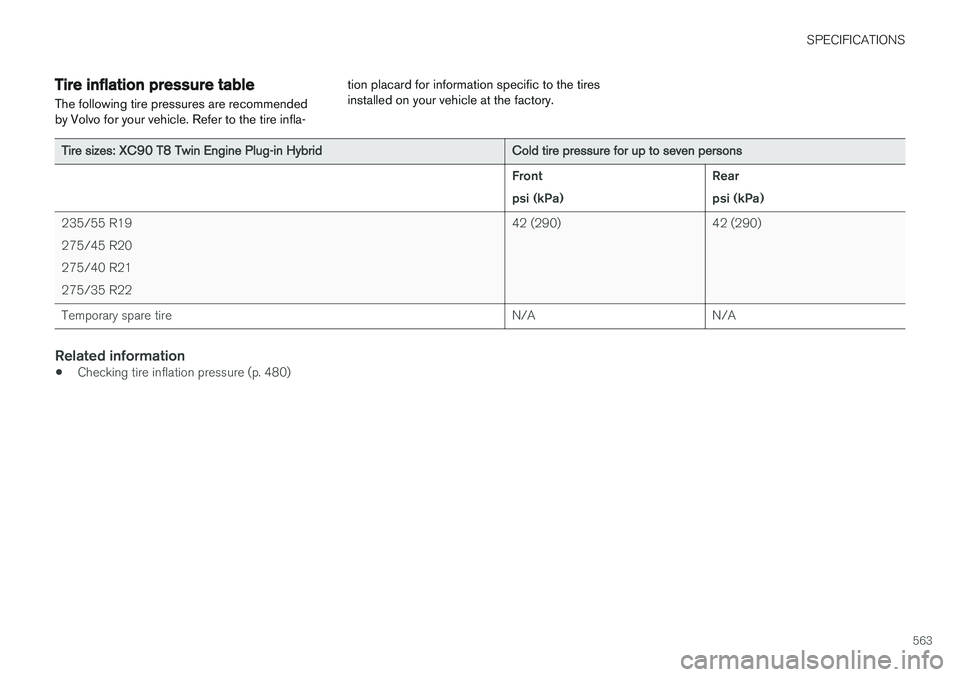

Tire inflation pressure table The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire infla-tion placard for information specific to the tiresinstalled on your vehicle at the factory.
Tire sizes: XC90 T8 Twin Engine Plug-in Hybrid
Cold tire pressure for up to seven persons Front psi (kPa)Rearpsi (kPa)
235/55 R19275/45 R20275/40 R21275/35 R22 42 (290) 42 (290)
Temporary spare tire N/A N/A
Related information
•Checking tire inflation pressure (p. 480)

SPECIFICATIONS
564

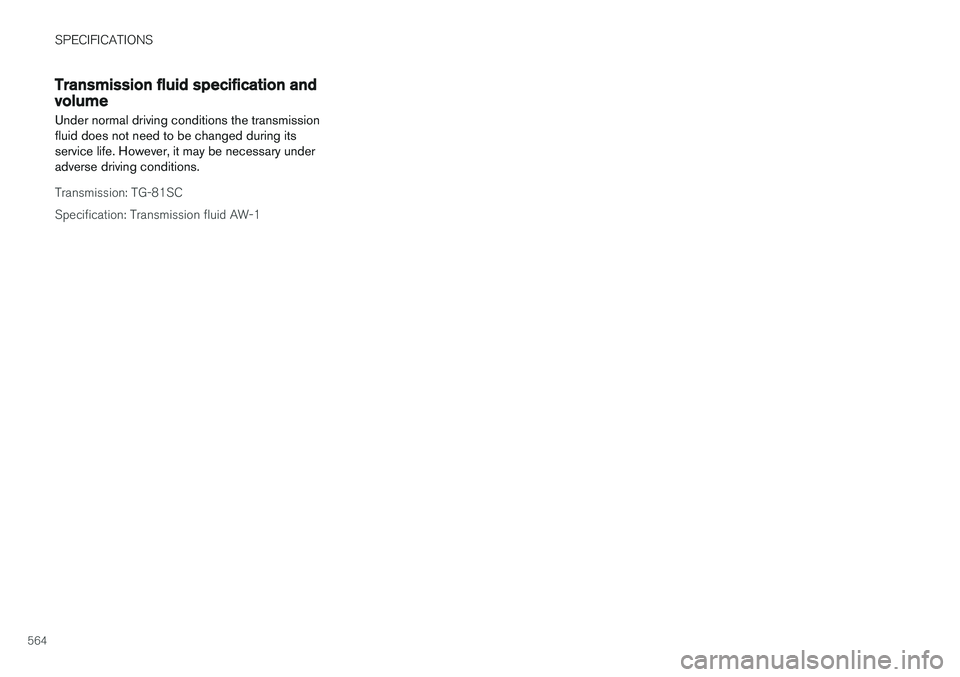

Transmission fluid specification and volume
Under normal driving conditions the transmission fluid does not need to be changed during itsservice life. However, it may be necessary underadverse driving conditions.
Transmission: TG-81SC Specification: Transmission fluid AW-1

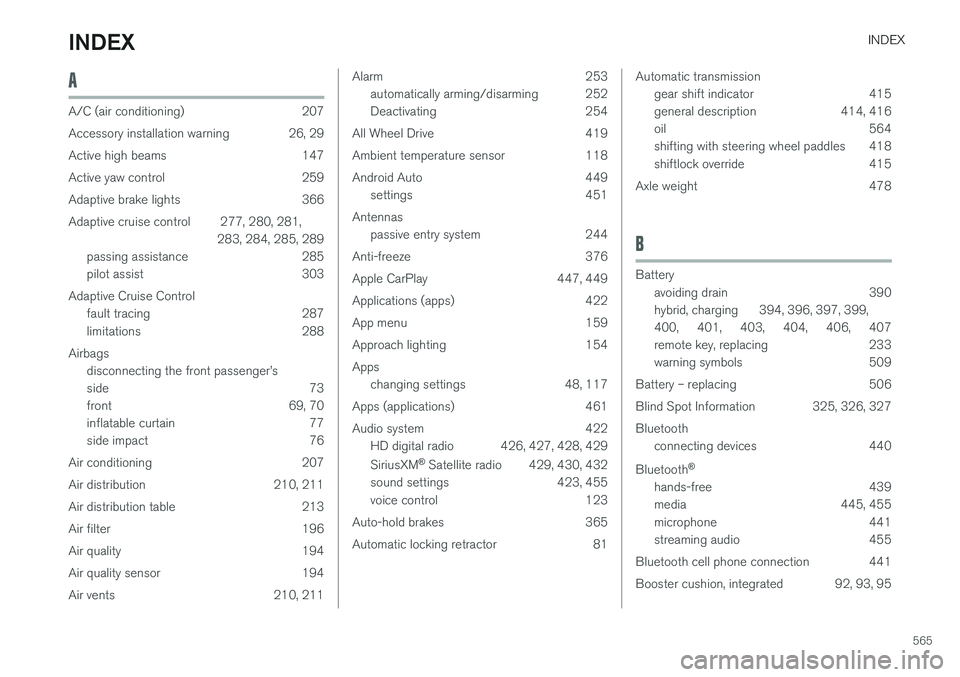

INDEX
565
A
A/C (air conditioning) 207
Accessory installation warning 26, 29
Active high beams 147
Active yaw control 259
Adaptive brake lights 366
Adaptive cruise control 277, 280, 281,283, 284, 285, 289
passing assistance 285
pilot assist 303
Adaptive Cruise Control fault tracing 287
limitations 288
Airbags disconnecting the front passenger

INDEX

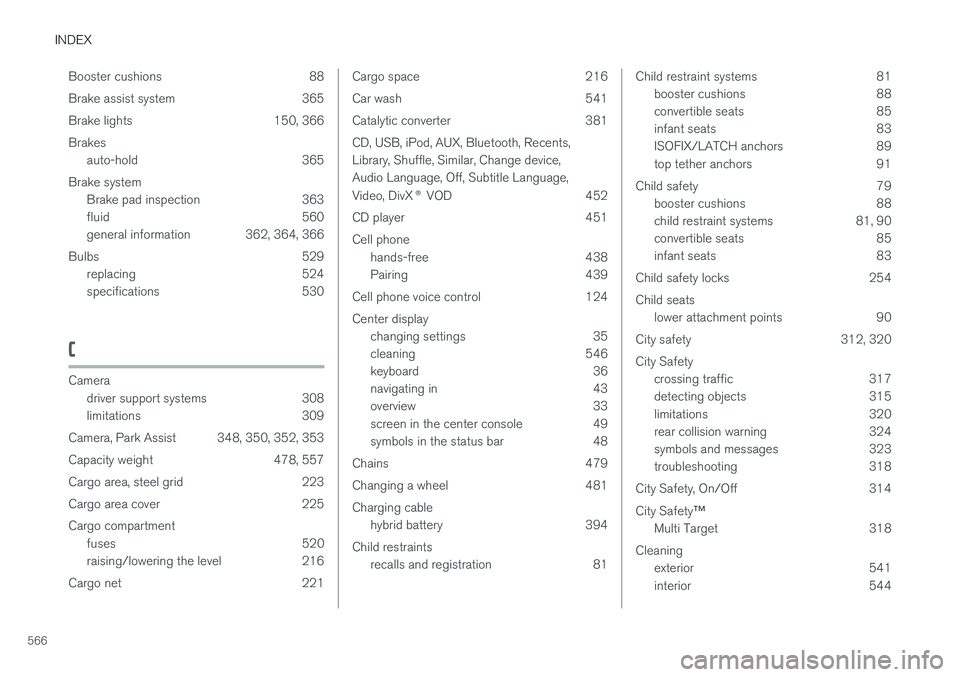

566Booster cushions 88
Brake assist system 365
Brake lights 150, 366Brakes
auto-hold 365
Brake system Brake pad inspection 363
fluid 560
general information 362, 364, 366
Bulbs 529 replacing 524
specifications 530
C
Cameradriver support systems 308
limitations 309
Camera, Park Assist 348, 350, 352, 353
Capacity weight 478, 557
Cargo area, steel grid 223
Cargo area cover 225Cargo compartment fuses 520
raising/lowering the level 216
Cargo net 221
Cargo space 216
Car wash 541
Catalytic converter 381CD, USB, iPod, AUX, Bluetooth, Recents, Library, Shuffle, Similar, Change device,Audio Language, Off, Subtitle Language, Video, DivX ® VOD 452
CD player 451 Cell phone hands-free 438
Pairing 439
Cell phone voice control 124 Center display changing settings 35
cleaning 546
keyboard 36
navigating in 43
overview 33
screen in the center console 49
symbols in the status bar 48
Chains 479
Changing a wheel 481Charging cable hybrid battery 394
Child restraints recalls and registration 81Child restraint systems 81booster cushions 88
convertible seats 85
infant seats 83
ISOFIX/LATCH anchors 89
top tether anchors 91
Child safety 79 booster cushions 88
child restraint systems 81, 90
convertible seats 85
infant seats 83
Child safety locks 254 Child seats lower attachment points 90
City safety 312, 320City Safety crossing traffic 317
detecting objects 315
limitations 320
rear collision warning 324
symbols and messages 323
troubleshooting 318
City Safety, On/Off 314 City Safety ™
Multi Target 318
Cleaning exterior 541
interior 544

INDEX
567

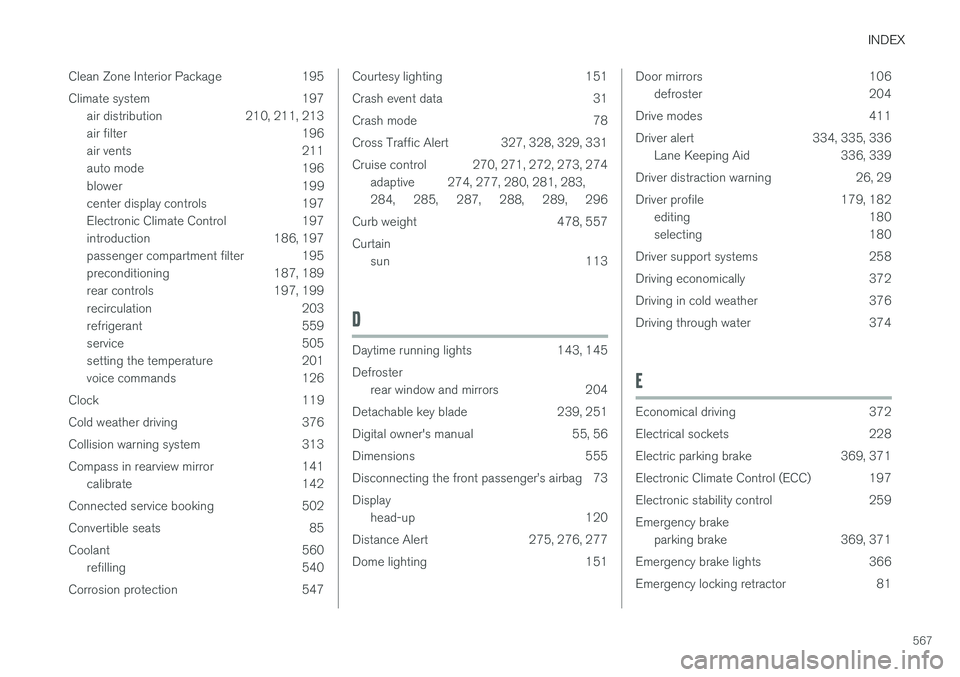

Clean Zone Interior Package 195
Climate system 197
air distribution 210, 211, 213
air filter 196
air vents 211
auto mode 196
blower 199
center display controls 197
Electronic Climate Control 197
introduction 186, 197
passenger compartment filter 195
preconditioning 187, 189
rear controls 197, 199
recirculation 203
refrigerant 559
service 505
setting the temperature 201
voice commands 126
Clock 119
Cold weather driving 376
Collision warning system 313
Compass in rearview mirror 141 calibrate 142
Connected service booking 502
Convertible seats 85
Coolant 560 refilling 540
Corrosion protection 547
Courtesy lighting 151
Crash event data 31
Crash mode 78
Cross Traffic Alert 327, 328, 329, 331
Cruise control 270, 271, 272, 273, 274 adaptive 274, 277, 280, 281, 283, 284 , 285 , 287 , 288 , 289 , 296
Curb weight 478, 557 Curtain sun 113
D
Daytime running lights 143, 145 Defrosterrear window and mirrors 204
Detachable key blade 239, 251
Digital owner's manual 55, 56
Dimensions 555
Disconnecting the front passenger

INDEX

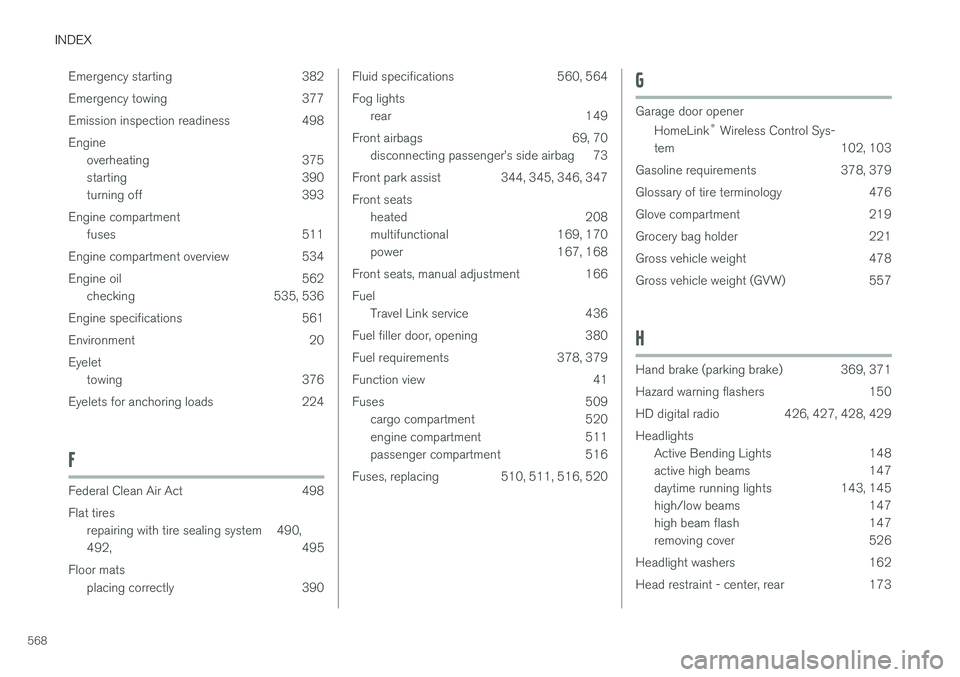

568Emergency starting 382
Emergency towing 377
Emission inspection readiness 498Engine
overheating 375
starting 390
turning off 393
Engine compartment fuses 511
Engine compartment overview 534
Engine oil 562 checking 535, 536
Engine specifications 561
Environment 20Eyelet towing 376
Eyelets for anchoring loads 224
F
Federal Clean Air Act 498 Flat tires repairing with tire sealing system 490, 492 , 495
Floor mats placing correctly 390
Fluid specifications 560, 564 Fog lightsrear 149
Front airbags 69, 70 disconnecting passenger
