Page 391 of 686

VOLVO XC90 T8 2018  Owner´s Manual DRIVER SUPPORT
}}
* Option/accessory.389

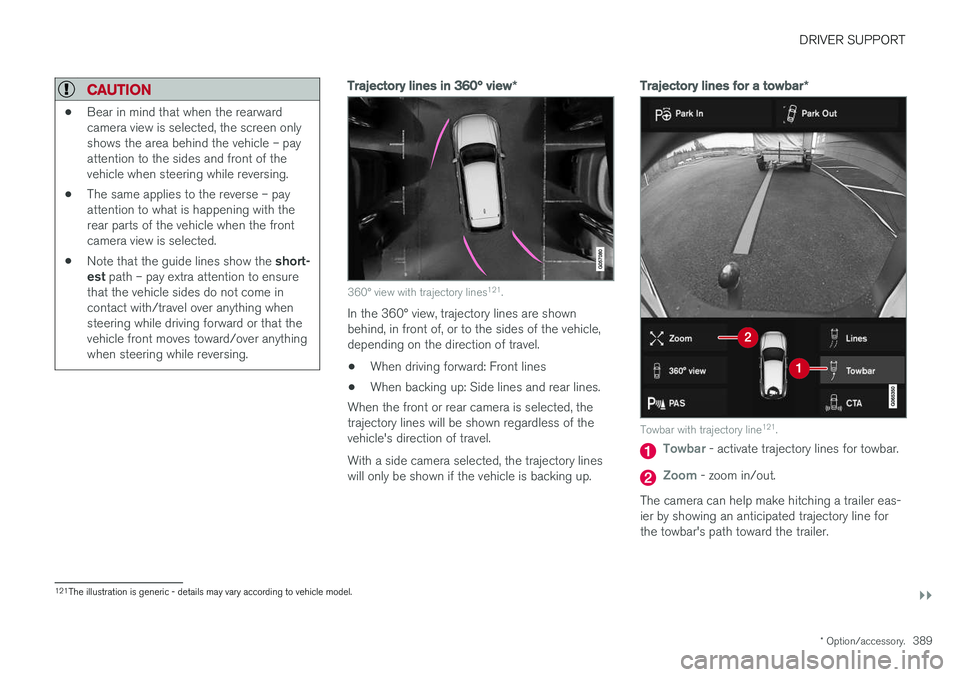

CAUTION
•Bear in mind that when the rearward camera view is selected, the screen onlyshows the area behind the vehicle – payattention to the sides and fron

Page 392 of 686

VOLVO XC90 T8 2018  Owner´s Manual ||
DRIVER SUPPORT
* Option/accessory.

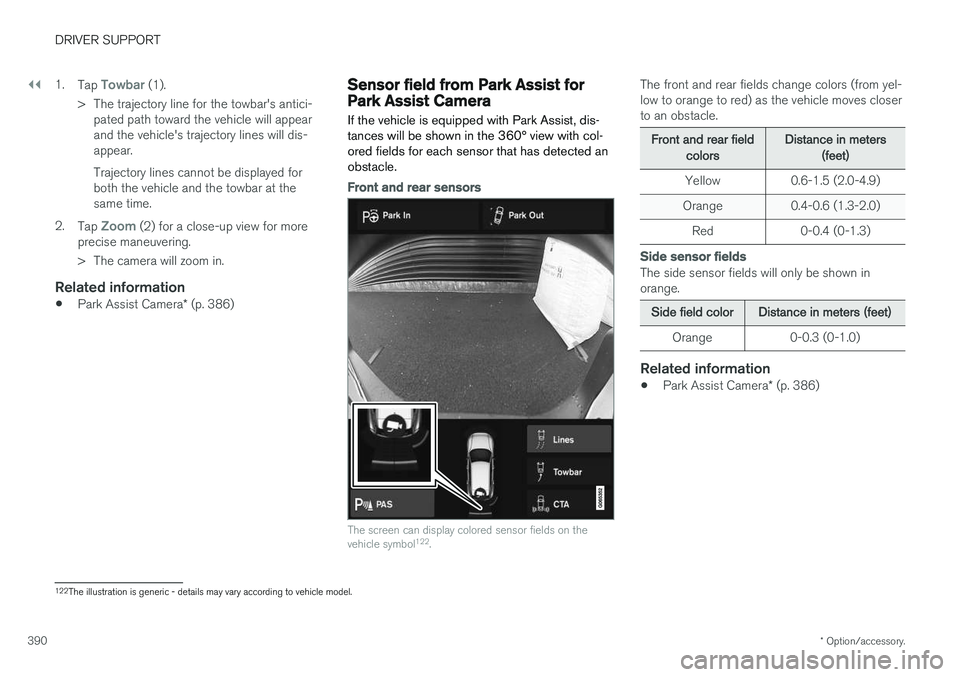

390 1.
Tap
Towbar (1).
> The trajectory line for the towbar's antici- pated path toward the vehicle will appear and the vehicle's trajectory lines will d

Page 393 of 686

VOLVO XC90 T8 2018  Owner´s Manual DRIVER SUPPORT
}}
* Option/accessory.391

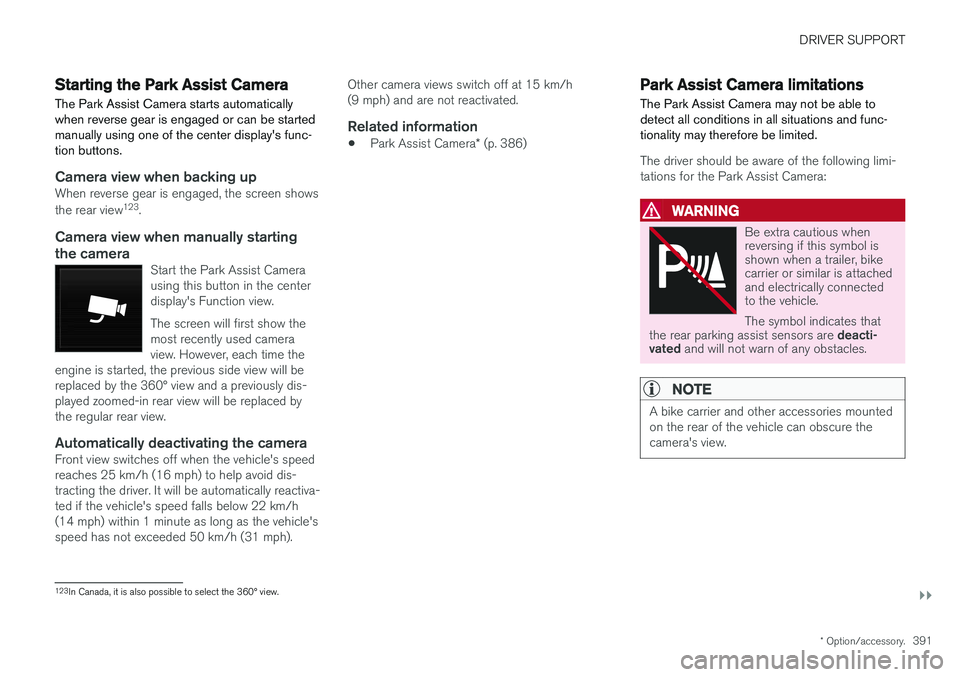

Starting the Park Assist Camera
The Park Assist Camera starts automatically when reverse gear is engaged or can be startedmanually using one of the center disp

Page 394 of 686

VOLVO XC90 T8 2018  Owner´s Manual ||
DRIVER SUPPORT
* Option/accessory.
392

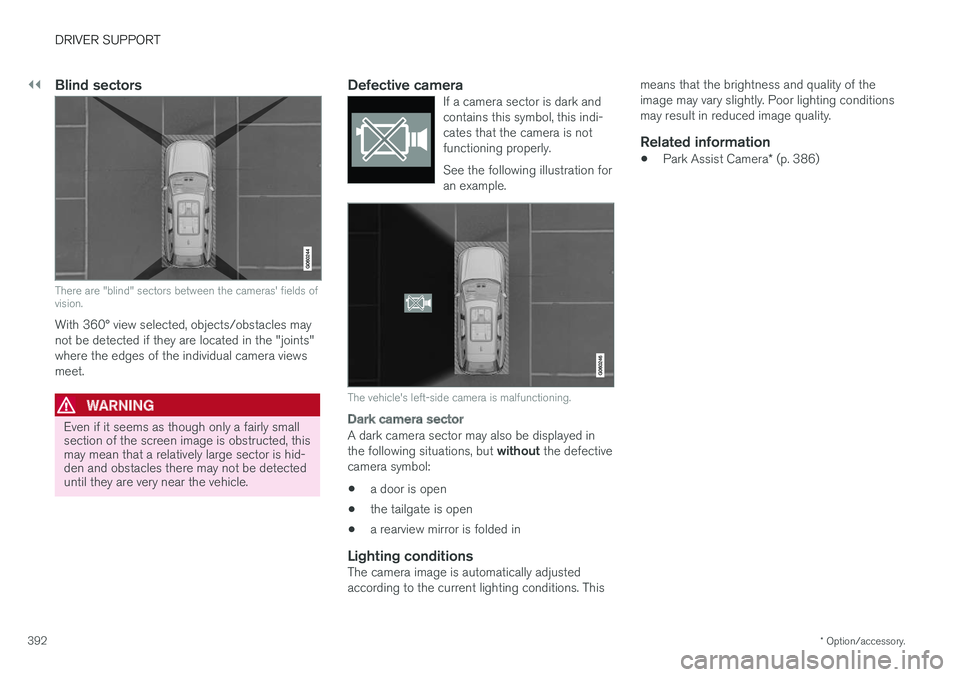

Blind sectors
There are "blind" sectors between the cameras' fields of vision.
With 360° view selected, objects/obstacles may not be detected if

Page 395 of 686

VOLVO XC90 T8 2018  Owner´s Manual DRIVER SUPPORT
* Option/accessory.393

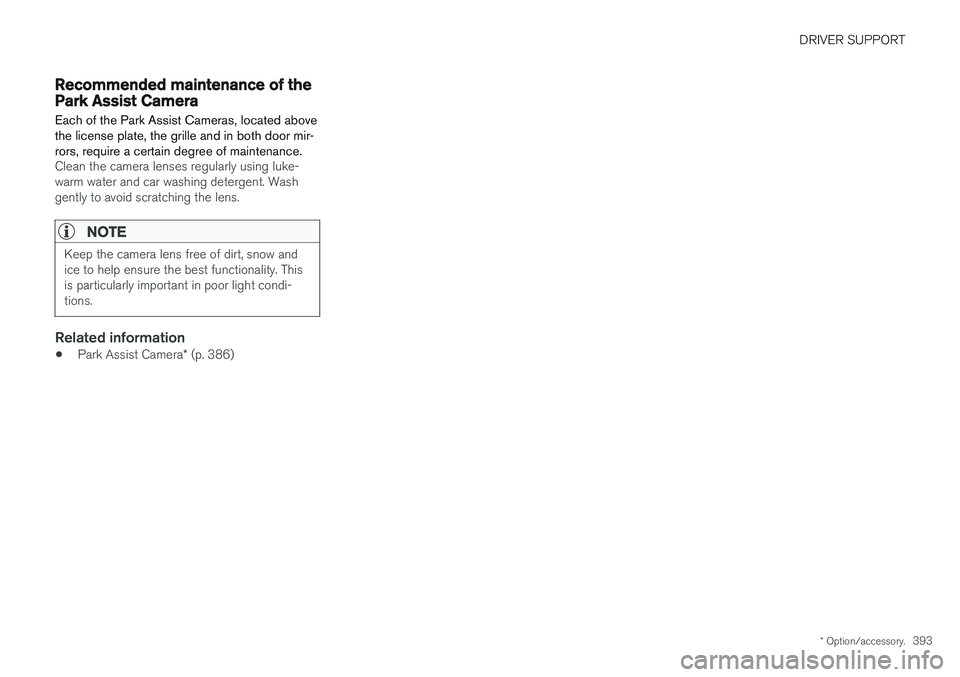

Recommended maintenance of thePark Assist Camera
Each of the Park Assist Cameras, located above the license plate, the grille and in both door mir-rors, require a

Page 396 of 686

VOLVO XC90 T8 2018  Owner´s Manual DRIVER SUPPORT
* Option/accessory.
394

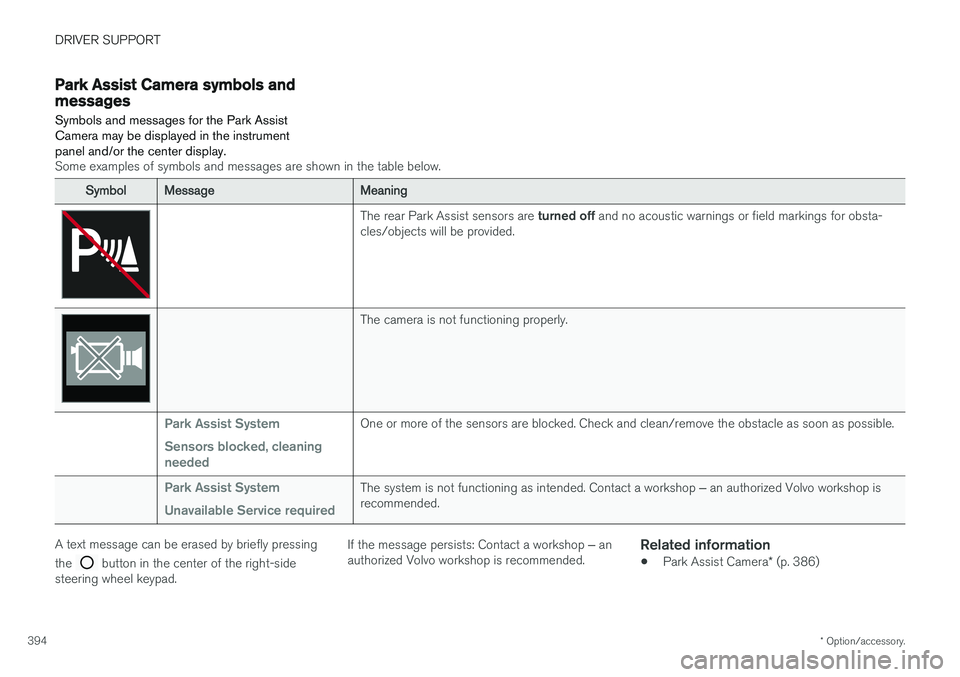

Park Assist Camera symbols andmessages
Symbols and messages for the Park Assist Camera may be displayed in the instrumentpanel and/or the center display.
Some ex

Page 397 of 686

VOLVO XC90 T8 2018  Owner´s Manual DRIVER SUPPORT
}}
* Option/accessory.395

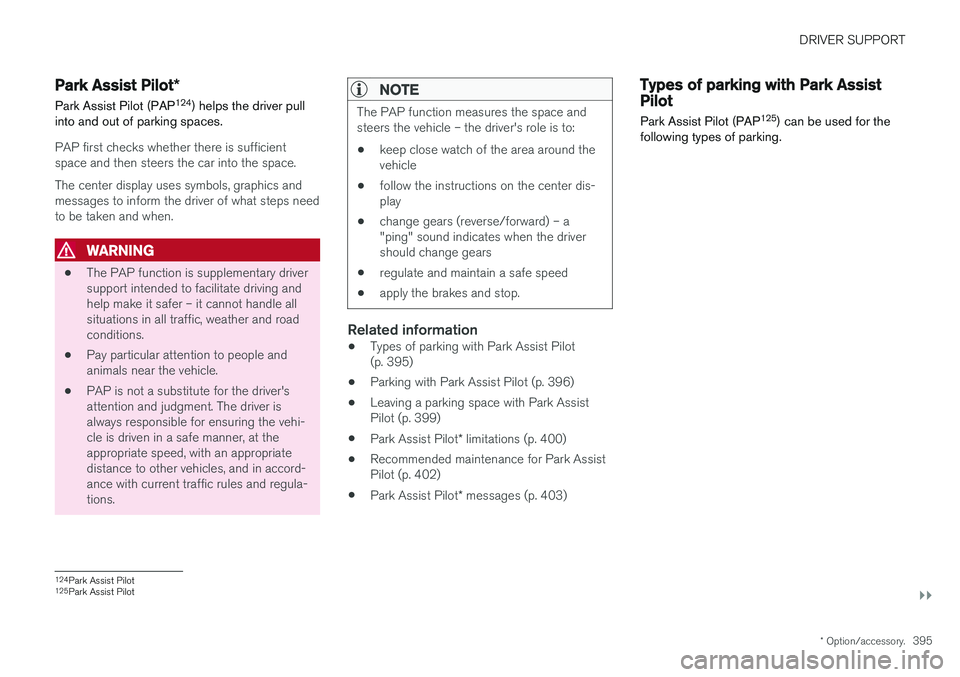

Park Assist Pilot *
Park Assist Pilot (PAP 124
) helps the driver pull
into and out of parking spaces.
PAP first checks whether there is sufficient space and

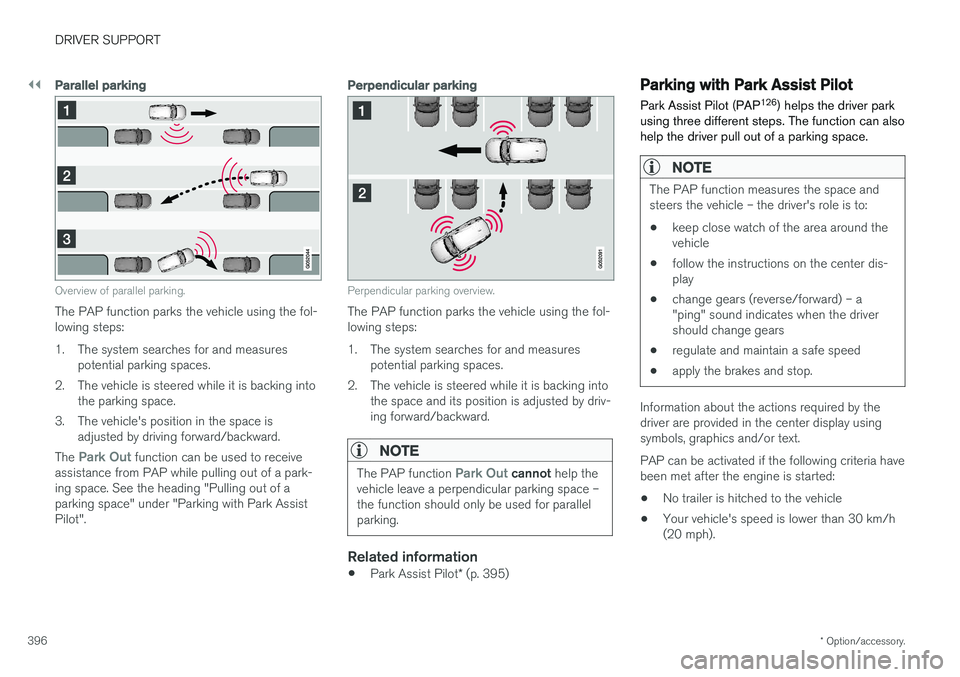

Page 398 of 686

VOLVO XC90 T8 2018  Owner´s Manual ||
DRIVER SUPPORT
* Option/accessory.
396
Parallel parking
Overview of parallel parking.
The PAP function parks the vehicle using the fol- lowing steps:
1. The system searches for and measures
potent

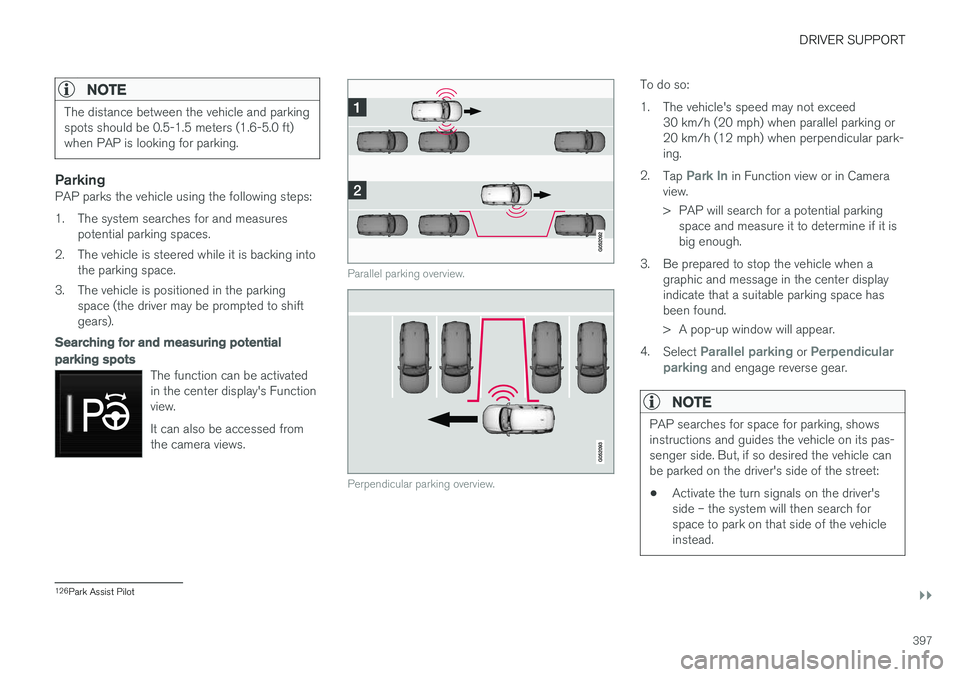

Page 399 of 686

VOLVO XC90 T8 2018  Owner´s Manual DRIVER SUPPORT
}}
397
NOTE
The distance between the vehicle and parking spots should be 0.5-1.5 meters (1.6-5.0 ft)when PAP is looking for parking.
ParkingPAP parks the vehicle using the following ste

Page 400 of 686

VOLVO XC90 T8 2018  Owner´s Manual ||
DRIVER SUPPORT
398

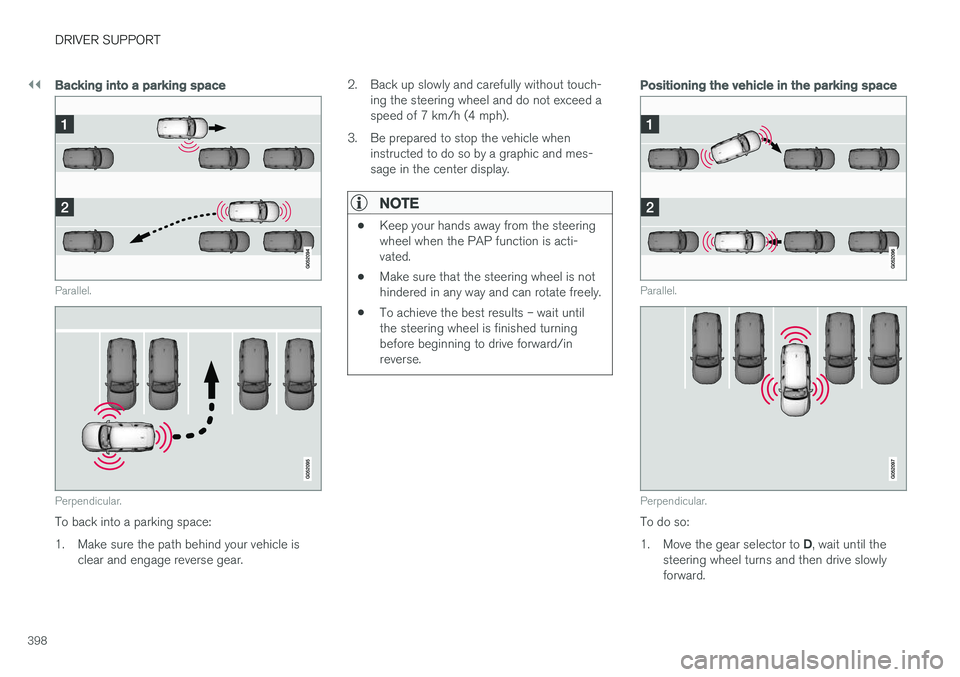

Backing into a parking space
Parallel.
Perpendicular.
To back into a parking space:
1. Make sure the path behind your vehicle isclear and engage reverse gear. 2. Back up slowly
