MAINTENANCE AND SERVICING
542

CAUTION
•Not checking the oil level regularly canresult in serious engine damage if the oillevel becomes too low.
•Oil that is lower than the specified qualitycan damage the engine.
•Volvo does not recommend the use of oiladditives.
•Always add oil of the same type and vis-cosity as already used.
•Oil changes should be carried out by atrained and qualified Volvo service techni-cian.
•Using oil of higher than the specifiedquality is permitted and may be neces-sary for demanding driving.
Also, refer to the Warranty and Service Recordsinformation booklet for information on oil changeintervals and oil specifications.

Related information
•Checking and refilling engine oil (p. 542)
Checking and refilling engine oil
The oil level is checked electronically.
Oil filler cap6
It may be necessary to top up engine oil betweenregularly scheduled services.
No action is necessary until a message is dis-played in the instrument panel.
WARNING
•Do not allow oil to spill onto or come intocontact with hot exhaust pipe surfaces.
•If Engine oil level Service required isdisplayed, have the vehicle checked by atrained and qualified Volvo service techni-cian. The oil level may be too high.
Checking the oil level
The oil level can be checked inthe center display when theengine is not running.
From the center display'sHome view, swipe the screenfrom right to left to open Appview. Tap Car status and then tap Status toshow the oil level.
Oil level graphic in the center display
The oil level should be checked at regular inter-vals, particularly during the period up to the firstscheduled maintenance service.
If the oil level sensor indicates that the level istoo low, using the correct oil, top up with theamount of oil indicated as soon as possible.
6Models with an electronic oil level sensor do not have a dipstick.

MAINTENANCE AND SERVICING
}}
543

NOTE
•The system cannot detect changes in theoil level immediately. The vehicle must bedriven approximately 20 miles (30 km) orhave been parked on level ground withthe engine off for 5 minutes before theoil level reading will be correct.
•If the necessary conditions are not metfor checking the oil level electronically(time interval after the engine wasswitched off, if the vehicle is parked onan incline, etc.), No values available willbe displayed. This does not indicate aproblem with the oil level sensor.

Related information
•Engine oil (p. 541)
•Ignition modes (p. 400)
Windshield wipers in the serviceposition
The windshield wiper blades must be in the verti-cal (service) position for replacement, washingor to lift them away from the windshield whene.g., removing ice or snow.
Wipers in the service position

CAUTION
Be sure the wiper blades are not frozen inposition before attempting to move them tothe service position.

Putting the windshield wipers in the
service position
The service position can be activated while thevehicle is stationary and the wipers are not acti-vated.
The service position can be activated in two waysfrom the center display:
Via Function view
–From Function view, tap the Wiper ServicePosition button. The indicator light in thebutton will illuminate when the service posi-tion is activated.
>The windshield wipers will move to thevertical position.

Via Settings
1.Tap Settings in the center display's Topview.
2.Tap My CarWipers
3.Tap the Wiper Service Position box.
>The windshield wipers will move to thevertical position.

Deactivating service position
The service position can be deactivated in twoways from the center display:

SPECIFICATIONS
568
Engine oil specifications andvolume
Full synthetic engine oil meeting the minimumACEA A5/B5 must be used. Lower quality oilsmay not offer the same fuel economy, engineperformance, or engine protection.
Volvo recommends:
Refer to the warranty and Service Records infor-mation booklet for information on oil changeintervals and oil type requirements.

NOTE
This vehicle comes from the factory with syn-thetic oil.
Oil additives must not be used.
Oil viscosity
Incorrect viscosity oil can shorten engine lifeunder normal use. SAE 5W-30 will provide goodfuel economy and engine protection. See the vis-cosity chart.
Viscosity chart

Extreme engine operation
Volvo oil VCC RBS0-2AE/SAE 0W20 is recom-mended for extreme driving conditions.

Oil volume
The oil volume for the engine is:
6.2 US qts (5.9 liters).

Related information
•Checking and refilling engine oil (p. 542)
Fuel tank volume
The fuel tank's volume is shown below.
The fuel tank's refillable volume is approx. 13.2US gallons (50 liters).
Related information
•Octane rating (p. 392)
•Opening/closing the fuel filler door (p. 393)

SPECIFICATIONS
569

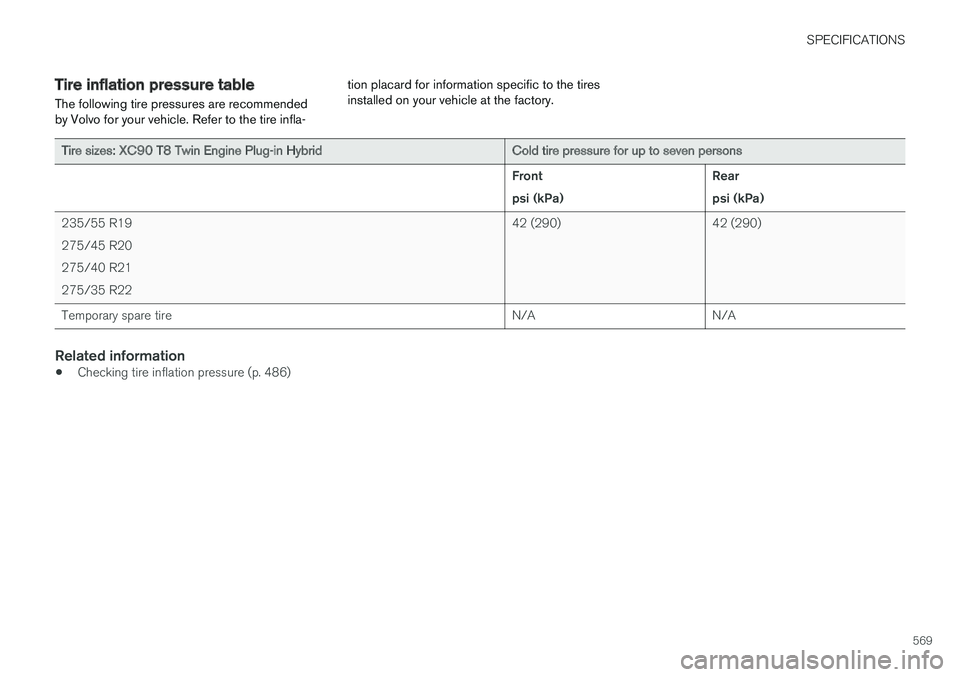

Tire inflation pressure table
The following tire pressures are recommendedby Volvo for your vehicle. Refer to the tire infla-
tion placard for information specific to the tiresinstalled on your vehicle at the factory.
Tire sizes: XC90 T8 Twin Engine Plug-in HybridCold tire pressure for up to seven persons
Front
psi (kPa)
Rear
psi (kPa)
235/55 R19
275/45 R20
275/40 R21
275/35 R22
42 (290)42 (290)
Temporary spare tireN/AN/A

Related information
•Checking tire inflation pressure (p. 486)
