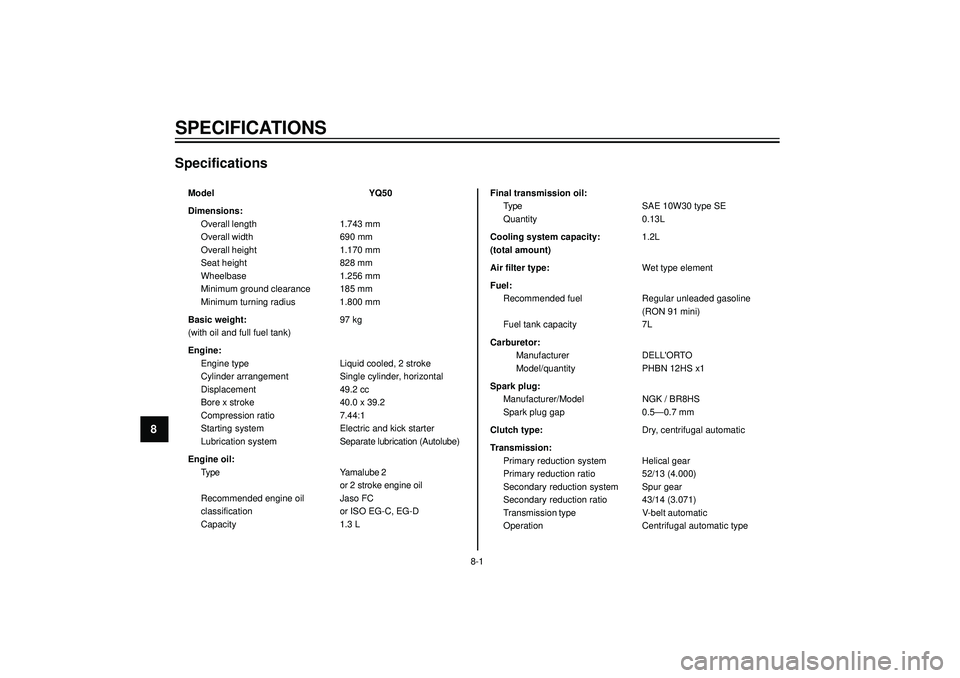

SPECIFICATIONS
8
Specifications
Model YQ50
Dimensions:
Overall length 1.743 mm
Overall width 690 mm
Overall height 1.170 mm
Seat height 828 mm
Wheelbase 1.256 mm
Minimum ground clearance 185 mm
Minimum turning radius 1.800 mm
Basic weight:97 kg
(with oil and full fuel tank)
Engine:
Engine type Liquid cooled, 2 stroke
Cylinder arrangement Single cylinder, horizontal
Displacement 49.2 cc
Bore x stroke 40.0 x 39.2
Compression ratio 7.44:1
Starting system Electric and kick starter
Lubrication systemSeparate lubrication (Autolube)
Engine oil:
Type Yamalube 2
or 2 stroke engine oil
Recommended engine oil Jaso FC
classification or ISO EG-C, EG-D
Capacity 1.3 LFinal transmission oil:
Type SAE 10W30 type SE
Quantity 0.13L
Cooling system capacity:1.2L
(total amount)
Air filter type:Wet type element
Fuel:
Recommended fuel Regular unleaded gasoline
(RON 91 mini)
Fuel tank capacity 7L
Carburetor:
Manufacturer DELL'ORTO
Model/quantity PHBN 12HS x1
Spark plug:
Manufacturer/Model NGK / BR8HS
Spark plug gap 0.5—0.7 mm
Clutch type:Dry, centrifugal automatic
Transmission:
Primary reduction system Helical gear
Primary reduction ratio 52/13 (4.000)
Secondary reduction system Spur gear
Secondary reduction ratio 43/14 (3.071)
Transmission type V-belt automatic
Operation Centrifugal automatic type
8-1
