INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU10640
ON “”
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.NOTE:The headlight, meter lighting and tail-
light come on automatically when theengine is started.
EAU10660
OFF “”
All electrical systems are off. The key
can be removed.
EAU10670
CHECK “”
The 2-stroke engine oil level warning
light should come on. (See page 3-2.)
EAU10680
LOCK “”
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “” posi-
tion, and then turn it to “” while
still pushing it.
3. Remove the key.
To unlock the steeringPush the key in, and then turn it to “”
while still pushing it.
WARNING
EWA10060
Never turn the key to “” or “”
while the vehicle is moving, other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-fore turning the key to “” or “”.
PUSHOPEN
ZAUM0253

PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
6
EAU24201
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.
CAUTION:
ECA11190
Do not overtighten the screw, other-wise the lens may break.
EAU25880
Troubleshooting Although Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your scooter re-
quire any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the scooter prop-
erly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
ZAUM0285ZAUM0286

PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
EAU25941
Troubleshooting charts Starting problems or poor engine performance
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plugs
and check the electrodes.3. Ignition
Wet
Dry
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.The engine does not start.
Check the battery.
Open the throttle halfway and operate
the electric starter.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.The battery is good.
Check the electrolyte and battery
lead connections, and charge the
battery if necessary.The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the compressoin.

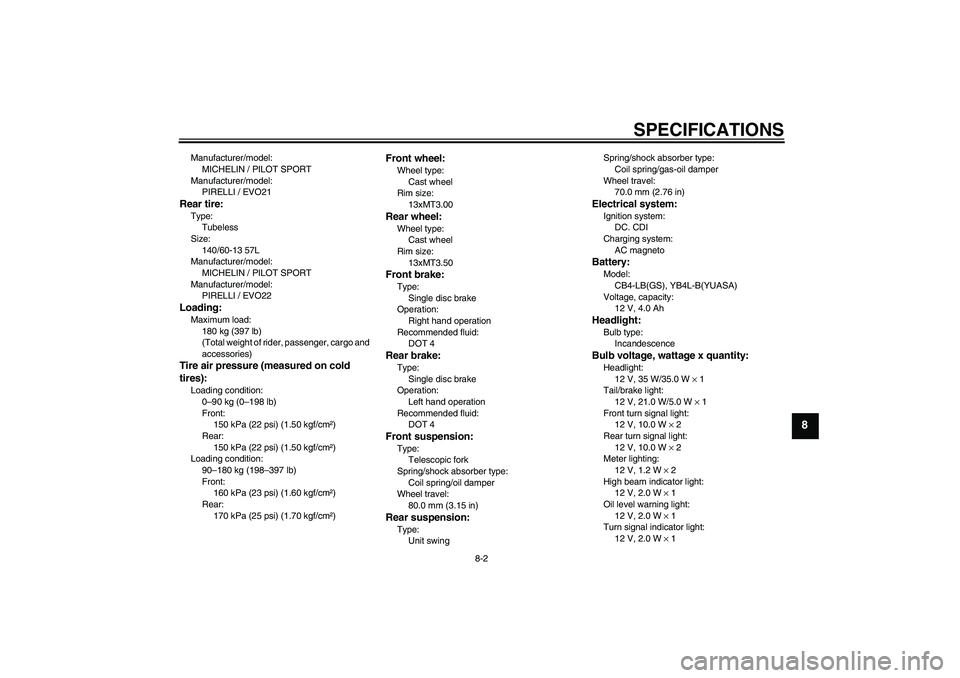

SPECIFICATIONS
8-2
8
Manufacturer/model:
MICHELIN / PILOT SPORT
Manufacturer/model:
PIRELLI / EVO21Rear tire:Type:
Tubeless
Size:
140/60-13 57L
Manufacturer/model:
MICHELIN / PILOT SPORT
Manufacturer/model:
PIRELLI / EVO22Loading:Maximum load:
180 kg (397 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
150 kPa (22 psi) (1.50 kgf/cm²)
Rear:
150 kPa (22 psi) (1.50 kgf/cm²)
Loading condition:
90–180 kg (198–397 lb)
Front:
160 kPa (23 psi) (1.60 kgf/cm²)
Rear:
170 kPa (25 psi) (1.70 kgf/cm²)
Front wheel:Wheel type:
Cast wheel
Rim size:
13xMT3.00Rear wheel:Wheel type:
Cast wheel
Rim size:
13xMT3.50Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
80.0 mm (3.15 in)Rear suspension:Type:
Unit swingSpring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
70.0 mm (2.76 in)
Electrical system:Ignition system:
DC. CDI
Charging system:
AC magnetoBattery:Model:
CB4-LB(GS), YB4L-B(YUASA)
Voltage, capacity:
12 V, 4.0 AhHeadlight:Bulb type:
IncandescenceBulb voltage, wattage x quantity:Headlight:
12 V, 35 W/35.0 W × 1
Tail/brake light:
12 V, 21.0 W/5.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Meter lighting:
12 V, 1.2 W × 2
High beam indicator light:
12 V, 2.0 W × 1
Oil level warning light:
12 V, 2.0 W × 1
Turn signal indicator light:
12 V, 2.0 W × 1
